81
Instrument cluster2
RC350/RCF_U (OM24636U)
2. Instrument clusterWarning lights and indicators ....................................... 82
Gauges and meters (RC350) ....................................... 90
Gauges and meters (RC F) ............................................. 96
Multi-information display (RC350) ..................................... 103
Multi-information display (RC F) .............................................110
Fuel consumption information ................................. 123

82
RC350/RCF_U (OM24636U)2. Instrument cluster
RC350 (except F SPORT models)
RC350 (F SPORT models)
Warning lights and indicators
The warning lights and indicators on th
e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustrations display all warning
lights and indicators illuminated.

832. Instrument cluster
2
Instrument cluster
RC350/RCF_U (OM24636U)

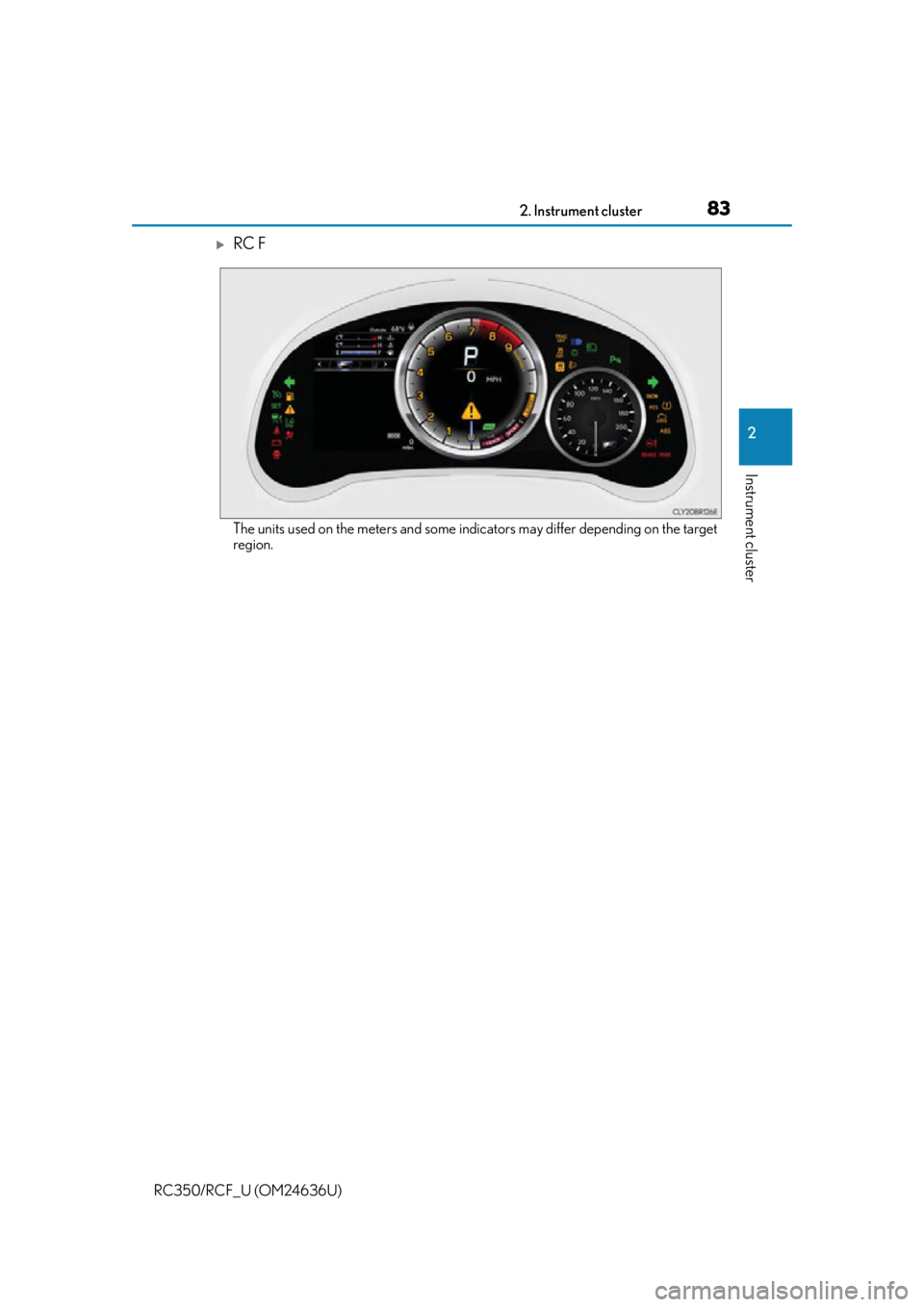

RC F
The units used on the meters and some indicators may differ depending on the target
region.

842. Instrument cluster
RC350/RCF_U (OM24636U)

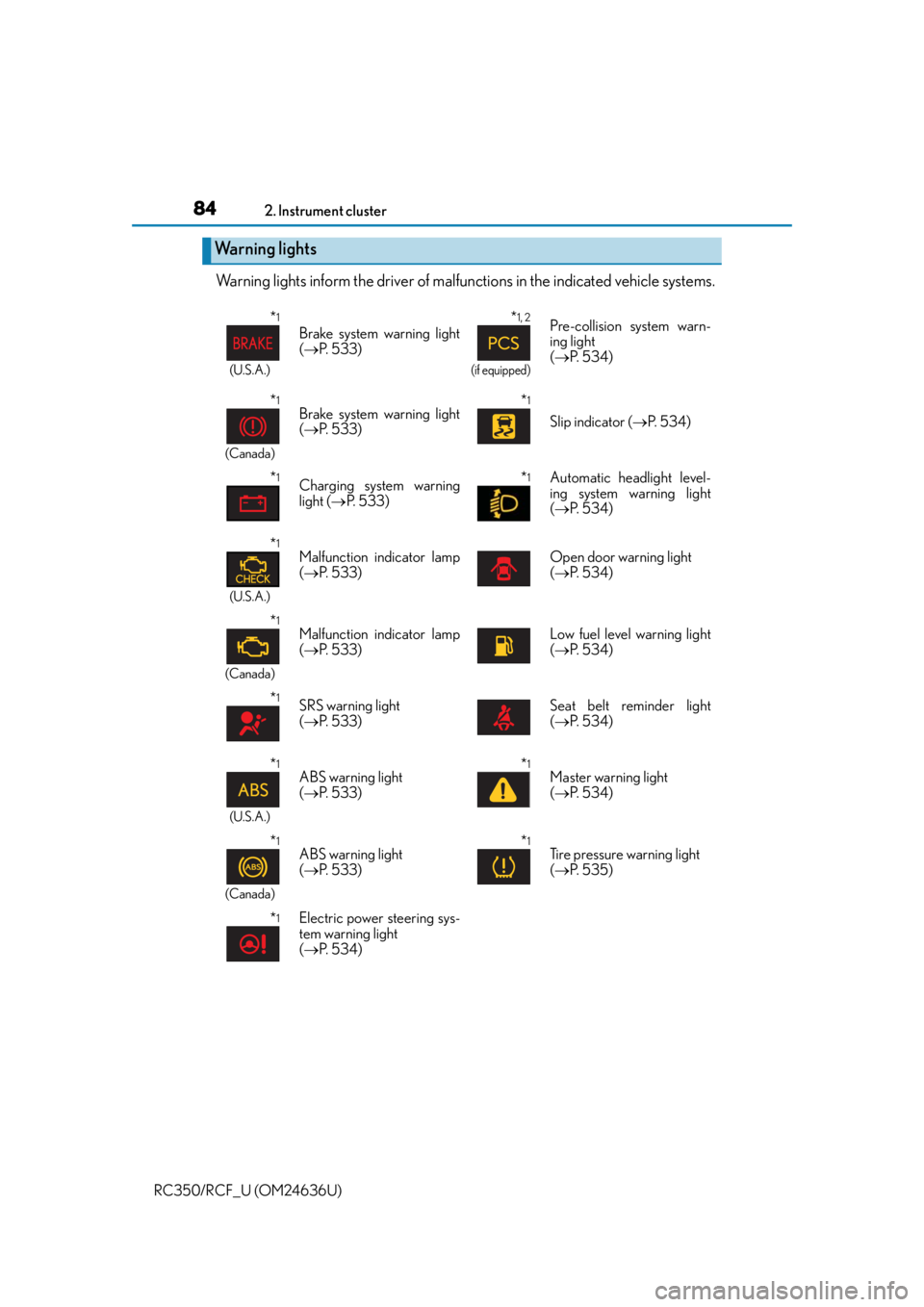

Warning lights inform the driver of malfun ctions in the indicated vehicle systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 5 3 3 )
*1, 2
(if equipped)
Pre-collision system warn-
ing light
( P. 5 3 4 )
*1
(Canada)
Brake system warning light
( P. 5 3 3 )*1
Slip indicator ( P. 5 3 4 )
*1Charging system warning
light ( P. 5 3 3 )*1 Automatic headlight level-
ing system warning light
( P. 5 3 4 )
*1
(U.S.A.)
Malfunction indicator lamp
( P. 5 3 3 )Open door warning light
( P. 5 3 4 )
*1
(Canada)
Malfunction indicator lamp
( P. 5 3 3 )Low fuel level warning light
( P. 5 3 4 )
*1SRS warning light
( P. 5 3 3 )Seat belt reminder light
( P. 5 3 4 )
*1
(U.S.A.)
ABS warning light
( P. 5 3 3 )*1Master warning light
( P. 5 3 4 )
*1
(Canada)
ABS warning light
( P. 5 3 3 )*1Tire pressure warning light
( P. 5 3 5 )
*1Electric power steering sys-
tem warning light
( P. 5 3 4 )

852. Instrument cluster
2
Instrument cluster
RC350/RCF_U (OM24636U)
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehi cle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
( P. 2 0 4 )
(if equipped)
LDA (Lane Departure
Alert) indicator ( P. 2 4 8 )
(U.S.A.)
Headlight indicator
( P. 2 0 8 )

(if equipped)
Intuitive parking assist indi-
cator ( P. 2 5 5 )
(Canada)
Tail light indicator
( P. 2 0 8 ) *1, 2 Slip indicator ( P. 2 8 4 )
Headlight high beam indi-
cator ( P. 2 0 9 )
*1VSC OFF indicator
( P. 2 8 5 )
(if equipped)
Automatic High Beam indi-
cator ( P. 211)*1, 8TRAC OFF indicator
( P. 2 8 4 )
(if equipped)
Front fog light indicator
( P. 2 1 6 )*1, 3
(if equipped)
Pre-collision system warn-
ing light
( P. 2 9 1 )
Cruise control indicator
(  P. 2 2 9 , 2 3 3 )
*4, 6
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 2 9 7 )
(if equipped)
Dynamic radar cruise con-
trol indicator ( P. 2 3 3 )*7Security indicator
( P. 76 , 7 8 )
Cruise control “SET” indica-
tor ( P. 229, 233)
*5Low outside temperature
indicator ( P. 9 0 , 9 6 )

862. Instrument cluster
RC350/RCF_U (OM24636U)
●Drive mode indicators
RC350 (except F SPORT models)
RC350 (F SPORT models)
*1Eco Driving Indicator Light
(  P. 88)*1, 7“AIR BAG ON/OFF”
indicator ( P. 5 0 )
*8
(U.S.A.)
Parking brake indicator
( P. 2 0 5 )
*8
“EXPERT” indicator
( P. 2 8 6 )
*8
(Canada)
Parking brake indicator
( P. 2 0 5 )
Eco drive mode indicator
( P. 2 7 8 ) “SPORT” indicator
(
 P. 2 7 8 )
Snow mode indicator
(  P. 2 0 0 )
Eco drive mode indicator
( P. 2 7 8 ) “SPORT S” indicator
(
 P. 2 7 8 )
“SPORT S+” indicator
(  P. 2 7 8 ) Snow mode indicator
(
 P. 2 0 0 )

872. Instrument cluster
2
Instrument cluster
RC350/RCF_U (OM24636U)
RC F
●TVD (Torque Vectoring Differential) control mode indicators (RC F)
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehi cle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turn ed off. The light will flash quickly when the
system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is turned on.
• When the BSM main switch is turned on while the engine swit ch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indica tors do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8:RC F“NORMAL” indicator
(
 P. 2 7 8 ) Eco drive mode indicator
(
 P. 2 7 8 )
“SPORT S” indicator
(  P. 2 7 8 ) “SPORT S+” indicator
(
 P. 2 7 8 )
Snow mode indicator
(  P. 2 0 0 )
(if equipped)
“STANDARD” indicator
( P. 313)
(if equipped)
“SLALOM” indicator
( P. 313)
(if equipped)
“TRACK” indicator
( P. 313)

882. Instrument cluster
RC350/RCF_U (OM24636U)
■Eco Driving Indicator
RC350
Eco Driving Indicator will not operat e under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. (P. 2 7 8 )
●The vehicle speed is approximately 80 mph (130 km/h) or higher.
RC F
Eco Driving Indicator will not operat e under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. (P. 2 7 8 )
●The vehicle speed is approximately 80 mph (130 km/h) or higher. Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will turn
on. When the acceleration exceeds the Zone
of Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indi-
cator Zone Display will illuminate.
Zone of Eco driving
During Eco-friendly acceleration (Eco driving),
the Eco Driving Indicator Light will turn on.
When the acceleration exceeds the Zone of
Eco driving, or when the vehicle is stopped, the
light turns off.
1
2
3
4

892. Instrument cluster
2
Instrument cluster
RC350/RCF_U (OM24636U)
WA R N I N G
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

902. Instrument cluster
RC350/RCF_U (OM24636U)
◆Except F SPORT models
◆F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
Main meter in center position
Gauges and meters (RC350)
