After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact your Lexus dealer.
3
1
2
RC350/RC300RC200t
RC F

6108-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
The coolant level is satisfactory if it is between the full (“FULL” or “F”) and low
(“LOW” or “L”) lines on the reservoir.
Reservoir
“FULL” or “F”
“LOW” or “L”4
1
2
3
Engine (RC350/RC300)Engine (RC200t)
Engine (RC F)Intercooler (RC200t)

6118-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are oper ating by checking the fan sound and air flow.
If it is difficult to check th ese, turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
5
Engine (RC350/RC300)Engine (RC200t)
Engine (RC F)Intercooler (RC200t)
6
7

6128-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●RC350/RC300: While the engine and radi-
ator are hot, do not loosen or remove the
coolant reservoir cap or radiator cap. (The
radiator cap is located under the engine
cover.)
High temperature steam or coolant could
spray out.
●RC200t: While the engine and radiators are
hot, do not loosen or remove the coolant res-
ervoir cap, radiator cap, or intercooler cool-
ant reservoir cap.
High temperature steam or coolant could
spray out.
●RC F: While the engine and radiator are hot,
do not loosen or remove the coolant reser-
voir cap.
High temperature steam or coolant could
spray out.

6138-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

6148-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
RC350/RC300/RC200t
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press ( ) to turn off TRAC.
1
2
3
4
5

6199-1. Specifications
9
Vehicle specifications
RC350_RC300_RC200t_RC F_U (OM24671U)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
Vehicle identification
RC350/RC300RC200t
RC F

6209-1. Specifications
RC350_RC300_RC200t_RC F_U (OM24671U)
This number is also on the Certifica-
tion Label.
■Engine number
The engine number is located as shown.
RC350/RC300RC200t
RC F

6219-1. Specifications
9
Vehicle specifications
RC350_RC300_RC200t_RC F_U (OM24671U)

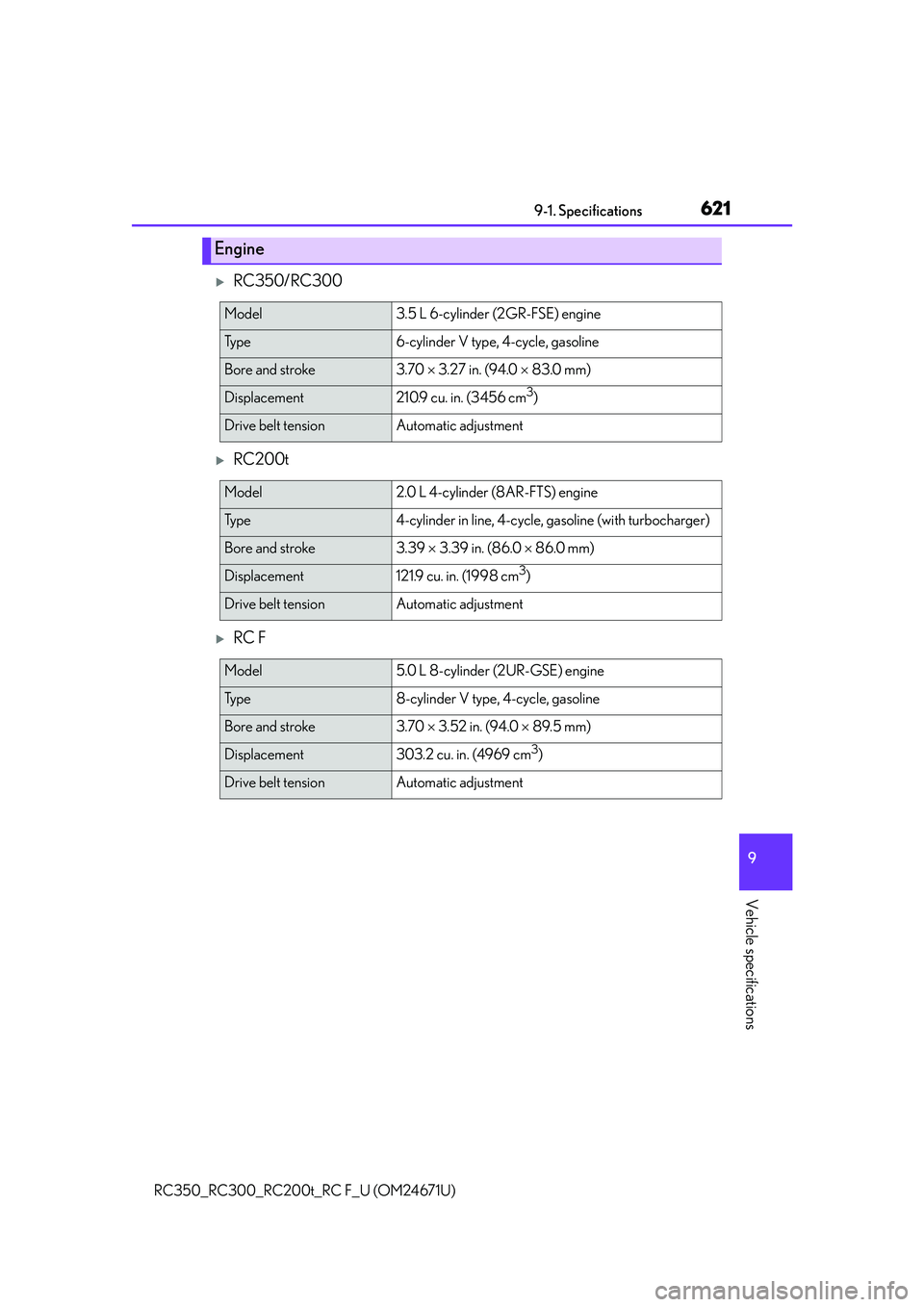

RC350/RC300
RC200t
RC F
Engine
Model3.5 L 6-cylinder (2GR-FSE) engine
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Model2.0 L 4-cylinder (8AR-FTS) engine
Ty p e4-cylinder in line, 4-cycle, gasoline (with turbocharger)
Bore and stroke3.39  3.39 in. (86.0  86.0 mm)
Displacement121.9 cu. in. (1998 cm3)
Drive belt tensionAutomatic adjustment
Model5.0 L 8-cylinder (2UR-GSE) engine
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Drive belt tensionAutomatic adjustment

6229-1. Specifications
RC350_RC300_RC200t_RC F_U (OM24671U)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp. gal.)
Lubrication system
With filterWithout filter
RC350 (2WD)6.6 qt. (6.2 L, 5.5 Imp. qt.)6.2 qt. (5.9 L, 5.2 Imp. qt.)
RC350 (AWD)/
RC3006.8 qt. (6.4 L, 5.6 Imp. qt.)6.3 qt. (6.0 L, 5.3 Imp. qt.)
RC200t4.9 qt. (4.6 L, 4.0 Imp. qt.)4.5 qt. (4.3 L, 3.8 Imp. qt.)
RC F9.3 qt. (8.8 L, 7.7 Imp. qt.)8.3 qt. (7.9 L, 7.0 Imp. qt.)
