6409-1. Specifications
RC350/RC300/RC200t
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
RC F
*:Unladen vehicle

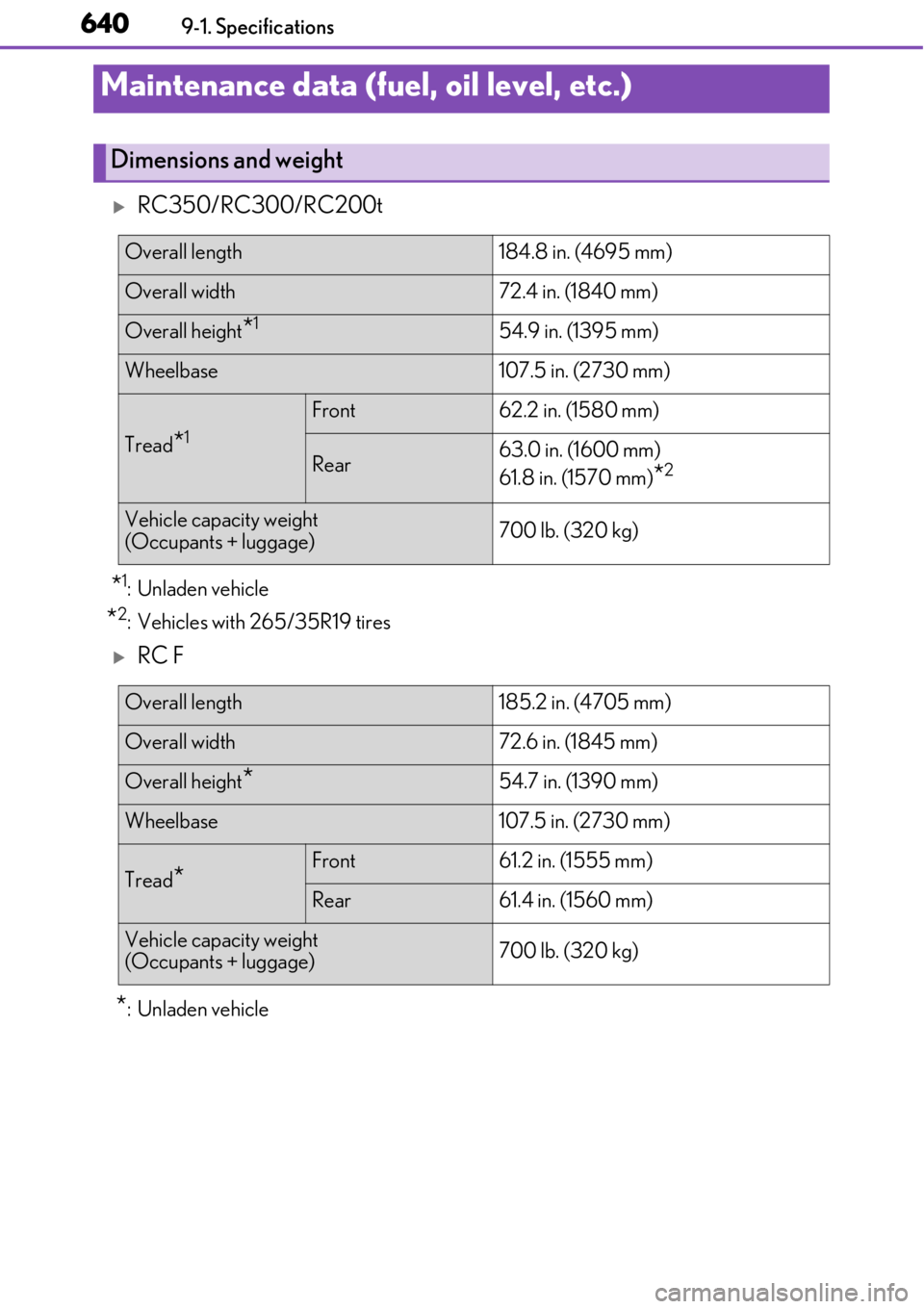

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length184.8 in. (4695 mm)
Overall width72.4 in. (1840 mm)
Overall height*154.9 in. (1395 mm)
Wheelbase107.5 in. (2730 mm)
Tread*1
Front62.2 in. (1580 mm)
Rear63.0 in. (1600 mm)
61.8 in. (1570 mm)
*2
Vehicle capacity weight
(Occupants + luggage)700 lb. (320 kg)
Overall length185.2 in. (4705 mm)
Overall width72.6 in. (1845 mm)
Overall height*54.7 in. (1390 mm)
Wheelbase107.5 in. (2730 mm)
Tread*Front61.2 in. (1555 mm)
Rear61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)700 lb. (320 kg)

6649-1. Specifications
■Typical tire size information
The illustration indicates typical tire
size.Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
1
2
3
4
5
6
7
1
2
3
