1011-2. Theft deterrent system
1
For safety and security
RC200t_RC F_EE(OM24728E)

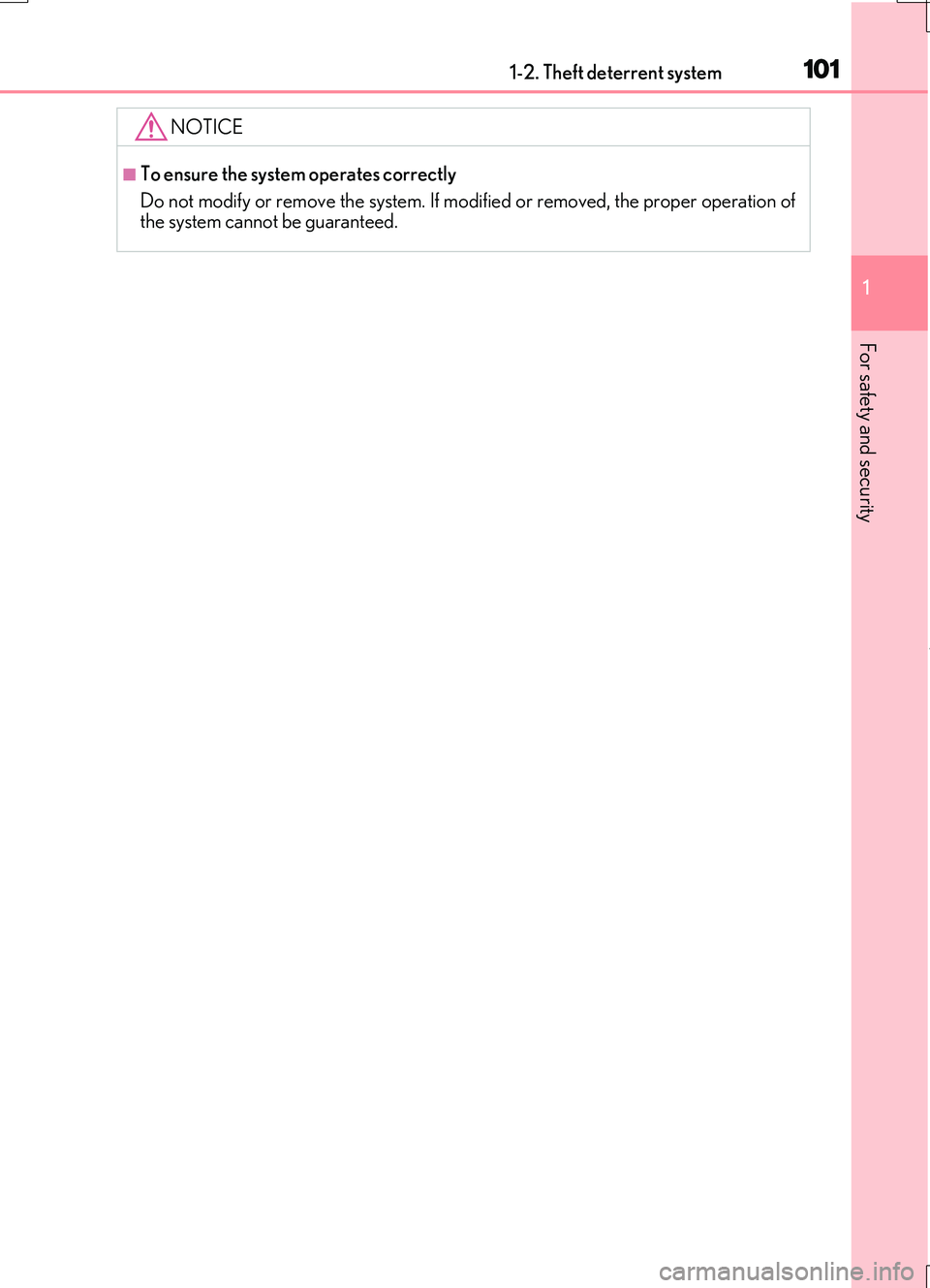

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modi fied or removed, the proper operation of the system cannot be guaranteed.

1021-2. Theft deterrent system
RC200t_RC F_EE(OM24728E)
Vehicles employing this system have
labels on the side windows.
Turn the engine switch off, have all the passengers exit the vehicle and ensure
that both side doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system
Unauthorized access to the vehicle is pr evented by disabling the door unlock-
ing function from both the interior and exterior of the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle because both side doors cannot be opened from inside the vehicle.

1031-2. Theft deterrent system
1
For safety and security
RC200t_RC F_EE(OM24728E)
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function or wireless remote control. (The door will lock again automati-
cally.)
●The hood is opened.
●The intrusion sensor detects something moving inside the vehicle. (Example:
an intruder breaks a window and gets into the vehicle.) (if equipped)
●The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood, and
lock both side doors using the entry
function or wireless remote control.
The system will be set automatically
after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Alarm

: If equipped
The alarm
Setting the alarm system

1041-2. Theft deterrent system
RC200t_RC F_EE(OM24728E)
Do one of the following to deactivate or stop the alarm:
●Unlock the doors or open the trunk using the entry function or wireless
remote control.
●Start the engine. (The alarm will be deactivated or stopped after a few sec-
onds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1051-2. Theft deterrent system
1
For safety and security
RC200t_RC F_EE(OM24728E)
■Triggering of the alarm
The alarm may be triggered in the following situations: (Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remain ing in the vehicle unlocks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the battery
●The doors or trunk are unlocked using the mechanical key.
●A person inside the vehicle opens a door, thetrunk or hood, or unlocks the vehicle using a
inside lock button.
●The battery is recharged or replaced when the vehicle is locked. ( P. 657)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modi fied or removed, the proper operation of the system cannot be guaranteed.

1061-2. Theft deterrent system
RC200t_RC F_EE(OM24728E)
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and pr event vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. ( P. 103)
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor and tilt sensor before setting the alarm, as they will
respond to movement inside the vehicle.
Turn the engine switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
Press the switch again to re-enable the intrusion sensor and tilt sensor.
Each time the intrusion sensor is canceled/set, a message will beshown on the multi-information dis-
play in the instrument cluster.
Intrusion sensor (if equipped) /Intrusion sensor and tilt sensor (if
equipped)
1
2

1071-2. Theft deterrent system
1
For safety and security
RC200t_RC F_EE(OM24728E)
■Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
●The alarm will still be set even when the intrusion sensor and tilt sensor are canceled.
●After the intrusion sensor and tilt sensor are canceled, pressing the engine switch or unlocking the doors using the entry function or wireless remote control will re-enable
the intrusion sensor and tilt sensor.
●The intrusion sensor and tilt sensor will automatically be re-enabled when the alarm system is deactivated.
■Intrusion sensor dete ction considerations
The sensor may trigger the alarm in the following situations:
●Places with extreme vibrations or noises, or situations in which the vehicle is subject to repeated impacts or vibrations:
• When parked in a parking garage • When ice adhering to the vehicle is removed• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●A window or the moon roof is open. In this case, the sensor may detect the follow-ing:
• Wind or the movement of objects such as leaves and insects inside the vehicle• Ultrasonic waves emitted from devices
such as the intrusion sensors of other vehi- cles• The movement of people outside the vehi-
cle
●Unstable items, such as dangling accessories
or clothes hanging on the coat hooks, are in the vehicle.

1081-2. Theft deterrent system
RC200t_RC F_EE(OM24728E)
■Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
●The vehicle is transported by a ferry, trailer, train, etc.
●The vehicle is parked in a parking garage.
●The vehicle is inside a car wash that moves the vehicle.
●Any of the tires loses air pressure.
●The vehicle is jacked up.
●An earthquake occurs or the road caves in.
NOTICE
■To ensure the intrusion sensor function correctly
●Installing accessories other than genuine Lexus parts or leaving objects between the driver’s seat and front passenger’s seat may reduce the detection performance.
●To ensure that the sensors operate properly,do not touch or cover them.
●Do not spray air freshe ners or other products directly into the sensor holes.

109
2Instrument cluster
RC200t_RC F_EE(OM24728E)
2. Instrument cluster
Warning lights and
indicators.......................................110
Gauges and meters
(RC200t) .....................................118
Gauges and meters
(RC F) ............................................124
Multi-information display
(RC200t) ..................................... 131
Multi-information display
(RC F) ........................................... 139
Fuel consumption
information ................................. 152

110
RC200t_RC F_EE(OM24728E)
2. Instrument cluster
RC200t (except F SPORT models)
RC200t (F SPORT models)
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the fo llowing illustrations display all warning
lights and indicators illuminated.
