3564-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
◆Pre-crash warning
When a high possibility of a frontal
collision is detected, the pre-crash
safety system warning light flashes, a
buzzer sounds and a message is
shown on the multi-information dis-
play to urge the driver to take eva-
sive action.
◆Pre-crash brake assist
When there is a high possibility of a frontal collision, the system applies
greater braking force in relation to how strongly the brake pedal is depressed.
The system may not warn the driver using a warning light, warning display and
buzzer when the system detects and judges braking operations.
◆Pre-crash braking
When there is a high possibility of a frontal collision, the system warns the
driver using a warning ligh t, warning display and buzzer. If the system deter-
mines that a collision is unavoidable, the brakes are automatically applied to
reduce the collision speed.
◆Suspension control (if equipped)
When the system determines that there is a high possibility of a frontal colli-
sion, the operation of Adaptive Variable Suspension System ( P. 350) opti-
mally controls the damping force of the shock absorber.
PCS (Pre-Crash Safety system)
: If equipped
When the radar sensor detects the possibil ity of a frontal collision, brakes are
automatically engaged to lessen im pact as well as vehicle damage.
The pre-crash safety system can be turn ed on and off as necessary by operat-
ing the switch. ( P. 357)

3664-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
■Outside rear view mirror indicator visibility
In strong sunlight, the outside rear view mirror indicator may be difficult to see.
■Hearing the RCTA buzzer
The RCTA buzzer may be difficult to hear ov er loud noises, such as if the audio system
volume is high.
■When there is a malfunction in the Blind Spot Monitor
If a system malfunction is de tected due to any of the following, a warning message will be
displayed: ( P. 603, 604)
●A sensor is malfunctioning
●A sensor is dirty or covered with snow or a sticker
●The outside temperature is extremely high or low
●Sensor voltage is abnormal
●A sensor is misaligned
■Certification for the Blind Spot Monitor
For vehicles sold in Ukraine
type approval number : 1O094.000966-13

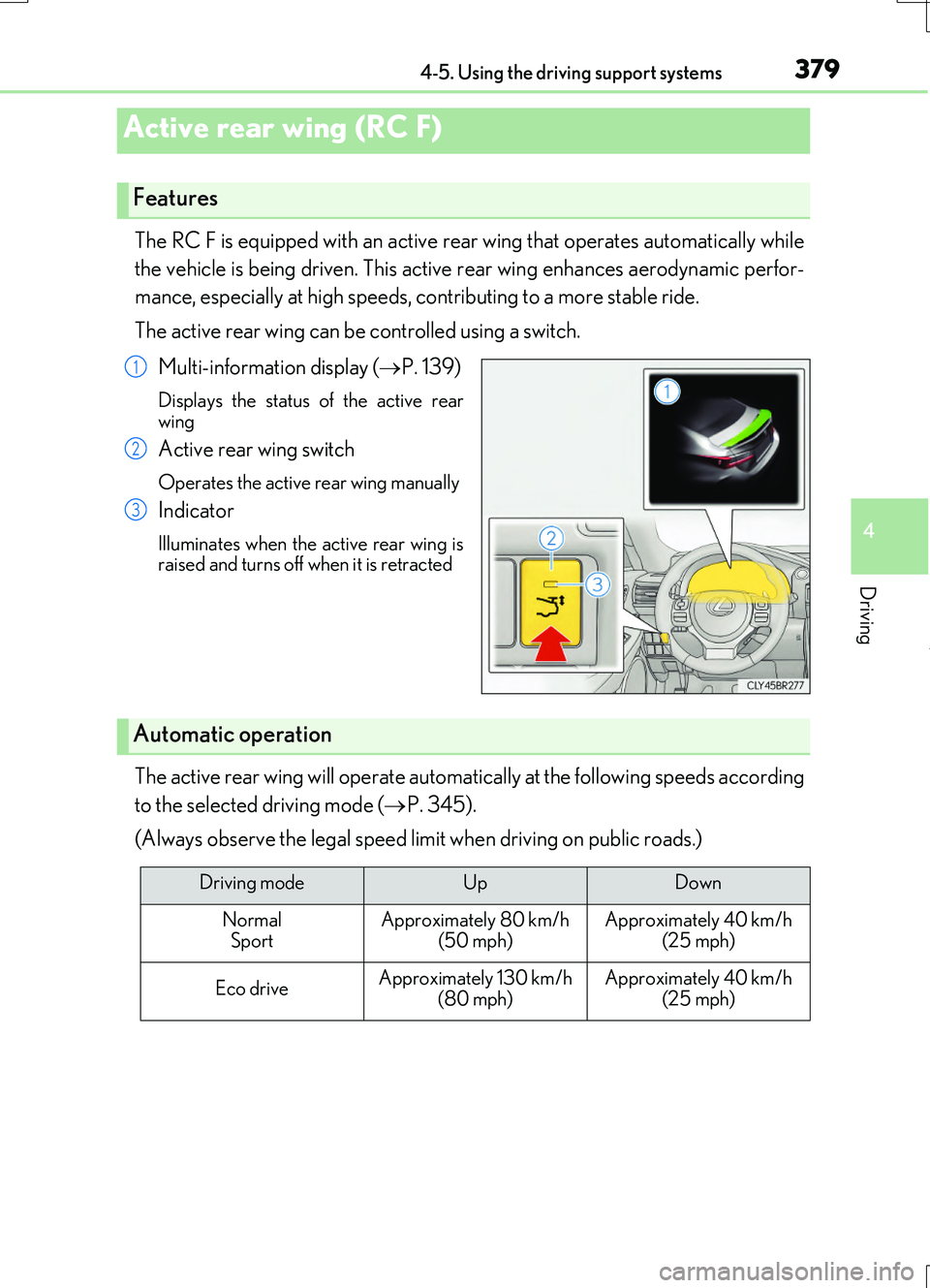

3794-5. Using the driving support systems
4
Driving
RC200t_RC F_EE(OM24728E)
The RC F is equipped with an active rear wing that operates automatically while
the vehicle is being driven. This active rear wing enhances aerodynamic perfor-
mance, especially at high speeds, contributing to a more stable ride.
The active rear wing can be controlled using a switch.
Multi-information display ( P. 139)
Displays the status of the active rear wing
Active rear wing switch
Operates the active rear wing manually
Indicator
Illuminates when the active rear wing israised and turns off when it is retracted
The active rear wing will operate automatically at the following speeds according
to the selected driving mode ( P. 345).
(Always observe the legal speed limit when driving on public roads.)
Active rear wing (RC F)
Features
1
2
3
Automatic operation
Driving modeUpDown
Normal SportApproximately 80 km/h (50 mph)Approximately 40 km/h (25 mph)
Eco driveApproximately 130 km/h
(80 mph)
Approximately 40 km/h
(25 mph)

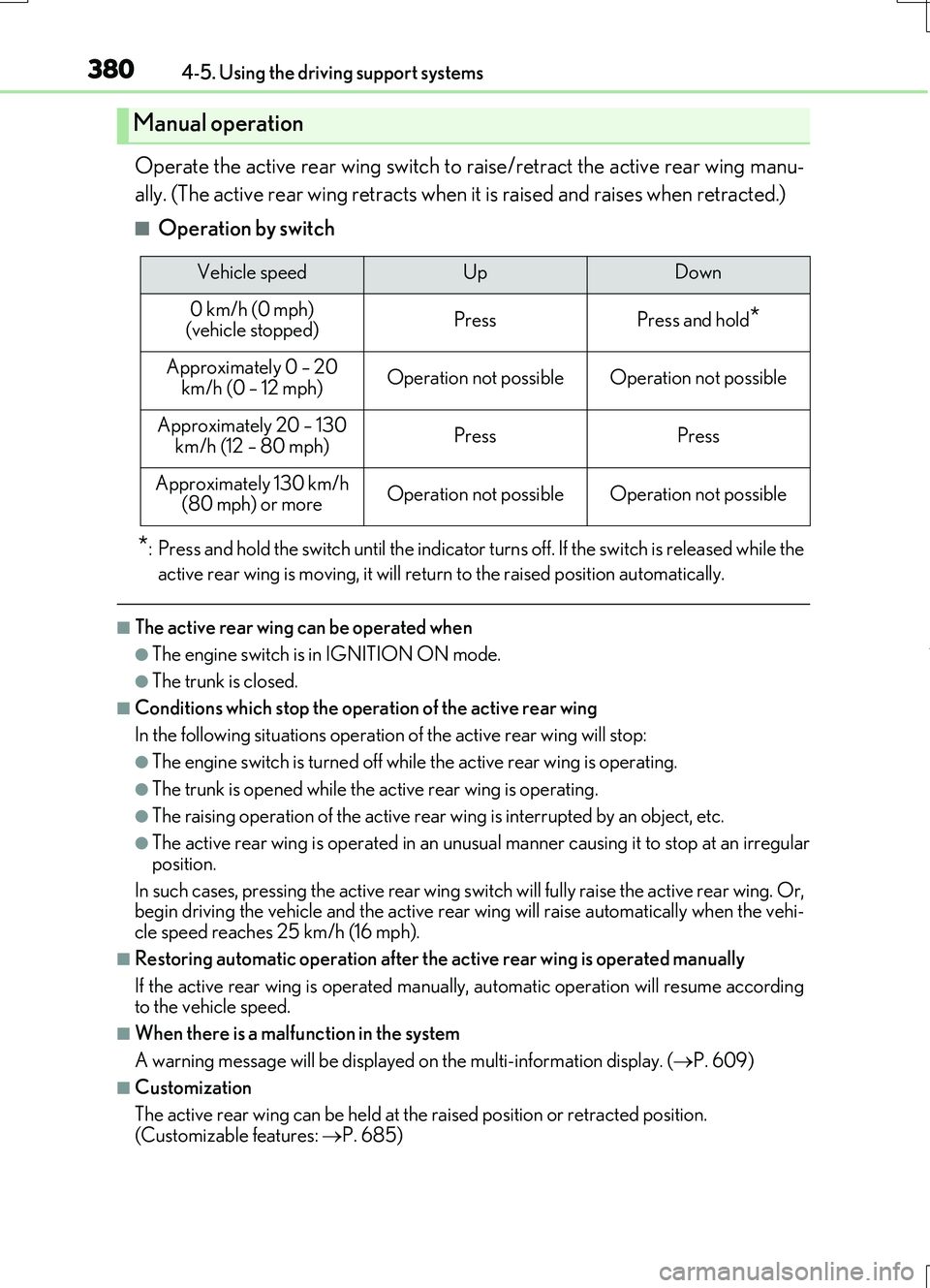

3804-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
Operate the active rear wing switch to raise/retract the active rear wing manu-
ally. (The active rear wing retracts when it is raised and raises when retracted.)
■Operation by switch
*: Press and hold the switch unti l the indicator turns off. If the switch is released while the
active rear wing is moving, it will return to the raised position automatically.
■The active rear wing can be operated when
●The engine switch is in IGNITION ON mode.
●The trunk is closed.
■Conditions which stop the operation of the active rear wing
In the following situations operation of the active rear wing will stop:
●The engine switch is turned off while the active rear wing is operating.
●The trunk is opened while the active rear wing is operating.
●The raising operation of the active rear wing is interrupted by an object, etc.
●The active rear wing is operated in an unusual manner causing it to stop at an irregular
position.
In such cases, pressing the active rear wing switch will fully raise the active rear wing. Or, begin driving the vehicle and th e active rear wing will raise automatically when the vehi-
cle speed reaches 25 km/h (16 mph).
■Restoring automatic operation after the active rear wing is operated manually
If the active rear wing is operated manual ly, automatic operation will resume according to the vehicle speed.
■When there is a malfunction in the system
A warning message will be displayed on the multi-information display. (P. 609)
■Customization
The active rear wing can be held at the raised position or retracted position.
(Customizable features: P. 685)
Manual operation
Vehicle speedUpDown
0 km/h (0 mph) (vehicle stopped)PressPress and hold*
Approximately 0 – 20
km/h (0 – 12 mph)Operation not possibleOperation not possible
Approximately 20 – 130 km/h (12 – 80 mph)PressPress
Approximately 130 km/h (80 mph) or moreOperation not possibleOperation not possible

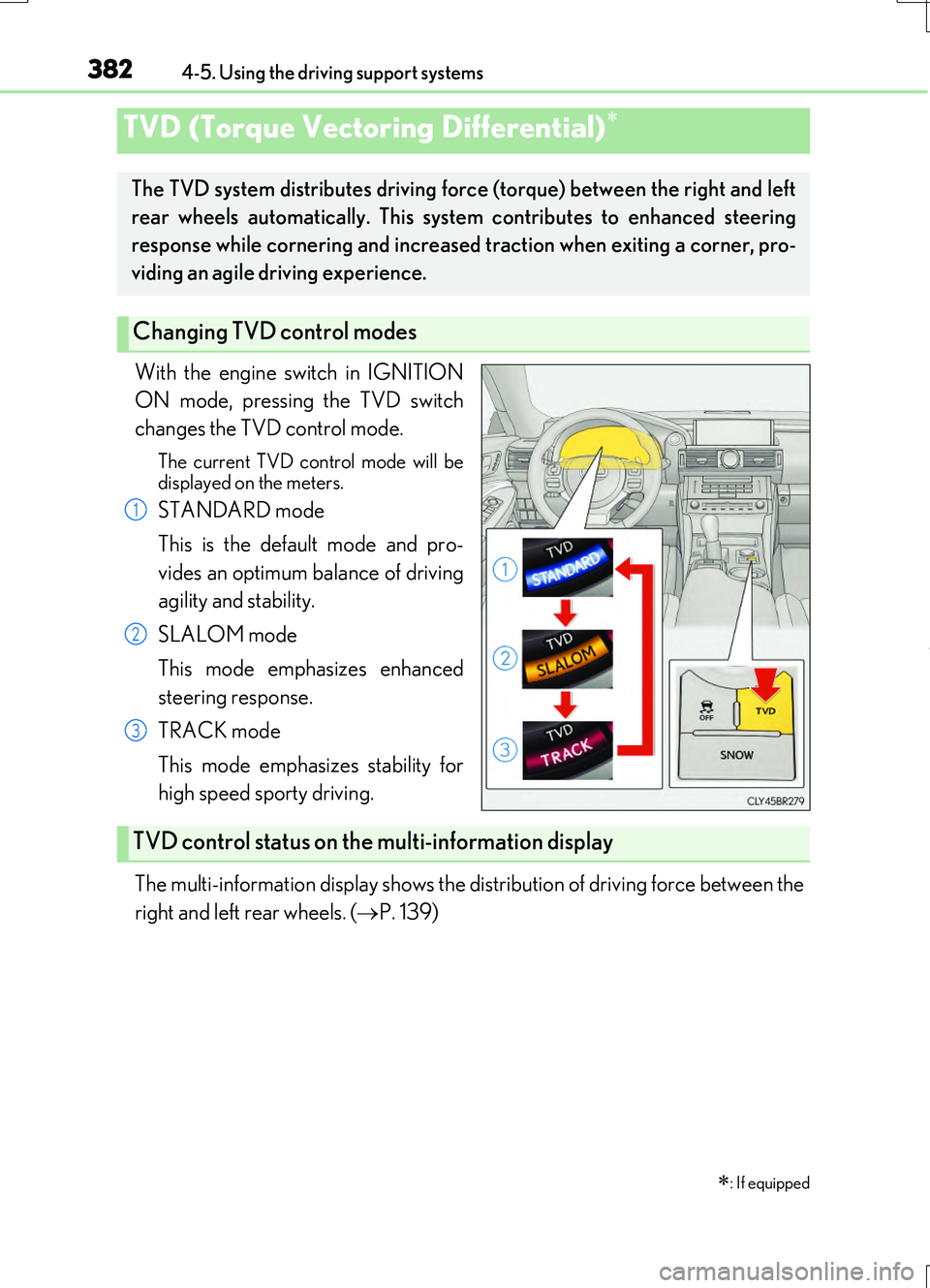

3824-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
With the engine switch in IGNITION
ON mode, pressing the TVD switch
changes the TVD control mode.
The current TVD control mode will be
displayed on the meters.
STANDARD mode
This is the default mode and pro-
vides an optimum balance of driving
agility and stability.
SLALOM mode
This mode emphasizes enhanced
steering response.
TRACK mode
This mode emphasizes stability for
high speed sporty driving.
The multi-information display shows the distribution of driving force between the
right and left rear wheels. ( P. 139)
TVD (Torque Vectoring Differential)
: If equipped
The TVD system distributes driving fo rce (torque) between the right and left
rear wheels automatically. This system contributes to enhanced steering
response while cornering and increased traction when exiting a corner, pro-
viding an agile driving experience.
Changing TVD control modes
1
2
3
TVD control status on the multi-information display

3834-5. Using the driving support systems
4
Driving
RC200t_RC F_EE(OM24728E)
■Automatic cancelation of the selected TVD control mode
SLALOM and TRACK mode are canceled when the engine switch is turned off. When the engine switch is turned to IGNITION ON mode, the TVD system will be in STAN- DARD mode.
■Automatic disabling of the TVD system
If a malfunction is detected in the TVD sy stem, a warning message will be displayed on the multi-information display ( P. 607) and the TVD system will be disabled automati-
cally. If the system is disabled, driving force will not be distributed by the TVD but through normal differential operation.
■To protect the system
The TVD fluid temperature may become excessively high when driving for a long time under extremely high load conditions. In th is case, a warning message will be displayed on the multi-information display. ( P. 607)
WARNING
■Cautions regarding the use of the system
The driver is solely responsible for safe driv ing. Do not overly rely on the TVD system. Always drive safely, taking care to observe your surroundings.

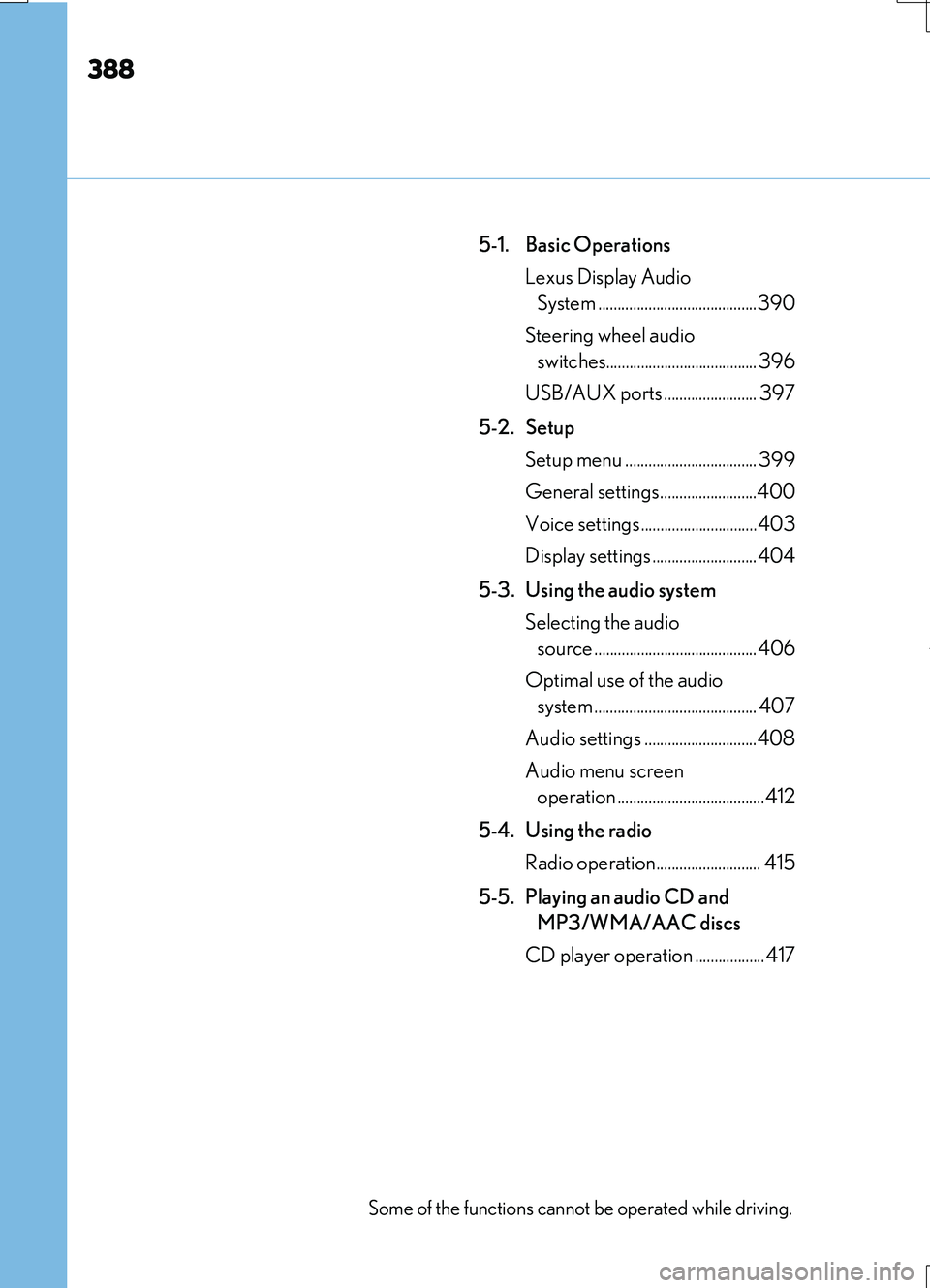

388
RC200t_RC F_EE(OM24728E)
5-1. Basic Operations
Lexus Display Audio
System .........................................390
Steering wheel audio
switches....................................... 396
USB/AUX ports ........................ 397
5-2. Setup
Setup menu .................................. 399
General settings.........................400
Voice settings..............................403
Display settings ...........................404
5-3. Using the audio system
Selecting the audio
source ..........................................406
Optimal use of the audio
system .......................................... 407
Audio settings .............................408
Audio menu screen
operation ......................................412
5-4. Using the radio
Radio operation........................... 415
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ..................417
Some of the functions cannot be operated while driving.

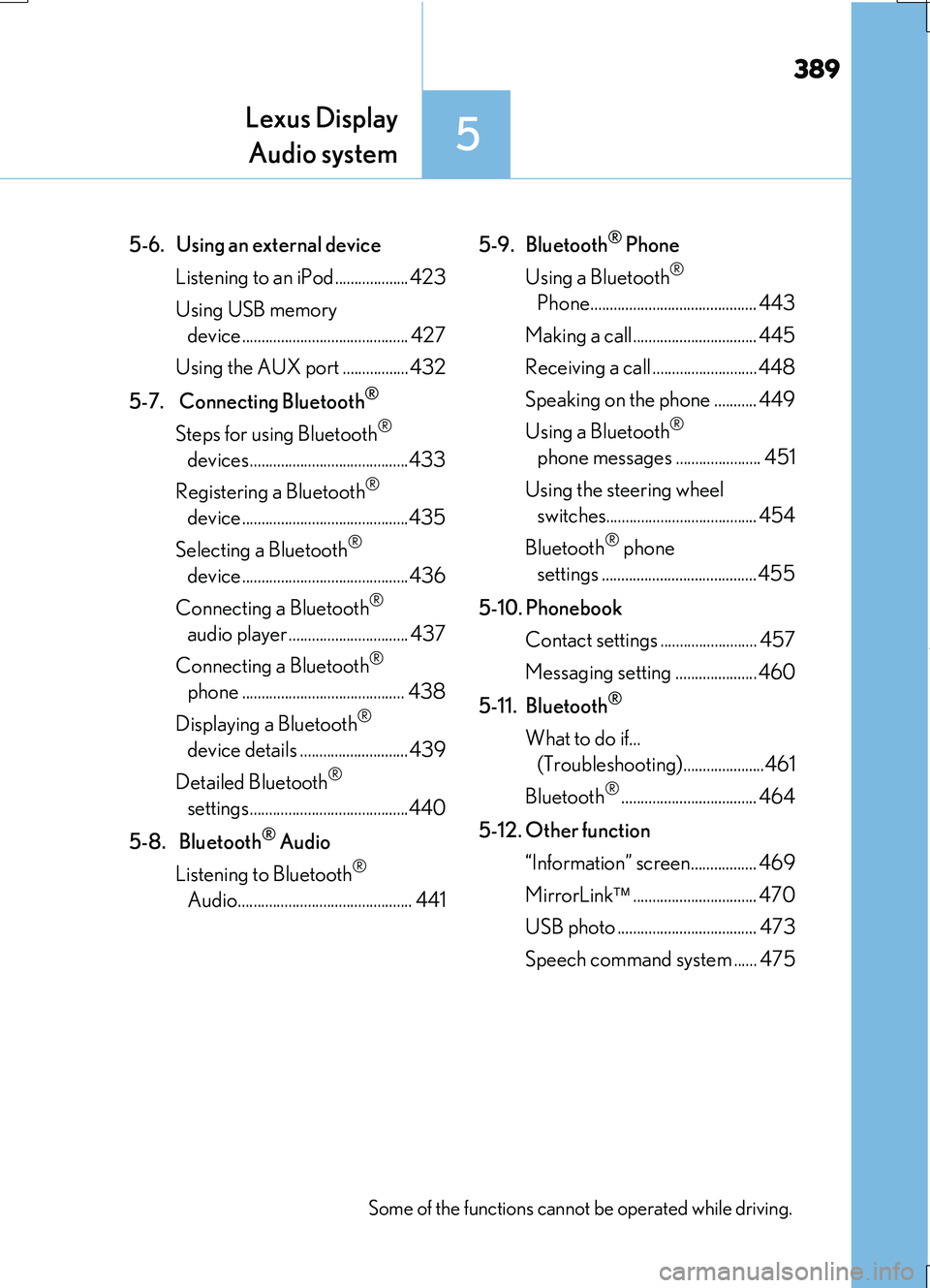

389
5
Lexus Display
Audio system
RC200t_RC F_EE(OM24728E)
5-6. Using an external device
Listening to an iPod................... 423
Using USB memory
device........................................... 427
Using the AUX port ................. 432
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices.........................................433
Registering a Bluetooth®
device...........................................435
Selecting a Bluetooth®
device...........................................436
Connecting a Bluetooth®
audio player ............................... 437
Connecting a Bluetooth®
phone .......................................... 438
Displaying a Bluetooth®
device details ............................439
Detailed Bluetooth®
settings.........................................440
5-8. Bluetooth® Audio
Listening to Bluetooth®
Audio............................................. 441
5-9. Bluetooth® Phone
Using a Bluetooth®
Phone........................................... 443
Making a call................................ 445
Receiving a call ...........................448
Speaking on the phone ........... 449
Using a Bluetooth®
phone messages ...................... 451
Using the steering wheel
switches....................................... 454
Bluetooth® phone
settings ........................................ 455
5-10. Phonebook
Contact settings ......................... 457
Messaging setting .....................460
5-11. Bluetooth®
What to do if...
(Troubleshooting).....................461
Bluetooth®................................... 464
5-12. Other function
“Information” screen................. 469
MirrorLink ................................ 470
USB photo .................................... 473
Speech command system ...... 475
Some of the functions cannot be operated while driving.

390
RC200t_RC F_EE(OM24728E)
5-1. Basic Operations
Lexus Display Audio System
: If equipped
Use the following buttons to start listening to the audio system.
Lexus Display Audio operation buttons
Eject a disc.
Preset up/down for a radio station, or to access a desired track or file.
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off.
Select a radio station band, track or file.
Disc slot
Display the media top screen.
Display the radio top screen.
Press to turn the audio system on/off, and turn to adjust the volume.
1
2
3
4
5
6
7
8

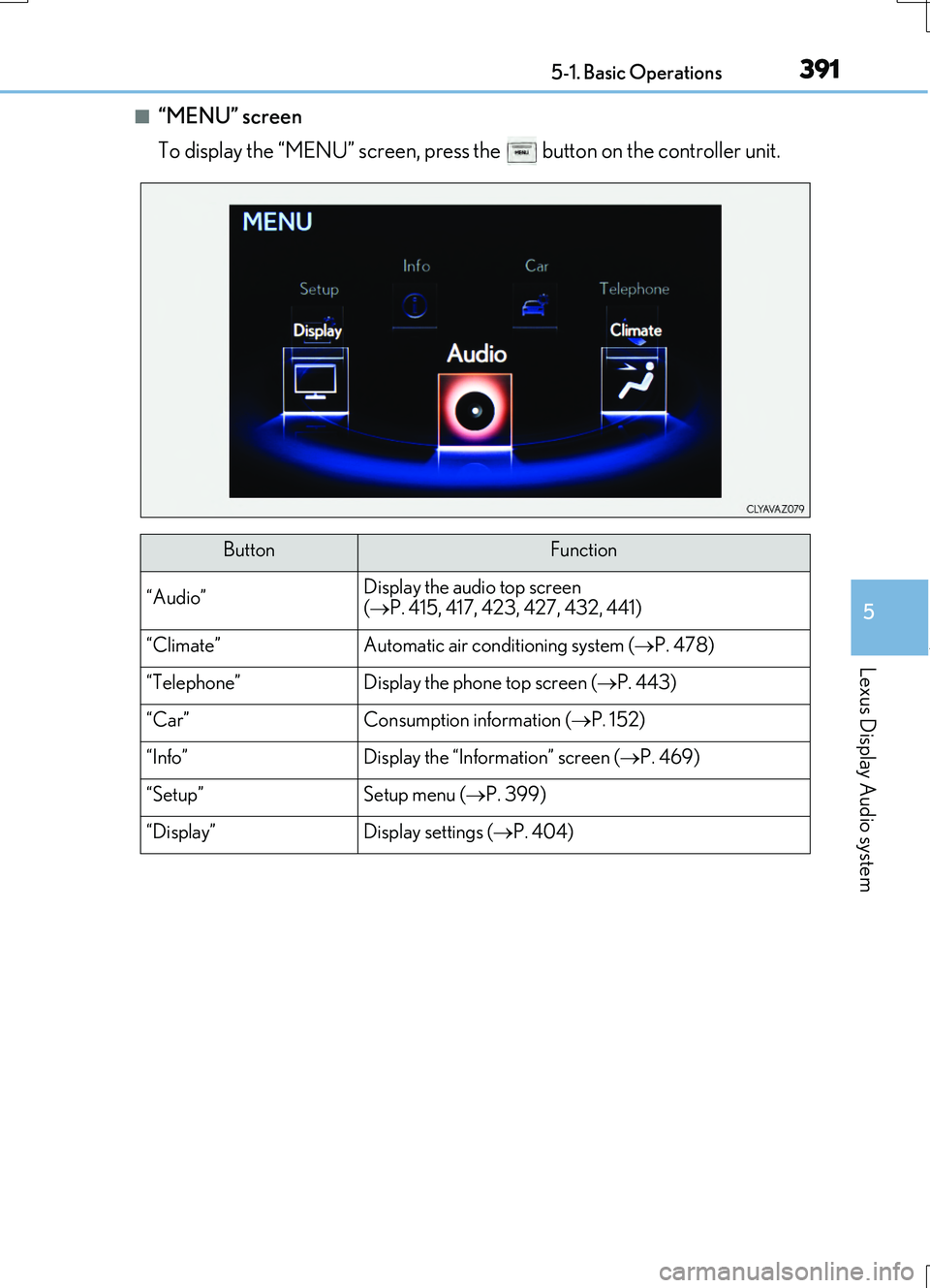

3915-1. Basic Operations
5
Lexus Display Audio system
RC200t_RC F_EE(OM24728E)
■“MENU” screen
To display the “MENU” screen, press the button on the controller unit.
ButtonFunction
“Audio”Display the audio top screen
( P. 415, 417, 423, 427, 432, 441)
“Climate”Automatic air conditioning system (P. 478)
“Telephone”Display the phone top screen (P. 443)
“Car” Consumption information (P. 152)
“Info”Display the “Information” screen (P. 469)
“Setup”Setup menu (P. 399)
“Display”Display settings (P. 404)
