LEXUS RC200T 2017 Owners Manual

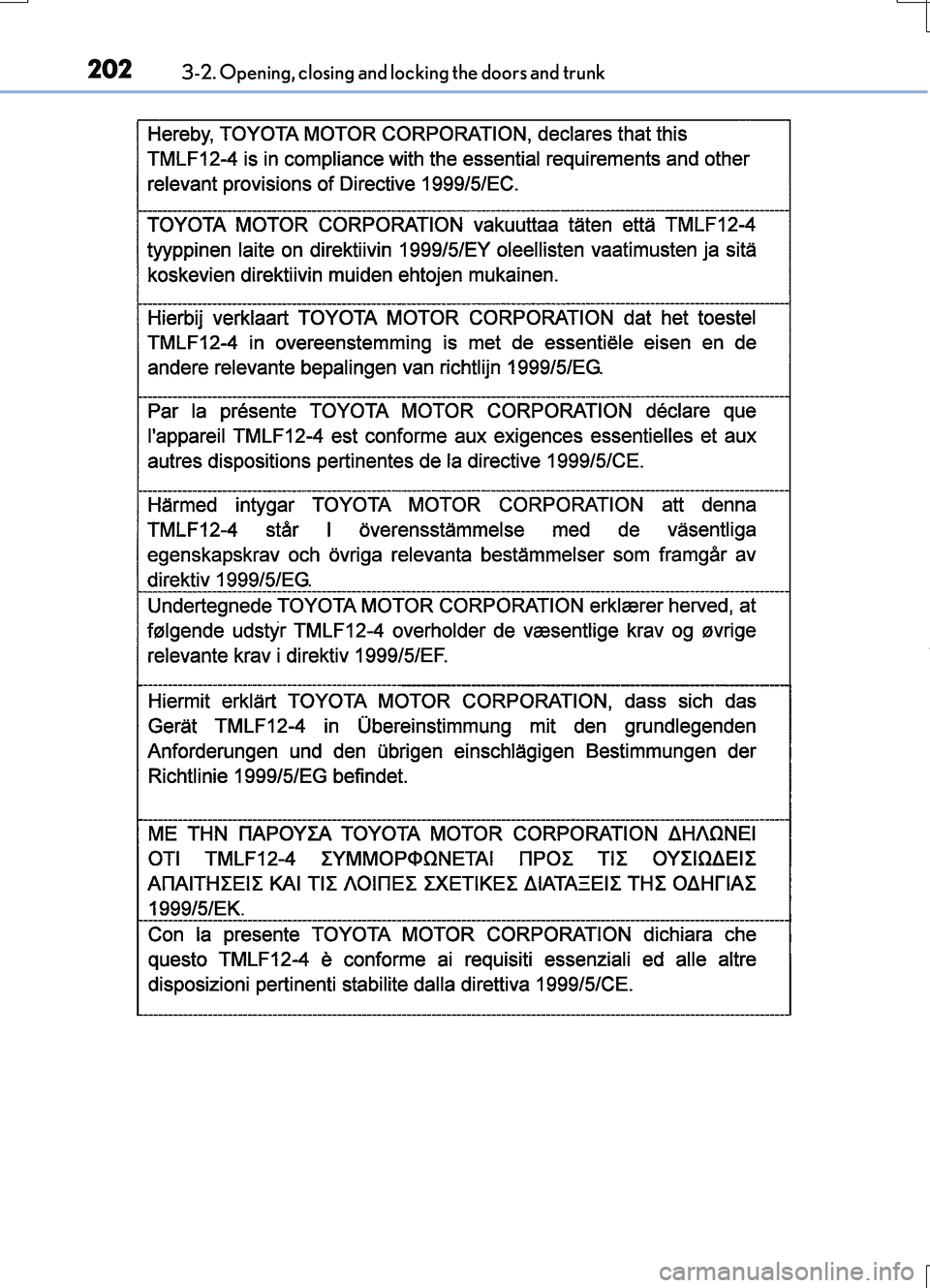

2013-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC200t_RC F_EE(OM24728E)

2023-2. Opening, closing and locking the doors and trunk
RC200t_RC F_EE(OM24728E)

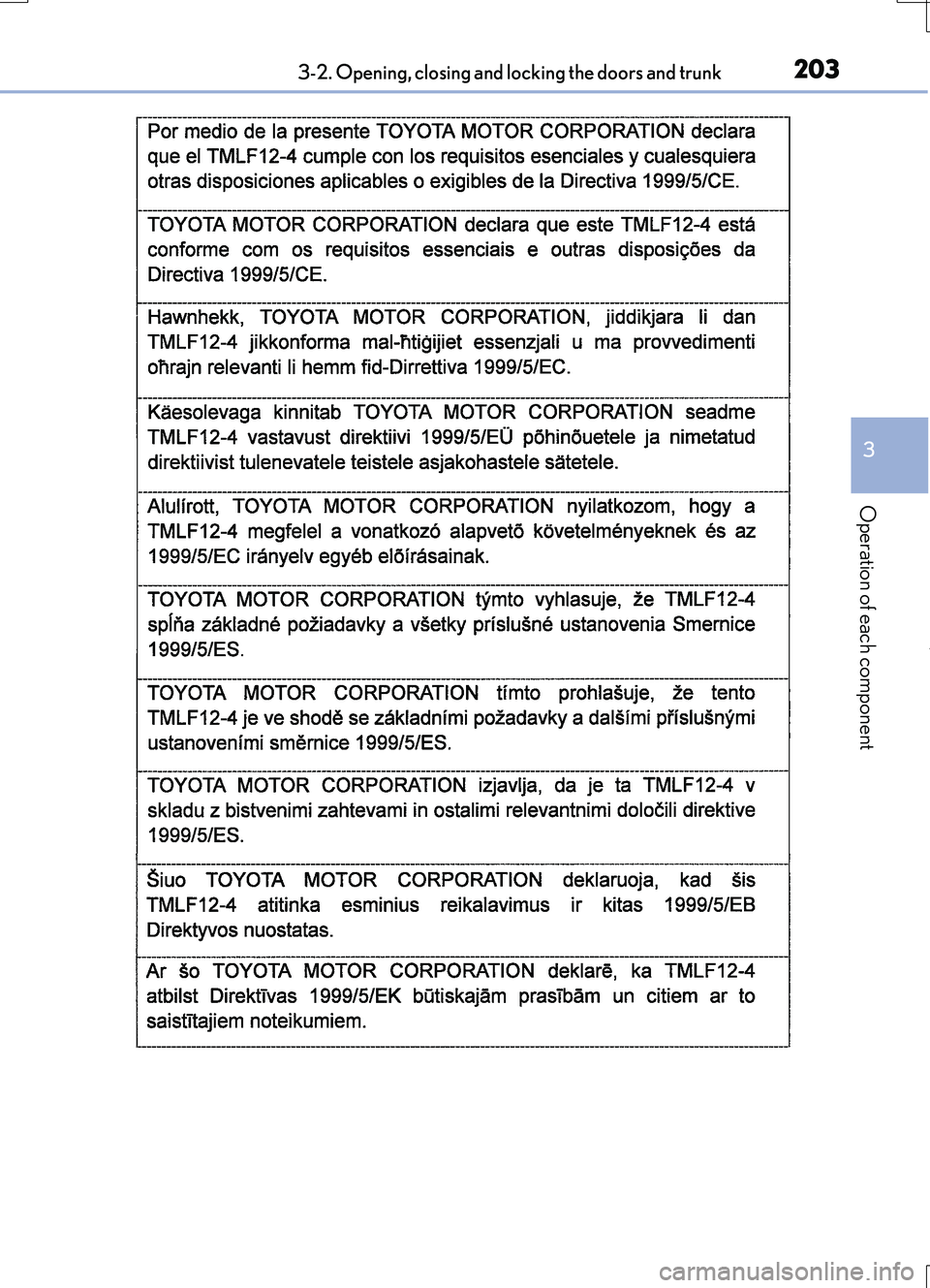

2033-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC200t_RC F_EE(OM24728E)

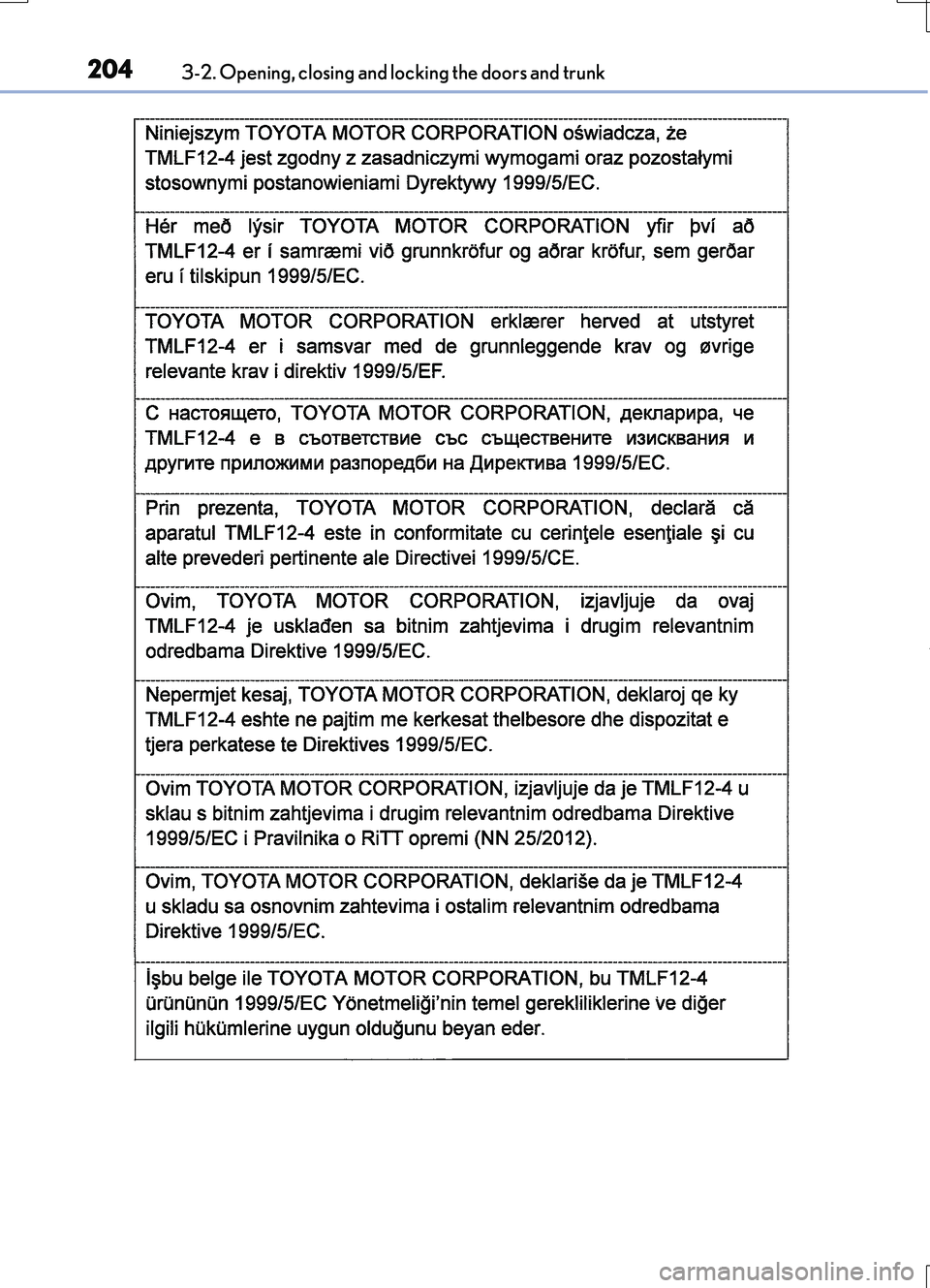

2043-2. Opening, closing and locking the doors and trunk
RC200t_RC F_EE(OM24728E)

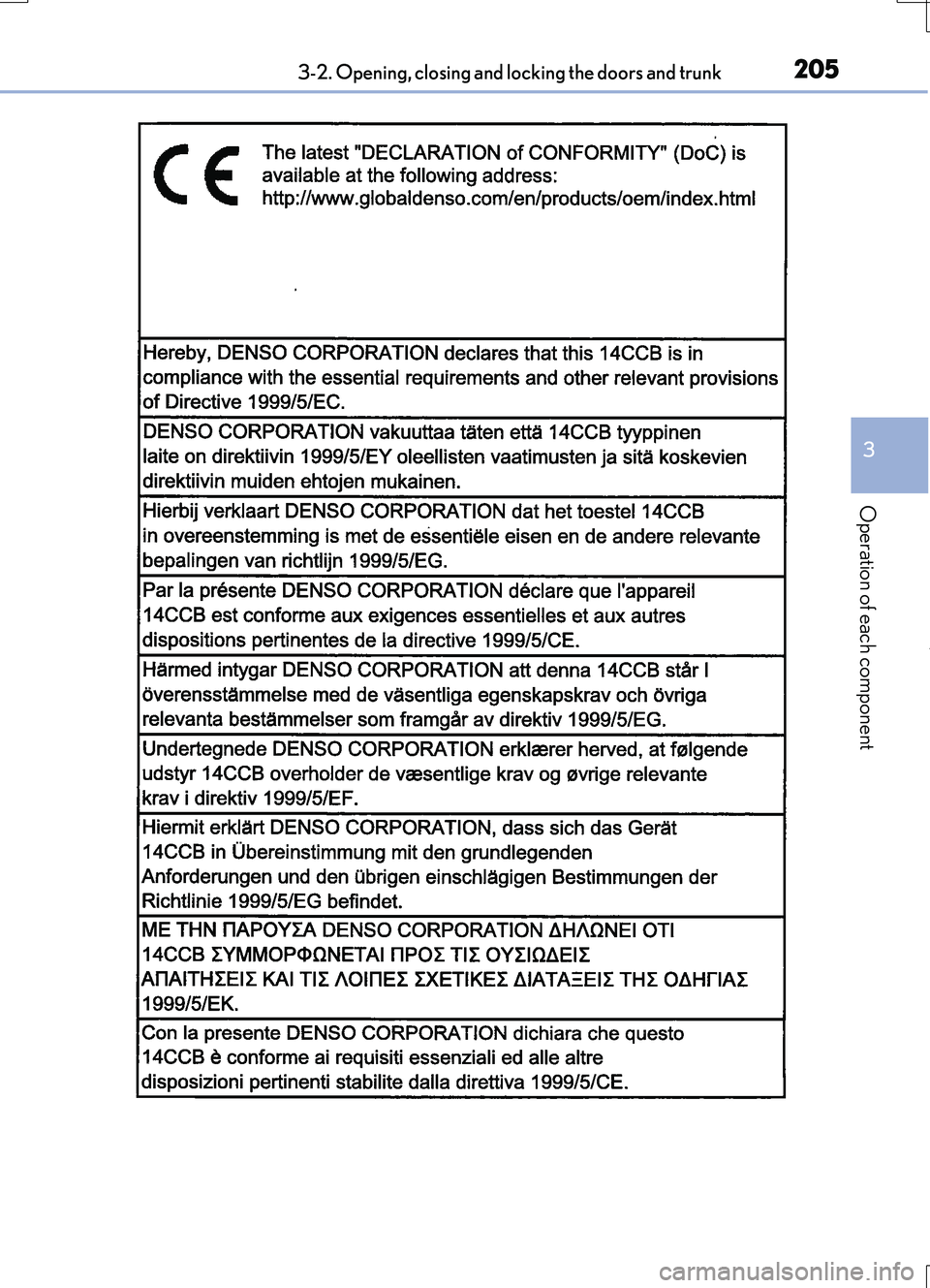

2053-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC200t_RC F_EE(OM24728E)

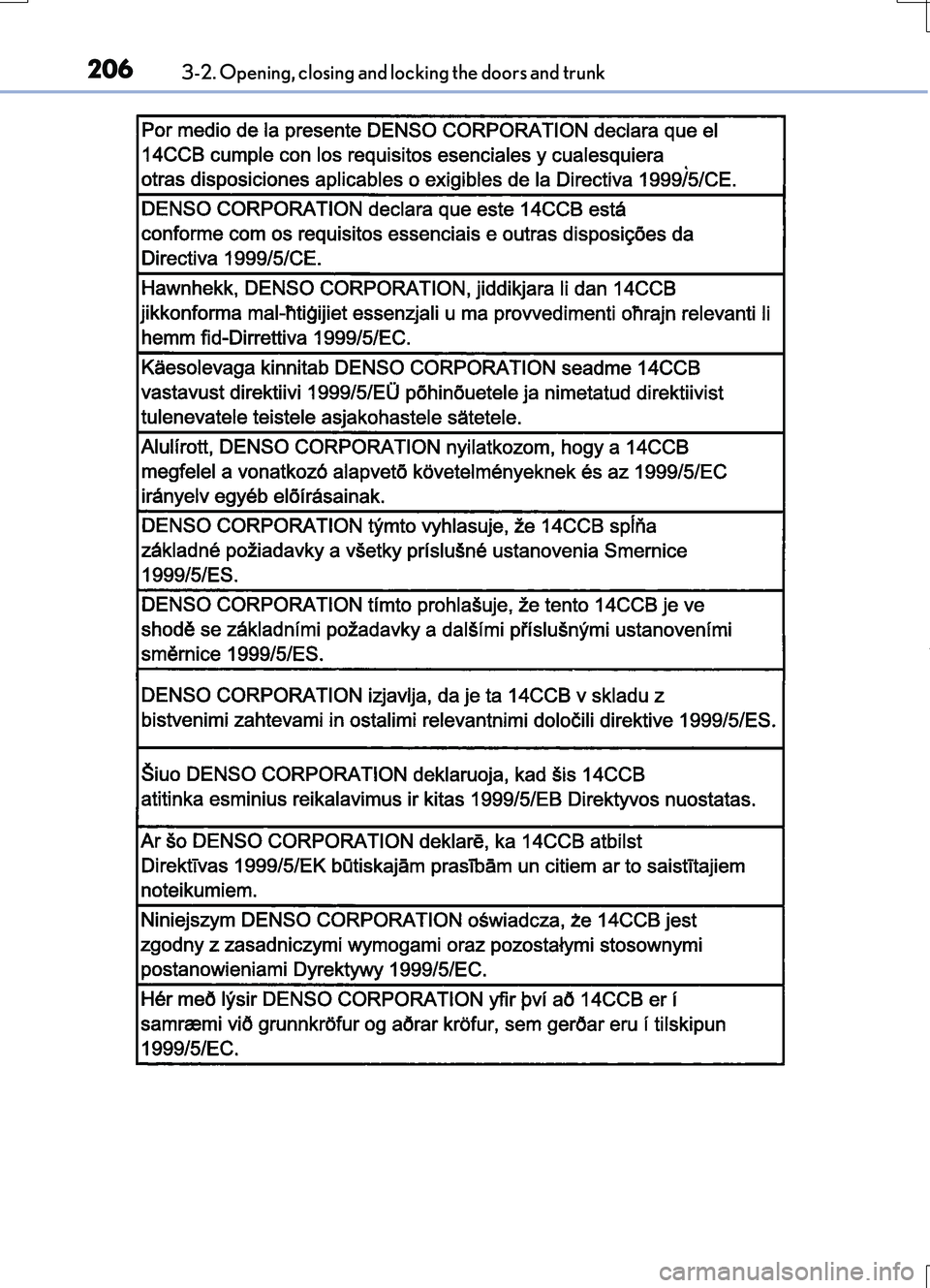

2063-2. Opening, closing and locking the doors and trunk
RC200t_RC F_EE(OM24728E)

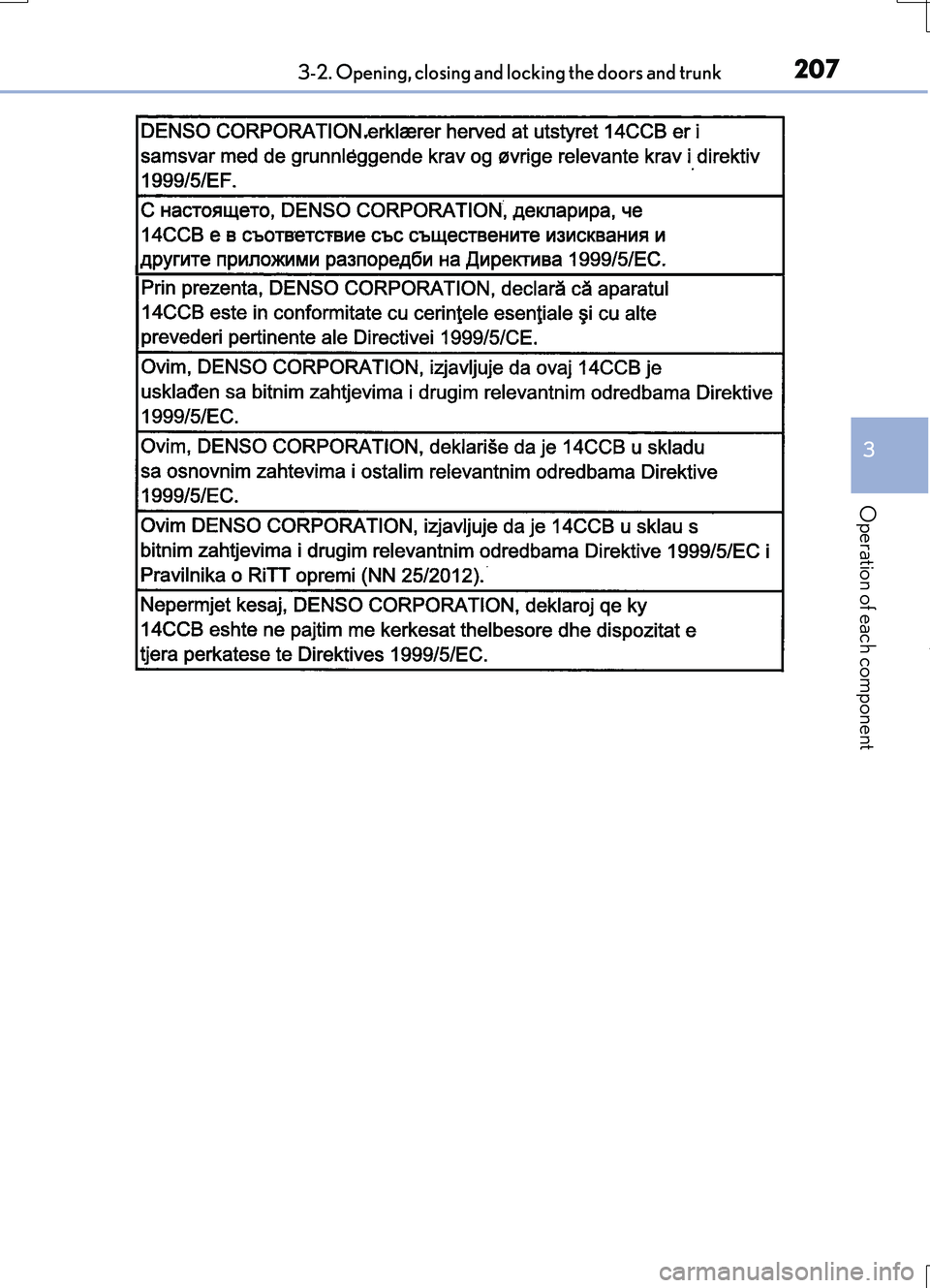

2073-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC200t_RC F_EE(OM24728E)

2083-2. Opening, closing and locking the doors and trunk
RC200t_RC F_EE(OM24728E)

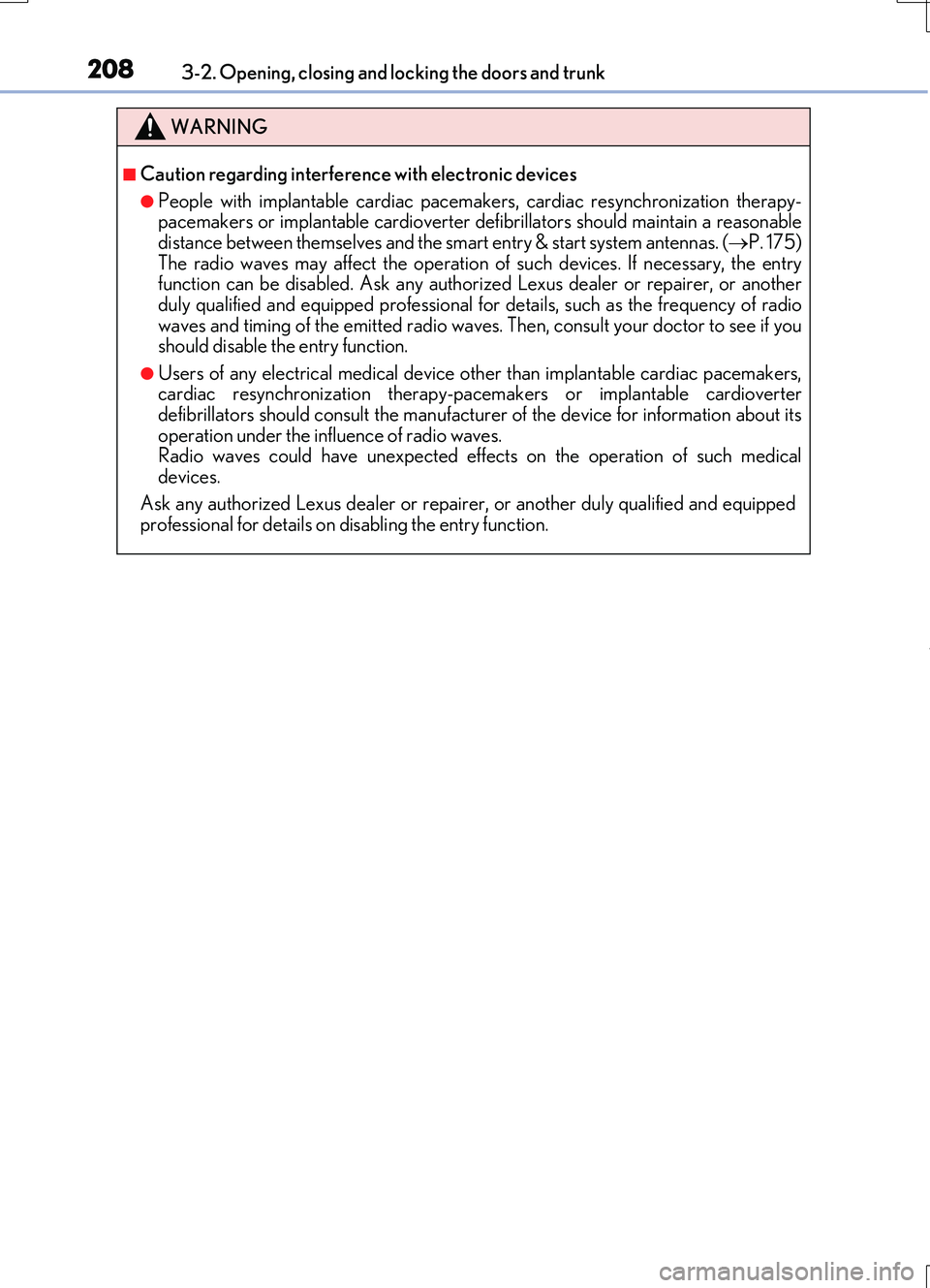

WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy- pacemakers or implantable cardioverter de fibrillators should maintain a reasonable
distance between themselves and the sm art entry & start system antennas. (P. 175) The radio waves may affect the operation of such devices. If necessary, the entryfunction can be disabled. Ask any authoriz ed Lexus dealer or repairer, or another
duly qualified and equipped professional for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,cardiac resynchronization therapy-pacemakers or implantable cardioverterdefibrillators should consult the manufacturer of the device for information about its
operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medicaldevices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details on disabling the entry function.

209
3
Operation of each component
RC200t_RC F_EE(OM24728E)

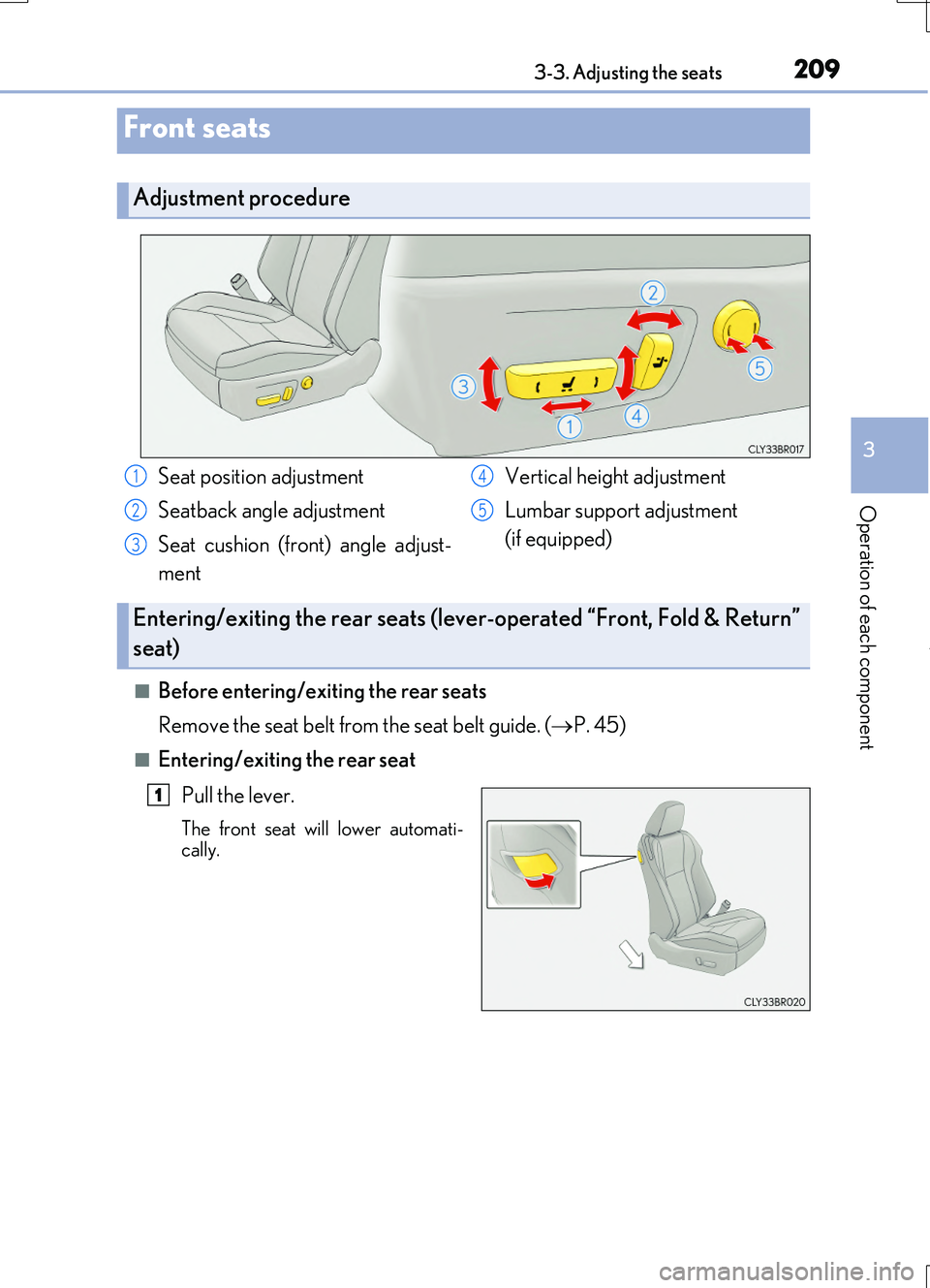

3-3. Adjusting the seats
■Before entering/exiting the rear seats
Remove the seat belt from the seat belt guide. ( P. 45)
■Entering/exiting the rear seat
Pull the lever.
The front seat will lower automati-
cally.
Front seats
Adjustment procedure
Seat position adjustment
Seatback angle adjustment
Seat cushion (front) angle adjust-
ment
Vertical height adjustment
Lumbar support adjustment
(if equipped)
Entering/exiting the rear seats (lev er-operated “Front, Fold & Return”
seat)
1
2
3
4
5
1

2103-3. Adjusting the seats
RC200t_RC F_EE(OM24728E)
Fold the seatback completely for-
ward.
The front seat will move forward automatically.
■Returning the front seat to its original position
Move the seatback backward until it locks. The front seat will return to its orig-
inal position automatically.
■When adjusting the seat
●Take care when adjusting the seat so that the head restraint does not touch the ceiling.
●RC200t: When folding down a rear seatback, if it interferes with a front seatback,
adjust the front seat position so that the seats no longer interfere with each other. How- ever, if adjusting the front seat position causes the correct driving posture to not bemaintained, return the rear seatb ack to its original position. (P. 212)
■Lever-operated “Front, Fold & Return” seat
●After the front seat is moved forward by operating the “Front, Fold & Return” seat lever, if a power seat adjustin g switch or a driving position memory switch is pressed, the front
seat will not return to its original position even if the front seatback is moved backward until it locks.
●The lever-operated “Front, Fold & Return” se at will not operate in the following situa-
tions:
• The front seat belt of the seat to be operated is fastened. • The engine switch is in IGNITION ON mode and the shift lever is in a position other
than P (driver's seat only).
●Operation of the lever-operated “Front, Fold & Return” seat will stop in the following sit-
uations:
• A power seat adjusting switch or a driv ing position memory switch is pressed. • The front seat belt of the seat which is operating is fastened.
• The engine switch is in IGNITION ON mode and the shift lever is moved to a posi- tion other than P (d river's seat only).
■Jam protection function
While the lever-operated “Front, Fold & Return” seat is operating, if an object is stuck either in front of or behind the front seat, the front seat will stop and then move in the opposite direction slightly.
2
