engine LEXUS RC200T 2017 Owners Manual

675
9
9-1. Specifications
Vehicle specifications
RC200t_RC F_EE(OM24728E)
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 5W-30” means the SAE viscosity grade.
Lower portion: “Resource- Conserving” means that the oil hasfuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica- tion Mark is displayed on the front of the container.
1
2

6769-1. Specifications
RC200t_RC F_EE(OM24728E)
*: Vehicles with a Stop & Start system
■Spark plug

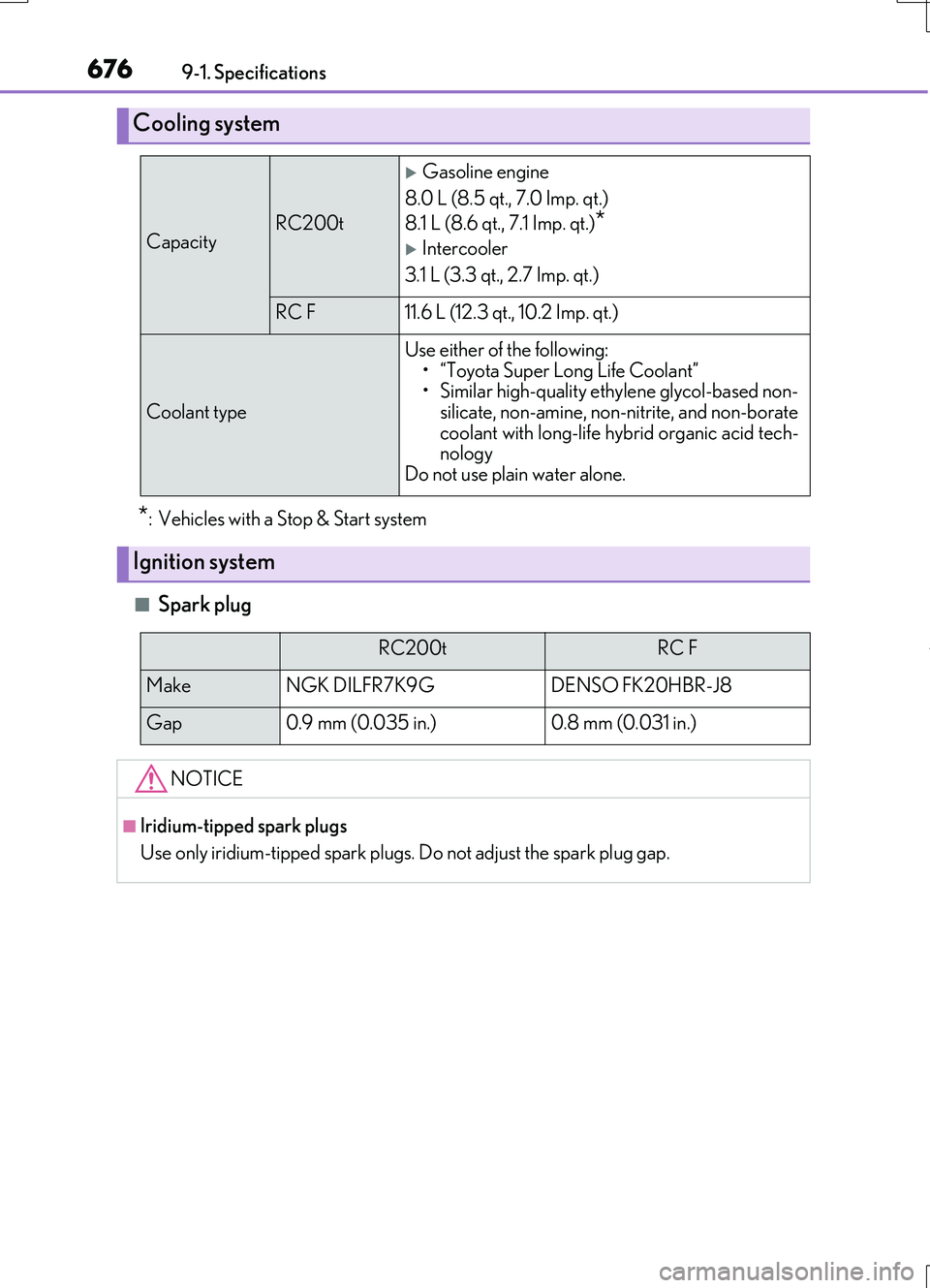

Cooling system
CapacityRC200t
Gasoline engine
8.0 L (8.5 qt., 7.0 Imp. qt.)
8.1 L (8.6 qt., 7.1 Imp. qt.)*
Intercooler
3.1 L (3.3 qt., 2.7 Imp. qt.)
RC F 11.6 L (12.3 qt., 10.2 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech- nologyDo not use plain water alone.
Ignition system
RC200tRC F
MakeNGK DILFR7K9GDENSO FK20HBR-J8
Gap0.9 mm (0.035 in.)0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

679
9
9-1. Specifications
Vehicle specifications
RC200t_RC F_EE(OM24728E)
*1: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 lbf)
RC200t (17-inch tires)

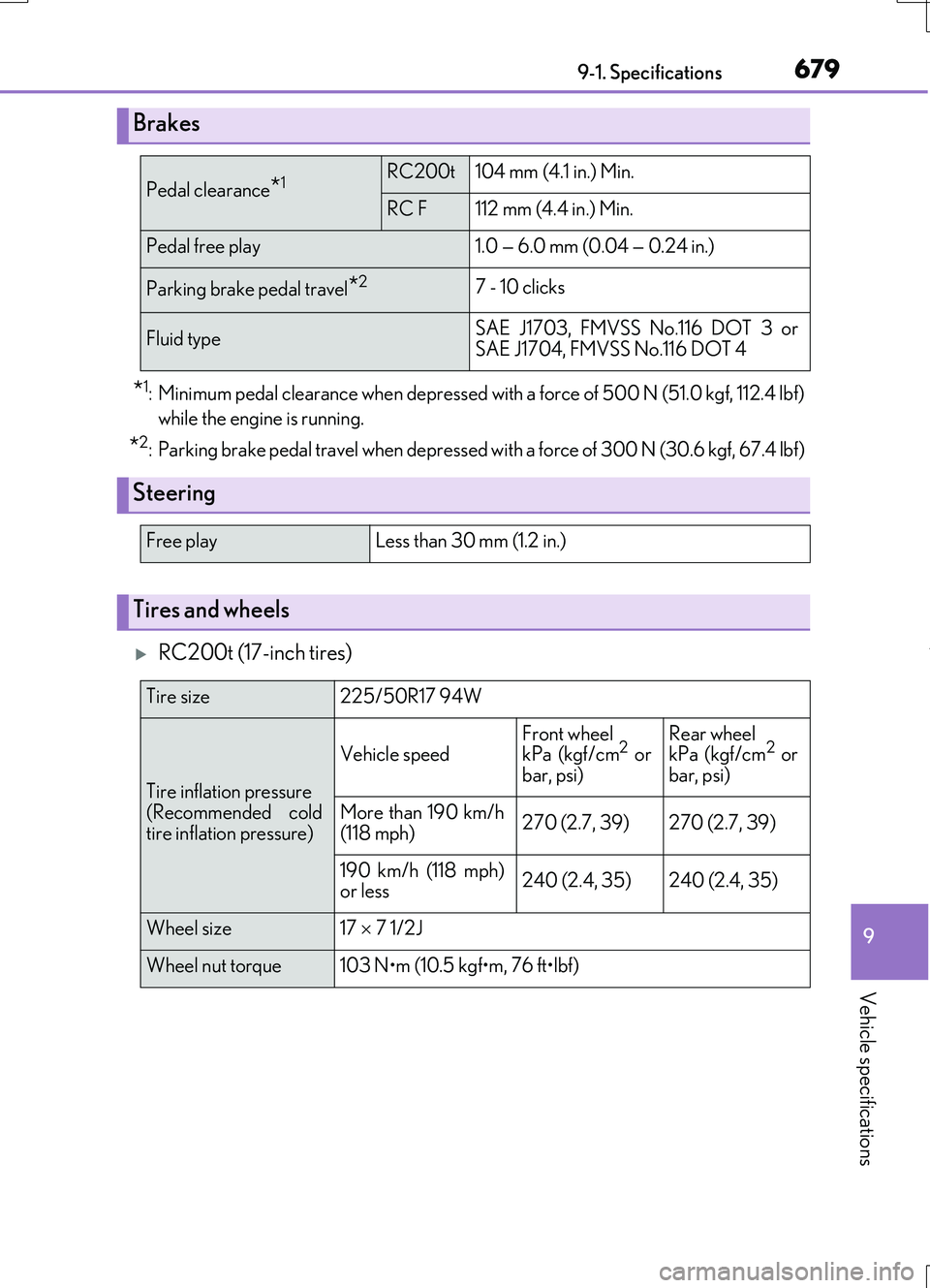

Brakes
Pedal clearance*1RC200t104 mm (4.1 in.) Min.
RC F112 mm (4.4 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*27 - 10 clicks
Fluid typeSAE J1703, FMVSS No.116 DOT 3 or
SAE J1704, FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size225/50R17 94W
Tire inflation pressure (Recommended cold
tire inflation pressure)
Vehicle speedFront wheel kPa (kgf/cm2 orbar, psi)
Rear wheelkPa (kgf/cm2 orbar, psi)
More than 190 km/h
(118 mph)270 (2.7, 39)270 (2.7, 39)
190 km/h (118 mph) or less240 (2.4, 35)240 (2.4, 35)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

683
9
9-1. Specifications
Vehicle specifications
RC200t_RC F_EE(OM24728E)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified andequipped professional.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.

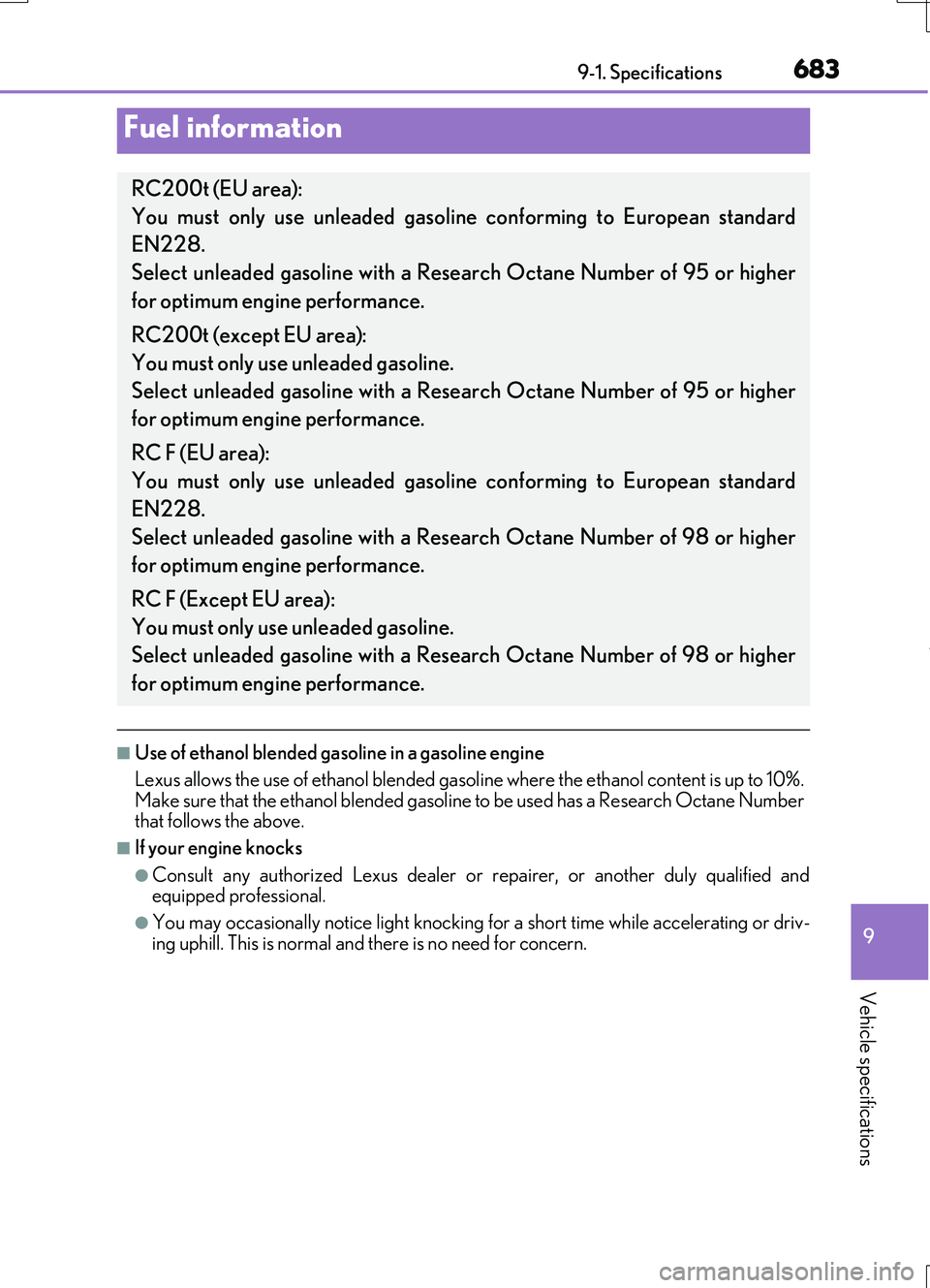

Fuel information
RC200t (EU area):
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
RC200t (except EU area):
You must only use unleaded gasoline.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
RC F (EU area):
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 98 or higher
for optimum engine performance.
RC F (Except EU area):
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 98 or higher
for optimum engine performance.

6849-1. Specifications
RC200t_RC F_EE(OM24728E)

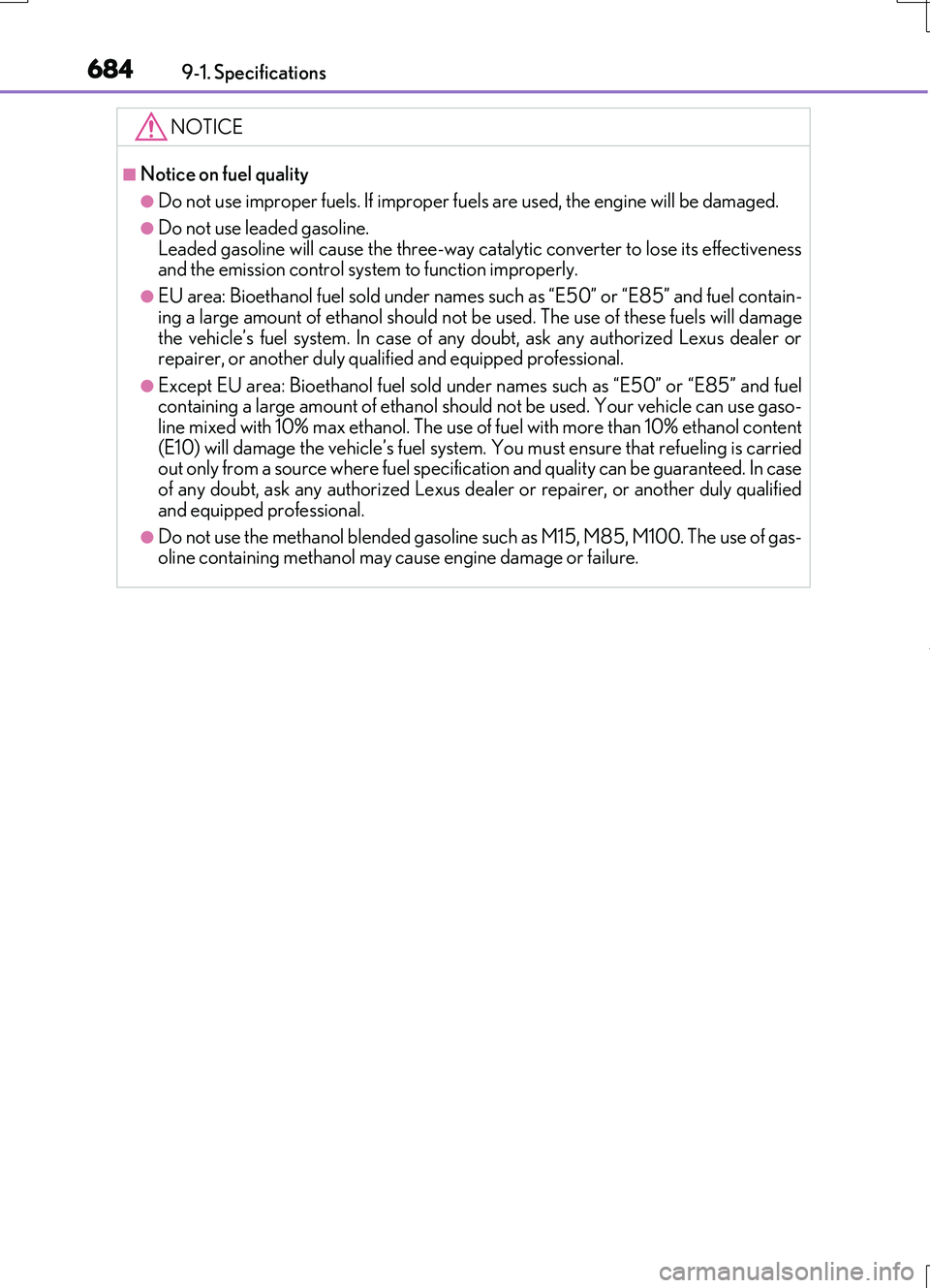

NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way cata lytic converter to lose its effectiveness and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer orrepairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuelcontaining a large amount of ethanol should not be used. Your vehicle can use gaso-line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel specification and quality can be guaranteed. In caseof any doubt, ask any authorized Lexus deal er or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas- oline containing methanol may cause engine damage or failure.

6929-2. Customization
RC200t_RC F_EE(OM24728E)

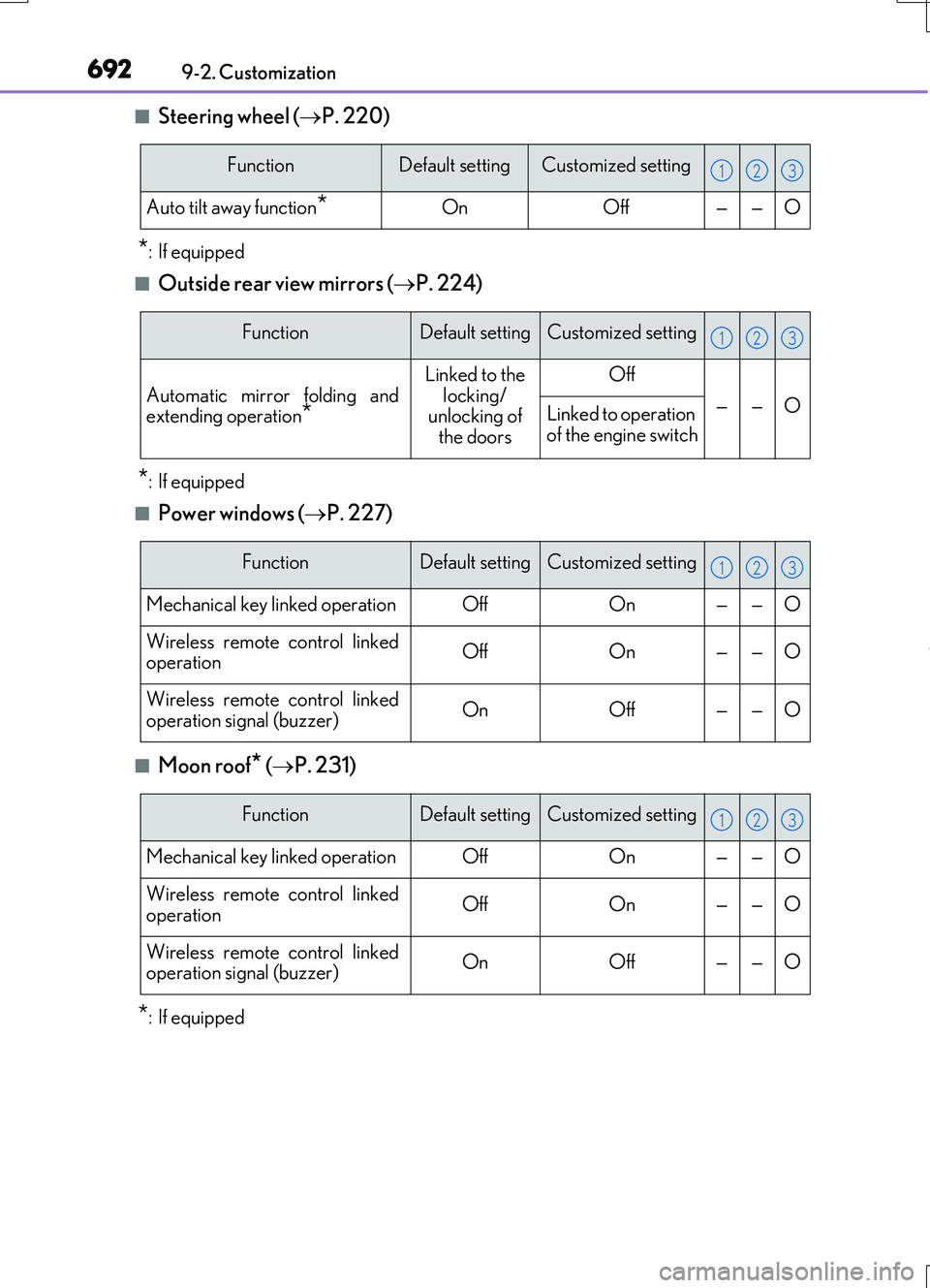

■Steering wheel ( P. 220)
*: If equipped
■Outside rear view mirrors (P. 224)
*: If equipped
■Power windows (P. 227)
■Moon roof* (P. 231)
*: If equipped
FunctionDefault settingCustomized setting
Auto tilt away function*OnOff——O
123
FunctionDefault settingCustomized setting
Automatic mirror folding and extending operation*
Linked to the locking/unlocking of
the doors
Off
——OLinked to operation of the engine switch
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linkedoperationOffOn——O
Wireless remote control linkedoperation signal (buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked
operationOffOn——O
Wireless remote control linked operation signal (buzzer)OnOff——O
123

695
9
9-2. Customization
Vehicle specifications
RC200t_RC F_EE(OM24728E)
■Illumination ( P. 492)
*: If equipped
FunctionDefault settingCustomized setting
Time elapsed before the interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engineswitch is turned offOnOff——O
Operation when the doors areunlockedOnOff——O
Operation when you approach
the vehicle with the electronic key on your personOnOff——O
Ambient lights and RemoteTouch pad light*OnOff——O
Time elapsed before the outerfoot lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle with the electronic key on yourperson
OnOff——O
Operation of the outer foot lights
when the doors are unlocked with the power door lock switchOnOff——O
Operation of the outer foot lightswhen a door is openedOnOff——O
Fading out of the outer foot lights
when they turn offLongShort——O
123

6969-2. Customization
RC200t_RC F_EE(OM24728E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, both side the doors will be
locked. • If the vehicle is started with both side doors locked, the speed-detecting automaticdoor lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the operational signal (Emergency flashers) function setting.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent battery discharge, leave the engine running while customizing the features.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. Thismay lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

697
RC200t_RC F_EE(OM24728E)
9
Vehicle specifications
9-3. Items to initialize
*: If equipped

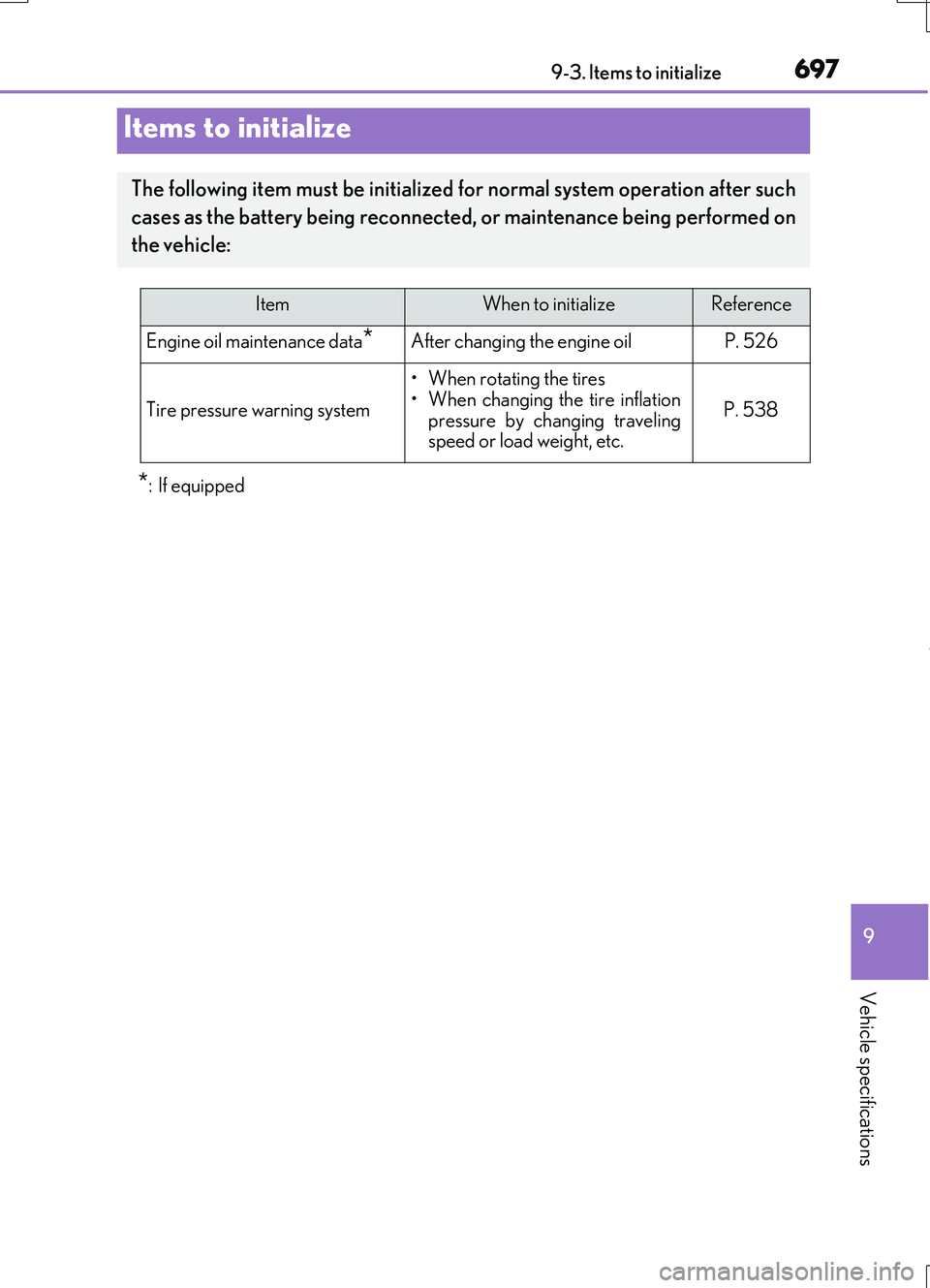

Items to initialize
The following item must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Engine oil maintenance data*After changing the engine oilP. 526
Tire pressure warning system
• When rotating the tires • When changing the tire inflation
pressure by changing traveling speed or load weight, etc.
P. 538

700
RC200t_RC F_EE(OM24728E)

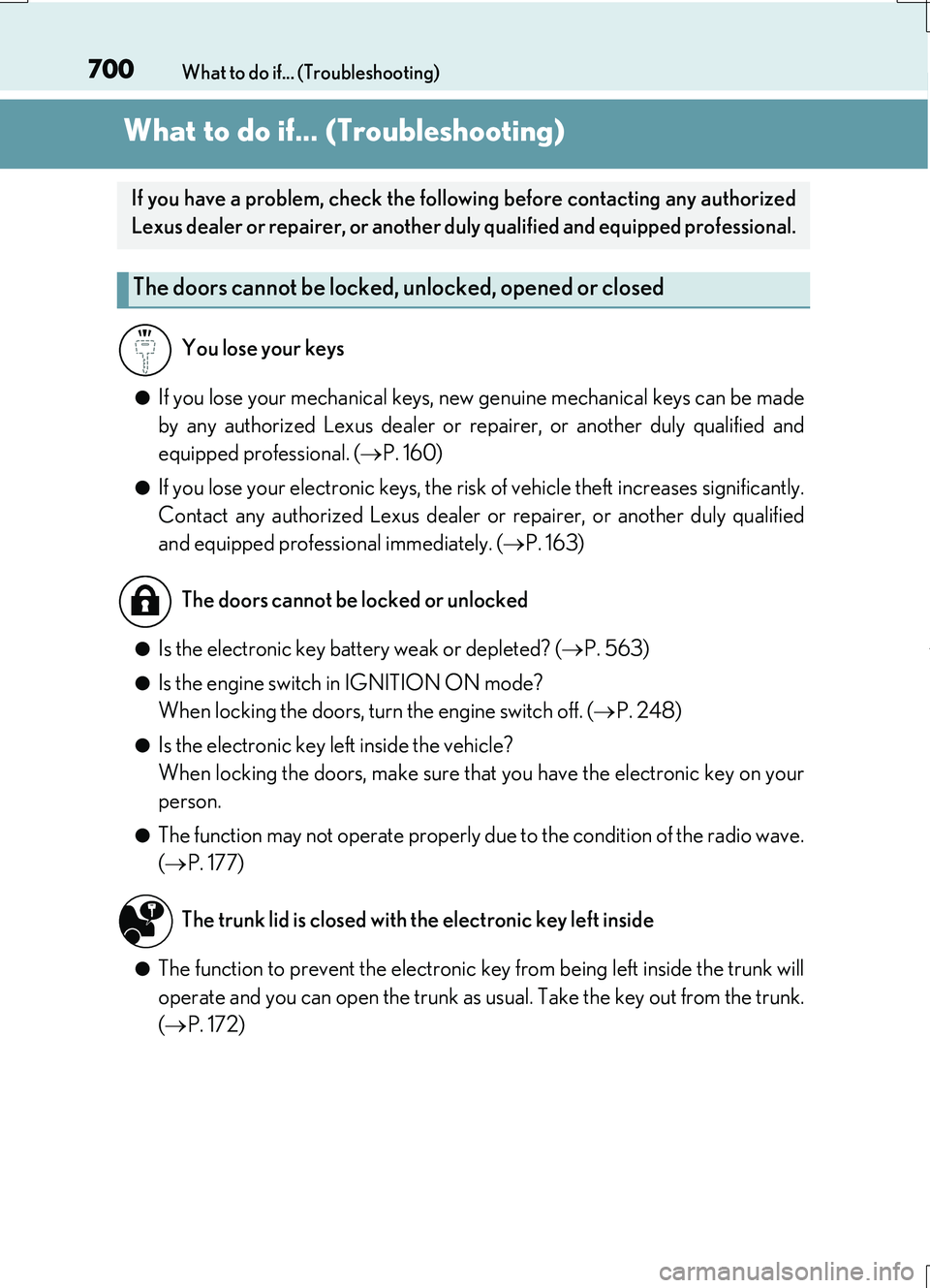

What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. ( P. 160)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( P. 163)
●Is the electronic key battery weak or depleted? (P. 563)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 248)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
( P. 177)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as us ual. Take the key out from the trunk.
( P. 172)
If you have a problem, check the following before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The trunk lid is closed with the electronic key left inside
