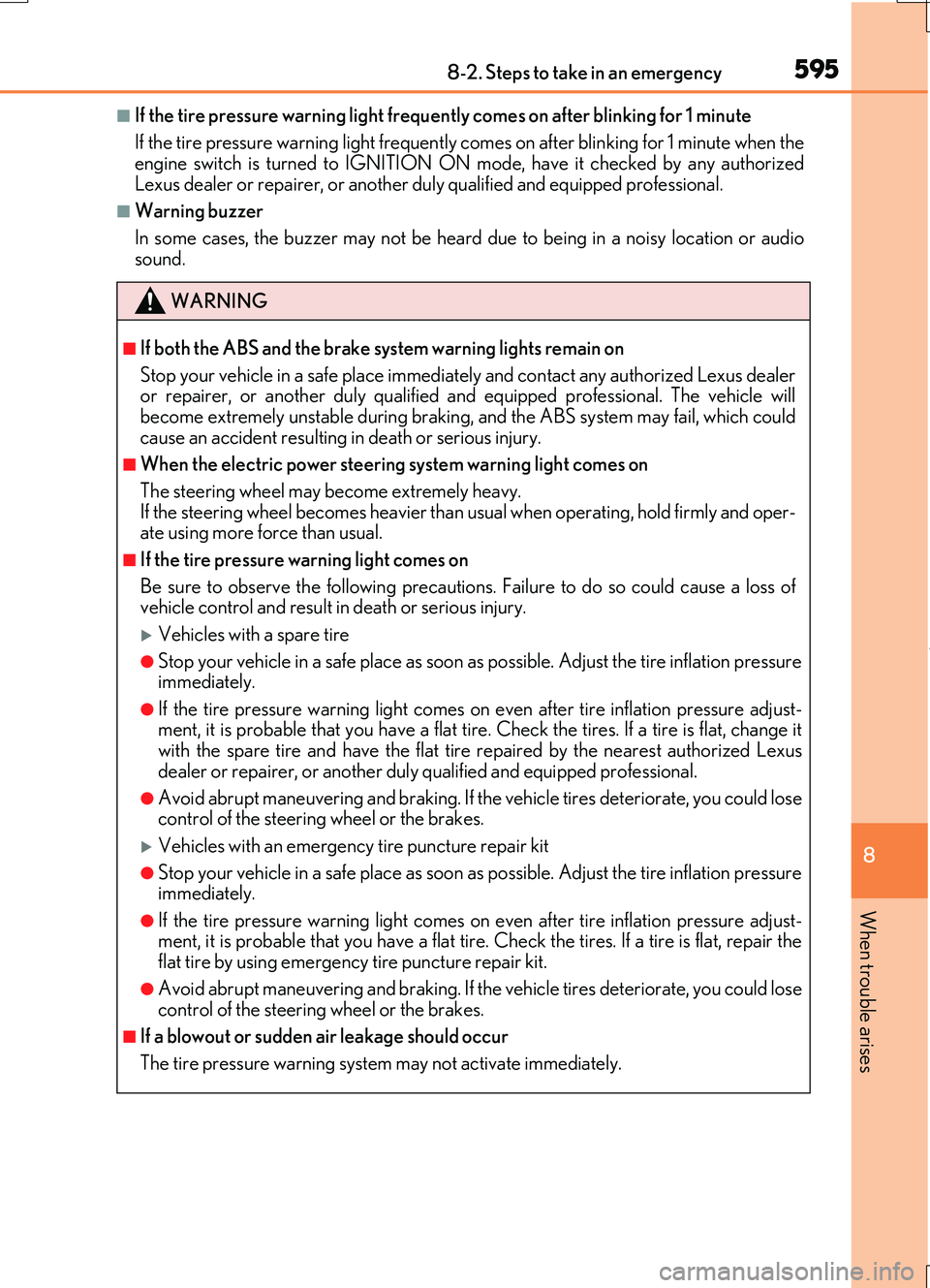

5958-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the engine switch is turned to IGNITION ON mode, have it checked by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The vehicle will
become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy. If the steering wheel becomes heavier than us ual when operating, hold firmly and oper- ate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury.
Vehicles with a spare tire
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressureimmediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust- ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change itwith the spare tire and have the flat tire repaired by the nearest authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
Vehicles with an emergency tire puncture repair kit
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressureimmediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust- ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, repair theflat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5988-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that: • There is a high possibility of a frontal collision; or
• The pre-crash braking function is operating A buzzer also sounds. Slow the vehicle by applying the brakes.
Indicates that the engine was stopped with the shift lever not in P
A buzzer also sounds.  Shift the shift lever to P.
Indicates that the engine was stopped while driving A buzzer also sounds.
 Stop the vehicle in a safe place such as the shoulder of a road.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead(in vehicle-to-vehicle distance mode)A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(Flashes)
(Flashes)
(Flashes)

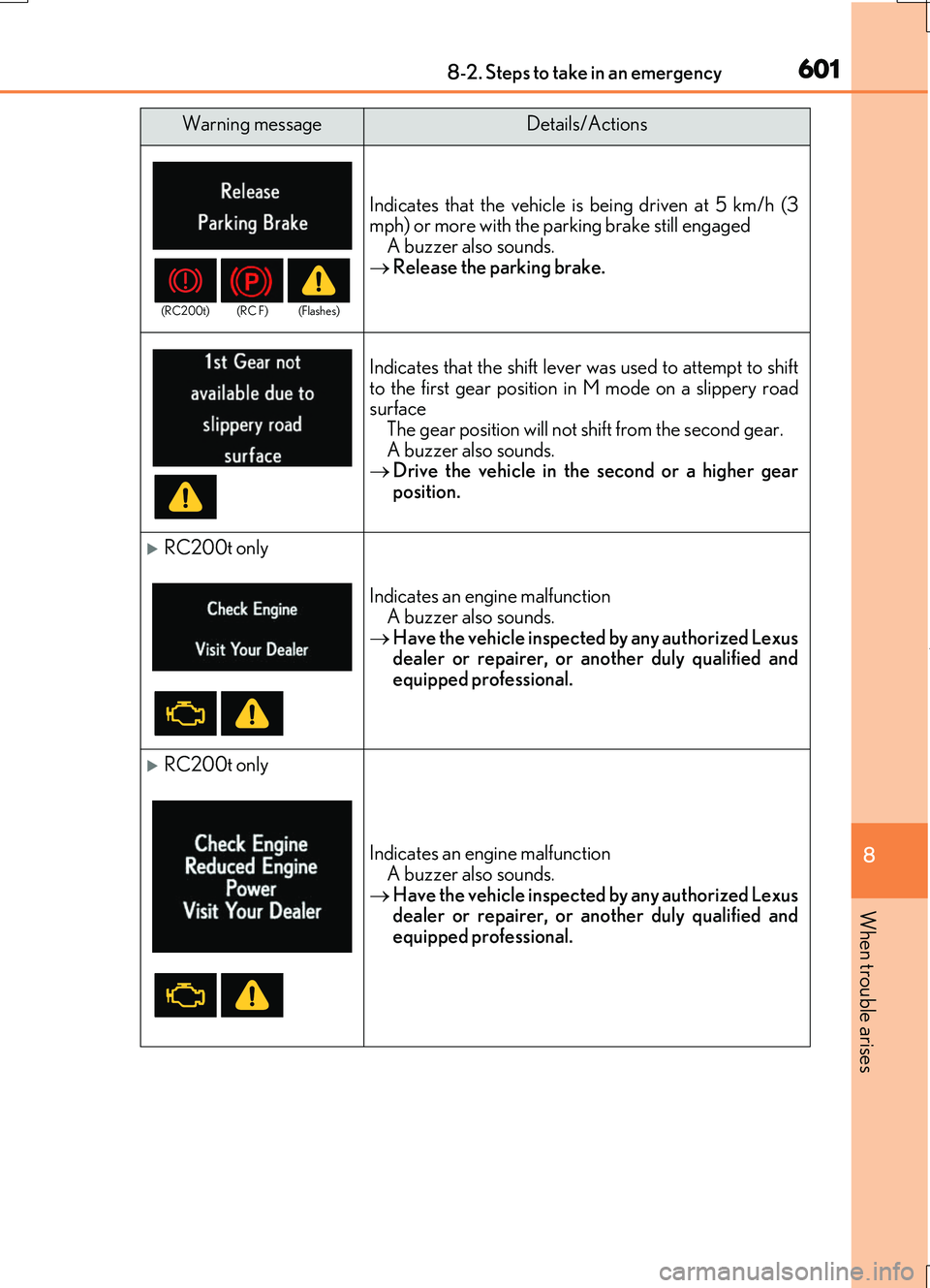

6018-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Indicates that the vehicle is being driven at 5 km/h (3 mph) or more with the parking brake still engaged
A buzzer also sounds.  Release the parking brake.
Indicates that the shift lever was used to attempt to shift
to the first gear position in M mode on a slippery road surfaceThe gear position will not shift from the second gear.
A buzzer also sounds.  Drive the vehicle in the second or a higher gear position.
RC200t only
Indicates an engine malfunctionA buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified andequipped professional.
RC200t only
Indicates an engine malfunction
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Warning messageDetails/Actions
(RC200t) (RC F) (Flashes)

6028-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
RC200t only
Indicates an engine malfunction A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified andequipped professional.
Indicates a malfunction in:• The SRS airbag system; or
• The seat belt pretensioner system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates a malfunction in:•The ABS; or
• The brake assist system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates that the engine coolant temperature is too highA buzzer also sounds. P. 659
(If equipped)
Indicates that the radar sensor is dirty or covered with ice
A buzzer also sounds.  Clean the sensor.
Warning messageDetails/Actions

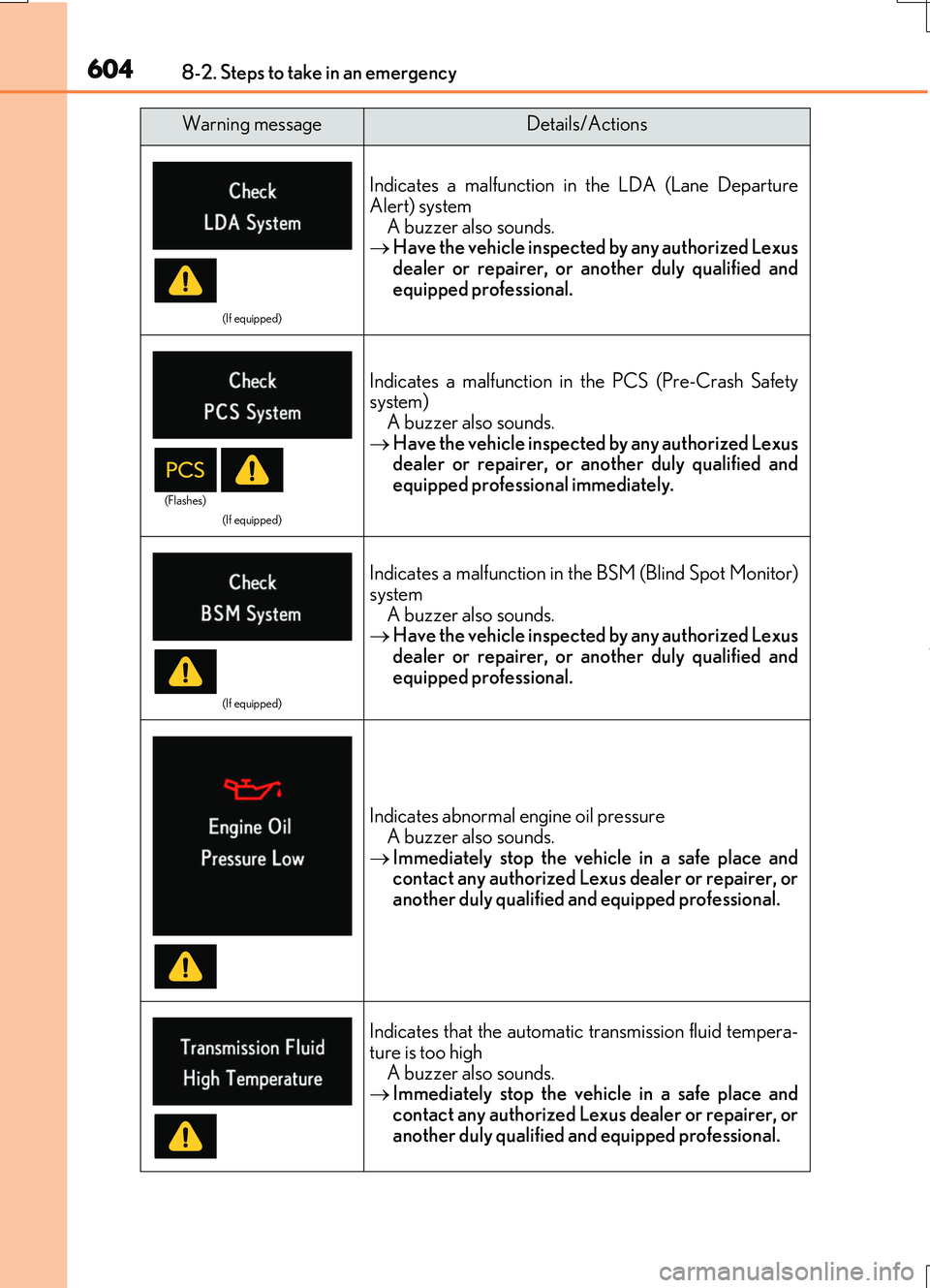

6048-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safetysystem)A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified andequipped professional immediately.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates abnormal engine oil pressure
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds. Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)

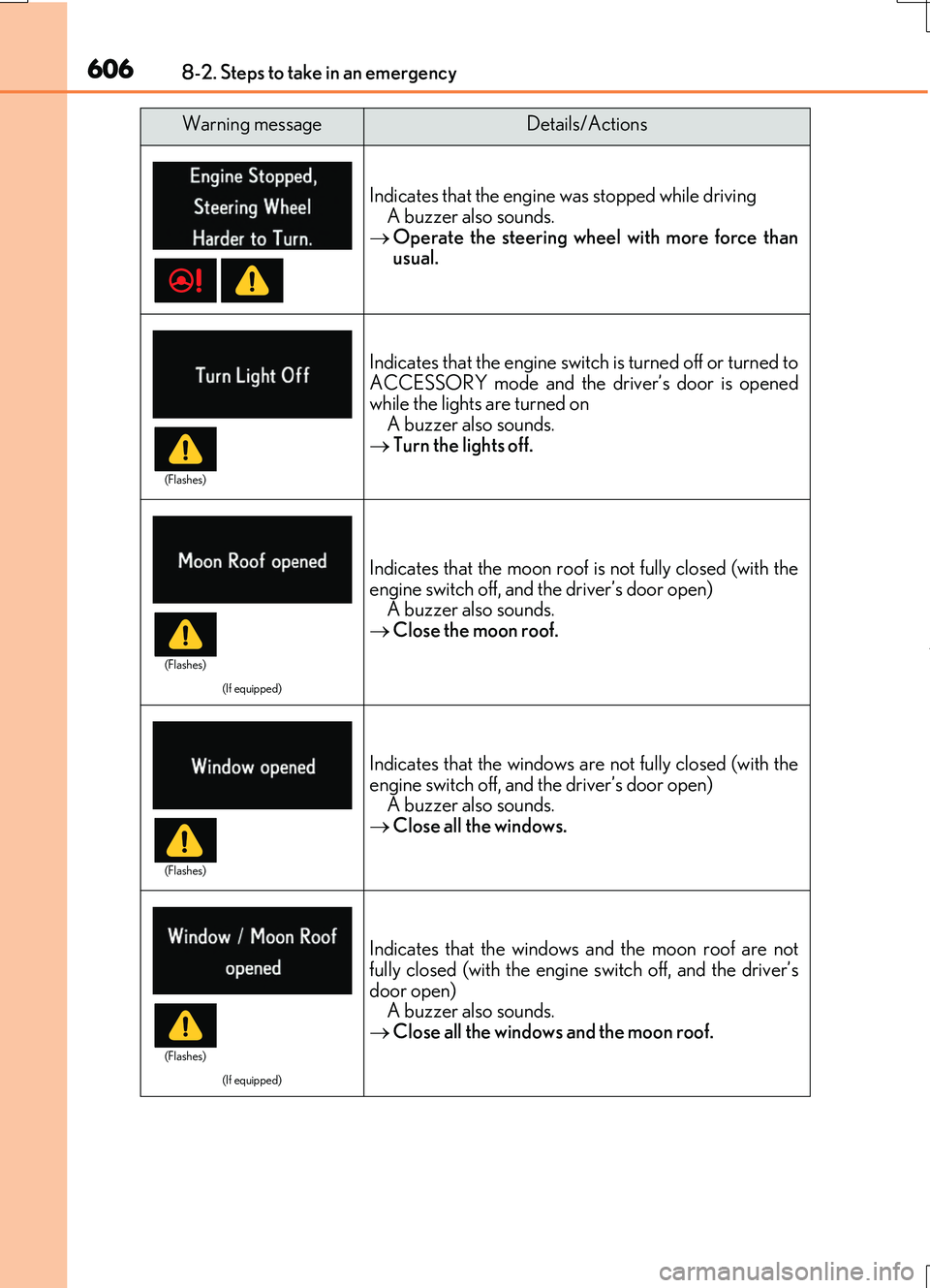

6068-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Indicates that the engine was stopped while driving A buzzer also sounds.
 Operate the steering wheel with more force than usual.
Indicates that the engine switch is turned off or turned toACCESSORY mode and the driver’s door is openedwhile the lights are turned on
A buzzer also sounds.  Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the engine switch off, and the driver’s door open)A buzzer also sounds.
 Close the moon roof.
Indicates that the windows are not fully closed (with the engine switch off, and the driver’s door open)A buzzer also sounds.
 Close all the windows.
(If equipped)
Indicates that the windows and the moon roof are not
fully closed (with the engine switch off, and the driver’s door open)A buzzer also sounds.
 Close all the windows and the moon roof.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

6078-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
RC F only
(If equipped)
Indicates a malfunction in the TVD (Torque Vectoring Differential) system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
RC F only
(If equipped)
Indicates that the TVD (Torque Vectoring Differential) system has overheatedThis message may be displayed when driving under
extremely high load conditions such as the following: • Continuously driving at high speeds or throughsharp turns
• If either right or left rear tire loses traction and spins continuouslyA buzzer also sounds.
 Drive the vehicle for a while, while avoiding extremely high load conditions.
Indicates a malfunction in the brake override system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates that engine oil level is low This message may appear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to see if the message disappears.A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Warning messageDetails/Actions

6098-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Indicates that the tire inflation pressure is low
 Check the tire inflation pressure, and adjust to the appropriate level.
Indicates a malfunction in th e tire pressure warning sys- tem
 Stop the vehicle in a safe place and turn the engine switch off then on again.If the tire pressure warning indicator flashes for 1
minute then illuminates, th ere is a malfunction in the system. Have the vehicle inspected by any autho-rized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.
Indicates that the tire position information cannot be rec- ognized Drive for a short while and check if the display
updates. If the radio wave conditions improve, the displaymay return to normal. If the tire pressure is still not
displayed after driving for several minutes, stop the vehicle in a safe place, turn the engine switch offthen on again, and start driving.
If the tire pressure is still not displayed even after repeating this process several times, have the vehi-cle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
RC F only
Indicates a malfunction in the active rear wing  Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates that the washer fluid level is low Add washer fluid.
Warning messageDetails/Actions

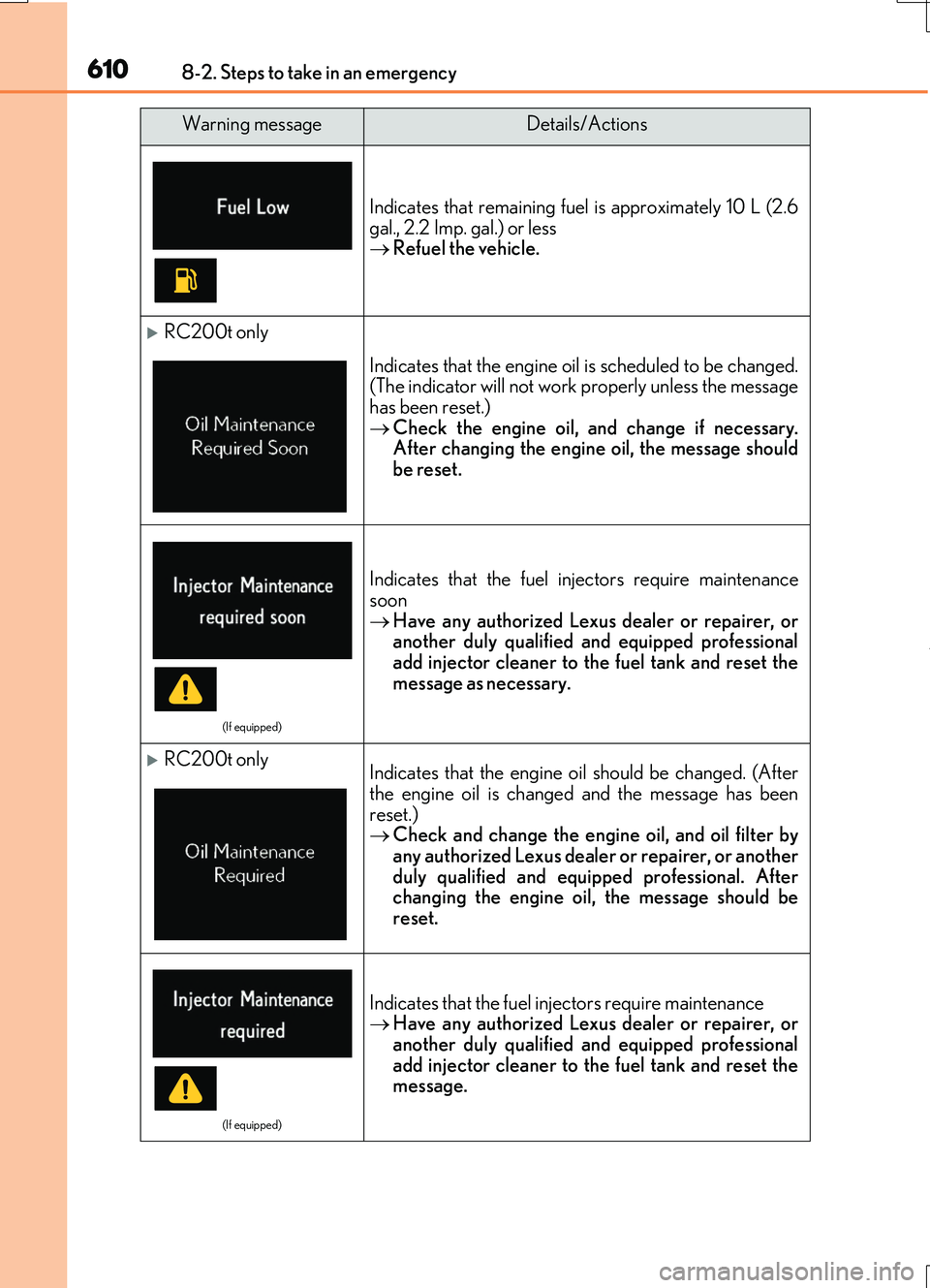

6108-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Indicates that remaining fuel is approximately 10 L (2.6 gal., 2.2 Imp. gal.) or less Refuel the vehicle.
RC200t only
Indicates that the engine oil is scheduled to be changed. (The indicator will not work properly unless the message
has been reset.)  Check the engine oil, and change if necessary. After changing the engine oil, the message should
be reset.
(If equipped)
Indicates that the fuel in jectors require maintenance
soon  Have any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
add injector cleaner to the fuel tank and reset the message as necessary.
RC200t onlyIndicates that the engine oil should be changed. (After
the engine oil is changed and the message has been reset.) Check and change the engine oil, and oil filter by
any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Afterchanging the engine oil, the message should be
reset.
(If equipped)
Indicates that the fuel injectors require maintenance  Have any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
add injector cleaner to the fuel tank and reset the message.
Warning messageDetails/Actions

6138-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Interior buzzerExteriorbuzzerWarning messageDetails/Actions
Con-
tinuous  The driver’s door was opened when
the shift lever was not in P and the
engine switch was not turned off.
 Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the engine switch was
not turned off.
 Shift the shift lever to P.
 Bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the engine switch off when the shift
lever was in P.
 Turn the engine switch off and
lock the doors again.
(Flashes)
(Displayed alternately)
(Flashes)
(Displayed alternately)
(Flashes)
