dimensions LEXUS RC200T 2017 Owners Manual

668
RC200t_RC F_EE(OM24728E)

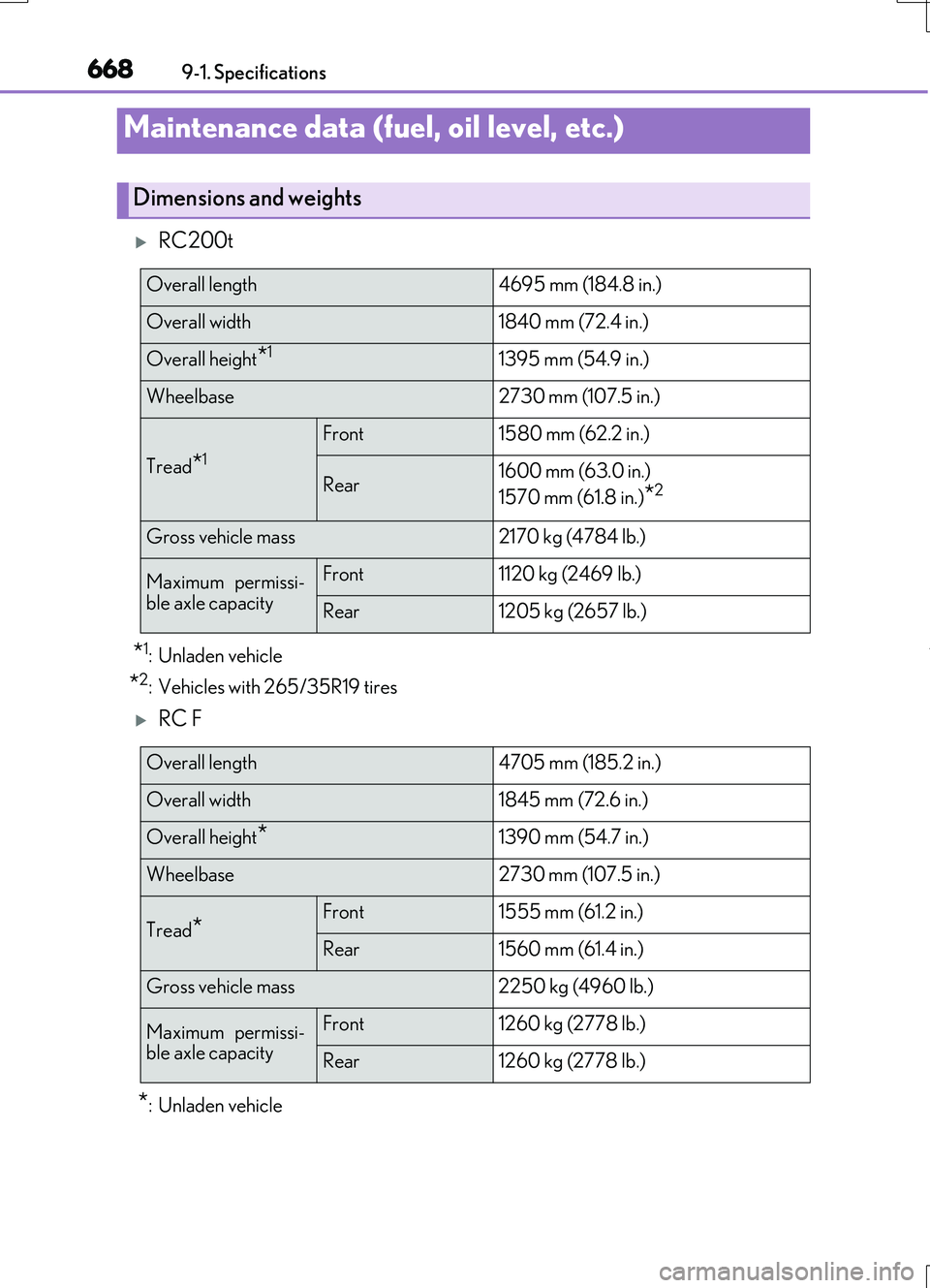

9-1. Specifications
RC200t
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
RC F
*: Unladen vehicle
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4695 mm (184.8 in.)
Overall width1840 mm (72.4 in.)
Overall height*11395 mm (54.9 in.)
Wheelbase2730 mm (107.5 in.)
Tread*1
Front1580 mm (62.2 in.)
Rear1600 mm (63.0 in.)
1570 mm (61.8 in.)*2
Gross vehicle mass2170 kg (4784 lb.)
Maximum permissi-
ble axle capacity
Front1120 kg (2469 lb.)
Rear1205 kg (2657 lb.)
Overall length 4705 mm (185.2 in.)
Overall width 1845 mm (72.6 in.)
Overall height*1390 mm (54.7 in.)
Wheelbase 2730 mm (107.5 in.)
Tread*Front 1555 mm (61.2 in.)
Rear 1560 mm (61.4 in.)
Gross vehicle mass 2250 kg (4960 lb.)
Maximum permissi- ble axle capacity
Front 1260 kg (2778 lb.)
Rear 1260 kg (2778 lb.)

707Alphabetical index
RC200t_RC F_EE(OM24728E)
Moon roof precautions .................. 234
Power window lock switch............227
Power window precautions .........230
Removed electronic key
battery precautions ...................... 565
Seat belt precautions .......................... 48
Seat heater precautions ................ 490
Trunk precautions .............................. 173
Cleaning .......................................... 506, 511
Aluminum wheels ..............................507
Exterior................................................... 506
Interior ........................................................ 511
Seat belts..................................................512
Clock .......................................................... 501
Coat hooks ..............................................504
Condenser ............................................. 529
Console box ........................................... 496
Cooling system ...................................... 527
Engine overheating ......................... 659
Cruise control
Cruise control ..................................... 294
Dynamic radar cruise control .....298
Cup holders ............................................ 497
Current fuel consumption.......... 134, 141
Curtain shield airbags ........................... 49
Customizable features .......................686
DAB (Digital Audio Broadcast) .......415
Daytime running light system ......... 265
Defogger
Outside rear view mirrors ............ 484
Rear window........................................ 484
Windshield ........................................... 484
Differential............................................... 678
Digital Audio Broadcast (DAB) .......415
Dimensions ............................................. 668
Display
Drive information........................ 134, 141
Dynamic radar cruise control ..... 298
LDA (Lane Departure Alert) ........ 315
Multi-information display........ 131, 139
Warning message ............................ 597
Distance ............................................ 134, 141
Do-it-yourself maintenance ...............516
Door courtesy lights
Location ................................................. 492
Door lock
Doors......................................................... 164
Smart entry & start system ............. 175
Wireless remote control .................158
D
