sensor LEXUS RC200T 2017 Owners Manual

3
1
9
8
7
6
4
3
2
RC200t_RC F_EE(OM24728E)
5

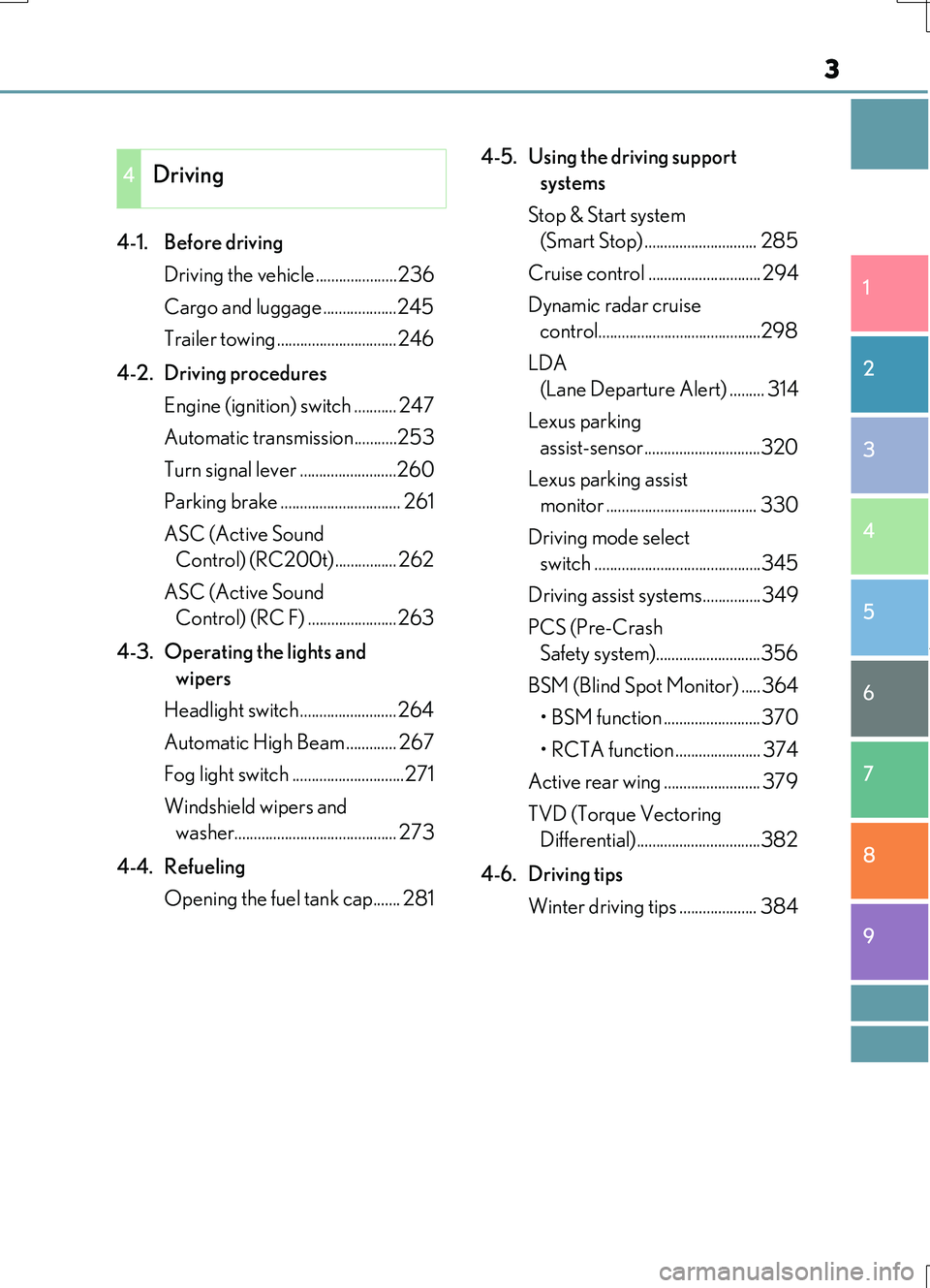

4-1. Before driving
Driving the vehicle .....................236
Cargo and luggage ...................245
Trailer towing ...............................246
4-2. Driving procedures
Engine (ignition) switch ........... 247
Automatic transmission...........253
Turn signal lever .........................260
Parking brake ............................... 261
ASC (Active Sound
Control) (RC200t)................ 262
ASC (Active Sound
Control) (RC F) .......................263
4-3. Operating the lights and
wipers
Headlight switch ......................... 264
Automatic High Beam ............. 267
Fog light switch .............................271
Windshield wipers and
washer.......................................... 273
4-4. Refueling
Opening the fuel tank cap....... 281
4-5. Using the driving support
systems
Stop & Start system
(Smart Stop) ............................. 285
Cruise control ............................. 294
Dynamic radar cruise
control..........................................298
LDA
(Lane Departure Alert) ......... 314
Lexus parking
assist-sensor..............................320
Lexus parking assist
monitor ....................................... 330
Driving mode select
switch ...........................................345
Driving assist systems...............349
PCS (Pre-Crash
Safety system)...........................356
BSM (Blind Spot Monitor) .....364
• BSM function .........................370
• RCTA function ...................... 374
Active rear wing ......................... 379
TVD (Torque Vectoring
Differential)................................382
4-6. Driving tips
Winter driving tips .................... 384
4Driving

7
1
9
8
7
6
4
3
2
RC200t_RC F_EE(OM24728E)
5

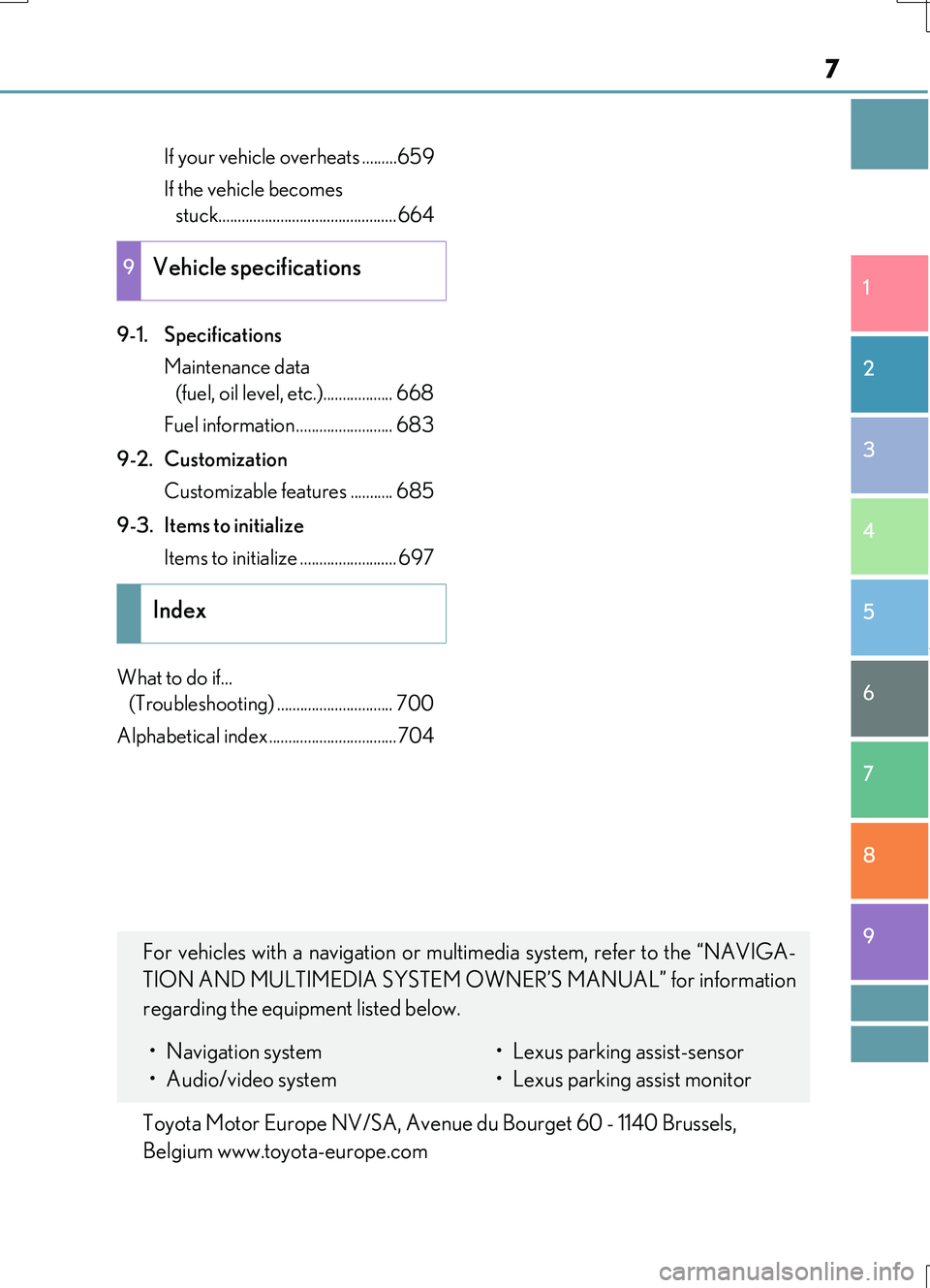

If your vehicle overheats .........659
If the vehicle becomes
stuck..............................................664
9-1. Specifications
Maintenance data
(fuel, oil level, etc.).................. 668
Fuel information ......................... 683
9-2. Customization
Customizable features ........... 685
9-3. Items to initialize
Items to initialize ......................... 697
What to do if...
(Troubleshooting) .............................. 700
Alphabetical index.................................704
9Vehicle specifications
Index
For vehicles with a navigation or multimedia system, refer to the “NAVIGA-
TION AND MULTIMEDIA SYSTEM OW NER’S MANUAL” for information
regarding the equipment listed below.
• Navigation system
• Audio/video system
• Lexus parking assist-sensor
• Lexus parking assist monitor
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com

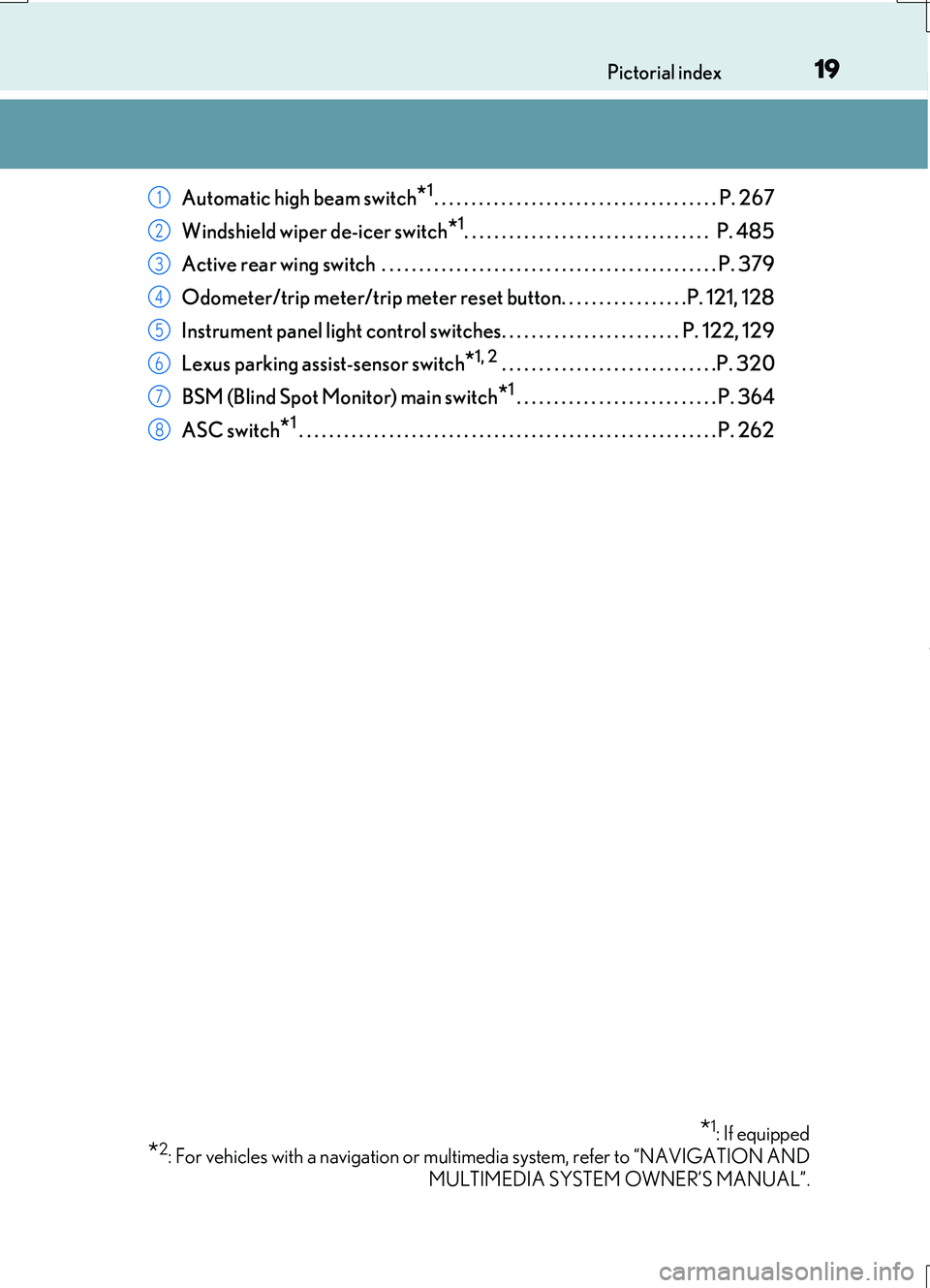

19Pictorial index
RC200t_RC F_EE(OM24728E)
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Windshield wiper de-icer switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485
Active rear wing switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
Odometer/trip meter/trip meter reset button. . . . . . . . . . . . . . . . .P. 121, 128
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . P. 122, 129
Lexus parking assist-sensor switch*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 320
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
ASC switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
*1: If equipped
*2: For vehicles with a navigation or multimedia system, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

26Pictorial index
RC200t_RC F_EE(OM24728E)

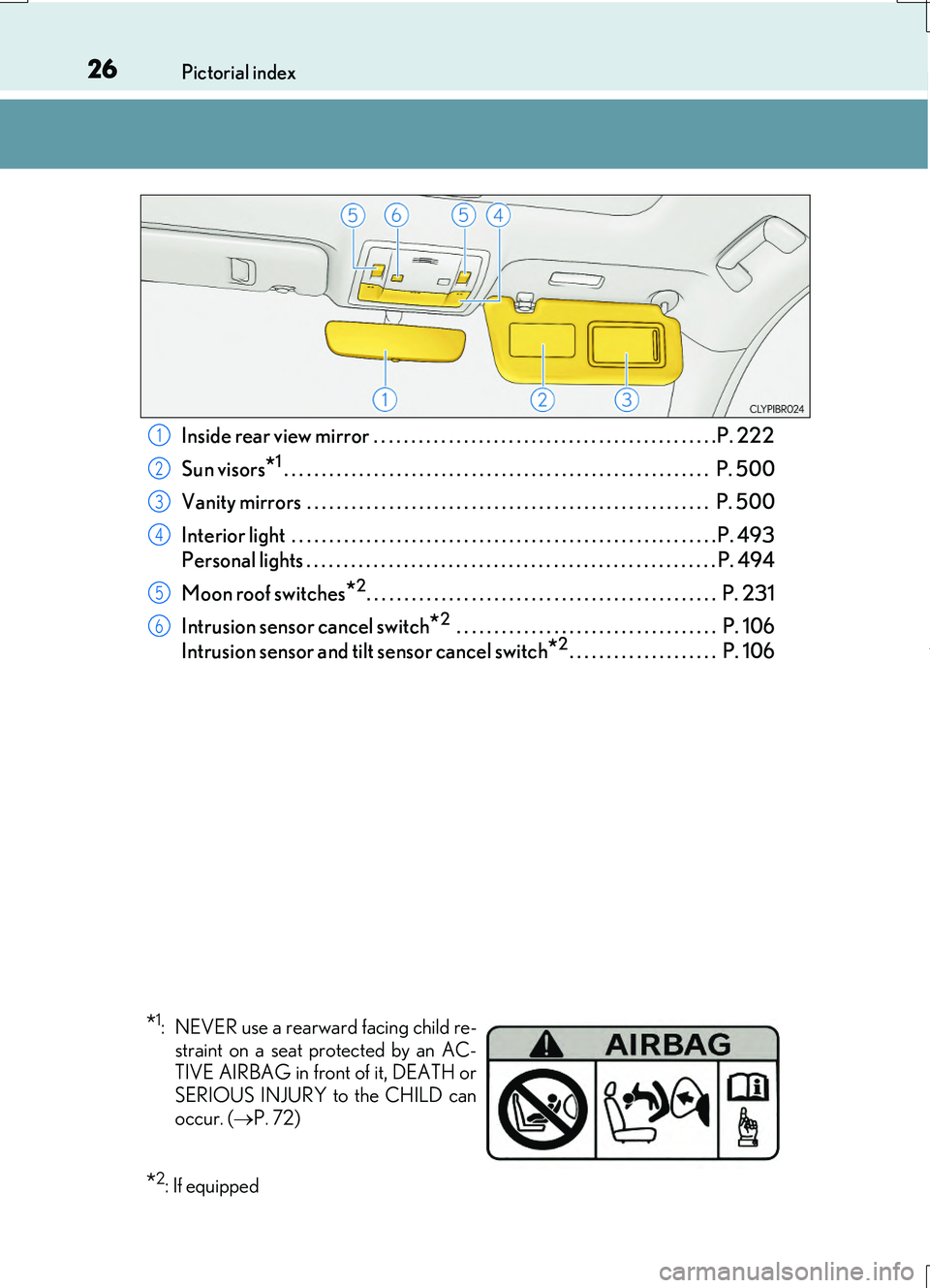

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 222
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 00
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 493
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 494
Moon roof switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Intrusion sensor cancel switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 106
Intrusion sensor and tilt sensor cancel switch*2. . . . . . . . . . . . . . . . . . . . P. 106
1
2
3
4
5
6
*1: NEVER use a rearward facing child re-
straint on a seat protected by an AC-
TIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can
occur. ( P. 72)
*2: If equipped

30Pictorial index
RC200t_RC F_EE(OM24728E)

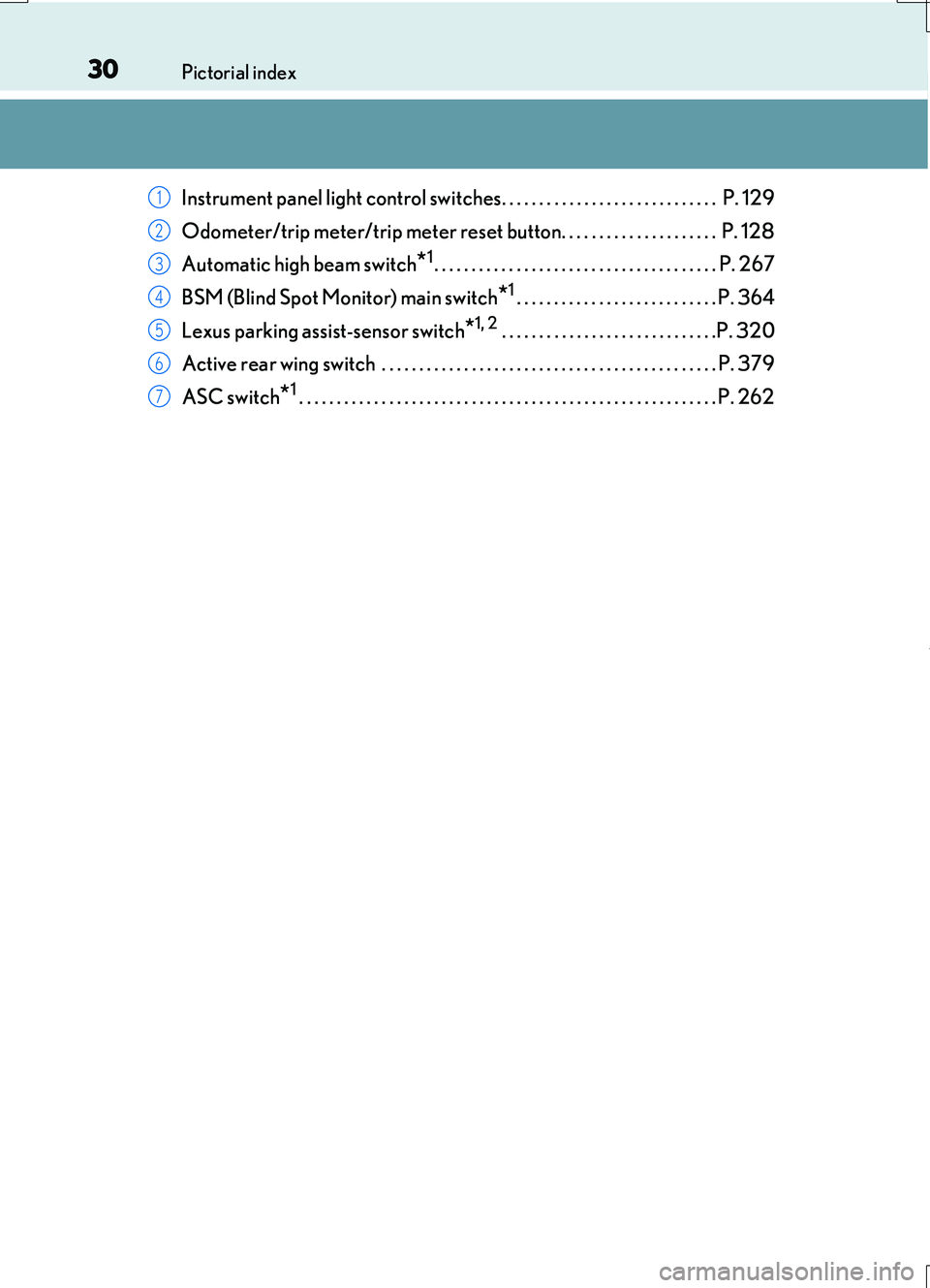

Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
Odometer/trip meter/trip meter reset button. . . . . . . . . . . . . . . . . . . . . P. 128
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Lexus parking assist-sensor switch*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 320
Active rear wing switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
ASC switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
1
2
3
4
5
6
7

37Pictorial index
RC200t_RC F_EE(OM24728E)

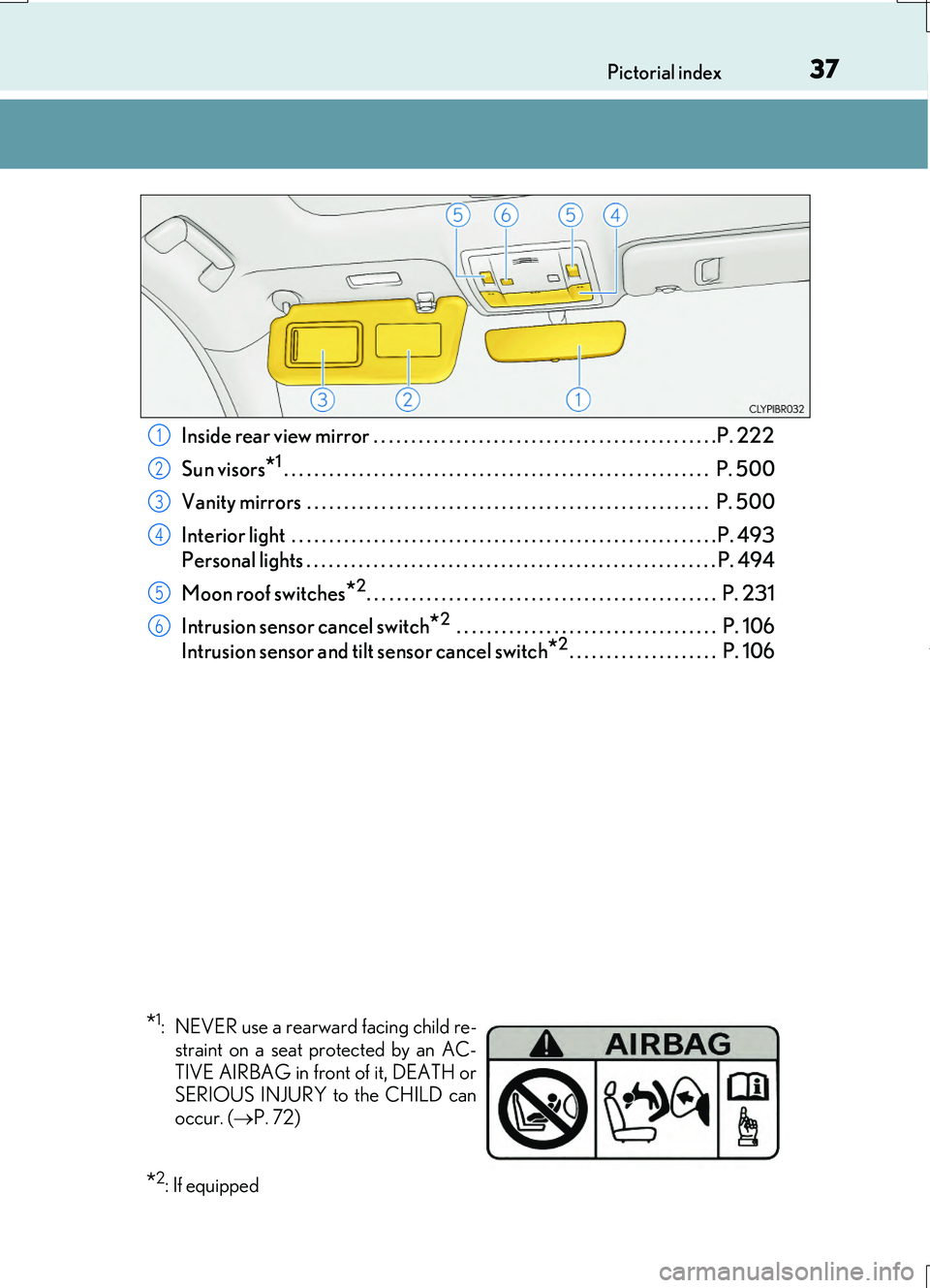

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 222
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 00
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 493
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 494
Moon roof switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Intrusion sensor cancel switch
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 106
Intrusion sensor and tilt sensor cancel switch
*2. . . . . . . . . . . . . . . . . . . . P. 106
1
2
3
4
5
6
*1: NEVER use a rearward facing child re- straint on a seat protected by an AC-
TIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can
occur. ( P. 72)
*2: If equipped

501-1. For safe use
RC200t_RC F_EE(OM24728E)

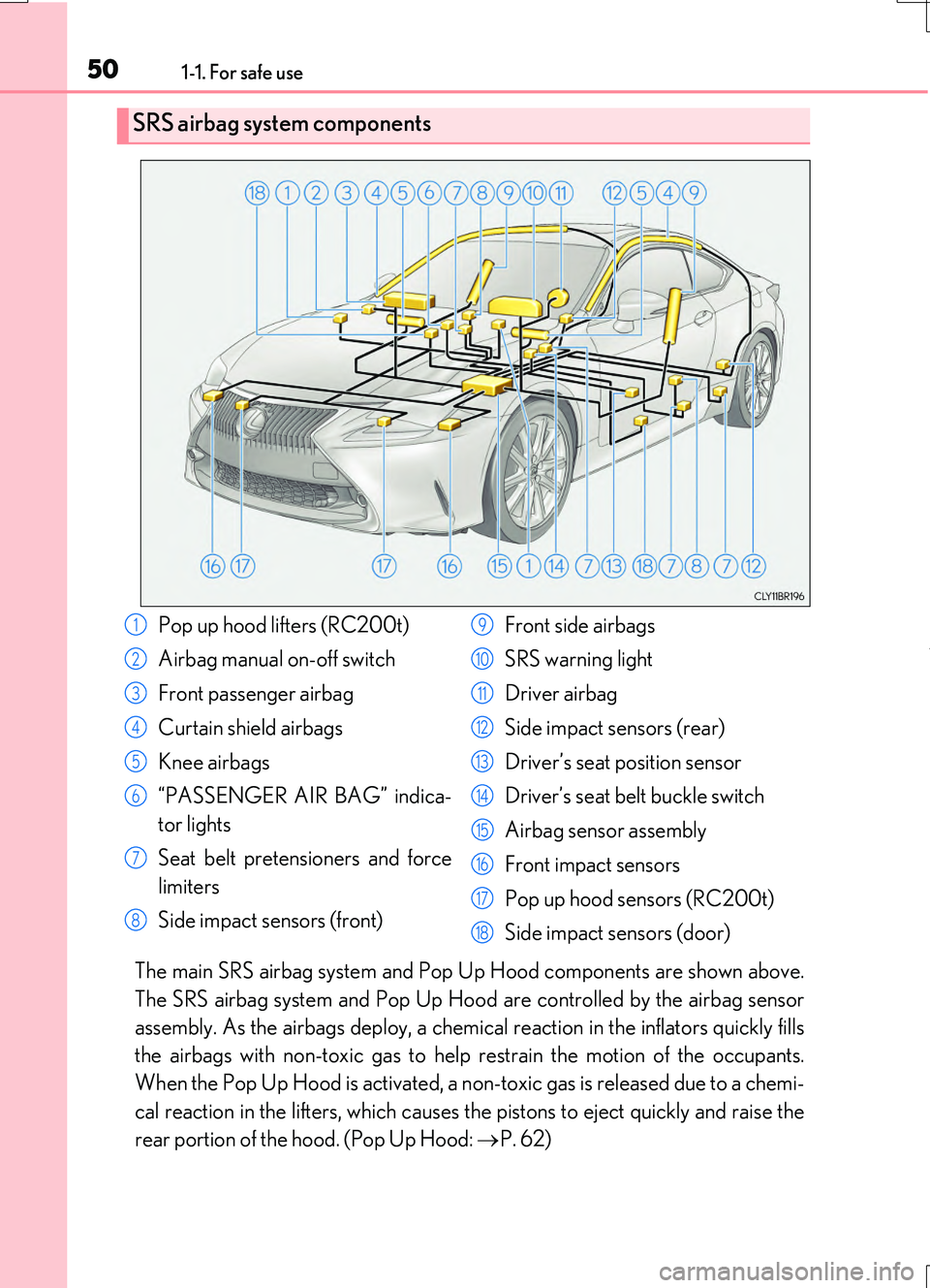

The main SRS airbag system and Pop Up Hood components are shown above.
The SRS airbag system and Pop Up Hood are controlled by the airbag sensor
assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occupants.
When the Pop Up Hood is activated, a non-toxic gas is released due to a chemi-
cal reaction in the lifters, which causes the pistons to eject quickly and raise the
rear portion of the hood. (Pop Up Hood: P. 62)
SRS airbag system components
Pop up hood lifters (RC200t)
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
Knee airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners and force
limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
Pop up hood sensors (RC200t)
Side impact sensors (door)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

621-1. For safe use
RC200t_RC F_EE(OM24728E)
When the sensors located at the back of the front bumper detect an impact with
a body, such as a pedestrian, which meet s or exceeds the threshold level while
the vehicle is being driven within the operational speed range, the system
becomes operational and raises the rear portion of the hood.
Sensors
Hood
Lifters
Pop Up Hood (RC200t)
In the event of a frontal collision with a body, such as a pedestrian, the Pop Up
Hood system raises the rear portion of the hood to reduce the possibility of a
serious impact to the pedestrian’s he ad area by adding clearance to the
engine compartment.
Pop Up Hood mechanism
1
2
3

641-1. For safe use
RC200t_RC F_EE(OM24728E)

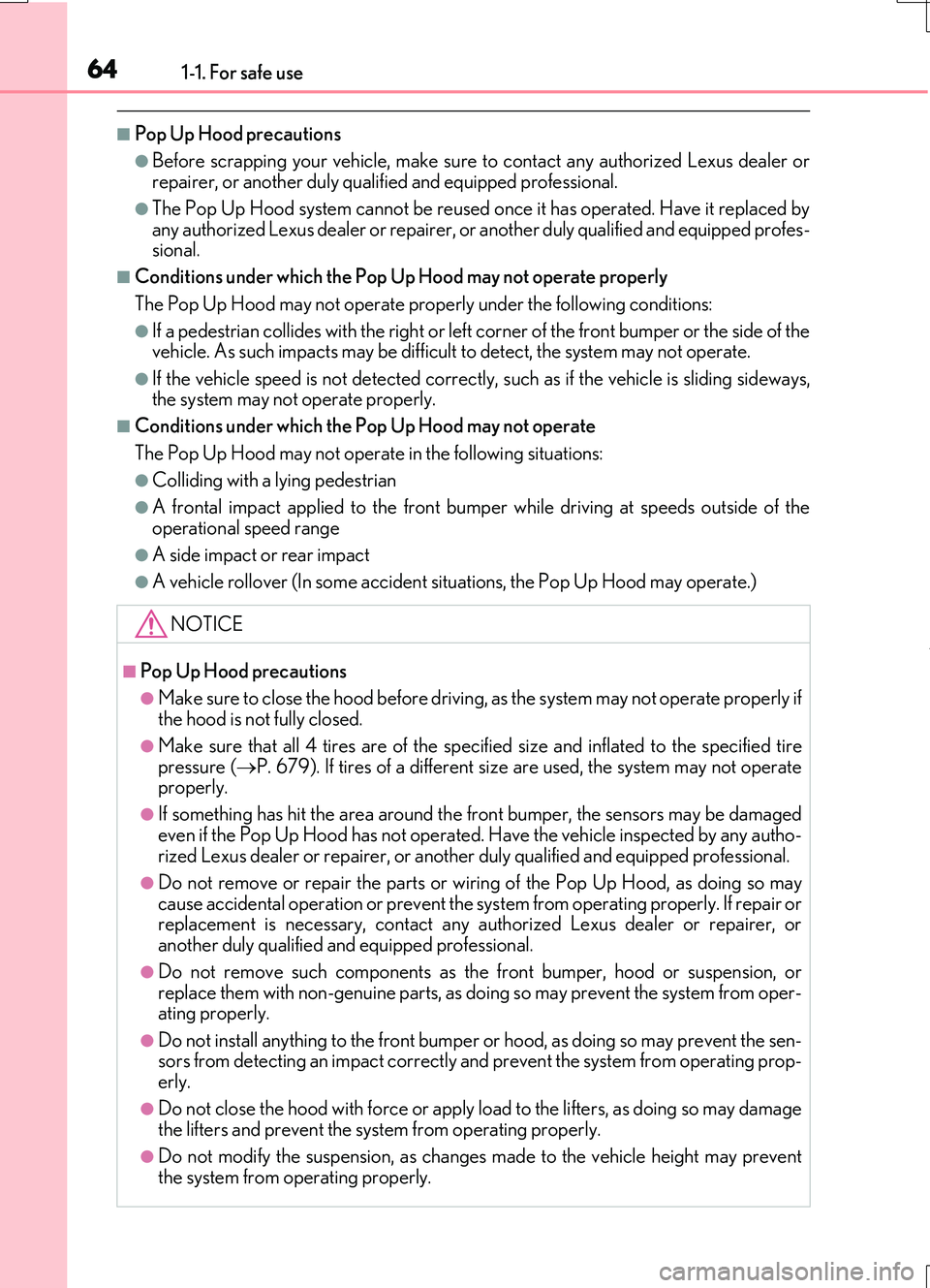

■Pop Up Hood precautions
●Before scrapping your vehicle, make sure to contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●The Pop Up Hood system cannot be reused once it has operated. Have it replaced by
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional.
■Conditions under which the Pop Up Hood may not operate properly
The Pop Up Hood may not operate prop erly under the following conditions:
●If a pedestrian collides with the right or left corner of the front bumper or the side of the vehicle. As such impacts may be difficul t to detect, the system may not operate.
●If the vehicle speed is not detected correctly, such as if the vehicle is sliding sideways, the system may not operate properly.
■Conditions under wh ich the Pop Up Hood may not operate
The Pop Up Hood may not operate in the following situations:
●Colliding with a lying pedestrian
●A frontal impact applied to the front bumper while driving at speeds outside of the
operational speed range
●A side impact or rear impact
●A vehicle rollover (In some accident situations, the Pop Up Hood may operate.)
NOTICE
■Pop Up Hood precautions
●Make sure to close the hood before driving, as the system may not operate properly if the hood is not fully closed.
●Make sure that all 4 tires are of the specif ied size and inflated to the specified tire
pressure ( P. 679). If tires of a different size are used, the system may not operate properly.
●If something has hit the area around the front bumper, the sensors may be damaged
even if the Pop Up Hood has not operated. Have the vehicle inspected by any autho- rized Lexus dealer or repairer, or anothe r duly qualified and equipped professional.
●Do not remove or repair the parts or wiring of the Pop Up Hood, as doing so may
cause accidental operation or prevent the sy stem from operating properly. If repair or replacement is necessary, contact any authorized Lexus dealer or repairer, oranother duly qualified an d equipped professional.
●Do not remove such components as the front bumper, hood or suspension, or replace them with non-genuine parts, as doing so may prevent the system from oper-ating properly.
●Do not install anything to the front bumper or hood, as doing so may prevent the sen-sors from detecting an impact correctly and prevent the system from operating prop-erly.
●Do not close the hood with force or apply load to the lifters, as doing so may damage the lifters and prevent the system from operating properly.
●Do not modify the suspension, as changes made to the vehicle height may prevent
the system from operating properly.

1021-2. Theft deterrent system
RC200t_RC F_EE(OM24728E)

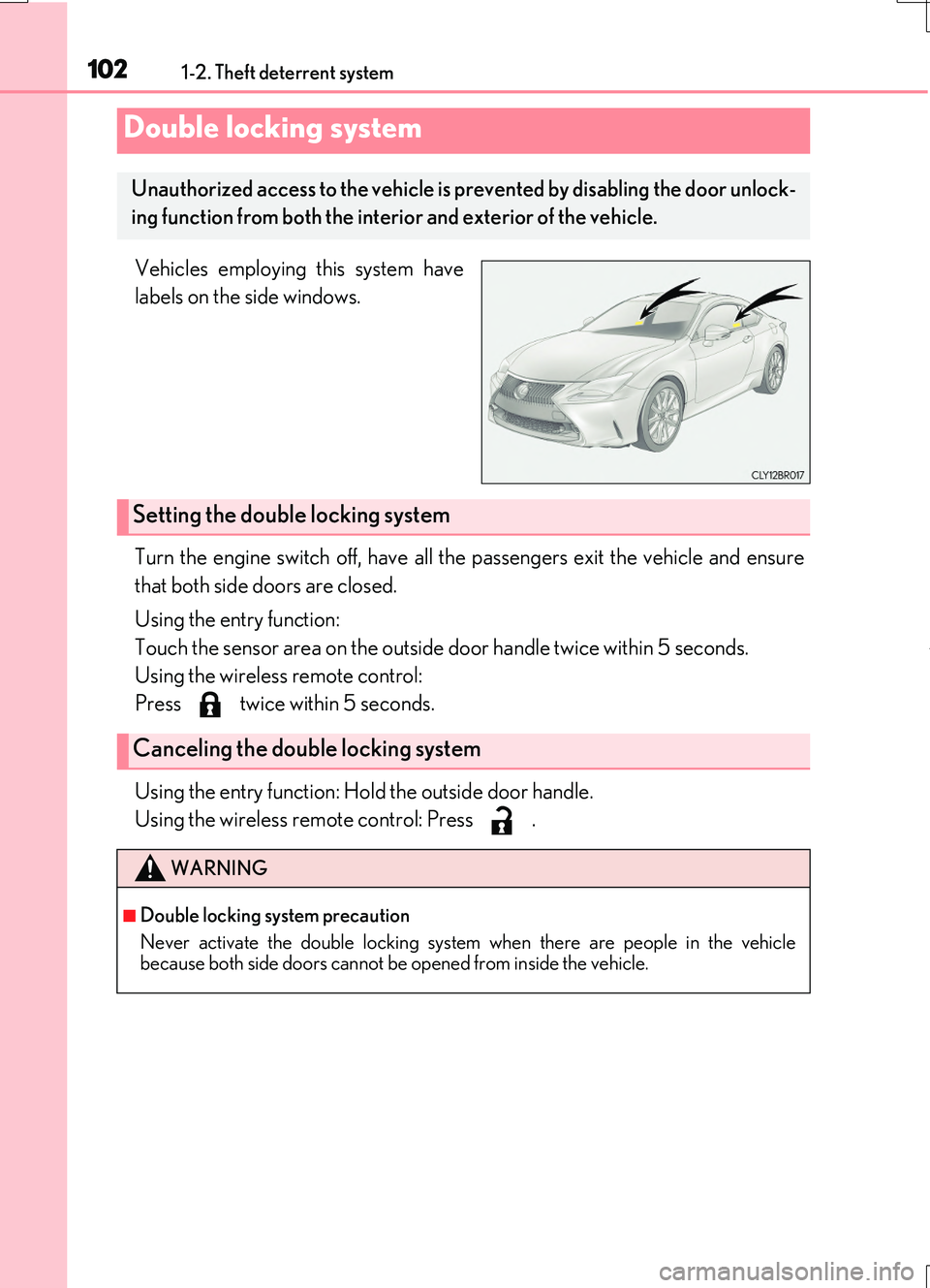

Vehicles employing this system have
labels on the side windows.
Turn the engine switch off, have all the passengers exit the vehicle and ensure
that both side doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system
Unauthorized access to the vehicle is pr evented by disabling the door unlock-
ing function from both the interior and exterior of the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle because both side doors cannot be opened from inside the vehicle.
