311-1. For safe use
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)

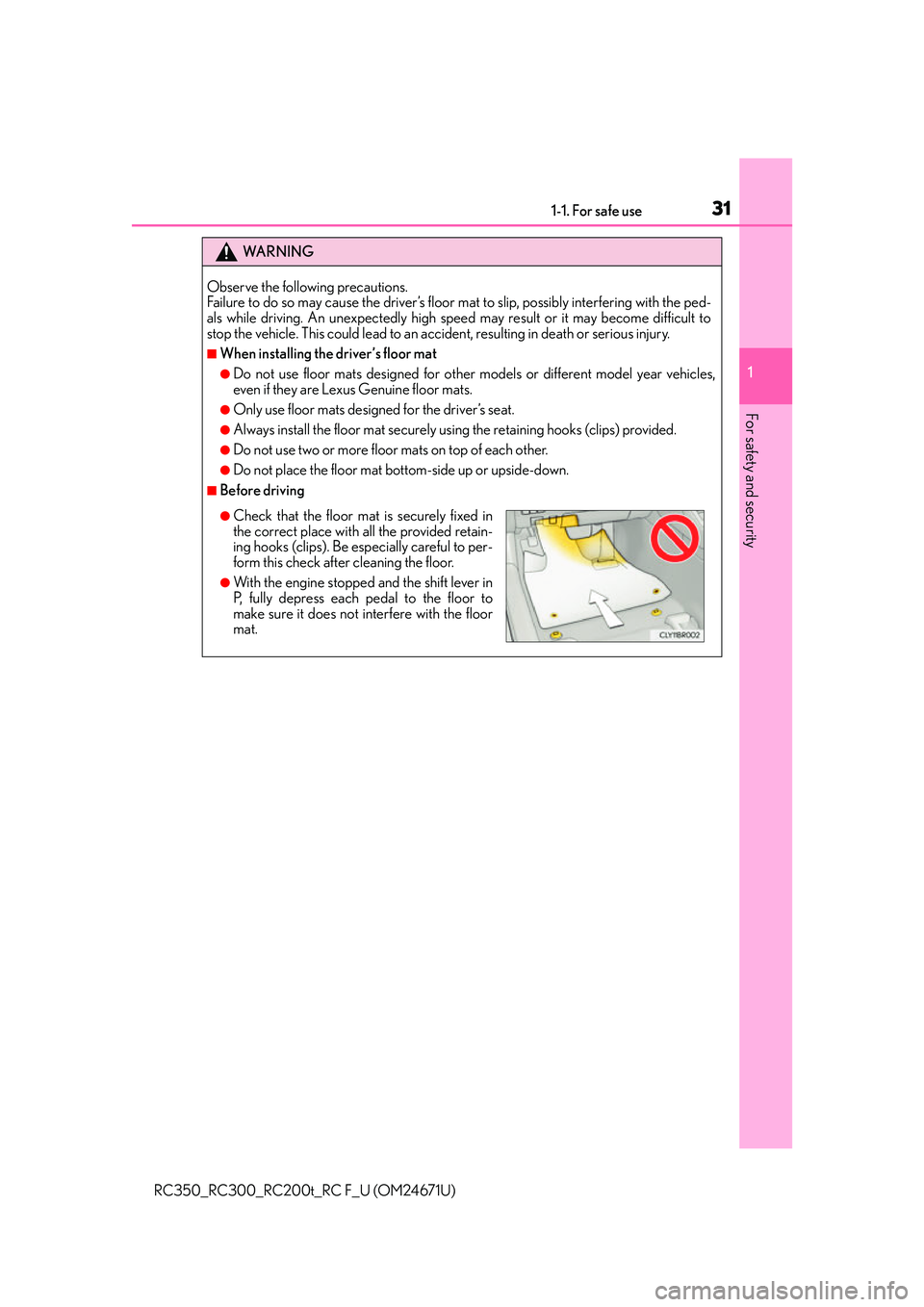

WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an ac cident, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor.
●With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to
make sure it does not interfere with the floor
mat.

321-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)

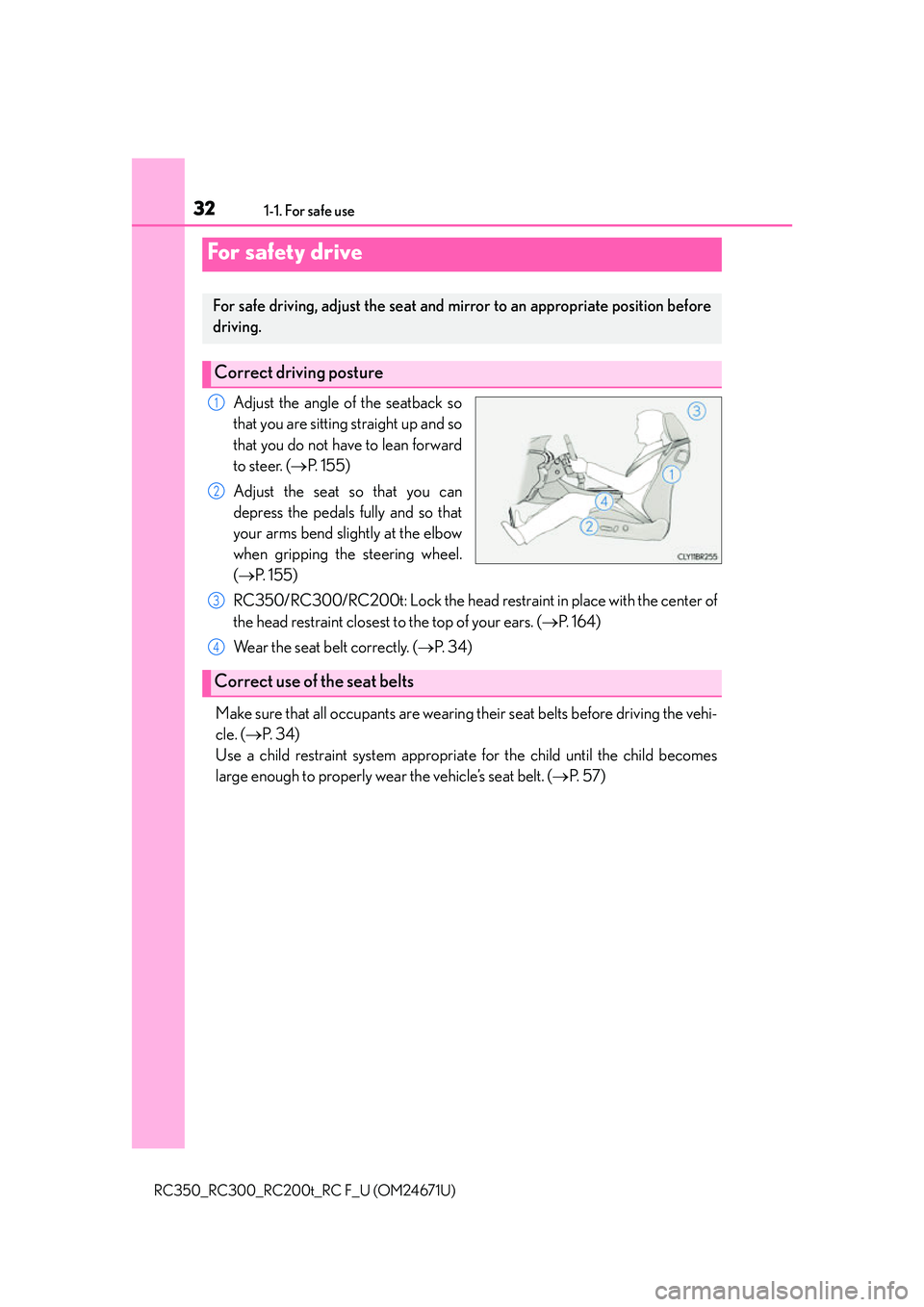

Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (P. 1 5 5 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( P. 1 5 5 )
RC350/RC300/RC200t: Lock the head restraint in place with the center of
the head restraint closest to the top of your ears. ( P. 1 6 4 )
Wear the seat belt correctly. ( P. 3 4 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( P. 3 4 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 5 7 )
For safety drive
For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

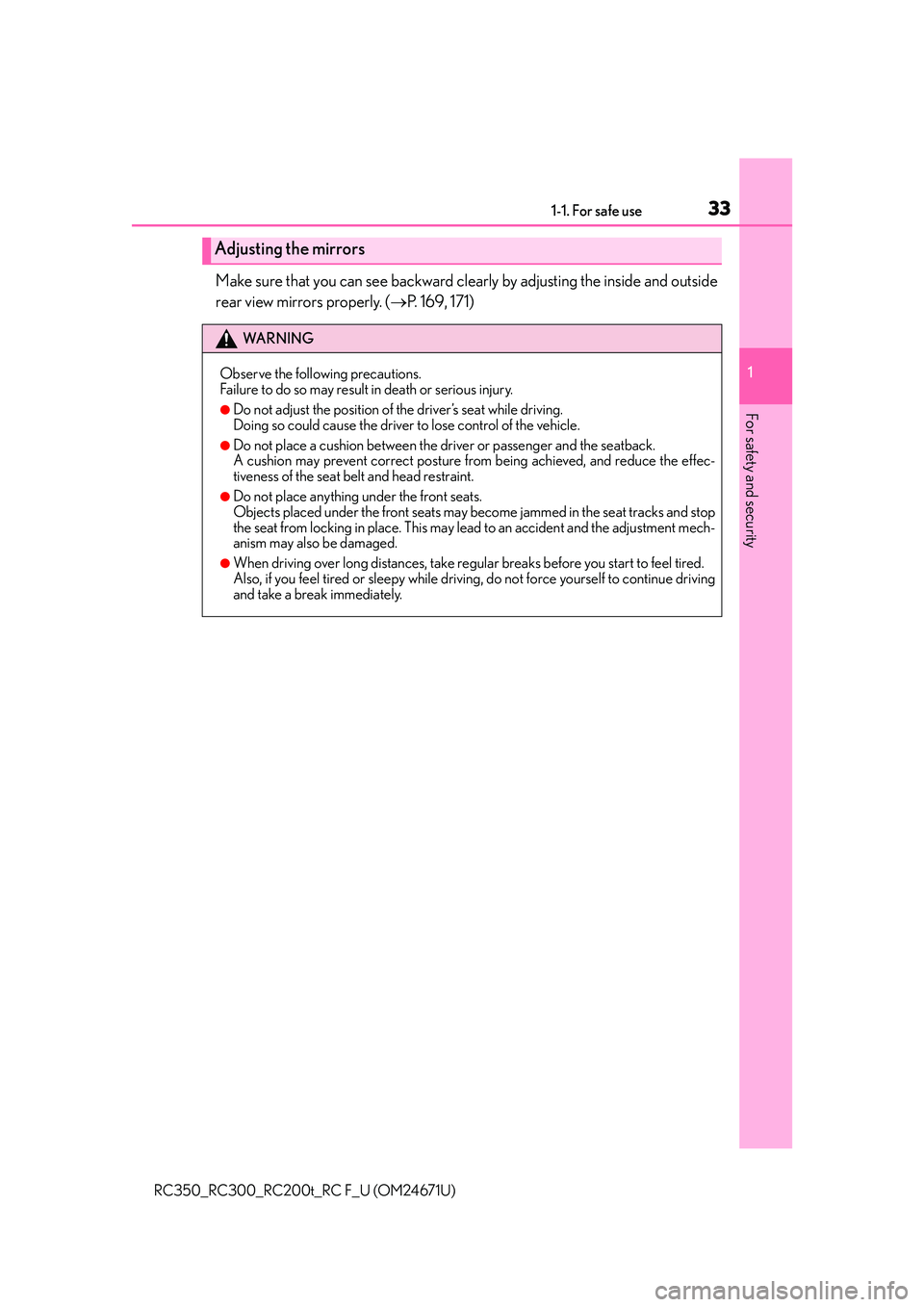

331-1. For safe use
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( P. 169, 171)
Adjusting the mirrors
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may be come jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving
and take a break immediately.

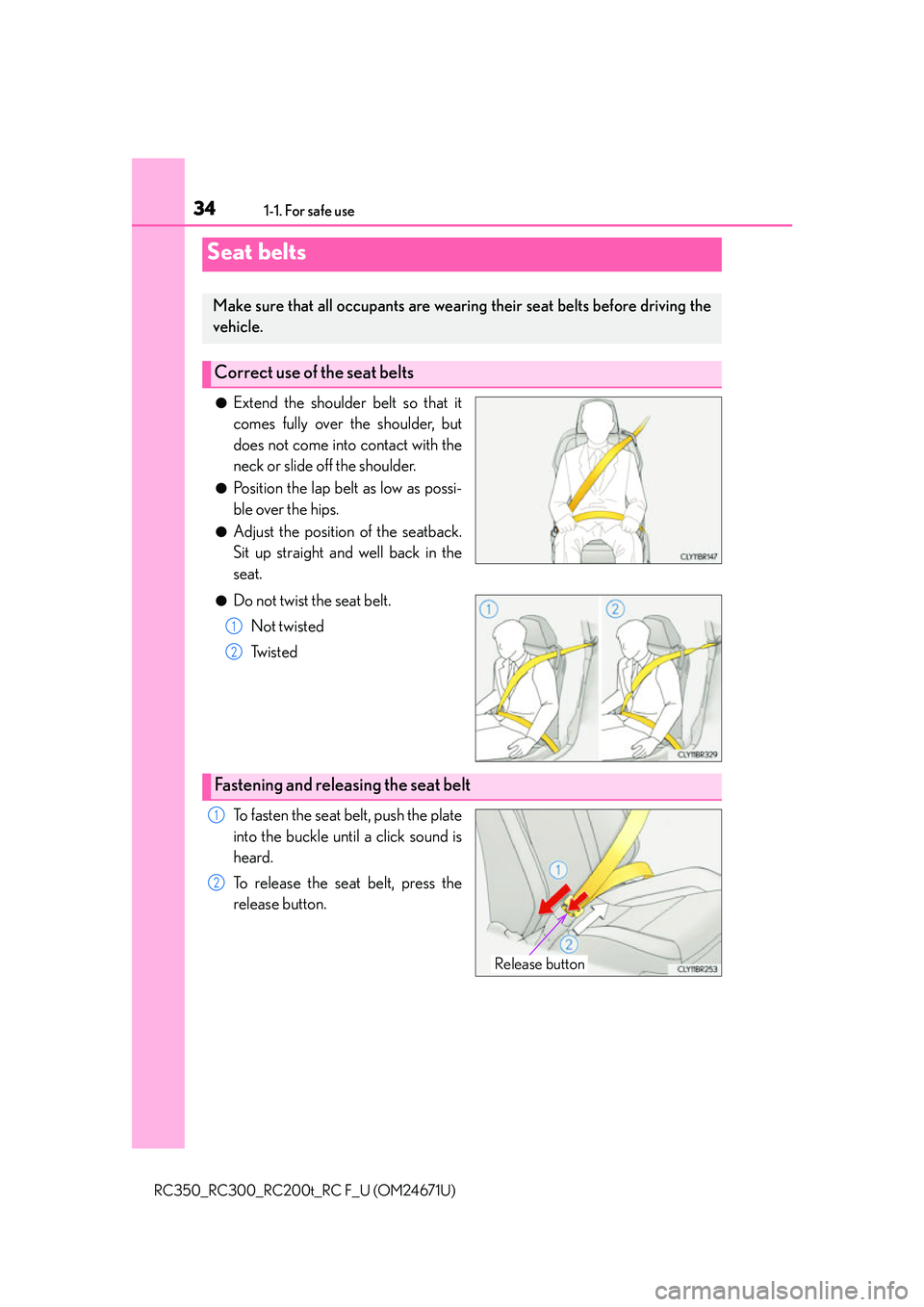

341-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.Not twisted
Tw i s t e d
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
1
2
Fastening and releasing the seat belt
Release button
1
2

351-1. For safe use
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)

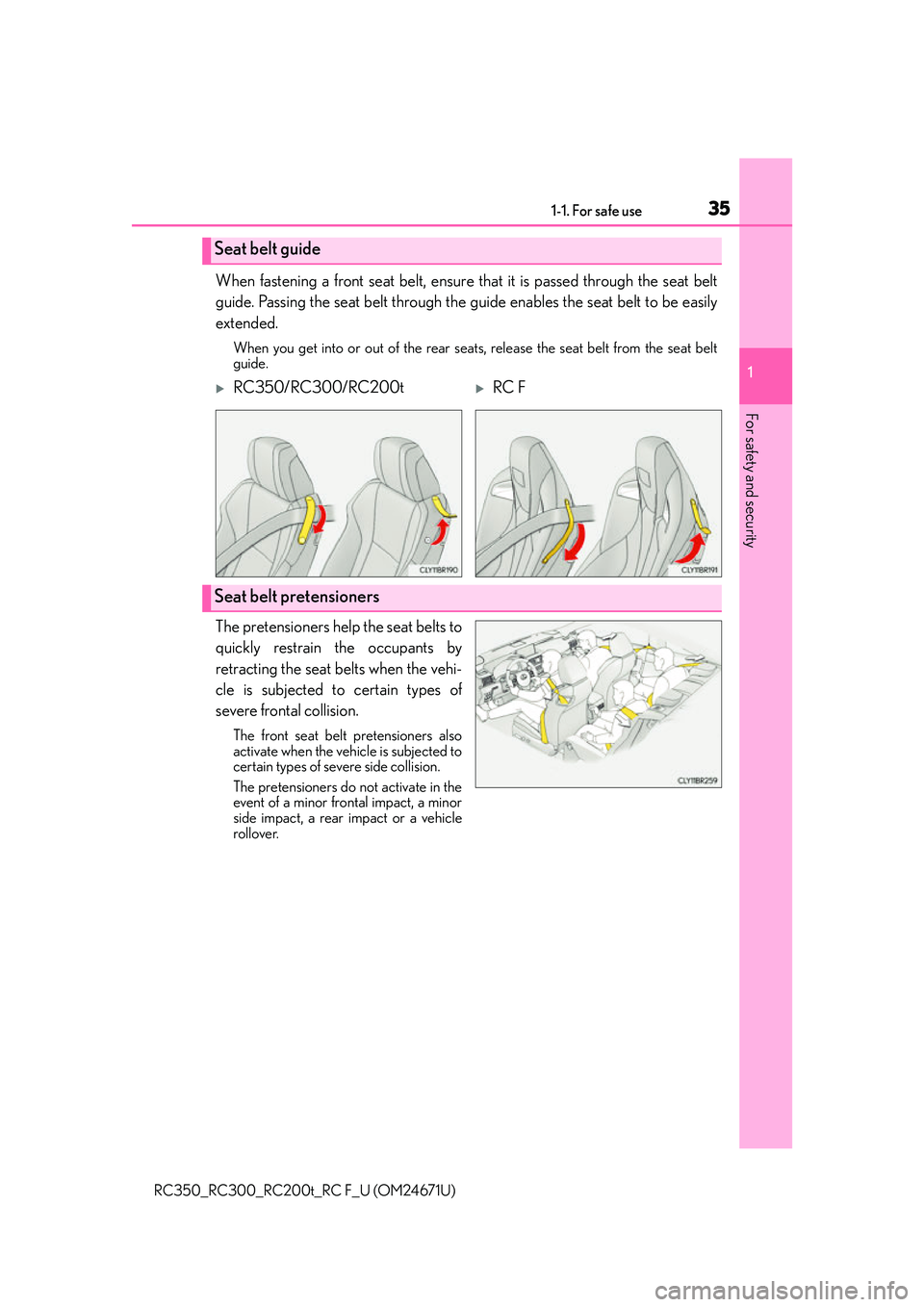

When fastening a front seat belt, ensure that it is passed through the seat belt
guide. Passing the seat belt through the guide enables the seat belt to be easily
extended.
When you get into or out of the rear seats, release the seat belt from the seat belt
guide.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision.
The front seat belt pretensioners also
activate when the vehicle is subjected to
certain types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
Seat belt guide
RC350/RC300/RC200tRC F
Seat belt pretensioners

361-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)

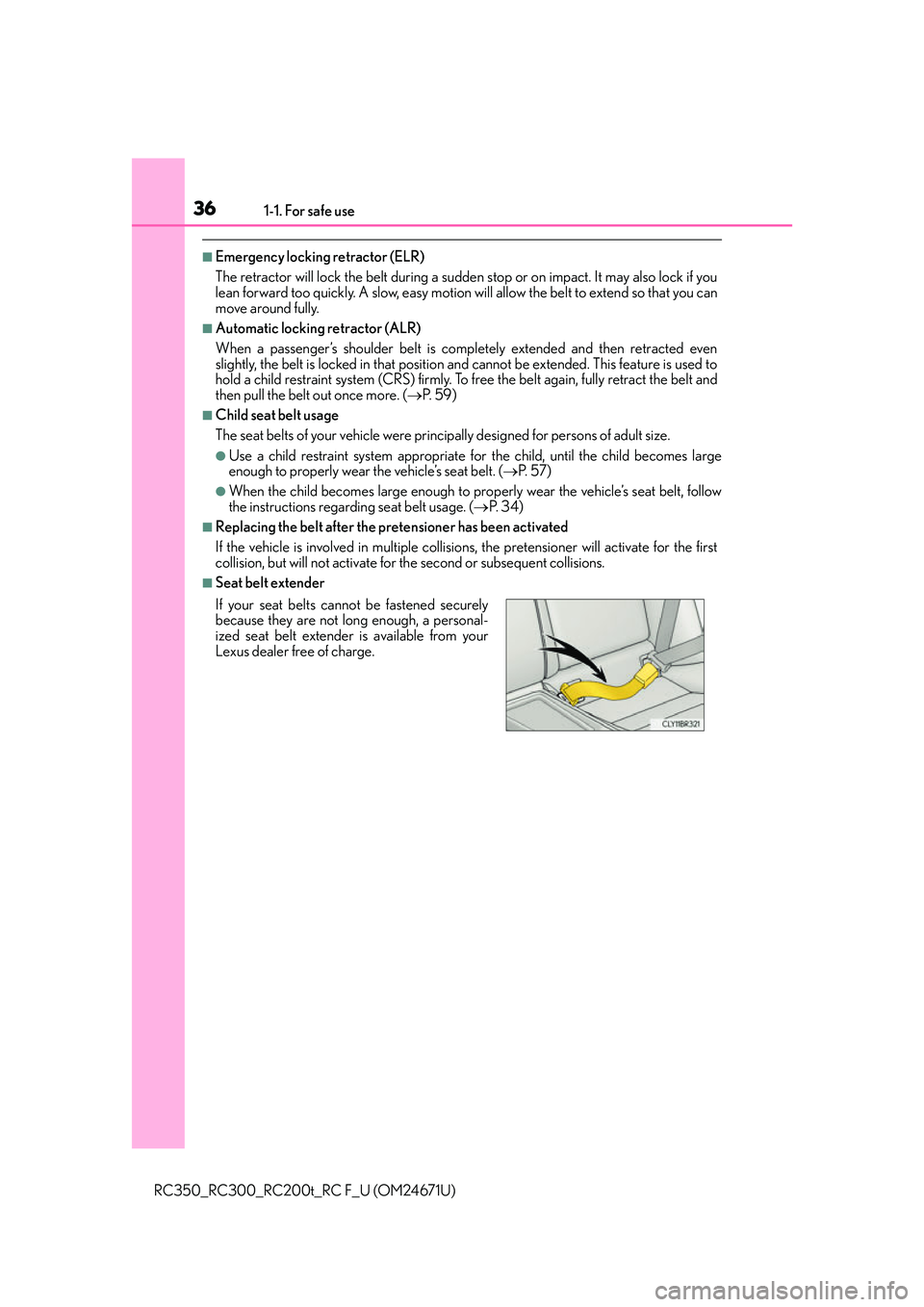

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion w ill allow the belt to extend so that you can
move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position an d cannot be extended. This feature is used to
hold a child restraint system (CRS) firmly. To fr ee the belt again, fully retract the belt and
then pull the belt out once more. ( P. 5 9 )
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 5 7 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regardin g seat belt usage. (P. 3 4 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first
collision, but will not activate for th e second or subsequent collisions.
■Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a personal-
ized seat belt extender is available from your
Lexus dealer free of charge.

371-1. For safe use
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)

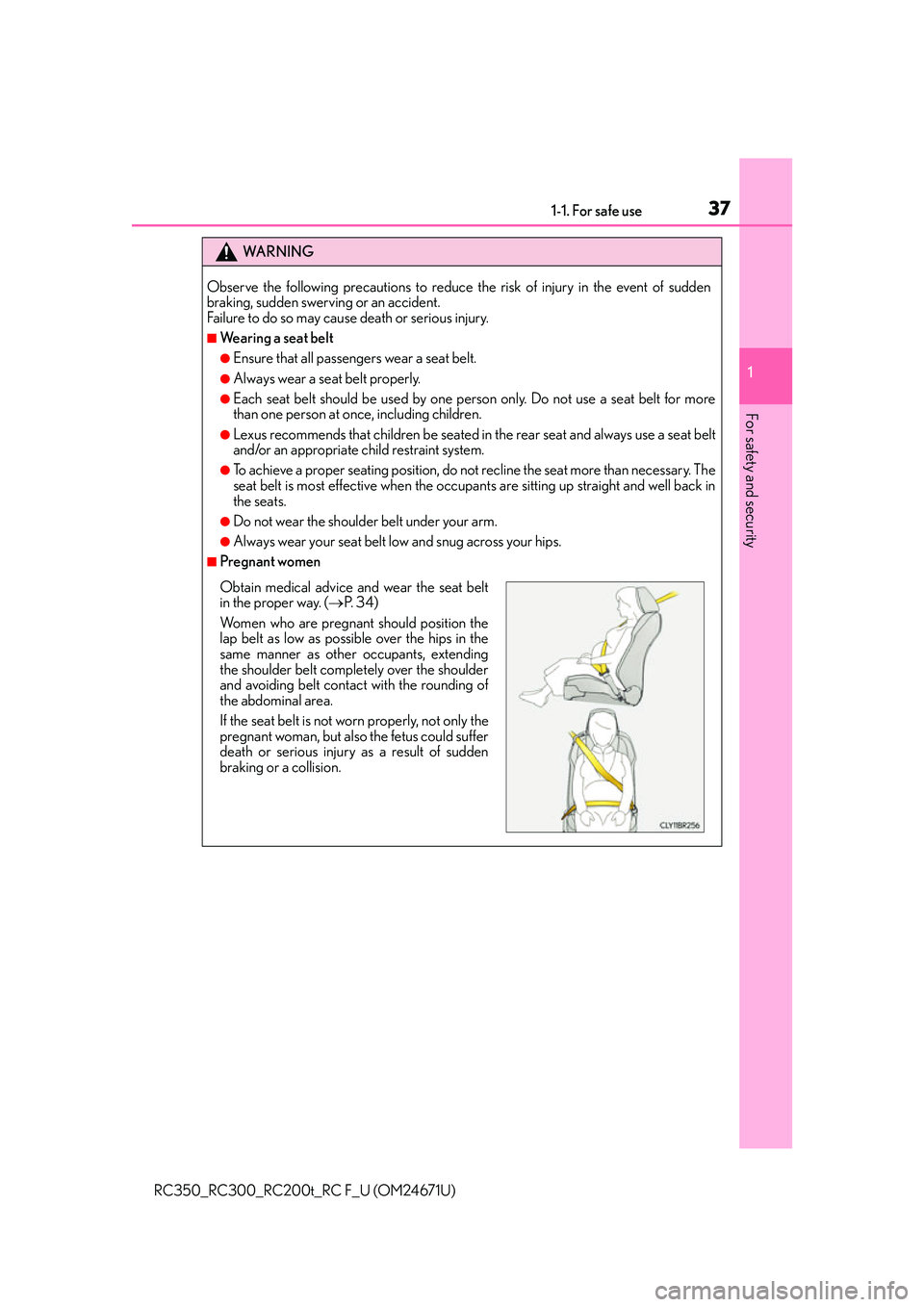

WA R N I N G
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupa nts are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 3 4 )
Women who are pregnant should position the
lap belt as low as possib le over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.

381-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)

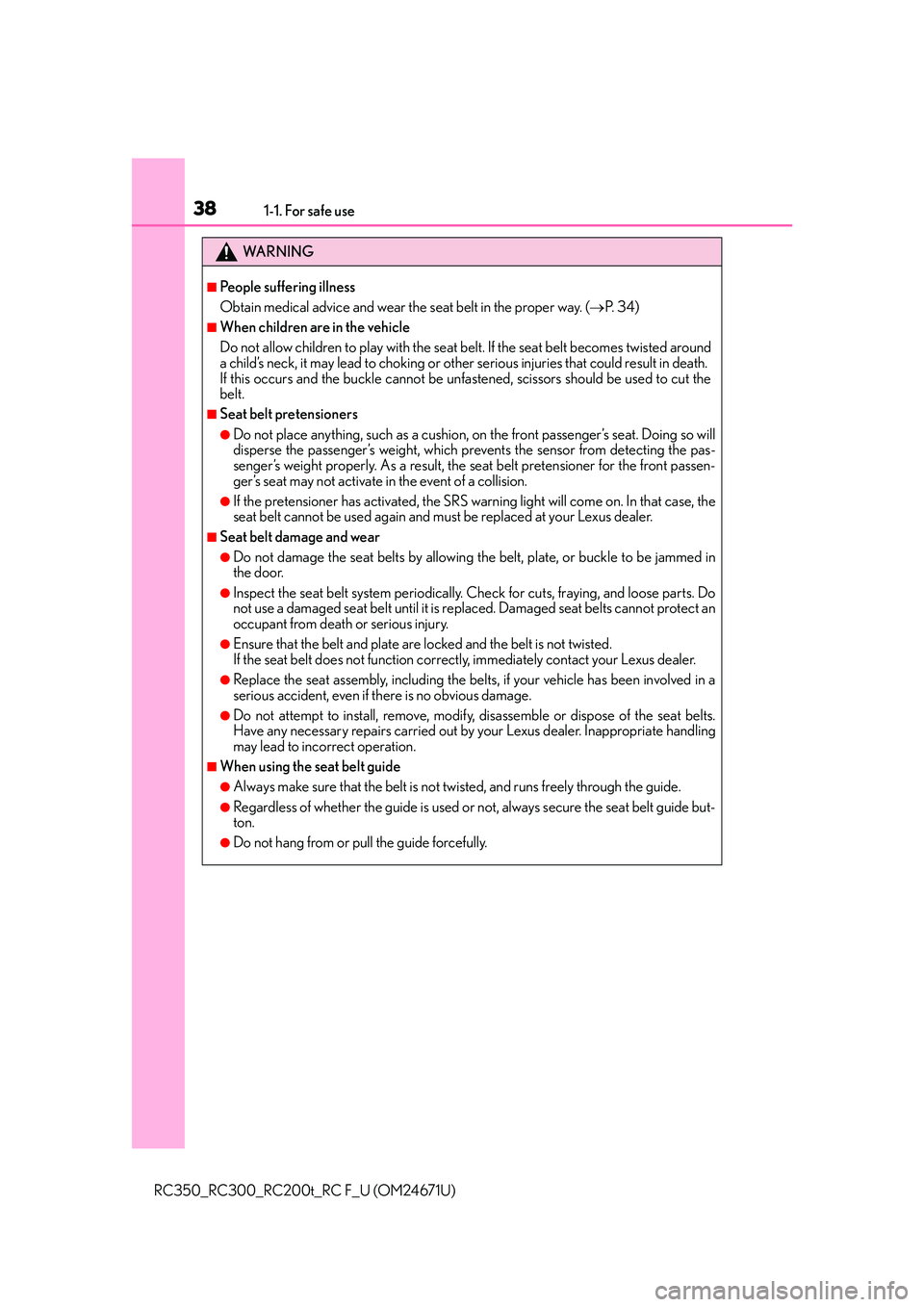

WA R N I N G
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 3 4 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the seat belt pretensioner for the front passen-
ger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on . In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer.
■Seat belt damage and wear
●Do not damage the seat belts by allowing th e belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if th ere is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to incorrect operation.
■When using the seat belt guide
●Always make sure that the belt is not tw isted, and runs freely through the guide.
●Regardless of whether the guide is used or not, always secure the seat belt guide but-
ton.
●Do not hang from or pull the guide forcefully.

391-1. For safe use
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)

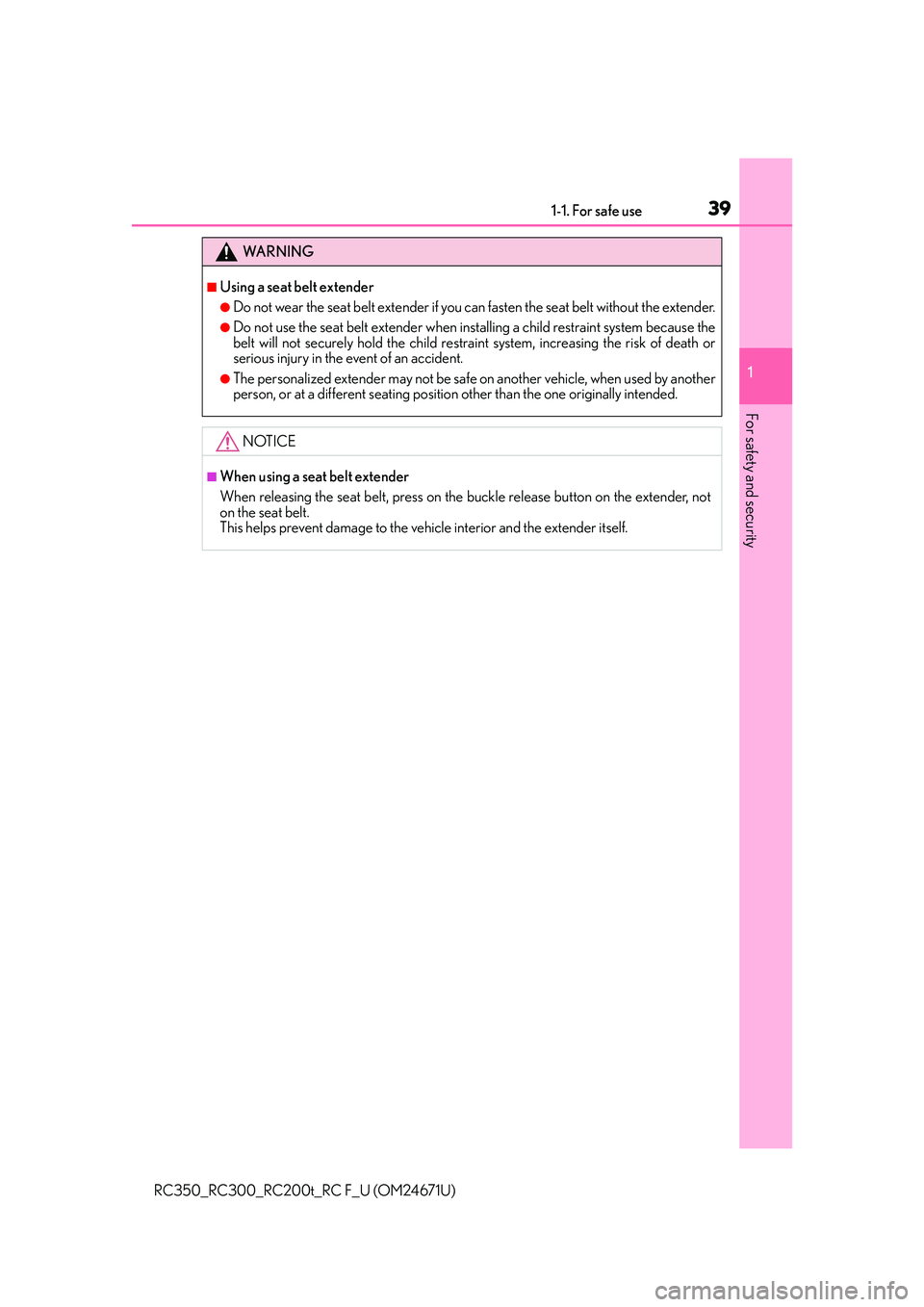

WA R N I N G
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the extender.
●Do not use the seat belt extender when installing a child restraint system because the
belt will not securely hold the child restraint system, increasing the risk of death or
serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by another
person, or at a different seating position other than the one originally intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender, not
on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

401-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)

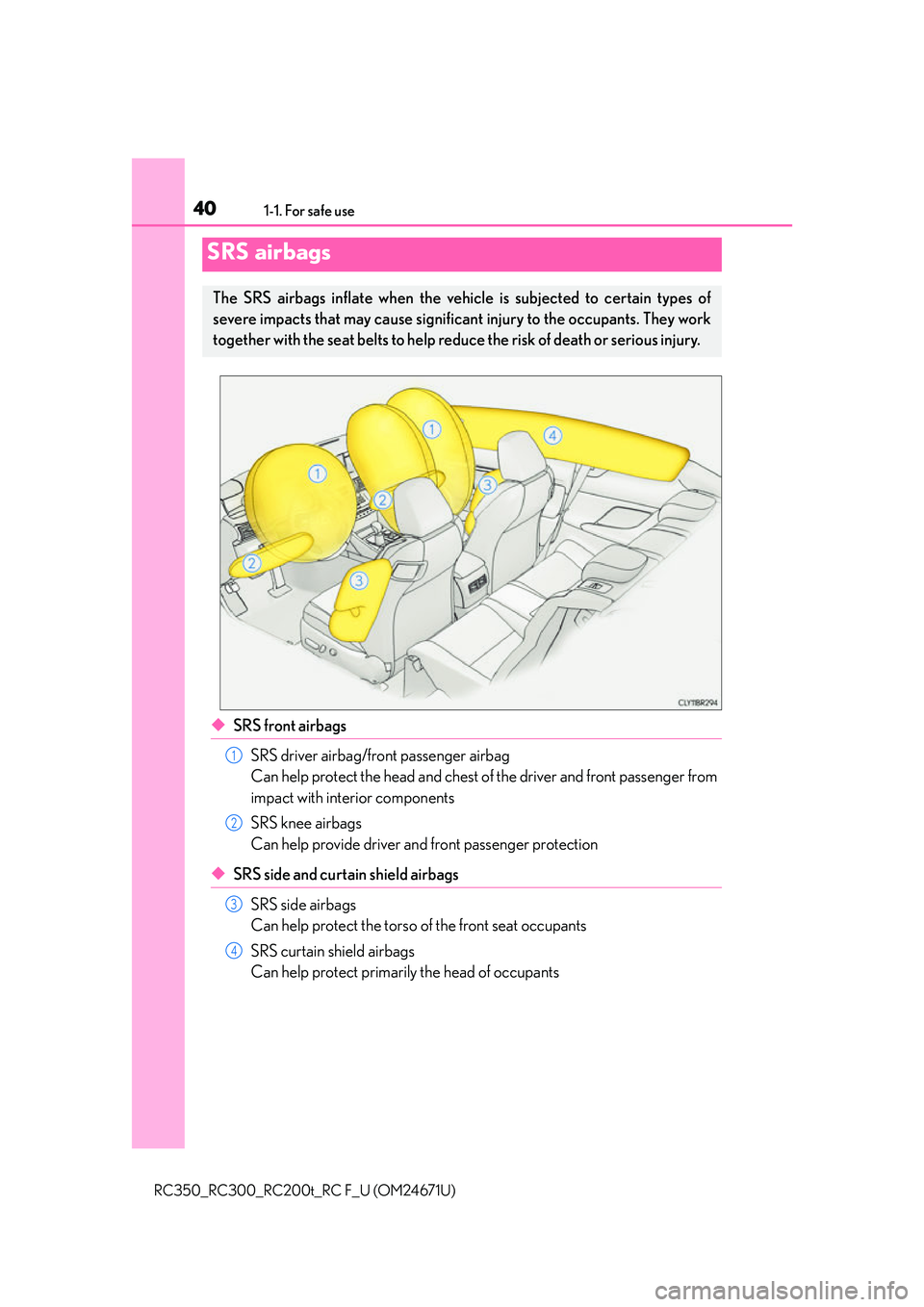

◆SRS front airbagsSRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
◆SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants
SRS airbags
The SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may cause significan t injury to the occupants. They work
together with the seat belts to help redu ce the risk of death or serious injury.
1
2
3
4
