21Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

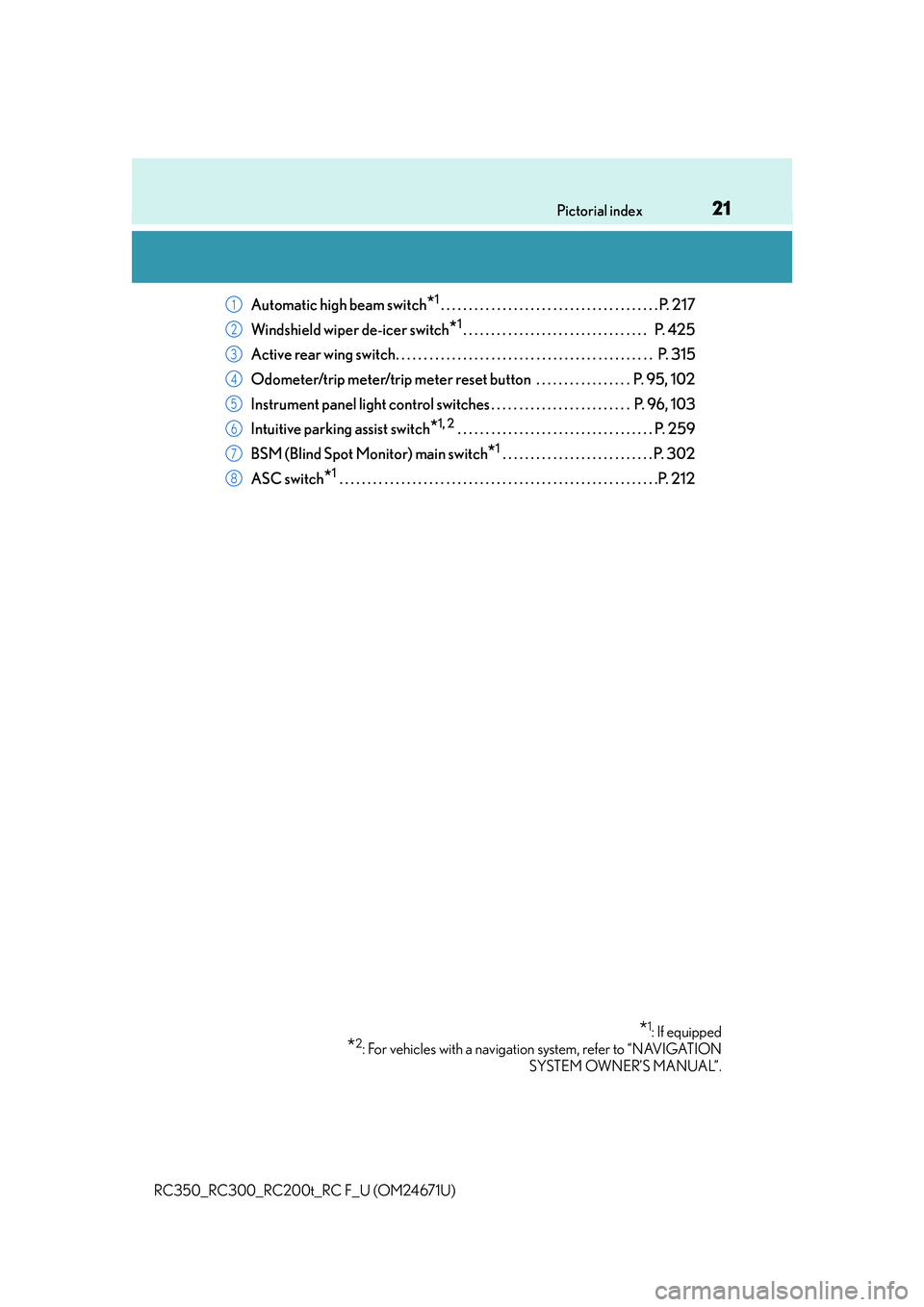

Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Active rear wing switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Odometer/trip meter/trip meter reset button . . . . . . . . . . . . . . . . . P. 95, 102
Instrument panel light control sw itches . . . . . . . . . . . . . . . . . . . . . . . . . P. 96, 103
Intuitive parking assist switch
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
ASC switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 212
*1: If equipped
*2: For vehicles with a navigation system, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
Page 22 of 700

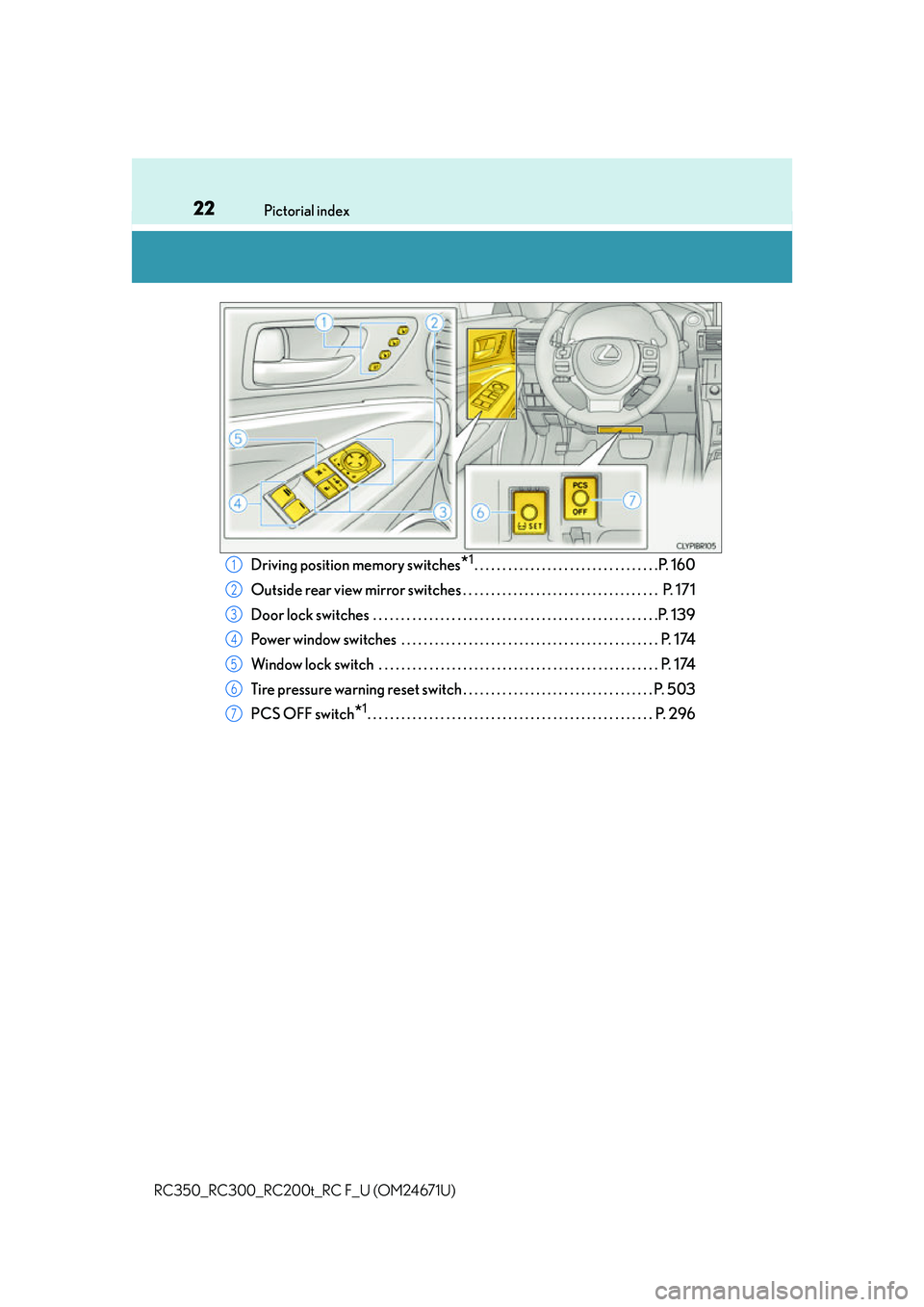

22Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Driving position memory switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 160
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 139
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 503
PCS OFF switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 296
1
2
3
4
5
6
7
Page 23 of 700
23Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

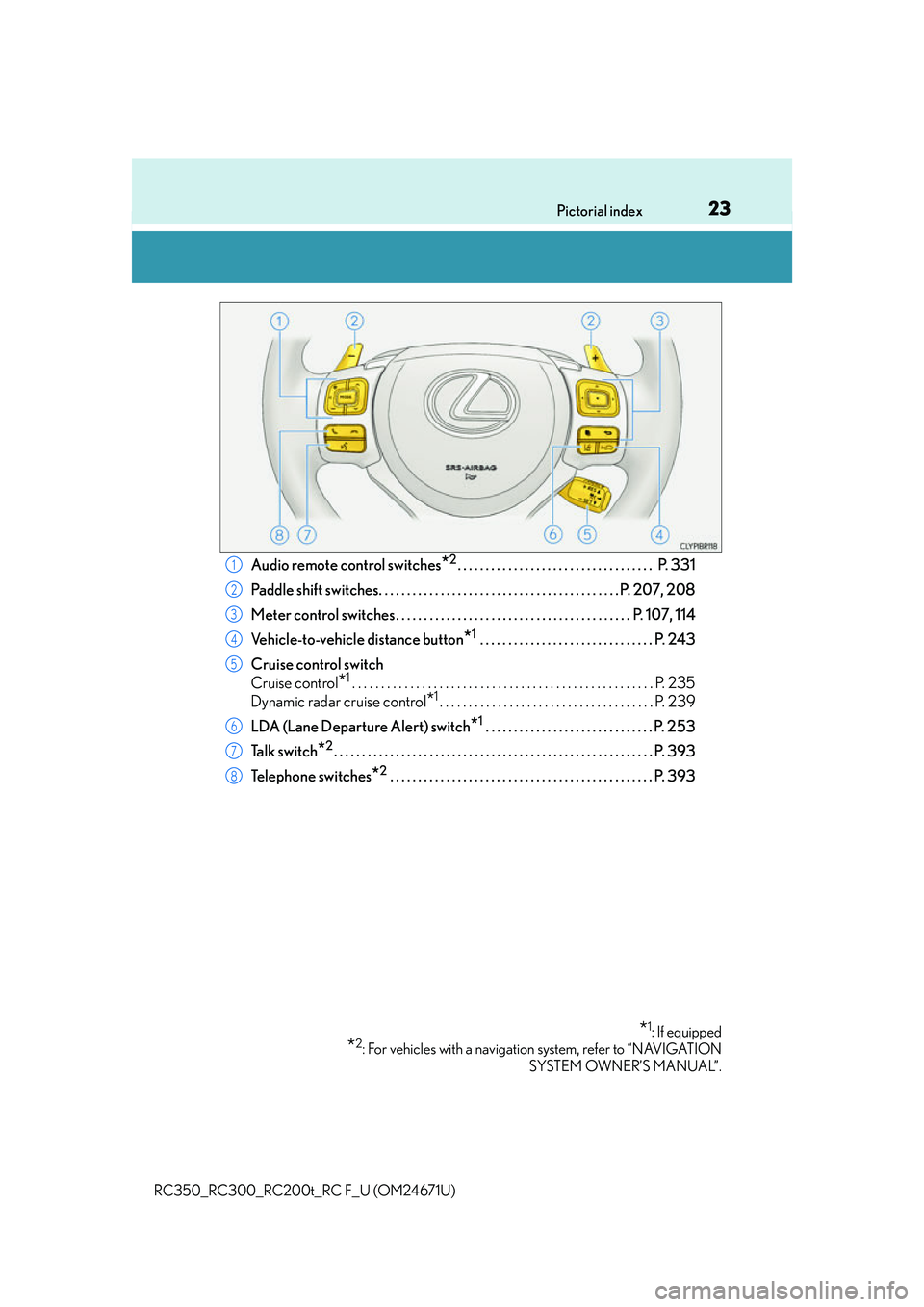

Audio remote control switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Paddle shift switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207, 208
Meter control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107, 114
Vehicle-to-vehicle distance button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Cruise control switch
Cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Dynamic radar cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
LDA (Lane Departure Alert) switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Ta l k s w i t c h
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Telephone switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
*1: If equipped
*2: For vehicles with a navigation system, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
Page 24 of 700
24Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

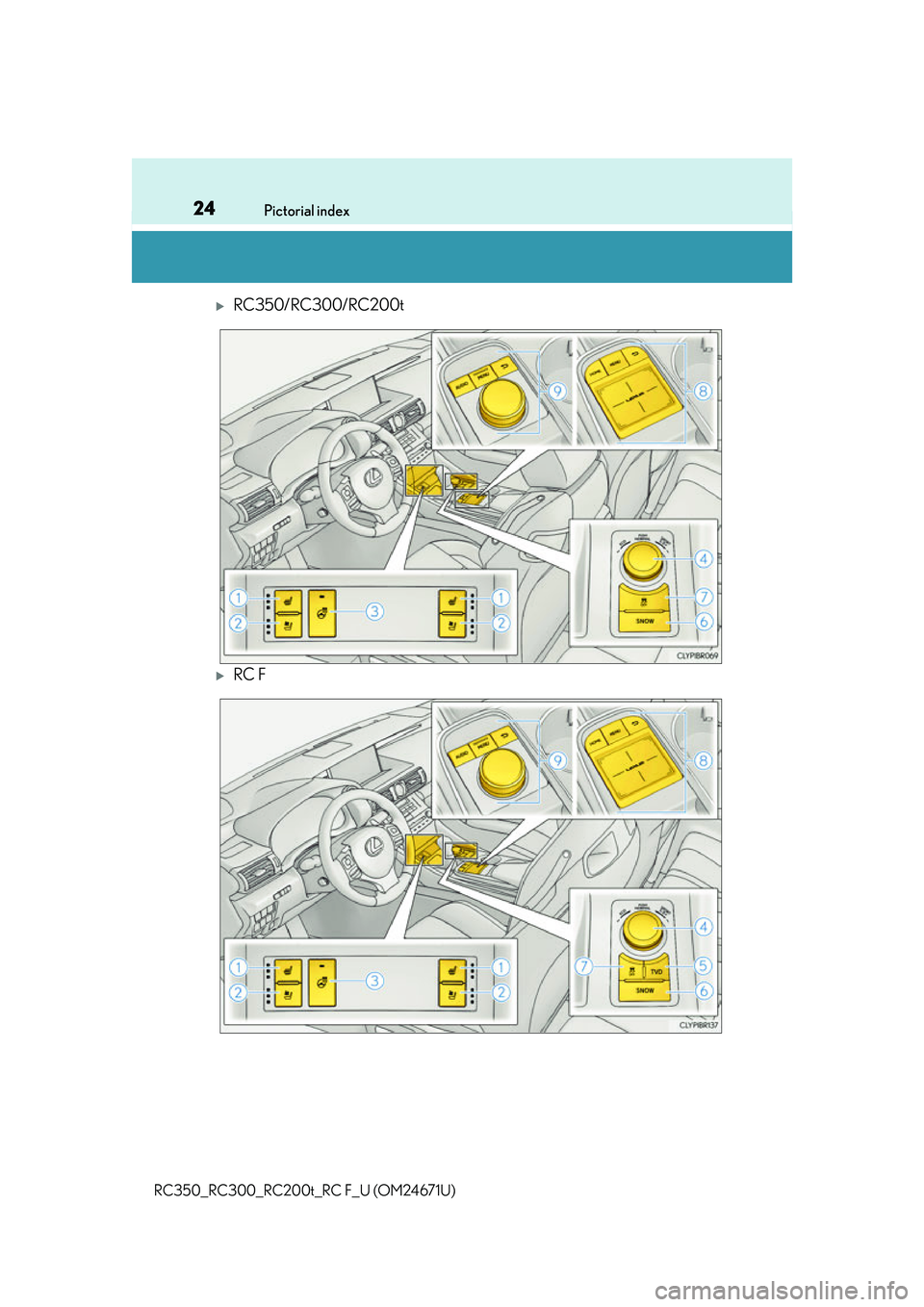

RC350/RC300/RC200t
RC F
Page 25 of 700
25Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

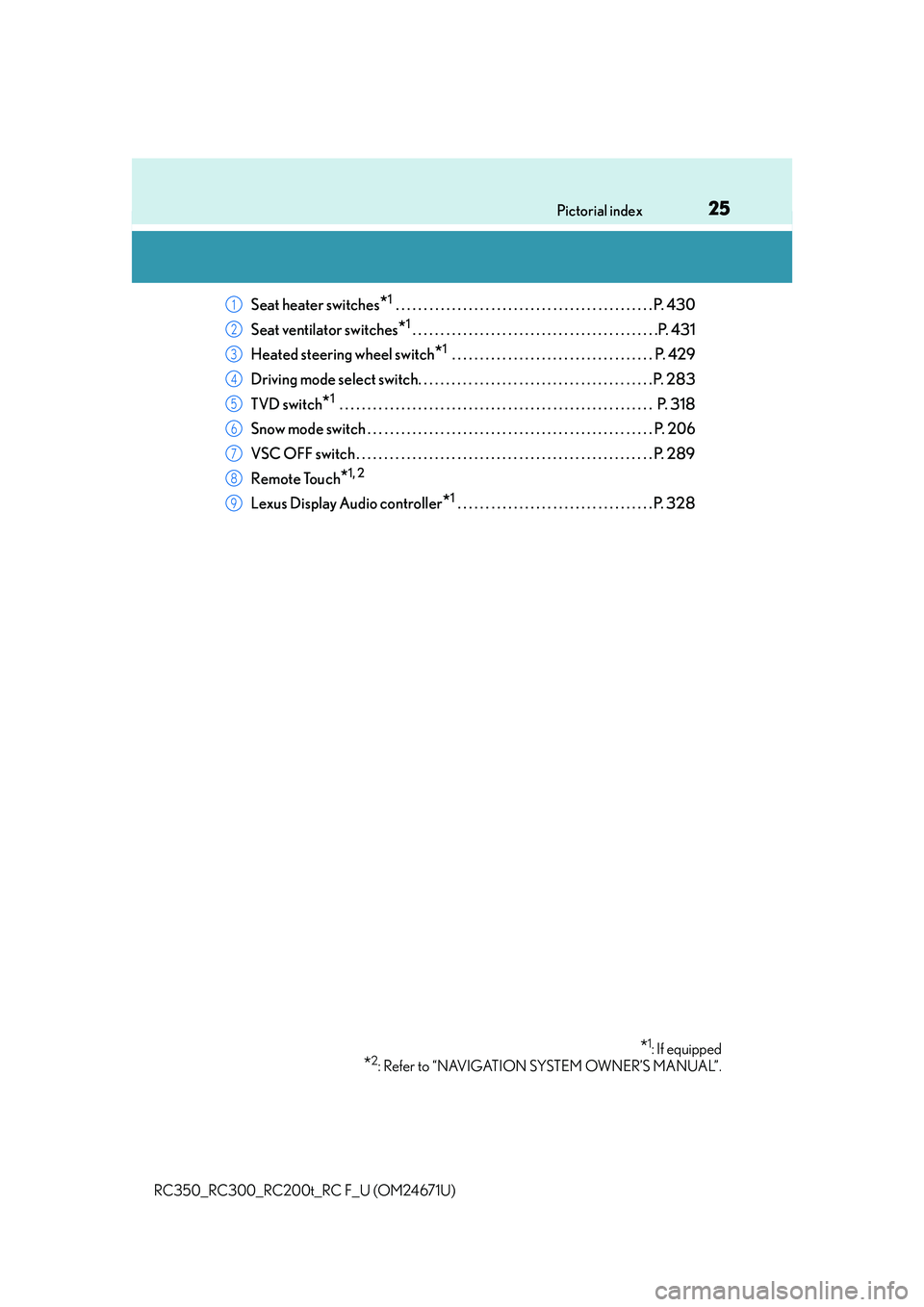

Seat heater switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Seat ventilator switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 431
Heated steering wheel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
TVD switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 289
Remote Touch
*1, 2
Lexus Display Audio controller*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
*1: If equipped
*2: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
Page 26 of 700
26Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

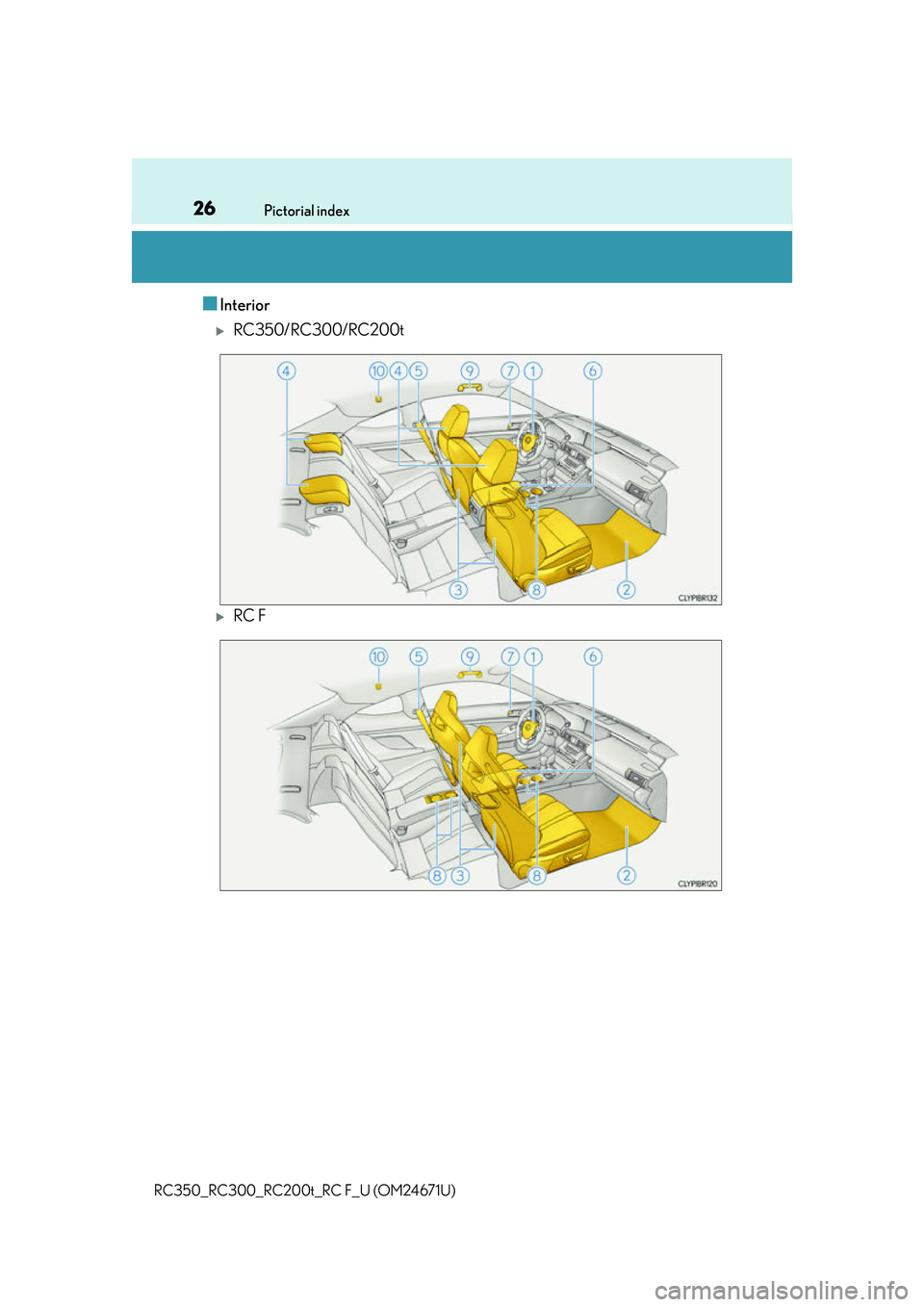

■Interior
RC350/RC300/RC200t
RC F
Page 27 of 700
27Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

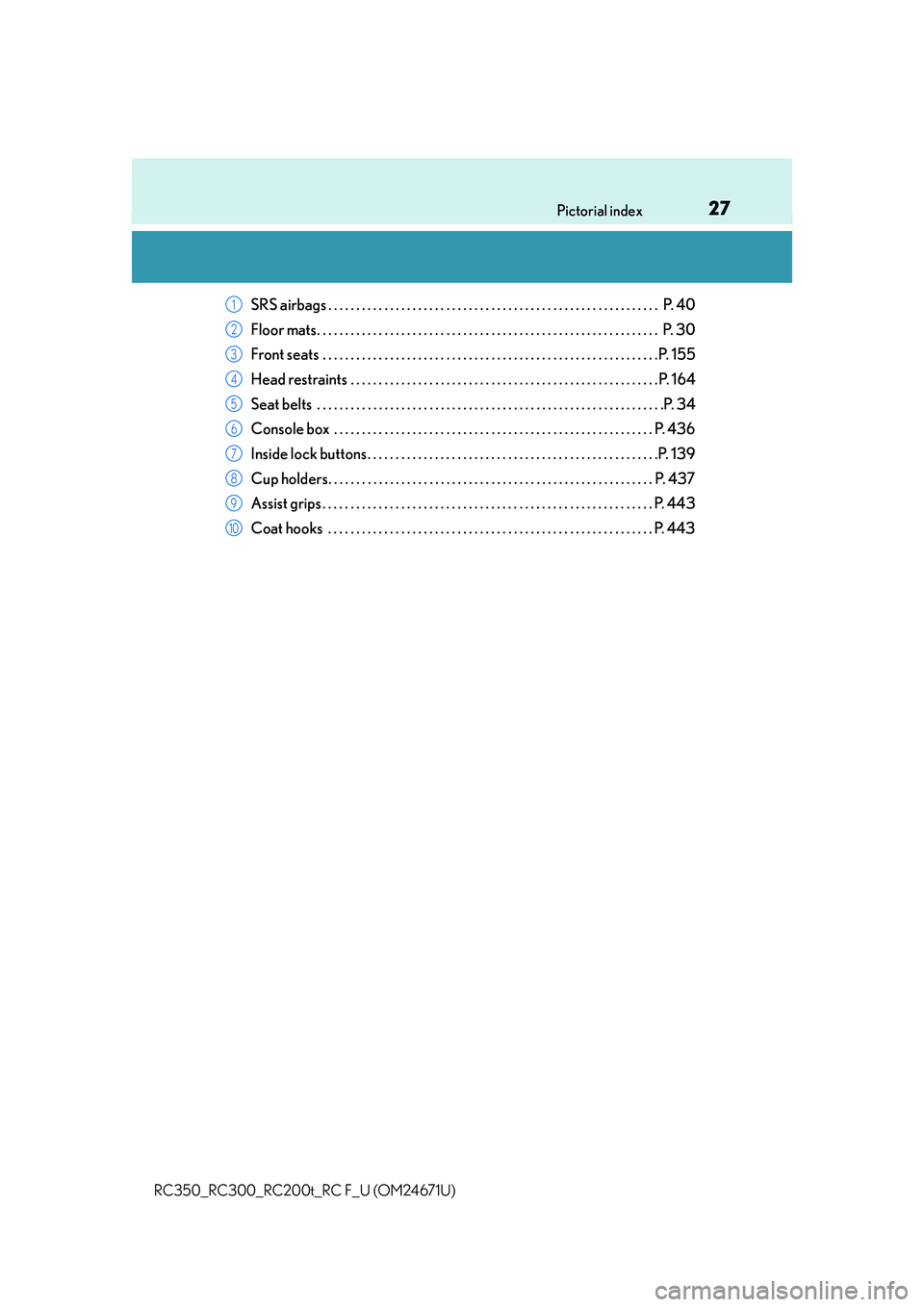

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 155
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 139
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 3 7
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 443
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 4431
2
3
4
5
6
7
8
9
10
Page 28 of 700
28Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)

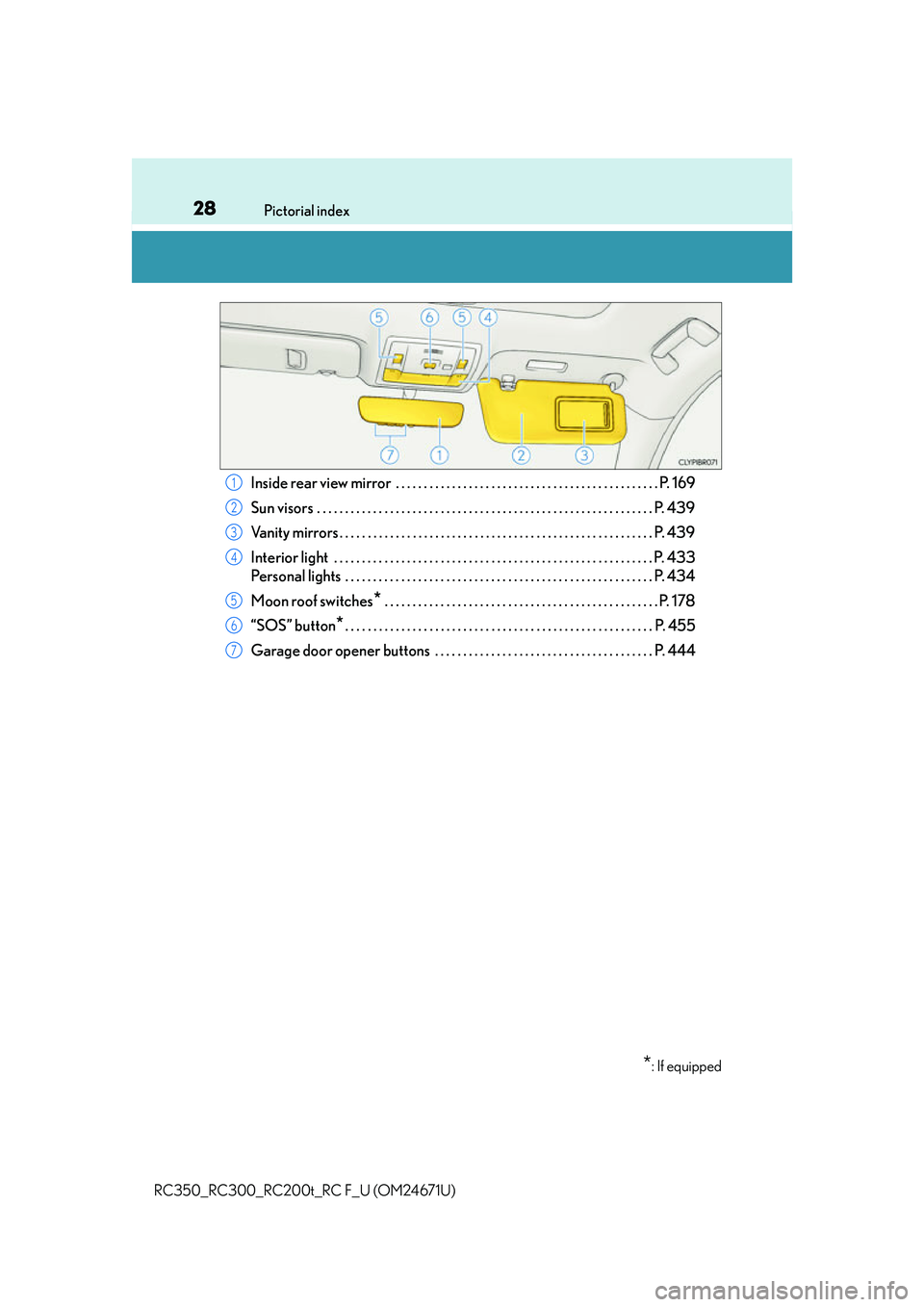

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 433
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434
Moon roof switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
“SOS” button
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Garage door opener buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
*: If equipped
1
2
3
4
5
6
7
Page 29 of 700
29
For safety and security1
RC350_RC300_RC200t_RC F_U (OM24671U)
1-1. For safe useBefore driving................................. 30
For safety drive............................... 32
Seat belts .......................................... 34
SRS airbags ..................................... 40
Front passenger occupant classification system..................50
Safety information for children .......................................... 56
Child restraint systems ............... 57
Exhaust gas precautions ............ 75
1-2. Theft deterrent system Engine immobilizer system .............................................. 76
Alarm ................................................. 79
Theft prevention labels ................ 81
Page 30 of 700
30
RC350_RC300_RC200t_RC F_U (OM24671U)1-1. For safe use

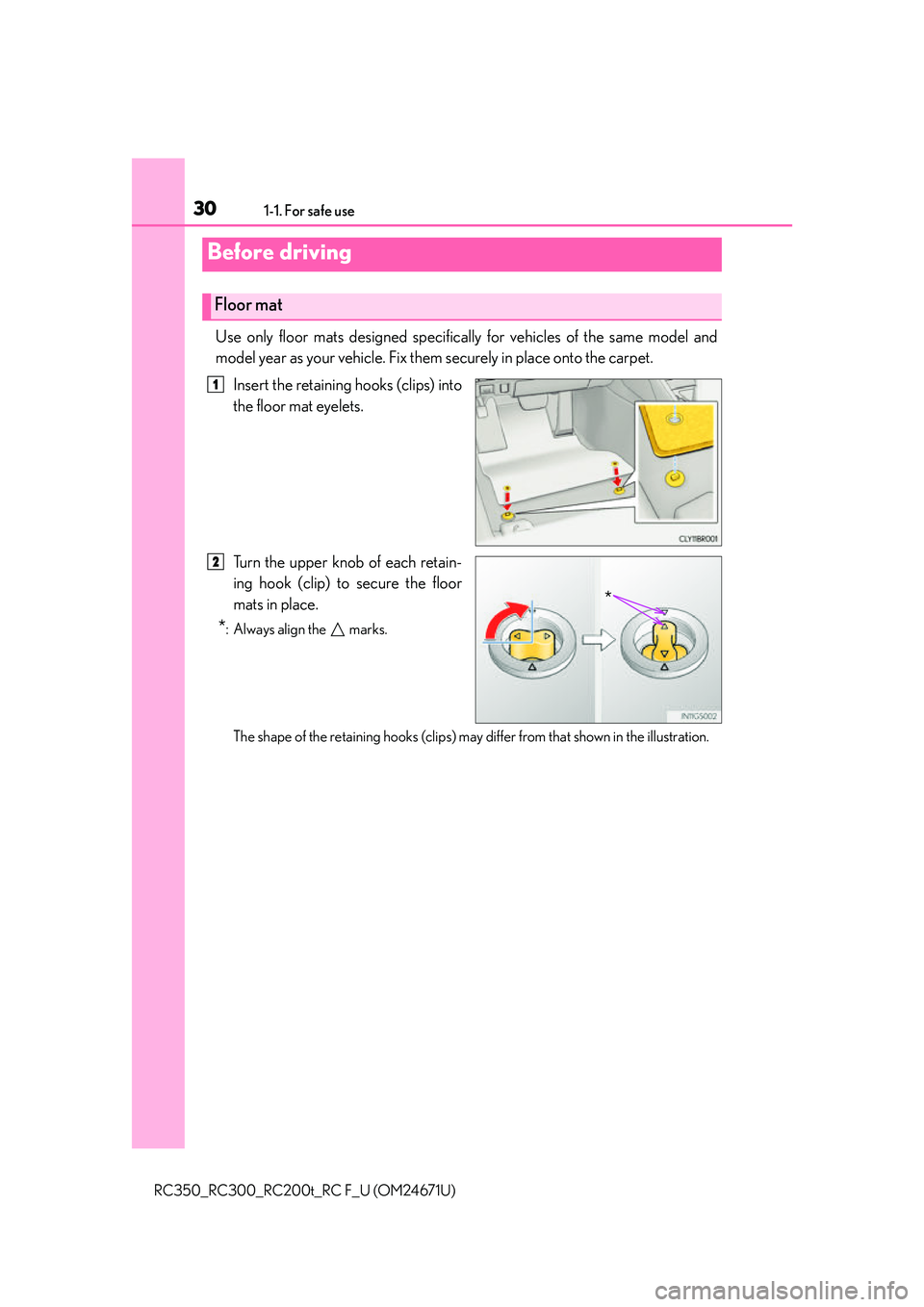

Use only floor mats designed specifical
ly for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
*: Always align the marks.
The shape of the retaining hook s (clips) may differ from that shown in the illustration.
Before driving
Floor mat
1
*
2
