LEXUS RC300 2017 Owners Manual

2714-5. Using the driving support systems
4
Driving
When the sensors detect an obstacle, a graphic is shown on the multi-informa-
tion display and Lexus Display Audio screen depending on the position and dis-
tance to the obstacle.
■Multi-information display
■Lexus Display Audio screen
Intuitive parking assist
When the vehicle is moving forward.
A graphic is automatically displayed
when an obstacle is detected. The
screen can be set so that the graphic
is not displayed. ( →P. 275)
: Select to mute the buzzer
sounds.
Intuitive parking assist
Rear Cross Traffic Alert (if
equipped)
When the vehicle is moving back-
ward.
A simplified image is displayed on
the upper part of the screen when an
obstacle is detected.

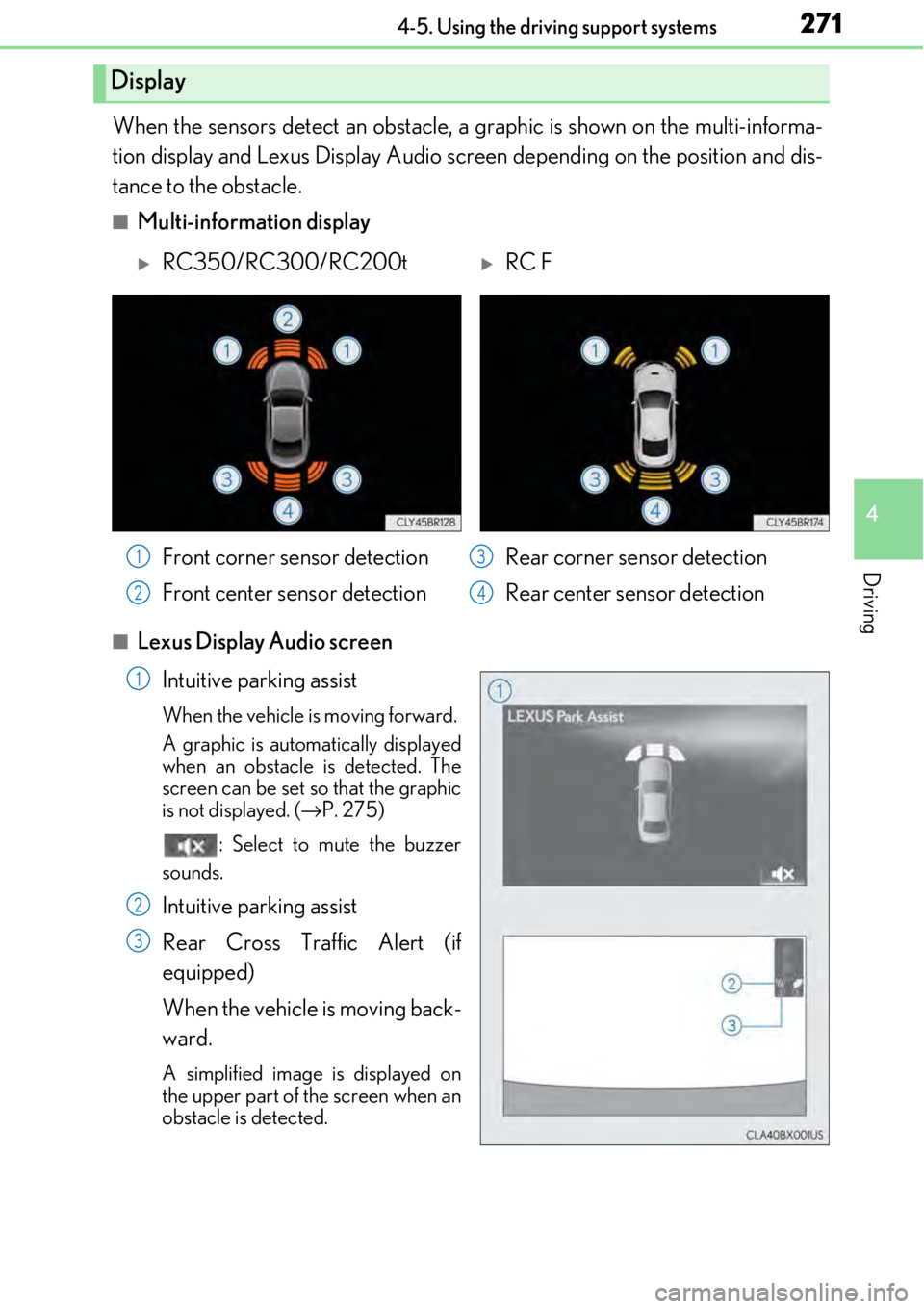

Display
RC350/RC300/RC200tRC F
Front corner sensor detection
Front center sensor detection Rear corner sensor detection
Rear center sensor detection
1
2
3
4
1
2
3

2724-5. Using the driving support systems

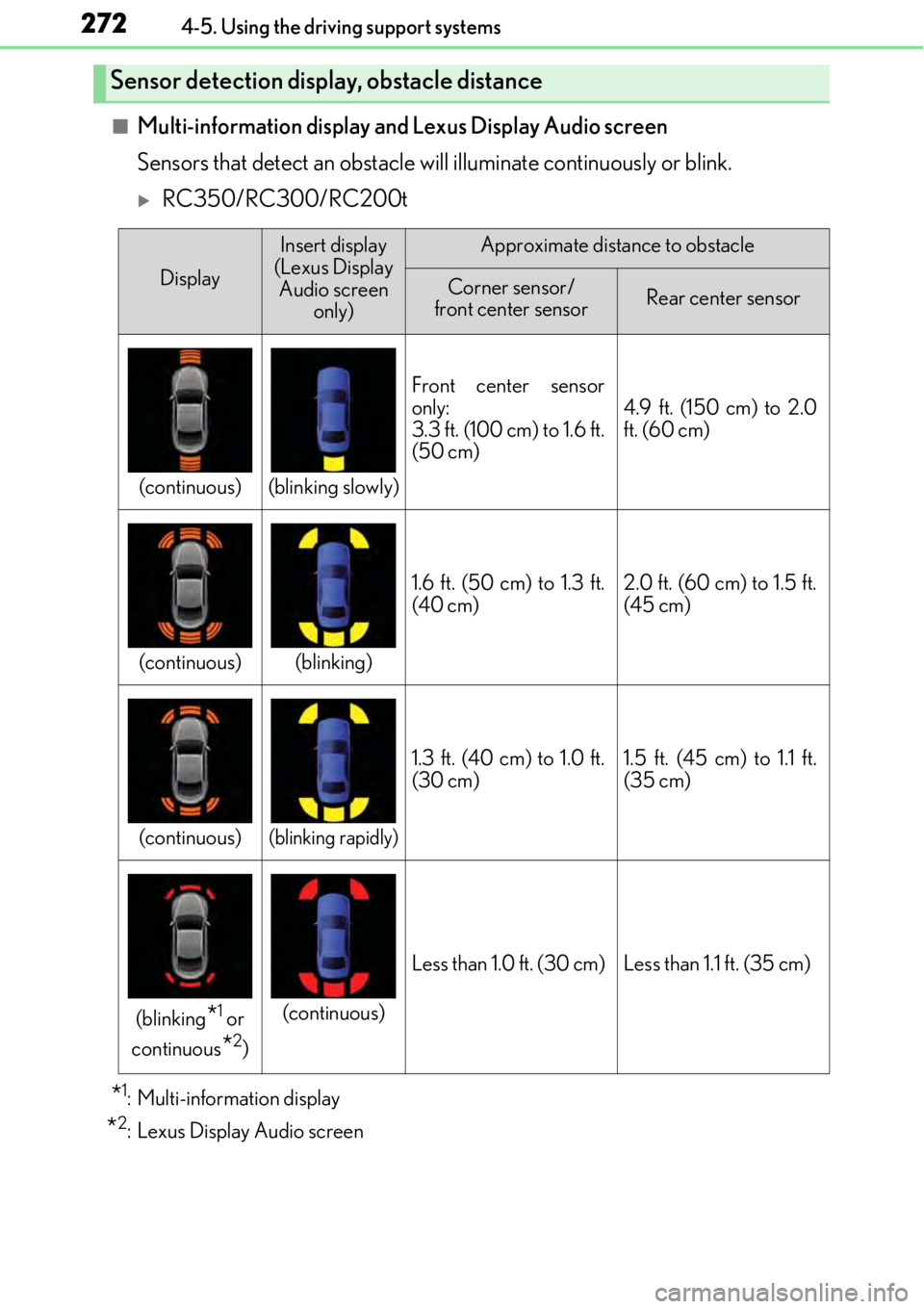

■Multi-information display and Lexus Display Audio screen
Sensors that detect an obstacle will illuminate continuously or blink.
RC350/RC300/RC200t
*1: Multi-information display
*2: Lexus Display Audio screen
Sensor detection display, obstacle distance
Display
Insert display
(Lexus Display Audio screen only)Approximate distance to obstacle
Corner sensor/
front center sensorRear center sensor
(continuous)(blinking slowly)
Front center sensor
only:
3.3 ft. (100 cm) to 1.6 ft.
(50 cm)
4.9 ft. (150 cm) to 2.0
ft. (60 cm)
(continuous)(blinking)
1.6 ft. (50 cm) to 1.3 ft.
(40 cm)2.0 ft. (60 cm) to 1.5 ft.
(45 cm)
(continuous)(blinking rapidly)
1.3 ft. (40 cm) to 1.0 ft.
(30 cm)1.5 ft. (45 cm) to 1.1 ft.
(35 cm)
(blinking*1 or
continuous
*2)
(continuous)
Less than 1.0 ft. (30 cm)Less than 1.1 ft. (35 cm)

2734-5. Using the driving support systems
4
Driving

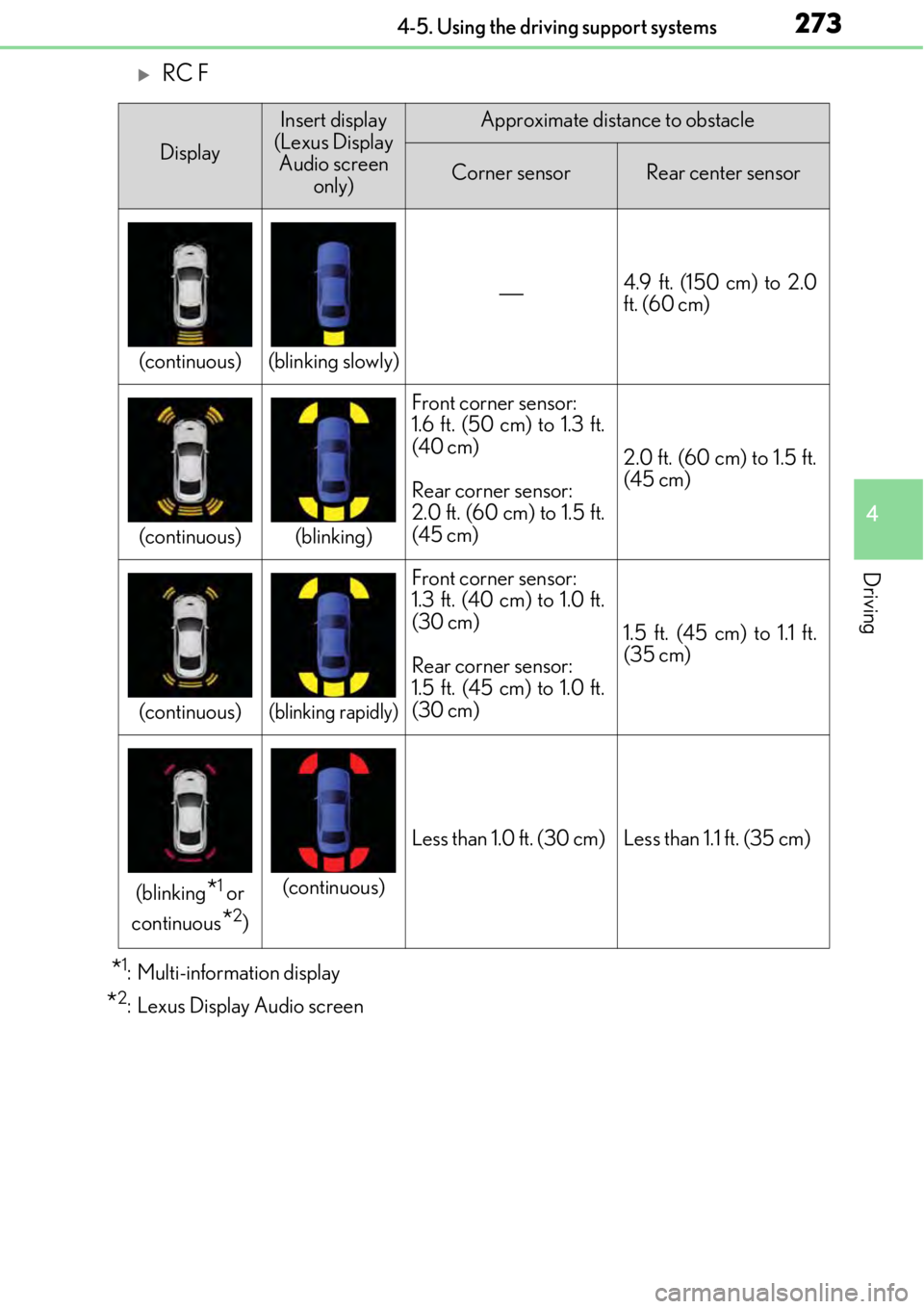

RC F
*1: Multi-information display
*2: Lexus Display Audio screen
Display
Insert display
(Lexus Display Audio screen only)Approximate distance to obstacle
Corner sensorRear center sensor
(continuous)(blinking slowly)
⎯4.9 ft. (150 cm) to 2.0
ft. (60 cm)
(continuous)(blinking)
Front corner sensor:
1.6 ft. (50 cm) to 1.3 ft.
(40 cm)
Rear corner sensor:
2.0 ft. (60 cm) to 1.5 ft.
(45 cm)
2.0 ft. (60 cm) to 1.5 ft.
(45 cm)
(continuous)(blinking rapidly)
Front corner sensor:
1.3 ft. (40 cm) to 1.0 ft.
(30 cm)
Rear corner sensor:
1.5 ft. (45 cm) to 1.0 ft.
(30 cm)
1.5 ft. (45 cm) to 1.1 ft.
(35 cm)
(blinking*1 or
continuous
*2)
(continuous)
Less than 1.0 ft. (30 cm)Less than 1.1 ft. (35 cm)

2744-5. Using the driving support systems
■Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
●The buzzer beeps faster as the vehicle approaches an obstacle. When the
vehicle comes within the following di stance of the obstacle, the buzzer
sounds continuously: • Front center sensors (RC350/RC3 00/RC200t): Approximately 1.0 ft.
(30 cm)
• Corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Appr oximately 1.1 ft. (35 cm)
●When 2 or more obstacles are detected simultaneously, the buzzer system
responds to the nearest obstacle. If one or both come within the above dis-
tances, the beep will repeat a lo ng tone, followed by fast beeps.
The diagram shows the detection range of th e sensors. Note that the sensors cannot
detect obstacles that are extremely close to the vehicle.
The range of the sensors may change depe nding on the shape of the object etc.

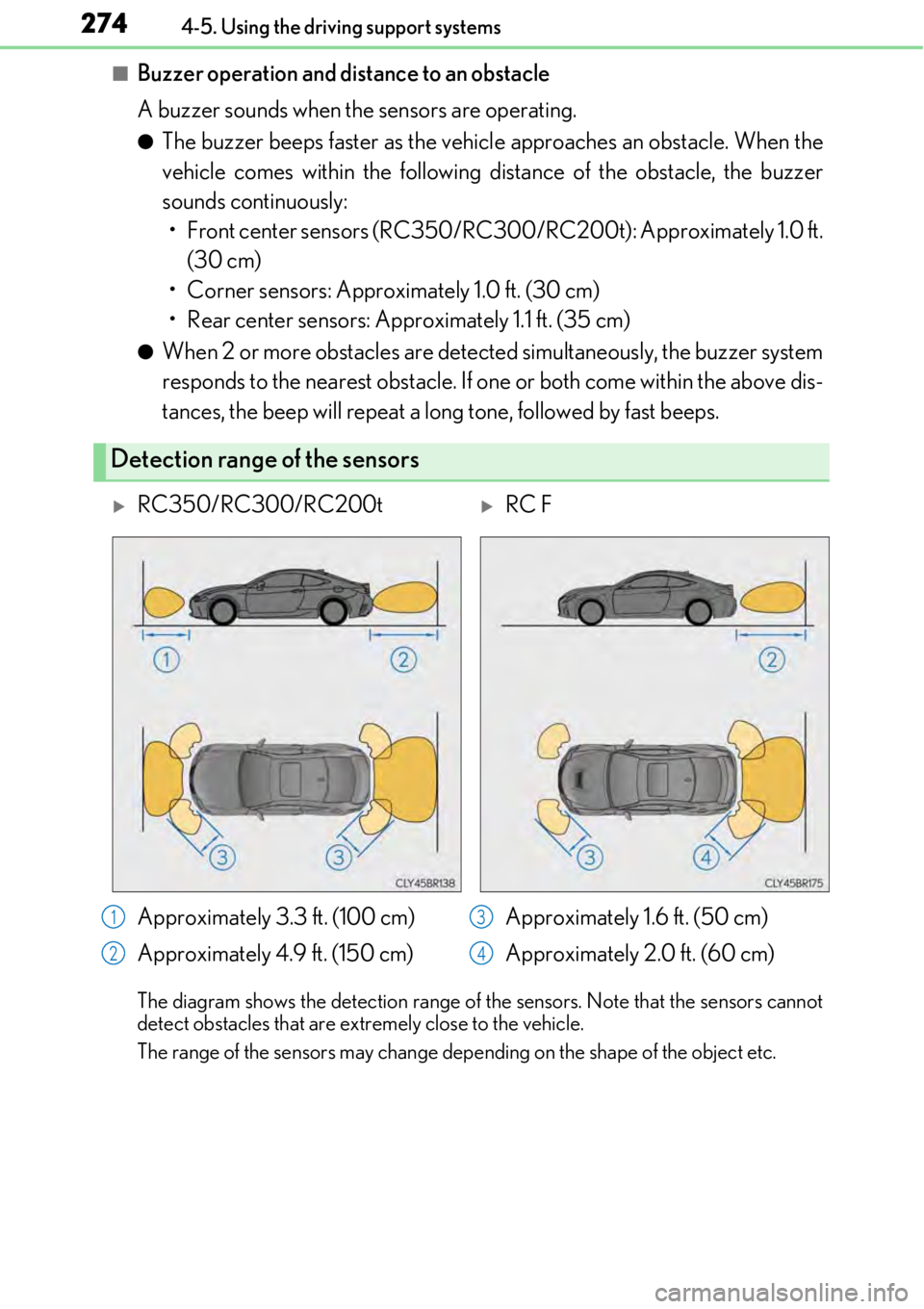

Detection range of the sensors
RC350/RC300/RC200tRC F
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm) Approximately 1.6 ft. (50 cm)
Approximately 2.0 ft. (60 cm)
1
2
3
4

2754-5. Using the driving support systems
4
Driving

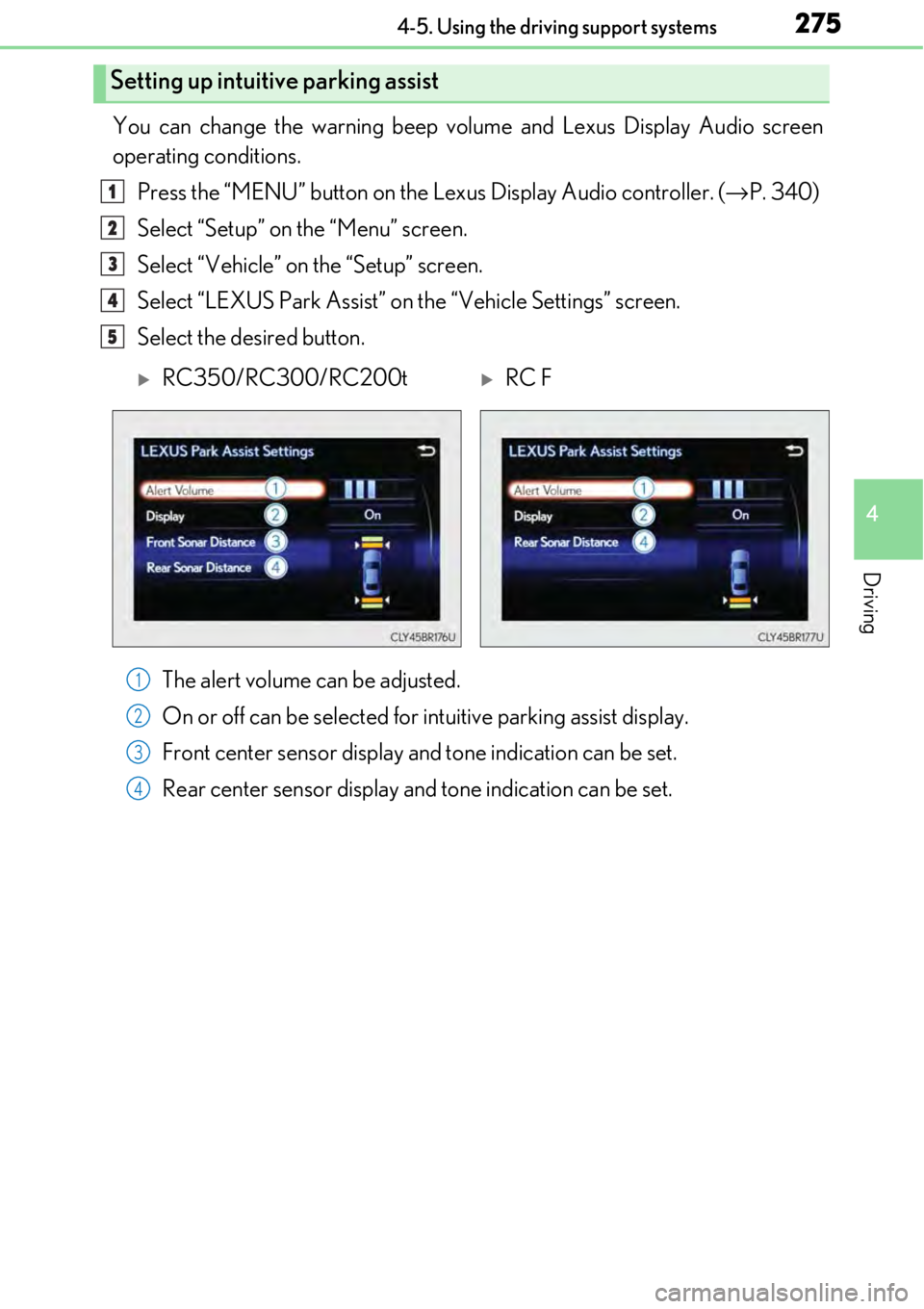

You can change the warning beep volume and Lexus Display Audio screen
operating conditions.
Press the “MENU” button on the Lexus Display Audio controller. ( →P. 340)
Select “Setup” on the “Menu” screen.
Select “Vehicle” on the “Setup” screen.
Select “LEXUS Park Assist” on the “Vehicle Settings” screen.
Select the desired button.
The alert volume can be adjusted.
On or off can be selected for intuitive parking assist display.
Front center sensor display an d tone indication can be set.
Rear center sensor display and tone indication can be set.
Setting up intuitive parking assist
1
2
3
4
5
RC350/RC300/RC200tRC F
1
2
3
4

2764-5. Using the driving support systems
■The intuitive parking assist can be operated when
●Front center sensors (RC350/RC300/RC200t):
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 6 mph (10 km/h).
●Front corner sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than about 6 mph (10 km/h). (At any speed when the shift lever is in R)
●Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in R.
■Intuitive parking assist display
When an obstacle is detected while the Lexus pa rking assist monitor system is in use, the
warning indicator will appear in the top right of the screen ev en if the display setting has
been set to off.
■If a message is displayed on the multi-information display
→ P. 574
■Certification
For vehicles sold in the U.S.A.
This device complies with Part 15 of the FC C Rules. Operation is subject to the following
two conditions; (1) This device may not caus e harmful interference, and (2) this device
must accept any interference received, includ ing interference that may cause undesired
operation.
For vehicles sold in Canada
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.

2774-5. Using the driving support systems
4
Driving
WARNING
■When using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possibly
cause an accident.
●Do not use the sensor at speeds in excess of 6 mph (10 km/h).
●The sensors’ detection areas and reaction ti mes are limited. When moving forward or
reversing, check the areas surrounding the vehicle (especially the sides of the vehi-
cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.
●Do not install accessories within the sensors’ detection areas.
■Limitations of the sensors
●RC350/RC300/RC200t: The detection areas of the sensors are limited to the
areas around the vehicle’s front and rear bumpers.
●RC F: The detection areas of the sensors are limited to the areas around the vehicle’s
front corners and the rear bumpers.
●Certain vehicle conditions and surrounding environments, such as the following, may
affect the ability of the sensors to correctly detect obje cts. Pay particular attention in
the following situations. Failure to do so may result in the vehicle being driven
unsafely, possibly leading to an accident.
• When there is dirt, snow or ice on a se nsor (Cleaning the sensor will resolve this
problem.)
• When the sensor is frozen (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnormal
display, or objects may not be detected
• When a sensor is covered in any way
• When the vehicle is leaning considerably to one side
• When driving on an extremely bump y road, incline, gravel, or grass
• When the vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves
• When there is another vehicle equipped with parking assist sensor in the vicinity
• When the sensor is coated with a sheet of spray or heavy rain
• When the vehicle is equipped with a fender pole or wireless antenna
• When a towing eyelet is installed
• When a bumper or sensor receives a strong impact
• When the vehicle is approaching a tall or curved curb
• When driving in harsh sunlig ht or intense cold weather
• When an object is directly under a bumper
• When objects become too close to the sensors
• When a non-genuine Lexus suspension (lowered suspension, etc.) is installed In addition to the situations above, there are instances in which, because of their
shape, signs and other objects may be judged by the sensor to be closer than they
are.

2784-5. Using the driving support systems
WARNING
●The shape of an object may prevent the sensor from detecting it. Pay particular atten-
tion to the following:
• Wires, fences, ropes, etc.
• Cotton, snow and other materi als that absorb sound waves
• Sharply-angled objects
• Low objects
• Tall objects with upper sections projecting outwards in the direction of your vehi-
cle
• People, animals and other moving objects
• People wearing certain types of clothing
●The following situations may occur when using the Lexus parking assist-sensor.
• Depending on the shape of the object and other factors, the detection distance may be shortened, or detection may not be possible.
• Objects may not be detected if they are too close to a sensor.
• There will be a short delay between the detection of an object and display of the detection. Even at slow speeds, there is a possibility that the object will come
within a sensor’s detection area before the display is shown and a warning beep
sounds.
• Thin posts or objects lower than a sensor may not be detected when approached,
even if they have been detected once.
• It might be difficult to hear beeps due to the volume of the audio system or air flow noise of the air co nditioning system.
NOTICE
■When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor mal-
function etc. Have the vehicle checked by your Lexus dealer.
●The intuitive parking assist operation display flashes, and a beep sounds when no
obstacles are detected.
●If the area around a sensor co llides with something, or is subjected to strong impact.
●If the bumper or grille collides with something.
●If the display shows continuously without beeping, except when the switch has
been turned on.
●If a display error occurs , first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it is likely that
the sensor is malfunctioning.
■Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in th e sensor malfunctioning.

2794-5. Using the driving support systems
4
Driving

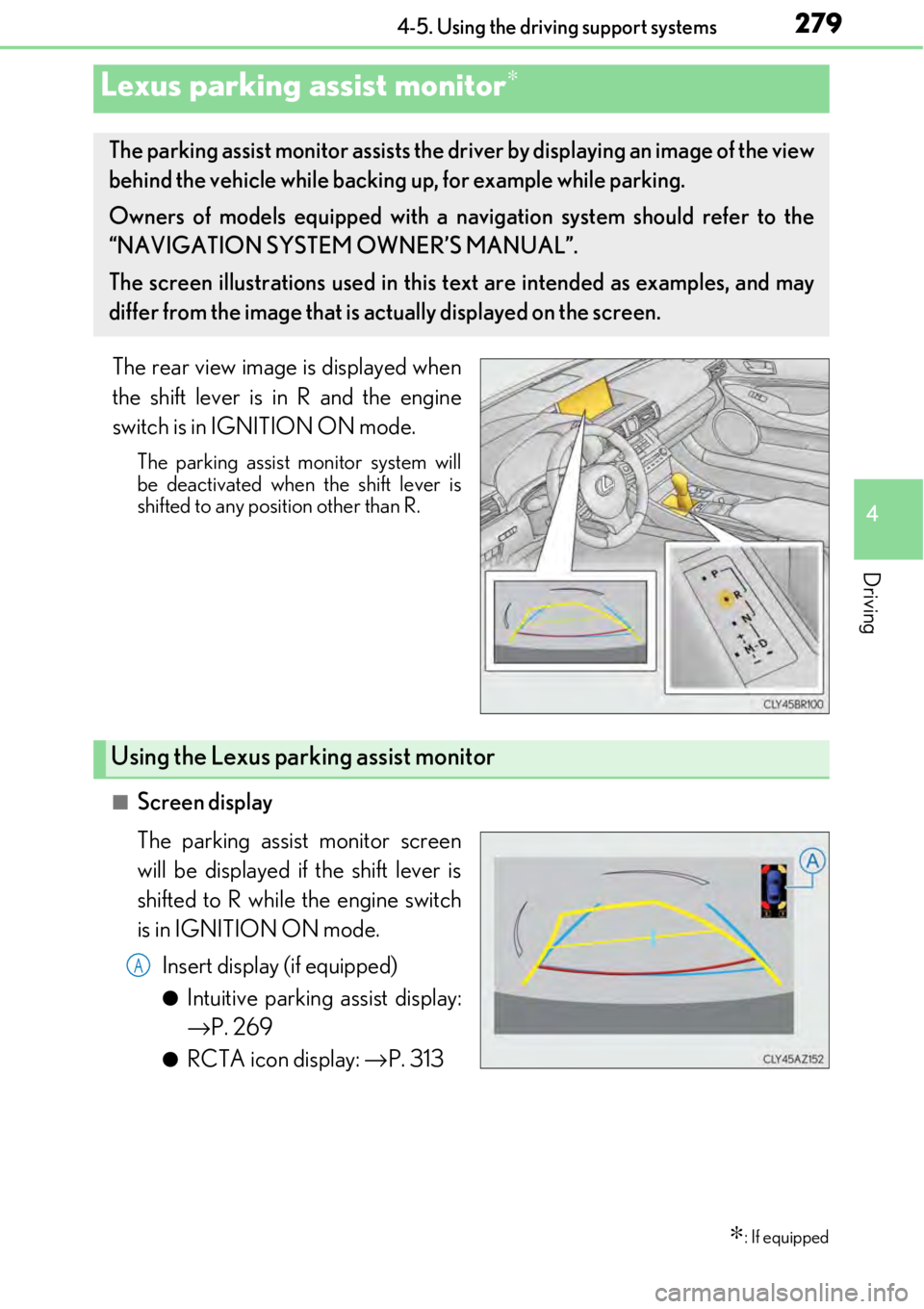

The rear view image is displayed when
the shift lever is in R and the engine
switch is in IGNITION ON mode.
The parking assist monitor system will
be deactivated when the shift lever is
shifted to any position other than R.
■Screen display
The parking assist monitor screen
will be displayed if the shift lever is
shifted to R while the engine switch
is in IGNITION ON mode.Insert display (if equipped)
●Intuitive parking assist display:
→P. 269
●RCTA icon display: → P. 313
Lexus parking assist monitor∗
∗: If equipped
The parking assist monitor assists the driv er by displaying an image of the view
behind the vehicle while backing up, for example while parking.
Owners of models equipped with a navi gation system should refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
The screen illustrations used in this text are intended as examples, and may
differ from the image that is ac tually displayed on the screen.
Using the Lexus parking assist monitor
A

2804-5. Using the driving support systems

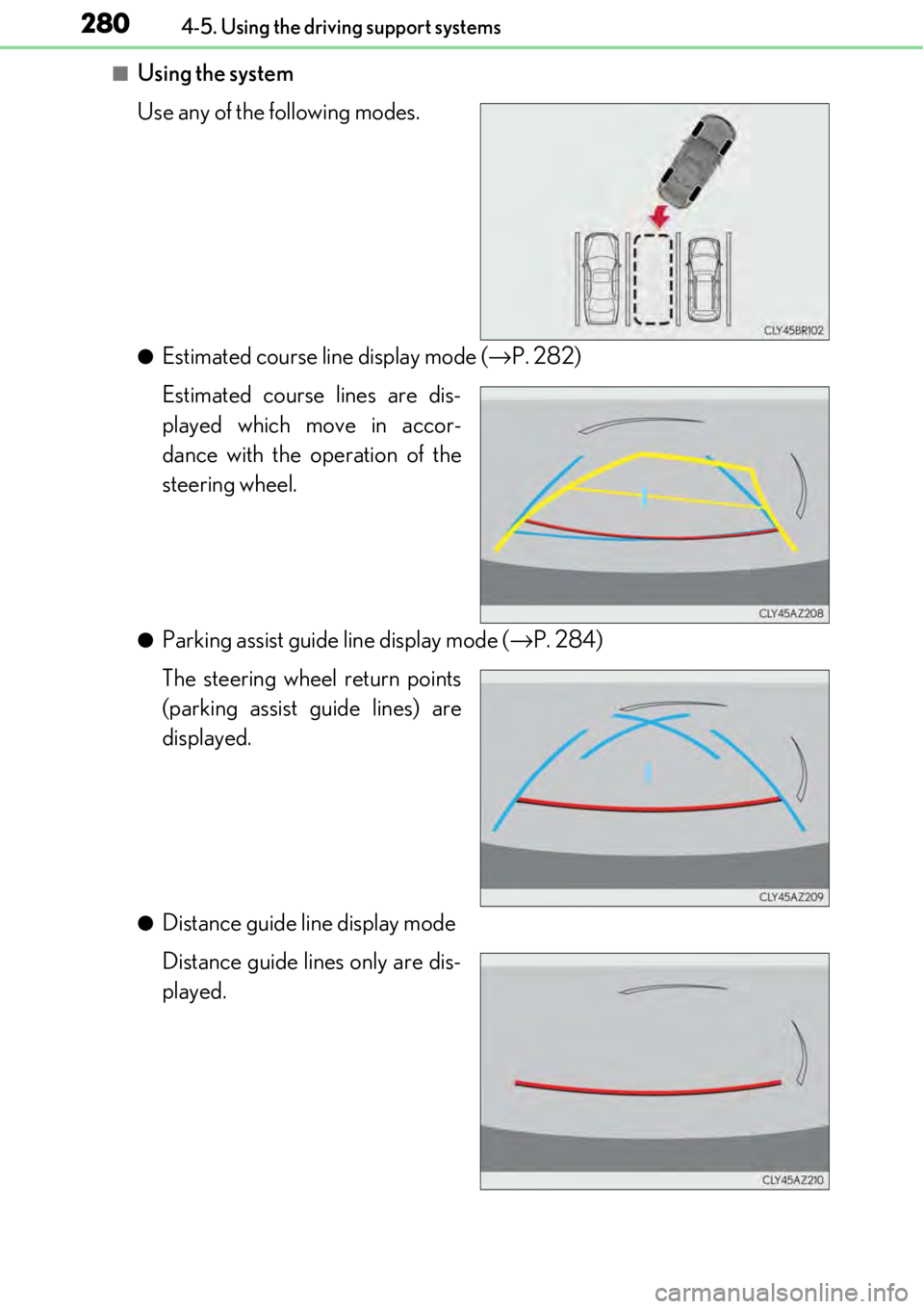

■Using the system
Use any of the following modes.
●Estimated course line display mode (→P. 282)
Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.
●Parking assist guide line display mode ( →P. 284)
The steering wheel return points
(parking assist guide lines) are
displayed.
●Distance guide line display mode
Distance guide lines only are dis-
played.
