LEXUS RC300 2017 Owners Manual

6819-2. Customization
9
Vehicle specifications
■Intuitive parking assist*1 (→ P. 269)
*1:If equipped
*2: When intuitive parking assist is operating.
■Active rear wing* (→ P. 326)
*:RC F
■Automatic air conditioning system ( →P. 434)
■Seat heaters* (→ P. 446)
*:If equipped
FunctionDefault settingCustomized setting
Detection distance of the
front center sensor*1FarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors dis-
playedDisplay offO—O
123
FunctionDefault settingCustomized setting
Operation of the active rear
wingOffOn—OO
123
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitiv-
ityStandard-3 to 3O—O
123
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
123

6829-2. Customization
■Illumination (→P. 448)
*:If equipped
■Seat belt reminder ( →P. 566)
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Ambient lights and Remote
Touch pad light
*OnOff——O
Time elapsed before the
outer foot lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
OnOff——O
Operation of the outer foot
lights when the doors are
unlocked with the power
door lock switch
OnOff——O
Operation of the outer foot
lights when a door is openedOnOff——O
Fading out of the outer foot
lights when they turn offLongShort——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzerOnOff——O
123

6839-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the smart access system with push-button start is off, the entry unlock function
cannot be customized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch , the changed setting will not be reflected on the audio system
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote To uch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the par king brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

6849-3. Items to initialize
*:If equipped

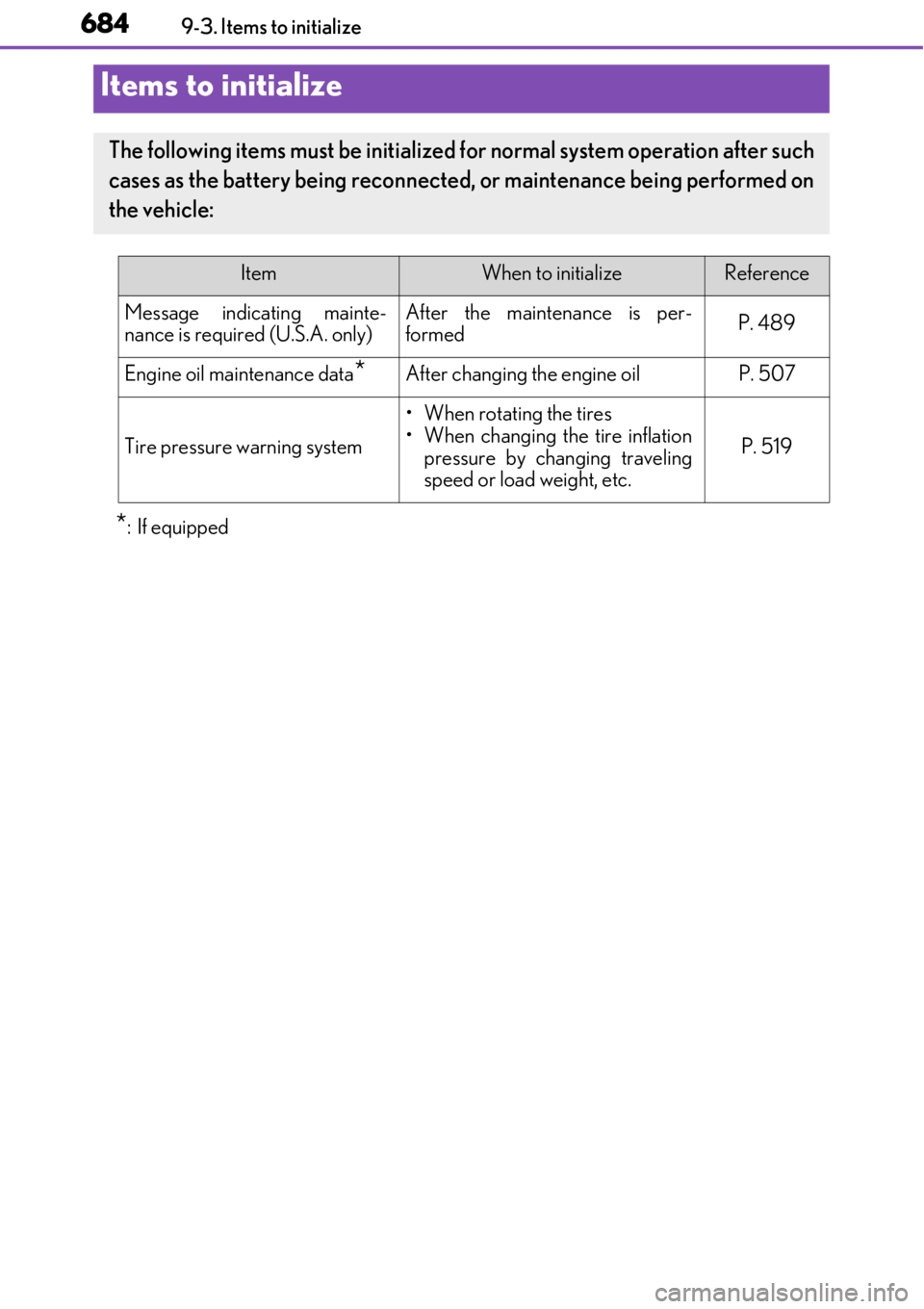

Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)After the maintenance is per-
formedP. 489
Engine oil maintenance data*After changing the engine oilP. 507
Tire pressure warning system
• When rotating the tires
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
P. 519

685
For owners10
Reporting safety defects for U.S. owners ........................686
Seat belt instructions for Canadian owners
(in French).................................. 687
SRS airbag instructions for Canadian owners
(in French)..................................689

686

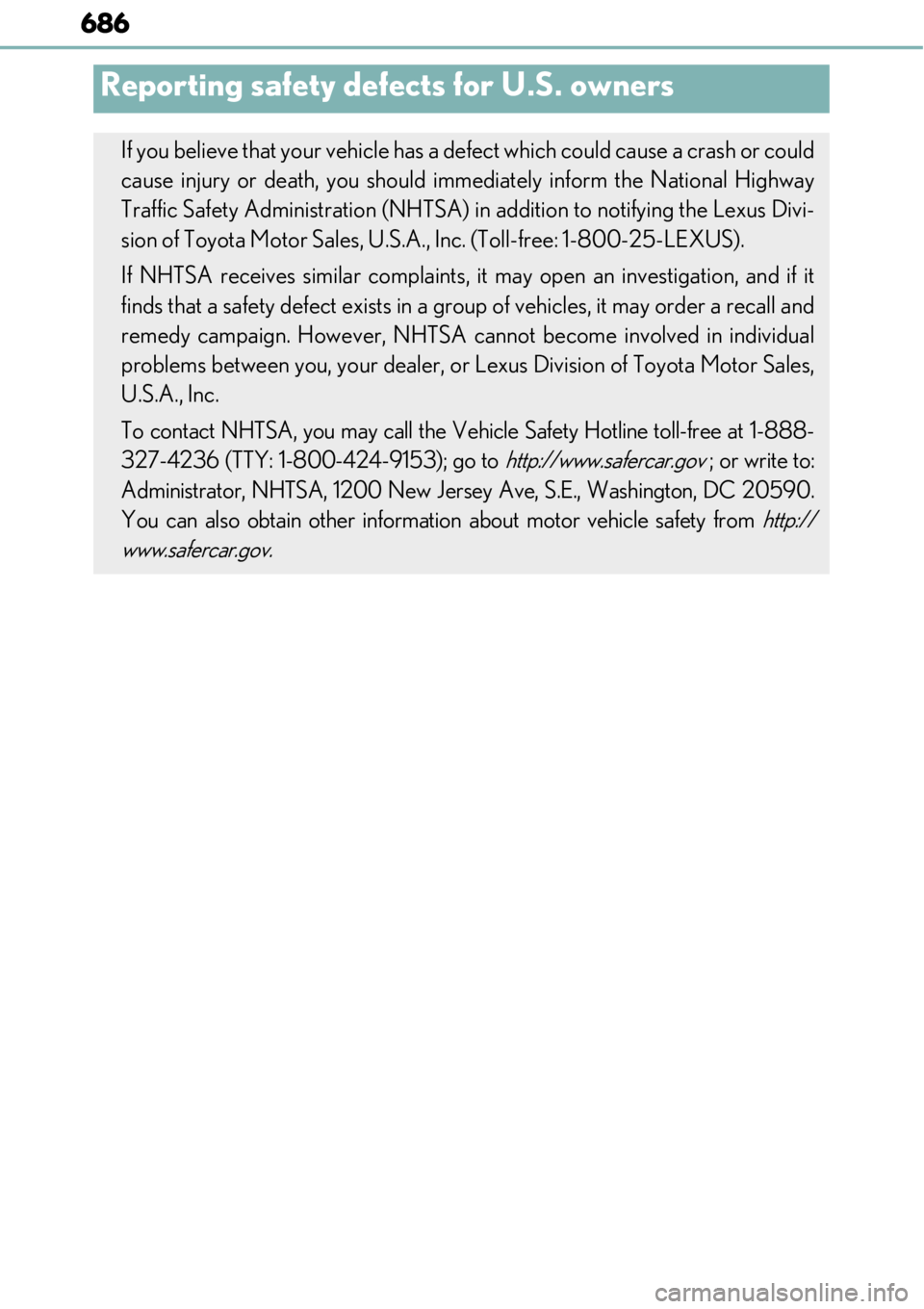

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Divi-
sion of Toyota Motor Sa les, U.S.A., Inc. (Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cann ot become involved in individual
problems between you, your dealer, or Lexus Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the Vehi cle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC 20590.
You can also obtain other informatio n about motor vehicle safety from
http://
www.safercar.gov.

687
10
For owners
●Déroulez la sangle diagonale de
telle sorte qu’elle passe bien sur
l’épaule, sans pour autant être en
contact avec le cou ou glisser de
l’épaule.
●Placez la sangle abdominale le plus
bas possible sur les hanches.
●Réglez la position du dossier de
siège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
●Ne vrillez pas la ceinture de sécu-
rité.Non vrillée
Vrillée
Seat belt instructions for Canadian owners (in
French)
The following is a French explanation of seat belt instructions extracted from
the seat belt section in this manual.See the seat belt section for more deta iled seat belt instructions in English.
Utilisation correcte des ceintures de sécurité
1
2

688
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humidifiés avec de l'eau savonneuse
tiède. Vérifiez régulièrement que les ceintures ne sont pas usées, effilochées
ou entaillées excessivement.
Entretien et soin
AVERTISSEMENT
■Détérioration et usure des ceintures de sécurité
Inspectez le système de cein tures de sécurité régulièrement. Contrôlez l'absence de
coupures, d'effilochages et de pièces dess errées. N'utilisez pas une ceinture de sécu-
rité endommagée avant qu'elle ne soit remplacée. Une ceinture de sécurité endom-
magée ne permet pas de protéger un occupant de blessures graves ou mortelles.

689
10
For owners
◆Coussins gonflables frontaux SRSCoussin gonflable conducteur/coussin gonflable du passager avant SRS
Participent à la protection de la tête et du thorax du conducteur et du pas-
sager avant contre les chocs contre les éléments de l'habitacle
Coussins gonflables de genoux SRS
Participent à la protection du conducteur et du passager avant
◆Coussins gonflables latéraux et rideaux SRS
Coussins gonflables latéraux SRS
Participent à la protection du to rse des occupants de siège avant
Coussins gonflables rideaux SRS
Participent principalement à la protection de la tête des occupants
●Participent principalement à la protec tion de la tête des occupants des
sièges latéraux
●Peut contribuer à empêcher les occupants d’être éjectés du véhicule en
cas de tonneau
SRS airbag instructions for Canadian owners (in
French)
The following is a French explanation of SRS airbag instructions extracted
from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instructions in
English.
1
2
3
4

690
Composants du système de coussins gonflables SRS
Système de classification de l'occu-
pant du siège passager avant
(ECU et capteurs)
Capteurs d'impact latéral (porte)
Coussins gonflables de genoux
Coussin gonflable passager avant
Coussins gonflables rideaux
Témoins indicateurs “AIR BAG
ON” et “AIR BAG OFF”
Prétensionneurs de ceintures de
sécurité et limiteurs de force
Capteurs d'impact latéral (avant) Coussins gonflables latéraux avant
Témoin d'avertissement SRS
Coussin gonflable conducteur
Capteurs d'impact latéral (arrière)
Capteur de position du siège
conducteur
Contact de boucle de ceinture de
sécurité conducteur
Ensemble de capteurs de coussins
gonflables
Contact de boucle de ceinture de
sécurité du passager avant
Capteurs d'impact avant1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
