711-1. For safe use
1
For safety and security
■Child restraint LATCH anchors (RC350/RC300/RC200t)
LATCH anchors are provided for
the each rear seat. (Buttons display-
ing the location of the anchors are
attached to the seats.)
■Child restraint LATCH anchors (RC F)
LATCH anchors are provided for
the each rear seats. (Mark display-
ing the location of the anchors are
attached to the seats.)
Child restraint system fixed with child restraint LATCH anchors

721-1. For safe use
■Installation with LATCH system (RC350/RC300/RC200t)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Remove the head restraint if it
interferes with your child restraint
system. ( →P. 173)
Flip up and fold the cover, and fix
it with the hook-and-loop fas-
tener.
1
2

731-1. For safe use
1
For safety and security
Type A
Latch the hooks of the lower
straps onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Type B
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. ( →P. 76)
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
Canada only
3
Canada only
3
4
5

741-1. For safe use
■Installation with LATCH system (RC F)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Type A
Latch the hooks of the lower
straps onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Type B
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
1
Canada only
1

751-1. For safe use
1
For safety and security
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. ( →P. 76)
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMV SS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Shake the child restraint syst em left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●When using the LATCH anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not ca ught behind the child restraint system.
●Follow all installation instructions provided by the child restraint system manufacturer.
2
3

761-1. For safe use
■Anchor brackets (for top tether strap)
Anchor brackets are provided for the each rear seat.
Use anchor brackets when fixing the top tether strap.
■Fixing the top tether strap to the anchor bracket
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
RC350/RC300/RC200t:
Remove the head restraint if it
interferes with your child restraint
system. ( →P. 173)
Open the anchor bracket cover, latc h the hook onto the anchor bracket
and tighten the top tether strap.
Make sure the top tether strap is securely latched.
Using an anchor bracket (for top tether strap)
RC350/RC300/RC200tRC F
Top tether strap
Anchor brackets
Anchor brackets
Top tether strap
1
2
RC350/RC300/RC200tRC F
Hook
Top tether strapHook
Top tether strap

771-1. For safe use
1
For safety and security
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Firmly attach the top tether strap and make sure that the belt is not twisted.
●Do not attach the top tether strap to anything other than the anchor bracket.
●Shake the child restraint syst em left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
NOTICE
■Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid may be dam-
aged.

781-1. For safe use
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle while the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

79
1
For safety and security
1-2. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help preven t vehicle theft but does not guarantee
absolute security agai nst all vehicle thefts.

801-2. Theft deterrent system

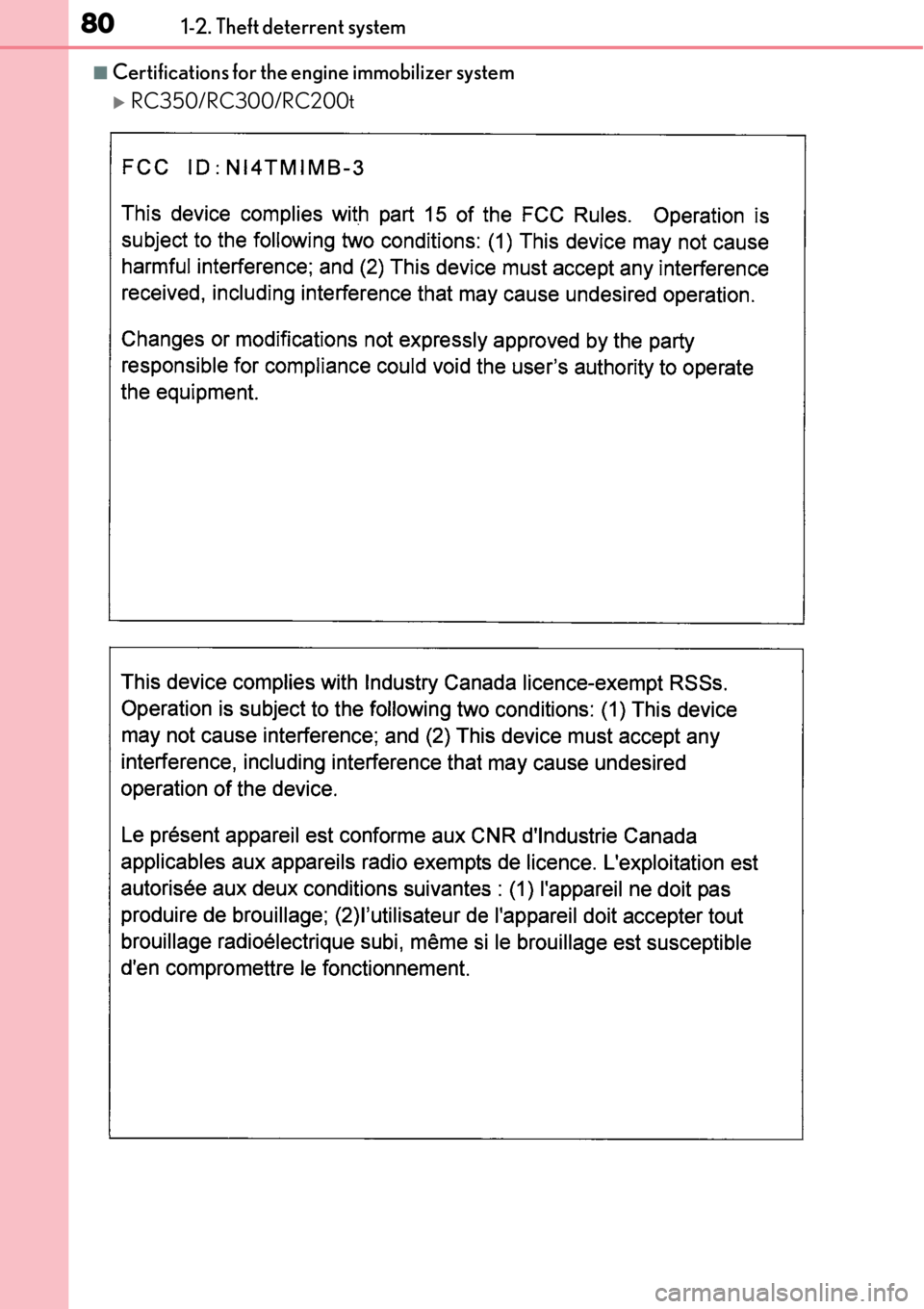

■Certifications for the engine immobilizer system
RC350/RC300/RC200t
