811-2. Theft deterrent system
1
For safety and security
RC F

821-2. Theft deterrent system
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

831-2. Theft deterrent system
1
For safety and security
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function, wireless remote control or mechanical key. (The doors will lock
again automatically.)
●The hood is opened.
Close the doors, trunk and hood, and
lock both side doors. The system will be
set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSOR Y or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
Alarm
The alarm
Setting the alarm system
Deactivating or stopping the alarm

841-2. Theft deterrent system
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the si tuation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle un locks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the battery
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using a
inside lock button.
●The battery is recharged or replaced when the
vehicle is locked. (→P. 628)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

851-2. Theft deterrent system
1
For safety and security
These labels are attached to the vehicle
to reduce vehicle theft by facilitating
the tracing and recovery of parts from
stolen vehicles. Do not remove under
penalty of law.
Theft prevention labels (U.S.A.)

861-2. Theft deterrent system

87
Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................................88
Gauges and meters (RC350/RC300/
RC200t) ....................................... 96
Gauges and meters (RC F) ........................................... 102
Multi-information display (RC350/RC300/
RC200t) ..................................... 109
Multi-information display (RC F) ............................................. 117
Fuel consumption information ................................. 130

882. Instrument cluster
RC350/RC300/RC200t (except F SPORT models)
RC350/RC300/RC200t (F SPORT models)

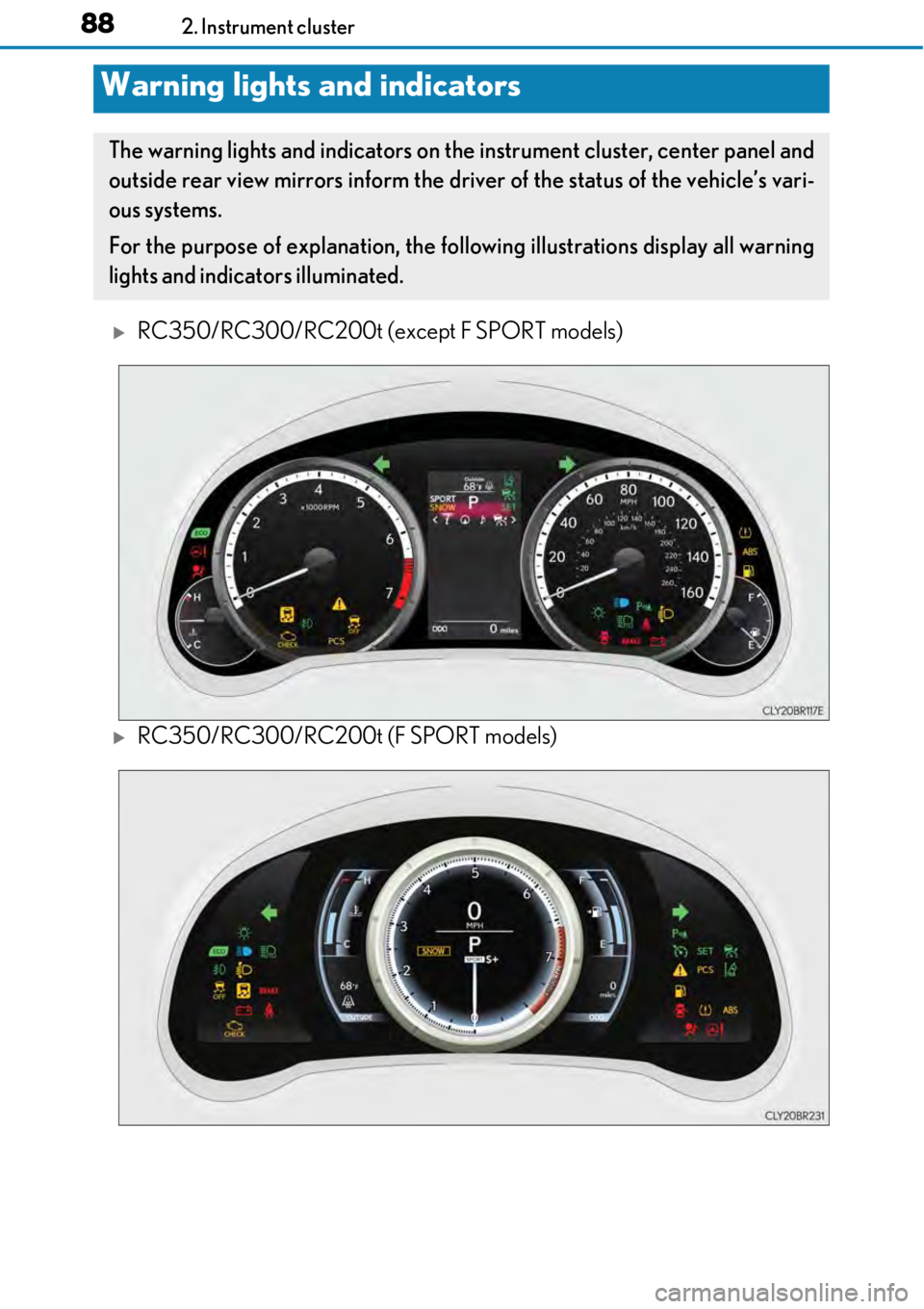

Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

892. Instrument cluster
2
Instrument cluster
RC F
The units used on the meters and some indicators may differ depending on the target
region.

902. Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 565)
*1, 2
(if equipped)
Pre-collision system warn-
ing light
(→ P. 566)
*1
(Canada)
Brake system warning light
(→ P. 565)*1
Slip indicator ( →P. 566)
*1Charging system warning
light ( →P. 565)*1 Automatic headlight level-
ing system warning light
(→ P. 566)
*1
(U.S.A.)
Malfunction indicator lamp
(→ P. 565)Open door warning light
(→ P. 566)
*1
(Canada)
Malfunction indicator lamp
(→ P. 565)Low fuel level warning light
(→ P. 566)
*1SRS warning light
(→ P. 565)Seat belt reminder light
(→ P. 566)
*1
(U.S.A.)
ABS warning light
(→ P. 565)*1Master warning light
(→ P. 566)
*1
(Canada)
ABS warning light
(→ P. 565)*1Tire pressure warning light
(→ P. 567)
*1Electric power steering sys-
tem warning light
(→ P. 566)
