2496-3. Do-it-yourself maintenance
6
Maintenance and care
RC350/RC300 AWDFuse boxes ( P.269)
Battery ( P.255)
Engine oil level dipstick ( P.250)
Engine coolant reservoir ( P.252)
Engine oil filler cap ( P.250)
Brake fluid reservoir ( P.254)
Washer fluid tank ( P.256)
Electric cooling fans
Condenser ( P.254)
Radiator ( P.254)

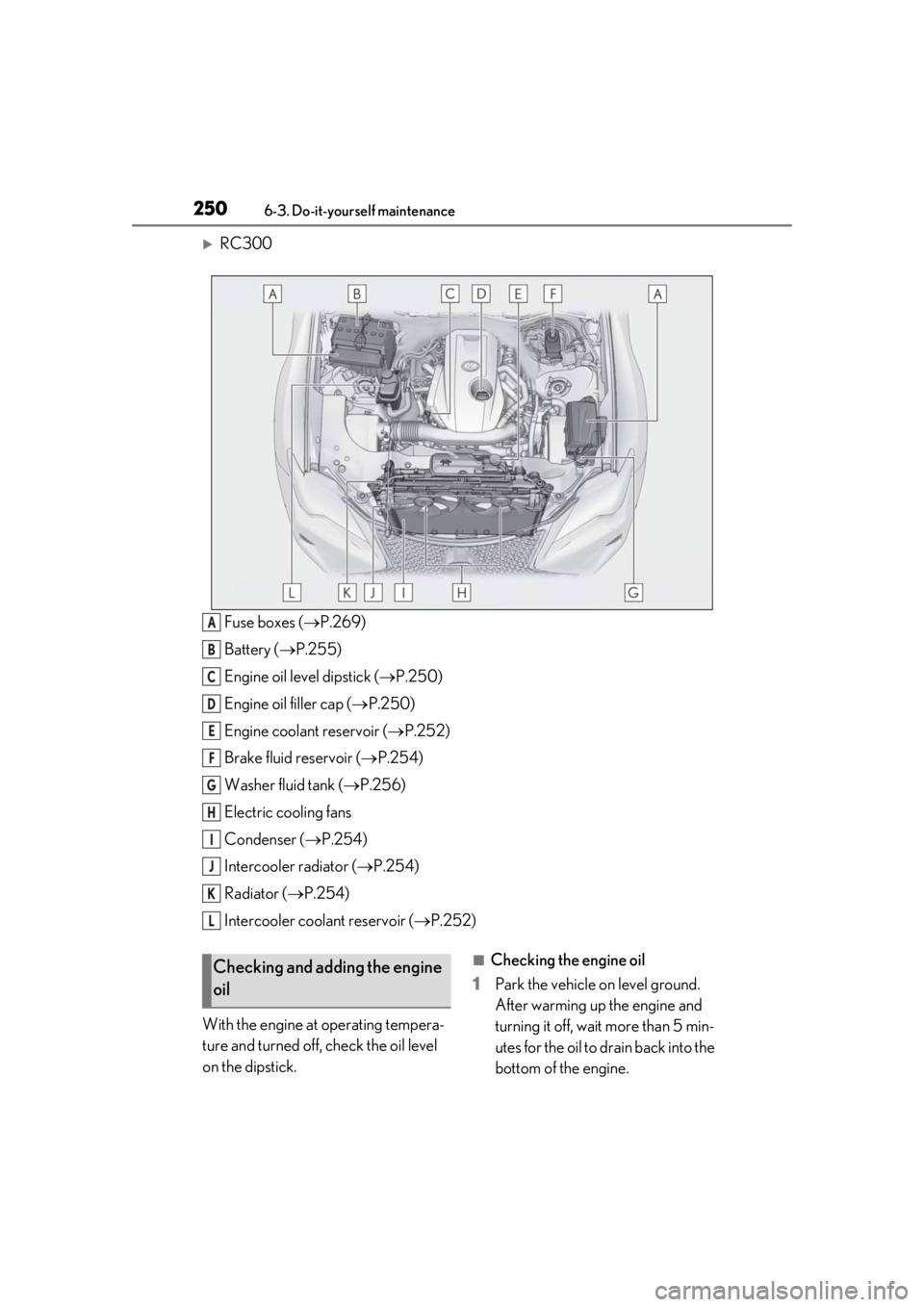

Engine compartment
Components
A
B
C
D
E
F
G
H
I
J

2506-3. Do-it-yourself maintenance
RC300Fuse boxes ( P.269)
Battery ( P.255)
Engine oil level dipstick ( P.250)
Engine oil filler cap ( P.250)
Engine coolant reservoir ( P.252)
Brake fluid reservoir ( P.254)
Washer fluid tank ( P.256)
Electric cooling fans
Condenser ( P.254)
Intercooler radiator ( P.254)
Radiator ( P.254)
Intercooler coolant reservoir ( P.252)
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
■Checking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.
A
B
C
D
E
F
G
H
I
J
K
L
Checking and adding the engine
oil

2696-3. Do-it-yourself maintenance
6
Maintenance and care
1Turn the engine switch off.
2 Open the fuse box cover.

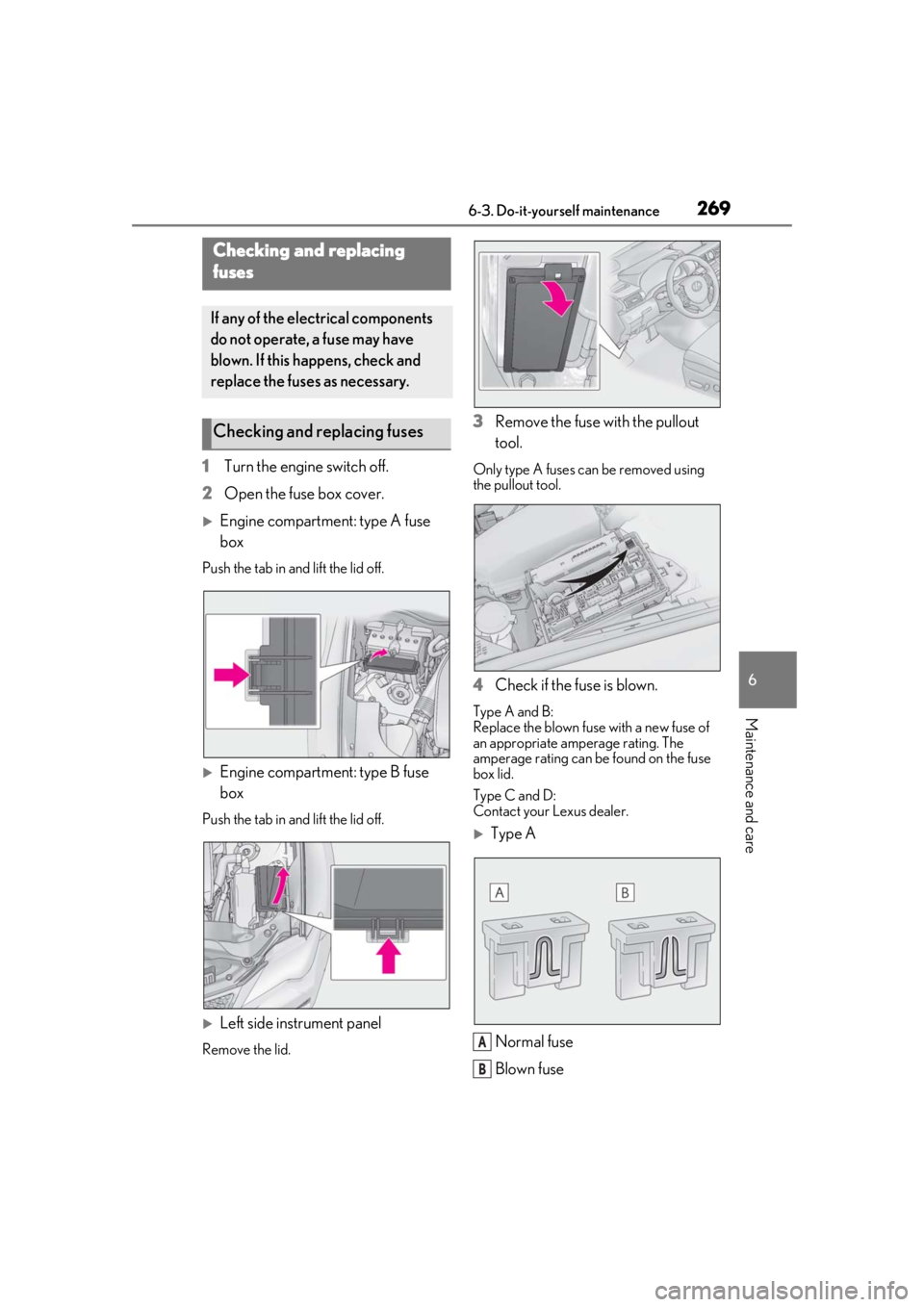

Engine compartment: type A fuse
box
Push the tab in and lift the lid off.
Engine compartment: type B fuse
box
Push the tab in and lift the lid off.
Left side instrument panel
Remove the lid.
3Remove the fuse with the pullout
tool.
Only type A fuses can be removed using
the pullout tool.
4Check if the fuse is blown.
Type A and B:
Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.
Type C and D:
Contact your Lexus dealer.
Type A
Normal fuse
Blown fuse
Checking and replacing
fuses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses
A
B

2706-3. Do-it-yourself maintenance
Type BNormal fuse
Blown fuse
Type C
Normal fuse
Blown fuse
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement.
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-
cuits designed to prevent overload,
non-genuine parts or parts not designed for
this vehicle may be unusable.
A
B
A
B
A
B
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.
