3017-2. Steps to take in an emergency
7
When trouble arises
■Brake hold operated indicator (warning buzzer)
■SRS warning light
This warning light system monitors the air-
bag sensor assembly, fr ont impact sensors,
side impact sensors (door), side impact
sensors (front), side impact sensors (rear),
driver’s seat position sensor, driver’s seat
belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON”
indicator light, “AIR BAG OFF” indicator
light, front passenger’s seat belt buckle
switch, seat belt pret ensioners, airbags,
interconnecting wiring and power sources.
(  P.29)
■Front passenger detection sensor, seat
belt reminder and warning buzzer
●If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause th e warning light to
flash and the warning buzzer to sound
even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may not operate properly.
■If the malfunction indicator lamp comes
on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving
trips.
If the light does not go off even after several
trips, contact your Lexus dealer as soon as
possible.
■Electric power steering system warning
light (warning buzzer)
When the battery charge becomes insuffi- cient or the voltage temporarily drops, the
electric power steering system warning
light may come on and the warning buzzer
may sound.
■When the tire pressure warning light
comes on
Check the tire inflatio n pressure and adjust
to the appropriate leve l. Pushing the tire
pressure warning reset switch will not turn
off the tire pressure warning light.
■The tire pressure warning light may
come on due to natural causes
The tire pressure wa rning light may come
on due to natural causes such as natural air
leaks and tire inflation pressure changes
caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the
warning light (after a few minutes).
■When a tire is replaced with the spare
tire
The spare tire is not equipped with a tire
pressure warning valve and transmitter. If a
tire goes flat, the tire pressure warning light
will not turn off even though the flat tire has
been replaced with the spare tire.
■Conditions that the tire pressure warn-
ing system may not function properly
 P.268
■If the tire pressure warning light fre-
quently comes on after blinking for 1
minute
If the tire pressure wa rning light frequently
comes on after blinking for 1 minute when
the engine switch is turned to IGNITION
ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be heard
due to being in a noisy location or audio
sound.
Warning lightDetails/Actions
(flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer immediately.

3057-2. Steps to take in an emergency
7
When trouble arises
The warning lights and warning buzzers operate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
 In some situations, the master warning light and warning buzzer may not oper-
ate as specified. In this case, follow the instructions displayed in the warning
message.
 If a warning light comes on or flashes at the same time that a warning message is
displayed, take corrective actio n according to the warning light. ( P.295)
*: A buzzer sounds the first time a message is shown on the multi-information display.
■Warning messages
The warning messages explained below
may differ from the actual messages
according to operation conditions and vehi-
cle specifications.
■Warning buzzer
In some cases, the bu zzer may not be heard
due to being in a noisy location or audio
sound.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level is low. Check the level
of the engine oil, and add if necessary. This message ma
y appear if the vehicle is
stopped on a slope. Move the vehicle to a
level surface and chec k to see if the mes-
sage disappears.
■If a message that indicates the malfunc-
tion of front camera is displayed
The following systems may be suspended
until the problem shown in the message is
resolved. ( P.160, 298)
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert with steering
control)
●Automatic High Beam
●Dynamic radar cruise control with
Messages and warnings
Warning buzzer*Warning
Comes onSounds
Indicates an important situat ion, such as when a sys-
tem related to driving is ma lfunctioning or that dan-
ger may result if the co rrection procedure is not
performed
FlashesSoundsIndicates a situation, such as when damage to the
vehicle or danger may result
Comes onDoes not sound
Indicates a condition, such as malfunction of electri-
cal components, their cond ition, or indicates the
need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an operation has
been performed incorrectly, or indicates how to
perform an operation correctly

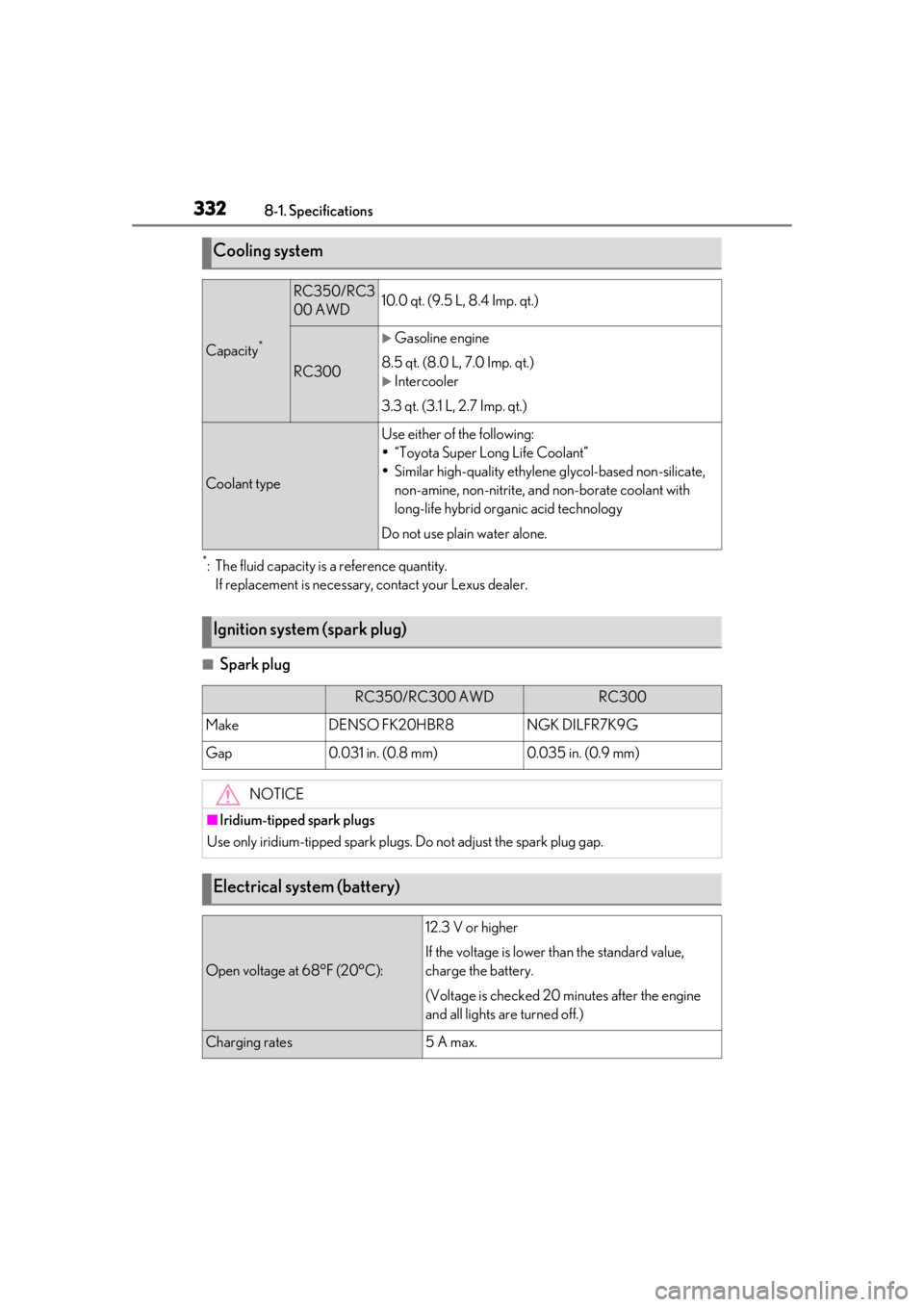

3328-1. Specifications
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
■Spark plug
Cooling system
Capacity*
RC350/RC3
00 AWD10.0 qt. (9.5 L, 8.4 Imp. qt.)
RC300
Gasoline engine
8.5 qt. (8.0 L, 7.0 Imp. qt.)
Intercooler
3.3 qt. (3.1 L, 2.7 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid orga nic acid technology
Do not use plain water alone.
Ignition system (spark plug)
RC350/RC300 AWDRC300
MakeDENSO FK20HBR8NGK DILFR7K9G
Gap0.031 in. (0.8 mm)0.035 in. (0.9 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (battery)
Open voltage at 68°F (20°C):
12.3 V or higher
If the voltage is lower than the standard value,
charge the battery.
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.

383What to do if... (Troubleshooting)
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode. (P.132)
 It is locked automatically to prevent
theft of the vehicle. ( P.127)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.113)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.130)
 The seat belt reminder light is flash-
ing
Are the driver and the front passenger
wearing the seat belts? ( P.299)
 The parking brake indicator is on
Is the parking brake released? ( P.137)
Depending on the situation, other types of warning buzzer may also
sound. (
P.295, 303)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
( P.57)
Do one of the following to deactivate
or stop the alarm:
 Unlock the doors.
 Open the trunk using the entry
function or wireless remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.303)
 When a warning light turns on or a
warning message is displayed, refer
to P.295, 303.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed

388Alphabetical Index
If the engine will not start .........................314
If your vehicle has to be stopped in an
emergency ................................................286
Ignition switch (engine switch) ............. 127
Overheating................................................. 322
Tachometer ..................................................... 66
Engine coolant Capacity ......................................................... 332
Checking .......................................................260
Preparing and checking before winter.........................................................................205
Engine coolant temperature gauge ....... 66
Engine immobilizer system ........................ 56
Engine oil Capacity .........................................................330
Checking .......................................................258
Preparing and checking before winter.........................................................................205
Warning light ............................................... 296
Engine oil maintenance data .................. 260
Engine oil pressure gauge ...........................74
Engine oil temperature gauge ...................74
Engine switch .................................................. 127 Auto power off function .......................... 130
Changing the engine switch modes.. 129
If your vehicle has to be stopped in an
emergency ................................................286
EPS (Electric Power Steering) ................201 Warning light ............................................... 297
Event data recorder (EDR) ............................6
F
First-aid kit storage belt ............................ 229
Flat tire Tire pressure warning system .............268
Vehicles with a spare tire ...................... 307
Floor mats ...........................................................22
Fluid Automatic transmission .......................... 333
Brake.................................................... 262, 334
Washer ........................................................... 264
Footwell light ................................................. 225 Front passenger occupant classification
system .............................................................. 36
Front position lights Wattage ......................................................... 338
Front seats Adjustment ....................................................... 99
Cleaning .........................................................245
Correct driving posture ............................ 23
Driving position memory ........................ 102
Head restraints............................................. 105
Memory recall function............................ 104
Power easy access system .................... 102
Seat heaters .................................................. 223
Seat position memory .............................. 102
Seat ventilators ............................................ 223
Front side marker light Light switch .....................................................142
Front turn signal lights Replacing light bulbs ................................282
Turn signal lever .......................................... 136
Wattage ......................................................... 338
Fuel Capacity ........................................................ 330
Fuel gauge ........................................................ 66
Fuel pump shut off system..................... 294
Information ....................................................339
Refueling.......................................................... 155
Type ................................................................. 330
Warning light ...............................................299
Fuel consumption Average fuel economy .............................. 73
Current fuel consumption ........................ 73
Fuel filler door If the fuel filler do or cannot be opened
........................................................................... 316
Refueling.......................................................... 155
Fuel gauge ......................................................... 66
Fuel pump shut off system........................ 294
Fuses ................................................................. 278
G
Garage door opener ................................. 232

389Alphabetical Index
Gauges ............................................................... 66
Gear Position....................................................75
G-force................................................................74
Glove box ........................................................227
Glove box light ............................................. 228
H
Head restraints .............................................. 105
Headlight aim ................................................280
HeadlightsAutomatic High Beam system.............. 144
Light switch ..................................................... 142
Replacing light bulbs................................ 282
Wattage..........................................................338
Heated steering wheel .............................. 223
Heaters Automatic air conditioning system .....215
Heated steering wheel............................ 223
Outside rear view mirrors ...................... 219
Seat heaters .................................................. 223
High mounted stoplight Replacing light bulbs................................ 282
Hill-start assist control .................................201
Hood Open ............................................................... 255
Hooks Cargo hooks................................................ 229
Coat hooks ................................................... 230
Retaining hooks (floor mat)......................22
Horn ................................................................... 109
I
I/M test ............................................................ 252
Identification Engine ............................................................. 329
Vehicle ............................................................ 328
Ignition switch (engine switch)................. 127 Auto power off function .......................... 130
Changing the engine switch modes.. 129
If your vehicle has to be stopped in an
emergency ................................................286 Illuminated entry system ........................... 226
Indicators ........................................................... 64
Initialization
Items to initialize .......................................... 361
Maintenance.................................... 248, 260
Power windows ............................................. 112
Tire pressure warning system .............269
Inside rear view mirror ............................... 109
Instrument panel light co ntrol ..................... 71
Intercooler...................................................... 262
Intercooler coolant Capacity ......................................................... 332
Checking ...................................................... 260
Interior lights.................................................. 225 Front interior light ...................................... 225
Rear interior light........................................ 225
Intuitive parking assist Warning message ...................................... 187
J
JackPositioning a floor jack ............................255
Vehicle-equipped jack ...........................307
Jack handle .................................................... 307
Jam protection function Moon roof ........................................................ 115
Power windows ............................................. 112
K
Keyless entrySmart access system with push-button start ...................................................................95
Wireless remote control ...........................86
Keys Battery-saving function..............................96
Electronic key .................................................84
Engine switch ................................................. 127
If the electronic key does not operate properly .........................................................317
If you lose your keys .................................. 316
Key number plate .........................................84

391Alphabetical Index
Moon roofDoor lock linked moon roof operation............................................................................ 115
Jam protection function............................. 115
Operation..........................................................114
Multi-information display .............................. 71 Audio system-linked display................... 76
Boost gauge.....................................................74
Drive information ...........................................73
Drive information 1/Drive information 2/Drive information 3..............................73
Driving assist system information display ............................................................................ 76
Dynamic radar cruise control ............... 176
Eco Driving Indicator ..................................74
Engine oil pressure gauge ........................74
Engine oil temperature gauge ................74
Gear Position ................................................. 75
G-force...............................................................74
LDA (Lane Departure Alert with steering control) ............................................................171
Menu icons .......................................................72
Meter control switches ...............................72
Navigation system-linked display ........ 76
Settings .............................................................. 76
Tire pressure ....................................... 75, 268
Units .................................................................... 75
Vehicle sway warning ................................ 75
Warning message display ....................... 76
Warning messages ..................................303
N
Navigation system-linked display.............76
Noise from under vehicle .............................. 5
O
“ODO TRIP” switch ...................................... 70
Odometer ......................................................... 70
Odometer and trip meter display “ODO TRIP” switch .................................... 70 Oil
Engine oil....................................................... 330
Front differential oil............. .......................333
Rear differential oil......... ..................... .......333
Opener Fuel filler door ............................................... 155
Hood ................................................................255
Trunk ................................................................... 92
Outer foot lights Location .......................................................... 225
Outside rear view mirrors Adjustment ....................................................... 110
BSM (Blind Spot Monitor)....................... 191
Folding.................................................................. 111
Linked mirror functi on when reversing111
Mirror position memory .......................... 102
Outside rear view mirror defoggers .219
RCTA function ............................................... 191
Outside temperature.................................... 66
Overheating .................................................. 322
P
Paddle shift switches ..........................133, 134
Panic mode ....................................................... 86
Parking brake Operation ........................................................137
Parking brake engaged warning buzzer........................................................................... 138
Warning light .............................................. 300
Warning message ...................................... 138
Parking lights Light switch .....................................................142
Replacing light bulbs ................................282
PCS (Pre-Collision System) Function ............................................................162
PCS OFF switch ......................................... 164
Warning light .............................................. 298
Warning message .................................... 303
Personal lights............................................... 225
Power control unit coolant Preparing and checking before winter......................................................................... 205

394Alphabetical Index
Outside rear view mirror switches ...... 110
Paddle shift switches ....................... 133, 134
Parking brake switch ................................. 137
PCS OFF switch ..........................................164
Power door lock switch ............................ 90
Power window switches ............................112
Rear window and outside rear view mir-ror defoggers switch ..............................215
Seat heater switches ................................ 223
Seat ventilator switches .......................... 223
Snow mode switch .....................................133
“SOS” button .................................................. 52
Tilt and telescopic steering control switch .......................................................................... 108
Tire pressure warning reset switch .. 270
Trunk opener main switch ....................... 94
Trunk opener switch ................................... 92
VSC OFF switch ....................................... 202
Window lock switch ................................... 113
Windshield wiper and washer switch147
Windshield wiper de-icer switch ........ 219
T
Tachometer....................................................... 66 Rev indicator ................................................... 69
Rev peak ........................................................... 69
Tail lights Light switch ..................................................... 142
Replacing light bulbs................................ 282
Wattage..........................................................338
Theft deterrent system Alarm .................................................................. 57
Engine immobilizer system ..................... 56
Theft prevention labels............................... 59
Tire inflation pressure Maintenance data...................................... 334
Tire inflation pressu re display function
.........................................................................268
Warning light .............................................. 300
Tire information ..............................................341 Glossary......................................................... 345
Size.................................................................... 343 Tire identification number...................... 342
Uniform Tire Quality Grading ............344
Tire infration pressure .................................. 75
Tire pressure display ... ............................... 268
Tire pressure warning system Function ......................................................... 268
Initializing........................................................269
Installing tire pres sure warning valves
and transmitters.......................................269
Registering ID codes ................................. 271
Warning light .............................................. 300
Tires Chains ............................................................ 206
Checking .......................................................265
If you have a flat tire ..................................307
Inflation pressure ........................................ 273
Information ......................................................341
Replacing .......................................................307
Rotating tires ................................................ 267
Size ....................................................................334
Snow tires ..................................................... 205
Spare tire ........................................................307
Tire inflation pressure display function......................................................................... 268
Tire pressure warning system ............ 268
Warning light .............................................. 300
Tools.................................................................. 307
Top tether strap.........................................41, 49
Total load capacity ...................................... 328
Towing Dinghy towing ...............................................126
Emergency towing................................... 289
Towing eyelet.................................................291
Trailer towing .................................................126
TRAC (Traction Control) ..........................201
Traction Control (TRAC) ..........................201
Trailer towing ..................................................126
Transmission Automatic transmission ............................. 131
Driving mode select switch ................... 199
M mode ............................................................134
Paddle shift switches ....................... 133, 134

395Alphabetical Index
Snow mode ....................................................133
Trip meters ........................................................ 70
Trunk ...................................................................... 91 Smart access system with push-button start ................................................................... 92
Trunk features.............................................. 229
Trunk grip ......................................................... 93
Trunk light......................................................... 93
Trunk opener main switch ....................... 94
Trunk opener switch ................................... 92
Wireless remote control........................... 93
Trunk light .......................................................... 93
Turn signal lights Replacing light bulbs................................ 282
Turn signal lever ...........................................136
Wattage..........................................................338
V
Vanity lights......................................................231
Vanity mirrors .................................................231
Variable Gear Ratio Steering (VGRS)201
VDIM (Vehicle Dynami cs Integrated Man-
agement)...................................................... 202
Vehicle data recording .... ............................... 5
Vehicle Dynamics Integrated Manage- ment (VDIM).............................................. 202
Vehicle identification number ................ 328
Vehicle Stability Control (VSC) .............201
Vehicle sway warning display ....................75
Ventilators (seat ventilators)................... 223
VGRS (Variable Gear Ratio Steering)201
VSC (Vehicle Stabilit y Control) .............201
W
Warning buzzer
Open door warning................................. 299
Warning buzzers Approach warning....................................... 181
Brake hold...................................................... 301
Brake Override System ......................... 297
Downshifting ....................................... 134, 135 Drive-Start Control................................... 297
Electric power steering........................... 297
High coolant temperature.....................295
LDA (Lane Departure Alert with steering
control) ......................................................... 169
LDA (Lane Departure Alert) .............. 298
Low engine oil pressure.........................296
Open door ............................................. 89, 90
Open window ................................................ 113
Pre-collision braking ................................. 163
Seat belt ..........................................................299
Warning lights............................................... 295 ABS ................................................................... 297
Brake hold operated indicator ............ 301
Brake Override System ......................... 297
Brake system................................................295
Charging system........................................296
Drive-Start Control................................... 297
Electric power steering........................... 297
High coolant temperature.....................295
LDA indicator ............................................. 298
Low engine oil pressure.........................296
Low fuel level ...............................................299
Malfunction indicator lamp ...................296
Master warning light................................ 300
Open door warning .................................299
Parking brake indicator ......................... 300
Pre-collision system................................. 298
Seat belt reminder light...........................299
Slip indicator ................................................ 298
SRS ....................................................................296
Tire pressure ............................................... 300
Warning message display............................76
Warning messages ..................................... 303
Washer Checking ....................................................... 264
Preparing and checking before winter......................................................................... 205
Switch.................................................................147
Washing and waxing.................................. 242
Weight Cargo capacity ............................................ 125
