3217-2. Steps to take in an emergency
7
When trouble arises
Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.
■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights and the audio sys-
tem while the engine is off.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■Charging the battery
The electricity stored in the battery will dis-
charge gradually even when the vehicle is
not in use, due to natural discharge and the
draining effects of certain electrical appli-
ances. If the vehicle is left for a long time,
the battery may discharge, and the engine
may be unable to start. (The battery
recharges automatically during driving.)
■When recharging or replacing the bat-
tery
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
battery is discharged. Use the wireless
remote control or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged
but will start normally after the second
attempt. This is not a malfunction.
●The engine switch mode is memorized by
the vehicle. When the battery is recon-
nected, the system will return to the
mode it was in before the battery was dis-
charged. Before di sconnecting the bat-
tery, turn the engine switch off.
If you are unsure what mode the engine
switch was in befo re the battery dis-
charged, be especially careful when
reconnecting the battery.
WARNING
■Avoiding battery fires or explosions
Observe the following precautions to
prevent accidentally igniting the flamma-
ble gas that may be emitted from the bat-
tery:
●Make sure each jumper cable is con-
nected to the correct terminal and that
it is not unintentionally in contact with
any other than the intended terminal.
●Do not allow the other end of the
jumper cable connected to the “+” ter-
minal to come into contact with any
other parts or meta l surfaces in the
area, such as brackets or unpainted
metal.
●Do not allow the + and - clamps of the
jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette
lighters or allow open flame near the
battery.
■Battery precautions
The battery contains poisonous and cor-
rosive acidic electrol yte, while related
parts contain lead and lead compounds.
Observe the following precautions when
handling the battery:
●When working with the battery, always
wear safety glasses and take care not
to allow any battery fluids (acid) to
come into contact with skin, clothing
or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes
into contact with the skin or eyes,
immediately wash the affected area
with water and seek medical attention.
Place a wet sponge or cloth over the
affected area until medical attention
can be received.
●Always wash your ha nds after handling
the battery support, terminals, and
other battery-related parts.

3518-2. Customization
8
Vehicle specifications
8-2.Customization
■Changing by using the meter con-
trol switches
1 Press or to select .
2 Operate the switches to select a
desired item.
3 Change the setting by referring to
the message displayed on the
screen.
■Changing by using the Remote
Touch
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup” on the menu screen
and select “Vehicle”.
3 Select “Vehicle Customization”,
“LEXUS Park Assist” or “Drive
Mode Customization”. Various setting can be changed. Refer
to the list of settings that can be
changed for details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN-
UAL”.
■When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift lever to P.
Also, to prevent battery discharge, leave
the engine running while customizing the
features.
Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch or at
your Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the engine needs to be running
during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that
the engine is running while customizing
features.
Customizable features
A
B
C

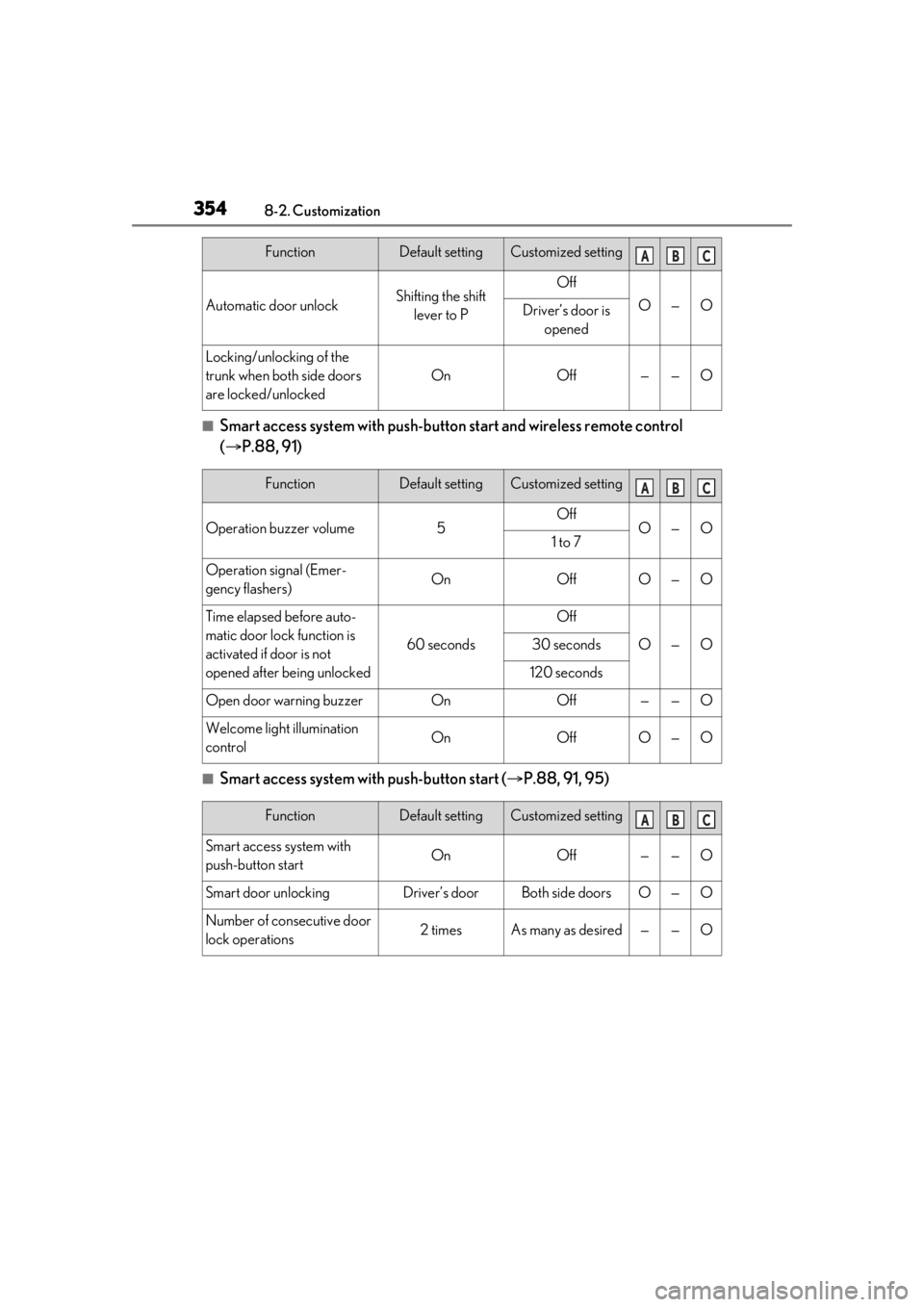

3548-2. Customization
■Smart access system with push-button start and wireless remote control
( P.88, 91)
■Smart access system with push-button start ( P.88, 91, 95)
Automatic door unlockShifting the shift
lever to POff
O—ODriver’s door is opened
Locking/unlocking of the
trunk when both side doors
are locked/unlocked
OnOff——O
FunctionDefault settingCustomized settingABC
FunctionDefault settingCustomized setting
Operation buzzer volume5OffO—O1 to 7
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning buzzerOnOff——O
Welcome light illumination
controlOnOffO—O
ABC
FunctionDefault settingCustomized setting
Smart access system with
push-button startOnOff——O
Smart door unlockingDriver’s doorBoth side doorsO—O
Number of consecutive door
lock operations2 timesAs many as desired——O
ABC

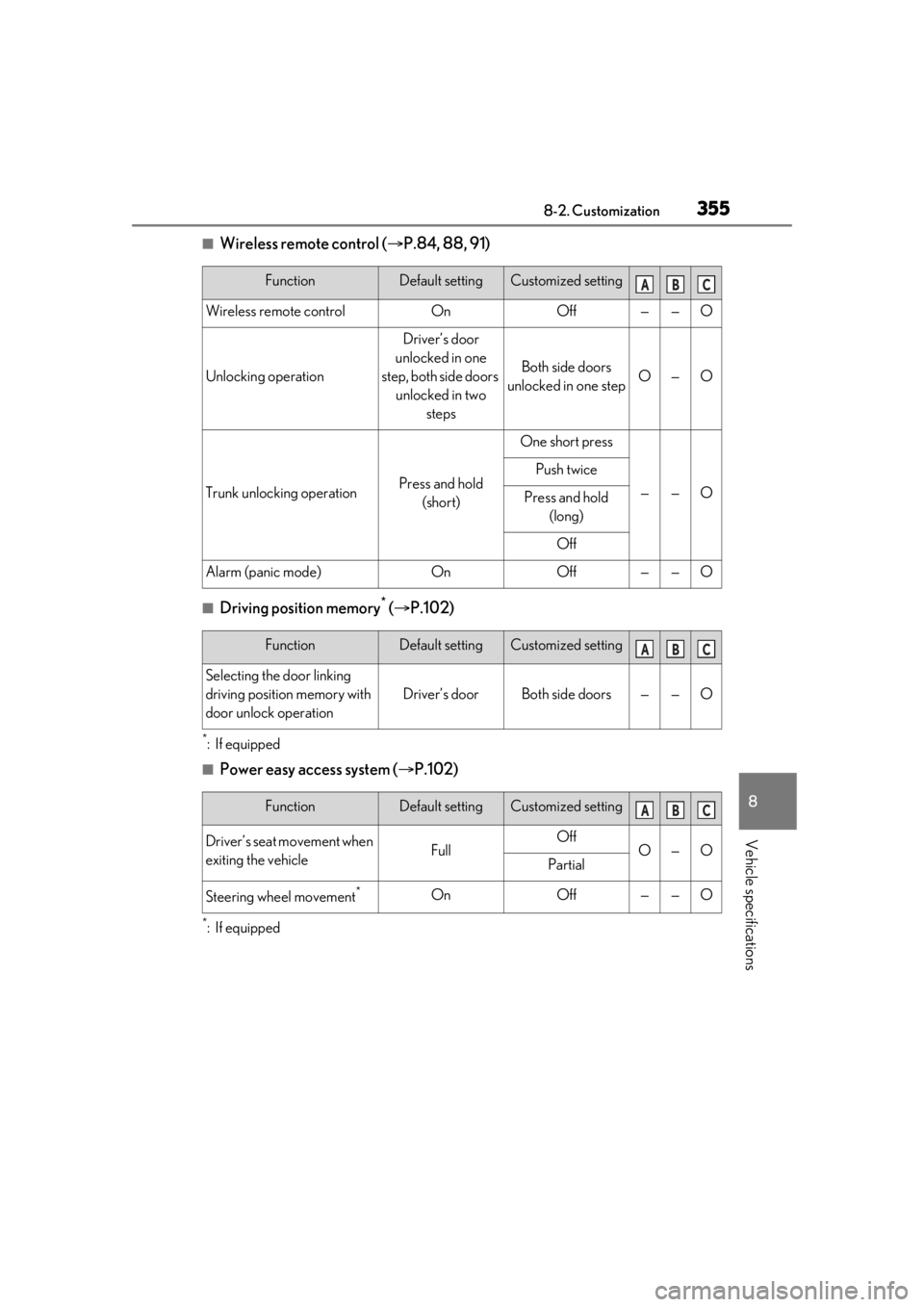

3558-2. Customization
8
Vehicle specifications
■Wireless remote control (P.84, 88, 91)
■Driving position memory* ( P.102)
*:If equipped
■Power easy access system ( P.102)
*:If equipped
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one
step, both side doors unlocked in two steps
Both side doors
unlocked in one stepO—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
ABC
FunctionDefault settingCustomized setting
Selecting the door linking
driving position memory with
door unlock operation
Driver’s doorBoth side doors——O
ABC
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleFullOffO—OPartial
Steering wheel movement*OnOff——O
ABC

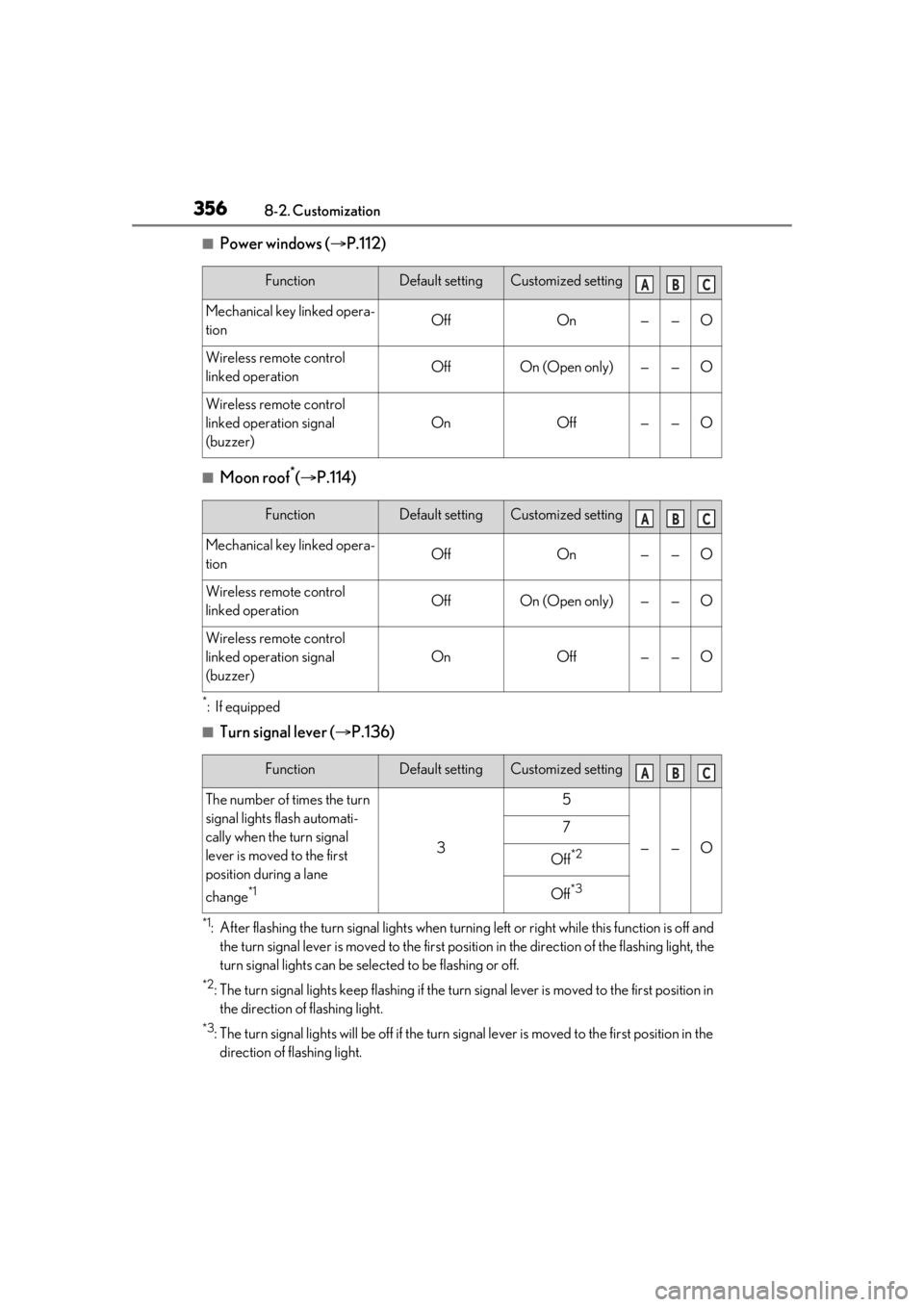

3568-2. Customization
■Power windows (P.112)
■Moon roof*( P.114)
*:If equipped
■Turn signal lever ( P.136)
*1: After flashing the turn signal lights when turnin g left or right while this function is off and
the turn signal lever is moved to the first positi on in the direction of the flashing light, the
turn signal lights can be sele cted to be flashing or off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first position in
the direction of flashing light.
*3: The turn signal lights will be off if the turn si gnal lever is moved to the first position in the
direction of flashing light.
FunctionDefault settingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
ABC
FunctionDefault settingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
ABC
FunctionDefault settingCustomized setting
The number of times the turn
signal lights flash automati-
cally when the turn signal
lever is moved to the first
position during a lane
change
*1
3
5
——O
7
Off*2
Off*3
ABC

383What to do if... (Troubleshooting)
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode. (P.132)
 It is locked automatically to prevent
theft of the vehicle. ( P.127)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.113)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.130)
 The seat belt reminder light is flash-
ing
Are the driver and the front passenger
wearing the seat belts? ( P.299)
 The parking brake indicator is on
Is the parking brake released? ( P.137)
Depending on the situation, other types of warning buzzer may also
sound. (
P.295, 303)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
( P.57)
Do one of the following to deactivate
or stop the alarm:
 Unlock the doors.
 Open the trunk using the entry
function or wireless remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.303)
 When a warning light turns on or a
warning message is displayed, refer
to P.295, 303.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed

387Alphabetical Index
Door lockDoors..................................................................88
Smart access system with push-button start ................................................................... 95
Wireless remote control........................... 86
Doors Automatic door lock ing and unlocking
system ............................................................. 90
Door glasses ....................................................112
Door lock..........................................................88
Open door warning buzzer .........89, 90, 299
Open door warning light ...................... 299
Outside rear view mirrors ....................... 110
Drive distance ...................................................73
Drive info 1/Drive info 2/Drive info 3.....73
Drive information ............................................73
Driver’s seat position memory Driving position memory.........................102
Memory recall function ........................... 104
Power easy access system .....................102
Drive-start control ......................................... 119
Driving Break-in tips .................................................... 119
Correct driving posture .............................23
Driving mode select switch ....................199
Procedures ...................................................... 118
Winter drive tips.........................................205
Driving assist system information display ..............................................................................76
Driving information display .........................73
Driving position memory............................102 Memory recall function ........................... 104
Power easy access system .....................102
Driving range ....................................................73
DRS (Dynamic Rear Steering) ................201
Dynamic radar cruise control Warning message.....................................303
Dynamic radar cruise control with full-speed range .......................................... 176Warning message...................................... 183
Dynamic Rear Steering (DRS) ................201E
Eco Driving Indicator.....................................74
Eco Driving Indicator Light .........................74
EDR (Event data recorder) ............................6
Elapsed time ......................................................73
Electric Power Steering (EPS) ................201 Warning light ............................................... 297
Electronic key .................................................. 84 Battery-saving function..............................96
If the electronic key does not operate properly .........................................................317
Replacing the battery ............................... 277
Emergency flashers .................................... 286
Emergency, in case of If a warning buzzer sounds...................295
If a warning light turns on.......................295
If a warning message is displayed .... 303
If the battery is discharged ..................... 319
If the electronic key does not operate properly .........................................................317
If the engine will not start..........................314
If the fuel filler do or cannot be opened
........................................................................... 316
If the vehicle is trapped in rising water .......................................................................... 287
If you have a flat tire ..................................307
If you lose your keys .................................. 316
If you think something is wrong..........293
If your vehicle becomes stuck .............326
If your vehicle has to be stopped in an emergency ................................................ 286
If your vehicle needs to be towed .... 289
If your vehicle overheats ........................ 322
Engine ACCESSORY mode................................129
Compartment.............................................. 257
Engine switch ................................................. 127
Fuel pump shut off system..................... 294
Hood ................................................................255
How to start the engine ............................ 127
Identification number ...............................329

389Alphabetical Index
Gauges ............................................................... 66
Gear Position....................................................75
G-force................................................................74
Glove box ........................................................227
Glove box light ............................................. 228
H
Head restraints .............................................. 105
Headlight aim ................................................280
HeadlightsAutomatic High Beam system.............. 144
Light switch ..................................................... 142
Replacing light bulbs................................ 282
Wattage..........................................................338
Heated steering wheel .............................. 223
Heaters Automatic air conditioning system .....215
Heated steering wheel............................ 223
Outside rear view mirrors ...................... 219
Seat heaters .................................................. 223
High mounted stoplight Replacing light bulbs................................ 282
Hill-start assist control .................................201
Hood Open ............................................................... 255
Hooks Cargo hooks................................................ 229
Coat hooks ................................................... 230
Retaining hooks (floor mat)......................22
Horn ................................................................... 109
I
I/M test ............................................................ 252
Identification Engine ............................................................. 329
Vehicle ............................................................ 328
Ignition switch (engine switch)................. 127 Auto power off function .......................... 130
Changing the engine switch modes.. 129
If your vehicle has to be stopped in an
emergency ................................................286 Illuminated entry system ........................... 226
Indicators ........................................................... 64
Initialization
Items to initialize .......................................... 361
Maintenance.................................... 248, 260
Power windows ............................................. 112
Tire pressure warning system .............269
Inside rear view mirror ............................... 109
Instrument panel light co ntrol ..................... 71
Intercooler...................................................... 262
Intercooler coolant Capacity ......................................................... 332
Checking ...................................................... 260
Interior lights.................................................. 225 Front interior light ...................................... 225
Rear interior light........................................ 225
Intuitive parking assist Warning message ...................................... 187
J
JackPositioning a floor jack ............................255
Vehicle-equipped jack ...........................307
Jack handle .................................................... 307
Jam protection function Moon roof ........................................................ 115
Power windows ............................................. 112
K
Keyless entrySmart access system with push-button start ...................................................................95
Wireless remote control ...........................86
Keys Battery-saving function..............................96
Electronic key .................................................84
Engine switch ................................................. 127
If the electronic key does not operate properly .........................................................317
If you lose your keys .................................. 316
Key number plate .........................................84

390Alphabetical Index
Keyless entry ..........................................88, 95
Mechanical key.............................................. 84
Replacing the battery................................277
Warning buzzer ............................................ 95
Wireless remote control........................... 86
Knee airbags .................................................... 28
L
Lane Departure Alert wi th steering control
(LDA) Operation........................................................169
Warning messages .................................... 174
Language (multi-information display) ....76
LDA (Lane Departure Alert with steering control)Operation........................................................169
Warning messages .................................... 174
LDA (Lane Departure Alert with steering control) switch .............................................. 171
LDH (Lexus Dynamic Handling system) .......................................................................... 202
Lever Auxiliary catch lever ................................. 255
Hood lock release lever......................... 255
Shift lever........................................................... 131
Turn signal lever ...........................................136
Wiper lever..................................................... 147
Lexus Dynamic Handling system (LDH) .......................................................................... 202
Lexus Enform Safety Connect.................. 52
Lexus Safety System + Automatic High Beam .............................. 144
LDA (Lane Departure Alert with steering control) ..........................................................169
PCS (Pre-Collision System).................. 162
License plate lights Light switch ..................................................... 142
Replacing light bulbs................................ 282
Light Wattage..........................................................338
Light bulbs Replacing .........................................................281 Lights
Automatic High Beam system ..............144
Front interior lights .................................... 225
Headlight switch...........................................142
Interior lights ................................................. 225
Interior lights list .......................................... 225
Personal lights ............................................. 226
Rear interior lights ..................................... 225
Replacing light bulbs ................................282
Trunk light ......................................................... 93
Turn signal lever .......................................... 136
Vanity lights ....................................................231
Wattage ......................................................... 338
Lock steering column .................................. 127
M
Maintenance Do-it-yourself maintenance .................253
General maintenance ............................. 249
Maintenance date ......................................328
Maintenance requirements ..................248
Malfunction indicator la mp ..................... 296
Master warning light ..................................300
Menu icons.........................................................72
Meter Changing the main meter location......69
Clock...................................................................66
Indicators........................................................... 64
Instrument panel light control................... 71
Meters................................................................. 66
Multi-information display ............................ 71
Settings............................................................... 76
Units..................................................................... 75
Warning lights .............................................295
Warning messages.................................. 303
Micro dust and pollen filter .......................219
Mirrors Inside rear view mirror ............................. 109
Outside rear view mirror defoggers .219
Outside rear view mirrors........................ 110
Vanity mirrors ................................................231

392Alphabetical Index
Power easy access system ........................102
Power outlet .................................................. 230
Power steering (Electric power steering
system)............................................................201 Warning light ............................................... 297
Power windows Door lock linked window operation... 113
Jam protection function..............................112
Operation..........................................................112
Window lock switch ................................... 113
Pre-Collision System (PCS) Function ............................................................ 162
PCS OFF switch ..........................................164
Warning light ...............................................298
Warning message.....................................303
R
Radar cruise control (dynamic radar cruise control with full-speed range)............... 176
Radiator ........................................................... 262
RCTA Function ............................................................. 191
Rear Cross Traffic Alert (RCTA) ............ 191
Rear seats .......................................................... 101 Head restraints ............................................ 105
Seat heaters .................................................. 223
Seat ventilators............................................ 223
Rear side marker lights Light switch ..................................................... 142
Rear turn signal lights Turn signal lever ...........................................136
Wattage..........................................................338
Rear view mirror Inside rear view mirror............................. 109
Outside rear view mirrors ....................... 110
Rear window defogger ...............................219
Refueling Capacity .........................................................330
Fuel types.......................................................330
If the fuel filler door cannot be opened...........................................................................316
Opening the fuel tank cap ..................... 155 Remote Touch ................................................210
Replacing
Electronic key battery .............................. 277
Fuses................................................................. 278
Light bulbs ...................................................... 281
Tires ..................................................................307
Resetting the message indicating mainte- nance is required ...................................... 248
Rev indicator .................................................... 69
Rev peak............................................................. 69
S
Seat belt reminder light............................. 299
Seat belts............................................................ 24 Automatic Locking Retractor................. 26
Child restraint system installation ..40, 41
Cleaning and maintaining the seat belt..........................................................................245
Emergency Locking Retractor .............. 26
How to wear your seat belt ..................... 25
How your child should wear the seat belt ............................................................................. 25
Pregnant women, proper seat belt use ............................................................................. 24
Reminder light and buzzer ...................299
Seat belt extender......................................... 25
Seat belt pretensioners .............................. 27
SRS warning light.......................................296
Seat heaters ................................................... 223
Seat position memory..................................102
Seat ventilators ............................................. 223
Seating capacity.............................................125
Seats Adjustment ....................................................... 99
Cleaning .........................................................245
Driving position memory ........................ 102
Head restraints............................................. 105
Power easy access system .................... 102
Properly sitting in the seat ........................ 23
Seat heaters .................................................. 223
Seat position memory .............................. 102
Seat ventilators ............................................ 223
