oil type LEXUS RC350 2021 Owners Manual

12Pictorial index
Windshield wipers .................................................................................................. P.147
Precautions for winter season .....................................................................................P.205
To prevent freezing (windshield wiper de-icer)
*...................................................P.219
Precautions against car wash ............................. ......................................................... P.243
Fuel filler door .......................................................................................................... P.155
Refueling method .............................................................................................................. P .155
Fuel type/fuel tank capacity ...... ...................................................................................P.330
Tires.......................................................................................................................... ..P.265
Tire size/inflation pressure ........................................................................................... P.334
Winter tires/tire chain ....................................................................................................P.20 5
Checking/rotation/tire pressure warning system.............................................. P.265
Coping with flat tires........................................................................................................ P .307
Hood ..........................................................................................................................P.255
Opening ........................................................................................................................ ....... P.255
Engine oil ..................................................................................................................... .........P.330
Coping with overheating ............................................................................................... P.322
Warning messages ..........................................................................................................P.303
Headlights ................................................................................................................. P.14 2
Parking lights/daytime running lights............................................................... P.142
Turn signal lights ...................................................................................................... P.136
Cornering lights ...................................................................................................... P.142
Side marker lights ................................................................................................... P.142
Tail lights .................................................................................................................... P.142
Stop lights
Back up light
Shifting the shift lever to R ...............................................................................................P.1 32
License plate lights ................................................................................................. P.142
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P. 281, Watts: P.338)
D
E
F
G
H
I
J
K
L
M
N
O

2054-6. Driving tips
4
Driving
4-6.Driving tips
Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine coolant
•Washer fluid
Have a service technician inspect
the condition of the battery.
 Have the vehicle fitted with four
snow tires or purchase a set of tire
chains for the rear tires.
*
Ensure that all tires are the specified size
and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on vehi-
cles with front and rear tires of differing
sizes and vehicles with LDH and 19-inch
tires.
Perform the following according to the
driving conditions:
 Do not try to forcibly open a window
or move a wiper that is frozen. Pour
Winter driving tips
Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of
vehicle control and cause death or seri-
ous injury.
●Use tires of the specified size.
●Maintain the recommended level of air
pressure.
●Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used.
●Use snow tires on all, not just some
wheels.
■Driving with tire chains
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in the vehicle
being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed
limit specified for the tire chains being
used, or 30 mph (50 km/h), which-
ever is lower.
●Avoid driving on bumpy road surfaces
or over potholes.
●Avoid sudden acceleration, abrupt
steering, sudden br aking and shifting
operations that cause sudden engine
braking.
●Slow down sufficiently before entering
a curve to ensure that vehicle control is
maintained.
●Do not use LDA (Lane Departure
Alert with steering control) system.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attach-
ment of snow tires affects the operation
of the tire pressure warning valves and
transmitters.
Before driving the vehicle

2596-3. Do-it-yourself maintenance
6
Maintenance and care
2Holding a rag under the end, pull
the dipstick out.
RC350/RC300 AWD
RC300
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may differ
depending on the type of vehicle or
engine.
6Wipe the dipstick and reinsert it
fully.
■Checking the oil type and prepar-
ing the item needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection
P.331
 Oil quantity (Low  Full)
1.6 qt. (1.5 L, 1.3 Imp. qt.)
 Item
Clean funnel
■Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.
RC350/RC300 AWD
A
B
C

3308-1. Specifications
■RC300
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the
dipstick.
Displacement210.9 cu. in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Model2.0 L 4-cylinder (8AR-FTS) engine
Type4-cylinder in line, 4-cycle, gasoline (with tur-
bocharger)
Bore and stroke3.39  3.39 in. (86.0  86.0 mm)
Displacement121.9 cu. in. (1998 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)17.5 gal. (66.4 L, 14.6 Imp. gal.)
Lubrication system
With filter
RC350
6.0 qt. (5.7 L, 5.0 Imp. qt.)
RC350 AWD/RC300 AWD
6.8 qt. (6.4 L, 5.6 Imp. qt.)
RC300
4.9 qt. (4.6 L, 4.0 Imp. qt.)
Without filter
RC350
5.8 qt. (5.5 L, 4.8 Imp. qt.)
RC350 AWD/RC300 AWD
6.3 qt. (6.0 L, 5.3 Imp. qt.)
RC300
4.5 qt. (4.3 L, 3.8 Imp. qt.)

3338-1. Specifications
8
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
*: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Automatic transmission
Fluid capacity*
RC350
10.0 qt. (9.5 L, 8.4 Imp. qt.)
RC350 AWD/RC300 AWD
10.6 qt. (10.0 L, 8.8 Imp. qt.)
RC300
9.2 qt. (8.7 L, 7.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal noise or vibra-
tion, or damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above 0°F (-18°C): SAE90
Below 0°F (-18°C): SAE80W or SAE80W-90
Rear differential
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
*
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LX
75W-85 GL-5 or equivalent
*

3348-1. Specifications
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy th e above specification. Please contact your Lexus dealer for
further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running.
Type A

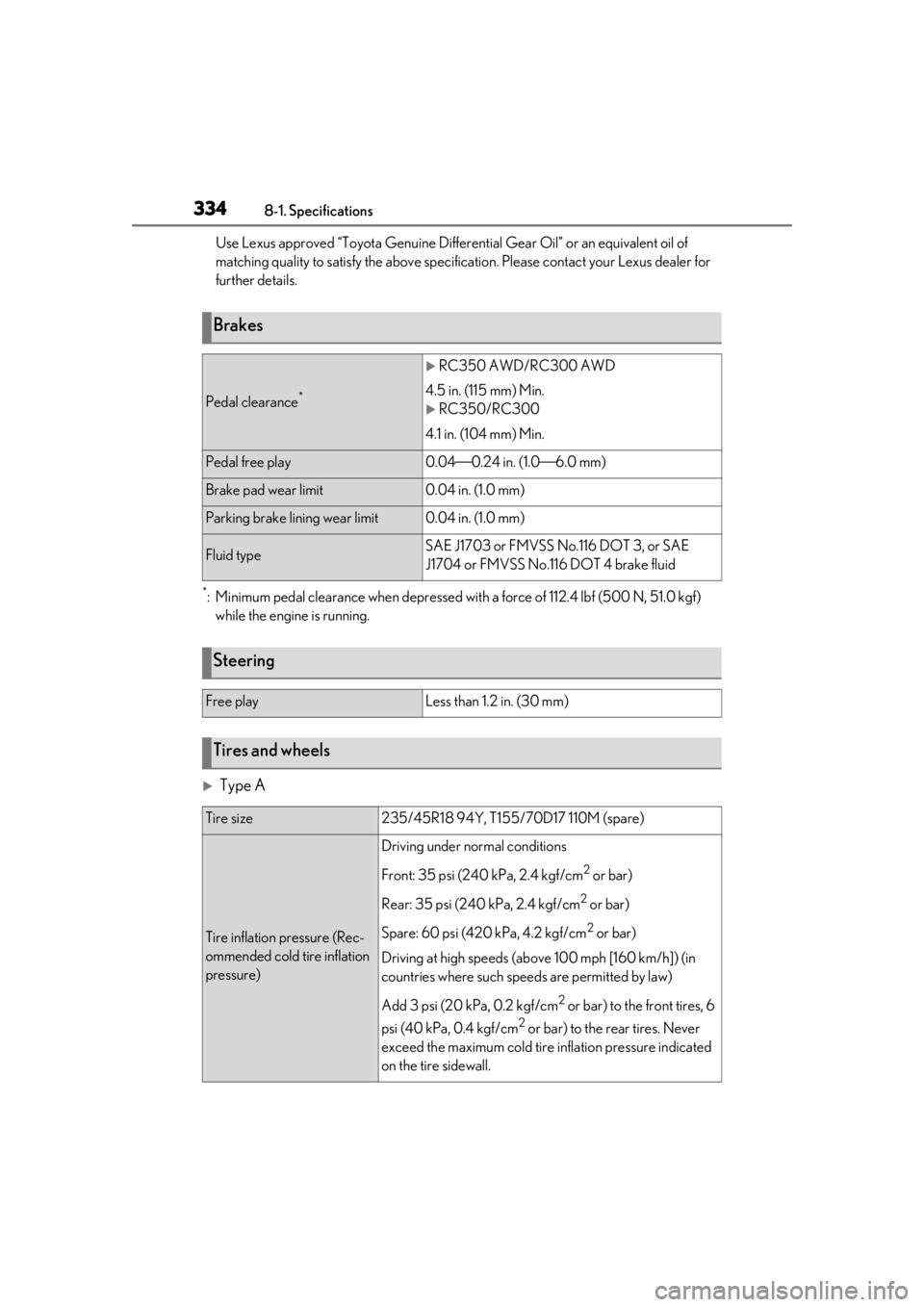

Brakes
Pedal clearance*
RC350 AWD/RC300 AWD
4.5 in. (115 mm) Min.
RC350/RC300
4.1 in. (104 mm) Min.
Pedal free play0.04 0.24 in. (1.0 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3, or SAE
J1704 or FMVSS No.116 DOT 4 brake fluid
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/45R18 94Y, T155/70D17 110M (spare)
Tire inflation pressure (Rec-
ommended cold tire inflation
pressure)
Driving under normal conditions
Front: 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Driving at high speeds (above 100 mph [160 km/h]) (in
countries where such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar) to the front tires, 6
psi (40 kPa, 0.4 kgf/cm
2 or bar) to the rear tires. Never
exceed the maximum co ld tire inflation pressure indicated
on the tire sidewall.

386Alphabetical Index
CareExterior ........................................................... 242
Interior ............................................................. 245
Seat belts........................................................ 245
Wheels and wheel ornaments............ 242
Cargo capacity...............................................125
Cargo hooks ................................................. 229
Center Display ............................................... 212
Chains .............................................................. 206
Child restraint system Child seats definition................................... 40
Child seats installation........................ 44, 47
Front passenger occupant classification system ............................................................. 36
Installing a CRS to the front passenger seat ....................................................................42
Installing CRS with LATCH anchors . 48
Installing CRS with top tether strap.....50
Riding with children ..................................... 40
Types of child restraint system installation method ............................................................. 41
Using an anchor bracket .......................... 49
Child safety Airbag precautions.......................................32
Battery precautions ........................ 264, 321
Child restraint system.......................... 40, 41
Heated steering wheel or seat heater precautions................................................ 223
How your child should wear the seat belt ............................................................................ 25
Installing child restraints ............................ 40
Moon roof precautions ............................. 116
Power window lock switch...................... 113
Seat belt extender precautions ............. 25
Seat belt precautions .................................. 40
Trunk precautions .......................................... 91
Cleaning Exterior ........................................................... 242
Interior ............................................................. 245
Radar sensor................................................. 158
Seat belts........................................................ 245
Wheels and wheel ornaments............ 242 Clock ........................................................66, 230
Clock settings ............................................... 230
Coat hooks..................................................... 230
Compass ......................................................... 237
Condenser ..................................................... 262
Console box .................................................. 228
Consumption screen .....................................79
Cooling system............................................. 260
Engine overheating................................... 322
Cornering lights .............................................143 Replacing light bulbs ................................282
Cruise control Dynamic radar cruise control with full-speed range ........................................176
Cup holders ................................................... 228
Current fuel consumption ...........................73
Curtain shield airbags .................................. 28
Customizable features ................................351
D
Daytime running light system ................... 142
Daytime running lights Replacing light bulbs ................................282
Defogger Outside rear view mirrors.......................219
Rear window ..................................................219
Windshield ......................................................219
Differential Front differential oil............. .......................333
Rear differential oil......... ..................... .......333
Dimension ...................................................... 328
Dinghy towing.................................................126
Display Center Display .............................................. 212
Drive information .......................................... 73
LDA (Lane Departure Alert with steering control) ........................................................... 171
Multi-information display ............................ 71
Warning messages.................................. 305
Distance until next engine oil change .... 70
Do-it-yourself maintenance .................... 249
Door courtesy lights ................................... 225

388Alphabetical Index
If the engine will not start .........................314
If your vehicle has to be stopped in an
emergency ................................................286
Ignition switch (engine switch) ............. 127
Overheating................................................. 322
Tachometer ..................................................... 66
Engine coolant Capacity ......................................................... 332
Checking .......................................................260
Preparing and checking before winter.........................................................................205
Engine coolant temperature gauge ....... 66
Engine immobilizer system ........................ 56
Engine oil Capacity .........................................................330
Checking .......................................................258
Preparing and checking before winter.........................................................................205
Warning light ............................................... 296
Engine oil maintenance data .................. 260
Engine oil pressure gauge ...........................74
Engine oil temperature gauge ...................74
Engine switch .................................................. 127 Auto power off function .......................... 130
Changing the engine switch modes.. 129
If your vehicle has to be stopped in an
emergency ................................................286
EPS (Electric Power Steering) ................201 Warning light ............................................... 297
Event data recorder (EDR) ............................6
F
First-aid kit storage belt ............................ 229
Flat tire Tire pressure warning system .............268
Vehicles with a spare tire ...................... 307
Floor mats ...........................................................22
Fluid Automatic transmission .......................... 333
Brake.................................................... 262, 334
Washer ........................................................... 264
Footwell light ................................................. 225 Front passenger occupant classification
system .............................................................. 36
Front position lights Wattage ......................................................... 338
Front seats Adjustment ....................................................... 99
Cleaning .........................................................245
Correct driving posture ............................ 23
Driving position memory ........................ 102
Head restraints............................................. 105
Memory recall function............................ 104
Power easy access system .................... 102
Seat heaters .................................................. 223
Seat position memory .............................. 102
Seat ventilators ............................................ 223
Front side marker light Light switch .....................................................142
Front turn signal lights Replacing light bulbs ................................282
Turn signal lever .......................................... 136
Wattage ......................................................... 338
Fuel Capacity ........................................................ 330
Fuel gauge ........................................................ 66
Fuel pump shut off system..................... 294
Information ....................................................339
Refueling.......................................................... 155
Type ................................................................. 330
Warning light ...............................................299
Fuel consumption Average fuel economy .............................. 73
Current fuel consumption ........................ 73
Fuel filler door If the fuel filler do or cannot be opened
........................................................................... 316
Refueling.......................................................... 155
Fuel gauge ......................................................... 66
Fuel pump shut off system........................ 294
Fuses ................................................................. 278
G
Garage door opener ................................. 232

400
GAS STATION INFORMATION
Auxiliary catch lever (P.255)
Trunk opener ( P.92)
Fuel filler door ( P.156)
Hood lock release lever ( P.255)
Tire inflation pressure ( P.334)
Fuel tank capacity (Ref-
erence)17.5 gal. (66.3 L, 14.6 Imp. gal.)
Fuel typeUnleaded gasoline onlyP.330
P.339
Cold tire inflation pres-
sureP.334
Engine oil capacity
(Drain and refill  ref-
erence)
P.330
Engine oil typeP.330
A
B
C
D
E
