1212. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Select a menu icon to display its content.
Drive information (  P. 122)Select to display various drive data.
“F” content (  P. 124)Select to display the lap timer, G-force, torque distribution (vehicles with TVD
[Torque Vectoring Differential]) and othe r useful functions for sporty driving.
Navigation system-linked display (if equipped) Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information Select to display the operational status of the following systems:
• Dynamic radar cruise control (  P. 268)
• LDA (Lane Departure Alert with steering control) (  P. 261)
Warning message display (  P. 460)Select to display warning messages and me asures to be taken if a malfunction is
detected.
Settings display (  P. 111)Select to change the meter display settings and other settings.Menu icons

122 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Drive information 1/Drive information 2/Drive information 3
Displays drive informatio n such as the following.Each item is displayed separately.●
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset) ●
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset) ●
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be changed on . (  P. 129)Drive information ( )

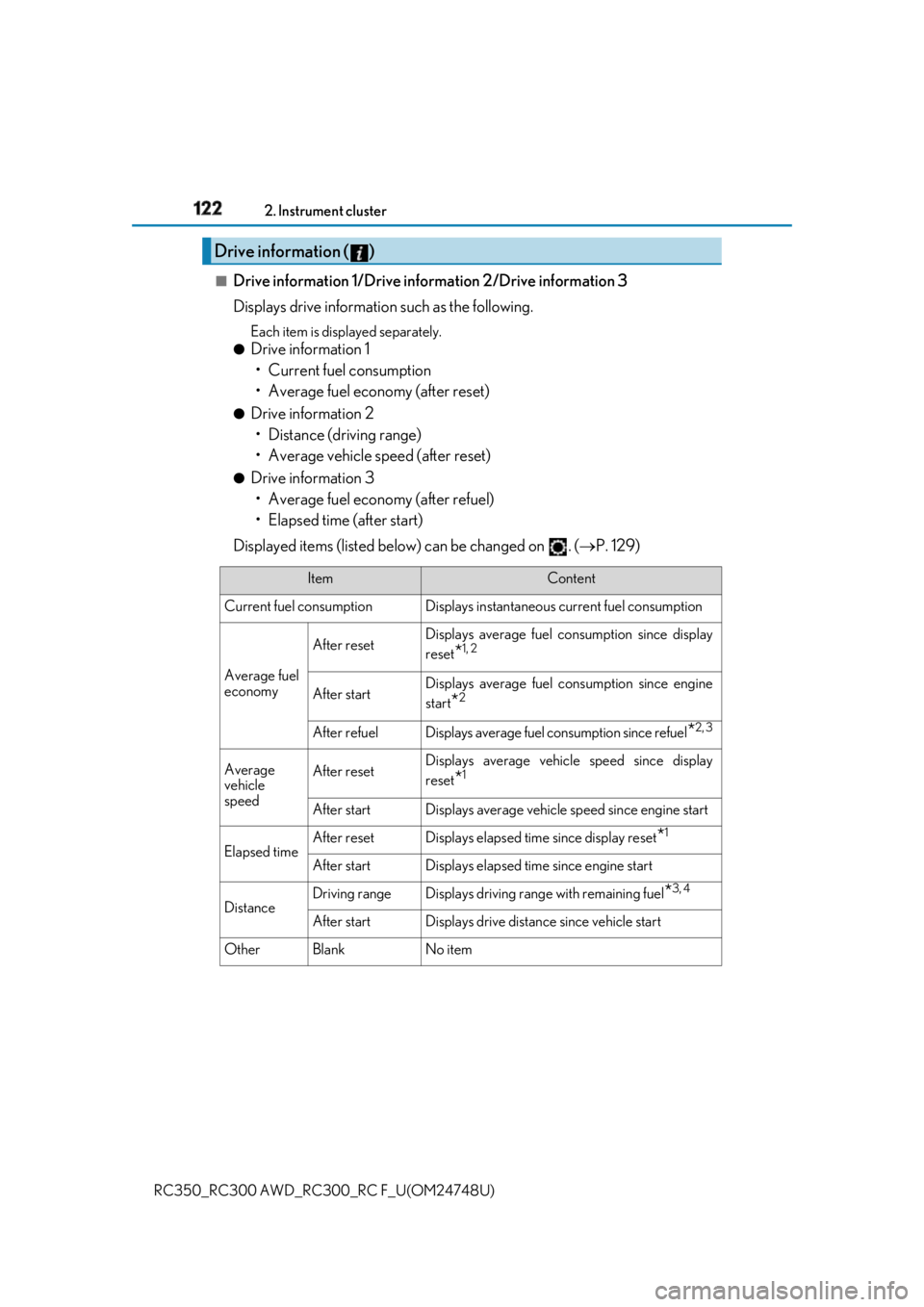

Item Content
Current fuel consumption Displays in stantaneous current fuel consumption
Average fuel
economy After reset Displays average fuel consumption since display
reset
* 1, 2
After start Displays average fuel consumption since engine
start
* 2
After refuel Displays average fuel consumption since refuel
* 2, 3
Average
vehicle
speed After reset Displays average vehicle speed since display
reset
* 1
After start Displays average vehicle speed since engine start
Elapsed time After reset Displays elapsed time since display reset
* 1
After start Displays elapsed time since engine start
Distance Driving range Displays driving rang e with remaining fuel
* 3, 4
After start Displays drive distance since vehicle start
Other Blank No item

1232. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)* 1
:Resetting:  P. 119
* 2
: Use the displayed fuel consumption as a reference.
* 3
: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.
* 4
: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.■
Tire pressure
 P. 413■
Gear positions
Displays the current gear position when the shift lever is in D or M.■
Vehicle sway warning
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest. This display is a part of the LDA (Lane Departure Alert with steering control) sys-
tem. The display is enabled when the op erating conditions of the vehicle sway
warning are met. (  P. 261)■
Units
The units of measure used can be changed while driving. Unlike the units setting performed on , the units setting performed on can
be changed while driving.■
Blank (No items)
Displays no drive information contents.

124 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Lap timer
Measures and displays current la p time and previous lap times●
Reading the display
Measured lap times since the timer was last reset are displayed as follows:
• Content display area
Total lap time
Past lap times
Fastest lap (marked with a star)
• Sub-content display area
Current lap time
Most recent lap time
●
Operating the meter control switches
Press: Start/stop lap timer
Press and hold: Reset
: Mark off one lap
: Change displayed
contentWhile a lap time is being mea-
sured, the display can be changed
to show the following content:
• Torque distribution (if equipped)
•G-force
• Tire pressure
• Rear wing position●
Resetting/saving measured lap times
After stopping the lap timer, press and hold .
When a confirmation screen is displa yed, select to reset/save the mea-
sured lap times. When saved, the lap time data will be displayed on the history screen. (  P. 125)“F” content
Content display area
Sub-content display area1
2
3
4
5
1
2

1252. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

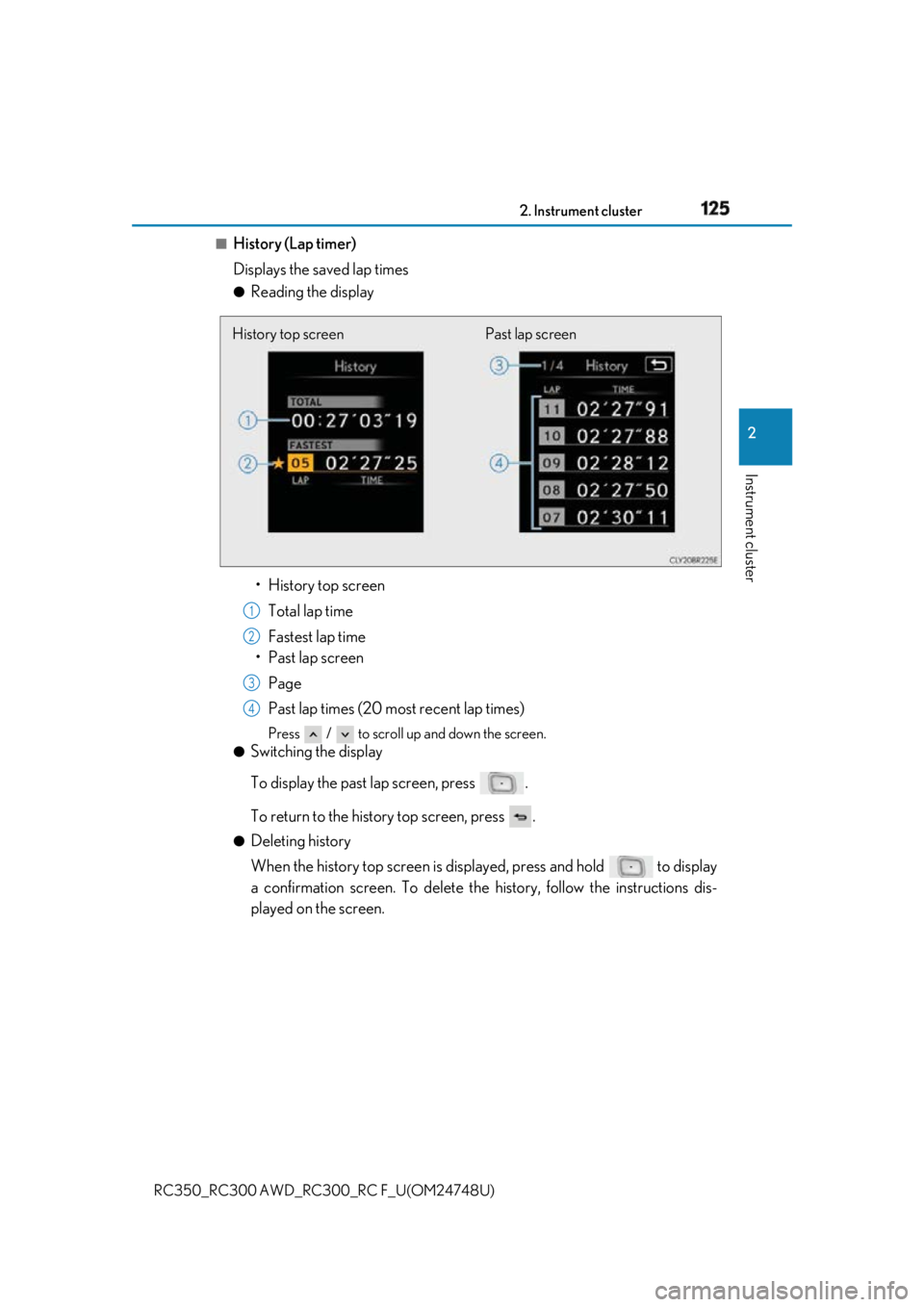

History (Lap timer)
Displays the saved lap times ●
Reading the display
• History top screen
Total lap time
Fastest lap time
• Past lap screen
Page
Past lap times (20 most recent lap times) Press / to scroll up and down the screen.●
Switching the display
To display the past lap screen, press .
To return to the history top screen, press . ●
Deleting history
When the history top screen is displayed, press and hold to display
a confirmation screen. To delete the history, follow the instructions dis-
played on the screen.History top screen Past lap screen
1
2
3
4

126 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

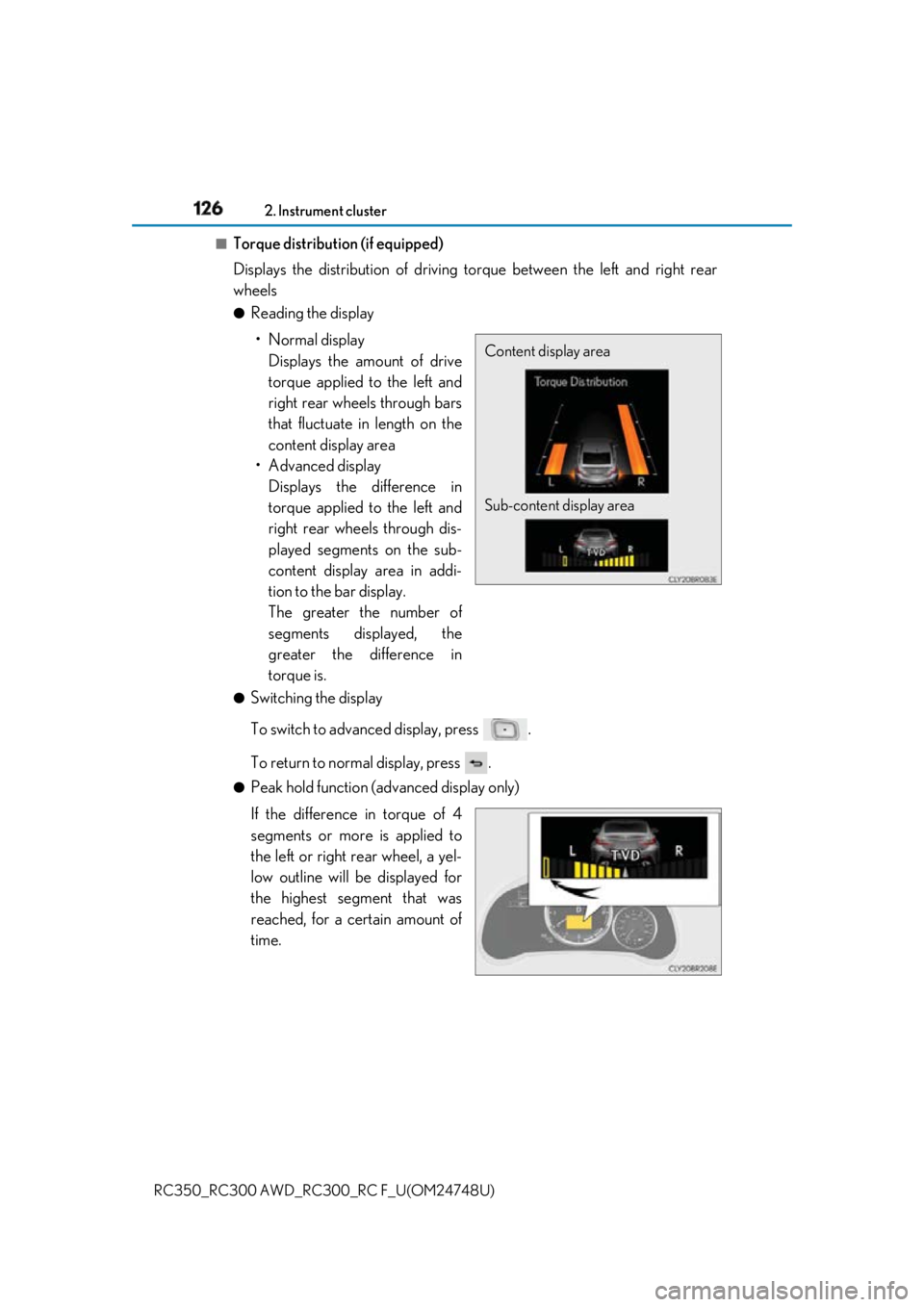

Torque distribution (if equipped)
Displays the distribution of driving torque between the left and right rear
wheels ●
Reading the display
• Normal display
Displays the amount of drive
torque applied to the left and
right rear wheels through bars
that fluctuate in length on the
content display area
• Advanced display
Displays the difference in
torque applied to the left and
right rear wheels through dis-
played segments on the sub-
content display area in addi-
tion to the bar display.
The greater the number of
segments displayed, the
greater the difference in
torque is. ●
Switching the display
To switch to advanced display, press .
To return to normal display, press . ●
Peak hold function (advanced display only)
If the difference in torque of 4
segments or more is applied to
the left or right rear wheel, a yel-
low outline will be displayed for
the highest segment that was
reached, for a certain amount of
time. Content display area
Sub-content display area

1272. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

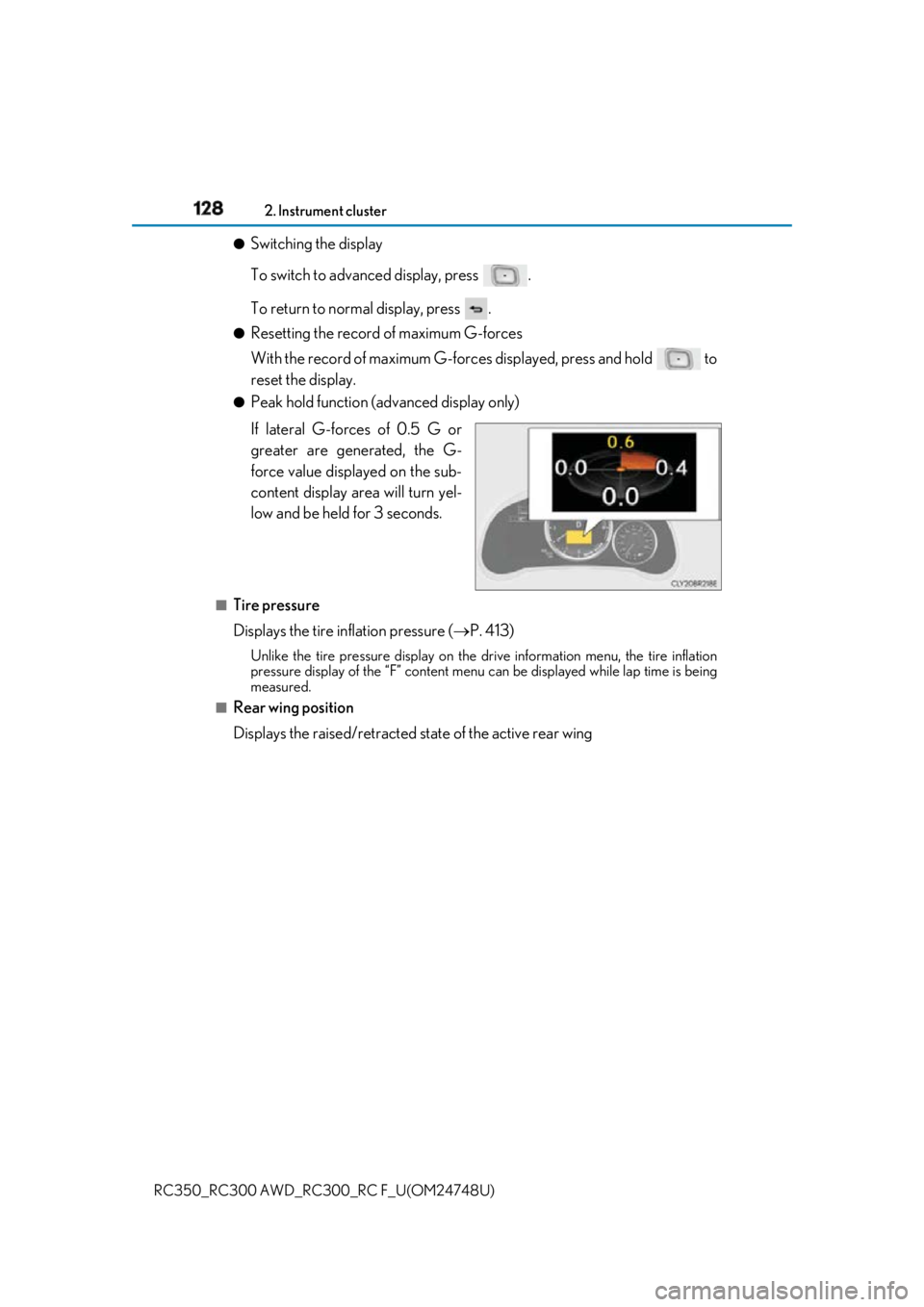

G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure ●
Reading the display
• Normal display
Displays the following on the content display area
Acceleration G-force on the
vehicle
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
• Advanced display
Displays the following on the sub-content display area and content dis-
play area
Acceleration G-force on the
vehicle
Record of the maximum G-
forces
Value of the maximum G-
force since display reset (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
G-force direction
Current G-force value (analyzed valu e of front/rear and left/right G-
forces) This display is intended for use as a guid eline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not
show the actual condition of the vehicle. 1
2
3
4
5
Content display area
Sub-content display area1
2
3
4
5
6
7
8

128 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)●
Switching the display
To switch to advanced display, press .
To return to normal display, press . ●
Resetting the record of maximum G-forces
With the record of maximum G-forces displayed, press and hold to
reset the display. ●
Peak hold function (advanced display only)
If lateral G-forces of 0.5 G or
greater are generated, the G-
force value displayed on the sub-
content display ar ea will turn yel-
low and be held for 3 seconds.■
Tire pressure
Displays the tire inflation pressure (  P. 413)Unlike the tire pressure display on the drive information menu, the tire inflation
pressure display of the “F” content menu can be displayed while lap time is being
measured.■
Rear wing position
Displays the raised/retracted state of the active rear wing

1292. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Changing settings
Use the meter control switches on th e steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.
◆ Setting items ■
LDA (Lane Departure Alert with steering control) (  P. 261)
The following LDA system settings can be changed:
■
PCS (Pre-collision system) (  P. 250)
The following pre-collision syst em settings can be changed:Settings display ( ) 1
2
3
Item Settings Details
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert Select to set a vibrator or buzzer as
the notification method used to warn
the driver.
Sensitivity High
Select to set the warning sensitivity.
Standard
Sway warning On
Select to enable/disable the vehicle
sway warning.
Off
Sway sensitivity High
Select to set the vehicle sway warning
sensitivity.Standard
Low
Item Settings Details
PCS On
Select to enable/disable the pre-colli-
sion system.
Off
Warning sensitivity Select to change the warning timing.

130 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Speed indicator (  P. 93)
The following speed indicator settings can be changed:
* : Always observe the legal speed li mit when driving on public roads.■
Active rear wing
■
Vehicle settings
■

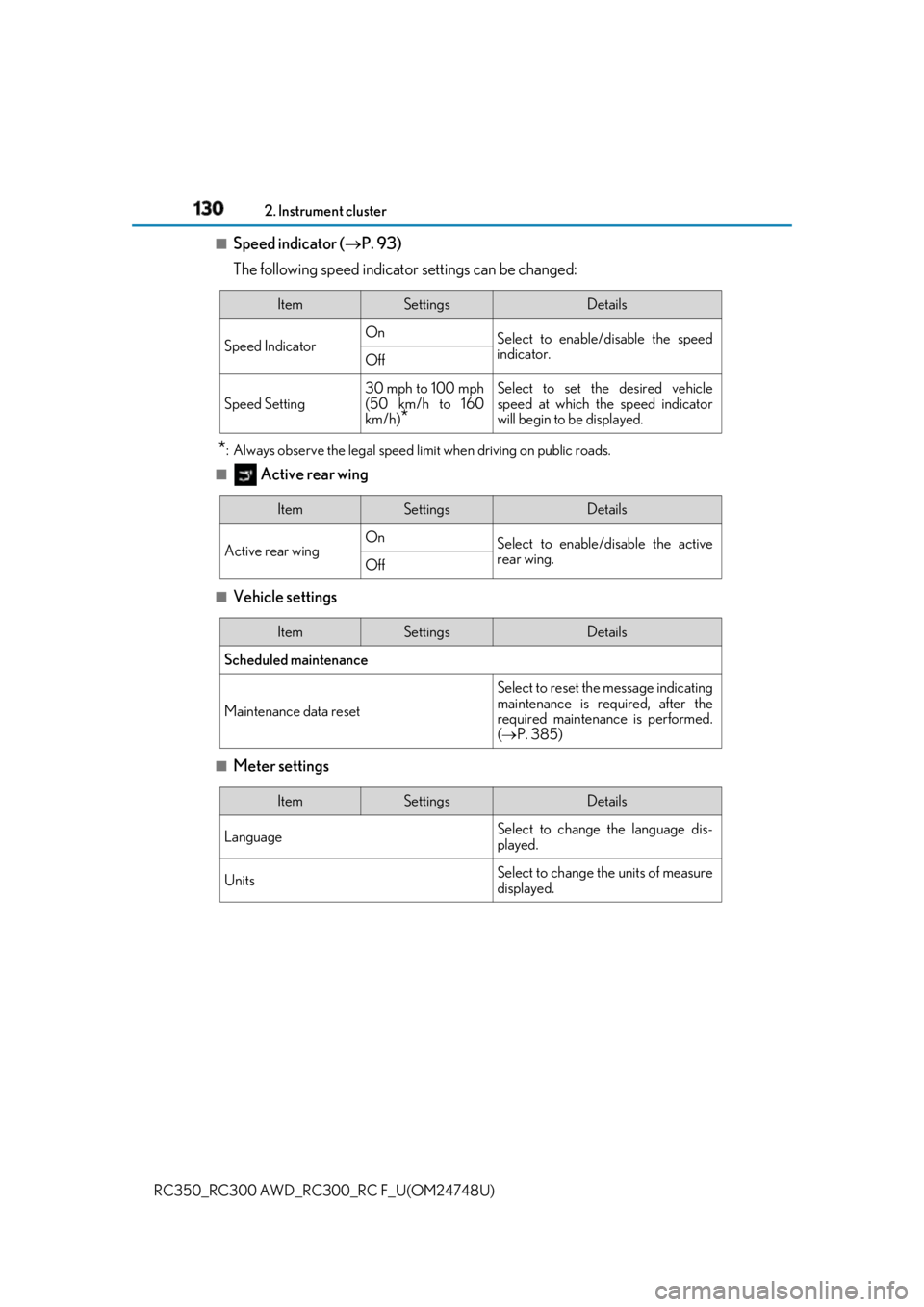

Meter settings Item Settings Details
Speed Indicator On
Select to enable/disable the speed
indicator.
Off
Speed Setting 30 mph to 100 mph
(50 km/h to 160
km/h)
* Select to set the desired vehicle
speed at which the speed indicator
will begin to be displayed.
Item Settings Details
Active rear wing On
Select to enable/disable the active
rear wing.
Off
Item Settings Details
Scheduled maintenance
Maintenance data reset Select to reset the message indicating
maintenance is re quired, after the
required maintenance is performed.
(  P. 385)
Item Settings Details
Language Select to change the language dis-
played.
Units Select to change the units of measure
displayed.
