LEXUS RCF 2018 Owners Manual

1012. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
The meters and display illuminate when
The engine switch is in IGNITION ON mode. ■
Welcome illumination of the analog speedometer●
When the driver’s door is opened, th e analog speedometer will illuminate.
Then, when the driver’s door is closed, the analog spee dometer will illuminate and go
off (pulsate) 3 times. ●
In the following situations, the analog sp eedometer will not pulsate even though the
driver’s door is opened and closed:
• Within 60 seconds after the an alog meter pulsation completes
• Within 60 seconds of turning the engine switch off ■

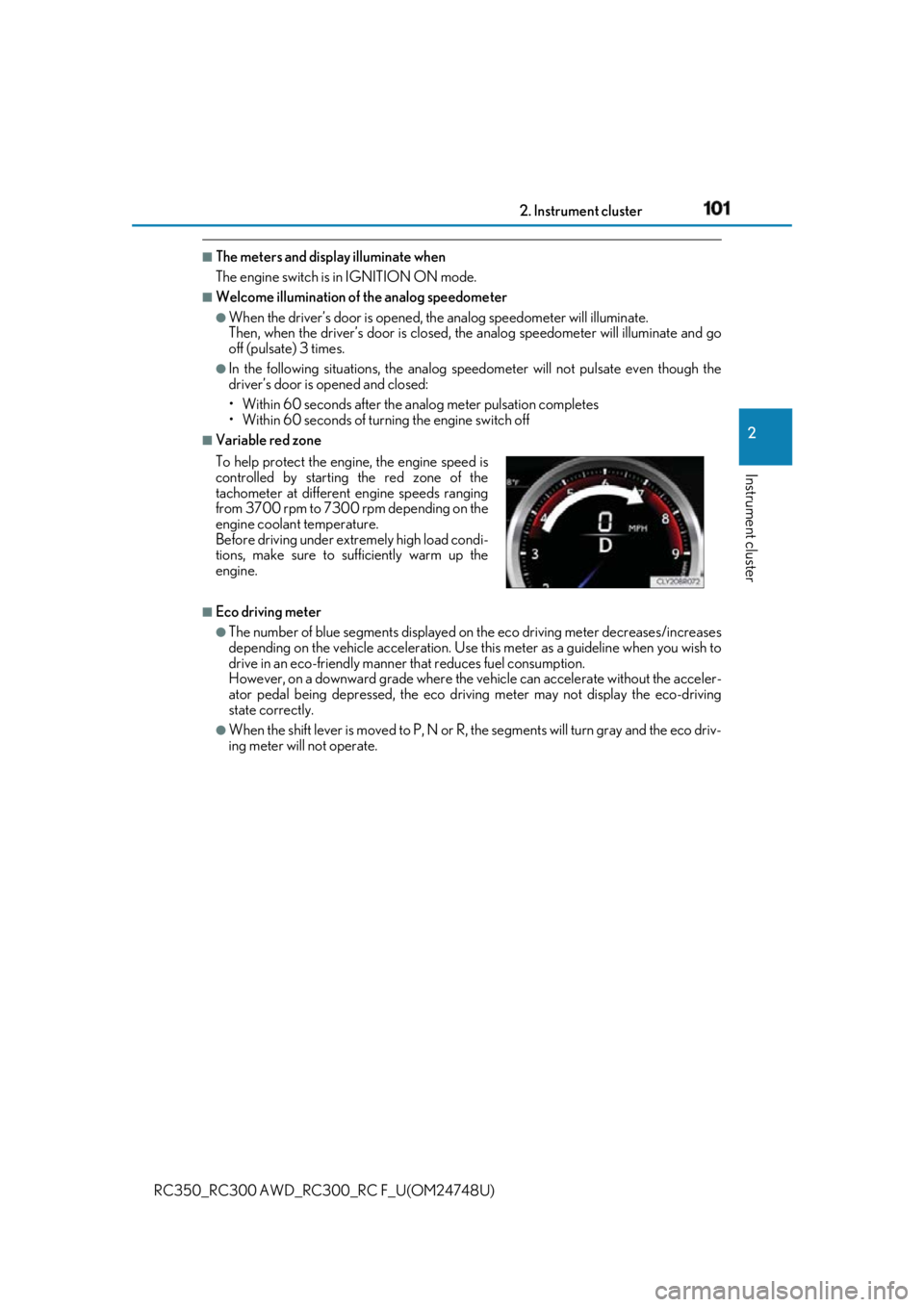

Variable red zone
■
Eco driving meter ●
The number of blue segments displayed on the eco driving meter decreases/increases
depending on the vehicle acceleration. Use th is meter as a guideline when you wish to
drive in an eco-friendly manner that reduces fuel consumption.
However, on a downward grade where the ve hicle can accelerate without the acceler-
ator pedal being depressed, the eco driv ing meter may not display the eco-driving
state correctly. ●
When the shift lever is moved to P, N or R, the segments will turn gray and the eco driv-
ing meter will not operate.To help protect the engine, the engine speed is
controlled by starting the red zone of the
tachometer at different engine speeds ranging
from 3700 rpm to 7300 rpm depending on the
engine coolant temperature.
Before driving under extremely high load condi-
tions, make sure to su fficiently warm up the
engine.

102 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (dayti me, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once. ■
Dimming the analog speedometer lighting
The analog speedometer lighting will be dimm ed when the ambient light is bright, such
as during the daytime, and SPORT S or SPORT S+ mode is selected.■
Outside temperature display ●
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.) ●
When “  ” or “E” is displayed, the sy stem may be malfunctioning.
Take your vehicle to your Lexus dealer. ■
Pop-up display ●
In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display.●
Some pop-up displays can be set on/off. (  P. 129)■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.■
Customization
The meter display can be customized on the multi-information display. (  P. 129)
NOTICE ■
To prevent damage to the engine and its components●
Do not let the indicator of the tachometer enter the red zone, as it represents the
engine speed range which exceeds the maximum safe engine speed. ●
In the following situations, th e engine may be overheating. In this case, immediately
stop the vehicle in a safe place, and check the engine after it has cooled completely.
(  P. 526)
• The engine coolant temperature gauge indicator ( ) is in the red zone and flash-
ing.
• The engine oil temperature gauge indicator ( ) is in the red zone and flashing.

1032. Instrument cluster
2
Instrument cluster

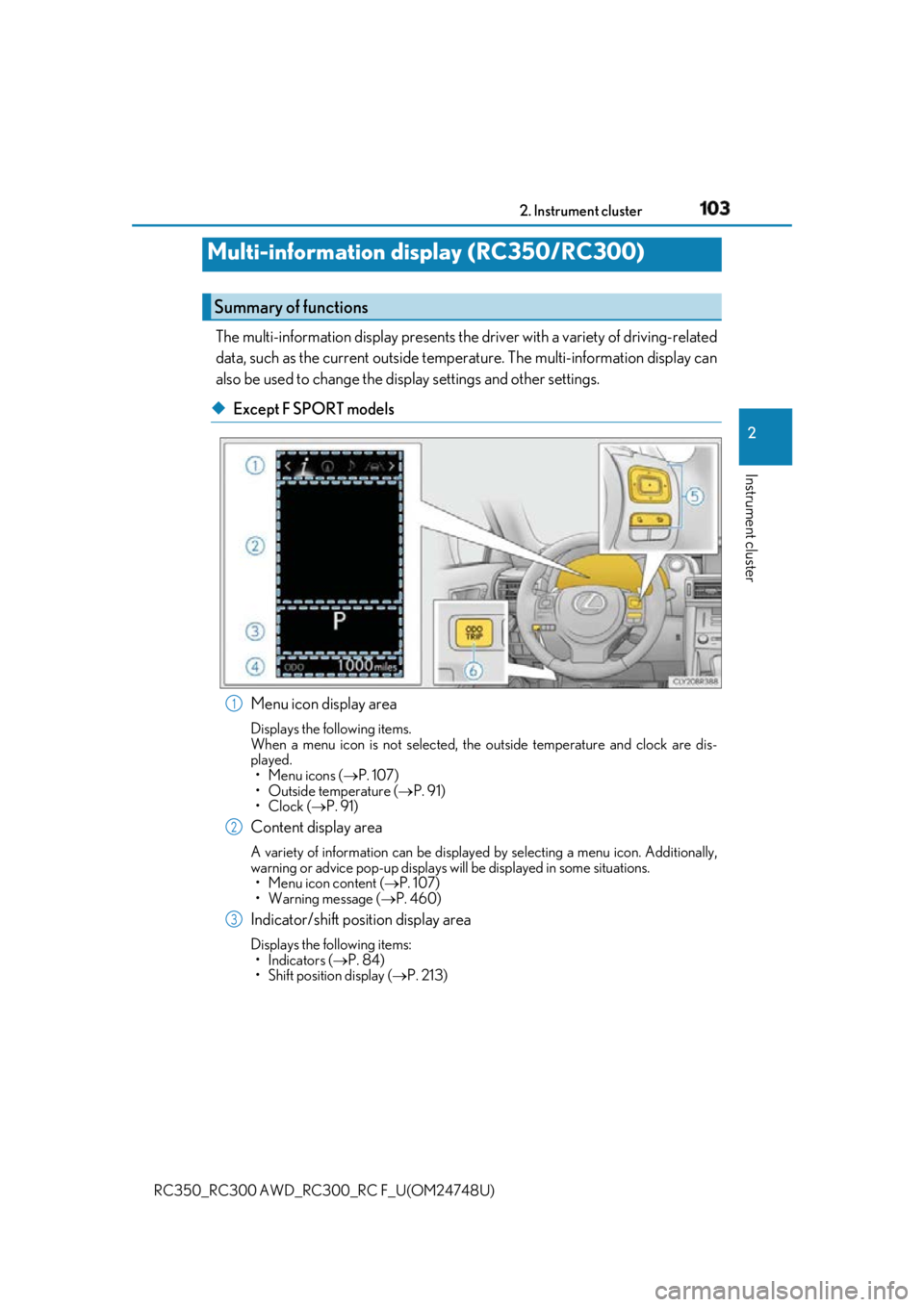

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.
◆ Except F SPORT models
Menu icon display area Displays the following items.
When a menu icon is not selected, th e outside temperature and clock are dis-
played.
•Menu icons (  P. 107)
• Outside temperature (  P. 91)
•Clock (  P. 91)
Content display area A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays w ill be displayed in some situations.
• Menu icon content (  P. 107)
• Warning message (  P. 460)
Indicator/shift position display area Displays the following items:
•Indicators (  P. 84)
• Shift position display (  P. 213)Multi-information display (RC350/RC300) Summary of functions
1
2
3

104 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Odometer/trip meter display area
(  P. 115)Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change (if equipped)
Meter control switches (  P. 106)
Odometer/trip meter and trip meter reset button (  P. 107)
◆ F SPORT models 
Main meter in center position 
Main meter moved to the right 4
5
6

1052. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Clock (  P. 91)
Outside temperature (  P. 91)
Indicator/shift position display area Displays the following items:
•Indicators (  P. 84)
• Shift position display (  P. 213)
Content display area Main meter in center position:
Displays various drive information on th e main meter. Additionally, warning or
advice pop-up displays will be displayed in some situations.
• Drive information (  P. 108)
• Warning message (  P. 460)
Main meter moved to the right:
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays w ill be displayed in some situations.
• Menu icon content (  P. 107)
• Warning message (  P. 460)
Odometer/trip meter display area
(  P. 115)Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change (if equipped)
Menu icons (  P. 107)
Meter control switches (  P. 106)
Odometer/trip meter and trip meter reset button (  P. 107)1
2
3
4
5
6
7
8

106 2. Instrument cluster

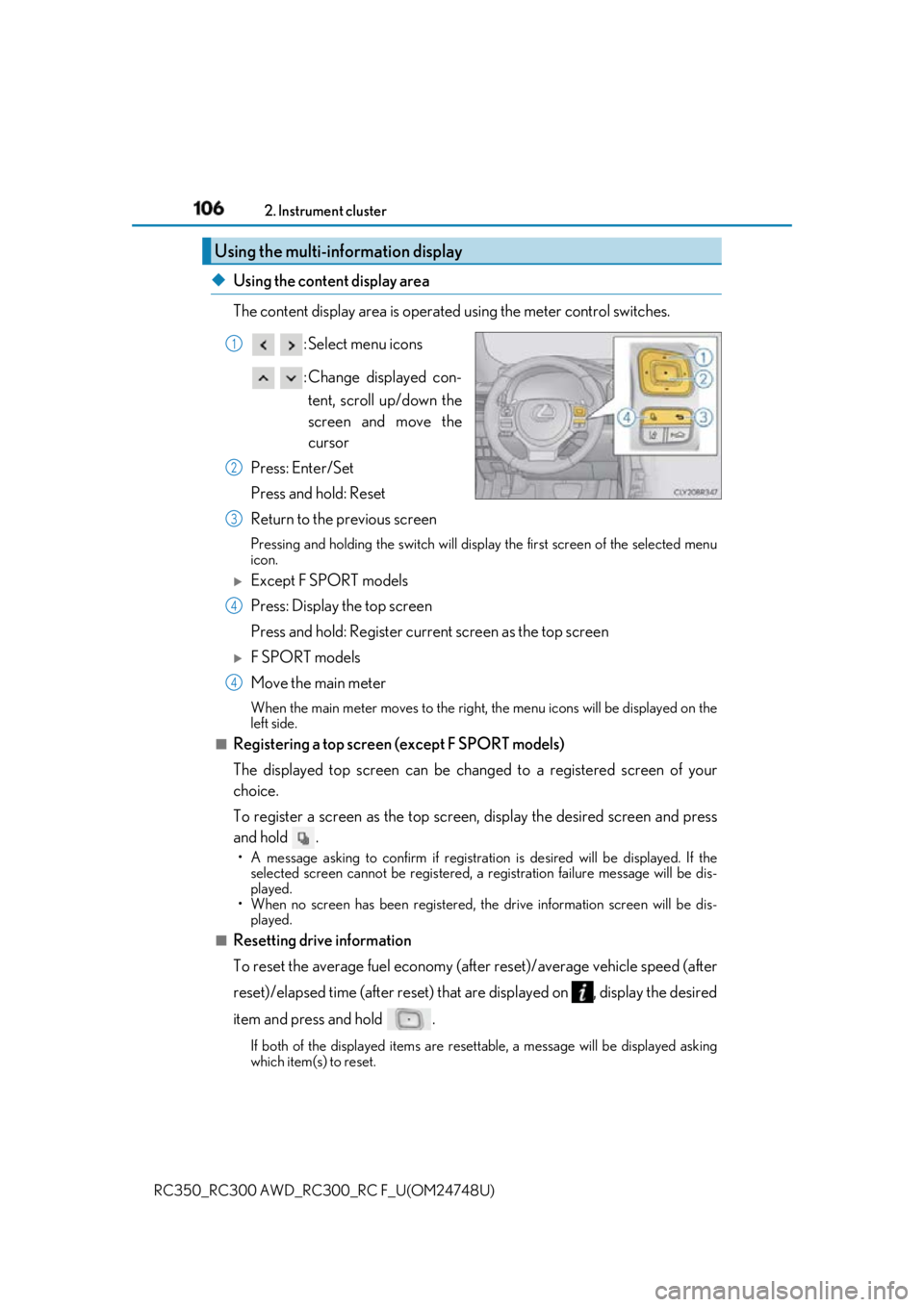

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Using the content display area
The content display area is operated using the meter control switches.
: Select menu icons
: Change displayed con-
tent, scroll up/down the
screen and move the
cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen Pressing and holding the swit ch will display the first screen of the selected menu
icon. 
Except F SPORT models
Press: Display the top screen
Press and hold: Register current screen as the top screen 
F SPORT models
Move the main meter When the main meter moves to the right, the menu icons will be displayed on the
left side.■
Registering a top screen (except F SPORT models)
The displayed top screen can be chan ged to a registered screen of your
choice.
To register a screen as the top screen, display the desired screen and press
and hold . • A message asking to confirm if registrati on is desired will be displayed. If the
selected screen canno t be registered, a registration failure message will be dis-
played.
• When no screen has been registered, the drive information screen will be dis-
played.
■
Resetting drive information
To reset the average fuel economy (aft er reset)/average vehicle speed (after
reset)/elapsed time (after reset) that are displayed on , display the desired
item and press and hold .
If both of the displayed items are resettable, a messa ge will be displayed asking
which item(s) to reset.Using the multi-information display 1
2
3
4
4

1072. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Using the odometer/trip meter display area
Items in this area are operated using the odometer/trip meter and trip meter
reset button.
Press: Change displayed item Each time the button is pressed, the
displayed item will be changed.
Press and hold: Reset Display the desired trip meter and
press and hold the button to reset the
trip meter.
Select a menu icon to display its content.
Drive information (  P. 108)Select to display various drive data.
Navigation system-linked display (if equipped) Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information Select to display the operational status of the following systems:
• Dynamic radar cruise control (  P. 268)
• LDA (Lane Departure Alert with steering control) (  P. 261)
Warning message display (  P. 460)Select to display warning messages and me asures to be taken if a malfunction is
detected.
Settings display (  P. 111)
Select to change the meter display settings and other settings.Menu icons

108 2. Instrument cluster

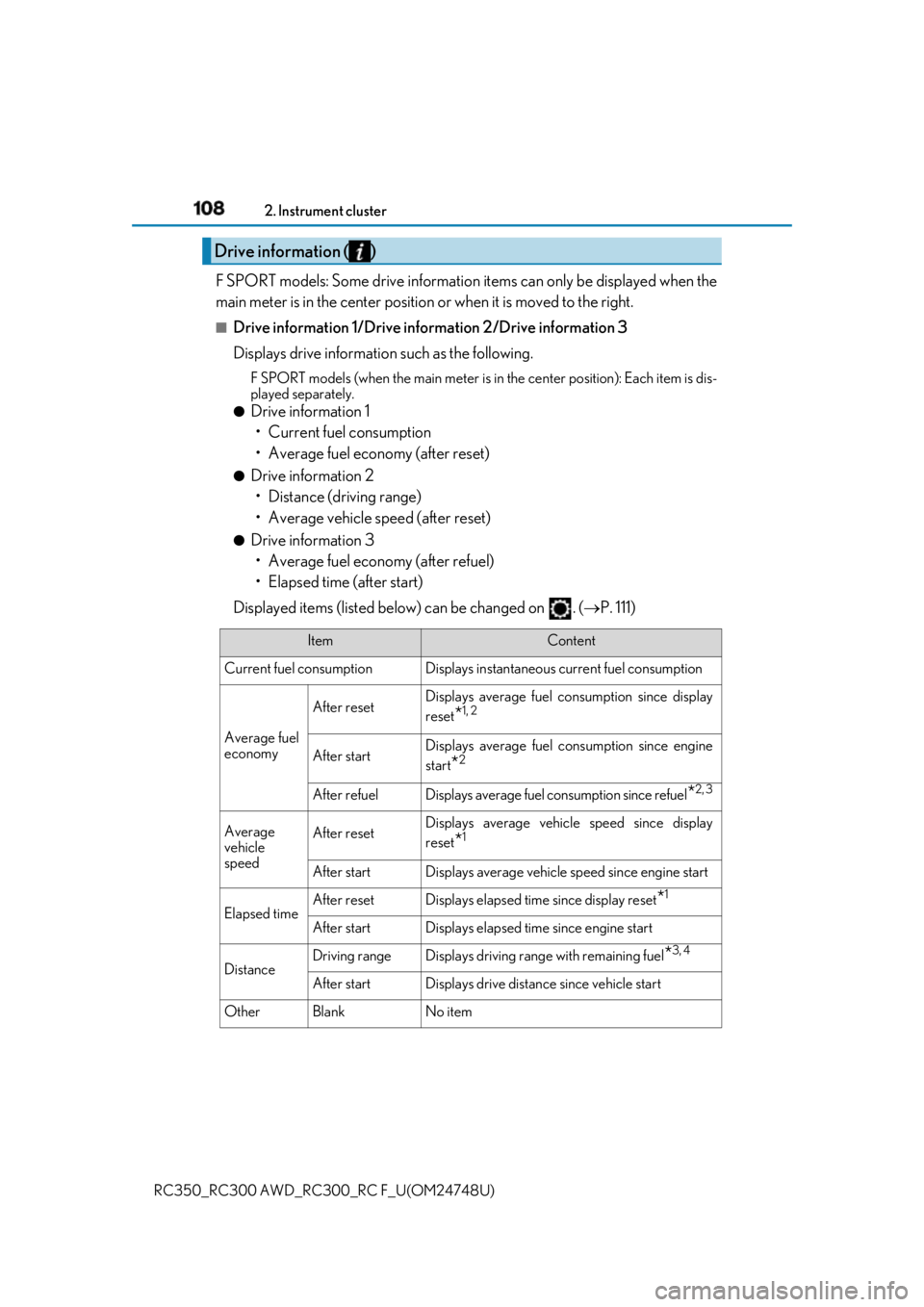

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)F SPORT models: Some drive information items can only be displayed when the
main meter is in the center position or when it is moved to the right.■
Drive information 1/Drive information 2/Drive information 3
Displays drive informatio n such as the following.F SPORT models (when the main meter is in the center position): Each item is dis-
played separately.●
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset) ●
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset) ●
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be changed on . (  P. 111)Drive information ( )
Item Content
Current fuel consumption Displays in stantaneous current fuel consumption
Average fuel
economy After reset Displays average fuel consumption since display
reset
* 1, 2
After start Displays average fuel consumption since engine
start
* 2
After refuel Displays average fuel consumption since refuel
* 2, 3
Average
vehicle
speed After reset Displays average vehicle speed since display
reset
* 1
After start Displays average vehicle speed since engine start
Elapsed time After reset Displays elapsed time since display reset
* 1
After start Displays elapsed time since engine start
Distance Driving range Displays driving rang e with remaining fuel
* 3, 4
After start Displays drive distance since vehicle start
Other Blank No item

1092. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)* 1
:Resetting:  P. 106
* 2
: Use the displayed fuel consumption as a reference.
* 3
: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.
* 4
: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.■
Eco Driving Indicator
 P. 116■
Boost gauge/engine oil temperature ga uge/engine oil pressure gauge (if
equipped)
* 1
Boost gauge
Displays the boost pressure. The
display will change color if the
specified pressure is exceeded.
Engine oil temperature gauge
Displays the engine oil tempera-
ture. The display will flash if the
engine oil temperature exceeds
284 °F (140 °C).
Engine oil pressure gauge
Displays the engine oil pressure. A buzzer will sound an d warning message
will be displayed if the engine oil pressure becomes low. (  P. 460)This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position. 1
2
3

110 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
G-force (if equipped)
* 1

Displays lateral G-forces on the vehicle.
Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle. ●
Resetting the record of maximum G-forces
Press and hold to reset the record. ●
Peak hold function
If lateral G-forces of 0.5 G or grea ter are generated, the G-force value
display will turn amber and be held for 2 seconds.
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position.■
Tire pressure
 P. 413■
Vehicle sway warning
* 1
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest. This display is a part of the LDA (Lane Departure Alert with steering control) sys-
tem. The display is enabled when the op erating conditions of the vehicle sway
warning are met. (  P. 261)
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position.
■
Gear positions
Displays the current gear position when the shift lever is in D or M.1
2
3
