611-1. For safe use
1

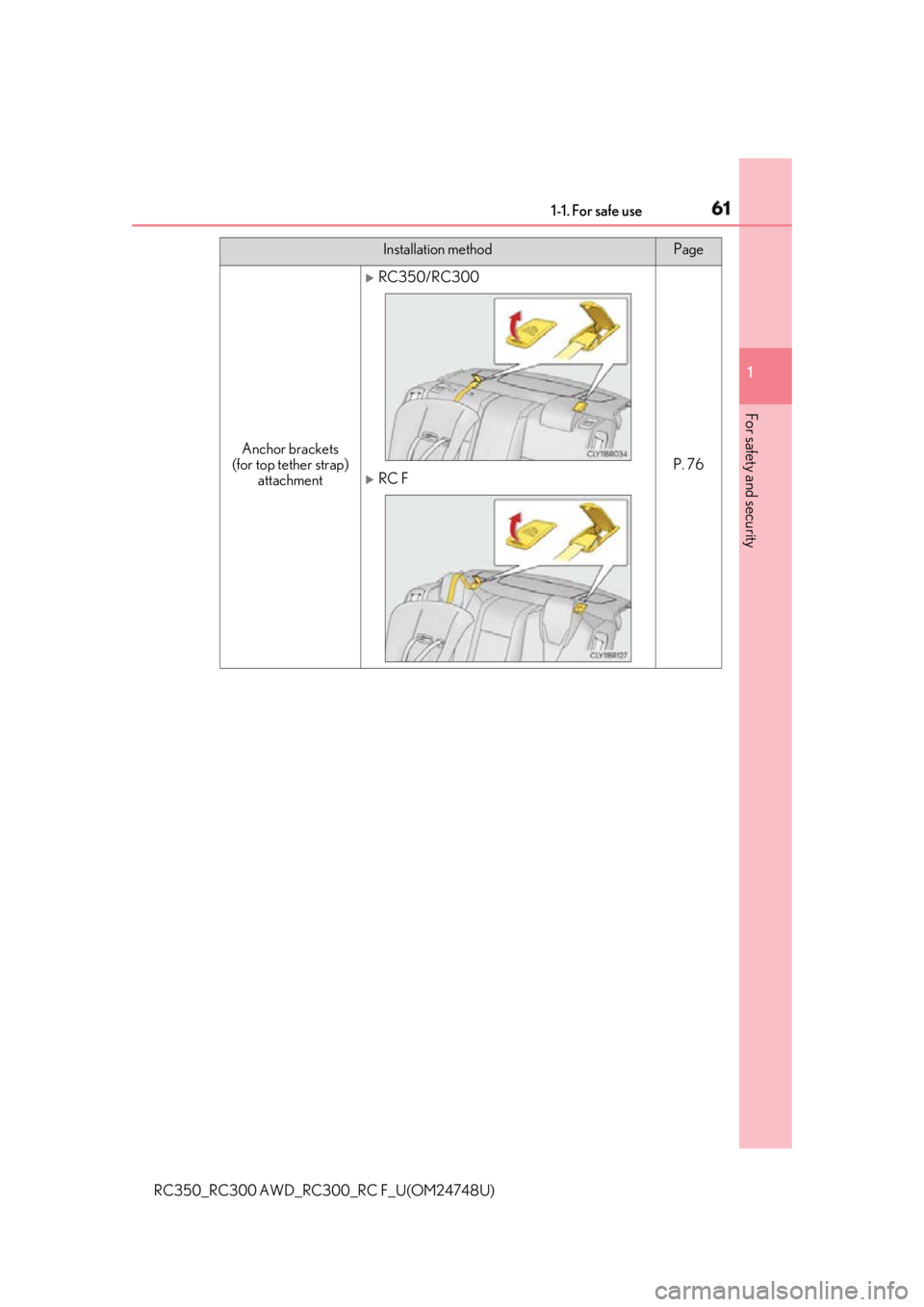

For safety and security
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) Installation method Page
Anchor brackets
(for top tether strap)
attachment 
RC350/RC300
P. 76
RC F

62 1-1. For safe use
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

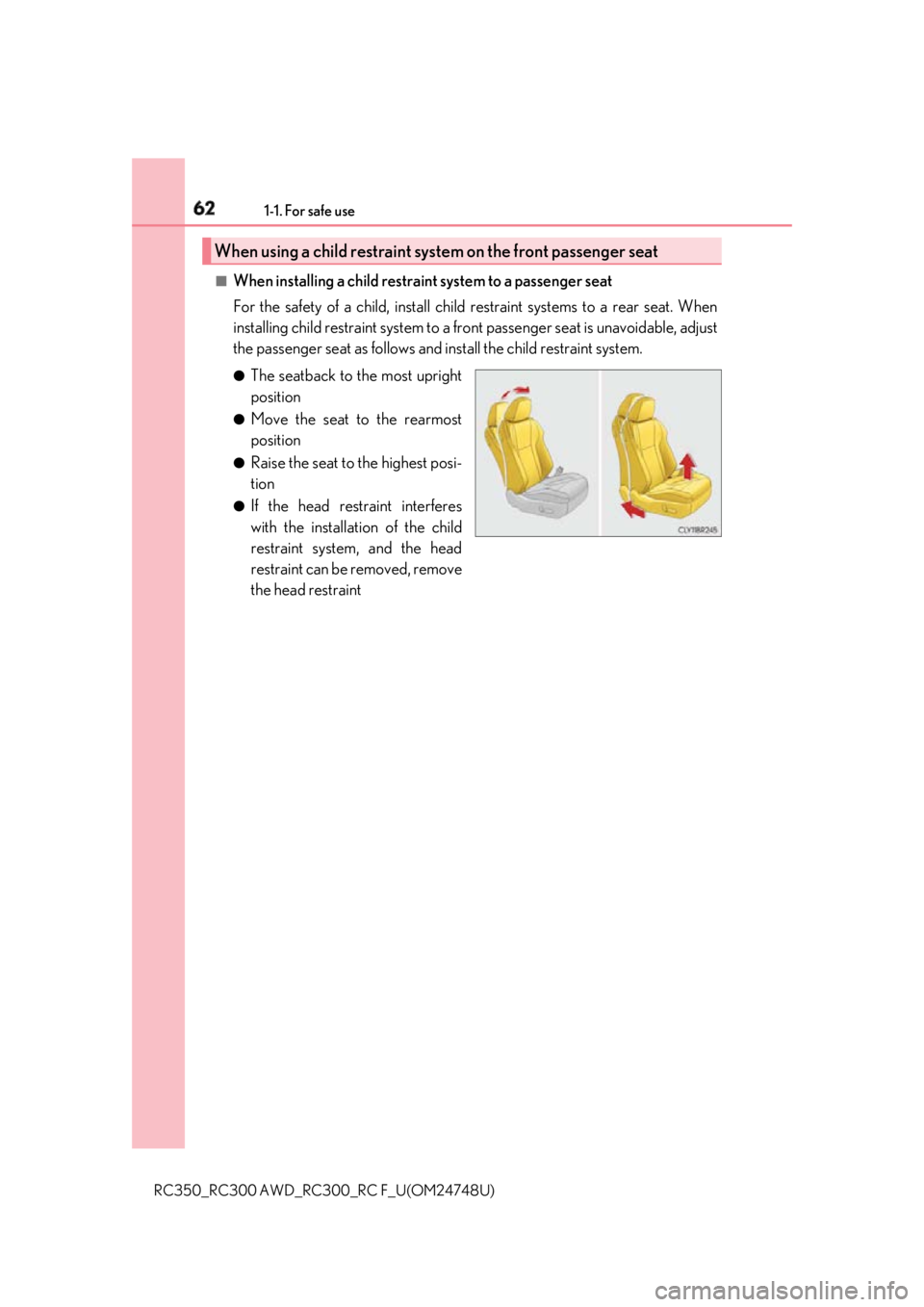

When installing a child restraint system to a passenger seat
For the safety of a child, install child restraint systems to a rear seat. When
installing child restraint system to a fron t passenger seat is unavoidable, adjust
the passenger seat as follows and install the child restraint system. ●
The seatback to the most upright
position ●
Move the seat to the rearmost
position ●
Raise the seat to the highest posi-
tion ●
If the head restraint interferes
with the installation of the child
restraint system, and the head
restraint can be removed, remove
the head restraintWhen using a child restraint system on the front passenger seat

631-1. For safe use
1
For safety and security

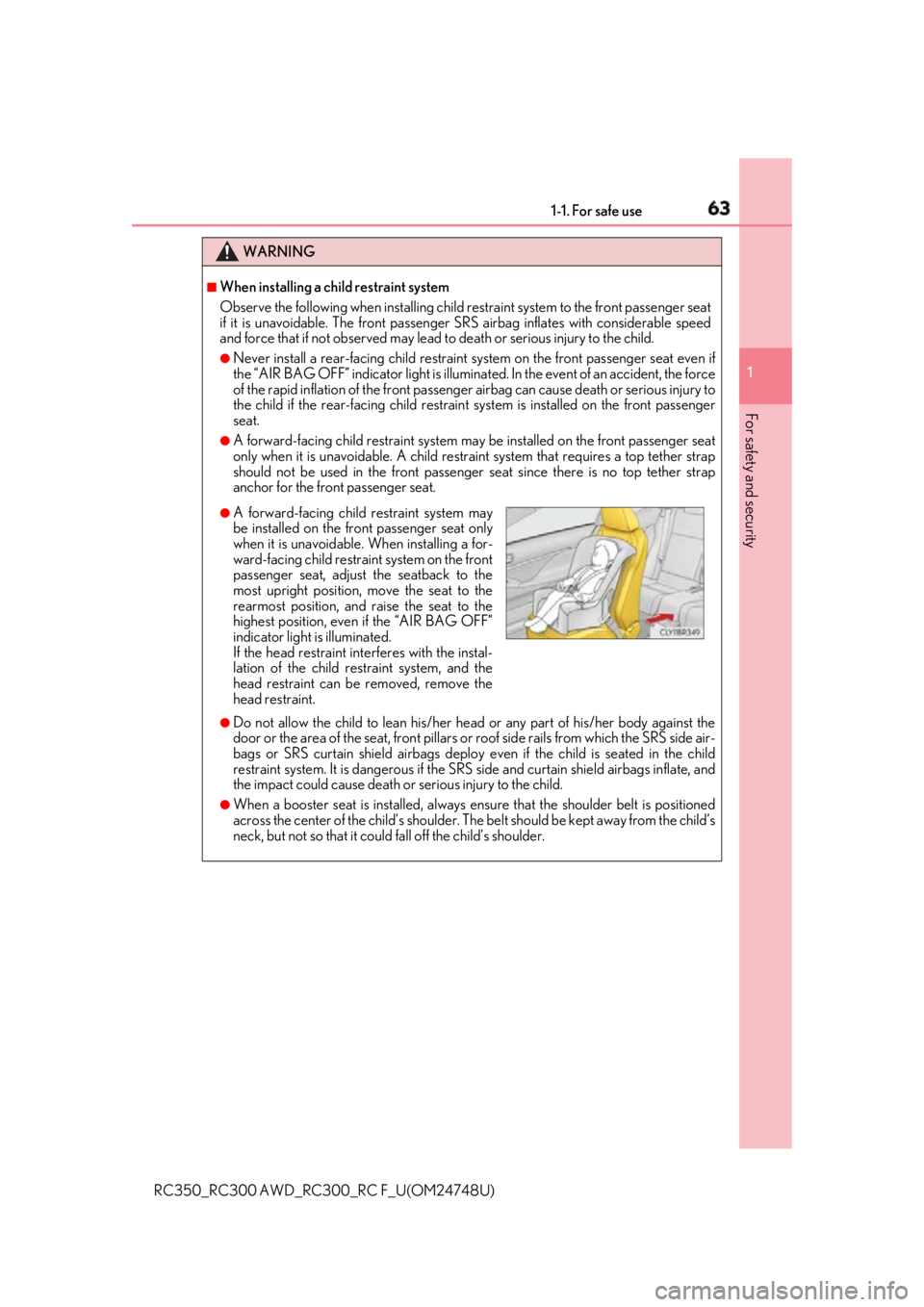

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)WARNING ■
When installing a child restraint system
Observe the following when installing child re straint system to the front passenger seat
if it is unavoidable. The front passenger SR S airbag inflates with considerable speed
and force that if not observed may lead to death or serious injury to the child.●
Never install a rear-facing child restraint sy stem on the front passenger seat even if
the “AIR BAG OFF” indicator lig ht is illuminated. In the even t of an accident, the force
of the rapid inflation of the front passenger airbag can cause death or serious injury to
the child if the rear-facing ch ild restraint system is inst alled on the front passenger
seat. ●
A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restraint system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat.
●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the SRS side and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child. ●
When a booster seat is installed, always en sure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it coul d fall off the child’s shoulder.●
A forward-facing child restraint system may
be installed on the front passenger seat only
when it is unavoidable. When installing a for-
ward-facing child restrain t system on the front
passenger seat, adjust the seatback to the
most upright position, move the seat to the
rearmost position, and raise the seat to the
highest position, even if the “AIR BAG OFF”
indicator light is illuminated.
If the head restraint interferes with the instal-
lation of the child re straint system, and the
head restraint can be removed, remove the
head restraint.

64 1-1. For safe use

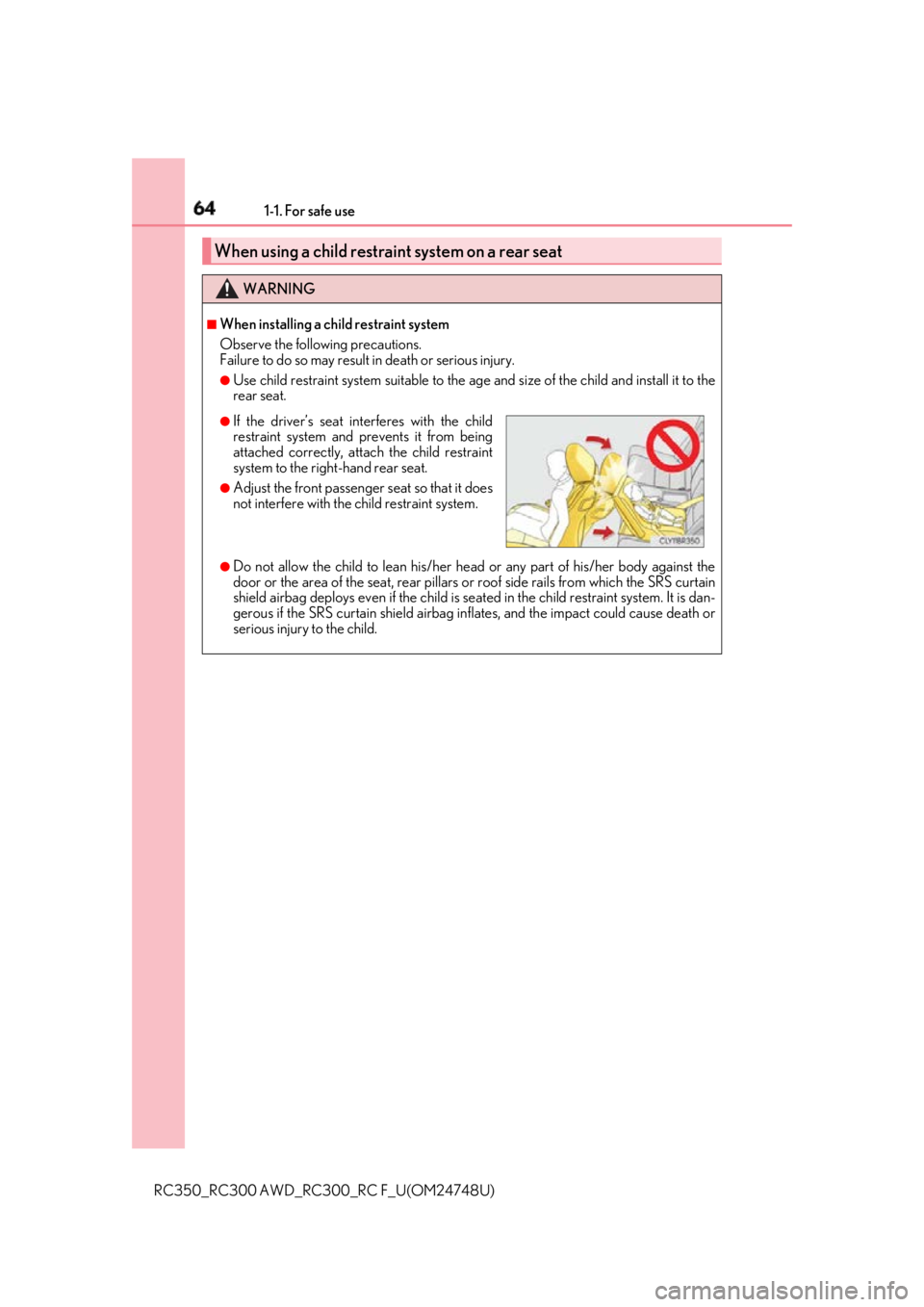

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)When using a child restraint system on a rear seat WARNING ■
When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.●
Use child restraint system suitab le to the age and size of the child and install it to the
rear seat.
●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, rear pillars or roof side ra ils from which the SRS curtain
shield airbag deploys ev en if the child is seat ed in the child restra int system. It is dan-
gerous if the SRS curtain shield airbag in flates, and the impact could cause death or
serious injury to the child. ●
If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, atta ch the child restraint
system to the right-hand rear seat. ●
Adjust the front passenger seat so that it does
not interfere with the child restraint system.

651-1. For safe use
1
For safety and security
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)A child restraint system for a small child or baby must itself be properly
restrained on the seat with the la p portion of the lap/shoulder belt.

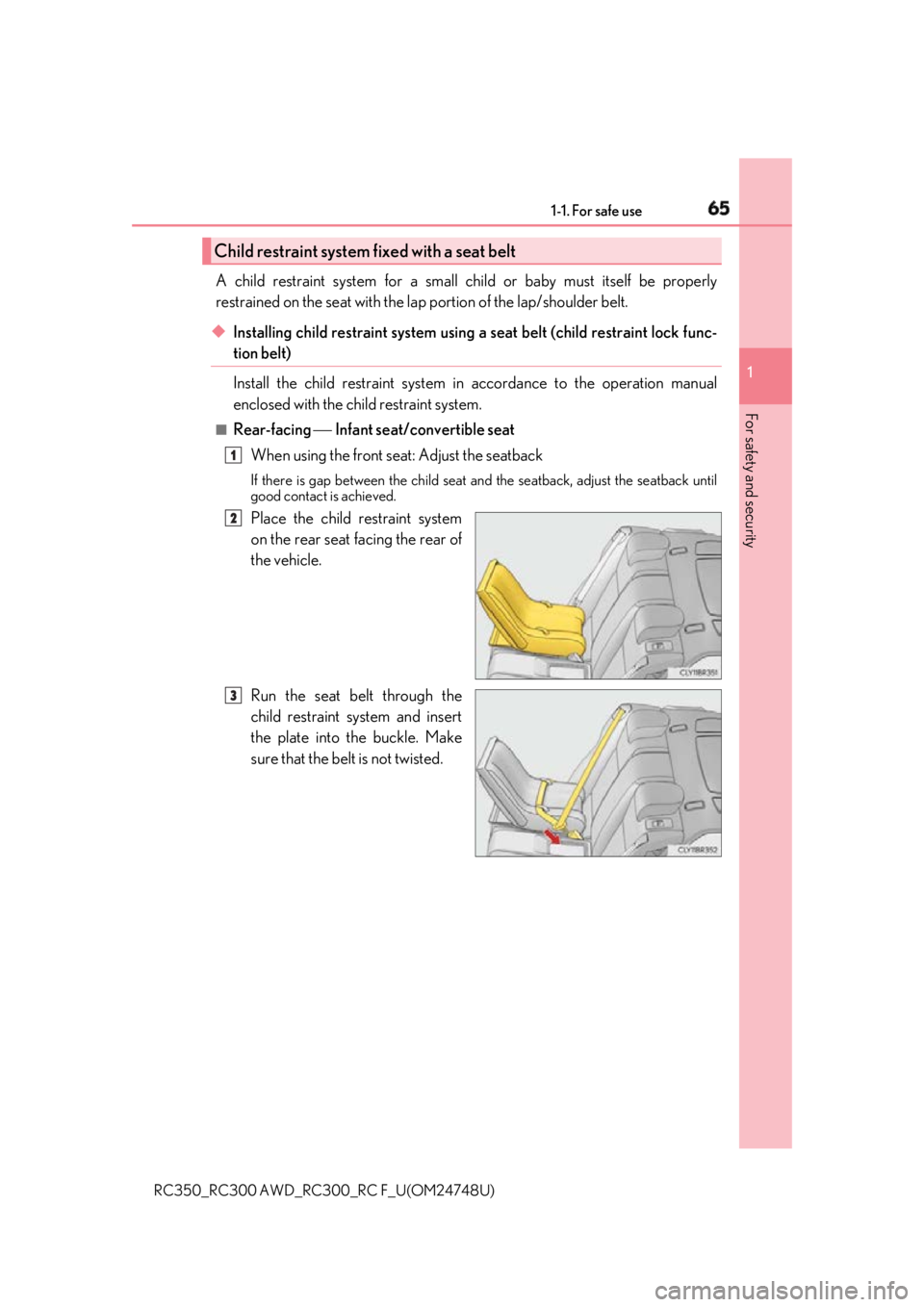

◆ Installing child restraint system using a seat belt (child restraint lock func-
tion belt)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system. ■
Rear-facing  Infant seat/convertible seat
When using the front seat: Adjust the seatback If there is gap between the child seat an d the seatback, adjust the seatback until
good contact is achieved.
Place the child restraint system
on the rear seat facing the rear of
the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.Child restraint system fi xed with a seat belt 1
2
3

66 1-1. For safe use

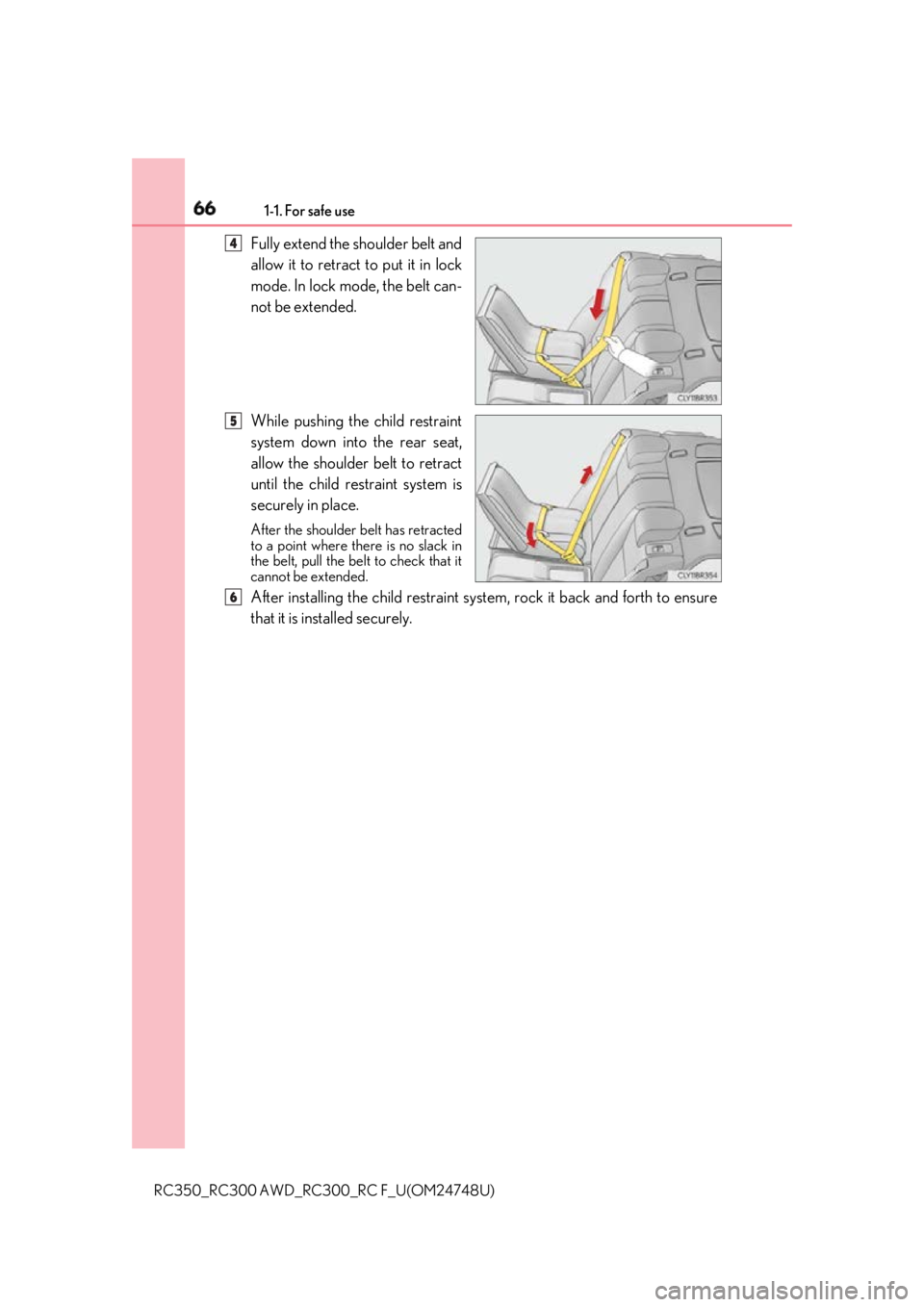

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place. After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
After installing the child restraint syst em, rock it back and forth to ensure
that it is installed securely. 4
5
6

671-1. For safe use
1
For safety and security

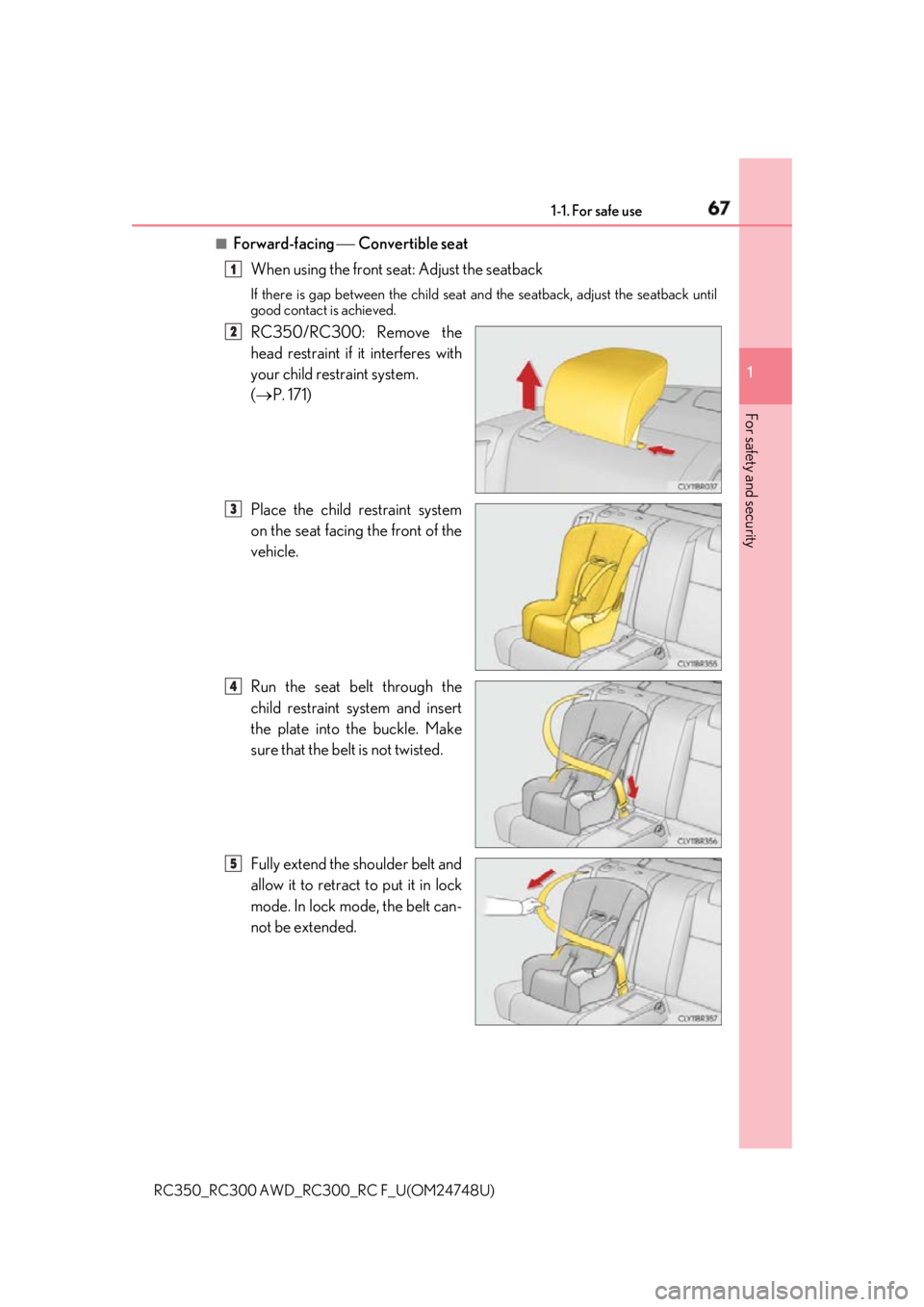

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Forward-facing  Convertible seat
When using the front seat: Adjust the seatback If there is gap between the child seat an d the seatback, adjust the seatback until
good contact is achieved.
RC350/RC300: Remove the
head restraint if it interferes with
your child restraint system.
(  P. 171)
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended. 1
2
3
4
5

68 1-1. For safe use

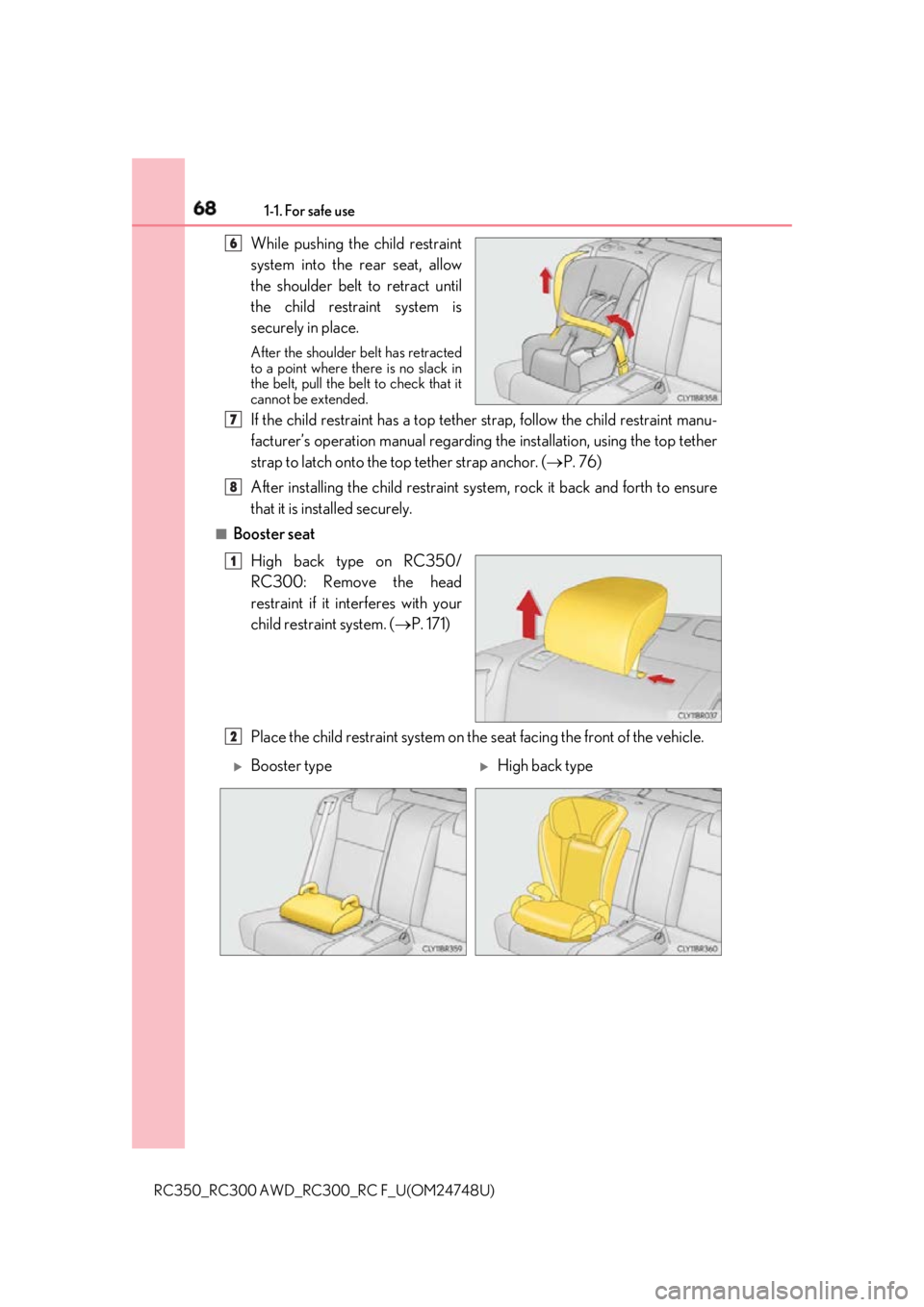

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place. After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. (  P. 76)
After installing the child restraint syst em, rock it back and forth to ensure
that it is installed securely.■

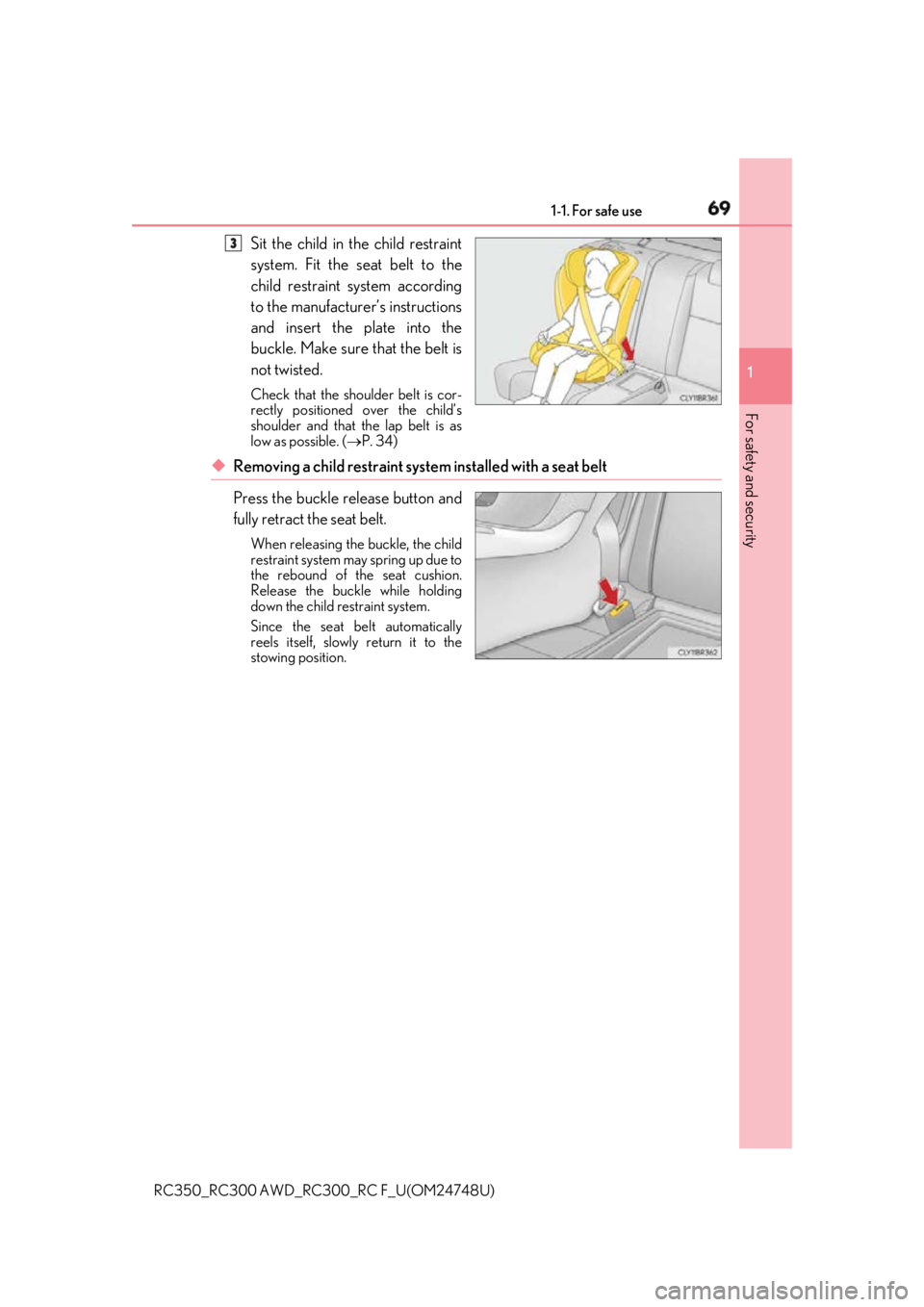

Booster seat
High back type on RC350/
RC300: Remove the head
restraint if it interferes with your
child restraint system. (  P. 171)
Place the child restraint system on the seat facing the front of the vehicle.6
7
8
1
2 
Booster type 
High back type

691-1. For safe use
1
For safety and security
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted. Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. (  P. 34)
◆ Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt. When releasing the buckle, the child
restraint system may spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position. 3

70 1-1. For safe use
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)WARNING ■
When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.●
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to chokin g or other serious injuries that could result
in death. If this occurs and the buckle can not be unfastened, scissors should be used
to cut the belt. ●
Ensure that the belt and plate are securely locked and the seat belt is not twisted.●
Shake the child restraint syst em left and right, and forward and backward to ensure
that it has been securely installed. ●
After securing a child restraint system, ne ver adjust the seat.●
When a booster seat is installed, always en sure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it coul d fall off the child’s shoulder.●
Follow all installation instructions provided by the child restraint system manufacturer.■
When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten on ly. This could cause injury or discomfort to
the child. (  P. 36)■
Do not use a seat belt extender
If a seat belt extender is used when insta lling a child restraint system, the seat belt will
not securely hold the child restraint system , which could cause death or serious injury
to the child or other passengers in the event of sudden braking, sudden swerving or an
accident.
