1112. Instrument cluster
2
Instrument cluster
RC F_U ■
Units (if equipped)
* 2
The units of measure used can be changed while driving. Unlike the units setting performed on , the units setting performed on can
be changed while driving.
* 2
: For F SPORT models, this item is not available when the main meter is in the right-side
position.■
Blank (No items)
Displays no drive information contents.
◆ Changing settings
Use the meter control switches on th e steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.

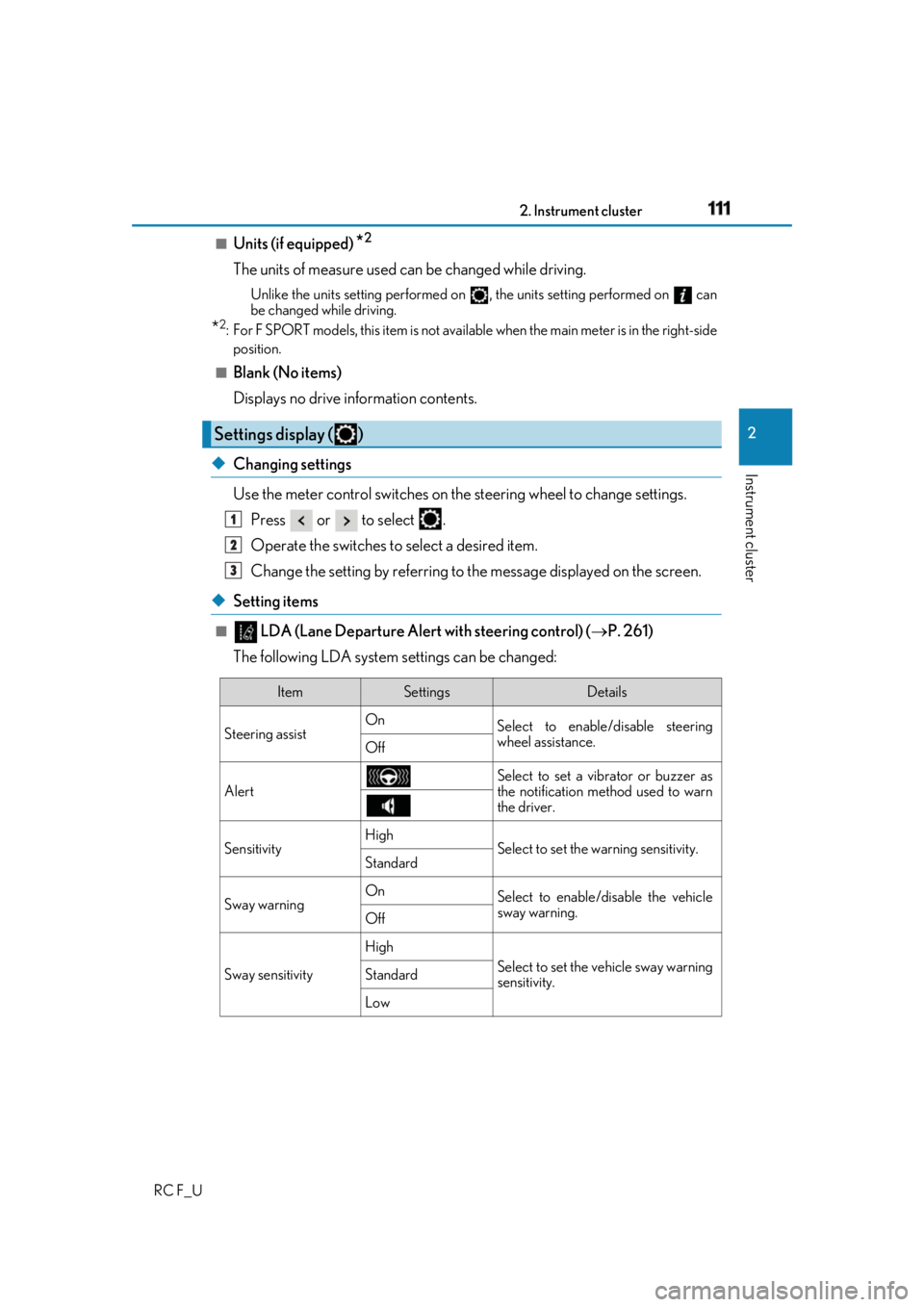

◆ Setting items ■
LDA (Lane Departure Alert with steering control) (  P. 261)
The following LDA system settings can be changed:Settings display ( ) 1
2
3
Item Settings Details
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert Select to set a vibrator or buzzer as
the notification method used to warn
the driver.
Sensitivity High
Select to set the warning sensitivity.
Standard
Sway warning On
Select to enable/disable the vehicle
sway warning.
Off
Sway sensitivity High
Select to set the vehicle sway warning
sensitivity.Standard
Low

112 2. Instrument cluster
RC F_U ■

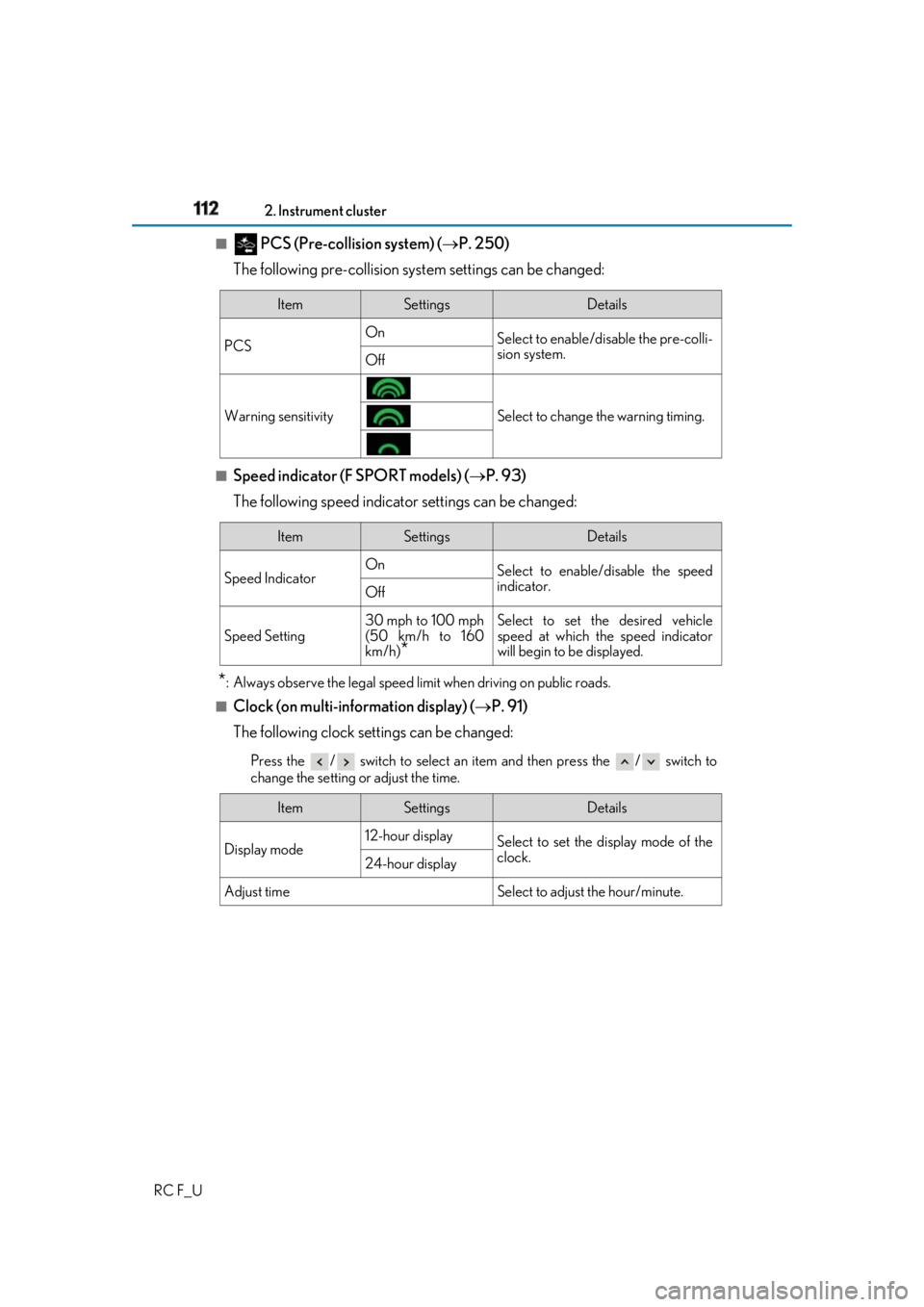

PCS (Pre-collision system) (  P. 250)
The following pre-collision syst em settings can be changed:
■
Speed indicator (F SPORT models) (  P. 93)
The following speed indicator settings can be changed:
* : Always observe the legal speed li mit when driving on public roads.■
Clock (on multi-information display) (  P. 91)
The following clock settings can be changed: Press the / switch to select an it em and then press the / switch to
change the setting or adjust the time. Item Settings Details
PCS On
Select to enable/disable the pre-colli-
sion system.
Off
Warning sensitivity Select to change the warning timing.
Item Settings Details
Speed Indicator On
Select to enable/disable the speed
indicator.
Off
Speed Setting 30 mph to 100 mph
(50 km/h to 160
km/h)
* Select to set the desired vehicle
speed at which the speed indicator
will begin to be displayed.
Item Settings Details
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display
Adjust time Select to adjust the hour/minute.

1132. Instrument cluster
2
Instrument cluster
RC F_U ■

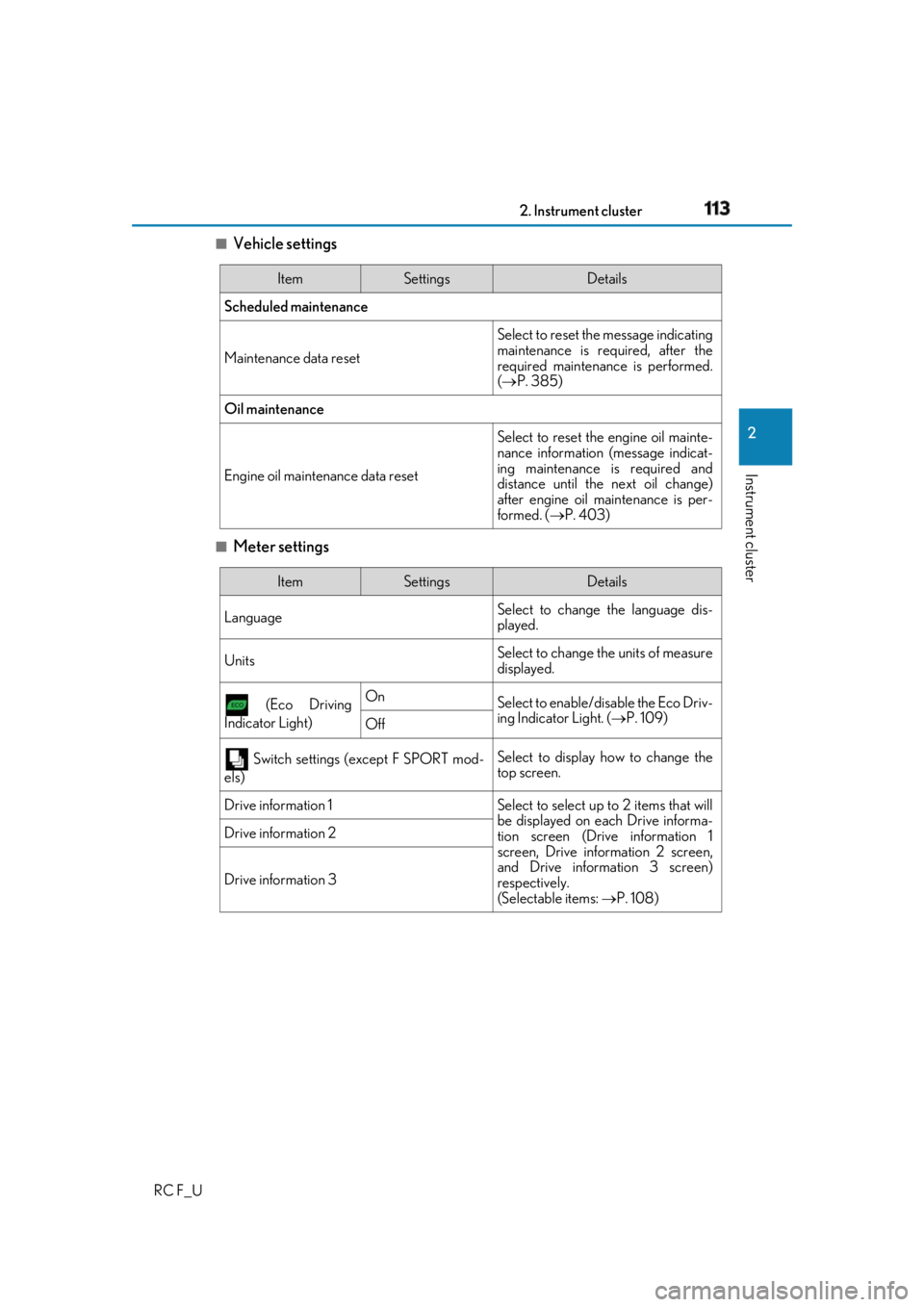

Vehicle settings
■
Meter settings Item Settings Details
Scheduled maintenance
Maintenance data reset Select to reset the message indicating
maintenance is re quired, after the
required maintenance is performed.
(  P. 385)
Oil maintenance
Engine oil maintenance data reset Select to reset the engine oil mainte-
nance information (message indicat-
ing maintenance is required and
distance until the next oil change)
after engine oil maintenance is per-
formed. (  P. 403)
Item Settings Details
Language Select to change the language dis-
played.
Units Select to change the units of measure
displayed.
(Eco Driving
Indicator Light) On
Select to enable/dis able the Eco Driv-
ing Indicator Light. (  P. 109)
Off
Switch settings (except F SPORT mod-
els) Select to display how to change the
top screen.
Drive information 1 Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1
screen, Drive information 2 screen,
and Drive inform ation 3 screen)
respectively.
(Selectable items:  P. 108)Drive information 2
Drive information 3

114 2. Instrument cluster

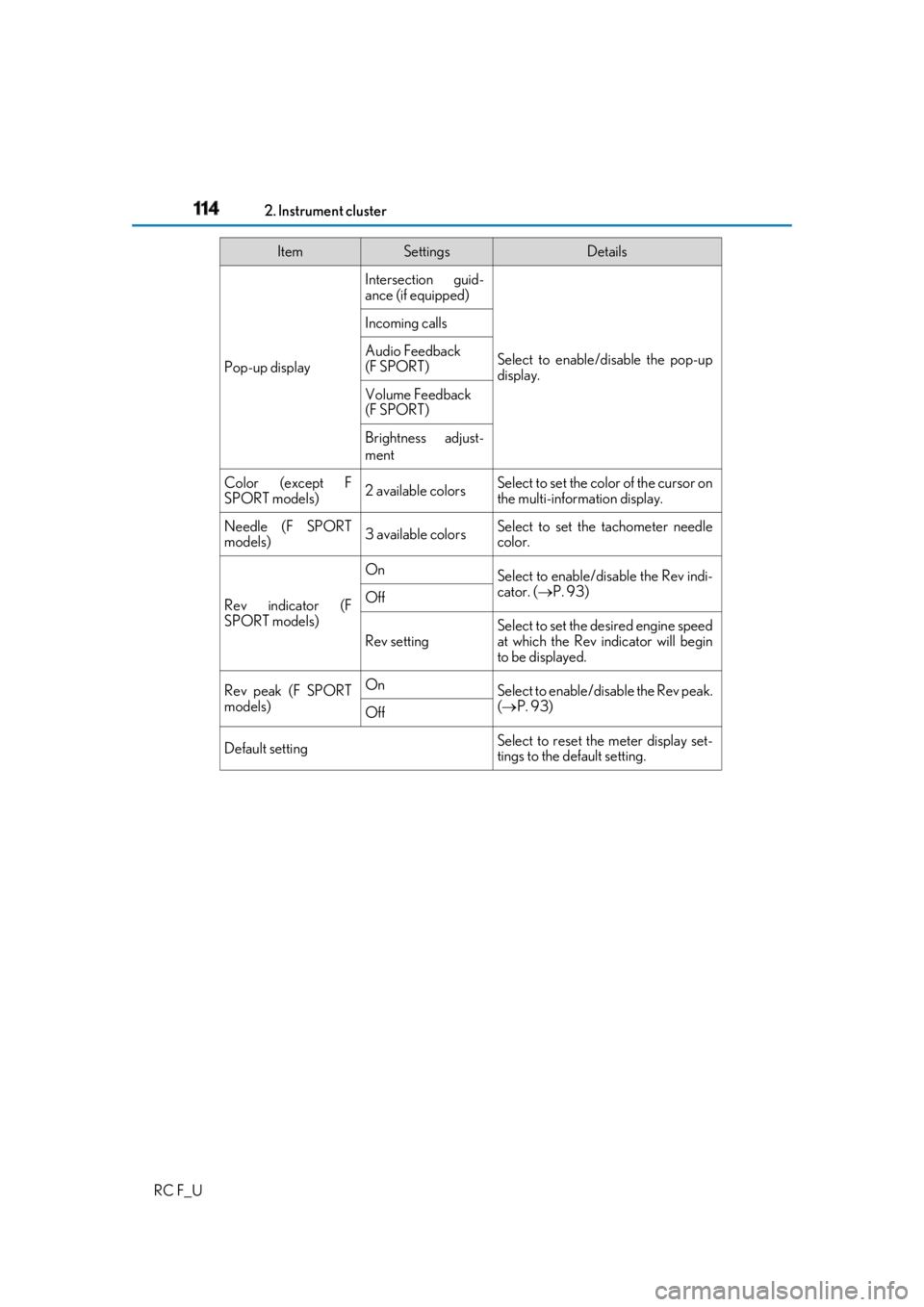

RC F_U Pop-up display Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.Incoming calls
Audio Feedback
(F SPORT)
Volume Feedback
(F SPORT)
Brightness adjust-
ment
Color (except F
SPORT models) 2 available colors Select to set the color of the cursor on
the multi-information display.
Needle (F SPORT
models) 3 available colors Select to set the tachometer needle
color.
Rev indicator (F
SPORT models) On
Select to enable/disable the Rev indi-
cator. (  P. 93)
Off
Rev setting Select to set the desired engine speed
at which the Rev indicator will begin
to be displayed.
Rev peak (F SPORT
models) On
Select to enable/disable the Rev peak.
(  P. 93)
Off
Default setting Select to reset the meter display set-
tings to the default setting.Item Settings Details

1152. Instrument cluster
2
Instrument cluster
RC F_U ◆ Display items ■
Odometer
Displays the total distance the vehicle has been driven. ■
Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently. To reset, display the desired trip meter and press and hold the odometer/trip meter
and trip meter reset button.■
Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is neces-
sary.
◆ Pop-up display
In some situations the following will be temporarily displayed:■
Distance until next engine oil change
Displays the distance until the next engi ne oil change. This display will be dis-
played in the following situations: • When the engine switch is tu rned to IGNITION ON mode.
• When a warning message indicating that oil maintenance shou ld be performed
soon or is required is displayed.Odometer/trip meter display area

116 2. Instrument cluster
RC F_U ■
Eco Driving Indicator
Eco Driving Indicator will not operate under the following conditions: ●
The shift lever is in any position other than D. ●
A paddle shift swit ch is operated.●
Neither normal mode nor Eco drive mode is selected. (  P. 301)●
The vehicle speed is approximately 80 mph (130 km/h) or higher. ■
Background color of the indicator/shift posi tion display area (except F SPORT models)
The background color of the indicator/shift po sition display area is changed according to
the driving mode as follows (  P. 301):●
Eco drive mode: Blue ●
Sport mode: Red ■
G-force display (if equipped)
The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline. ■
Suspension of the settings display ●
Some settings cannot be changed while driv ing. When changing settings, park the
vehicle in a safe place. ●
If a warning message is displa yed, operation of the settin gs display will be suspended.■
Tire pressure ●
It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.●
“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will turn
on. When the acceleration exceeds the Zone
of Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indi-
cator Zone Display will illuminate.
Zone of Eco driving 1
2
3
4

1172. Instrument cluster
2
Instrument cluster
RC F_U ■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display. ■
Customization
Some functions can be customized. (  P. 111, 569)
WARNING ■
Caution for use while driving ●
When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle. ●
Do not look continuously at the multi-info rmation display while dr iving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle. ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury. ■
Cautions during setting up the display
As the engine needs to be running during sett ing up the display, en sure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE ■
While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-
play features.

118 2. Instrument cluster

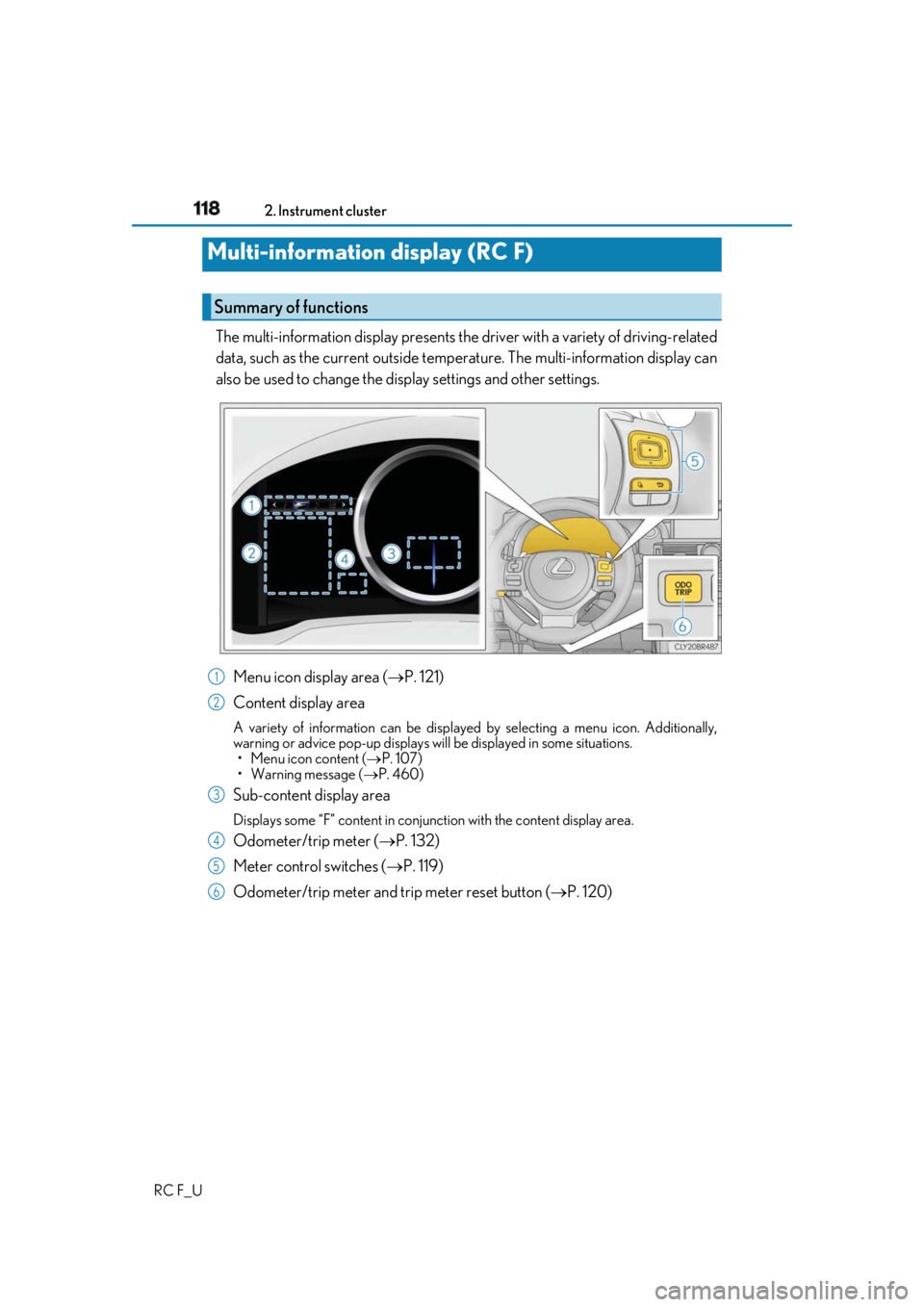

RC F_U The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.
Menu icon display area (  P. 121)
Content display area A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays w ill be displayed in some situations.
• Menu icon content (  P. 107)
• Warning message (  P. 460)
Sub-content display area Displays some “F” content in conjunction with the content display area.
Odometer/trip meter (  P. 132)
Meter control switches (  P. 119)
Odometer/trip meter and trip meter reset button (  P. 120)Multi-information display (RC F) Summary of functions
1
2
3
4
5
6

1192. Instrument cluster
2
Instrument cluster
RC F_U ◆ Using the content display area
The content display area is operated using the meter control switches.
:Select menu icons
:Change displayed con-
tent, scroll up/down the
screen and move the
cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen Pressing and holding the swit ch will display the first screen of the selected menu
icon.
Press: Display the top screen
Press and hold: Register current screen as the top screen■
Registering a top screen
The displayed top screen can be chan ged to a registered screen of your
choice.
To register a screen as the top screen, display the desired screen and press
and hold . • A message asking to confirm if registrati on is desired will be displayed. If the
selected screen canno t be registered, a registration failure message will be dis-
played.
• When no screen has been registered, the drive information screen will be dis-
played.■
Resetting drive information
To reset the average fuel economy (aft er reset)/average vehicle speed (after
reset)/elapsed time (after reset) that are displayed on , display the desired
item and press and hold . If both of the displayed items are resettable, a messa ge will be displayed asking
which item(s) to reset.Using the multi-information display 1
2
3
4

120 2. Instrument cluster

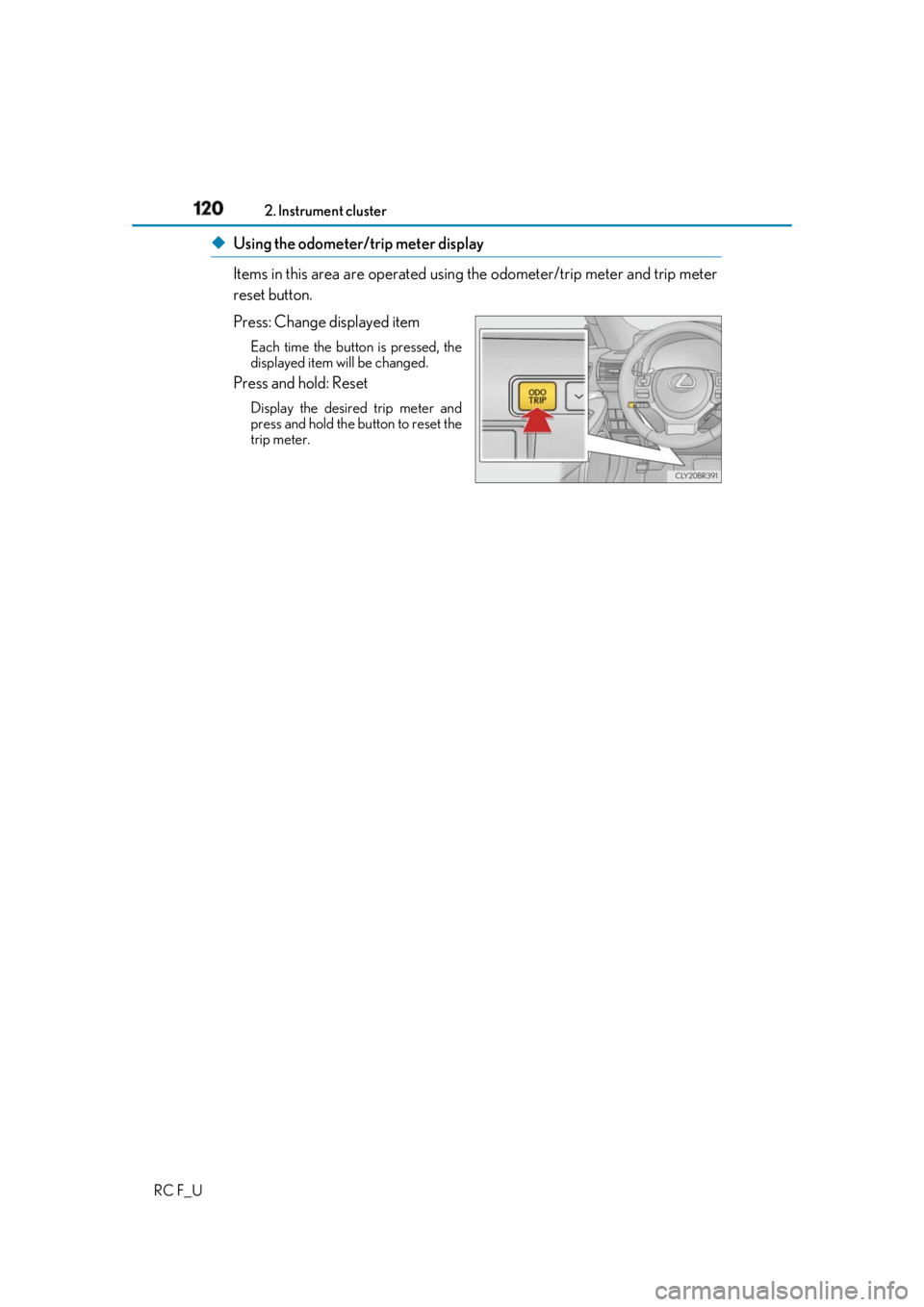

RC F_U ◆ Using the odometer/trip meter display
Items in this area are operated using the odometer/trip meter and trip meter
reset button.
Press: Change displayed item Each time the button is pressed, the
displayed item will be changed.
Press and hold: Reset Display the desired trip meter and
press and hold the button to reset the
trip meter.
