LEXUS RCF 2019 Owners Manual

1513-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC F_U Press the opener switch.
◆ Smart access system with push-button start
While carrying the electronic key,
press the button on the trunk lid. When both side doors are unlocked
using one of the following methods,
the trunk can be opened without the
electronic key:
• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
◆ Wireless remote control
Press and hold the switch. A buzzer sounds.Trunk The trunk can be opened using the trunk opener, entry function or wireless
remote control.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

152 3-2. Opening, closing and locking the doors and trunk
RC F_U Using the trunk grip, lower the trunk
without applying force to the side and
push the trunk down from the outside
to close it.
To protect luggage stored in the trunk ag ainst theft, the luggage security system
can be set to on.
RC350/RC300: Move the lug-
gage security system levers to the
lock position. To lock a luggage security system lever
from inside the cabin, fold the rear seat-
back forward, move the lever to the lock
position, and return the seatback to its
original position.
RC F: Close the inside trunk door. (  P. 357)
To disable the trunk opener, turn the
main switch in the glove box off.
On
Off When the main switch is off, the trunk
lid cannot be opened even with the
wireless remote co ntrol or entry
function.When closing the trunk
Luggage security system 1
1
2
1
2

1533-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC F_U ■
Trunk light ●
The trunk light turns on when the trunk is opened. ●
If the trunk light is left on when the engine sw itch is turned off, the light will go off auto-
matically after 20 minutes. ■
Function to prevent the trunk being lo cked with the electronic key inside ●
When both side doors are locked, closing the trunk lid with the electronic key left inside
the trunk will sound an alarm.
In this case, the trunk lid can be opened by pressing the trunk release button on the
trunk lid. ●
If the spare electronic key is put in the trunk with both side doors locked, the key con-
finement prevention function is activated so the trunk can be opened. In order to pre-
vent theft, take all el ectronic keys with you when leaving the vehicle.●
If the electronic key is put in the trunk with both side doors locked, the key may not be
detected depending on the location of the key and the surrounding radio wave condi-
tions. In this case, the key confinement prev ention function cannot be activated, causing
the doors to lock when the trunk is closed. Make sure to check where the key is before
closing the trunk. ●
The key confinement prevention function cannot be activated if either door is unlocked.
In this case, open the trunk using the trunk opener. ■
Internal trunk release lever
■
Using the mechanical key
The trunk can be also opened using the mechanical key. (  P. 519)■
If the smart access system with push-button start or the wireless remote control does
not operate properly
Use the mechanical key to unlock the trunk. (  P. 519)
Replace the key battery with a new one if it is depleted. (  P. 427)■
When leaving a key to the vehicle with a parking attendant
 P. 142 ■
Customization
The trunk unlocking operation can be changed. (Customizable features:  P. 569)The trunk lid can be open ed by pulling the glow-
in-the-dark lever located on the inside of the
trunk lid upward.
The lever will continue to glow for some time
after the trunk lid is closed.

154 3-2. Opening, closing and locking the doors and trunk
RC F_U WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury. ■
Before driving ●
Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driv ing and hit near-by objects or luggage in the trunk may
be thrown out, causing an accident. ●
Do not allow children to play in the trunk.
If a child is accidentally locked in the trun k, they could suffer from heat exhaustion,
suffocation or other injuries. ●
Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s hands,
head, or neck to be caught by the closing trunk lid. ■
Important points while driving
Never let anyone sit in the trunk. In the even t of sudden braking or a collision, they are
susceptible to death or serious injury.

1553-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC F_U WARNING ■
Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious injury.●
Remove any heavy loads, such as snow and ice, from the trunk lid before opening it.
Failure to do so may cause the trunk lid to suddenly shut again after it is opened.●
When opening or closing the trunk lid, thoroughly check to make sure the surround-
ing area is safe. ●
If anyone is in the vicinity, make sure they are safe and let them know that the trunk is
about to open or close. ●
Use caution when opening or closing the tr unk lid in windy weather as it may move
abruptly in strong wind. ●
On an incline it is more difficult to open or close the trunk lid th an on a level surface,
so beware of the trunk lid un expectedly opening or closin g by itself. Make sure that
the trunk lid is fully open and secure before using the trunk.
●
Do not attach any accessories other than genuine Lexus parts to the trunk lid. Such
additional weight on the trunk lid may cause the lid to suddenly shut again after it is
opened. ●
When opening the trunk lid, take care so that
it does not hit anyone in the face or any other
part of the body.
●
When closing the trunk li d, take extra care to
prevent your fingers etc. from being caught. ●
When closing the trunk lid, make sure to
press it lightly on its outer surface. If the trunk
handle is used to fully close the trunk lid, it
may result in hands or arms being caught.

156 3-2. Opening, closing and locking the doors and trunk
RC F_U ●
Locks and unlocks the doors (  P. 145)●
Opens the trunk (  P. 151)●
Starts the engine (  P. 207)■
Antenna location
■
Effective range (areas within which the electronic key is detected)Smart access system with push-button start The following operations can be perfor med simply by carrying the electronic
key (including the card key) on your person, for example in your pocket. The
driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk
When locking or unlocking the doors
The system can be operated when the elec-
tronic key is within about 2.3 ft. (0.7 m) of
an outside door handle. (Only the doors
detecting the key can be operated.)
When opening the trunk
The system can be operated when the elec-
tronic key is within about 2.3 ft. (0.7 m) of
the trunk release button.
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle. 1
2
3
4

1573-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC F_U ■
Alarms and warning indicators
An alarm sounds and warning messages are di splayed on the multi-information display
to protect against unexpected accidents or th eft of the vehicle resulting from erroneous
operation. When a warning me ssage is displayed, take appropriate measures based on
the displayed message. (  P. 460)
When only an alarm sounds, circumstances and correction procedures are as follows.
■
Battery-saving function
The battery-saving function w ill be activated in order to pr event the electronic key bat-
tery and the vehicle battery from being discharged while the vehicle is not in operation
for a long time. ●
In the following situations, the smart acce ss system with push-button start may take
some time to unlock the doors.
• The electronic key has been left within appr oximately 6 ft. (2 m) of the outside of the
vehicle for 10 minutes or longer.
• The smart access system with push-button st art has not been used for 5 days or lon-
ger. ●
If the smart access system with push-button start has not been used for 14 days or lon-
ger, the doors cannot be unlocked at the passe nger door. In this case, hold the driver’s
door handle, or use the wireless remote cont rol or mechanical key, to unlock the doors.Alarm Situation Correction procedure

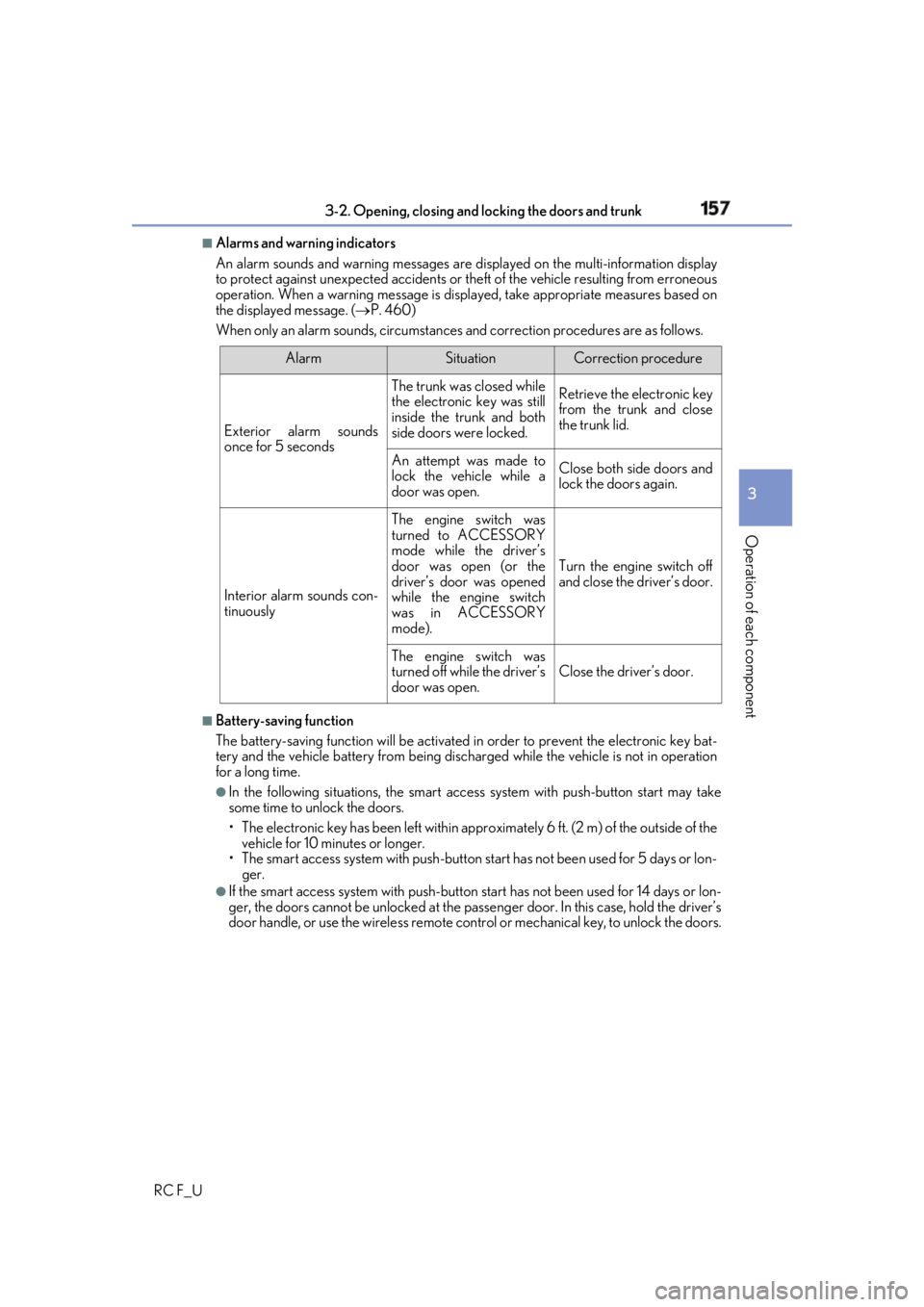

Exterior alarm sounds
once for 5 seconds The trunk was closed while
the electronic key was still
inside the trunk and both
side doors were locked. Retrieve the electronic key
from the trunk and close
the trunk lid.
An attempt was made to
lock the vehicle while a
door was open. Close both side doors and
lock the doors again.
Interior alarm sounds con-
tinuously The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the engine switch
was in ACCESSORY
mode). Turn the engine switch off
and close the driver’s door.
The engine switch was
turned off while the driver’s
door was open. Close the driver’s door.

158 3-2. Opening, closing and locking the doors and trunk
RC F_U ■
Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping the elec-
tronic key from re ceiving radio waves.
■
Conditions affe cting operation
The smart access system with push-button st art uses weak radio wa ves. In the following
situations, the communication between the electronic key and the vehicle may be
affected, preventing the smar t access system with push-but ton start, wireless remote
control and engine immobilizer sy stem from operating properly.
(Ways of coping:  P. 518)●
When the electronic key battery is depleted ●
Near a TV tower, electric power plant, gas st ation, radio station, la rge display, airport or
other facility that generates strong radio wave s or electrical noise●
When carrying a portable radio, cellular phone, cordless phone or other wireless com-
munication device ●
When the electronic key is in contact wi th, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs ●
When other wireless keys (that emit radio waves) are being used nearby ●
When carrying the electronic key together with the following devices that emit radio
waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or person al digital assistants (PDAs)
• Digital audio players
• Portable game systems ●
If window tint with a metallic content or me tallic objects are atta ched to the rear win-
dow ●
When the electronic key is placed near a battery charger or electronic devicesPress twice while pressing and holding
. Confirm that the electronic key indica-
tor flashes 4 times.
While the battery-saving mode is set, the smart
access system with push -button start cannot be
used. To cancel the function, press any of the
electronic key buttons.

1593-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC F_U ■
Note for the entry function ●
Even when the electronic key is within the effective range (detection areas), the system
may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the trunk is opened.
• The electronic key is on th e instrument panel, rear pack age tray or floor, or in the
door pockets or glove box when the engine is started or engine switch modes are
changed. ●
Do not leave the electronic key on top of th e instrument panel or near the door pockets
when exiting the vehicle. Depending on the radio wave reception conditions, it may be
detected by the antenna outside the cabin an d the doors will become lockable from the
outside, possibly trapping the electronic key inside the vehicle. ●
As long as the electronic key is within th e effective range, the doors may be locked or
unlocked by anyone. However, only the door s detecting the electronic key can be used
to unlock the vehicle. ●
Even if the electronic key is not inside the vehicle, it may be possible to start the engine
if the electronic key is near the window. ●
The doors may unlock or lock if a large amou nt of water splashes on the door handle,
such as in the rain or in a car wash, when th e electronic key is with in the effective range.
(The doors will automatically be locked af ter approximately 60 seconds if the doors
are not opened and closed.) ●
If the wireless remote control is used to lo ck the doors when the electronic key is near
the vehicle, there is a possibility that the d oor may not be unlocked by the entry func-
tion. (Use the wireless remote control to unlock the doors.) ●
Touching the door lock or unlock sensor while wearing gloves may prevent lock or
unlock operation. ●
When the lock operation is performed using the lock sensor, recognition signals will be
shown up to two consecutive times. After this, no recognition signals will be given.●
If the door handle becomes wet while the el ectronic key is within the effective range,
the door may lock and unlock repeatedly. In this case, follow th e following correction
procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take
care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access system
with push-button start. (  P. 158)●
If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn of f the alarm, lock both side doors.●
The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again. ●
A sudden handle operation or a handle operation immediately after entering the effec-
tive range may prevent the doors from bein g unlocked. Touch the door unlock sensor
and check that the doors are unlocked before pulling the door handle again.●
Unlocking the vehicle may take more time if another electronic key is within the effec-
tive range.

160 3-2. Opening, closing and locking the doors and trunk
RC F_U ■
When the vehicle is not driven for extended periods ●
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle. ●
The smart access system wi th push-button start can be deactivated in advance.
(  P. 569)■
To operate the system properly ●
Make sure to carry the electr onic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may no t operate properly. (The alarm may go off
accidentally, or the door lock prev ention function may not operate.)●
Do not leave the electronic key inside the trunk.
The key confinement prevention function ma y not operate, depending on the location
of the key (close to a spare tire [if equipped], the inside edge of the trunk), conditions
(inside a metal bag, close to metallic obje cts) and the radio waves in the surrounding
area. (  P. 153)■
If the smart access system with push-button start does not operate properly ●
Locking and unlocking the d oors and opening the trunk:  P. 518●
Starting the engine:  P. 520■
Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features:  P. 569)■
If the smart access system with push-button start has been deactivated in a customized
setting ●
Locking and unlocking the d oors and opening the trunk:
Use the wireless remote cont rol or mechanical key. (  P. 145, 151, 518)●
Starting the engine and changing engine switch modes:  P. 520●
Stopping the engine:  P. 207
WARNING ■
Caution regarding interference with electronic devices●
People with implantable cardiac pacema kers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter de fibrillators should keep away from the
smart access system with push-button start antennas. (  P. 156)
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency of
radio waves and timing of the emitted radio waves. Then, consult your doctor to see if
you should disable the entry function. ●
Users of any electrical medical device ot her than implantable cardiac pacemakers,
cardiac resynchronization th erapy-pacemakers or implantable cardioverter defibril-
lators should consult the manufacturer of the device for information about its opera-
tion under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.
