LEXUS RCF 2019 Owners Manual

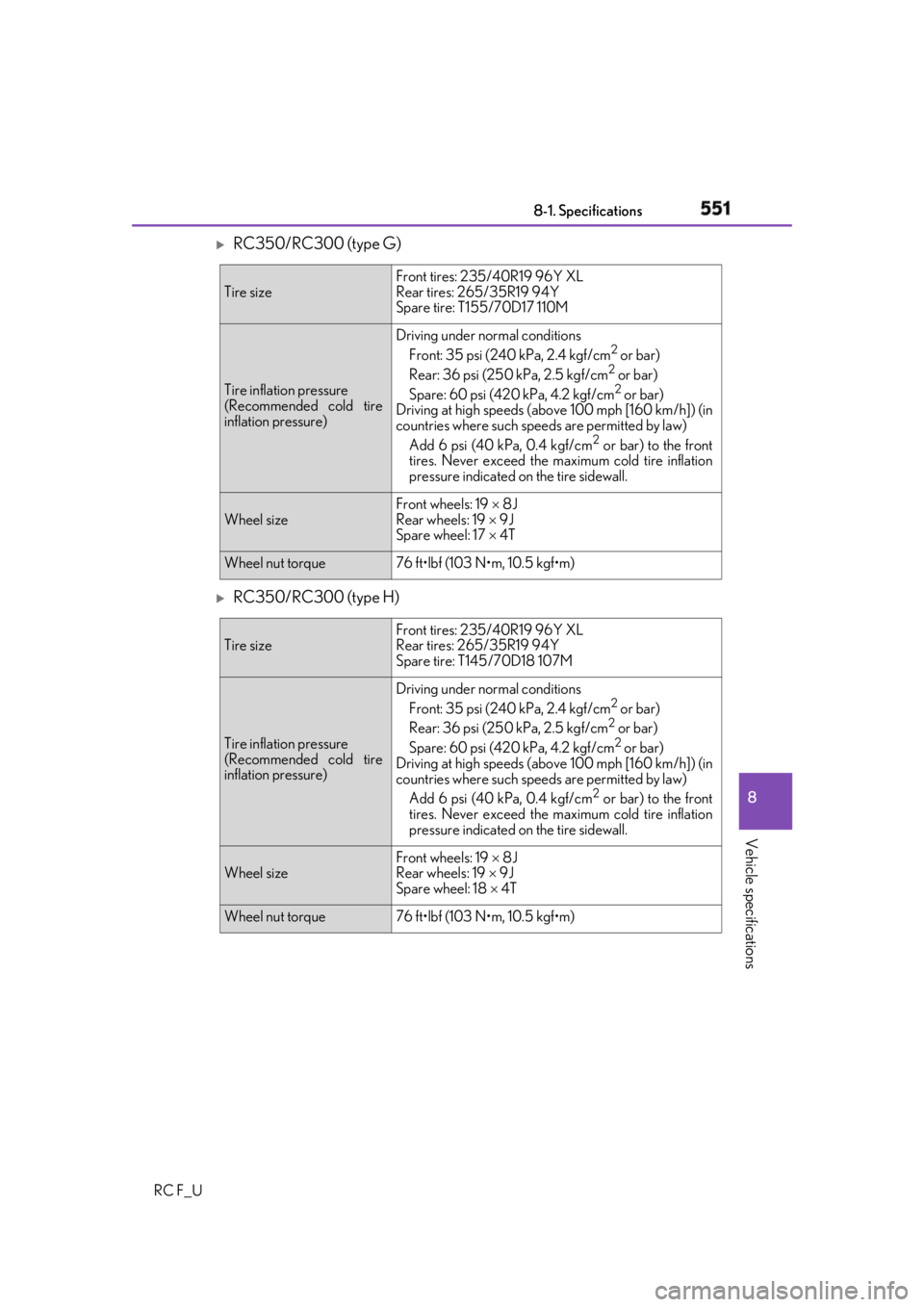

5518-1. Specifications
8
Vehicle specifications
RC F_U 
RC350/RC300 (type G) 
RC350/RC300 (type H) Tire size Front tires: 235/40R19 96Y XL
Rear tires: 265/35R19 94Y
Spare tire: T155/70D17 110M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h]) (in
countries where such speeds are permitted by law)
Add 6 psi (40 kPa, 0.4 kgf/cm 2
or bar) to the front
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size Front wheels: 19  8J
Rear wheels: 19  9J
Spare wheel: 17  4T
Wheel nut torque 76 ft •
lbf (103 N •
m, 10.5 kgf •
m)
Tire size Front tires: 235/40R19 96Y XL
Rear tires: 265/35R19 94Y
Spare tire: T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h]) (in
countries where such speeds are permitted by law)
Add 6 psi (40 kPa, 0.4 kgf/cm 2
or bar) to the front
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size Front wheels: 19  8J
Rear wheels: 19  9J
Spare wheel: 18  4T
Wheel nut torque 76 ft •
lbf (103 N •
m, 10.5 kgf •
m)

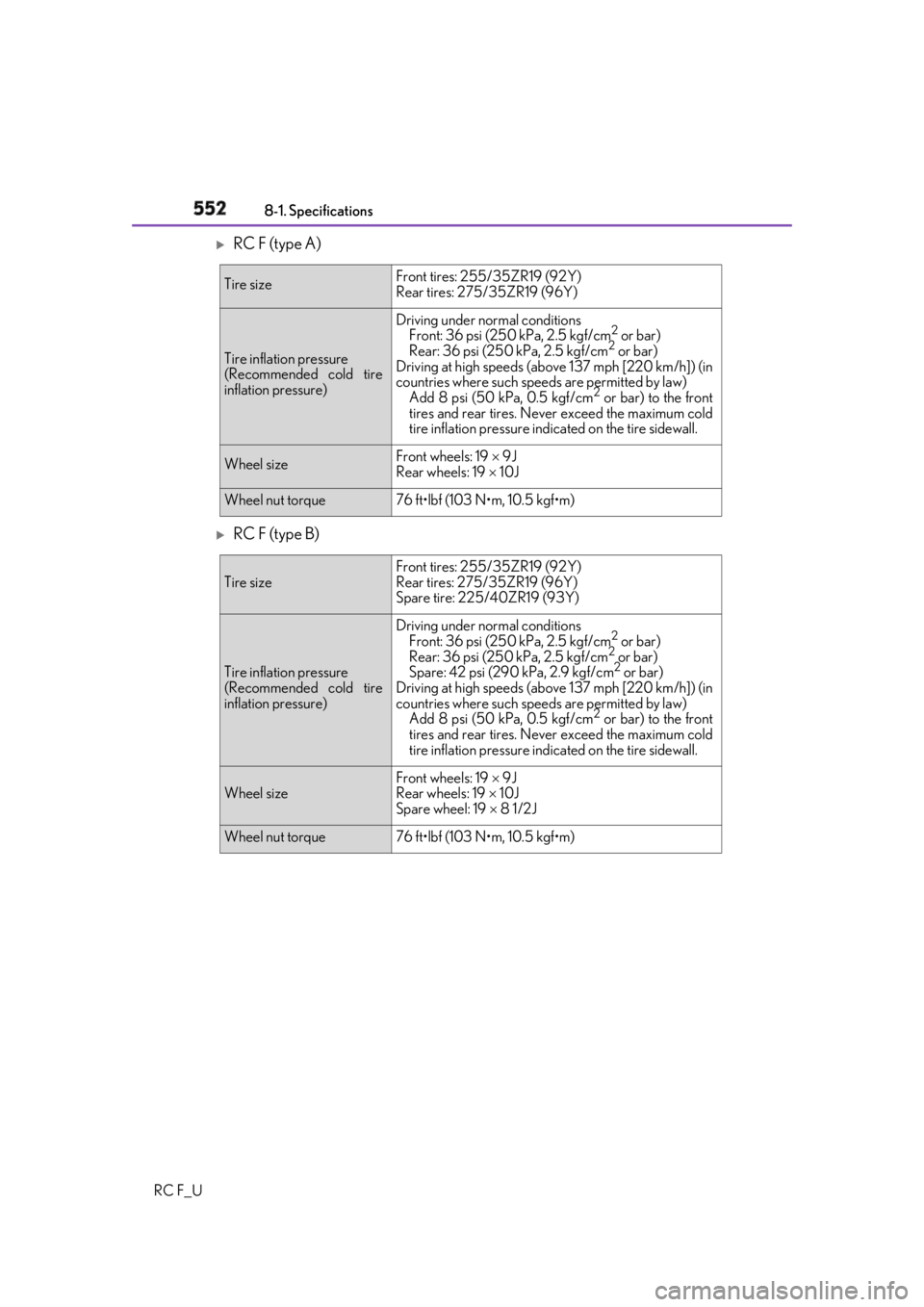

552 8-1. Specifications
RC F_U 
RC F (type A) 
RC F (type B) Tire size Front tires: 255/35ZR19 (92Y)
Rear tires: 275/35ZR19 (96Y)
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Driving at high speeds (above 137 mph [220 km/h]) (in
countries where such speeds are permitted by law)
Add 8 psi (50 kPa, 0.5 kgf/cm 2
or bar) to the front
tires and rear tires. Never exceed the maximum cold
tire inflation pressure indi cated on the tire sidewall.
Wheel size Front wheels: 19  9J
Rear wheels: 19  10J
Wheel nut torque 76 ft •
lbf (103 N •
m, 10.5 kgf •
m)
Tire size Front tires: 255/35ZR19 (92Y)
Rear tires: 275/35ZR19 (96Y)
Spare tire: 225/40ZR19 (93Y)
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Spare: 42 psi (290 kPa, 2.9 kgf/cm 2
or bar)
Driving at high speeds (above 137 mph [220 km/h]) (in
countries where such speeds are permitted by law)
Add 8 psi (50 kPa, 0.5 kgf/cm 2
or bar) to the front
tires and rear tires. Never exceed the maximum cold
tire inflation pressure indi cated on the tire sidewall.
Wheel size Front wheels: 19  9J
Rear wheels: 19  10J
Spare wheel: 19  8 1/2J
Wheel nut torque 76 ft •
lbf (103 N •
m, 10.5 kgf •
m)

5538-1. Specifications
8
Vehicle specifications

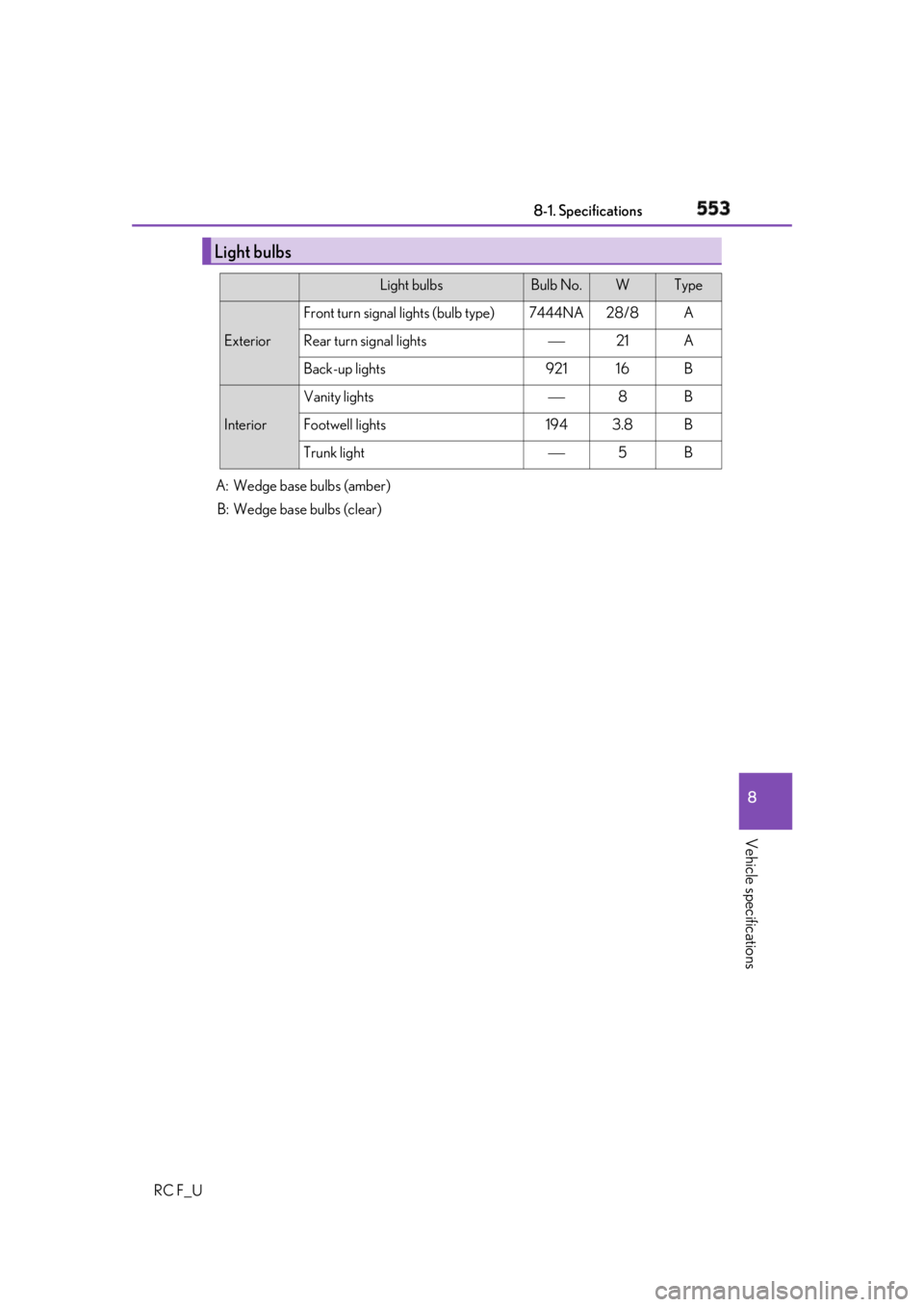

RC F_U Light bulbs Light bulbs Bulb No. W Type
Exterior Front turn signal lights (bulb type) 7444NA 28/8 A
Rear turn signal lights  21 A
Back-up lights 921 16 B
Interior Vanity lights  8 B
Footwell lights 194 3.8 B
Trunk light  5 B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)

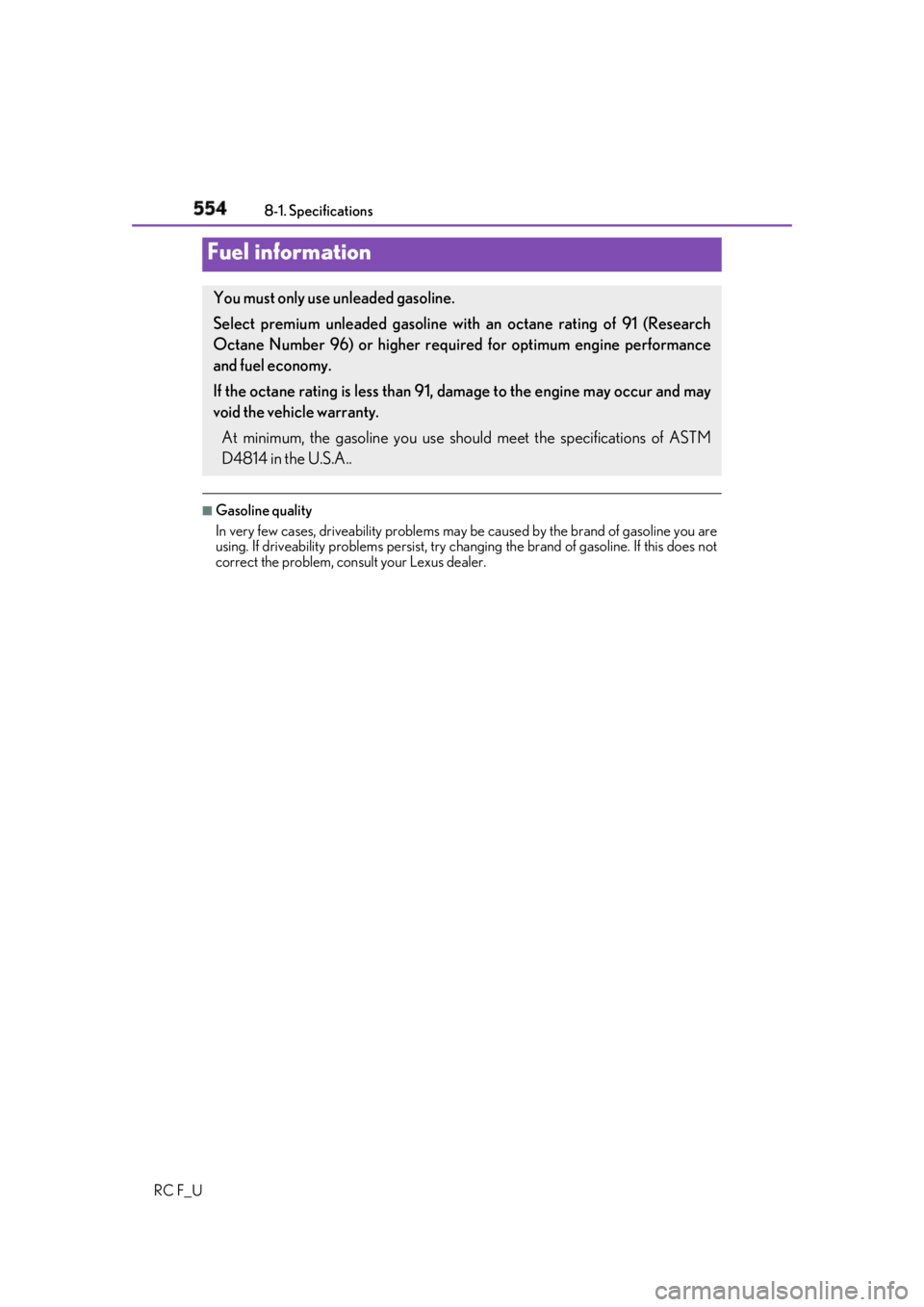

554 8-1. Specifications
RC F_U ■
Gasoline quality
In very few cases, driveabilit y problems may be caused by th e brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
Fuel information You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher requir ed for optimum engine performance
and fuel economy.
If the octane rating is less than 91, damage to the engine may occur and may
void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..

5558-1. Specifications
8
Vehicle specifications
RC F_U ■
Recommendation of the use of gasoline containing detergent additives ●
Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits. ●
All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.●
Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a lis t of marketers, please go to the official
website www.toptiergas.com. ■
Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. Thes e fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the form ulations allow for reduced vehicle emis-
sions. ■
Non-recommendation of the use of blended gasoline
●
If you use gasohol in your vehicle, be sure that it has an octane ra ting no lower than 91.●
Lexus does not recommend the use of gasoline containing methanol. ■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcyclopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be ad versely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.●
Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol). DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

556 8-1. Specifications
RC F_U NOTICE ■
Notice on fuel quality ●
Do not use improper fuels. If improper fuels are used, the engine will be damaged. ●
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction. ●
Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems. ●
Using unleaded gasoline with an octane numb er or rating lower than the level previ-
ously stated may cause pe rsistent heavy knocking.
At worst, this may lead to engine da mage and will void the vehicle warranty.■
Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.■
When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

5578-1. Specifications
8
Vehicle specifications
RC F_U 

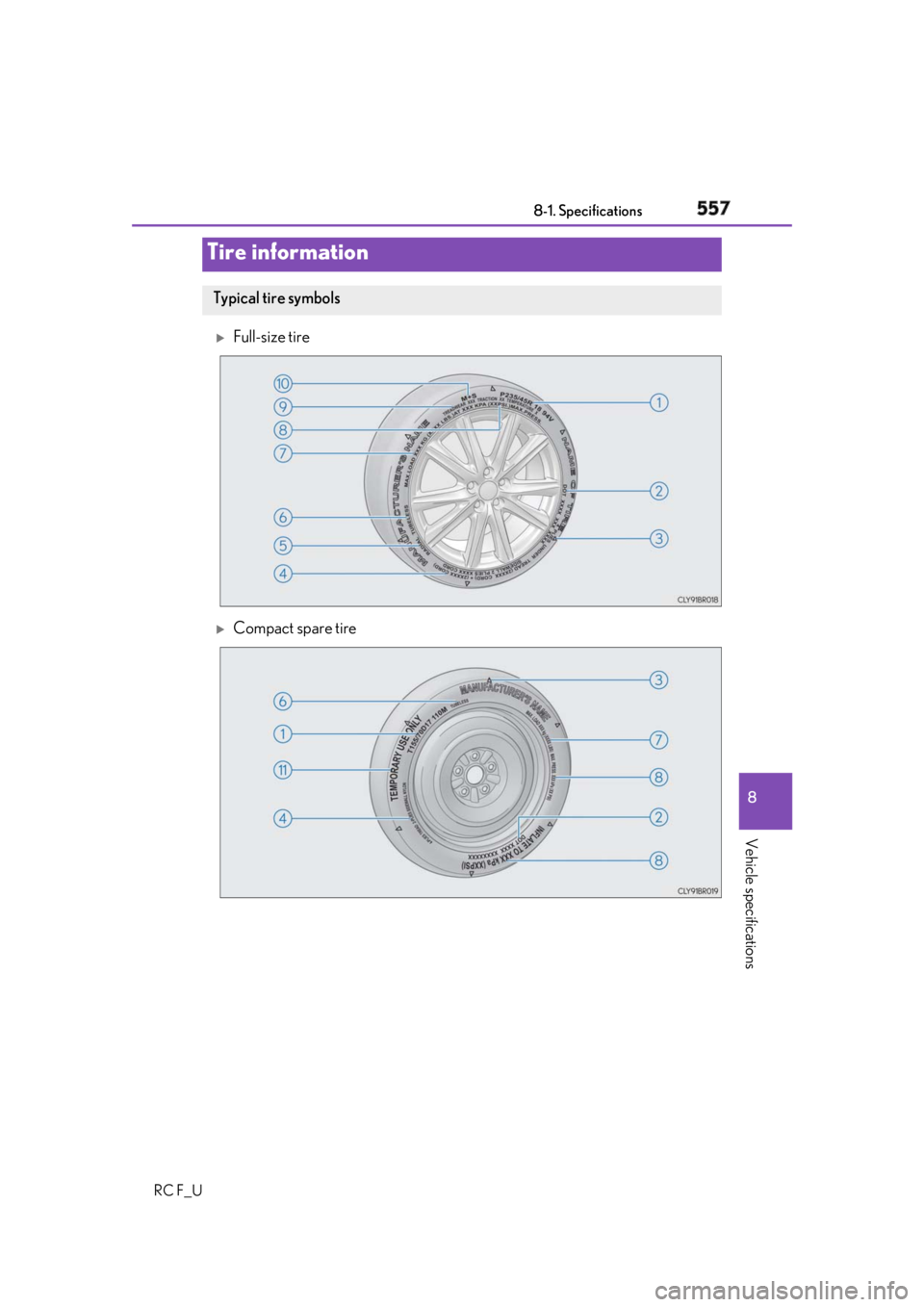

Full-size tire 
Compact spare tireTire information Typical tire symbols

558 8-1. Specifications
RC F_U Tire size (  P. 560)
DOT and Tire Identification Number (TIN) (  P. 559)
Location of trea dwear indicators (  P. 412)
Tire ply composition and materials Plies are layers of rubber-c oated parallel cords. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (  P. 564)
Maximum cold tire inflation pressure (  P. 564)This means the pressure to which a tire may be inflated.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires (  P. 416)An all season tire has “M+S” on the side wall. A tire not marked “M+S” is a summer
tire.
“TEMPORARY USE ONLY” A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded
on its sidewall. This tire is design ed for temporary emergency use only.1
2
3
4
5
6
7
8
9
10
11

5598-1. Specifications
8
Vehicle specifications
RC F_U DOT symbol
*Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code
* : The DOT symbol certifies that the tire co nforms to applicable Federal Motor Vehicle
Safety Standards.Typical DOT and Tire Identification Number (TIN) 
Type A 
Type B
1
2
3
4
5
6
7
8

560 8-1. Specifications
RC F_U ■
Typical tire size information
The illustration indicates typical tire
size.
Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)■
Tire dimensions
Section width
Tire height
Wheel diameterTire size 1
2
3
4
5
6
7
1
2
3
