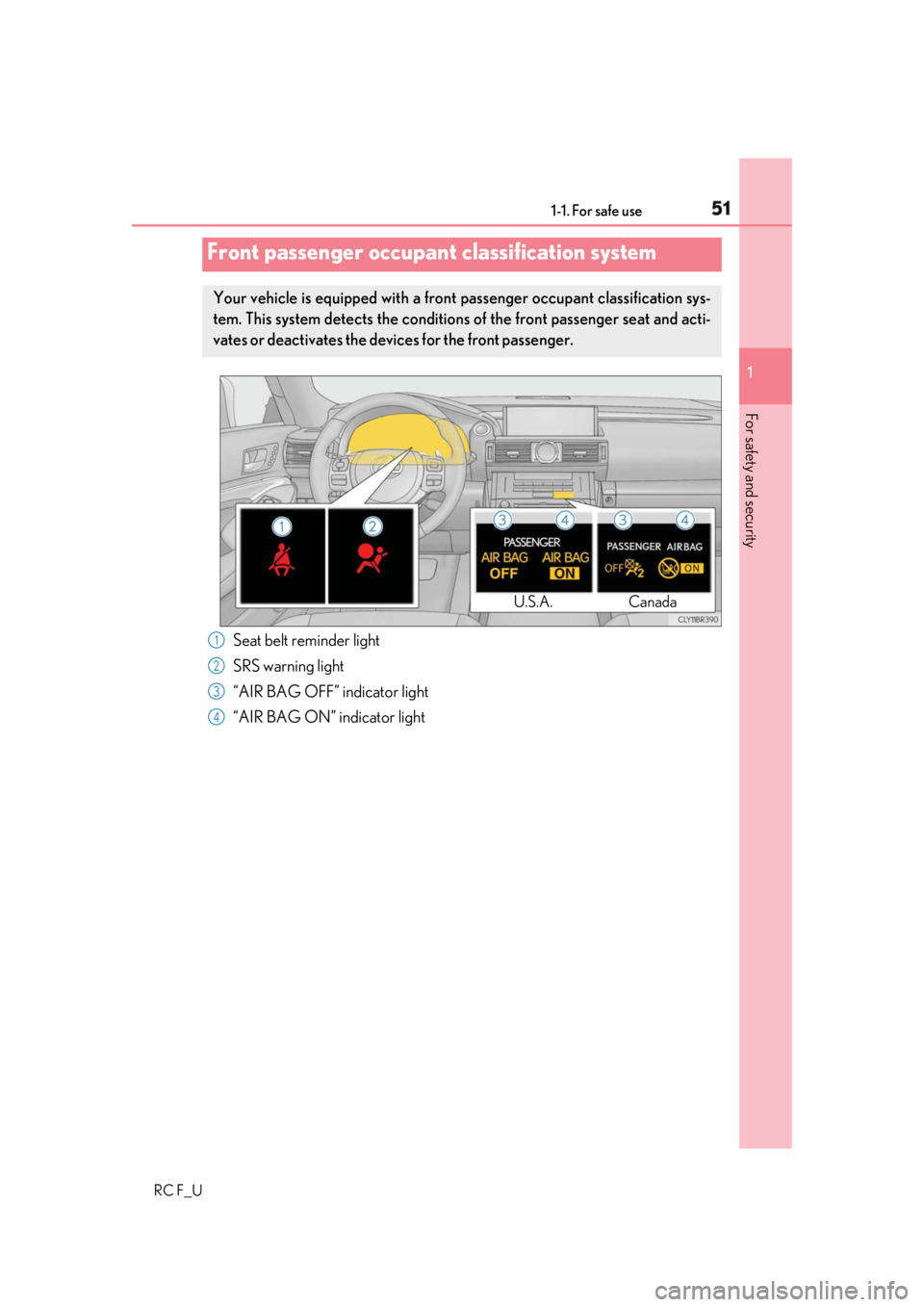

RC F_UFront passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
U.S.A. Canada
Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light 1
2
3
4

52 1-1. For safe use
RC F_U ■
Adult
* 1
■
Child

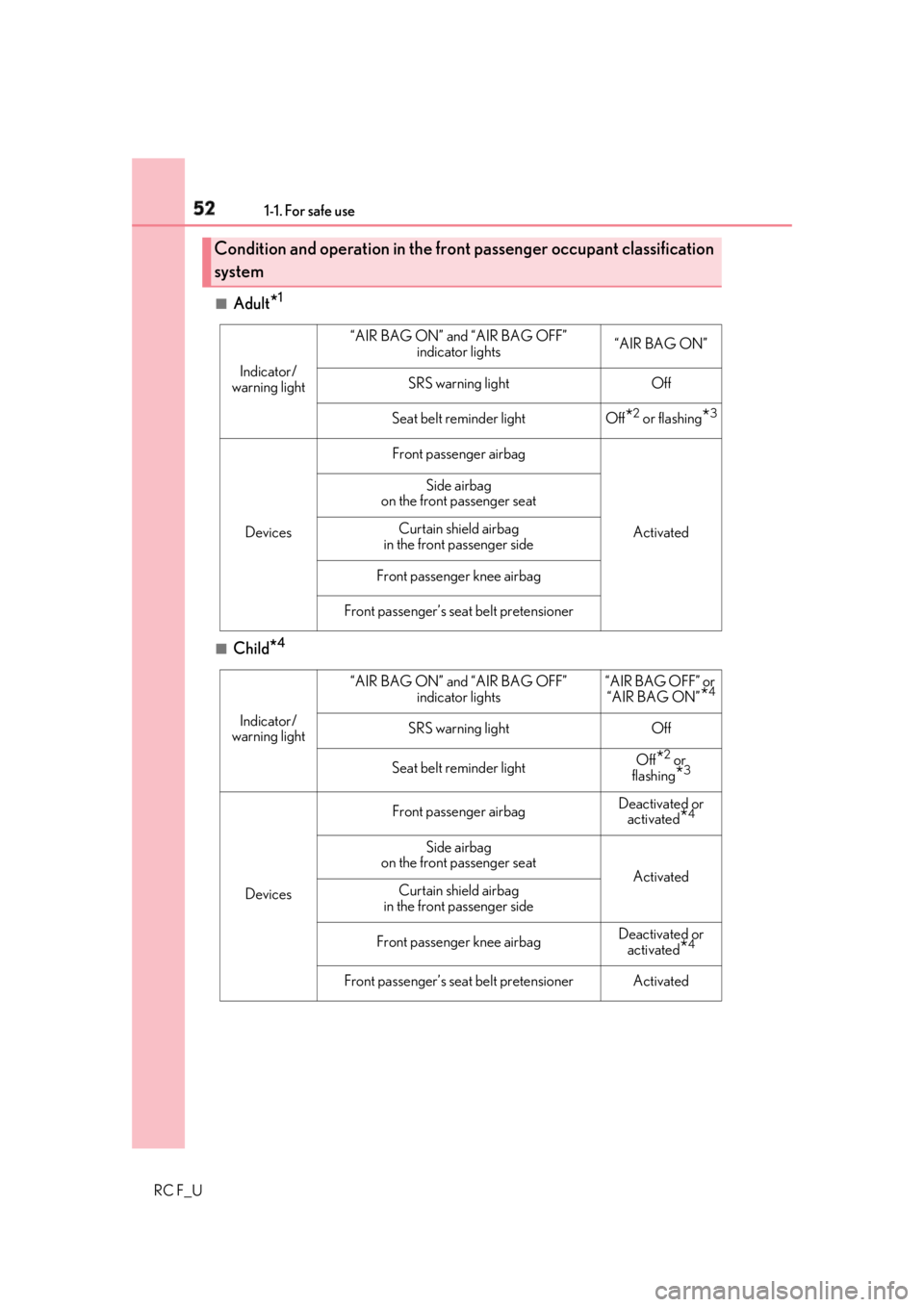

* 4Condition and operation in the front passenger occupant classification
system Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG ON”
SRS warning light Off
Seat belt reminder light Off
* 2
or flashing
* 3
Devices Front passenger airbag
ActivatedSide airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF” or
“AIR BAG ON”
* 4
SRS warning light Off
Seat belt reminder light Off
* 2
or
flashing
* 3
Devices Front passenger airbag Deactivated or
activated
* 4
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated or
activated
* 4
Front passenger’s seat belt pretensioner Activated

531-1. For safe use
1
For safety and security
RC F_U ■

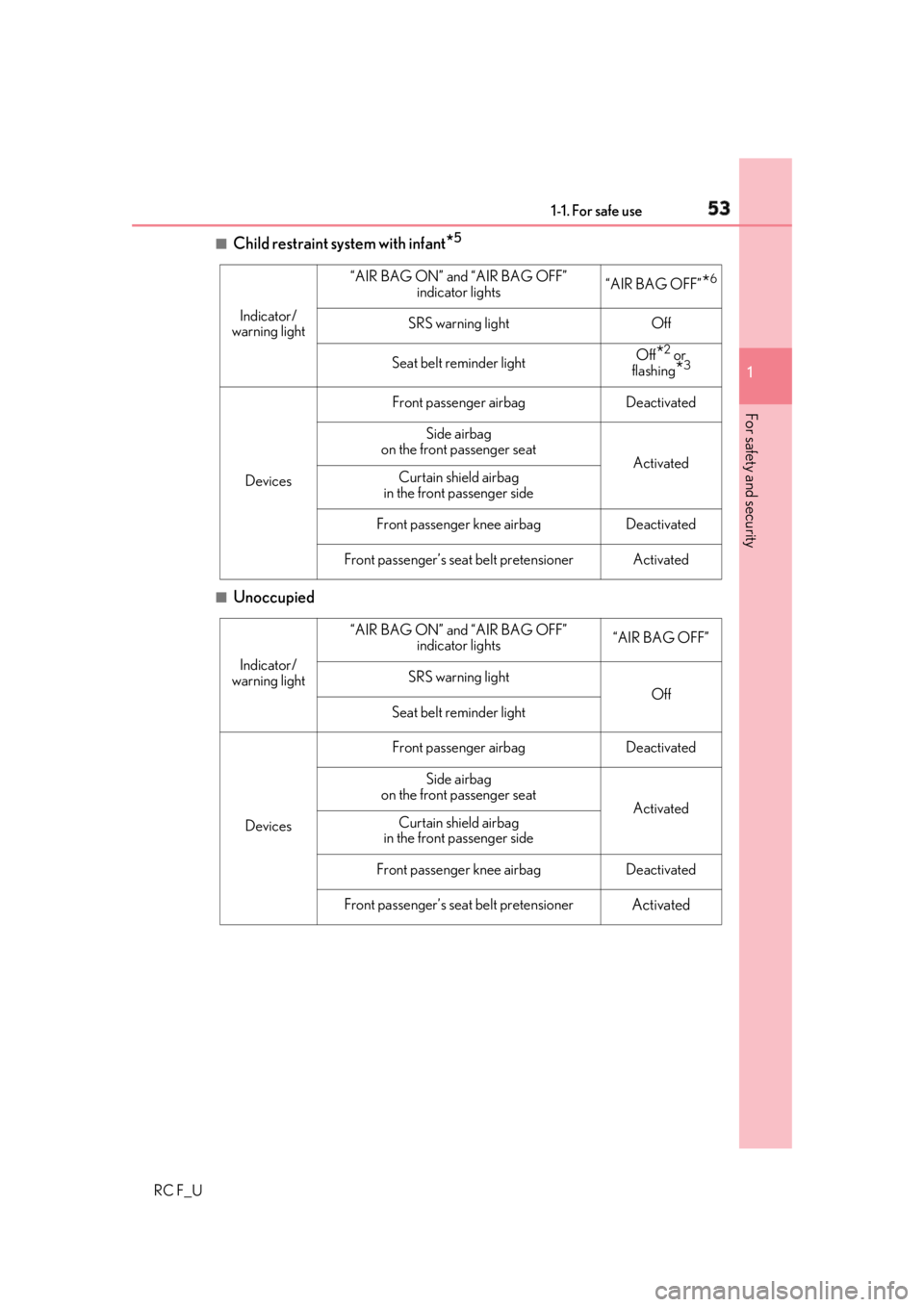

Child restraint system with infant
* 5
■
Unoccupied Indicator/

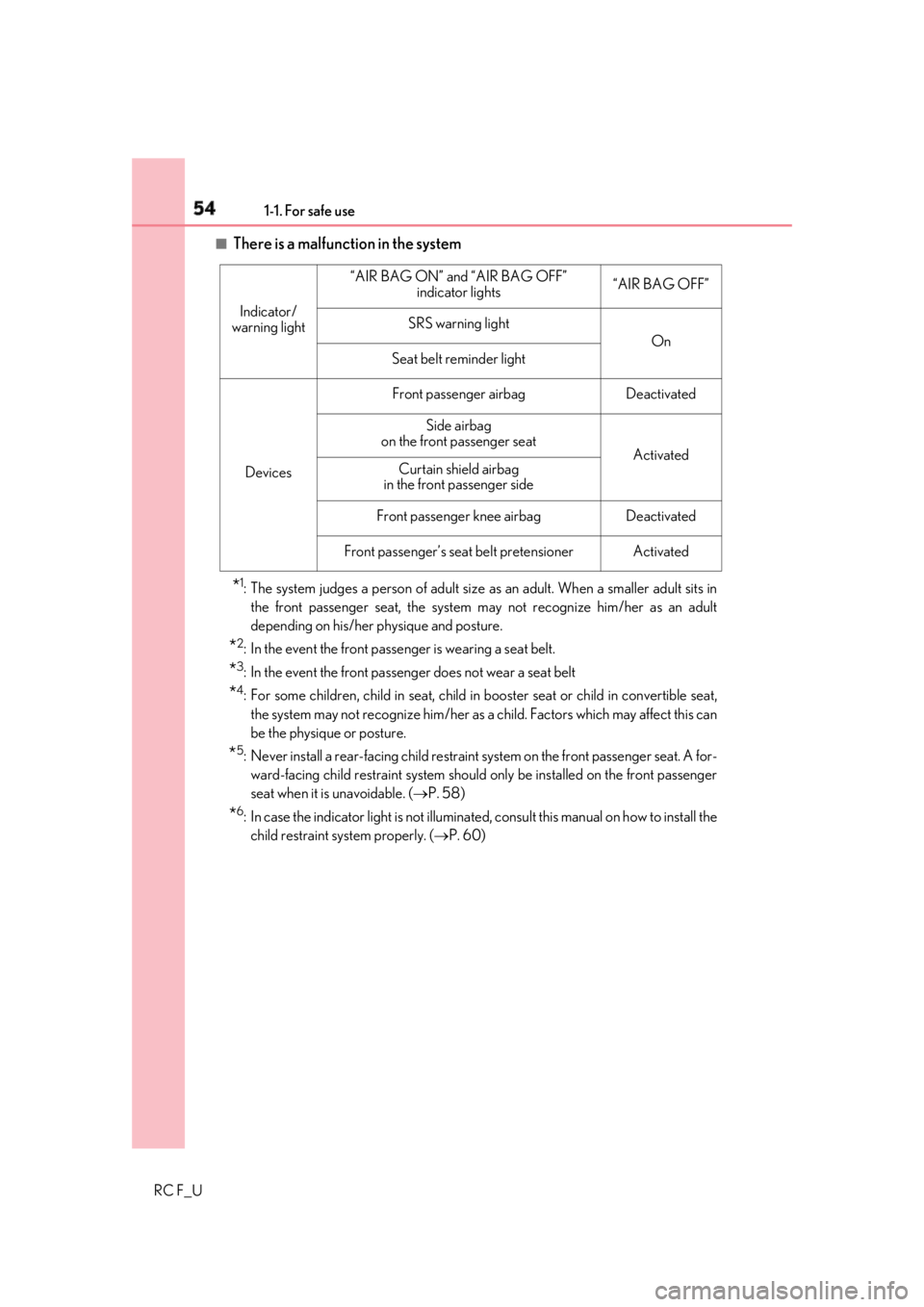

warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
* 6
SRS warning light Off
Seat belt reminder light Off
* 2
or
flashing
* 3
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light
Off
Seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner
Activated

54 1-1. For safe use
RC F_U ■
There is a malfunction in the system
* 1
: The system judges a person of adult size as an adult. When a smaller adult sits in
the front passenger seat, the system ma y not recognize him/her as an adult
depending on his/her physique and posture.
* 2
: In the event the front passenger is wearing a seat belt.
* 3
: In the event the front passenger does not wear a seat belt
* 4
: For some children, child in seat, child in booster seat or child in convertible seat,
the system may not recognize him/her as a child. Factors which may affect this can
be the physique or posture.
* 5
: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint sy stem should only be inst alled on the front passenger
seat when it is unavoidable. (  P. 58)
* 6
: In case the indicator light is not illuminated, consult this manual on how to install the
child restraint system properly. (  P. 60)Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light
On
Seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

551-1. For safe use
1
For safety and security
RC F_U WARNING ■
Front passenger occupant classification system precautions
Observe the following precau tions regarding the front passenger occupant classifica-
tion system.
Failure to do so may cause death or serious injury. ●
Wear the seat belt properly. ●
Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.●
Make sure the “AIR BAG OFF” indicator li ght is not illuminated when using the seat
belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illu-
minated, disconnect the extender tongue from the seat belt buckle, and reconnect
the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON”
indicator light is illuminated. If you use the seat belt extender while the “AIR BAG
OFF” indicator light is illuminated, the SRS airbags for the front passenger may not
activate, which could cause death or seri ous injury in the event of a collision.●
Do not apply a heavy load to the front pa ssenger seat or equipment (e.g. seatback
pocket). ●
Do not put weight on the front passenger seat by putting your hands or feet on the
front passenger seat seatback from the rear passenger seat.●
Do not let a rear passenger lift the front passenger seat with their feet or press on the
seatback with their legs. ●
Do not put objects under the front passenger seat.

56 1-1. For safe use
RC F_U WARNING ■
Front passenger occupant classification system precautions ●
Do not recline the front passeng er seatback so far that it touches a rear seat. This may
cause the “AIR BAG OFF” indicator light to be illuminated, whic h indicates that the
SRS airbags for th e front passenger will no t activate in the even t of a severe accident.
If the seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the effec-
tiveness of the seat belt system. ●
If an adult sits in the fron t passenger seat , the “AIR BAG ON” indicator light is illumi-
nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If
the “AIR BAG OFF” indicator still remain s illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the fron t passenger seat fully
rearward. ●
When it is unavoidable to in stall a forward-facing child re straint system on the front
passenger seat, install the ch ild restraint system on the front passenger seat in the
proper order. (  P. 60)●
Do not modify or remove the front seats. ●
Do not kick the front passenger seat or subject it to severe impact. Otherwise, the
SRS warning light may come on to indica te a malfunction of the front passenger
occupant classification system. In this cas e, contact your Lexus dealer immediately.●
Child restraint systems insta lled on the rear se at should not contact the front seat-
backs. ●
Do not use a seat accessory, such as a cushion and seat cover, that covers the seat
cushion surface. ●
Do not modify or replace the upholstery of the front seat. ●
Do not place anything between the cons ole box and front passenger seat. Other-
wise, the system may not de tect the front passenger pr operly, leading to improper
operation of the airbags. ●
Adjust the front passenger seat so that the head restraint does not touch the ceiling. If
the head restraint is left in contact with the ceiling, the system may not detect the front
passenger properly, leading to improper operation of the airbags.

571-1. For safe use
1
For safety and security
RC F_U ●
It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch, etc. ●
Use the window lock switch to avoi d children operating the power window
accidentally. ●
Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Safety information for children Observe the following precautions wh en children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
WARNING
Never leave children unattended in the vehicl e, and never allow child ren to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
or other features of the vehi cle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

58 1-1. For safe use
RC F_U Points to remember ....................................................................................................... P. 58
Child restraint system ................................................................................................... P. 60
When using a child restraint system on the front passenger seat ............... P. 62
When using a child restraint system on a rear seat .......................................... P. 64
Child restraint system installation method
• Fixed with a seat belt ............................................................................................... P. 65
• Fixed with child restraint LATCH anchors ...... ................................................ P. 71
• Using an anchor bracket (for top tether stra p) ............................................. P. 76
The laws of all 50 states of the U.S.A. as well as Canada now require the use of
child restraint systems. ●
Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems. ●
Choose a child restraint system that su its your vehicle and is appropriate to
the age and size of the child. ●
Use a child restraint system appropriat e for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.Child restraint systems Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different type s of child restraint systems, as well as
installation methods, etc., written in this manual.
Use a child restraint system when riding with a small child that cannot properly
use a seat belt. For the child’s safety, in stall the child restraint system to a rear
seat. Be sure to follow the installation method that is in the operation manual
enclosed with the restraint system.
Table of contents
Points to remember

591-1. For safe use
1
For safety and security
RC F_U WARNING ■
When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.●
For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child. ●
Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in th e rear seat than in the front seat.●
Holding a child in your or someone else’s ar ms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield or between
the holder and the interior of the vehicle. ●
Place one child to a child restraint system and then secure the child with the harness
of the child restraint system. ■
Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers
may be seriously injured or even killed in th e event of sudden braking, sudden swerv-
ing, or an accident. ●
If the vehicle were to receive a strong impact from an accident, etc., it is possible that
the child restraint system has da mage that is not readily visible. In such cases, do not
reuse the restraint system. ●
Make sure you have complied with all installa tion instructions prov ided with the child
restraint system manufacturer and th at the system is properly secured.●
Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system un secured in the passenger compartment.●
If it is necessary to detach the child rest raint system, remove it from the vehicle or
store it securely in the trunk.

60 1-1. For safe use
RC F_U ■
Types of child restraint system installation methods
Confirm with the operation manual encl osed with the child restraint system
about the installation of the child restraint system.

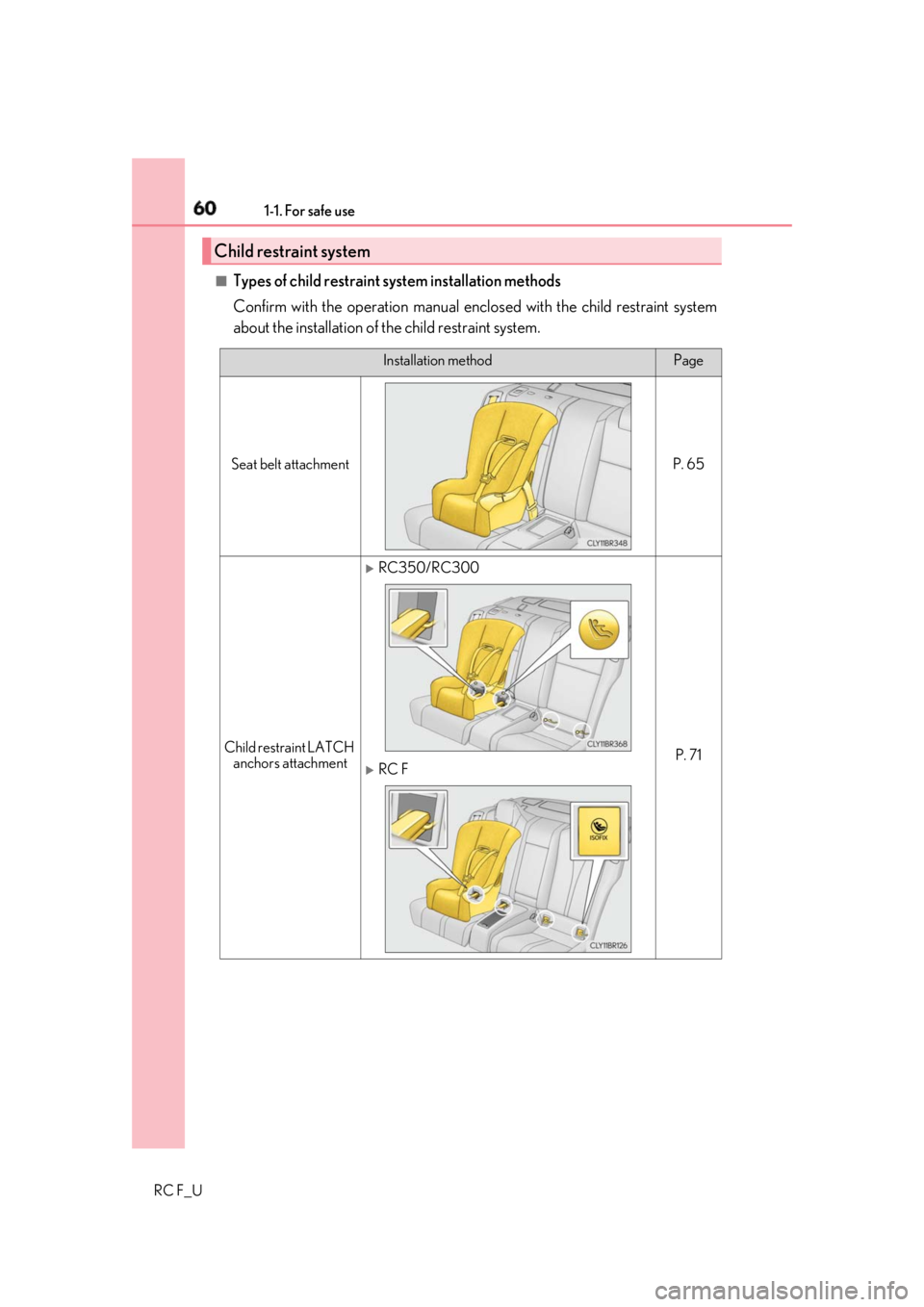

Child restraint system Installation method Page
Seat belt attachment P. 65
Child restraint LATCH
anchors attachment 
RC350/RC300
P. 71
RC F
