3097-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
The warning lights and warning buzzers operate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
 In some situations, the master warning light and warning buzzer may not oper-
ate as specified. In this case, follow the instructions displayed in the warning
message.
 If a warning light comes on or flashes at the same time that a warning message is
displayed, take corrective actio n according to the warning light. ( P.300)
*: A buzzer sounds the first time a message is shown on the multi-information display.
■Warning messages
The warning messages explained below
may differ from the actual messages
according to operation conditions and vehi-
cle specifications.
■Warning buzzer
In some cases, the bu zzer may not be heard
due to being in a noisy location or audio
sound.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level is low. Check the level
of the engine oil, and add if necessary. This message may appear if the vehicle is
stopped on a slope. Move the vehicle to a
level surface and check to see if the mes-
sage disappears.
■If “Engine Stopped Steering Power
Low” is displayed
This message is displayed if the engine is
stopped while driving.
When steering wheel operations are
heavier than usual, gr ip the steering wheel
firmly and operate it using more force than
usual.
■If “Power Turned Off to Save Battery” is
displayed
Power was turned off due to the automatic
Messages and warnings
Warning buzzer*Warning
Comes onSounds
Indicates an important situat ion, such as when a sys-
tem related to driving is ma lfunctioning or that dan-
ger may result if the co rrection procedure is not
performed
FlashesSoundsIndicates a situation, such as when damage to the
vehicle or danger may result
Comes onDoes not sound
Indicates a condition, such as malfunction of electri-
cal components, their cond ition, or indicates the
need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an operation has
been performed incorrectly, or indicates how to
perform an operation correctly

3107-2. Steps to take in an emergency
RC F Owner's Manual
power off function. Next time when starting
the engine, increase the engine speed
slightly and maintain that level for approxi-
mately 5 minutes to recharge the battery.
■If “Headlight System Malfunction Visit
Your Dealer” is displayed
The following systems may be malfunction-
ing. Have the vehicle inspected by your
Lexus dealer immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam
■If “Radar Cruise Control Unavailable” is
displayed
The dynamic radar cruise control system
cannot be used temporarily. Use the system
when it becomes available again.
■If a message that indicates the malfunc-
tion of front camera is displayed
The following systems may be suspended
until the problem shown in the message is
resolved. ( P.155, 303)
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert with steering
control)
●Dynamic radar cruise control
●Automatic High Beam
■If a message that indicates the malfunc-
tion of radar sensor is displayed
The following systems may be suspended
until the problem shown in the message is
resolved.P.155, 300
●PCS (Pre-Collision System)
■If “Maintenance Required Soon” is dis-
played
Indicates that all maintenance according to
the driven distance on the maintenance
schedule
* should be performed soon.
Comes on approximately 4500 miles
(7200 km) after the message has been
reset. If necessary, perform maintenance.
Please reset the message after the mainte-
nance is performed. ( P.255)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple- ment” for the main
tenance interval
applicable to your vehicle.
■If “Maintenance Required Visit Your
Dealer” is displayed
Indicates that all mainte nance is required to
correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles
(8000 km) after the message has been
reset. (The indicator will not work properly
unless the message has been reset.) Per-
form the necessary maintenance. Please
reset the message after the maintenance is
performed. ( P.255)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the main tenance interval
applicable to your vehicle.
■If “Active Rear Wing Off Go to Settings
to turn On” is displayed
The active rear wing switch was pressed
when the active rear wing
* was disabled.
Enable the active rear wing before pressing
the active rear wing switch. ( P.195)
*: If equipped
■If “TVD System Overheated Reduce
Engine Speed and Load” is displayed
The TVD system
* has overheated, this mes-
sage may be displayed when driving under
high load conditions, such as the following:
●When driving at high speeds or through
sharp turns continuously
●When either rear tire has lost traction
and spun continuously
Drive the vehicle for a while, while avoiding
high load conditions.
*: If equipped
■If a message that indicates the need for
visiting your Lexus dealer is displayed
The system or part shown on the
multi-information displa y is malfunctioning.
Have the vehicle inspected by your Lexus
dealer immediately.

3117-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
■If “See Owner’s Manual” is displayed
●If the following messages are shown, fol-
lowing the instructions, accordingly.
• “Engine Coolant Temp High” ( P.336)
• “Transmission Fluid Temp High” ( P.132)
●If any of the following messages are
shown on the multi-information display, it
may indicate a malf unction. Have the
vehicle inspected by your Lexus dealer
immediately.
• “Access System with Elec. Key Malfunc-
tion”
●If any of the following messages are
shown on the multi-info rmation display, it
may indicate a malfunction. Immediately
stop the vehicle and contact your Lexus
dealer.
• “Braking Power Low”
• “Charging System Malfunction”
• “Oil Pressure Low”
 Stop the vehicle in a safe place on a
hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the engine.
 Turn on the emergency flashers.
( P.292)
 Check the degree of the tire dam-
age.
A tire should only be repaired with the
emergency tire puncture repair kit if
the damage is caused by a nail or
NOTICE
■“High Power Consumption Partial
Limit On AC/Heater Operation” is
frequently shown
There is a possible malfunction relating
to the charging system or the battery
may be deteriorating. Have the vehicle
inspected by your Lexus dealer.
If you have a flat tire (vehi-
cles with an emergency tire
puncture repair kit)
Your vehicle is not equipped with a
spare tire, but instead is equipped
with an emergency tire puncture
repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired temporarily
with the emergency tire puncture
repair kit.
WARNING
■If you have a flat tire
Do not continue drivin g with a flat tire.
Driving even a short distance with a flat
tire can damage the tire and the wheel
beyond repair. Driving with a flat tire may
cause a circumferential groove on the
side wall. In such a case, the tire may
explode when using the emergency tire
puncture repair kit, resulting in death or
serious injury.
Before repairing the vehicle

3127-2. Steps to take in an emergency
RC F Owner's Manual
screw passing through the tire tread.
• Do not remove the nail or screw from the tire. Removing the object
may widen the opening and
disenable emergency repair with
the kit.
• To avoid sealant leakage, move the vehicle until the area of the punc-
ture, if known, is positioned at the
top of the tire.■A flat tire that cann ot be repaired with
the emergency tire puncture repair kit
In the following cases, the tire cannot be
repaired with the emergency tire puncture
repair kit. Contact your Lexus dealer.
●When the tire is damaged due to driving
without sufficient air pressure
●When the tire lost air pressure due to a
crack or damage in the tire sidewall
●When the tire is visibly separated from
the wheel
●When the cut or damage to the tread is
0.16 in. (4 mm) long or more
●When the wheel is damaged
●When 2 or more shar p objects, such as
nails or screws, have passed through the
tread on a single tire
●When there is more than one hole or cut
in the damaged tire
●When the sealant has expired
Wheel nut wrench*
Jack handle*
Location of the emergency tire puncture repair kit and tools
A
B

3137-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
Screwdriver
Emergency tire puncture repair kits
Towing eyelet
Jack
*
(Use of the jack:P.324)
*: They can be purchased at your Lexus dealer.
Bottle
Hose
Air release cap
Stickers
Emergency tire puncture repair kit components
C
D
E
F
A
B
C

3147-2. Steps to take in an emergency
RC F Owner's Manual
CompressorCompressor switch
Air pressure gauge
Power plug
■Emergency tire puncture repair kit
●The sealant has a lim ited lifespan. The
expiry date is marked on the bottle. The
sealant should be re placed before the
expiry date. Contact your Lexus dealer
for replacement.
●The sealant stored in the emergency tire
puncture repair kit can be used only once
to temporarily repair a single tire. If the
sealant has been used and needs to be
purchased, contact your Lexus dealer.
The compressor is reusable.
●The sealant can be used when the outside
temperature is from -40°F (-40°C) to
140°F (60°C).
●The kit is exclusively designed for size
and type of tires originally installed on
your vehicle. Do not use it for tires that a
different size than the original ones, or for
any other purposes.
●If the sealant gets on your clothes, it may
stain.
●If the sealant adheres to a wheel or the
surface of the vehicle body, the stain may
not be removable if it is not cleaned at
once. Immediately wipe away the sealant
with a wet cloth.
●During operation of the kit, a loud opera-
tion noise is produced. This does not indi-
cate a malfunction.
●Do not use the emergency tire puncture
repair kit to check or to adjust the tire
pressure.
■Note for checking the emergency tire
puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do
not use sealant whose expiry date has
already passed. Otherwise, repairs con-
ducted using the emergency tire puncture
repair kit may not be performed properly.
A
B
C
WARNING
■Caution while driving
Observe the following precautions.
Failure to do so may cause an accident.
●The emergency tire puncture repair kit
is made exclusively for your vehicle.
Do not use it on other vehicles.

3157-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
1Hold the hook and lift up the lug-
gage mat.
2 Secure the luggage mat using the
hook. 3
Take out the emergency tire punc-
ture repair kits.
1 Remove the valve cap from the
valve of the punctured tire.
2 Extend the hose. Remove the air
release cap from the hose.
WARNING
●Do not use the emergency tire punc-
ture repair kit for tires that are a differ-
ent size than the specified ones or for
any other purpose. Doing so may
cause the tires to not be repaired
properly.
■Precautions for use of the sealant
●Ingesting the sealant is hazardous to
your health. If you ingest sealant, con-
sume as much water as possible, then
immediately consult a doctor.
●If sealant gets in eyes or adheres to
skin, immediately wash it off with water.
If discomfort persists, consult a doctor.
Taking out the emergency tire
puncture repair kits
NOTICE
■To prevent damage to luggage mat
When closing the trunk lid, do not leave
the luggage mat lever hooked onthe
edge of the trunk.
Emergency repair method

3167-2. Steps to take in an emergency
RC F Owner's Manual
You will use the air release cap again.
Therefore keep it in a safe place.
3Connect the hose to the valve.
Screw the end of the hose clockwise as far
as possible.
4Make sure that the compressor
switch is off.
5 Lift the rubber stopper on the com-
pressor. 6
Remove the power plug from the
compressor.
7 Connect the power plug to the
power outlet socket. ( P.226)
8 Connect the bottle to the compres-
sor.
Make sure that the bottle is securely con-
nected.
9Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the label. If it is
impossible to attach the label, make sure to
tell your Lexus dealer when you have them
repair and replace the tire that sealant is

3177-2. Steps to take in an emergency
RC F Owner's Manual

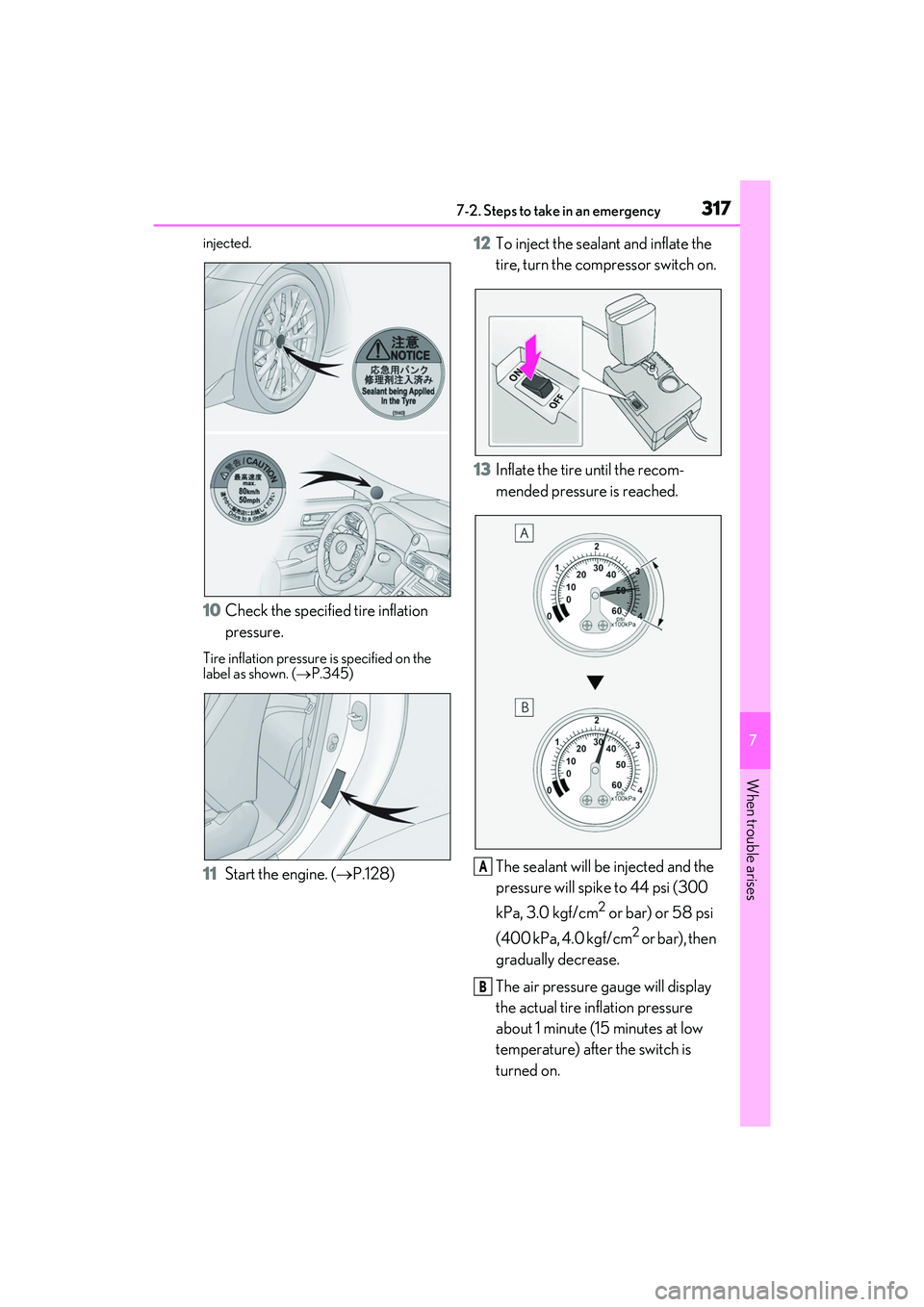

7
When trouble arises
injected.
10Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the
label as shown. ( P.345)
11 Start the engine. ( P.128) 12
To inject the sealant and inflate the
tire, turn the compressor switch on.
13 Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and the
pressure will spike to 44 psi (300
kPa, 3.0 kgf/cm
2 or bar) or 58 psi
(400 kPa, 4.0 kgf/cm
2 or bar), then
gradually decrease.
The air pressure gauge will display
the actual tire inflation pressure
about 1 minute (15 minutes at low
temperature) after the switch is
turned on.
A
B

3187-2. Steps to take in an emergency
RC F Owner's Manual
Turn the compressor switch off and then
check the tire inflation pressure. Being
careful not to over inflate, check and
repeat the inflation procedure until the rec-
ommended tire inflation pressure is
reached.
If the tire inflation pre ssure is still lower than
the recommended level after inflation for
10 minutes (35 minutes at low tempera-
ture) with the switch on, the tire is too dam-
aged to be repaired. Turn the compressor
switch off and contact your Lexus dealer.
If the tire inflation pressure exceeds the
recommended level, let out some air to
adjust the tire inflation pressure. ( P.319,
345)
14 With the compressor switch off, dis-
connect the hose from the valve on
the tire and then pull out the power
plug from the power outlet socket.
Some sealant may leak when the hose is
removed.
15Install the valve cap onto the valve
of the emergency repaired tire.
16 Attach the air release cap to the
end of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may get
dirty.
17Temporarily store the bottle in the
trunk while it is connected to the
compressor.
18 To spread the liquid sealant evenly
within the tire, immediately drive safely for about 3 miles (5 km)
below 50 mph (80 km/h).
19 After driving, stop your vehicle in a
safe place on a hard, flat surface
and reconnect the compressor.
20 Turn the compressor switch on and
wait for several seconds, then turn it
off. Check the tire inflation pres-
sure.
If the tire inflation pressure is below
19 psi (130 kPa, 1.3 kgf/cm
2 or bar):
The puncture cannot be repaired.
Contact your Lexus dealer.
If the tire inflation pressure is
between 19 psi (130 kPa, 1.3
kgf/cm
2 or bar) and a point below
the recommended level: The tire
can be repaired. Proceed to step
21 .
If the tire inflation pressure is at the
recommended level: Proceed to
A
B
C
