3197-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
step 22.
21 Turn the compressor switch on to
inflate the tire until the recom-
mended tire inflation pressure is
reached. Drive for about 3 miles (5
km) and then perform step 19.
22 Attach the air release cap to the
end of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may get
dirty.
23Store the bottle in the trunk while it
is connected to the compressor.
24 Taking precautions to avoid sud-
den braking, sudd en acceleration
and sharp turns, drive carefully at
under 50 mph (80 km/h) to your
Lexus dealer that is less than 62
miles (100 km) away for tire repair
or replacement.
■After a tire is repaired with the emer-
gency tire puncture repair kit
●The tire pressure warning valve and
transmitter should be replaced.
●Even if the tire inflat ion pressure is at the
recommended level, the tire pressure
warning light may come on/flash.
■If the tire is inflated to more than the
recommended level
1 Disconnect the hose from the valve.
2 Install the air release cap to the end of
the hose and push the protrusion on the air release cap into the valve to let some
air out.
3 Disconnect the hose from the valve,
remove the air release cap from the
hose and then reconnect the hose.
4 Turn the compressor sw itch on and wait
for several seconds, then turn it off.
Check that the air pressure indicator
shows the recommended level.
(  P.345)
If the air pressure is lower than the rec-
ommended level, tu rn the compressor
switch on again and repeat the inflation
procedure until the recommended
pressure is reached.
WARNING
■When fixing the flat tire
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Stop your vehicle in a safe and flat
area.
●Do not touch the wheels or the area
around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the
wheels and the area around the brakes
may be extremely hot. Touching these
areas with hands, feet or other body
parts may result in burns.
●Connect the valve and hose securely
with the tire installed on the vehicle.
• If the hose is not properly connected to the valve, air leakage may occur or
sealant may be sprayed out.

3207-2. Steps to take in an emergency
RC F Owner's Manual
WARNING
• If the hose comes off the valve while inflating the tire, there is a risk that the
hose will move abruptly due to air
pressure.
• After inflation of the tire has com- pleted, the sealant may splatter when
the hose is disconnected or some air is
let out of the tire.
●Follow the operation procedure to
repair the tire. If the procedure is not
followed, the sealant may spray out.
●Keep back from the tire while it is
being repaired, as th ere is a chance of
it bursting while the repair operation is
being performed. If you notice any
cracks or deformation of the tire, turn
off the compressor switch and stop the
repair operation immediately.
●The kit may overheat if operated for a
long period of time. Do not operate
the compressor continuously for more
than 35 minutes.
●Parts of the kit become hot during
operation. Be carefu l handling the kit
during and after operation. Do not
touch the metal part around the con-
necting area between the bottle and
compressor. It will be extremely hot.
●Do not attach the vehicle speed warn-
ing sticker to an area other than the
one indicated. If the sticker is attached
to an area where an SRS airbag is
located, such as the pad of the steering
wheel, it may prev ent the SRS airbag
from operating properly.
■Driving to spread the liquid sealant
evenly
●Drive the vehicle carefully at a low
speed. Be especially careful when
turning and cornering.
●If the vehicle does not drive straight or
you feel a pull through the steering
wheel, stop the vehicle and check the
following:
• Tire condition. The tire may have sepa- rated from the wheel.
• Tire inflation pressure. If tire inflation p r e s s u r e i s 1 9 p s i ( 1 3 0 k P a , 1 . 3 k g f / c m
2
or bar) or below, this may indicate
severe tire damage.
NOTICE
■When performing an emergency
repair
●Perform the emergency repair with-
out removing the nail or screw that has
punctured the tread of the tire. If the
object that has punc tured the tire is
removed, repair by the emergency tire
puncture repair kit may not be possi-
ble.
●The kit is not waterproof. Make sure
that the kit is not exposed to water,
such as when it is being used in the
rain.
●Do not put the kit directly onto dusty
ground such as sand at the side of the
road. If the kit vacuums up dust etc., a
malfunction may occur.
●Make sure to stand the kit with the bot-
tle vertical. The kit cannot work prop-
erly if it is laid on its side.
■Handling the emergency tire punc-
ture repair kit
●The compressor power source should
be 12 V DC suitable for vehicle use.
Do not connect the compressor to any
other source.
●If gasoline splatters on the kit, the kit
may deteriorate. Take care not to allow
gasoline to contact it.

3217-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
Stop the vehicle in a safe place on a
hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the engine.
 Turn on the emergency flashers.
( P.292)
NOTICE
●Store the emergency tire puncture
repair kit in the trunk. The kit may be
thrown around during sudden braking
and so forth, damaging the kit.
●Store the kit in its assigned place out of
reach of children.
●Do not disassemble or modify the kit.
Do not subject parts such as the air
pressure indicator to impacts. This may
cause a malfunction.
■To avoid damage to the tire pressure
warning valves and transmitters
When a tire is repair ed with liquid seal-
ants, the tire pressure warning valve and
transmitter may not operate properly. If a
liquid sealant is used , contact your Lexus
dealer as soon as possible. After use of
liquid sealant, make sure to replace the
tire pressure warnin g valve and transmit-
ter when repairing or replacing the tire.
(
P.275)
If you have a flat tire (vehi-
cles with a spare tire)
Your vehicle is equipped with a
spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P.271
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat
tire can damage the tire and the wheel
beyond repair, which could result in an
accident.
Before jacking up the vehicle

3227-2. Steps to take in an emergency
RC F Owner's Manual
Spare tire
Tool bags
Wheel nut wrench
Towing eyelet
Screwdriver
Jack handle
Jack
Location of the spare tire, jack and tools
A
B
C
D
E
F
G
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause
the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any pur-
pose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with
this vehicle or a jack designed for this
vehicle, purchased from a lexus dealer,
when replacing a flat tire.
Do not use it on other vehicles, and do
not use other tire jacks for replacing
tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under
the vehicle while it is supported by the
jack.

3237-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
1Remove the luggage mat.
2 Take out the jack.
1 For tightening 2
For loosening
If the jack is too tightly installed to be
removed by hand, insert a tool, such as the
screwdriver included wi th the vehicle, into
the hole of the jack (portion ) and
loosen the jack.
1 Remove the luggage mat.
2 Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned by
hand, use the wheel nut wrench that is
stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do not
use the wrench or other tools.)
WARNING
●Do not start the engine or drive the
vehicle while the vehicle is supported
by the jack.
●Do not raise the vehicle while some-
one is inside.
●When raising the vehicle, do not put an
object on or under the jack.
●Do not raise the vehicle to a height
greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get
under the vehicle.
●When lowering the vehicle, make sure
that there is no-one near the vehicle. If
there are people nearby, warn them
vocally before lowering.
Taking out the jack
NOTICE
■To prevent damage to luggage mat
When closing the trunk lid, do not leave
the luggage mat lever hooked onthe
edge of the trunk.
Taking out the spare tire
A

3247-2. Steps to take in an emergency
RC F Owner's Manual
1Chock the tires.
2 Slightly loosen the wheel nuts (one
turn). 3
Turn the tire jack portion by
hand until the notch of the jack is in
contact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
4 Raise the vehicle until the tire is
slightly raised off the ground.
5 Remove all the wheel nuts and the
tire.
When resting the tire on the ground, place
the tire so that the wheel design faces up to
avoid scratching the wheel surface.
WARNING
■When storing the spare tire
Be careful not to catch fingers or other
body parts between the spare tire and
the body of the vehicle.
Replacing a flat tire
Flat tireWheel chock posi- tions
Front left-hand sideBehind the rear
right-hand side tire
Front right-hand
sideBehind the rear
left-hand side tire
Rear left-hand sideIn front of the front
right-hand side tire
Rear right-hand sideIn front of the front
left-hand side tire
A

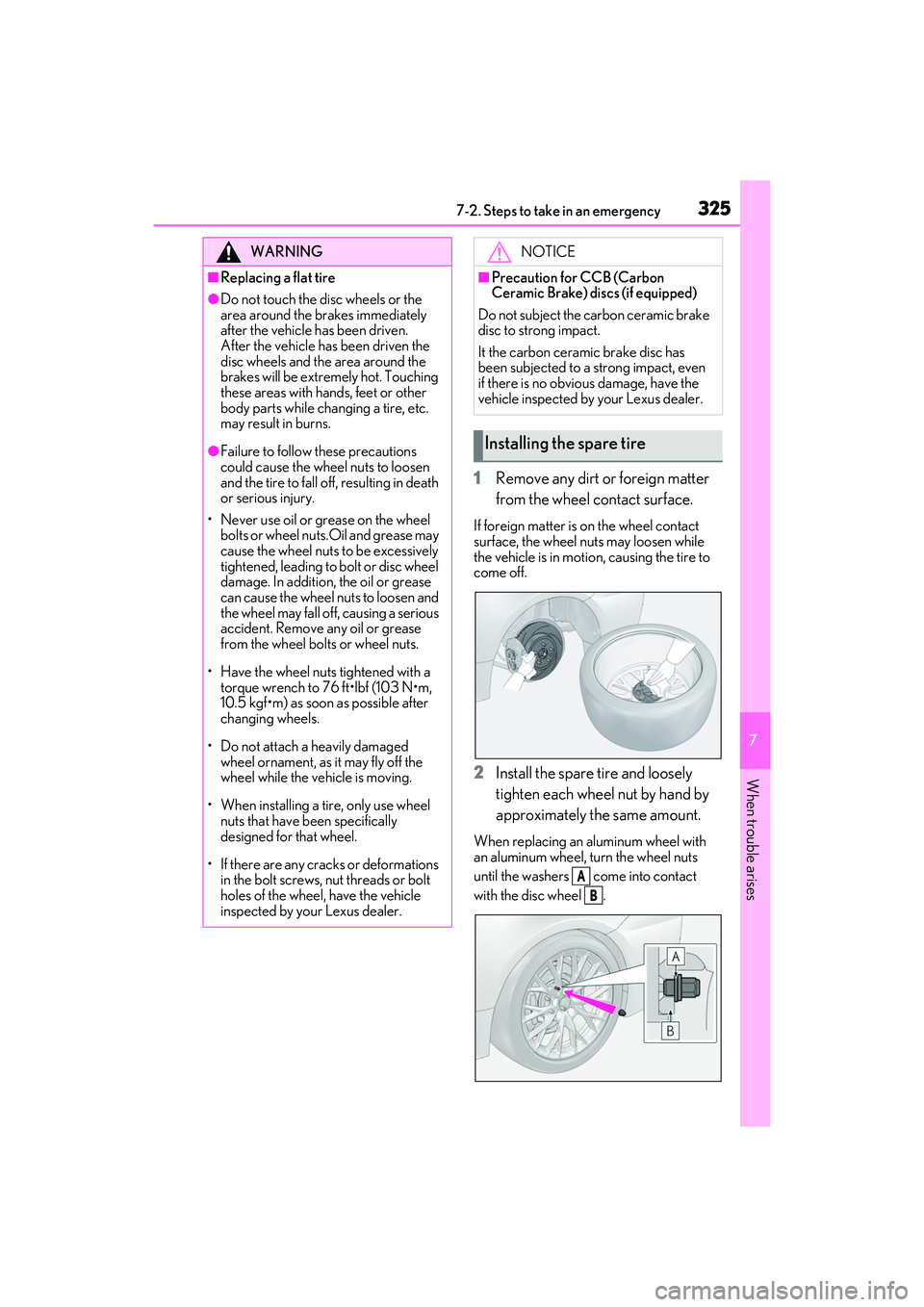

3257-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
1Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen while
the vehicle is in motion, causing the tire to
come off.
2 Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum wheel with
an aluminum wheel, turn the wheel nuts
until the washers come into contact
with the disc wheel .
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the
area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the
disc wheels and the area around the
brakes will be extremely hot. Touching
these areas with hands, feet or other
body parts while changing a tire, etc.
may result in burns.
●Failure to follow these precautions
could cause the wheel nuts to loosen
and the tire to fall of f, resulting in death
or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.Oil and grease may
cause the wheel nuts to be excessively
tightened, leading to bolt or disc wheel
damage. In addition, the oil or grease
can cause the wheel nuts to loosen and
the wheel may fall of f, causing a serious
accident. Remove any oil or grease
from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m,
10.5 kgf•m) as soon as possible after
changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt
holes of the wheel, have the vehicle
inspected by your Lexus dealer.
NOTICE
■Precaution for CCB (Carbon
Ceramic Brake) discs (if equipped)
Do not subject the carbon ceramic brake
disc to strong impact.
It the carbon ceramic brake disc has
been subjected to a strong impact, even
if there is no obvious damage, have the
vehicle inspected by your Lexus dealer.
Installing the spare tire
A
B

3267-2. Steps to take in an emergency
RC F Owner's Manual
3Lower the vehicle.
4 Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
5Stow the flat tire, tire jack and all
tools.
■The spare tire
●Use the spare tire temporarily, and only in
an emergency.
●Make sure to check the tire inflation pres-
sure of the spare tire. ( P.345)
■When using the spare tire
As the spare tire is not equipped with a tire
pressure warning valve and transmitter, low
inflation pressure of the spare tire will not be
indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after
the tire pressure warning light comes on,
the light remains on.
*:If equipped
■When the spare tire is equipped
The vehicle becomes lower when driving
with the spare tire compared to when driv-
ing with standard tires.
WARNING
■When using the spare tire
●Remember that the sp are tire provided
is specifically designed for use with
your vehicle. Do not use your spare
tire on another vehicle.
●Do not use more than one spare tire
simultaneously.
●Replace the spare tire with a standard
tire as soon as possible.
●Avoid sudden acceleration, abrupt
steering, sudden braking and shifting
operations that cause sudden engine
braking.
■When the spare tire is attached
The vehicle speed may not be correctly
detected, and the following systems may
not operate correctly:
• ABS & Brake assist
•VSC
•TRAC
• Dynamic radar cruise control
•PCS
•EPS
• Adaptive Variable Suspension System
• LDA (Lane Departure Alert with steering control)
• VDIM (Vehicle Dynamics Integrated Management)
• Tire pressure warning system
•Lexus parking assist monitor
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)

3277-2. Steps to take in an emergency
RC F Owner's Manual
7
When trouble arises
One of the following may be the cause
of the problem:
There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle.
 The engine may be flooded.
Try to restart the engine again fol-
lowing correct starting procedures.
( P.128)
 There may be a malfunction in the
engine immobilizer system.
( P.57)
One of the following may be the cause
of the problem:
 The battery may be discharged.
( P.332)
 The battery terminal connections
may be loose or corroded.
( P.269)
WARNING
■Speed limit when using the spare tire
Do not drive at speeds in excess of 50
mph (80 km/h) when a spare tire is
installed on the vehicle.
The spare tire is not designed for driving
at high speeds. Failu re to observe this
precaution may lead to an accident caus-
ing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools
and jack are securely in place in their
storage location to reduce the possibility
of personal injury during a collision or
sudden braking.
NOTICE
■Driving with tire chains and the spare
tire
Do not fit tire chains to the spare tire.
Tire chains may damage the vehicle body
and adversely affect driving perfor-
mance.
■When replacing the tires
When removing or fitting the wheels,
tires or the tire pressure warning valve
and transmitter, contact your Lexus
dealer as the tire pr essure warning valve
and transmitter may be damaged if not
handled correctly.
■Precaution for CCB (Carbon
Ceramic Brake) discs (if equipped)
 P.325
If the engine will not start
If the engine will not start even
though correct starting procedures
are being followed ( P.128), con-
sider each of the following points:
The engine will not start even
though the starter motor oper-
ates normally.
The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume.

3287-2. Steps to take in an emergency
RC F Owner's Manual
The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine. (P.328)
One of the following may be the cause
of the problem:
 One or both of the battery terminals
may be disconnected. ( P.269)
 The battery may be discharged.
( P.332)
 There may be a malfunction in the
steering lock system.
Contact your Lexus dealer if the problem
cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally:
1 Set the parking brake.
2 Shift the shift lever to P.
3 Turn the engine switch to ACCES-
SORY mode. 4
Press and hold the engine switch
for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by your Lexus dealer.
The starter motor does not turn
over
The starter motor does not turn
over, the interior lights and head-
lights do not turn on, or the horn
does not sound.
Emergency start function
