591-4. Theft deterrent system
RC F Owner's Manual
1
For safety and security
●The trunk is opened using the mechanical
key.
●A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using an inside lock button.
●The battery is rech arged or replaced
when the vehicle is locked. ( P.334)
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

601-4. Theft deterrent system
RC F Owner's Manual

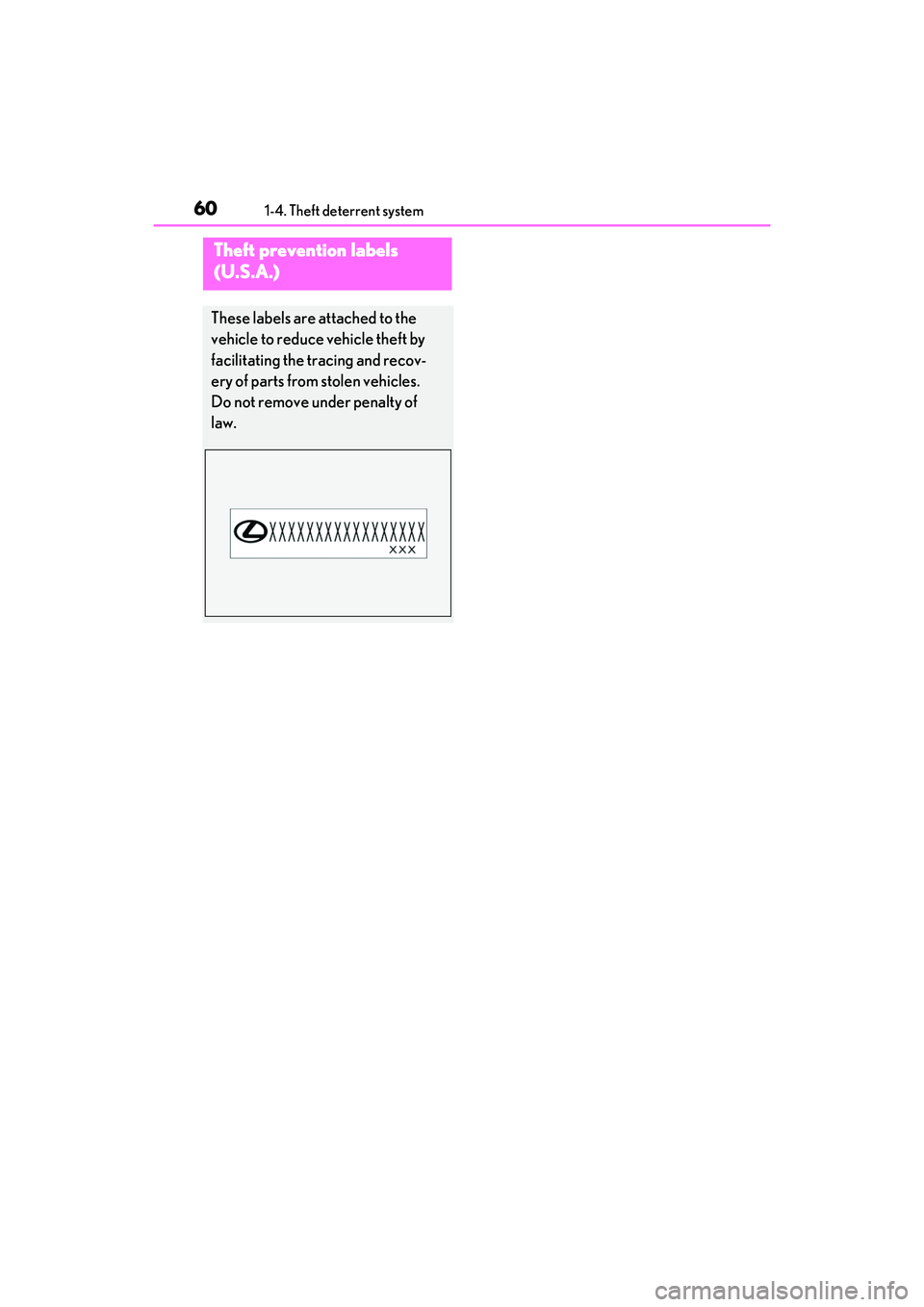

Theft prevention labels
(U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

61
RC F Owner's Manual
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
.2-1. Instrument cluster
Warning lights and indicators........................................................... 62
Gauges and meters .................... 66
Multi-information display.......... 73
Fuel consumption information ........................................................... 83

622-1. Instrument cluster
RC F Owner's Manual
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target
region.
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster
Warning lights
(U.S.A.)
Brake system warning light*1
( P.300)
(Canada)
Brake system warning light*1
( P.300)
High coolant temperature
warning light
*2 ( P.300)
Charging system warning
light
*1, 2 (P.300)
Low engine oil pressure warn-
ing light
*2 ( P.301)
(U.S.A.)
Malfunction indicator lamp*1
( P.301)
(Canada)
Malfunction indicator lamp*1
( P.301)
SRS warning light
*1 ( P.301)

632-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started,
or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor- mation display.
*3: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
(U.S.A.)
ABS warning light*1 (  P.301)
(Canada)
ABS warning light*1 ( P.301)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 ( P.302)
(U.S.A.)
Parking brake warning light
(P.302)
(Canada)
Parking brake warning light
(P.302)
Electric power st eering system
warning light
*1 (  P.302)
(orange)
LDA (Lane Departure Alert)
indicator ( P.303)
(flashes or
illuminates)PCS warning light*1 ( P.303)
Slip indicator
*1 ( P.303)
Automatic headlight leveling
system warning light ( P.304)
Open door warning light
( P.304)
Low fuel level warning light
( P.304)
Driver’s and front passenger’s
seat belt reminder light
( P.304)
Rear passenger’s seat belt
reminder lights
*3 ( P.305)
Master warning light
*1
( P.305)
Tire pressure warning light
*1
( P.305)
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediat ely if this occurs.
Indicators
Turn signal indicator (P.136)
(U.S.A.)
Headlight indicator (P.138)
(Canada)
Tail light indicator ( P.138)
Headlight high beam indicator
(  P.139)
Automatic High Beam indica-
tor
*1 ( P.140)

642-1. Instrument cluster
RC F Owner's Manual
Drive mode indicators
 TVD (Torque Vectoring Differential)
control mode indicators
*1: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: The light comes on when the system is turned off.
*3: In order to confirm operation, the BSM outside rear view mirror indicators illu-
minate in the following situations:
PCS warning light
*1, 2 (
 P.159)
Cruise control indicator
( P.171)
Dynamic radar cruise control
indicator ( P.171)
Cruise control “SET” indicator
( P.171)
(white)
LDA (Lane Departure Alert)
indicator ( P.166)
(green)
LDA (Lane Departure Alert)
indicator (P.166)
(orange)
(flashes)
LDA (Lane Departure Alert)
indicator ( P.166)
BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors
*3, 4 (  P.179)
Intuitive parking assist indicator
(if equipped) ( P.186)
(flashes)
Slip indicator*1 (P.199)
VSC OFF indicator
*1, 2
( P.200)
TRAC OFF indicator
*1, 2
( P.200)
Smart access system with
push-button start indicator
*5
( P.128)
Security indicator
*6 (  P.57,
58)
Low outside temperature indi-
cator
*5, 7 ( P.62)
Eco Driving Indicator Light
*1
( P.76)
(U.S.A.)
“AIR BAG ON/OFF”
indicator
*1, 6 ( P.36)
(Canada)
“AIR BAG ON/OFF”
indicator
*1, 6 ( P.36)
“EXPERT” indicator ( P.200)
“LAUNCH” indicator ( P.193)
“NORMAL” indicator ( P.192)
Eco drive mode indicator
( P.192)
“SPORT S” indicator ( P.192)
“SPORT S+” indicator
( P.192)
“COSTOM” indicator ( P.192)
“STANDARD” indicator (if
equipped) ( P.197)
“SLALOM” indicator (if
equipped) ( P.197)
“TRACK” indicator (if
equipped) ( P.197)

652-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
• When the engine switch is turned to IGNITION ON mode while the
BSM main switch is turned on.
• When the BSM main switch is turned on while the engine switch is
in IGNITION ON mode.
If the system is fu nctioning correctly,
the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehi-
cle inspected by your Lexus dealer.
*4: This light illuminates on the outside rear view mirrors.
*5: This light illuminates on the multi-infor-mation display.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

662-1. Instrument cluster
RC F Owner's Manual
■Locations of gauges and meters
If the drive mode is changed, some of th e meter displays and the gauge layout will
be changed.
The units used on the meters may differ depending on the target region.
Normal mode
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.308)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Gauges and meters
Meter display
A
B
C
D
E

672-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)
Eco drive mode
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.308)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Eco driving meter
F
G
H
I
J
A
B
C
D
E
F

682-1. Instrument cluster
RC F Owner's Manual
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guid eline to show the eco-friendliness of your driving.
Digital speedometer
Analog speedometer
Shift position/shift range/gear position ( P.132)
Odometer and trip meter display ( P.72)
SPORT S mode
The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be change d on the settings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.308)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
G
H
I
J
A
B
C
D
E
