692-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)
SPORT S+ mode
The units used on the meters may differ depending on the target region.
These illustrations show the default meter di splay for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the sett ings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.308)
Fuel gauge
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
F
G
H
I
J
A
B
C
D

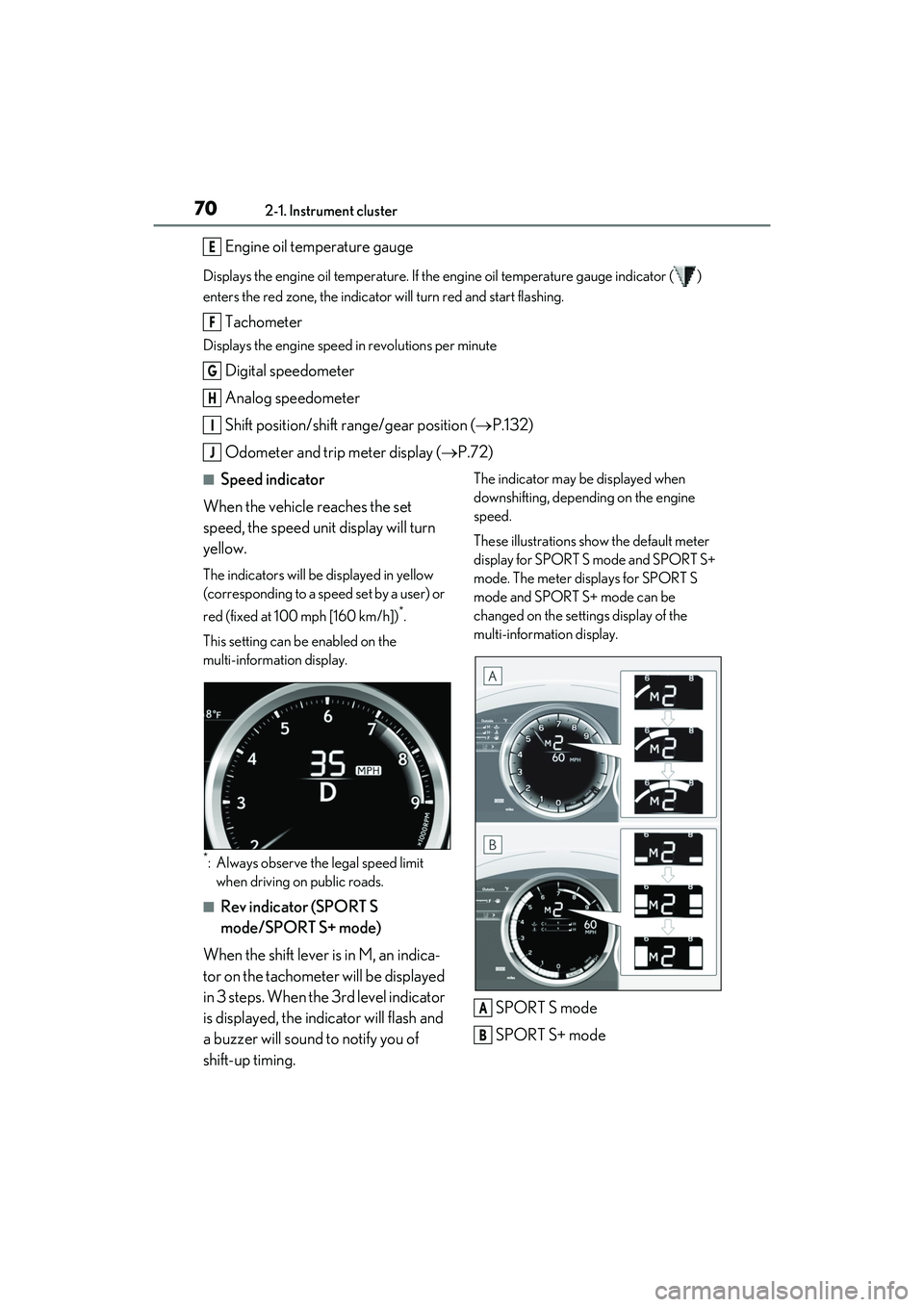

702-1. Instrument cluster
RC F Owner's Manual
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)
■Speed indicator
When the vehicle reaches the set
speed, the speed unit display will turn
yellow.
The indicators will be displayed in yellow
(corresponding to a speed set by a user) or
red (fixed at 100 mph [160 km/h])
*.
This setting can be enabled on the
multi-information display.
*: Always observe the legal speed limit when driving on public roads.
■Rev indicator (SPORT S
mode/SPORT S+ mode)
When the shift lever is in M, an indica-
tor on the tachometer will be displayed
in 3 steps. When the 3rd level indicator
is displayed, the in dicator will flash and
a buzzer will sound to notify you of
shift-up timing.
The indicator may be displayed when
downshifting, depending on the engine
speed.
These illustrations show the default meter
display for SPORT S mode and SPORT S+
mode. The meter displays for SPORT S
mode and SPORT S+ mode can be
changed on the settings display of the
multi-information display.
SPORT S mode
SPORT S+ mode
E
F
G
H
I
J
A
B

712-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
■Rev peak (Normal mode/SPORT
S mode)
The engine speed reaches or exceeds
3600 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
■Meter display and layout
If the drive mode is changed, some of
the meter displays and the gauge lay-
out will be changed. ( P.192)
■The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■Welcome illumination of the analog
speedometer
●When the driver’s door is opened, the
analog speedometer will illuminate. Then,
when the driver’s door is closed, the ana-
log speedometer will illuminate and go
off (pulsate) 3 times.
●In the following situations, the analog
speedometer will not pulsate even
though the driver’s door is opened and
closed:
• Within 60 seconds after the analog
meter pulsation completes
• Within 60 seconds of turning the engine switch off
■Variable red zone
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 rpm to 7300
rpm depending on the engine coolant tem-
perature. Before driving under extremely
high load conditions, make sure to suffi-
ciently warm up the engine.
■Eco driving meter
●The number of blue segments displayed
on the eco driving meter
decreases/increases depending on the
vehicle acceleration. Use this meter as a
guideline when you wish to drive in an
eco-friendly manner that reduces fuel
consumption.
However, on a downward grade where
the vehicle can accelerate without the
accelerator pedal being depressed, the
eco driving meter ma y not display the
eco-driving state correctly.
●When the shift lever is moved to P, N or
R, the segments will turn gray and the eco
driving meter will not operate.
■Dimming the analog speedometer
lighting
The analog speedometer lighting will be
dimmed when the ambient light is bright,
such as during the daytime, and SPORT S
or SPORT S+ mode is selected.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has
Changing the display

722-1. Instrument cluster
RC F Owner's Manual
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “_ _” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
●In some situations, such as when a switch
operation is performe d, a pop-up display
will be temporarily displayed on the
multi-information display.
●Some pop-up displays can be set on/off.
( P.81)
■Liquid crystal display
Small spots or light spots may appear on the
display. This phenomen on is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■Customization
The meter display can be customized on
the multi-information display. ( P.358)
■Display items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
To reset, display the desired trip meter and
press and hold the odometer/trip meter
and trip meter reset button.
■Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator of the tachom-
eter enter the red zone, as it rep-
resents the engine speed range which
exceeds the maximum safe engine
speed.
●In the following situations, the engine
may be overheating. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. ( P.336)
• The engine coolant temperature gauge indicator ( ) is in the red
zone and flashing.
• The engine oil temperature gauge indicator ( ) is in the red zone and
flashing.
Odometer and trip meter dis-
play

732-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
will reset the trip meter.
The brightness of the instrument panel
lights can be adjusted.Darker
Brighter
■Instrument panel brightness adjustment
The instrument pane l brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel bright ness. At this time,
any adjustments made to the instrument
panel brightness levels will be applied to
both settings at once.
■Display
Content display area
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
Sub-content display area
Displays some “F” content in conjunc-
tion with the content display area.
Changing the instrument panel
light brightness
A
B
Multi-information display
The multi-information display pres-
ents the driver with a variety of
vehicle data.
Displays and menu icons

742-1. Instrument cluster
RC F Owner's Manual
■Menu icons
The menu icons will be displayed by
pressing or of the meter con-
trol switch.
■Start-up display
When the engine is started, the name of the
vehicle is displayed on the multi-information
display.
While the start-up display is being dis-
played, the meter display cannot be
changed even if the drive mode is changed.
When the start-up display is finished, the
meter display for the currently selected
mode will be displayed.
■Liquid crystal display
P.72
The multi-information display is oper-
ated using the meter control switches.
/ : Select menu icons
/ : Change displayed con-
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of th e selected menu icon.
Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display
Linked with the hands-free system, sending
or receiving call is di splayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
Drive information
“F” content
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system informa-
tion
Warning message display
Settings display
WARNING
■The information display at low tem-
peratures
P.72
Changing the meter display
A
B
C
D
E

752-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
SYSTEM OWNER’S MANUAL”.
■Registering a top screen
The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold .
 A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.
 When no screen has been regis-
tered, the drive information screen
will be displayed.
■Resetting drive information
To reset the average fuel economy
(after reset)/average vehicle speed
(after reset)/elapsed time (after reset)
that are displayed on , display the
desired item and press and hold .
If both of the displa yed items are resetta-
ble, a message will be displayed asking
which item(s) to reset.
■Drive information 1/Drive infor-
mation 2/Drive information 3
Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
Items displayed can be switched by pressing or of the meter con-
trol switches to select and pressing
or .
Use the displayed values as a reference
only.
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be
changed on . ( P.81)
 Current fuel consumption
Displays instantaneou s current fuel con-
sumption
 Average fuel economy
• After reset: Displays average fuel con-
sumption since display reset
*1, 2
• After start: Displays average fuel con-sumption since engine start
*2
• After refuel: Displays average fuel con-
sumption since refuel
*2, 3
 Average vehicle speed
• After reset: Displays average vehicle
speed since display reset
*1
• After start: Displays average vehicle speed since engine start
 Elapsed time
• After reset: Displays elapsed time since
the display was reset
*1
Content displayed as drive infor-
mation

762-1. Instrument cluster
RC F Owner's Manual
• After start: Displays elapsed time since engine start
 Distance
• Driving range: Displays driving range
with remaining fuel
*3, 4
• After start: Displays drive distance since vehicle start
 Other
Blank: No item
*1:Resetting: P.75
*2: Use the displayed fuel consumption as a
reference.
*3: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.
*4: This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
■Eco Driving Indicator
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on.
When the acceleration exceeds the
Zone of Eco driving, or when the vehi-
cle is stopped, the light turns off. Eco Driving Indicator will not operate
under the following conditions:

The shift lever is in any position
other than D.
 A paddle shift switch is operated.
 Neither normal mode nor Eco drive
mode is selected. ( P.192)
 The vehicle speed is approximately
80 mph (130 km/h) or higher.
■Tire pressure
 P.273
■Gear positions
Displays the current gear position
when the shift lever is in D or M.
■Vehicle sway warning
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
This display is a pa rt of the LDA (Lane
Departure Alert with steering control) sys-
tem. The display is enabled when the oper-
ating conditions of the vehicle sway
warning are met. ( P.165)
■Units
The units of measure used can be
changed while driving.
Unlike the units setting performed on ,
the units setting performed on can be
changed while driving.
■Blank (No items)
Displays no drive information contents.

772-1. Instrument cluster
RC F Owner's Manual
2
Vehicle status information and indicators
■Tire pressure
●It may take a few minutes to display the
tire inflation pressure after the engine
switch is turned to IGNITION ON mode.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
●“---” may be displayed if the tire position
information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with tem-
perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
■Lap timer
Measures and displays current lap time
and previous lap times
 Reading the display
Measured lap times since the timer was
last reset are displayed as follows:
• Content display area
Total lap time
Past lap times
Fastest lap (marked with a star)
• Sub-content display area
Current lap time
Most recent lap time
 Operating the meter control
switches
Press: Start/stop lap timer
Press and hold: Reset : Mark off one lap: Change displayed content
While a lap time is being measured, the
display can be changed to show the follow-
ing content:
• Torque distribution (if equipped)
•G-force
• Tire pressure
• Rear wing position
Resetting/saving measured lap
times
After stopping the lap timer, press and hold
.
When a confirmation sc reen is displayed,
“F” content
A
B
C
A
B
A
B

782-1. Instrument cluster
RC F Owner's Manual
select to reset/save the measured lap
times.
When saved, the lap time data will be dis-
played on the history screen. ( P.78)
■History (Lap timer)
Displays the saved lap times
 Reading the display
• History top screen
Total lap time
Fastest lap time
•Past lap screen
Page
Past lap times (20 most recent lap
times)
Press / to scroll up and down the
screen.
Switching the display
To display the past lap screen, press .
To return to the history top screen, press
.

Deleting history
When the history top screen is displayed,
press and hold
to display a confir-
mation screen.
To delete the history, follow the instructions
displayed on the screen.
■Torque distribution (if equipped)
Displays the distribution of driving
torque between the left and right rear
wheels
 Reading the display
• Normal display
Displays the amount of drive torque
applied to the left and right rear wheels
through bars that fluctu ate in length on the
content display area.
• Advanced display
Displays the difference in torque applied to
the left and right rear wheels through dis-
played segments on the sub-content dis-
play area in addition to the bar display.
The greater the number of segments dis-
played, the greater the difference in torque
is.
A
B
A
B
