6778-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
■When “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunctioning. Have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately.
●The LED headlight system
●The automatic headlight leveling system
●AHS (Adaptive High-beam System) (if equipped)
●Automatic High Beam (if equipped)
■If “Forward Camera System Unavailable” or “Forward Camera System
Unavailable Clean Windshield” is displayed (if equipped)
The following systems may be suspende d until the problem shown in the mes-
sage is resolved.
●PCS (Pre-Crash Safety system)
●LKA (Lane-Keeping Assist)
●Dynamic radar cruise control with full-speed range
●AHS (Adaptive High-beam System)
●Automatic High Beam
●RSA (Road Sign Assist)
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will not
work properly unless the message has been reset.)
Check the engine oil, and change if necessary. After changing the engine oil,
the message should be reset. ( P. 604)
■If “Oil Maintenance Required” is shown
Indicates that the engine oil should be changed. (After the engine oil is
changed and the message has been reset.)
Check and change the engine oil, and oil filter by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional. After chang-
ing the engine oil, the message should be reset. ( P. 604)

6788-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a sep- arate system warning light will come on al ong with a message shown on the multi-infor- mation display.
●“Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. ( P. 667)
●“Charging System Malfunction See Owner’s Manual” (F SPORT models):
The charging system warning light comes on. ( P. 666)
■Warning buzzer
 P. 671
NOTICE
■“High Power Consumption Partial Limit On AC/Heater Operation” is frequently
shown
There is a possible malfunction relating to the charging system or the battery may be deteriorating. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Vehicles with a Heated Windshield Defroste r: This message will be displayed when the Heated Windshield Defroster is oper ating. This is not a malfunction.

7128-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

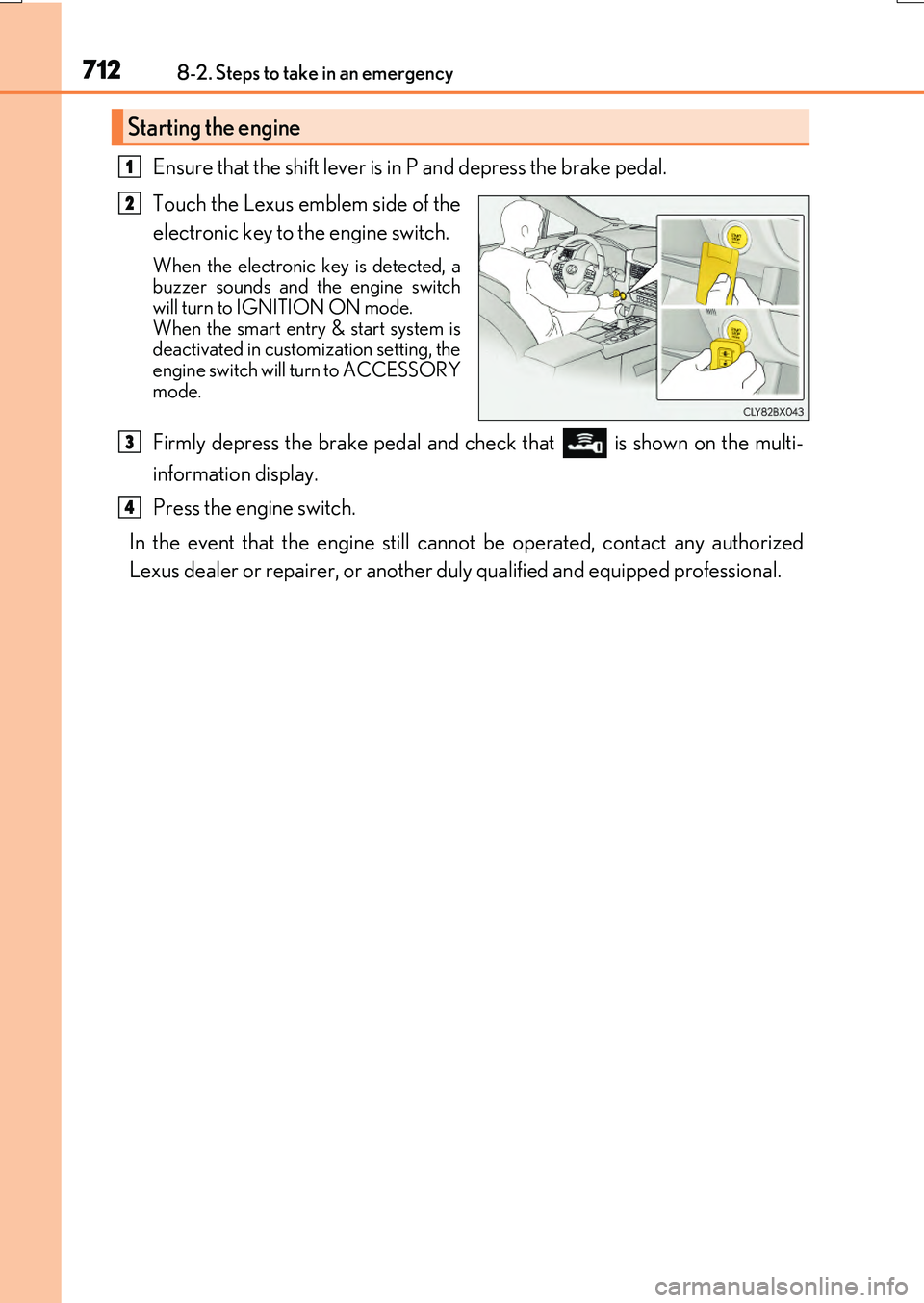

Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a buzzer sounds and the engine switchwill turn to IGNITION ON mode.
When the smart entry & start system is deactivated in customization setting, theengine switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be operated, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Starting the engine
1
2
3
4

7188-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any authorized Lexus dealer or repairer, or anotherduly qualified and equipped profes-
sional.

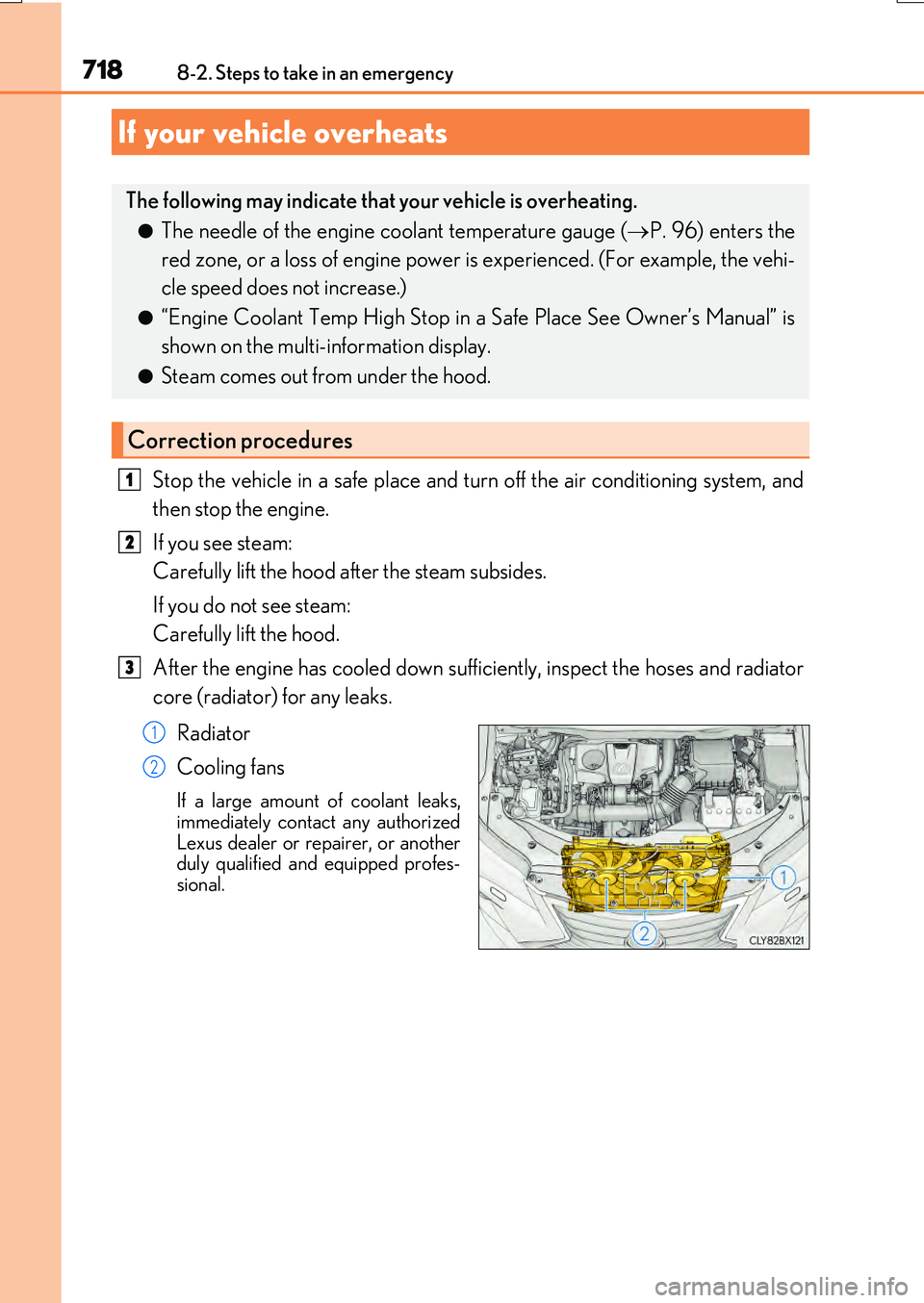

If your vehicle overheats
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge (P. 96) enters the
red zone, or a loss of engine power is experienced. (For example, the vehi-
cle speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display.
●Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

7208-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fan operates and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow. If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
WARNING
■To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans andbelts. Failure to do so may cause the hands or clothing to be caught, resulting in seri- ous injury.
●Do not loosen the radiator cap and the coolant reservoir caps while the engine andradiator are hot.High temperature steam or coolant could spray out.
6
7
8

731
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20” means the SAE viscosity grade.
Lower portion: “Resource- Conserving” means that the oil hasfuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica- tion Mark is displayed on the front of the container.
1
2

733
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E

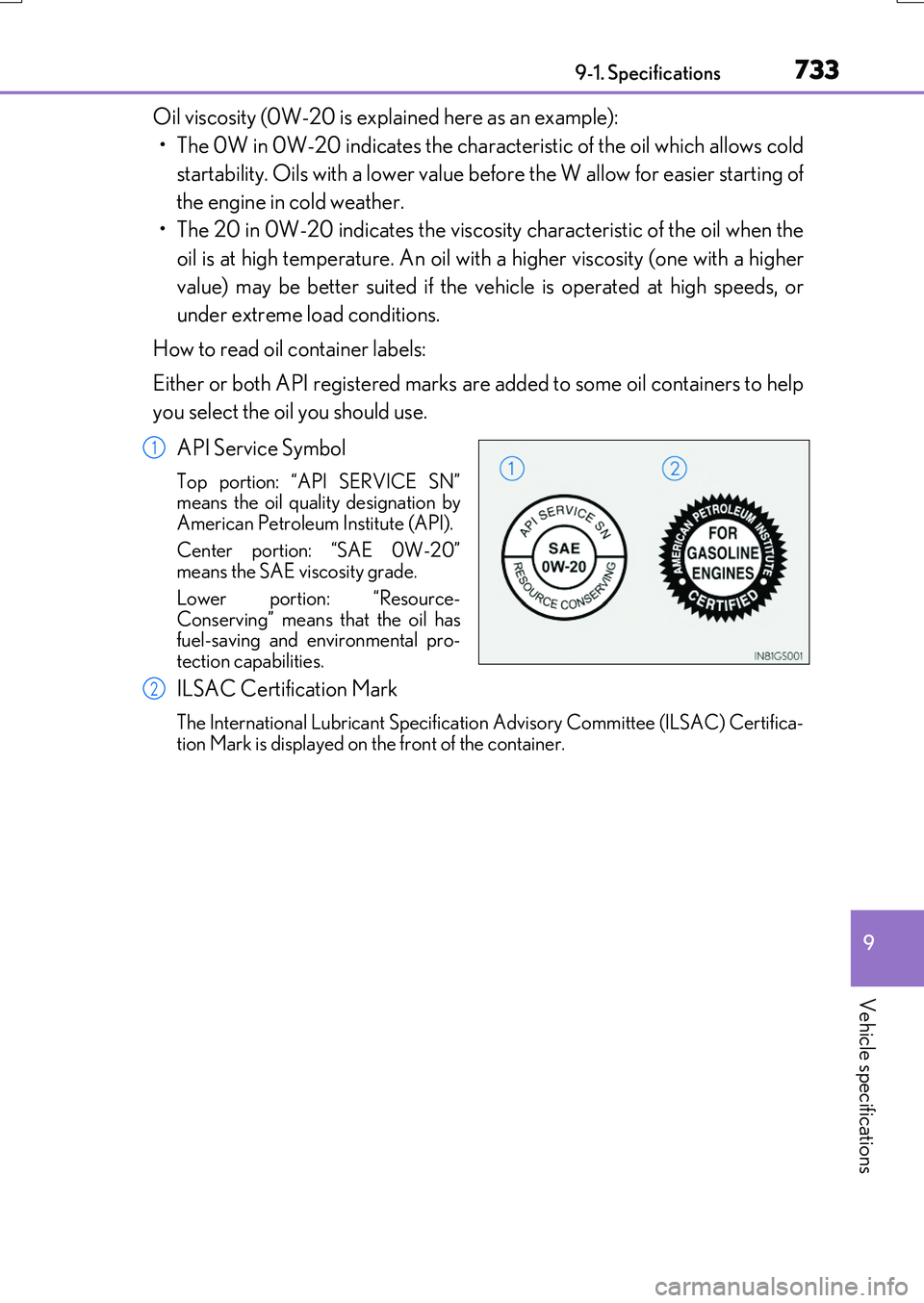

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

740
RX350/RX200t_EE_OM48F32E 9-2. Customization
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing on the audio system screen
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
 P. 110
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, on the au dio system screen, or at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2

741
9
9-2. Customization
Vehicle specifications
RX350/RX200t_EE_OM48F32E

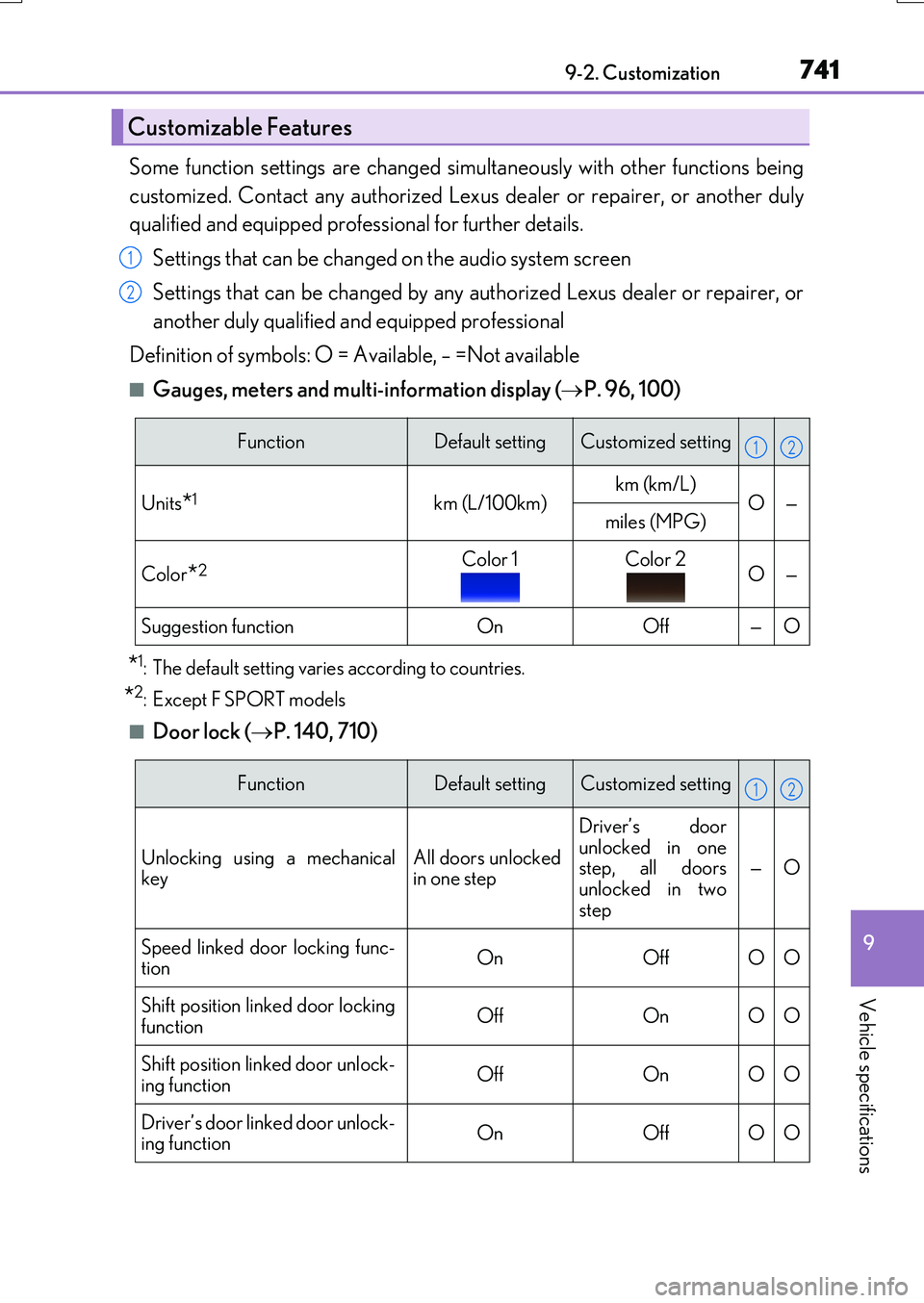

Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexu s dealer or repairer, or another duly
qualified and equipped professional for further details.
Settings that can be changed on the audio system screen
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, – =Not available
■Gauges, meters and multi-information display ( P. 96, 100)
*1: The default setting varies according to countries.
*2: Except F SPORT models
■Door lock (P. 140, 710)
Customizable Features
1
2
FunctionDefault settingCustomized setting
Units*1km (L/100km)km (km/L) O—miles (MPG)
Color*2Color 1Color 2O—
Suggestion functionOnOff—O
12
FunctionDefault settingCustomized setting
Unlocking using a mechanical keyAll doors unlockedin one step
Driver’s doorunlocked in onestep, all doors
unlocked in two step
—O
Speed linked door locking func-tionOnOffOO
Shift position linked door locking
functionOffOnOO
Shift position linked door unlock- ing functionOffOnOO
Driver’s door linked door unlock-ing functionOnOffOO
12

7489-2. Customization
RX350/RX200t_EE_OM48F32E

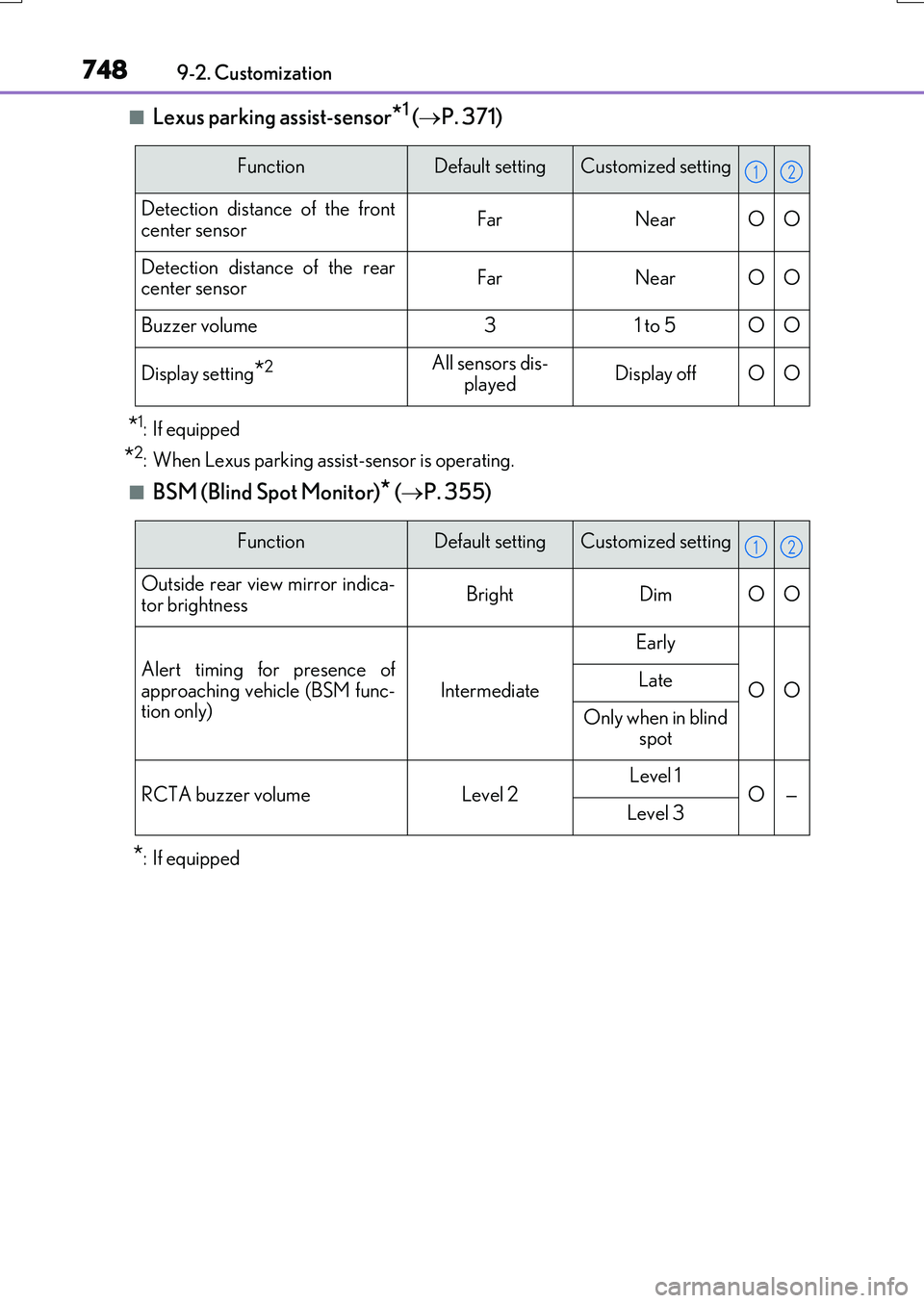

■Lexus parking assist-sensor*1 (P. 371)
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■BSM (Blind Spot Monitor)* (P. 355)
*: If equipped
FunctionDefault settingCustomized setting
Detection distance of the front center sensorFarNearOO
Detection distance of the rearcenter sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*2All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Outside rear view mirror indica- tor brightnessBrightDimOO
Alert timing for presence of
approaching vehicle (BSM func- tion only)Intermediate
Early
OOLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—Level 3
