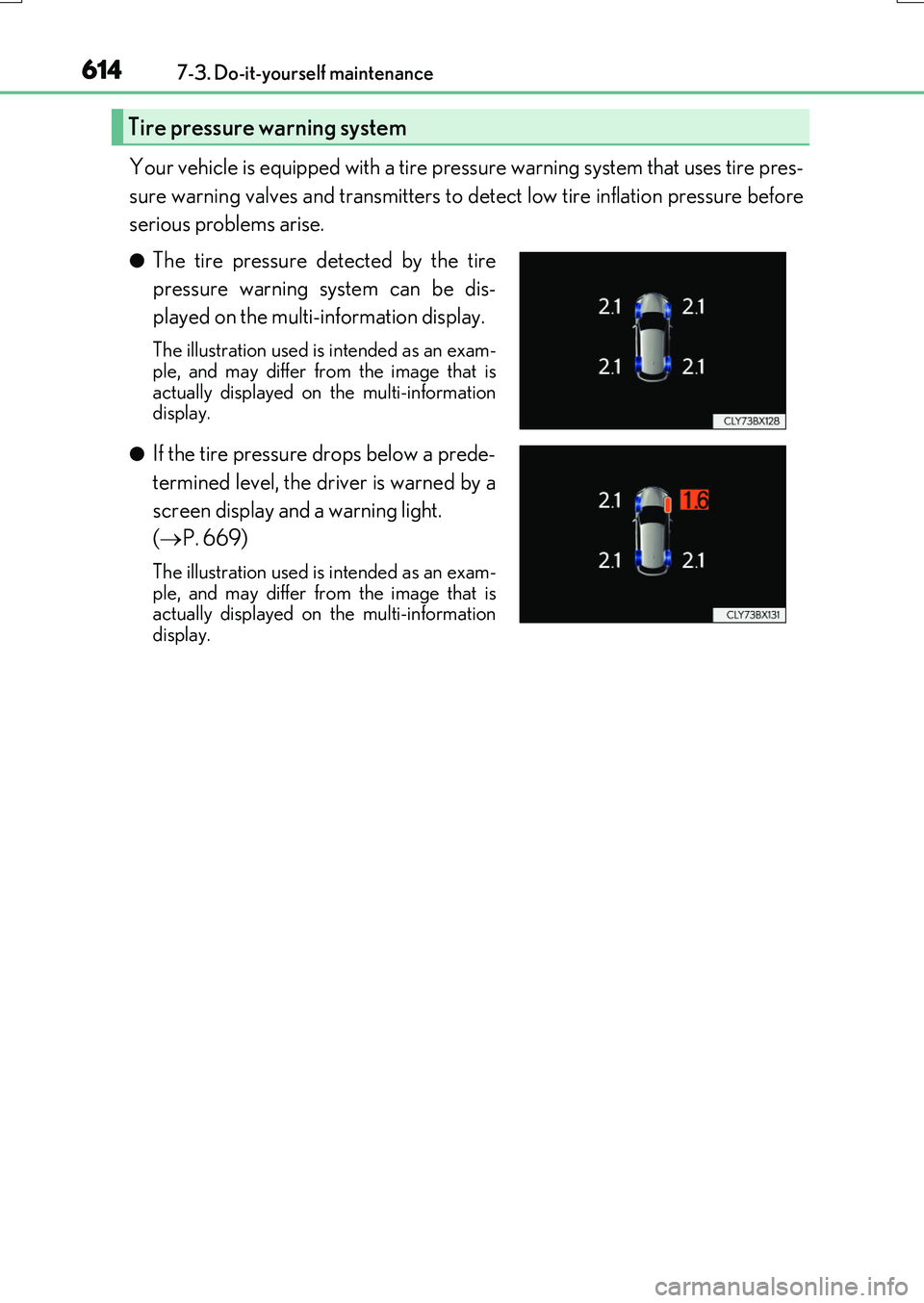

6147-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
Your vehicle is equipped with a tire pressure warning system that uses tire pres-
sure warning valves and transmitters to detect low tire inflation pressure before
serious problems arise.
Tire pressure warning system
●The tire pressure detected by the tire
pressure warning system can be dis-
played on the multi-information display.
The illustration used is intended as an exam- ple, and may differ from the image that is
actually displayed on the multi-information display.
●If the tire pressure drops below a prede-
termined level, the driver is warned by a
screen display and a warning light.
( P. 669)
The illustration used is intended as an exam-
ple, and may differ from the image that is actually displayed on the multi-informationdisplay.

6167-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be perfor med while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation pressure
level. ( P. 737)
Make sure to adjust the tire pressure to the specified cold tire inflation pressure level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Select on the multi-information display. ( P. 110)
Press or of the meter control switch, select the “Vehicle Settings”
screen and then press the .
Press or of the meter con-
trol switch, select the “TPMS”
screen and then press and hold
the until the tire pressure
warning light blinks slowly 3
times.
“- -” will be displayed for inflation pressure of each tire on the multi-information display while the tire
pressure warning system determines the position of each tire.
When position of each tire is determined, the inflation pressure of each tire will be
displayed on the multi-information display.
Drive the vehicle at approximately 40 km/h (25 mph) or more for approx-
imately 10 to 30 minutes until the inflation pressure of each tire is displayed
on the multi-information display.
If tire inflation pressure becomes low before the inflation pressure is displayed, the tire pressure warning light will come on.
Depending on the vehicle and driving co nditions, initialization may take up to
approximately 1 hour to complete.
1
2
3
4
5
6
7

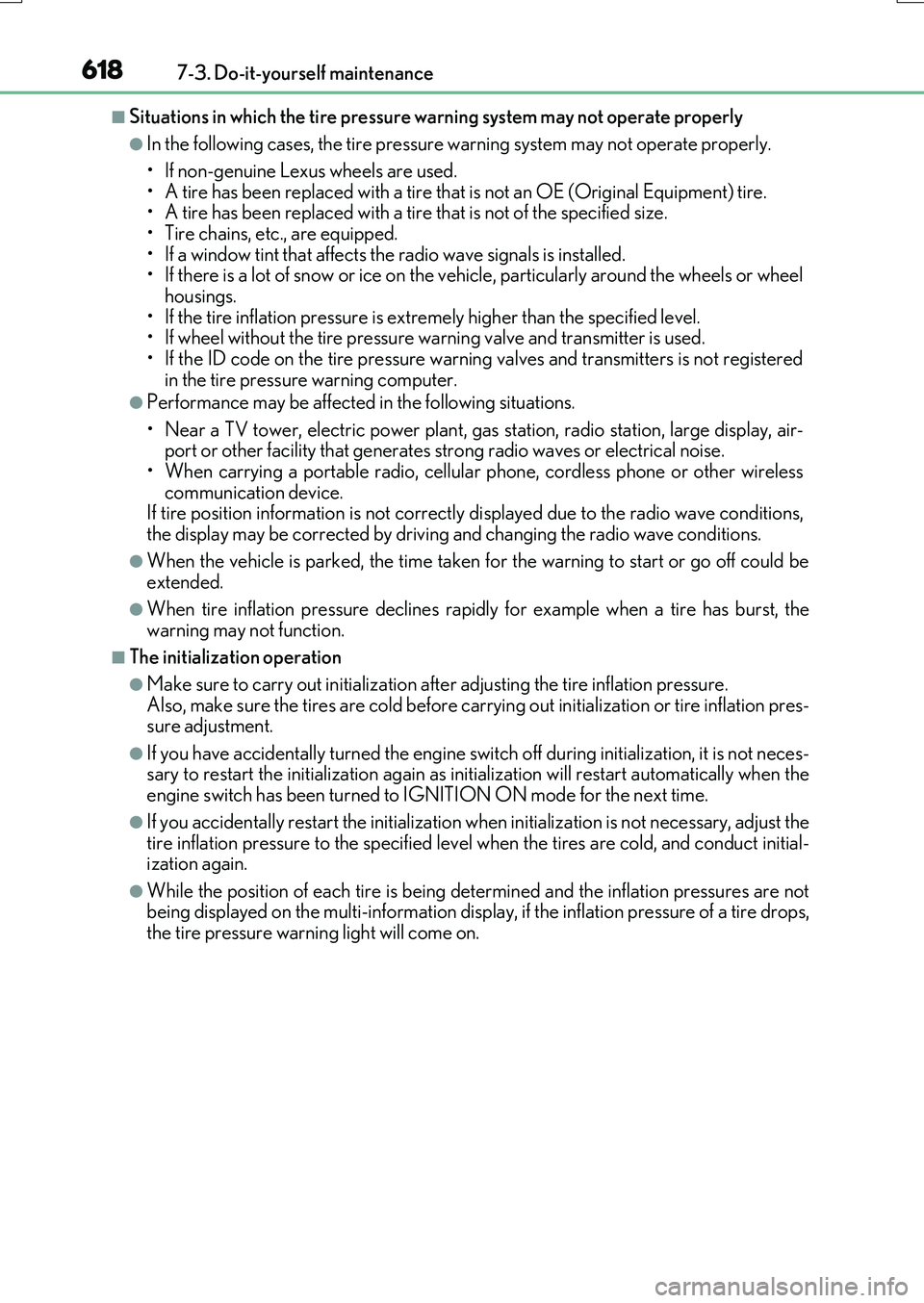

6187-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire. • A tire has been replaced with a tire that is not of the specified size.• Tire chains, etc., are equipped.
• If a window tint that affects the radio wave signals is installed. • If there is a lot of snow or ice on the vehi cle, particularly around the wheels or wheel housings.
• If the tire inflation pressure is extr emely higher than the specified level. • If wheel without the tire pressure warning valve and transmitter is used.• If the ID code on the tire pressure warning valves and transmitters is not registered
in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air- port or other facility that generates st rong radio waves or electrical noise. • When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device. If tire position information is not correctly displayed due to the radio wave conditions, the display may be corrected by driving and changing the radio wave conditions.
●When the vehicle is parked, the time taken for the warning to start or go off could beextended.
●When tire inflation pressure declines rapi dly for example when a tire has burst, the
warning may not function.
■The initialization operation
●Make sure to carry out initialization af ter adjusting the tire inflation pressure.
Also, make sure the tires are cold before carry ing out initialization or tire inflation pres- sure adjustment.
●If you have accidentally turned the engine swit ch off during initialization, it is not neces- sary to restart the initialization again as in itialization will restart automatically when the engine switch has been turned to IGNITION ON mode for the next time.
●If you accidentally restart the initialization when initialization is not necessary, adjust the tire inflation pressure to the specified leve l when the tires are cold, and conduct initial- ization again.
●While the position of each tire is being de termined and the inflation pressures are not being displayed on the multi-information display, if the inflation pressure of a tire drops, the tire pressure warning light will come on.

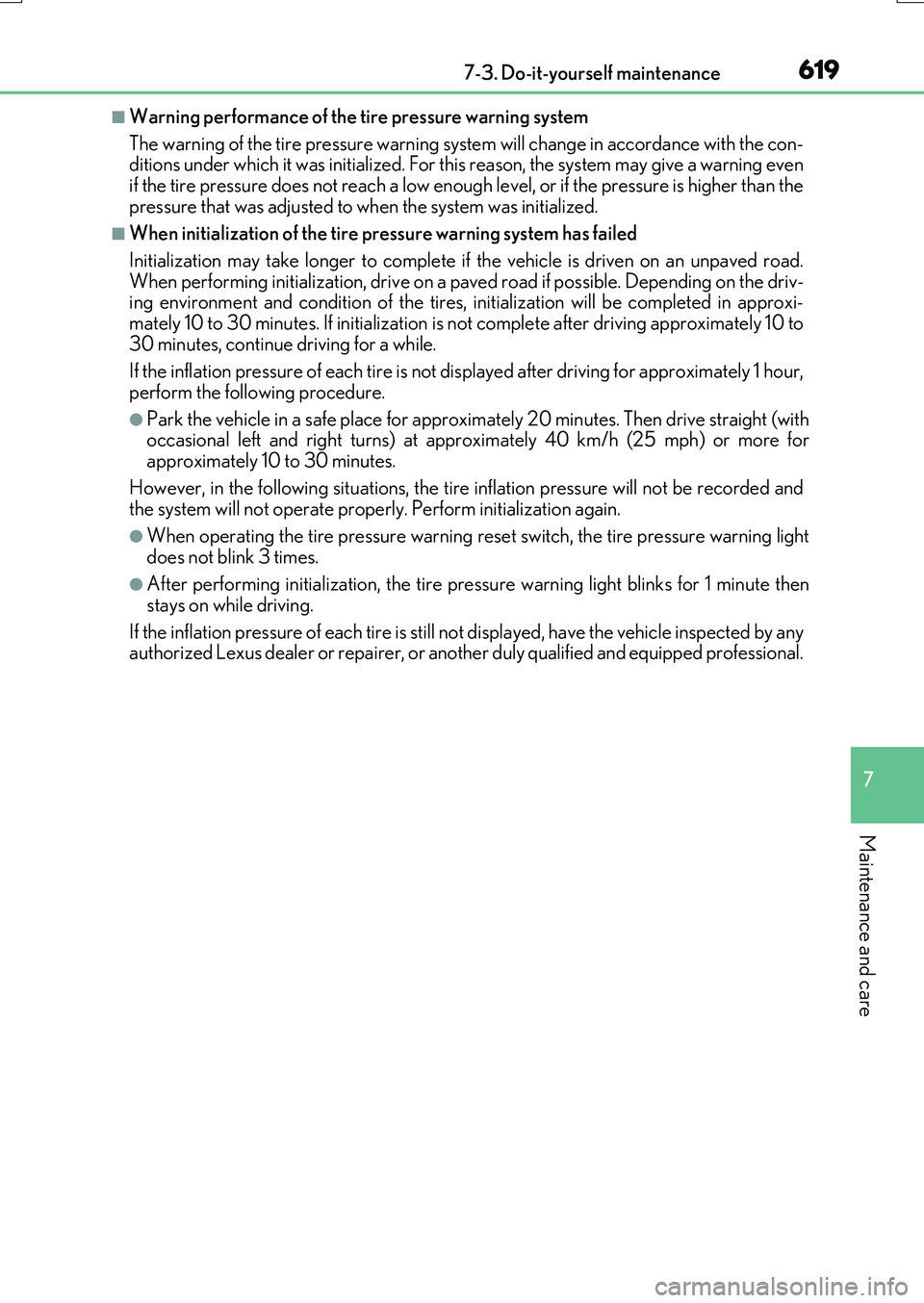

6197-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
■Warning performance of the tire pressure warning system
The warning of the tire pressure warning syst em will change in accordance with the con- ditions under which it was initialized. For this reason, the system may give a warning even
if the tire pressure does not reach a low enough level, or if the pressure is higher than the pressure that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed
Initialization may take longer to complete if the vehicle is driven on an unpaved road. When performing initialization, drive on a paved road if possible. Depending on the driv- ing environment and cond ition of the tires, initialization will be completed in approxi-
mately 10 to 30 minutes. If initialization is not complete after driving approximately 10 to 30 minutes, continue driving for a while.
If the inflation pressure of each tire is not displayed after driving for approximately 1 hour,
perform the following procedure.
●Park the vehicle in a safe place for approxim ately 20 minutes. Then drive straight (with occasional left and right turns) at appr oximately 40 km/h (25 mph) or more for
approximately 10 to 30 minutes.
However, in the following situations, the tire inflation pressure will not be recorded and the system will not operate proper ly. Perform initialization again.
●When operating the tire pressure warning reset switch, the tire pressure warning light does not blink 3 times.
●After performing initialization, the tire pre ssure warning light blinks for 1 minute then
stays on while driving.
If the inflation pressure of each tire is still not displayed, have the vehicle inspected by any authorized Lexus dealer or repairer, or anot her duly qualified and equipped professional.

655
8When trouble arises
RX350/RX200t_EE_OM48F32E
8-1. Essential information
Emergency flashers ..................656
If your vehicle has
to be stopped
in an emergency ...................... 657
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed................................658
If you think something
is wrong....................................... 664
Fuel pump shut off system ...... 665
If a warning light turns
on or a warning buzzer
sounds.......................................... 666
If a warning message
is displayed ................................ 673
If you have a flat tire
(vehicles with
a spare tire)................................ 679
If you have a flat tire
(vehicles without
a spare tire)................................ 693
If the engine will not start ........708
If the electronic key does
not operate properly ...............710
If the vehicle battery
is discharged............................... 714
If your vehicle overheats .......... 718
If the vehicle becomes
stuck ............................................. 722

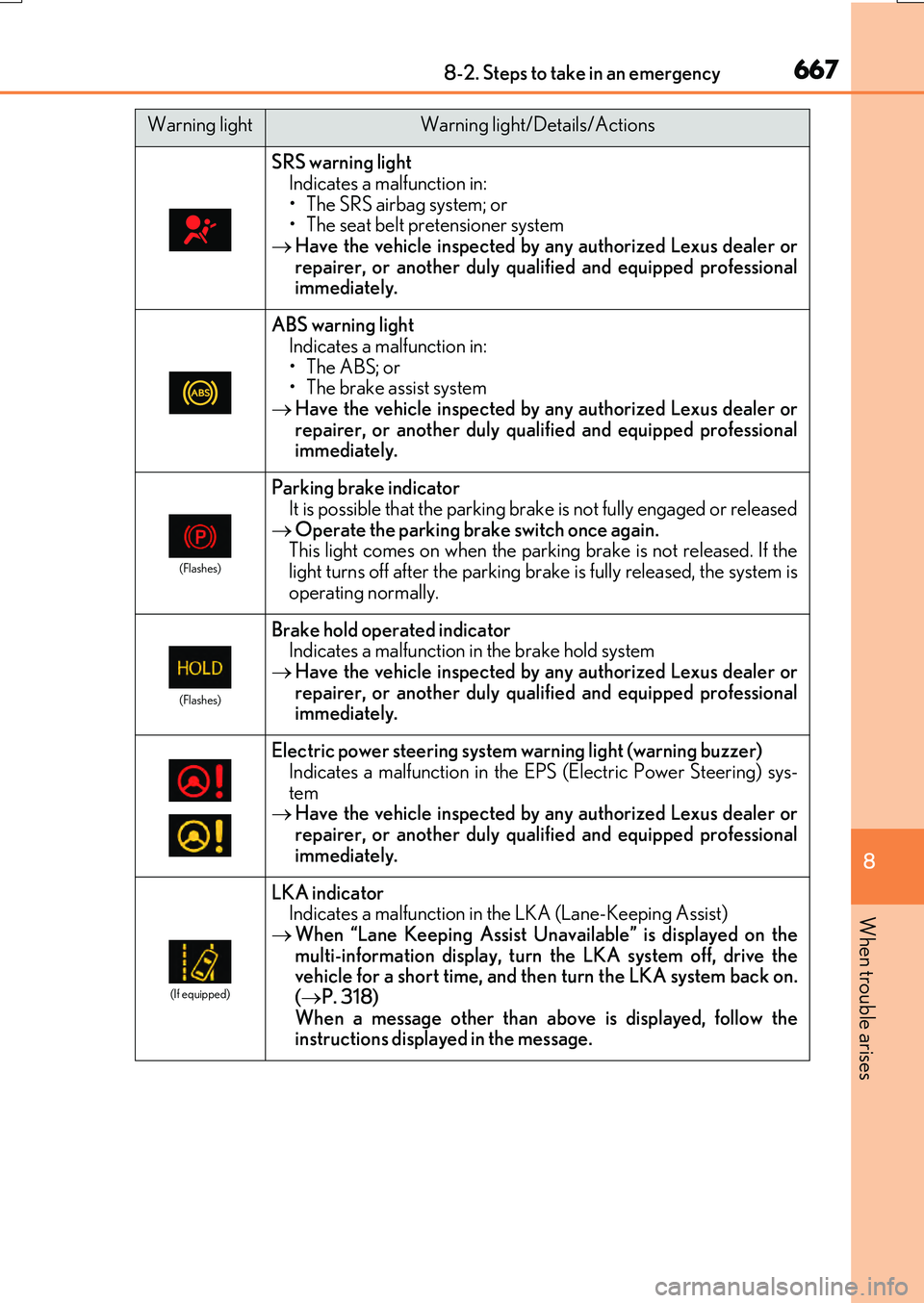

6678-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
Parking brake indicator It is possible that the parking br ake is not fully engaged or released
 Operate the parking brake switch once again.
This light comes on when the park ing brake is not released. If the
light turns off after the parking brak e is fully released, the system is
operating normally.
(Flashes)
Brake hold operated indicator Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(If equipped)
LKA indicator Indicates a malfunction in the LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the
multi-information display, turn the LKA system off, drive the
vehicle for a short time, and then turn the LKA system back on.
(  P. 318)
When a message other than above is displayed, follow the
instructions displayed in the message.
Warning lightWarning light/Details/Actions

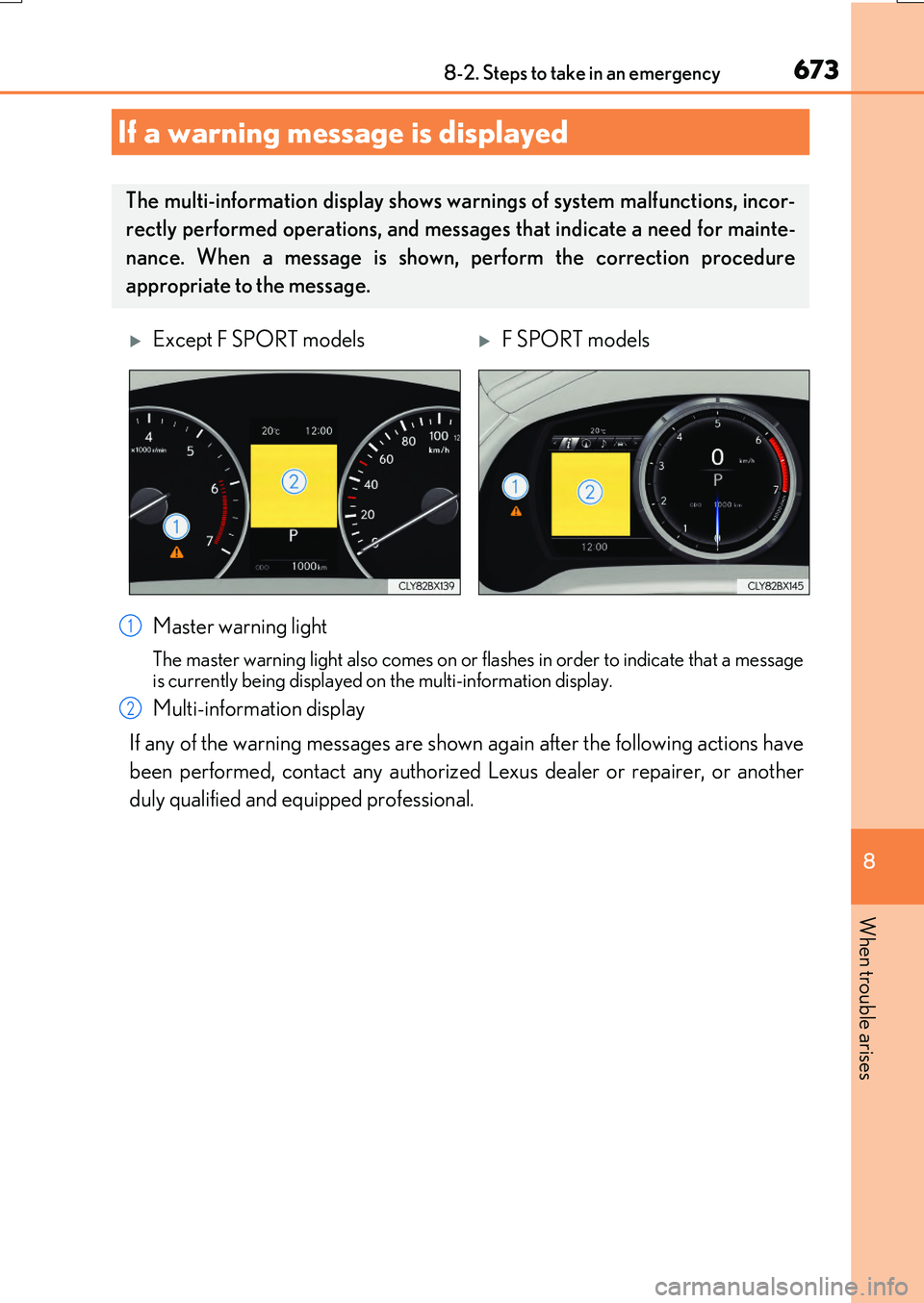

6738-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning messages are shown again after the following actions have
been performed, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
If a warning message is displayed
The multi-information display shows warnings of system malfunctions, incor-
rectly performed operations, and messag es that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.
Except F SPORT modelsF SPORT models
1
2

6748-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message in dicates the need for inspection by a
dealer, have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional immediately.
*: A buzzer sounds the first time a message is shown on the multi-information display.
Messages and warnings
System
warning lightWarning buzzer*Warning
Comes on  Sounds
Indicates an important situation, such as when a system related to driving is
malfunctioning or that danger may result if the correction procedure is notperformed
Comes on or flashesSounds
Indicates an important situation, such
as when the systems shown on the multi-information display may be mal-functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may result
Comes
onDoes not sound
Indicates a condition, such as malfunc- tion of electrical components, their
condition, or indicates the need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an
operation has been performed incor- rectly, or indicates how to perform anoperation correctly

6758-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
●If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional. Con-
tinuing to drive the vehicle may be dangerous.
• “Braking Power Low Stop in a Safe Place See Owner’s Manual”
• “Oil Pressure Low Stop in a Safe Place See Owner’s Manual”
• “Charging System Malfunction See Owner’s Manual”
●If the following message is shown, there may be a malfunction.
Immediately have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
• “Smart Entry & Start System Malfunction See Owner’s Manual”
●If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown, following the instructions, accordingly. ( P. 718)
●If “Transmission Fluid Temp High See Owner’s Manual” is shown, the auto-
matic transmission fluid temperature may be too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P with the
engine running and wait until the message is cleared.
If the message is not cleared, contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
If a message instructing to refer to the Owner’s Manual is displayed

6768-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this Owner’s Manual.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
engine switch off with the shift lever in any position other than P.
Shift the shift lever to P.
■If “Power Turned Off to Save Battery” is displayed
This message is displayed when the po wer was cut off due to the automatic
power off function.
The next time the engine is started, increase the engine speed slightly and
maintain it at that speed for approximately 5 minutes to recharge the battery.
■If “AWD System Overheated Switch ing to 2WD Mode” or “AWD System
Overheated 2WD Mode Engaged” is displayed (AWD models)
This message may be displayed when dr iving under extremely high load con-
ditions.
Drive the vehicle at low speeds or stop the vehicle in a safe place with the
engine running until the message is cleared.
If the message is not cleared, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If “A New Key has been Registered Cont act Your Dealer for Details” is dis-
played
This message will be displayed each time the driver’s door is opened when the
doors are unlocked from the outside for approximately one week after a new
electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. to check if an unknown electronic key (other than
those in your possession) has been registered.
Other messages displayed on the multi-information display
