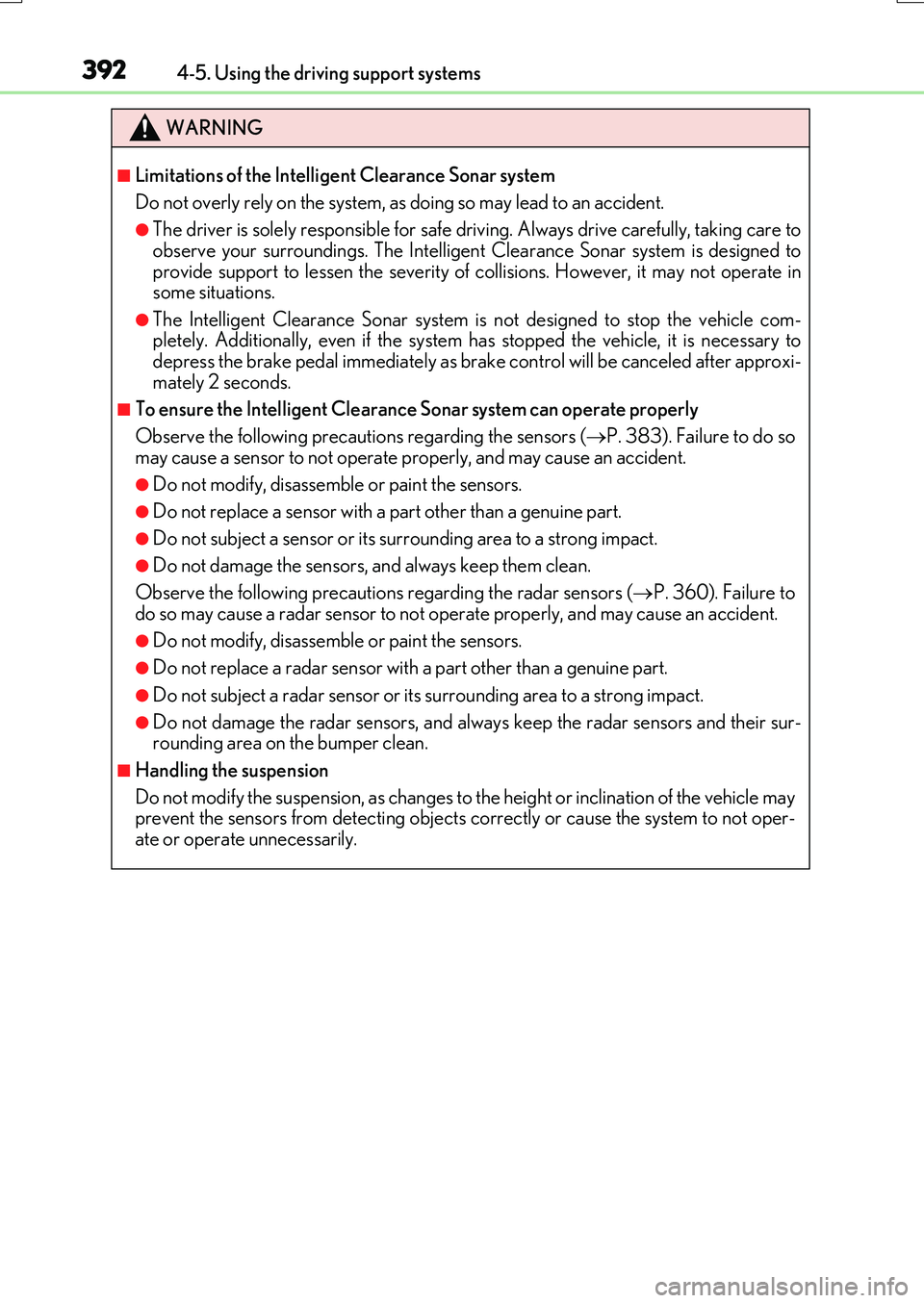

3924-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
WARNING
■Limitations of the Intelligent Clearance Sonar system
Do not overly rely on the system, as doing so may lead to an accident.
●The driver is solely responsible for safe dr iving. Always drive carefully, taking care to
observe your surroundings. The Intelligent Clearance Sonar system is designed to provide support to lessen the severity of collisions. However, it may not operate in some situations.
●The Intelligent Clearance Sonar system is not designed to stop the vehicle com- pletely. Additionally, even if the system has stopped the vehicle, it is necessary todepress the brake pedal immediately as brak e control will be canceled after approxi-
mately 2 seconds.
■To ensure the Intelligent Clearance Sonar system can operate properly
Observe the following precautions regarding the sensors ( P. 383). Failure to do so
may cause a sensor to not operate properly, and may cause an accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a sensor with a part other than a genuine part.
●Do not subject a sensor or its surrounding area to a strong impact.
●Do not damage the sensors, and always keep them clean.
Observe the following precautions regarding the radar sensors ( P. 360). Failure to
do so may cause a radar sensor to not operate properly, and may cause an accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a radar sensor with a part other than a genuine part.
●Do not subject a radar sensor or its surrounding area to a strong impact.
●Do not damage the radar sensors, and alwa ys keep the radar sensors and their sur- rounding area on the bumper clean.
■Handling the suspension
Do not modify the suspension, as changes to the height or inclination of the vehicle may prevent the sensors from detecting objects correctly or cause the system to not oper-
ate or operate unnecessarily.

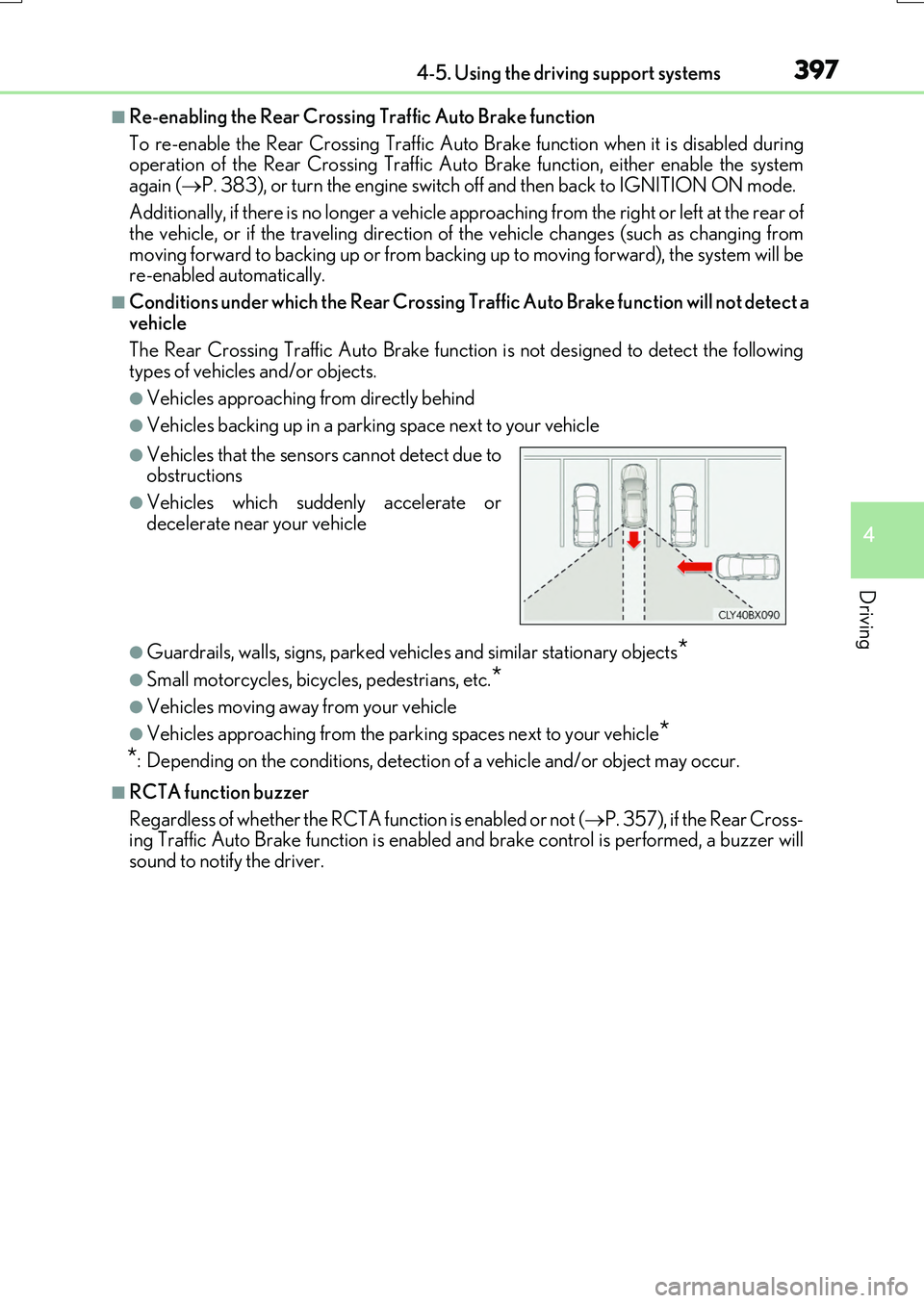

3974-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
■Re-enabling the Rear Crossing Traffic Auto Brake function
To re-enable the Rear Crossing Traffic Auto Brake function when it is disabled during
operation of the Rear Crossing Traffic Auto Brake function, either enable the system
again ( P. 383), or turn the engine switch o ff and then back to IGNITION ON mode.
Additionally, if there is no longer a vehicle ap proaching from the right or left at the rear of
the vehicle, or if the traveling direction of the vehicle changes (such as changing from
moving forward to backing up or from backing up to moving forward), the system will be
re-enabled automatically.
■Conditions under which the Rear Crossing Traffic Auto Brake function will not detect a
vehicle
The Rear Crossing Traffic Auto Brake function is not designed to detect the following
types of vehicles and/or objects.
●Vehicles approaching from directly behind
●Vehicles backing up in a parking space next to your vehicle
●Guardrails, walls, signs, parked vehi cles and similar stationary objects*
●Small motorcycles, bicycles, pedestrians, etc.*
●Vehicles moving away from your vehicle
●Vehicles approaching from the parking spaces next to your vehicle*
*
: Depending on the conditions, detection of a vehicle and/or object may occur.
■RCTA function buzzer
Regardless of whether the RCTA function is enabled or not ( P. 357), if the Rear Cross-
ing Traffic Auto Brake function is enabled an d brake control is performed, a buzzer will
sound to notify the driver.
●Vehicles that the sensors cannot detect due to
obstructions
●Vehicles which suddenly accelerate or
decelerate near your vehicle

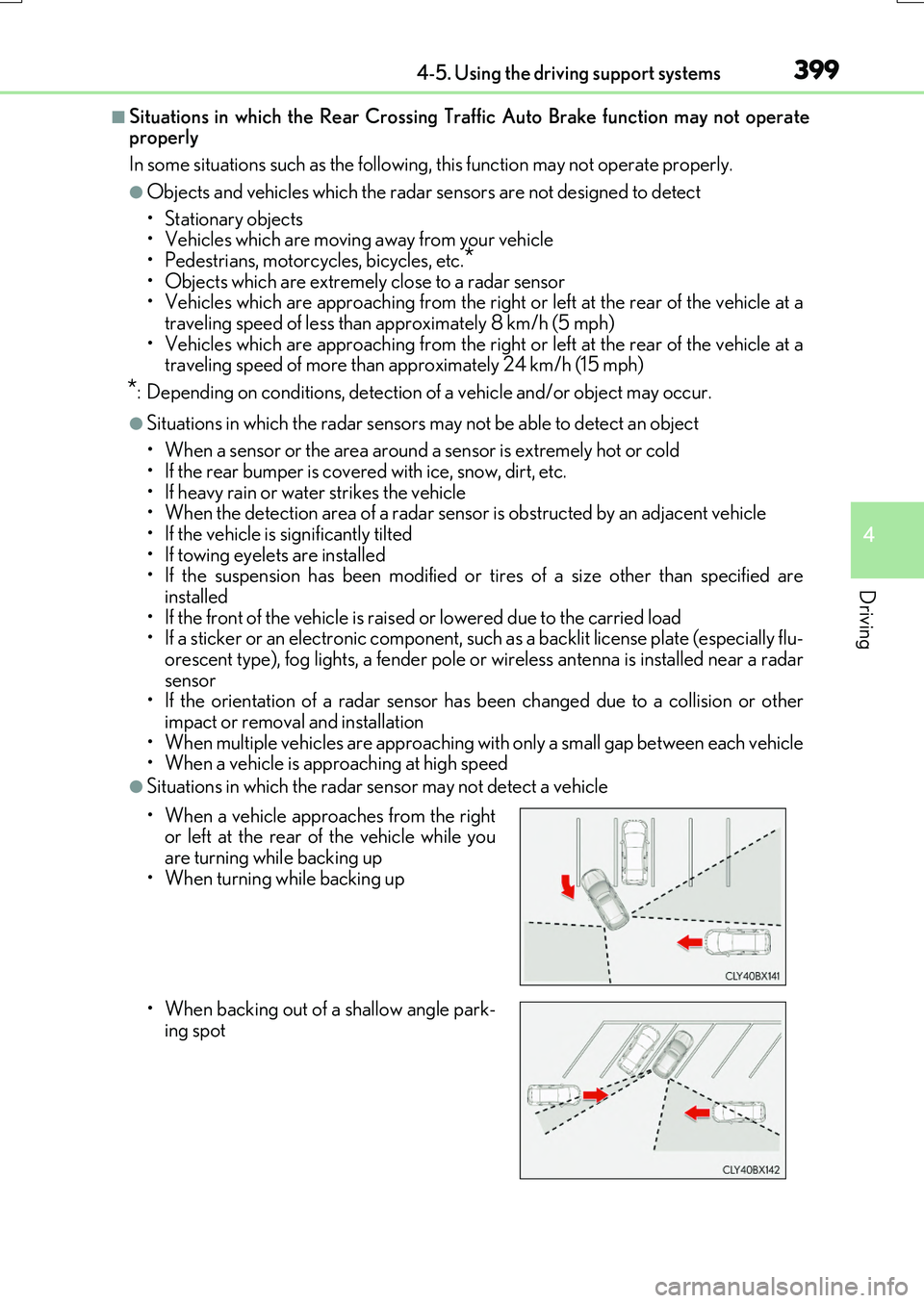

3994-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
■Situations in which the Rear Crossing Traffic Auto Brake function may not operate properly
In some situations such as the following , this function may not operate properly.
●Objects and vehicles which the radar sensors are not designed to detect
• Stationary objects • Vehicles which are moving away from your vehicle
• Pedestrians, motorcycles, bicycles, etc.*• Objects which are extremely close to a radar sensor • Vehicles which are approaching from the right or left at the rear of the vehicle at a
traveling speed of less than approximately 8 km/h (5 mph) • Vehicles which are approaching from the right or left at the rear of the vehicle at a traveling speed of more than a pproximately 24 km/h (15 mph)
*: Depending on conditions, detection of a vehicle and/or object may occur.
●Situations in which the radar sensors may not be able to detect an object
• When a sensor or the area around a sensor is extremely hot or cold • If the rear bumper is covered with ice, snow, dirt, etc.
• If heavy rain or water strikes the vehicle • When the detection area of a radar sensor is obstructed by an adjacent vehicle• If the vehicle is significantly tilted
• If towing eyelets are installed • If the suspension has been modified or ti res of a size other than specified are installed
• If the front of the vehicle is raised or lowered due to the carried load • If a sticker or an electronic component, such as a backlit license plate (especially flu-orescent type), fog lights, a fender pole or wireless antenna is installed near a radar
sensor • If the orientation of a radar sensor has been changed due to a collision or other
impact or removal and installation • When multiple vehicles are approaching wi th only a small gap between each vehicle • When a vehicle is approaching at high speed
●Situations in which the radar sensor may not detect a vehicle
• When a vehicle approaches from the right or left at the rear of the vehicle while youare turning while backing up
• When turning while backing up
• When backing out of a shallow angle park-
ing spot

6918-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
WARNING
■When using the compact spare tire (vehicles with a compact spare tire)
●Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached (vehicles with a compact spare tire)
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively affect the drive-train components:
• AWD system (AWD models)
■Speed limit when using the compact spare tire (vehicles with a compact spare tire)
Do not drive at speeds in excess of 80 km /h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden brak- ing.
• ABS & Brake assist
•VSC •TRC• Trailer Sway Control
•EPS • VDIM (if equipped)• Adaptive Variable Suspension System
(if equipped) • Cruise control (if equipped)• Dynamic radar cruise control with full-
speed range (if equipped) • PCS (Pre-Crash Safety system) (ifequipped)
• LKA (Lane-Keeping Assist) (if
equipped) • RSA (Road Sign Assist) (if equipped)• Automatic High Beam (if equipped)
• AHS (Adaptive High-beam System) (if equipped)• Tire pressure warning system
• Lexus parking assist-sensor (if equipped)• Intelligent Clearance Sonar (ICS) (if
equipped) • Lexus parking assist monitor (ifequipped)
• Panoramic view monitor (if equipped) • BSM (Blind Spot Monitor) (ifequipped)
• Navigation system (if equipped)

756What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E
●The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts? ( P. 669, 669)
●The parking brake indicator is on
Is the parking brake released? ( P. 259)
Depending on the situation, other types of warning buzzer may also sound.
( P. 666, 673)
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 83)
Do one of the following to stop the alarm:
• Unlock the doors using the entry fu nction or wireless remote control. • Start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 673)
●When a warning light turns on or a warning message is displayed, refer to
P. 666, 673.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

768Alphabetical index
RX350/RX200t_EE_OM48F32E
Navigation system*
Odometer...................................................118
Oil
Engine oil ............................................... 729
Rear differential oil............................. 736
Transfer oil............................................. 736
Opener
Back door................................................146
Hood ........................................................ 597
Power back door.................................152
Outside rear view mirrors ................206
Adjusting and folding.......................206
Blind Spot Monitor (BSM) ...........355
Linked mirror function
when reversing............................... 208
Mirror position memory.................. 195
Outside rear view mirror
defoggers........................................... 542
Outside temperature display ............. 96
Overheating ............................................ 718
Paddle shift switches ................252, 253
Panoramic moon roof ..........................218
Jam protection function ................... 219
Operation ............................................... 218
Parking assist sensors........................... 371
Parking brake......................................... 259
Parking brake engaged
warning buzzer/message ........... 261
Warning light....................................... 667
PCS (Pre-Crash Safety system) ....300
Warning light.......................................668
Personal lights........................................ 554
Power back door ..................................... 151
Touchless power back door ......... 153
Wireless remote control ...................151
Power back door opener
and closer ................................................ 151
Power easy access system .................195
Power outlets ......................................... 574
Power steering (Electric
Power Steering system) ................. 423
Warning light....................................... 667
Power windows
Door lock linked window
operation.............................................. 212
Jam protection function ..................... 211
Operation ............................................... 210
Window lock switch .......................... 210
Pre-Crash Safety system (PCS) ....300
Warning light.......................................668
N
O
P

771Alphabetical index
RX350/RX200t_EE_OM48F32E
Spare tire
Inflation pressure................................ 737
Storage location ................................ 680
Spark plug................................................ 734
Specifications ......................................... 726
Speech command system ................. 526
Speed warning ..........................................118
Speedometer ............................................ 96
Sport mode................................................417
Steering wheel
Adjustment............................................ 202
Audio switches.................................... 444
Heated steering wheel....................549
Meter control switches .................... 102
Power easy access system ............ 195
Telephone switches......................... 503
Stop & Start system..............................345
Replacing battery................................. 717
Warning light .......................................669
Stop lights
Emergency brake signal ................ 423
Replacing light bulbs........................ 643
Storage feature......................................556
Storage precautions ............................556
Stuck
If the vehicle becomes stuck .........722
Sun visors ................................................. 567
Sunshade
Panoramic moon roof...................... 218
Rear door............................................... 576
Roof ............................................................215
Switches
Adaptive High-beam System
switch ................................................... 270
All-wheel drive lock switch ............ 421
Audio remote control
switches .............................................. 444
Automatic High Beam switch...... 274
Brake hold switch ............................. 263
Cruise control
switch ......................................... 329, 341
Door lock switch ................................. 142
Driving mode select switch............ 417
Driving position memory
switches ................................................195
Electronic sunshade switch............ 218
Emergency flashers switch........... 656
Engine switch ...................................... 246
Fog light switch................................... 278
Heated steering wheel switch .... 549
HUD (Head-up display)
switches ................................................ 122
Ignition switch ..................................... 246
Intrusion sensor cancel
switch ...................................................... 85
Light switch........................................... 265
LKA (Lane-Keeping Assist)
switch ..................................................... 318
Meter control switches..................... 102
Moon roof switches ........................... 214
“ODO/TRIP” switch .........................103

772Alphabetical index
RX350/RX200t_EE_OM48F32E
Outside rear view mirror
switches...............................................206
Paddle shift switches ............ 252, 253
Panoramic moon roof
switches................................................ 218
Parking brake switch ....................... 259
Power back door opener
and closer switch................... 152, 154
Power window switch ...................... 210
Rear window and outside
rear view mirror defoggers
switch.................................................... 542
Rear window wiper and
washer switch...................................285
Seat heater switches ....................... 550
“SOS” button .......................................578
Seat ventilator switches ................... 551
Stop & Start cancel switch ............348
Talk switch ................................ 503, 526
Telephone switches......................... 503
Vehicle-to-vehicle
distance button................................ 329
VSC OFF switch ............................... 424
Window lock switch.......................... 210
Windshield wiper and
washer switch................................... 279
Tachometer ............................................... 96
Tail lights
Light switch........................................... 265
Replacing light bulbs ....................... 643
Talk switch ................................... 503, 526
Telephone switch .................................503
Theft deterrent system
Alarm .......................................................... 83
Double locking system ...................... 82
Engine immobilizer system .............. 77
Intrusion sensor ..................................... 85
Tilt sensor ................................................. 85
Tilt sensor .................................................... 85
Tire inflation pressure
Maintenance data .............................. 737
Warning light....................................... 669
Tire pressure warning system
Installing tire pressure warning
valves and transmitters ................. 615
Registering ID codes......................... 617
Warning light....................................... 669
T

774Alphabetical index
RX350/RX200t_EE_OM48F32E
Vanity lights ............................................. 567
Wattage..................................................738
Vanity mirrors ........................................ 567
VDIM (Vehicle Dynamics
Integrated Management) .............. 423
Vehicle Dynamics Integrated
Management (VDIM) ..................... 423
Vehicle identification number ......... 727
Vehicle Stability Control (VSC) .... 422
VSC (Vehicle Stability Control) .... 422
Warning buzzers
Approach warning............................336
Downshifting ........................................255
Lane departure alert
function ..................................................314
Lexus parking assist-sensor ......... 375
Light reminder..................................... 267
Open door.............................................. 144
Pre-crash warning ............................. 301
Seat belt reminder .............................669
Vehicle sway warning ...................... 315
Warning lights
ABS .......................................................... 667
Brake hold operated indicator ... 667
Brake system ....................................... 666
Charging system ............................... 666
Electric power steering .................. 667
ICS OFF indicator ............................668
LKA indicator ...................................... 667
Low fuel level....................................... 669
Malfunction indicator lamp .......... 666
Master warning light ........................ 669
Parking brake indicator.................. 667
PCS warning light .............................668
Seat belt reminder light .................. 669
Slip indicator ........................................668
SRS ........................................................... 667
Stop & Start cancel indicator ...... 669
Tire pressure........................................ 669
Warning messages .............................. 673
Washer
Checking ...................................................611
Preparing and checking
before winter.................................... 429
Switch .......................................... 279, 285
Washing and waxing........................... 584
V
W
