1633-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
WARNING
■Back door closer
●Use caution when using the back door closer as it still operates when the power back door system is disabled.
■Power back door
Observe the following precautions when operating the power back door. Failure to do so may cause death or serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or any-thing that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the power
back door is about to open or close.
●If the power back door system is disabled ( P. 115) while the power back door is operating, the power back door will stop operating. The power back door must then
be operated manually. Take extra care in th is situation, as the power back door may open or close suddenly.
●If the operating conditions of the power back door (P. 156) are no longer met, a
buzzer may sound and the power back door may stop opening or closing. The power back door must then be operated manually. Take extra care on an incline in this situa-tion, as the power back door may move suddenly.
●On an incline, the power back door may suddenly shut after it opens. Make sure thepower back door is fully open and secure.
●In the following situations, the power back door may detect an abnormality and auto-
matic operation may be stopped. In this case, the power back door must then be operated manually. Take extra care in this situation, as the stopped power back door may suddenly open or close, causing an accident.
• When the power back door contacts an obstacle • When the battery voltage suddenly drops, such as when the engine switch isturned to IGNITION ON mode or the engine is started during automatic opera-
tion
●In the event that the power back door is left
slightly open, the back door closer will auto- matically close it to the fully closed position. Ittakes several seconds before the back door
closer begins to operate. Be careful not to get fingers caught or anything else in the powerback door, as this may cause bone fractures
or other serious injuries.

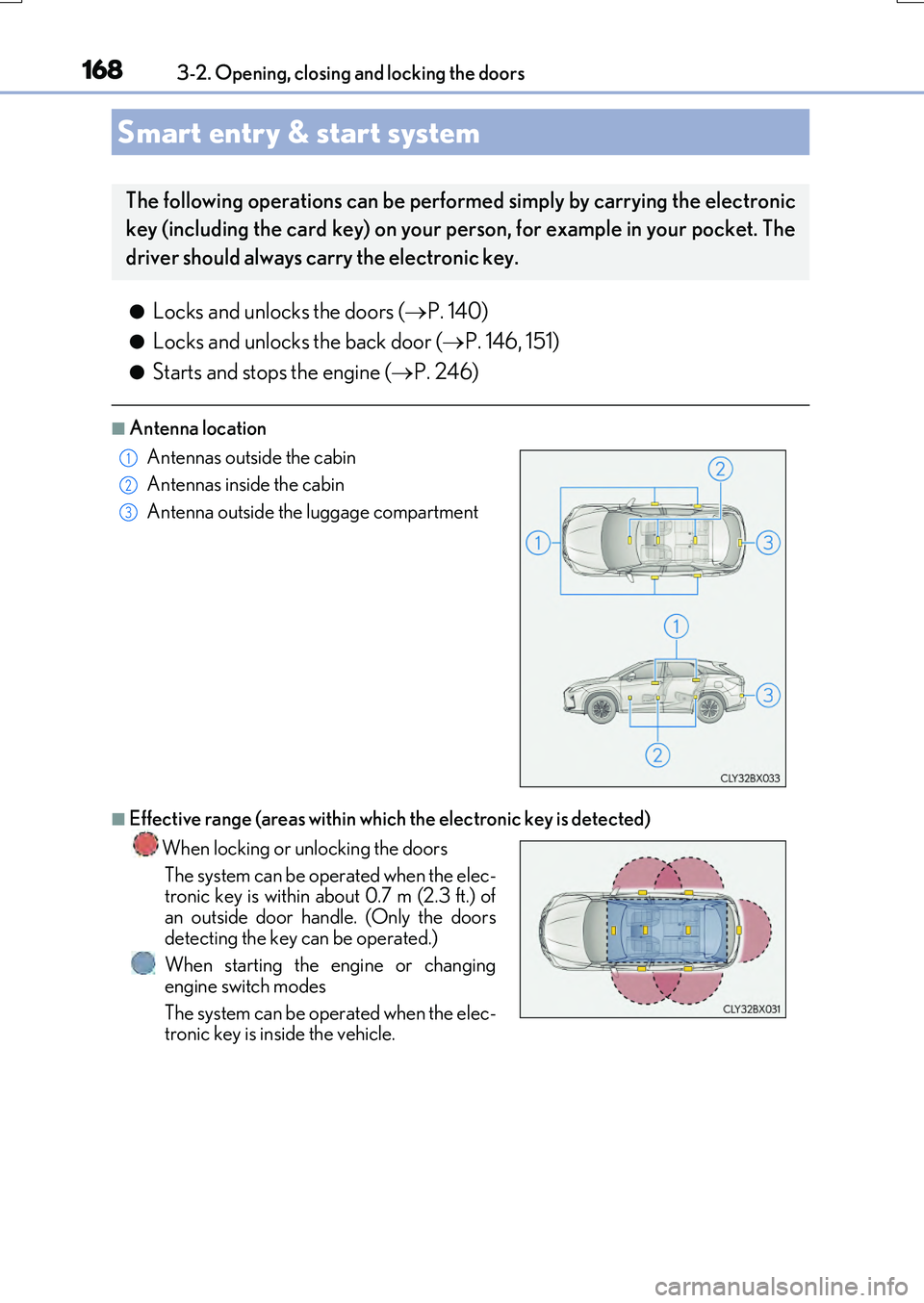

1683-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
●Locks and unlocks the doors (P. 140)
●Locks and unlocks the back door (P. 146, 151)
●Starts and stops the engine (P. 246)
■Antenna location
■Effective range (areas within which the electronic key is detected)
Smart entry & start system
The following operations can be performed simply by carrying the electronic
key (including the card key) on your person, for example in your pocket. The
driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage compartment
When locking or unlocking the doors
The system can be operated when the elec- tronic key is within about 0.7 m (2.3 ft.) of
an outside door handle. (Only the doors detecting the key can be operated.)
When starting the engine or changing
engine switch modes
The system can be operated when the elec- tronic key is inside the vehicle.
1
2
3

1703-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
■Electronic Key battery-Saving Function
When battery-saving mode is set, battery depl etion is minimized by stopping the elec- tronic key from receiving radio waves.
■Conditions affecting operation
The smart entry & start system, wireless re mote control and engine immobilizer system use weak radio waves. In the following si tuations, the communication between the elec- tronic key and the vehicle may be affected, preventing the smart entry & start system,
wireless remote control and engine immob ilizer system from operating properly. (Ways of coping: P. 710)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that gene rates strong radio waves or electrical noise
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached • Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags •Coins• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio waves
• Portable radio, cellular phone, cordle ss phone or other wireless communication
devices • Another vehicle’s electronic key, another electronic key of your vehicle, or a wirelesskey that emits radio waves
• Personal computers or personal digital assistants (PDAs) • Digital audio players• Portable game systems
●If window tint with a metallic content or me tallic objects are attached to the rear win- dow
●When the electronic key is placed near a battery charger or electronic devices
Press twice while pressing and holding . Confirm that the electronic key indicator flashes
4 times.
While the battery-saving mode is set, the smart entry & start system cannot be used. To cancel
the function, press any of the electronic key but- tons.

1723-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m (6 ft.) of the vehicle.
●The smart entry & start system can be deactivated in advance. ( P. 740)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when op erating the system from the outside of the vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not operate.)
■If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( P. 710)
●Starting the engine: P. 712
■Customization
Some functions can be customized. ( P. 740)
■If the smart entry & start system has been deactivated in a customized setting
●Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 140, 151, 710)
●Starting the engine and changing engine switch modes: P. 712
●Stopping the engine: P. 246

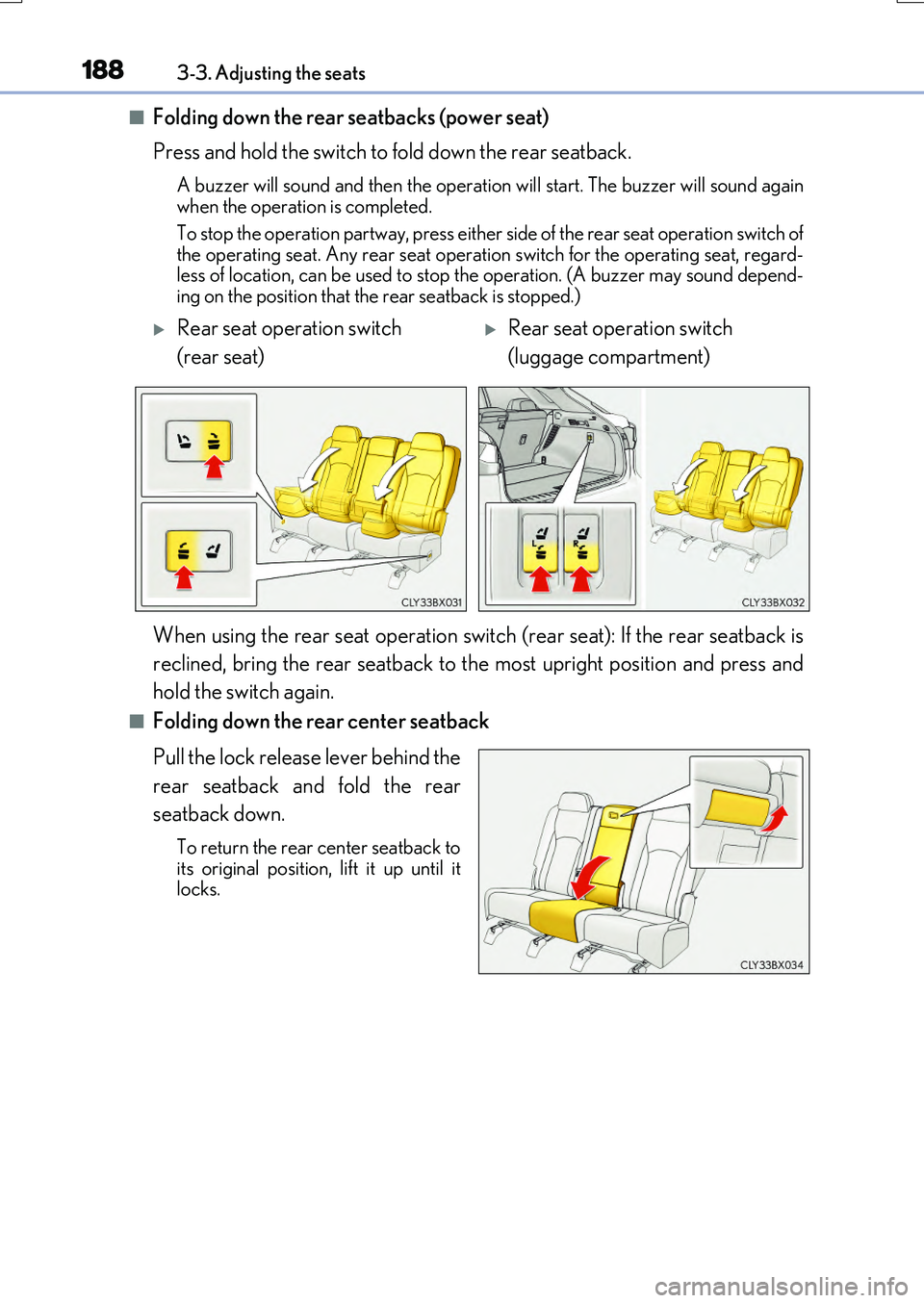

1883-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Folding down the rear seatbacks (power seat)
Press and hold the switch to fold down the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operatio n switch for the operating seat, regard- less of location, can be used to stop the operation. (A buzzer may sound depend-ing on the position that the rear seatback is stopped.)
■Folding down the rear center seatback
Pull the lock release lever behind the
rear seatback and fold the rear
seatback down.
To return the rear center seatback to
its original position, lift it up until it locks.
Rear seat operation switch
(rear seat)
Rear seat operation switch
(luggage compartment)
When using the rear seat operation switch (rear seat): If the rear seatback is
reclined, bring the rear seatback to the most upright position and press and
hold the switch again.

1903-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Returning the rear seatbacks (power seat) Press and hold the switch to return the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again
when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operation switches for the operating seat,
regardless of location, can be used to stop the operation. (A buzzer may sound
depending on the position that the rear seatback is stopped.)
Check that the plate of the seat
belt is on the front side of the seat.
1
Rear seat operation switch
(rear seat)Rear seat operation switch
(luggage compartment)
2

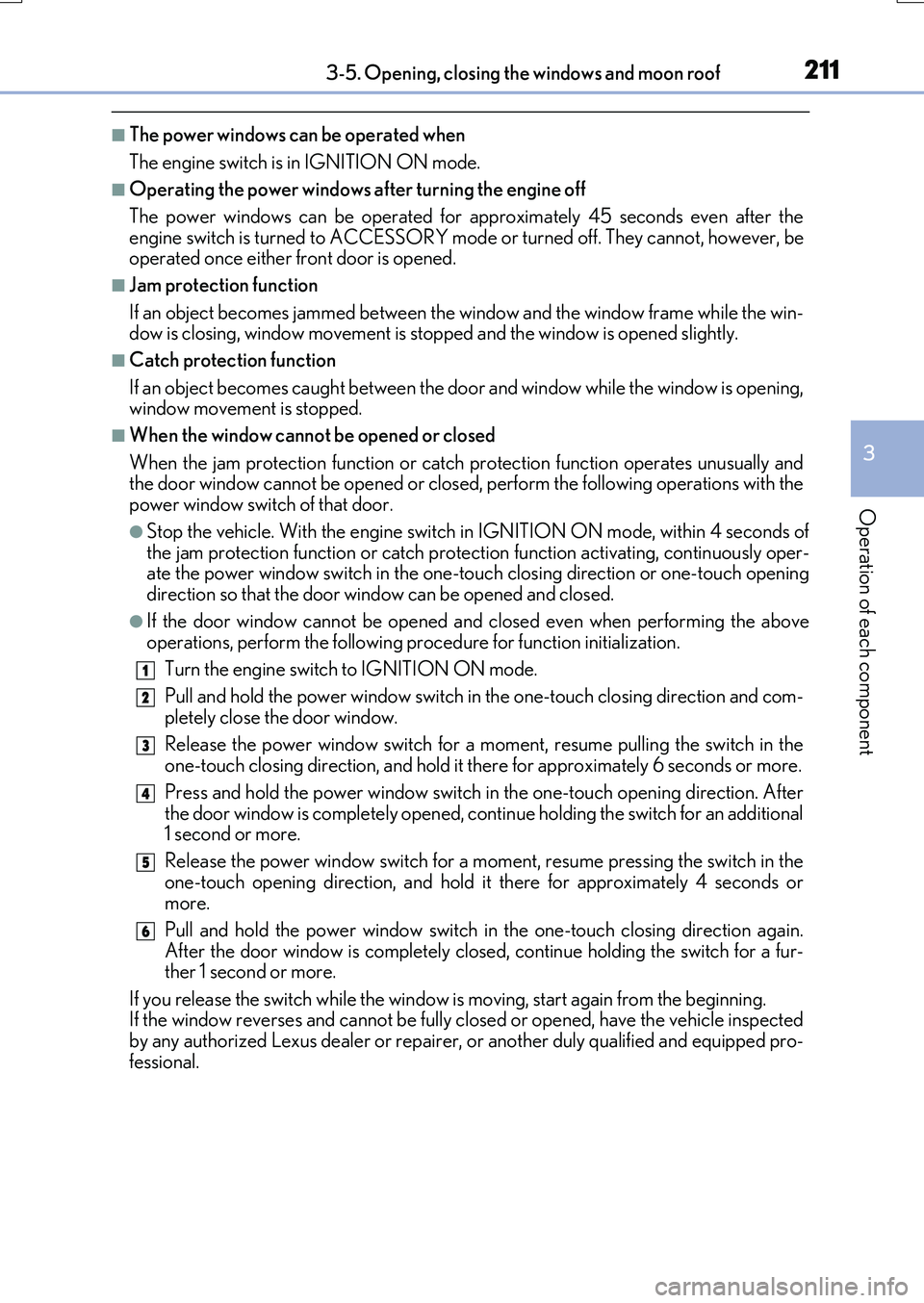

2113-5. Opening, closing the windows and moon roof
3
Operation of each component
RX350/RX200t_EE_OM48F32E
■The power windows can be operated when
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes jammed between the window and the window frame while the win- dow is closing, window movement is stop ped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window is opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the door window cannot be opened or closed , perform the following operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in IGNITION ON mode, within 4 seconds ofthe jam protection function or catch protecti on function activating, continuously oper- ate the power window switch in the one-to uch closing direction or one-touch opening
direction so that the door window can be opened and closed.
●If the door window cannot be opened and closed even when performing the above operations, perform the following pr ocedure for function initialization.
Turn the engine switch to IGNITION ON mode.
Pull and hold the power window switch in the one-touch closing direction and com- pletely close the door window.
Release the power window switch for a moment, resume pulling the switch in the one-touch closing direction, and hold it there for approximately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direction. After
the door window is completely opened, cont inue holding the switch for an additional 1 second or more.
Release the power window switch for a moment, resume pressing the switch in the
one-touch opening direction, and hold it there for approximately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction again.
After the door window is completely clos ed, continue holding the switch for a fur- ther 1 second or more.
If you release the switch while the window is moving, start again from the beginning. If the window reverses and cannot be fully closed or opened, have the vehicle inspectedby any authorized Lexus dealer or repairer , or another duly qualified and equipped pro-
fessional.
1
2
3
4
5
6

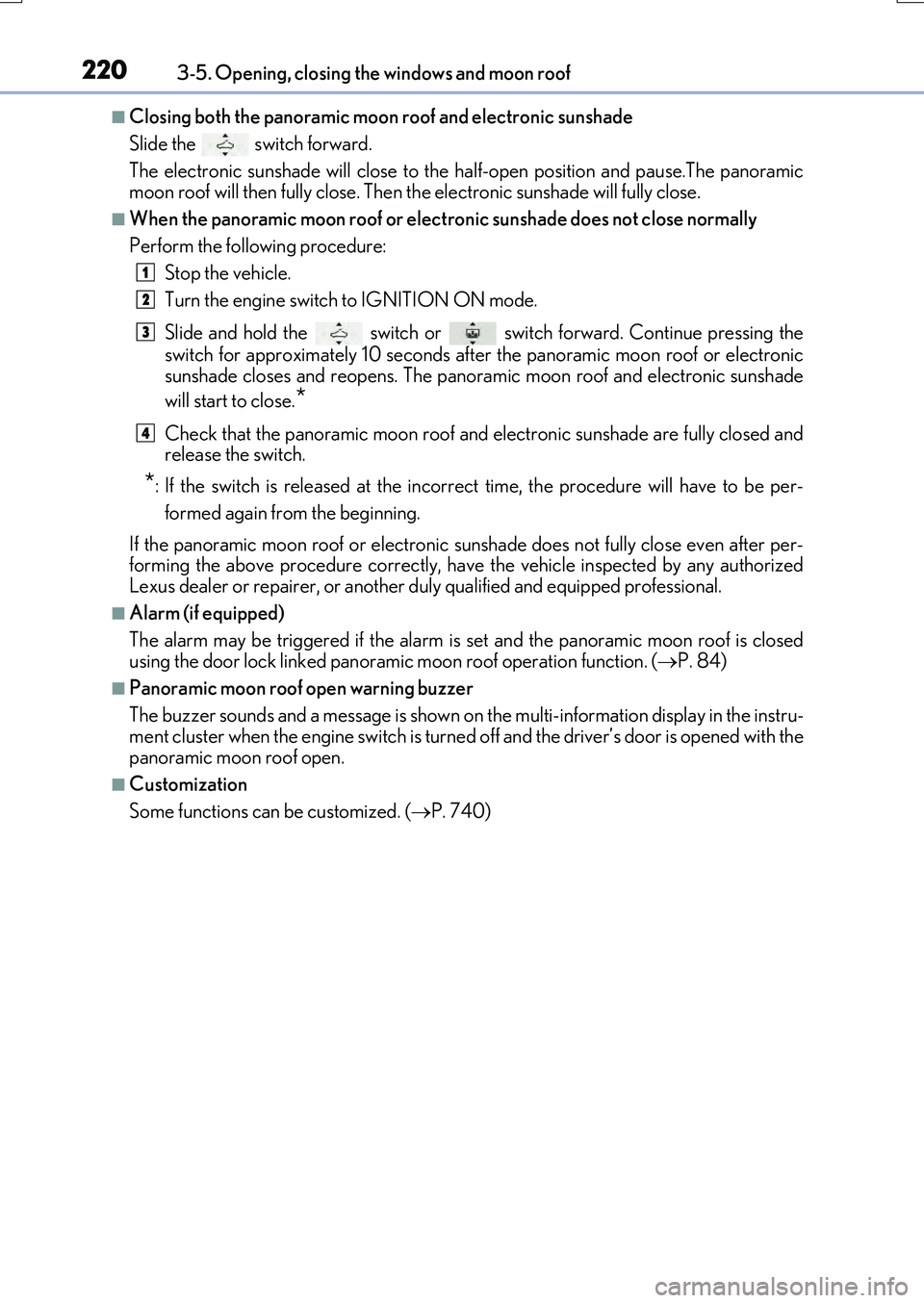

2203-5. Opening, closing the windows and moon roof
RX350/RX200t_EE_OM48F32E
■Closing both the panoramic moon roof and electronic sunshade
Slide the
switch forward.
The electronic sunshade will close to the half-open position and pause.The panoramic
moon roof will then fully close. Then the electronic sunshade will fully close.
■When the panoramic moon roof or electronic sunshade does not close normally
Perform the following procedure:
Stop the vehicle.
Turn the engine switch to IGNITION ON mode.
Slide and hold the swit ch or switch forward. Continue pressing the
switch for approximately 10 seconds afte r the panoramic moon roof or electronic
sunshade closes and reopens. The panora mic moon roof and electronic sunshade
will start to close.
*
Check that the panoramic moon roof and el ectronic sunshade are fully closed and
release the switch.
*: If the switch is released at the incorrec t time, the procedure will have to be per-
formed again from the beginning.
If the panoramic moon roof or electronic sunshade does not fully close even after per-
forming the above procedure correctly, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Alarm (if equipped)
The alarm may be triggered if the alarm is set and the panoramic moon roof is closed
using the door lock linked panoramic moon roof operation function. ( P. 84)
■Panoramic moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the engine switch is turned off and the driver’s door is opened with the
panoramic moon roof open.
■Customization
Some functions can be customized. ( P. 740)
1
2
3
4

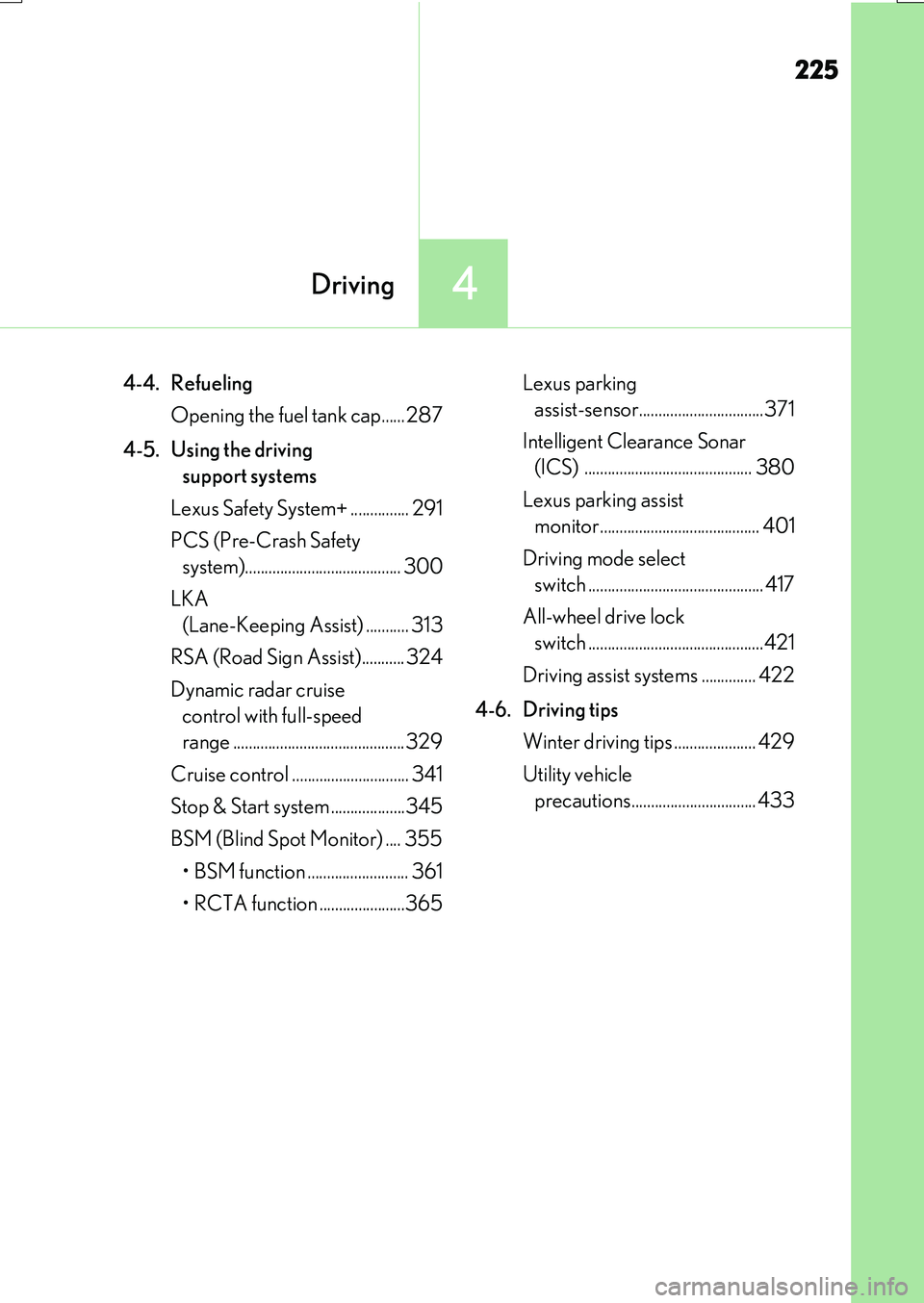

225
4Driving
RX350/RX200t_EE_OM48F32E
4-4. Refueling
Opening the fuel tank cap...... 287
4-5. Using the driving
support systems
Lexus Safety System+ ............... 291
PCS (Pre-Crash Safety
system)........................................ 300
LKA
(Lane-Keeping Assist) ........... 313
RSA (Road Sign Assist)........... 324
Dynamic radar cruise
control with full-speed
range ............................................329
Cruise control .............................. 341
Stop & Start system ...................345
BSM (Blind Spot Monitor) .... 355
• BSM function .......................... 361
• RCTA function ......................365
Lexus parking
assist-sensor................................371
Intelligent Clearance Sonar
(ICS) ........................................... 380
Lexus parking assist
monitor......................................... 401
Driving mode select
switch ............................................. 417
All-wheel drive lock
switch .............................................421
Driving assist systems .............. 422
4-6. Driving tips
Winter driving tips ..................... 429
Utility vehicle
precautions................................ 433

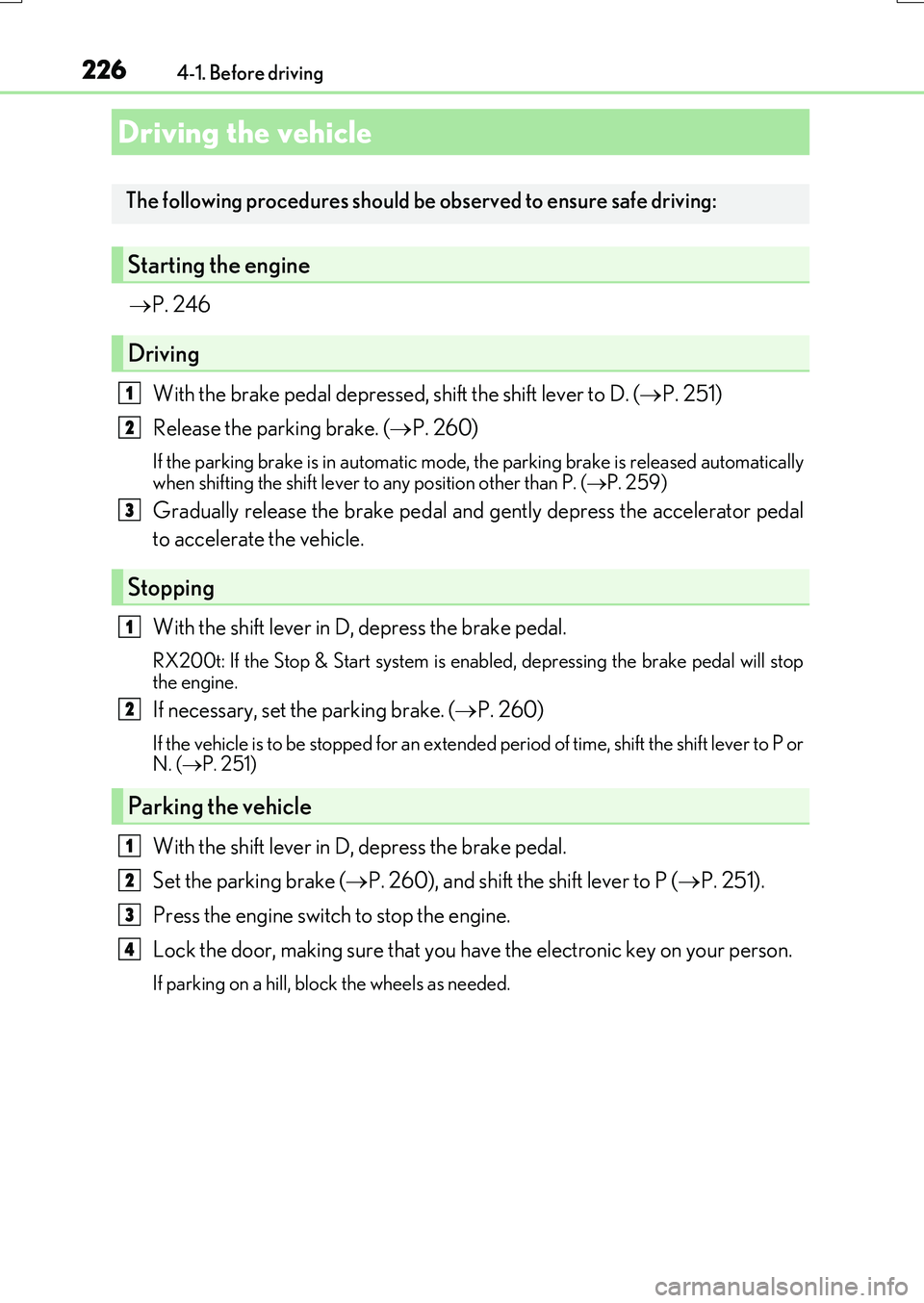

226
RX350/RX200t_EE_OM48F32E
4-1. Before driving
 P. 246
With the brake pedal depressed, shift the shift lever to D. (P. 251)
Release the parking brake. ( P. 260)
If the parking brake is in automatic mode, the parking brake is released automatically when shifting the shift lever to any position other than P. ( P. 259)
Gradually release the brake pedal and gently depress the accelerator pedal
to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
RX200t: If the Stop & Start system is en abled, depressing the brake pedal will stop the engine.
If necessary, set the parking brake. ( P. 260)
If the vehicle is to be stopped for an extended period of time, shift the shift lever to P or N. ( P. 251)
With the shift lever in D, depress the brake pedal.
Set the parking brake ( P. 260), and shift the shift lever to P (P. 251).
Press the engine switch to stop the engine.
Lock the door, making sure that you ha ve the electronic key on your person.
If parking on a hill, block the wheels as needed.
Driving the vehicle
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4
