6768-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this Owner’s Manual.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
engine switch off with the shift lever in any position other than P.
Shift the shift lever to P.
■If “Power Turned Off to Save Battery” is displayed
This message is displayed when the po wer was cut off due to the automatic
power off function.
The next time the engine is started, increase the engine speed slightly and
maintain it at that speed for approximately 5 minutes to recharge the battery.
■If “AWD System Overheated Switch ing to 2WD Mode” or “AWD System
Overheated 2WD Mode Engaged” is displayed (AWD models)
This message may be displayed when dr iving under extremely high load con-
ditions.
Drive the vehicle at low speeds or stop the vehicle in a safe place with the
engine running until the message is cleared.
If the message is not cleared, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If “A New Key has been Registered Cont act Your Dealer for Details” is dis-
played
This message will be displayed each time the driver’s door is opened when the
doors are unlocked from the outside for approximately one week after a new
electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. to check if an unknown electronic key (other than
those in your possession) has been registered.
Other messages displayed on the multi-information display

7138-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

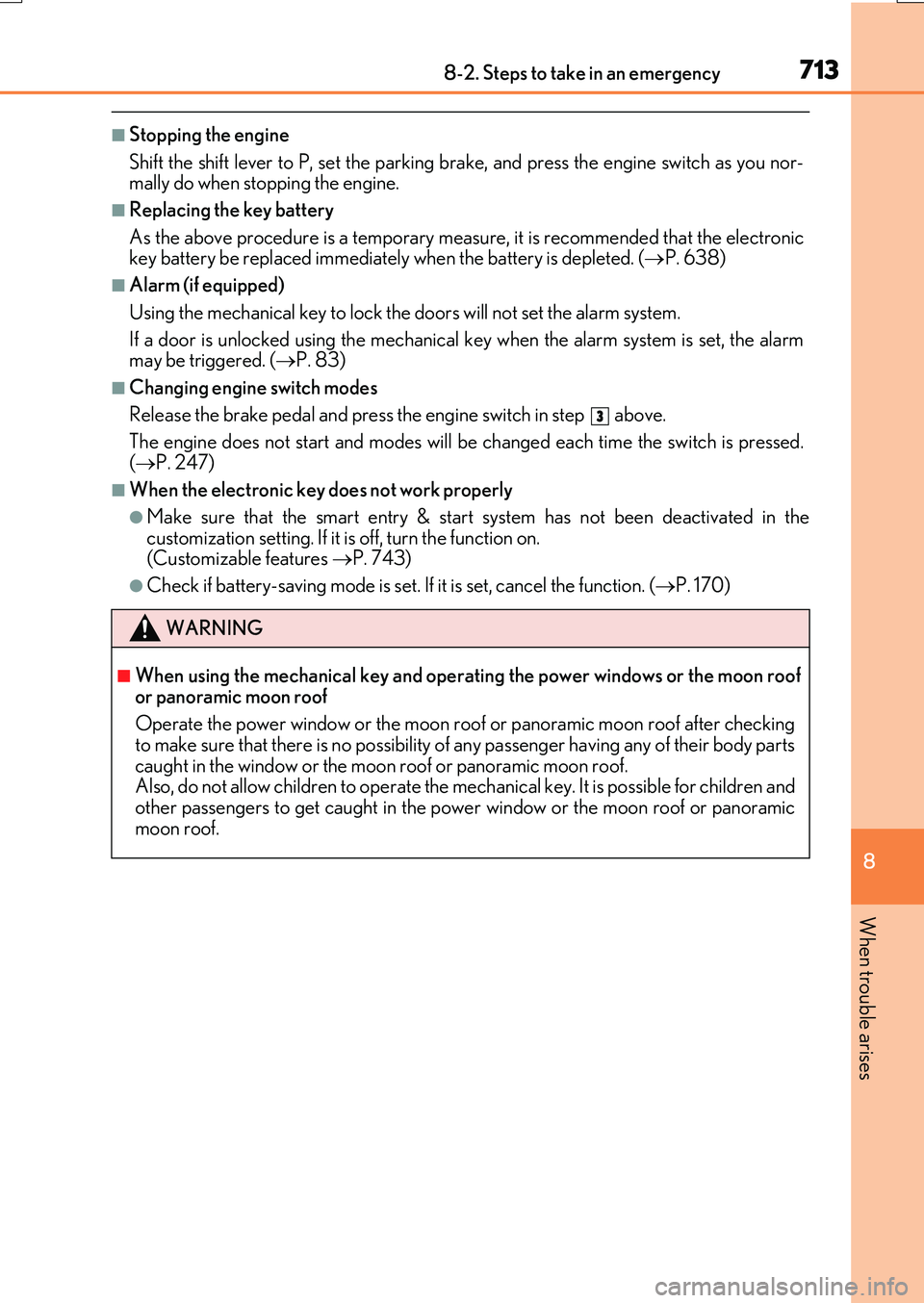

■Stopping the engine
Shift the shift lever to P, set the parking brake, and press the engine switch as you nor- mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measur e, it is recommended that the electronic key battery be replaced immediately when the battery is depleted. ( P. 638)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the alarm may be triggered. ( P. 83)
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start an d modes will be changed each time the switch is pressed.
( P. 247)
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in the
customization setting. If it is off, turn the function on. (Customizable features P. 743)
●Check if battery-saving mode is set. If it is set, cancel the function. (P. 170)
WARNING
■When using the mechanical key and operating the power windows or the moon roof
or panoramic moon roof
Operate the power window or the moon roof or panoramic moon roof after checking to make sure that there is no possibility of any passenger having any of their body parts
caught in the window or the moon roof or panoramic moon roof. Also, do not allow children to operate the me chanical key. It is possible for children and other passengers to get caught in the powe r window or the moon roof or panoramic
moon roof.
3

7168-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is stopped. (RX200t: Except when the engine is stopped by the Stop & Start system.)
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If the vehicle is left for a long time, the battery may discharge, and the engine may beunable to start. (The battery recharges automatically during driving.)
■When the battery is removed or discharged
●In some cases, it may not be possible to unlock the doors using the smart entry & startsystem when the battery is discharged. Us e the wireless remote control or the mechan-
ical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-nected, the system will return to the mode it was in before the battery was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be especially careful when reconnecting the battery.
●Vehicles with power back door: The power back door must be initialized. (P. 159)
●RX200t: After the battery terminals have been disconnected then reconnected or the battery has been replaced, the Stop & Start system may not automatically stop theengine for approximately 5 to 60 minutes.
4
5
6
7

7178-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

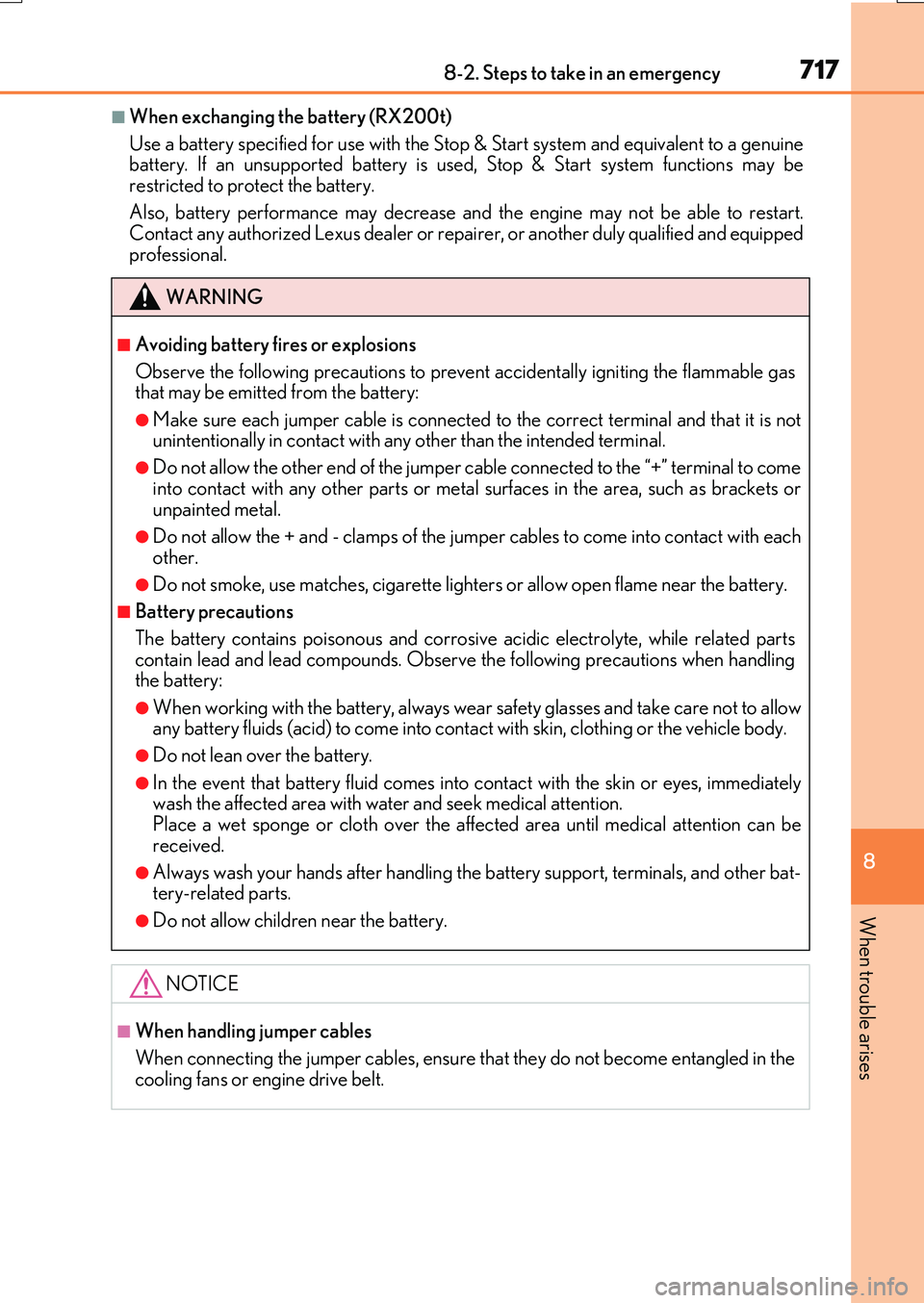

■When exchanging the battery (RX200t)
Use a battery specified for use with the Stop & Start system and equivalent to a genuine battery. If an unsupported battery is used, Stop & Start system functions may be
restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to restart. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
WARNING
■Avoiding battery fires or explosions
Observe the following precautions to preven t accidentally igniting the flammable gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is notunintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observ e the following precautions when handling the battery:
●When working with the battery, always wear safety glasses and take care not to allowany battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediatelywash the affected area with water and seek medical attention.Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other bat- tery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the cooling fans or engine drive belt.

7208-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

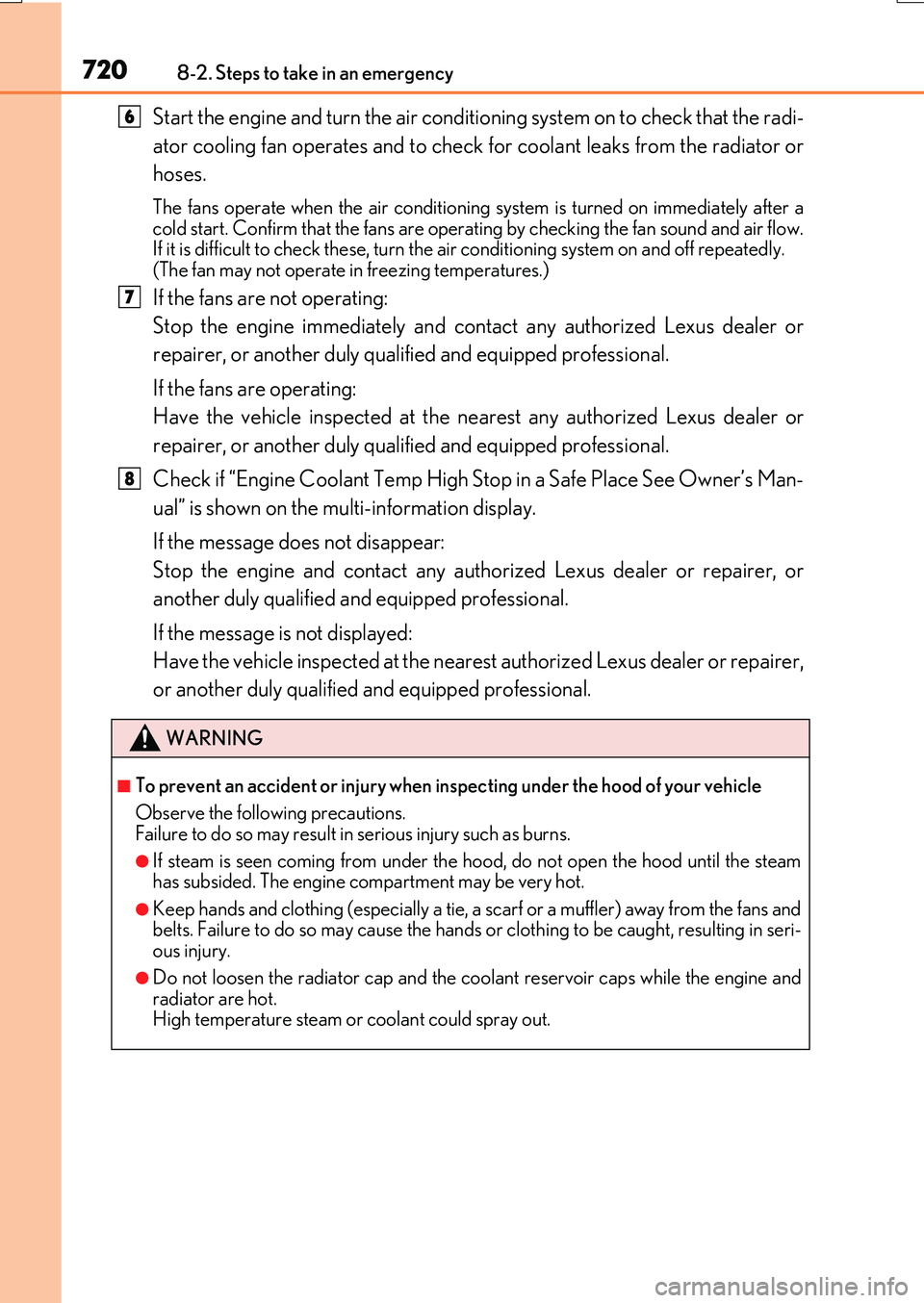

Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fan operates and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow. If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
WARNING
■To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans andbelts. Failure to do so may cause the hands or clothing to be caught, resulting in seri- ous injury.
●Do not loosen the radiator cap and the coolant reservoir caps while the engine andradiator are hot.High temperature steam or coolant could spray out.
6
7
8

7228-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

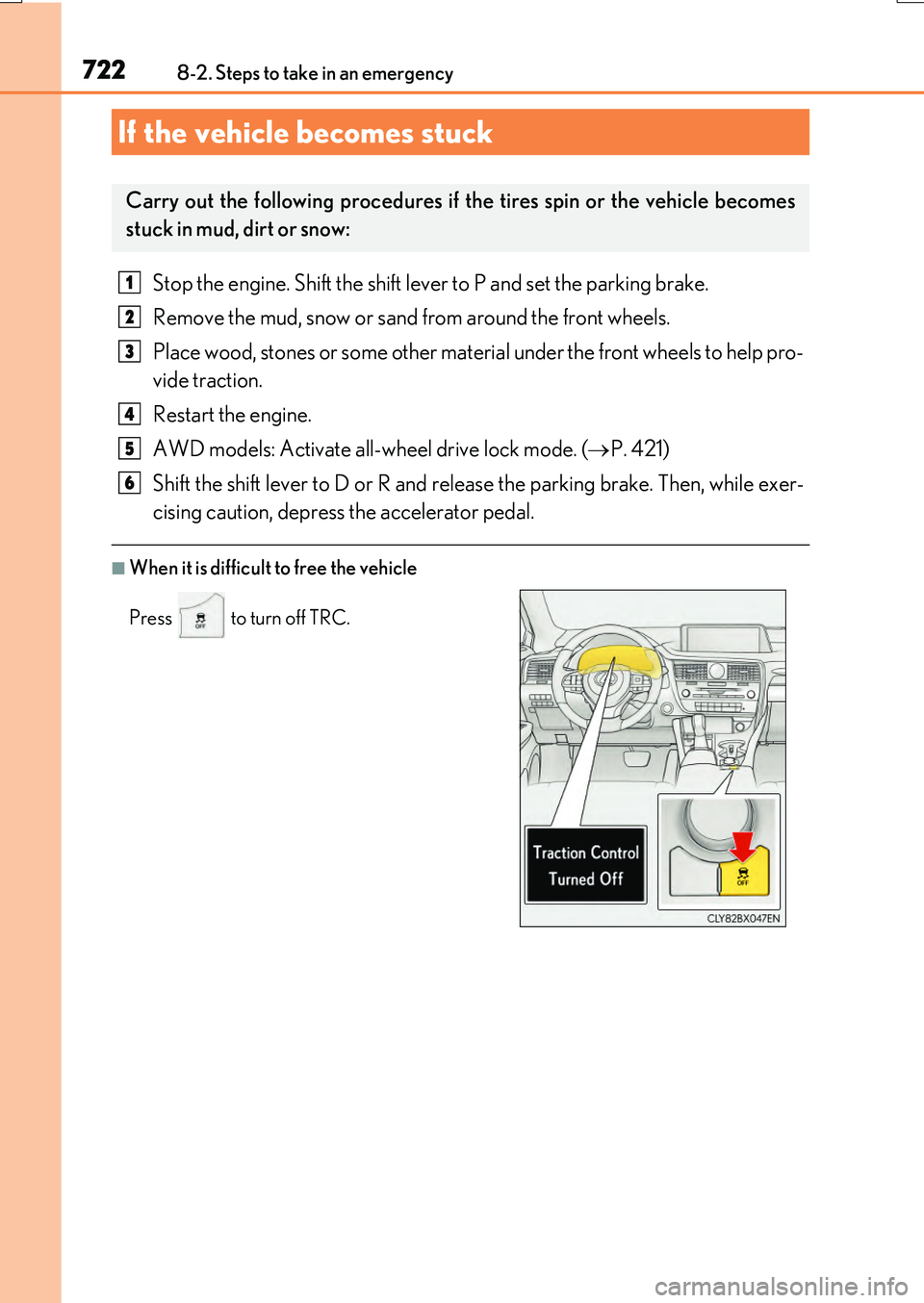

Stop the engine. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to help pro-
vide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. ( P. 421)
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5
6

755What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E

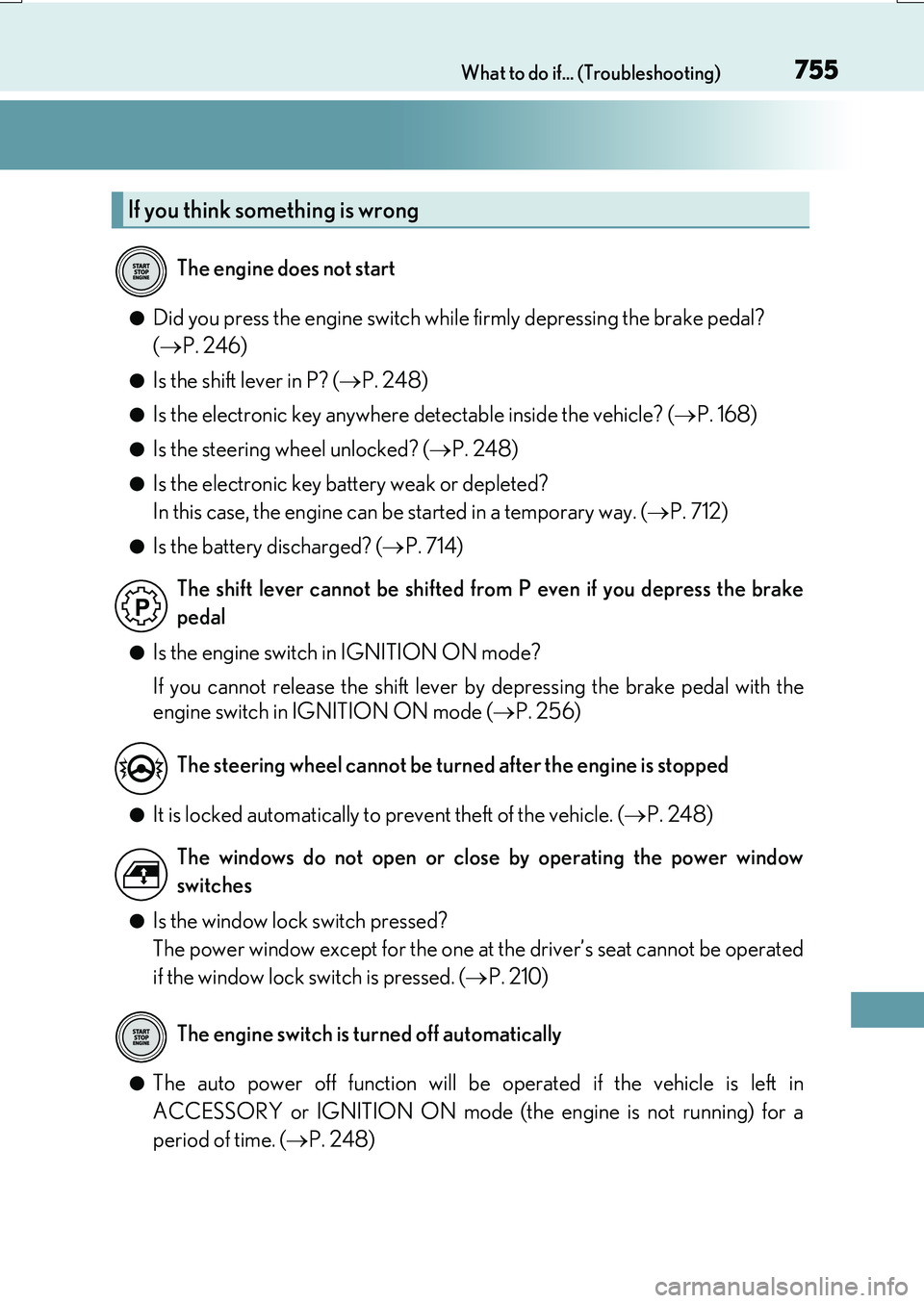

●Did you press the engine switch while firmly depressing the brake pedal?
( P. 246)
●Is the shift lever in P? (P. 248)
●Is the electronic key anywhere detectable inside the vehicle? (P. 168)
●Is the steering wheel unlocked? (P. 248)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 712)
●Is the battery discharged? (P. 714)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 256)
●It is locked automatically to prevent theft of the vehicle. (P. 248)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 210)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running) for a
period of time. ( P. 248)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically

756What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E
●The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts? ( P. 669, 669)
●The parking brake indicator is on
Is the parking brake released? ( P. 259)
Depending on the situation, other types of warning buzzer may also sound.
( P. 666, 673)
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 83)
Do one of the following to stop the alarm:
• Unlock the doors using the entry fu nction or wireless remote control. • Start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 673)
●When a warning light turns on or a warning message is displayed, refer to
P. 666, 673.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

762Alphabetical index
RX350/RX200t_EE_OM48F32E
Do-it-yourself maintenance .............595
Doors
Automatic door locking and
unlocking system..............................143
Back door................................................146
Door lock................................................. 142
Outside rear view mirrors.............206
Power back door.................................. 151
Rear door child-protectors ............143
Side doors .............................................. 140
Side windows........................................ 210
Double locking system .......................... 82
Drive information................................... 105
Drive-start control.....................227, 255
Driver’s seat belt reminder light ..... 669
Driver’s seat position memory ......... 195
Driving
Break-in tips ......................................... 228
Correct posture .................................... 34
Driving mode select switch ............ 417
Procedures ........................................... 226
Winter drive tips................................. 429
Driving position memory .................... 195
Memory recall function ................... 198
Power easy access system ............ 195
Dynamic radar cruise control
with full-speed range ....................... 329
Dynamic Torque Control AWD
system .................................................... 423
Eco drive mode ....................................... 417
Eco Driving Indicator............................120
Electric Power Steering (EPS) ....... 423
Warning light....................................... 667
Electronic key ..........................................134
Battery-saving function .................... 169
If the electronic key does
not operate properly...................... 710
Replacing the battery ...................... 638
Electronic sunshade ..............................218
Jam protection function ................... 219
Operation ............................................... 218
Emergency brake signal.................... 423
Emergency flashers ............................. 656
Emergency tire puncture
repair kit ................................................ 693
Emergency, in case of
If a warning buzzer sounds .......... 666
If a warning light turns on .............. 666
If a warning message is
displayed ............................................ 673
If the battery is discharged ............. 714
If the electronic key does
not operate properly...................... 710
If the engine will not start ............... 708
If you have a flat tire.............. 679, 693
If you lose your keys ............... 136, 138
If you think something is
wrong................................................... 664
If your vehicle becomes stuck ..... 722
If your vehicle has to be
stopped in an emergency ......... 657
If your vehicle needs
to be towed.......................................658
If your vehicle overheats.................. 718
E

763Alphabetical index
RX350/RX200t_EE_OM48F32E
Engine
ACCESSORY mode ..................... 247
Compartment..................................... 599
Engine switch....................................... 246
Hood ........................................................ 597
How to start the engine .................. 246
Identification number ....................... 728
If your vehicle has to be
stopped in an emergency.......... 657
Ignition switch (engine switch) ... 246
Overheating ...........................................718
Engine coolant
Capacity ................................................. 734
Checking .............................................. 605
Preparing and checking
before winter .................................... 429
Engine coolant temperature
gauge......................................................... 96
Engine immobilizer system...................77
Engine oil
Capacity ................................................. 729
Checking ................................................ 601
Preparing and checking
before winter .................................... 429
Engine oil pressure gauge ................. 107
Engine oil temperature gauge ......... 107
Engine switch ......................................... 246
EPS
(Electronic Power Steering)......... 423
Warning light ....................................... 667
ERA-GLONASS ........................ 46, 578
Flat tire ........................................... 679, 693
Floor mats ................................................... 32
Fluid
Automatic transmission.................. 735
Brake ....................................................... 736
Washer.......................................................611
Fog lights
Replacing light bulbs ....................... 643
Switch ...................................................... 278
Follow me home system .................... 266
Front fog lights
Replacing light bulbs ...................... 643
Switch ...................................................... 278
Front passenger footwell hooks ..... 575
Front passenger’s seat belt
reminder light ..................................... 669
Front position lights
Light switch........................................... 265
Replacing light bulbs ....................... 643
Front seat heaters................................. 550
Front seats
Adjustment .............................................185
Cleaning ................................................589
Correct driving posture.....................34
Driving position memory ................ 195
Head restraints ................................... 200
Power easy access system............. 195
Seat heaters..........................................550
Seat position memory .......................195
F
