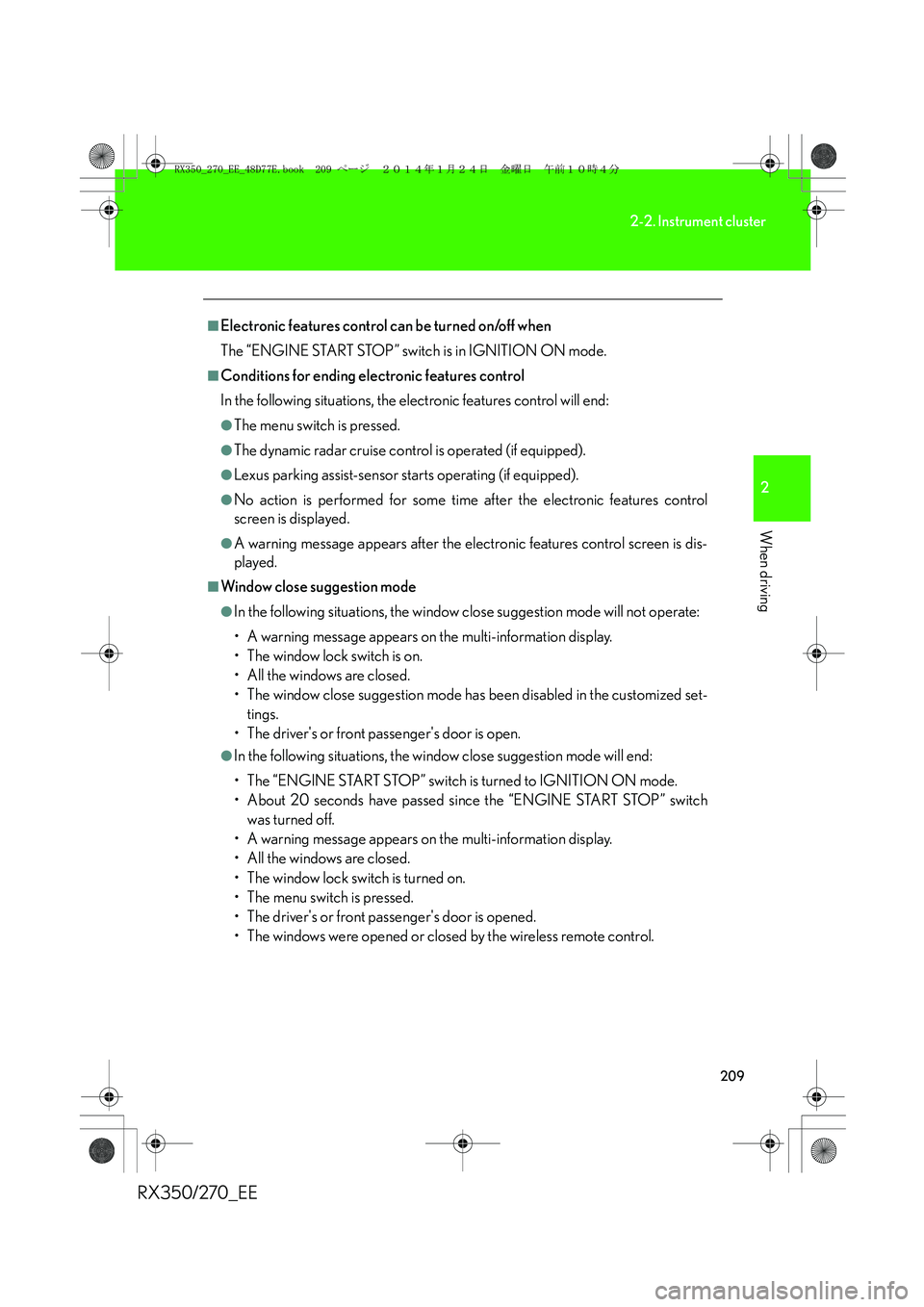

sensor LEXUS RX270 2014 Owner's Manual

209
2-2. Instrument cluster
2
When driving
RX350/270_EE
■Electronic features control can be turned on/off when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Conditions for ending electronic features control
In the following situations, the electronic features control will end:
●The menu switch is pressed.
●The dynamic radar cruise control is operated (if equipped).
●Lexus parking assist-sensor starts operating (if equipped).
●No action is performed for some time after the electronic features control
screen is displayed.
●A warning message appears after the electronic features control screen is dis-
played.
■Window close suggestion mode
●In the following situations, the window close suggestion mode will not operate:
• A warning message appears on the multi-information display.
• The window lock switch is on.
• All the windows are closed.
• The window close suggestion mode has been disabled in the customized set-
tings.
• The driver's or front passenger's door is open.
●In the following situations, the window close suggestion mode will end:
• The “ENGINE START STOP” switch is turned to IGNITION ON mode.
• About 20 seconds have passed since the “ENGINE START STOP” switch
was turned off.
• A warning message appears on the multi-information display.
• All the windows are closed.
• The window lock switch is turned on.
• The menu switch is pressed.
• The driver's or front passenger's door is opened.
• The windows were opened or closed by the wireless remote control.
RX350_270_EE_48D77E.book 209 ページ ２０１４年１月２４日　金曜日　午前１０時４分

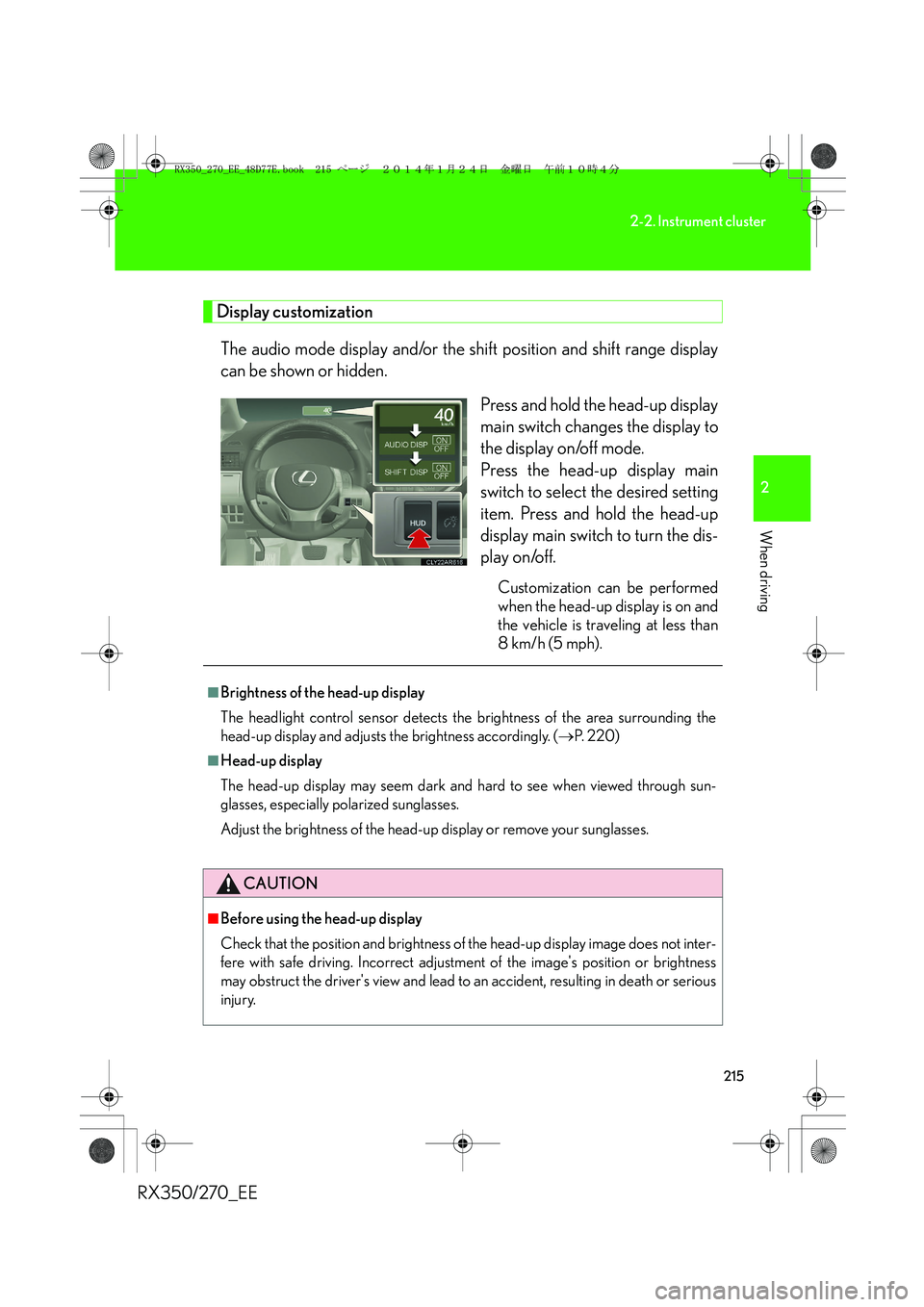

215
2-2. Instrument cluster
2
When driving
RX350/270_EE
Display customization
The audio mode display and/or the shift position and shift range display
can be shown or hidden.
Press and hold the head-up display
main switch changes the display to
the display on/off mode.
Press the head-up display main
switch to select the desired setting
item. Press and hold the head-up
display main switch to turn the dis-
play on/off.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
8 km/h (5 mph).
■Brightness of the head-up display
The headlight control sensor detects the brightness of the area surrounding the
head-up display and adjusts the brightness accordingly. (→P. 220)
■Head-up display
The head-up display may seem dark and hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
CAUTION
■Before using the head-up display
Check that the position and brightness of the head-up display image does not inter-
fere with safe driving. Incorrect adjustment of the image's position or brightness
may obstruct the driver's view and lead to an accident, resulting in death or serious
injury.
RX350_270_EE_48D77E.book 215 ページ ２０１４年１月２４日　金曜日　午前１０時４分

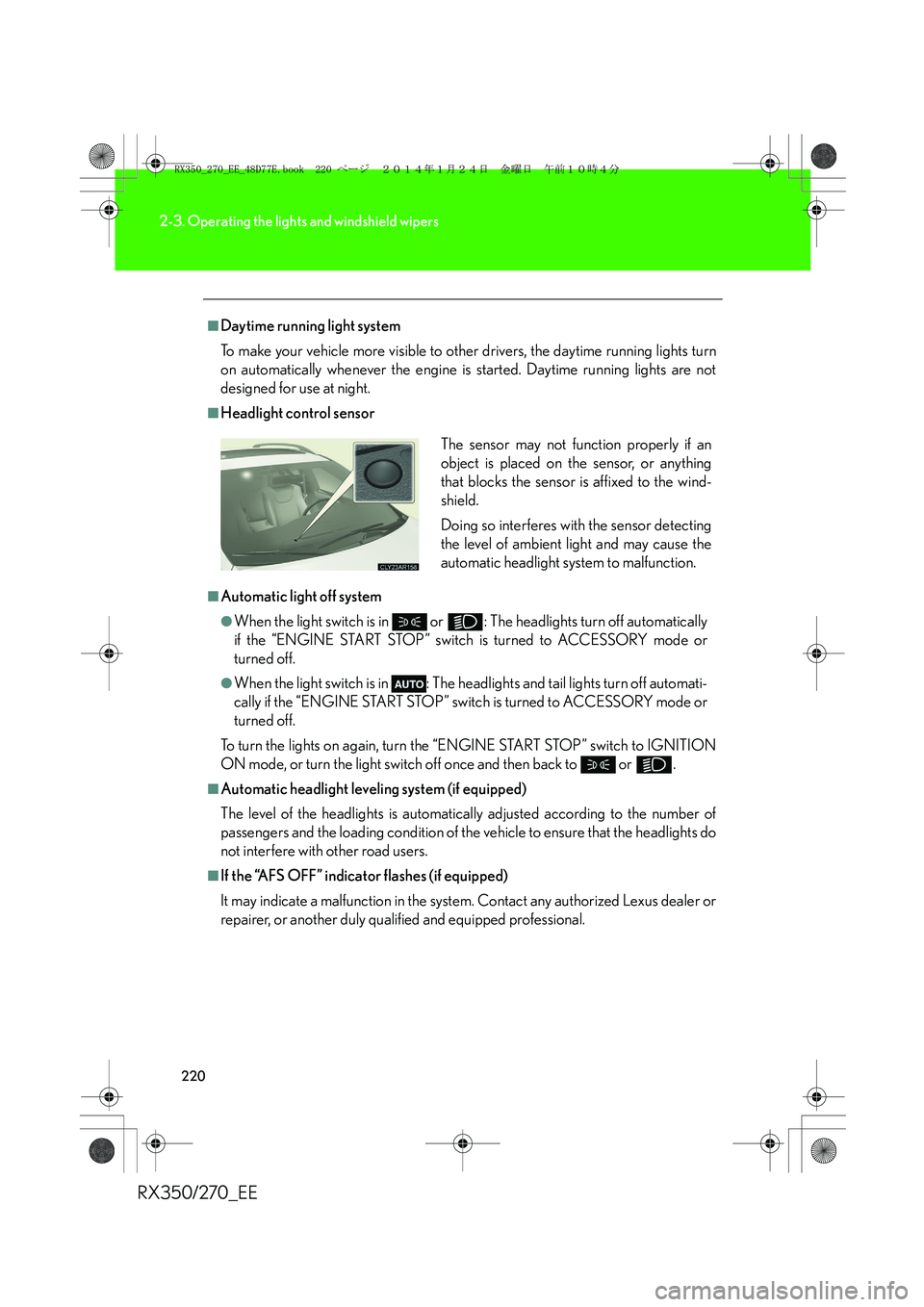

220
2-3. Operating the lights and windshield wipers
RX350/270_EE
■Daytime running light system
To make your vehicle more visible to other drivers, the daytime running lights turn
on automatically whenever the engine is started. Daytime running lights are not
designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in or : The headlights turn off automatically
if the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off.
●When the light switch is in : The headlights and tail lights turn off automati-
cally if the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNITION
ON mode, or turn the light switch off once and then back to or .
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the “AFS OFF” indicator flashes (if equipped)
It may indicate a malfunction in the system. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
RX350_270_EE_48D77E.book 220 ページ ２０１４年１月２４日　金曜日　午前１０時４分

221
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
■Light reminder buzzer
A buzzer sounds when the “ENGINE START STOP” switch is turned off or turned
to ACCESSORY mode and the driver's door is opened while the lights are turned
on.
■Turning on the low beam headlights when the vehicle is parked in dark areas
■Illuminated entry system
If the wireless remote control switch is used to unlock the vehicle when the light
switch is in and the surrounding area is dark, the front position light turns on.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 6 2 2 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is off.
Turn off the engine with the light switch in
or off, and pull the light switch toward
you and release it. The low beam headlights
will turn on for about 30 seconds to light
up the area around the vehicle.
The lights are turned off in the following sit-
uations.
●The “ENGINE START STOP” switch is
turned to IGNITION ON mode.
●The light switch is turned on.
●The light switch is pulled toward you
and then released.
RX350_270_EE_48D77E.book 221 ページ ２０１４年１月２４日　金曜日　午前１０時４分

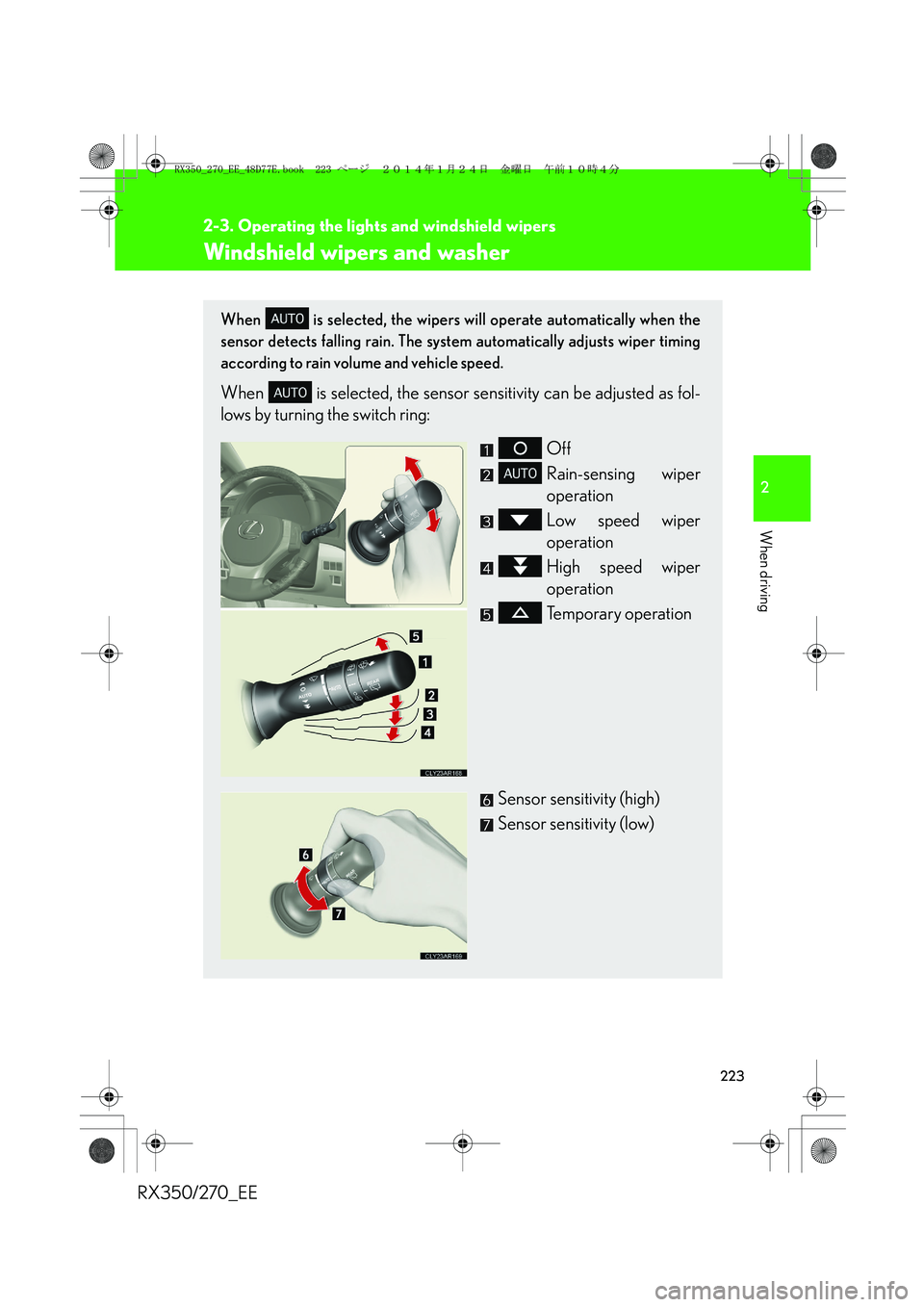

223
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
Windshield wipers and washer
When is selected, the wipers will operate automatically when the
sensor detects falling rain. The system automatically adjusts wiper timing
according to rain volume and vehicle speed.
When is selected, the sensor sensitivity can be adjusted as fol-
lows by turning the switch ring:
Off
Rain-sensing wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Sensor sensitivity (high)
Sensor sensitivity (low)
RX350_270_EE_48D77E.book 223 ページ ２０１４年１月２４日　金曜日　午前１０時４分

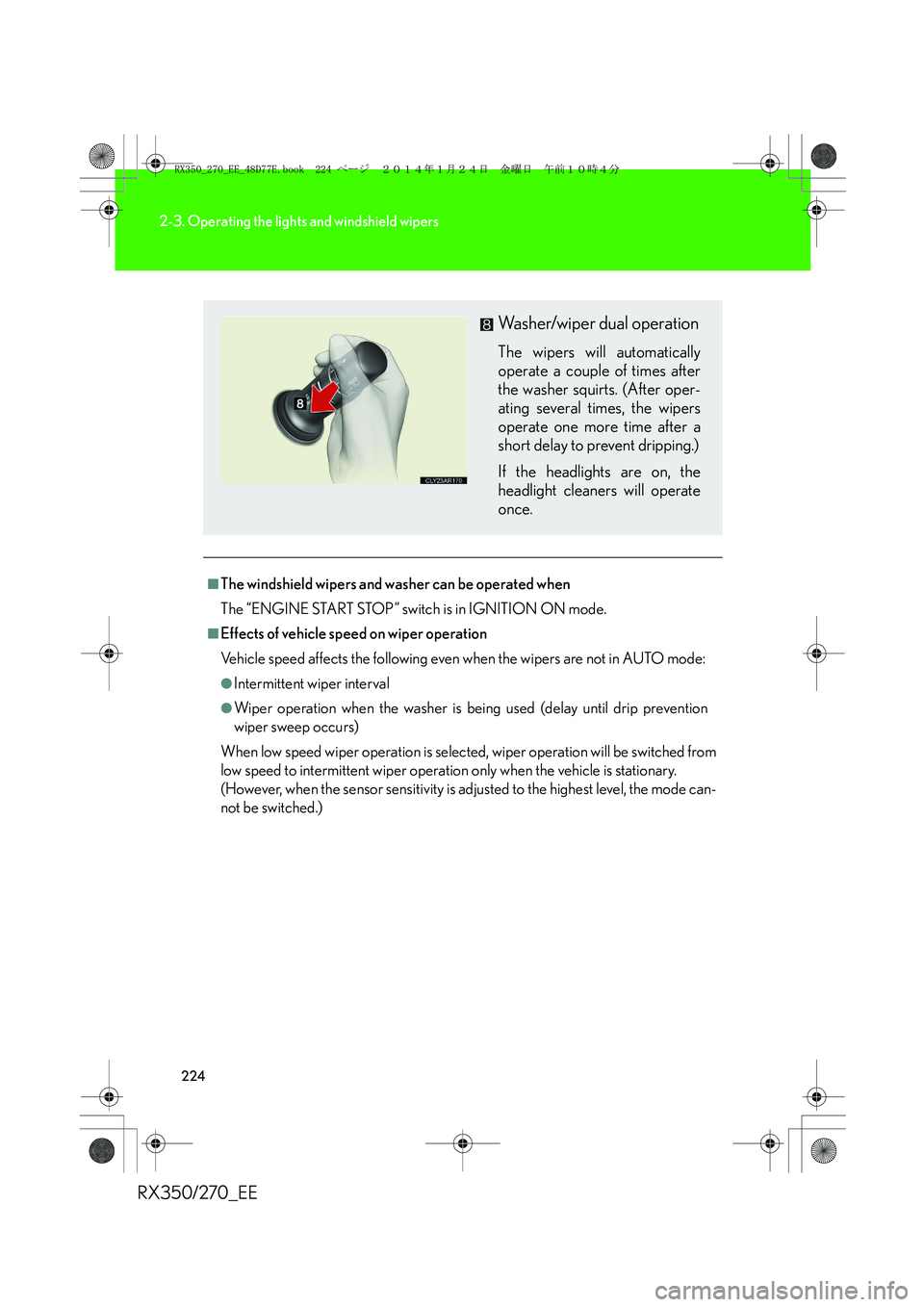

224
2-3. Operating the lights and windshield wipers
RX350/270_EE
■The windshield wipers and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in AUTO mode:
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
When low speed wiper operation is selected, wiper operation will be switched from
low speed to intermittent wiper operation only when the vehicle is stationary.
(However, when the sensor sensitivity is adjusted to the highest level, the mode can-
not be switched.)
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts. (After oper-
ating several times, the wipers
operate one more time after a
short delay to prevent dripping.)
If the headlights are on, the
headlight cleaners will operate
once.
RX350_270_EE_48D77E.book 224 ページ ２０１４年１月２４日　金曜日　午前１０時４分

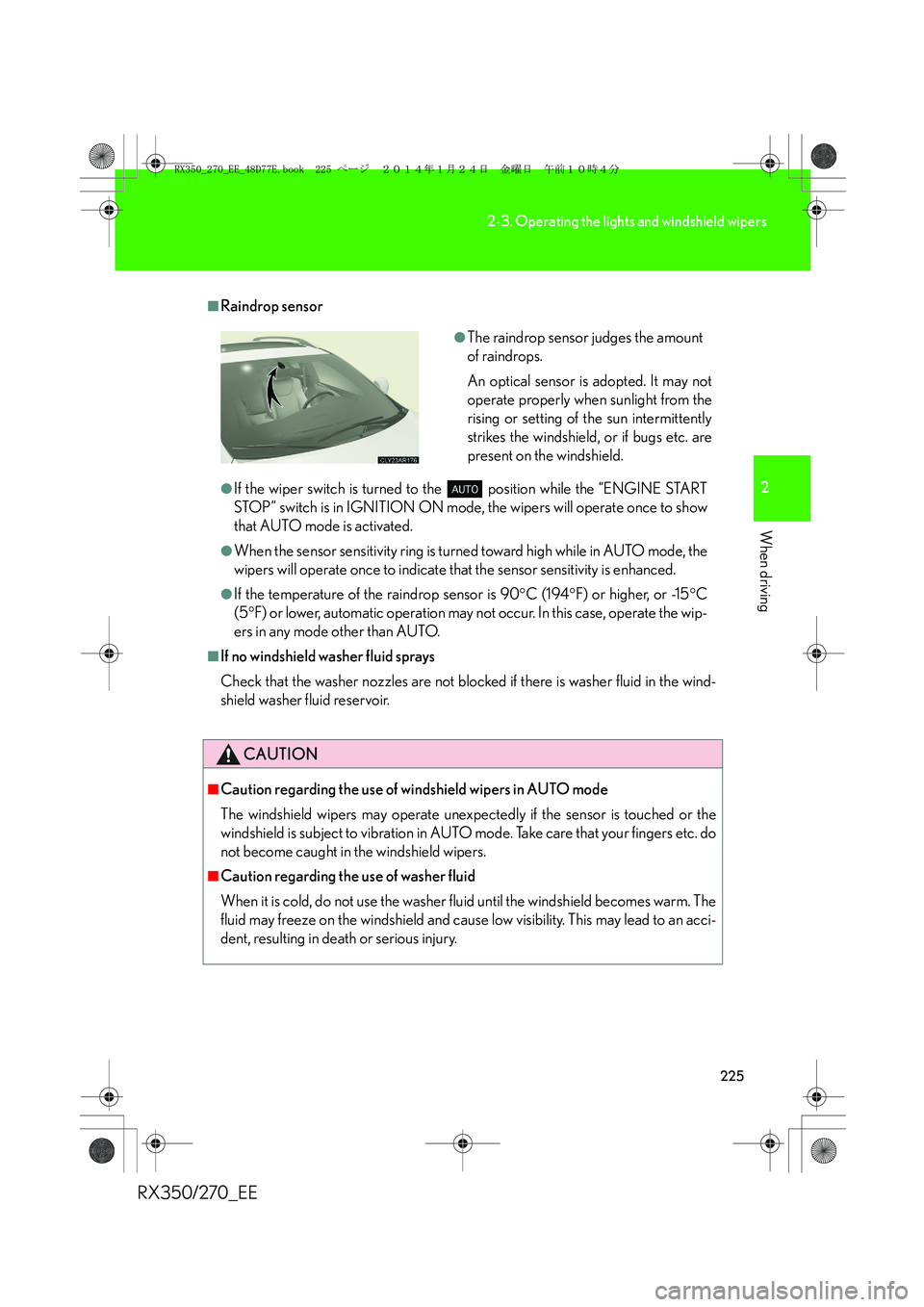

225
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
■Raindrop sensor
●If the wiper switch is turned to the position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wipers will operate once to show
that AUTO mode is activated.
●When the sensor sensitivity ring is turned toward high while in AUTO mode, the
wipers will operate once to indicate that the sensor sensitivity is enhanced.
●If the temperature of the raindrop sensor is 90°C (194°F) or higher, or -15°C
(5°F) or lower, automatic operation may not occur. In this case, operate the wip-
ers in any mode other than AUTO.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers etc. do
not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an acci-
dent, resulting in death or serious injury.
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
RX350_270_EE_48D77E.book 225 ページ ２０１４年１月２４日　金曜日　午前１０時４分

238
2-4. Using other driving systems
RX350/270_EE
Driving in vehicle-to-vehicle distance control mode
This mode employs a radar sensor to detect the presence of vehicles up
to approximately 120 m (400 ft.) ahead, determines the current vehicle-
to-vehicle following distance, and operates to maintain a suitable follow-
ing distance from the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on long
downhill slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehi-
cle distance can also be set by operating the vehicle-to-vehicle distance con-
trol.
Example of deceleration cruising
When the vehicle ahead is driving slower than the set speed
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes. A warning tone warns you when the
system cannot decelerate sufficiently to prevent your vehicle from closing in
on the vehicle ahead.
RX350_270_EE_48D77E.book 238 ページ ２０１４年１月２４日　金曜日　午前１０時４分

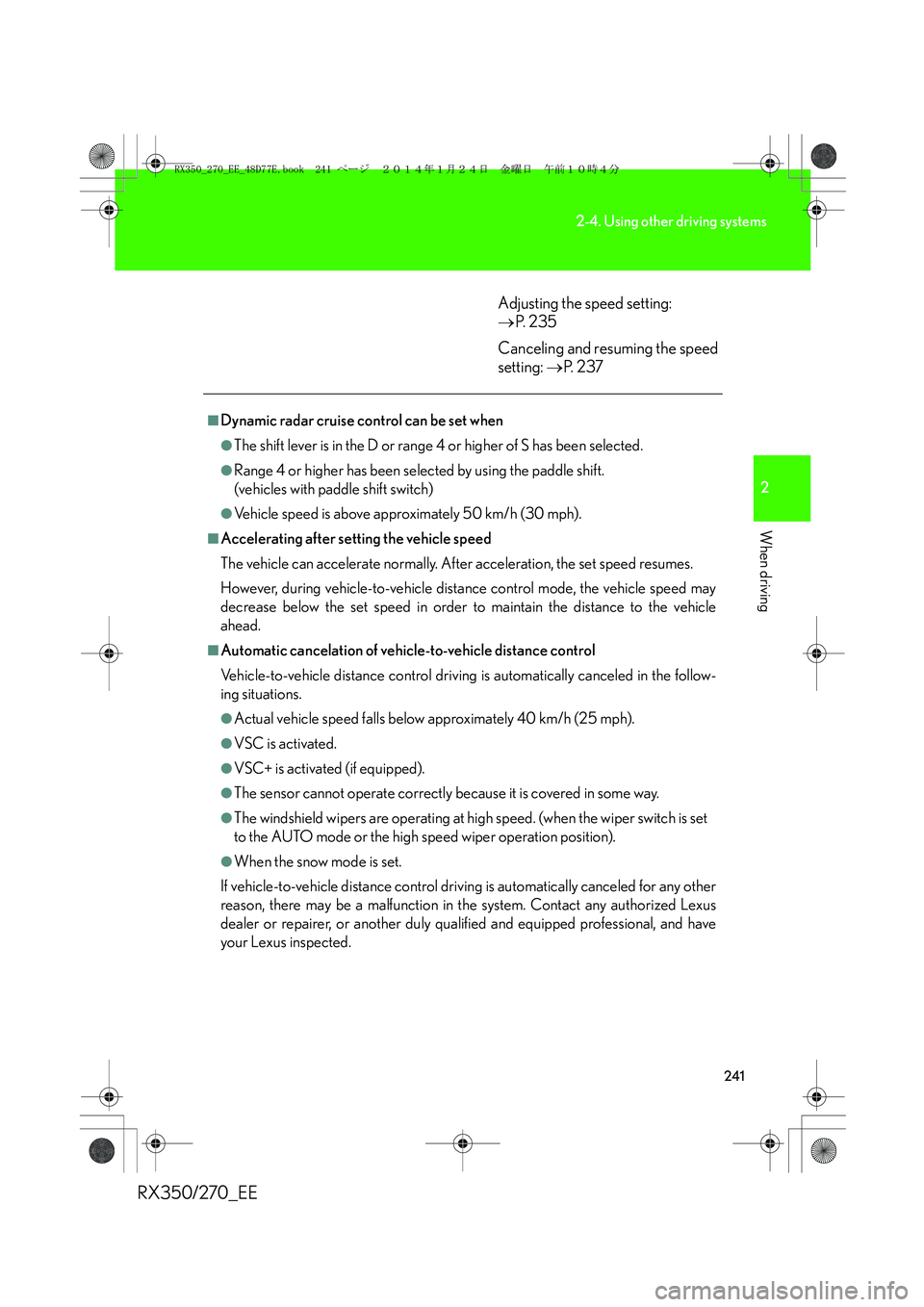

241
2-4. Using other driving systems
2
When driving
RX350/270_EE
Adjusting the speed setting:
→P. 2 3 5
Canceling and resuming the speed
setting: →P. 2 3 7
■Dynamic radar cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
●Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
●Vehicle speed is above approximately 50 km/h (30 mph).
■Accelerating after setting the vehicle speed
The vehicle can accelerate normally. After acceleration, the set speed resumes.
However, during vehicle-to-vehicle distance control mode, the vehicle speed may
decrease below the set speed in order to maintain the distance to the vehicle
ahead.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations.
●Actual vehicle speed falls below approximately 40 km/h (25 mph).
●VSC is activated.
●VSC+ is activated (if equipped).
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed. (when the wiper switch is set
to the AUTO mode or the high speed wiper operation position).
●When the snow mode is set.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional, and have
your Lexus inspected.
RX350_270_EE_48D77E.book 241 ページ ２０１４年１月２４日　金曜日　午前１０時４分

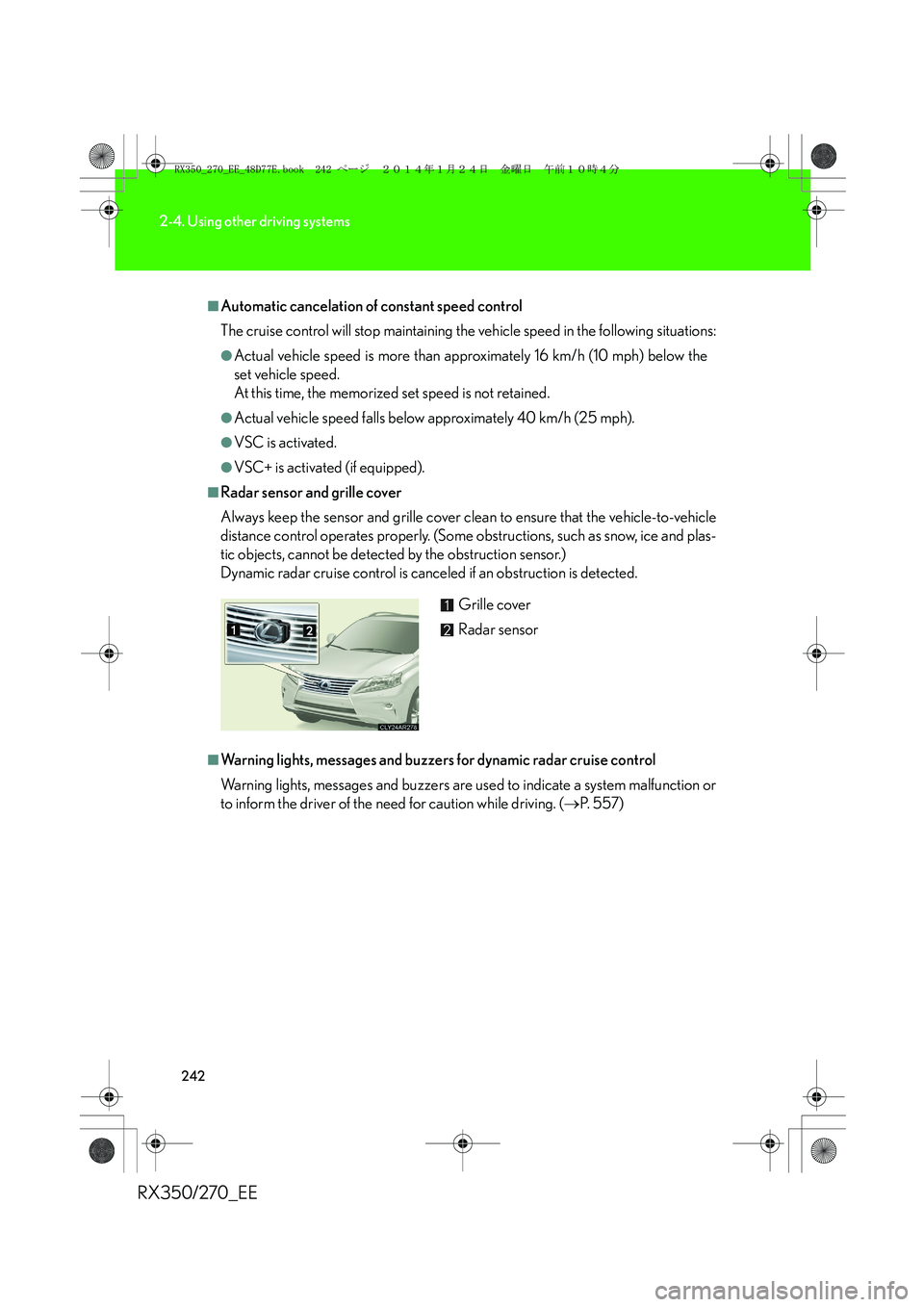

242
2-4. Using other driving systems
RX350/270_EE
■Automatic cancelation of constant speed control
The cruise control will stop maintaining the vehicle speed in the following situations:
●Actual vehicle speed is more than approximately 16 km/h (10 mph) below the
set vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed falls below approximately 40 km/h (25 mph).
●VSC is activated.
●VSC+ is activated (if equipped).
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle
distance control operates properly. (Some obstructions, such as snow, ice and plas-
tic objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is canceled if an obstruction is detected.
■Warning lights, messages and buzzers for dynamic radar cruise control
Warning lights, messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. (→P. 5 5 7 ) Grille cover
Radar sensor
RX350_270_EE_48D77E.book 242 ページ ２０１４年１月２４日　金曜日　午前１０時４分
