low beam LEXUS RX270 2014 Owners Manual

217
2
When driving
RX350/270_EE
2-3. Operating the lights and windshield wipers

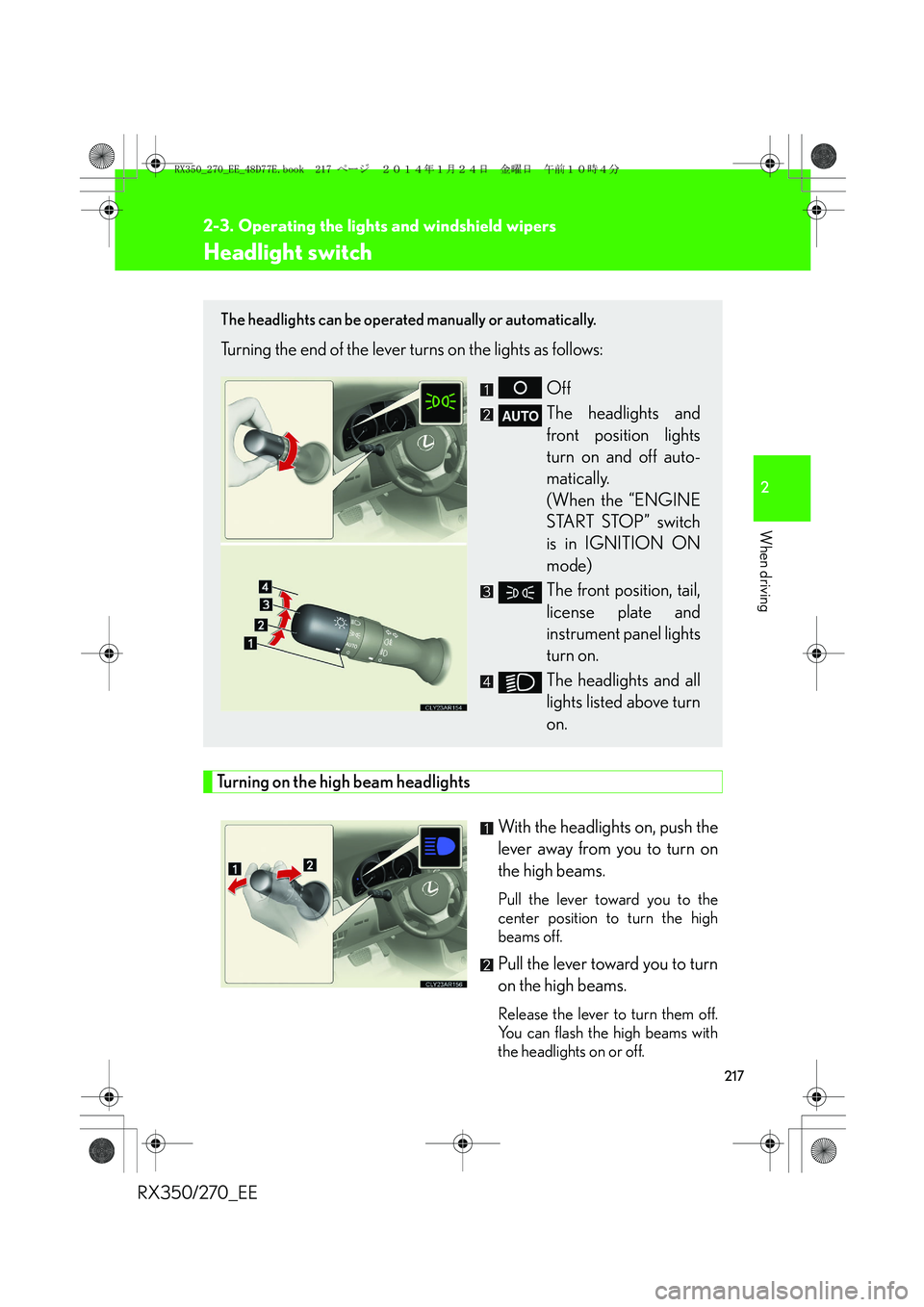

Headlight switch
Turning on the high beam headlights
With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you to turn
on the high beams.
Release the lever to turn them off.
You can flash the high beams with
the headlights on or off.
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Off
The headlights and
front position lights
turn on and off auto-
matically.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
RX350_270_EE_48D77E.book 217 ページ ２０１４年１月２４日　金曜日　午前１０時４分

221
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE

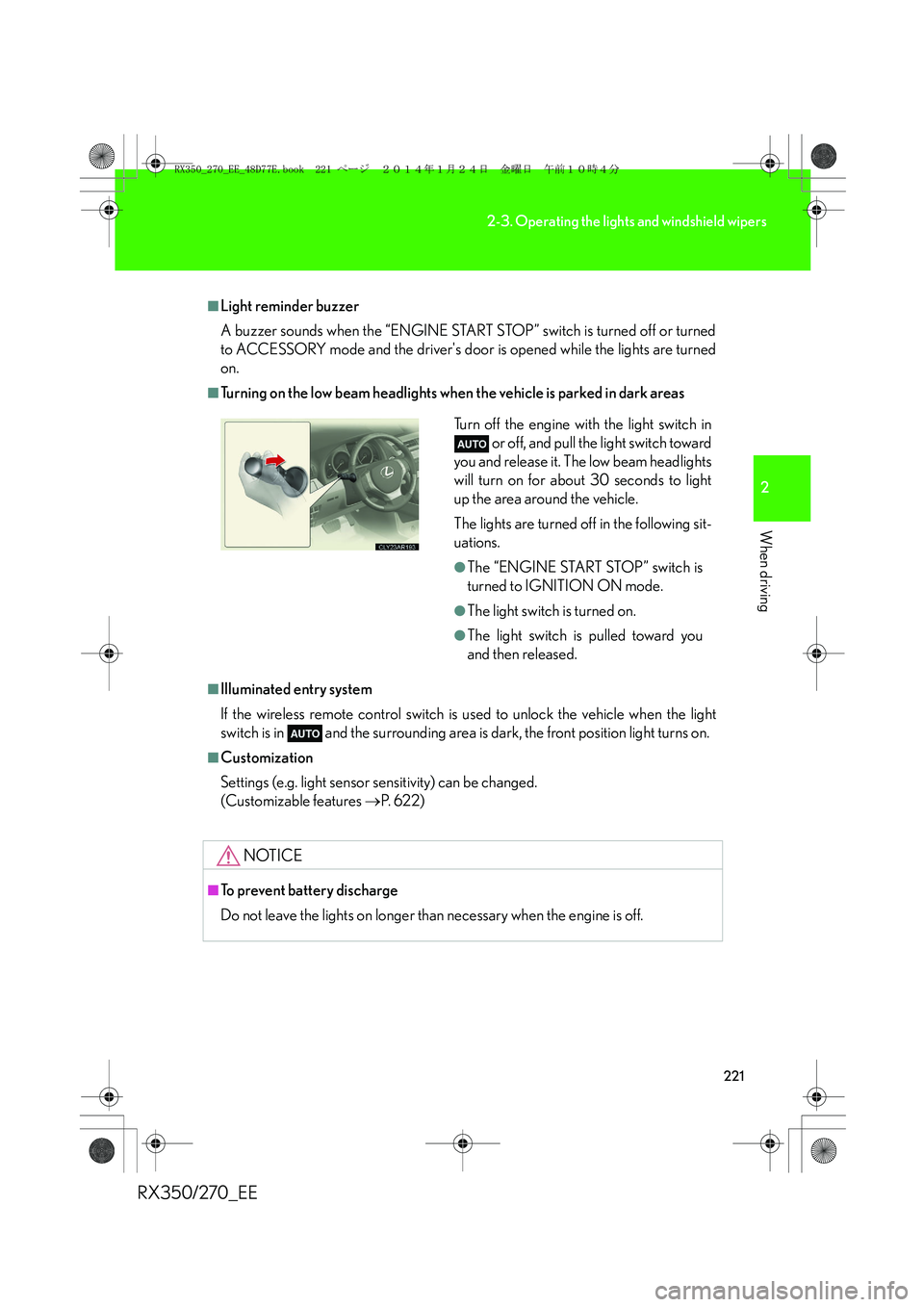

■Light reminder buzzer
A buzzer sounds when the “ENGINE START STOP” switch is turned off or turned
to ACCESSORY mode and the driver's door is opened while the lights are turned
on.
■Turning on the low beam headlights when the vehicle is parked in dark areas
■Illuminated entry system
If the wireless remote control switch is used to unlock the vehicle when the light
switch is in and the surrounding area is dark, the front position light turns on.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 6 2 2 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is off.
Turn off the engine with the light switch in
or off, and pull the light switch toward
you and release it. The low beam headlights
will turn on for about 30 seconds to light
up the area around the vehicle.
The lights are turned off in the following sit-
uations.
●The “ENGINE START STOP” switch is
turned to IGNITION ON mode.
●The light switch is turned on.
●The light switch is pulled toward you
and then released.
RX350_270_EE_48D77E.book 221 ページ ２０１４年１月２４日　金曜日　午前１０時４分

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
*1:RX270
*2:RX350
45TOW IN G30 ATr a i l e r l i g h t s
46FILTER10 A
47IG1 MAIN30 AECU-IG1 NO. 6, BK/UP LP, ECU-
IG1 NO. 5, ECU-IG1 NO. 4
48H-LP RH HI15 ARight-hand headlight (high beam)
49H-LP LH HI15 ALeft-hand headlight (high beam)
50BIXENON10 A
51H-LP RH LO15 ARight-hand headlight (low beam),
manual headlight leveling system
52H-LP LH LO15 ALeft-hand headlight (low beam)
53HORN10 AHorn
54
EFI MAIN
NO. 2
*120 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
A/F*2
55S-HORN7. 5 AS-HORN
FuseAmpereCircuit
RX350_270_EE_48D77E.book 511 ページ ２０１４年１月２４日　金曜日　午前１０時４分

516
4-3. Do-it-yourself maintenance
RX350/270_EE
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
For more information about replacing other light bulbs, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (→P. 6 1 9 )
■Removing the engine compartment covers
→P. 4 7 0
■Turning off the power back door main switch (if equipped).
→P. 6 2
■Front bulb locations
Vehicles with halogen headlights
Headlight high beam Headlight low beam
Front turn signal light
Front fog light
RX350_270_EE_48D77E.book 516 ページ ２０１４年１月２４日　金曜日　午前１０時４分

518
4-3. Do-it-yourself maintenance
RX350/270_EE
Replacing light bulbs
■Headlight high beams
Right side:
Open the cap.
Move the washer fluid filler
opening to allow easy access to
the light bulbs.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 518 ページ ２０１４年１月２４日　金曜日　午前１０時４分

520
4-3. Do-it-yourself maintenance
RX350/270_EE■Halogen headlight low beams (if equipped)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is leak-
ing through the mounting.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 520 ページ ２０１４年１月２４日　金曜日　午前１０時４分

528
4-3. Do-it-yourself maintenance

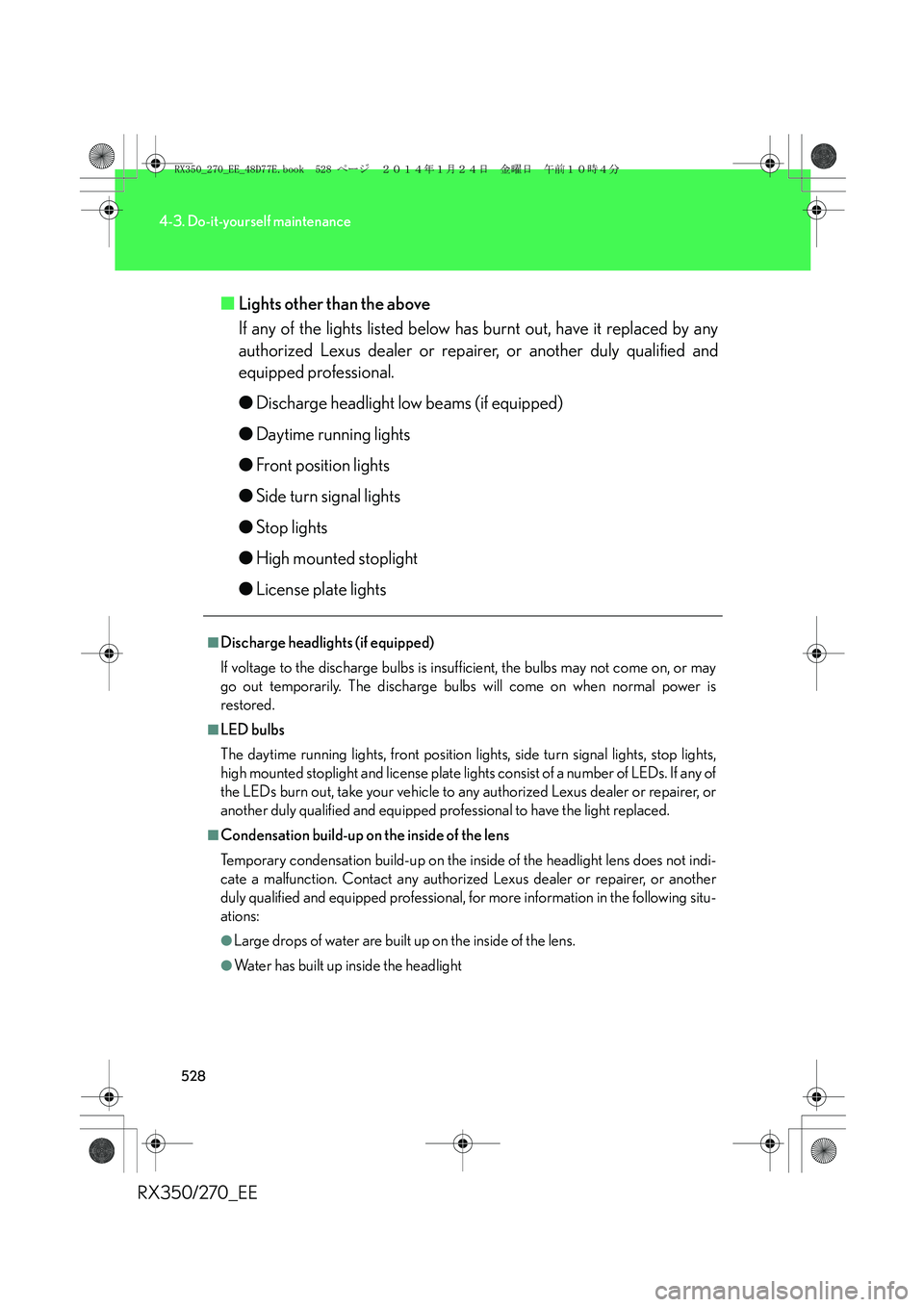

RX350/270_EE■Lights other than the above
If any of the lights listed below has burnt out, have it replaced by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Discharge headlight low beams (if equipped)
●Daytime running lights
●Front position lights
●Side turn signal lights
●Stop lights
●High mounted stoplight
●License plate lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED bulbs
The daytime running lights, front position lights, side turn signal lights, stop lights,
high mounted stoplight and license plate lights consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional, for more information in the following situ-
ations:
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight
RX350_270_EE_48D77E.book 528 ページ ２０１４年１月２４日　金曜日　午前１０時４分

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

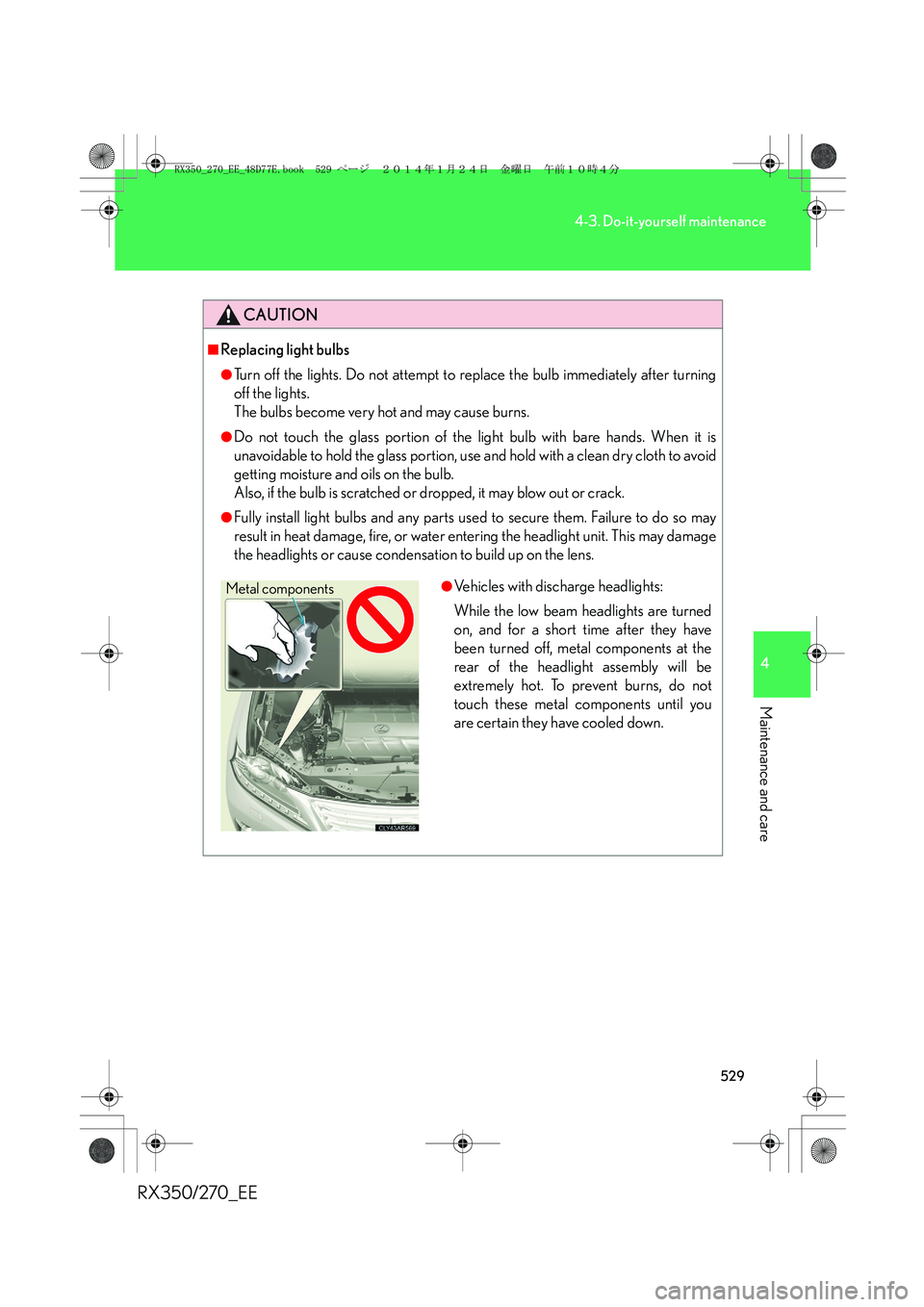

CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Vehicles with discharge headlights:
While the low beam headlights are turned
on, and for a short time after they have
been turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.Metal components
RX350_270_EE_48D77E.book 529 ページ ２０１４年１月２４日　金曜日　午前１０時４分

530
4-3. Do-it-yourself maintenance
RX350/270_EE

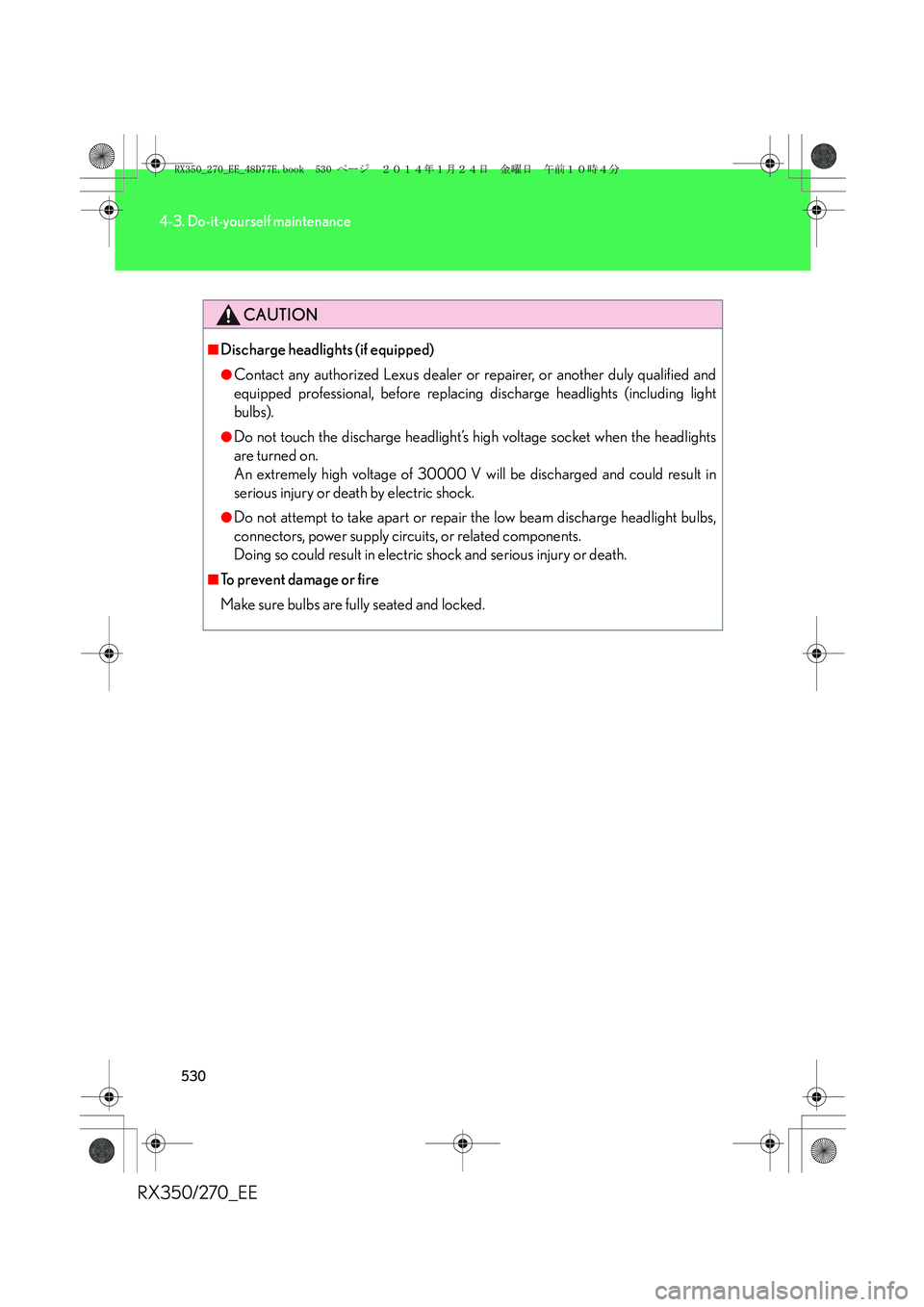

CAUTION
■Discharge headlights (if equipped)
●Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, before replacing discharge headlights (including light
bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights
are turned on.
An extremely high voltage of 30000 V will be discharged and could result in
serious injury or death by electric shock.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
RX350_270_EE_48D77E.book 530 ページ ２０１４年１月２４日　金曜日　午前１０時４分

619
6-1. Specifications
6
Vehicle specifications
RX350/270_EE

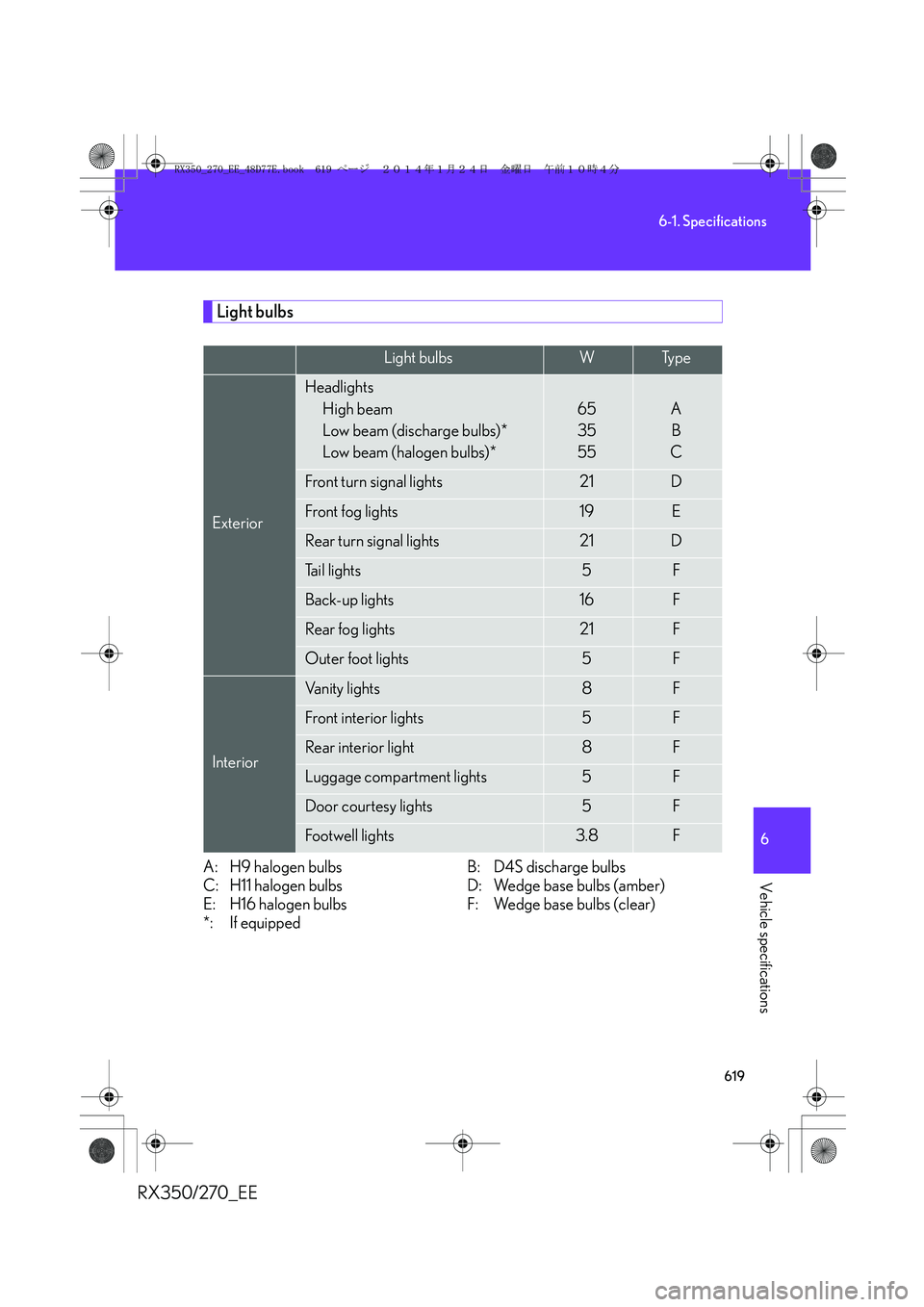

Light bulbs
A: H9 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Wedge base bulbs (amber)
E: H16 halogen bulbs F: Wedge base bulbs (clear)
*: If equipped
Light bulbsWTy p e
Exterior
Headlights
High beam
Low beam (discharge bulbs)*
Low beam (halogen bulbs)*
65
35
55A
B
C
Front turn signal lights21D
Front fog lights19E
Rear turn signal lights21D
Tail lights5F
Back-up lights16F
Rear fog lights21F
Outer foot lights5F
Interior
Vanity lights8F
Front interior lights5F
Rear interior light8F
Luggage compartment lights5F
Door courtesy lights5F
Footwell lights3.8F
RX350_270_EE_48D77E.book 619 ページ ２０１４年１月２４日　金曜日　午前１０時４分
