differential LEXUS RX270 2014 Owners Manual

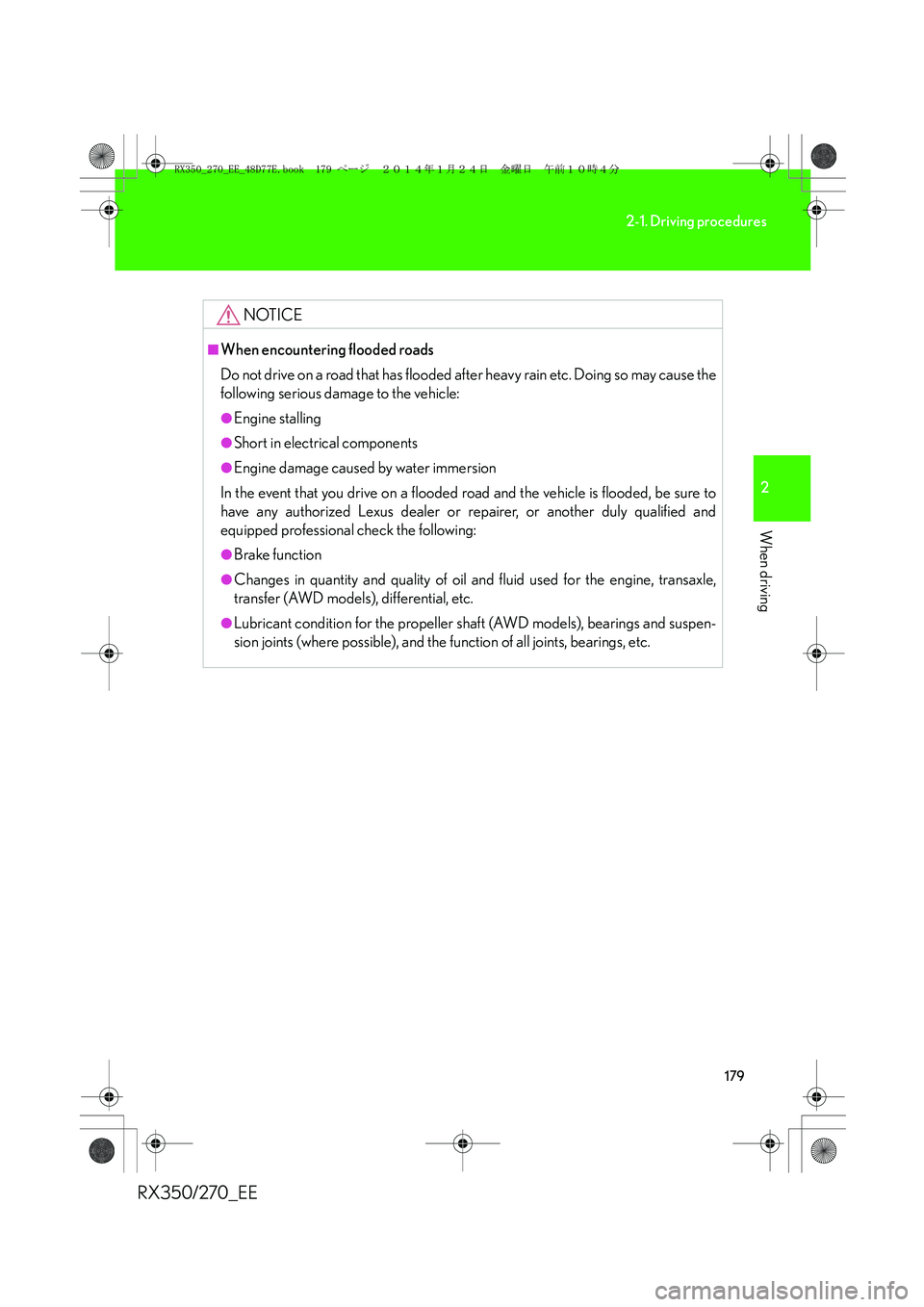

179
2-1. Driving procedures
2
When driving
RX350/270_EE
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transaxle,
transfer (AWD models), differential, etc.
●Lubricant condition for the propeller shaft (AWD models), bearings and suspen-
sion joints (where possible), and the function of all joints, bearings, etc.
RX350_270_EE_48D77E.book 179 ページ ２０１４年１月２４日　金曜日　午前１０時４分

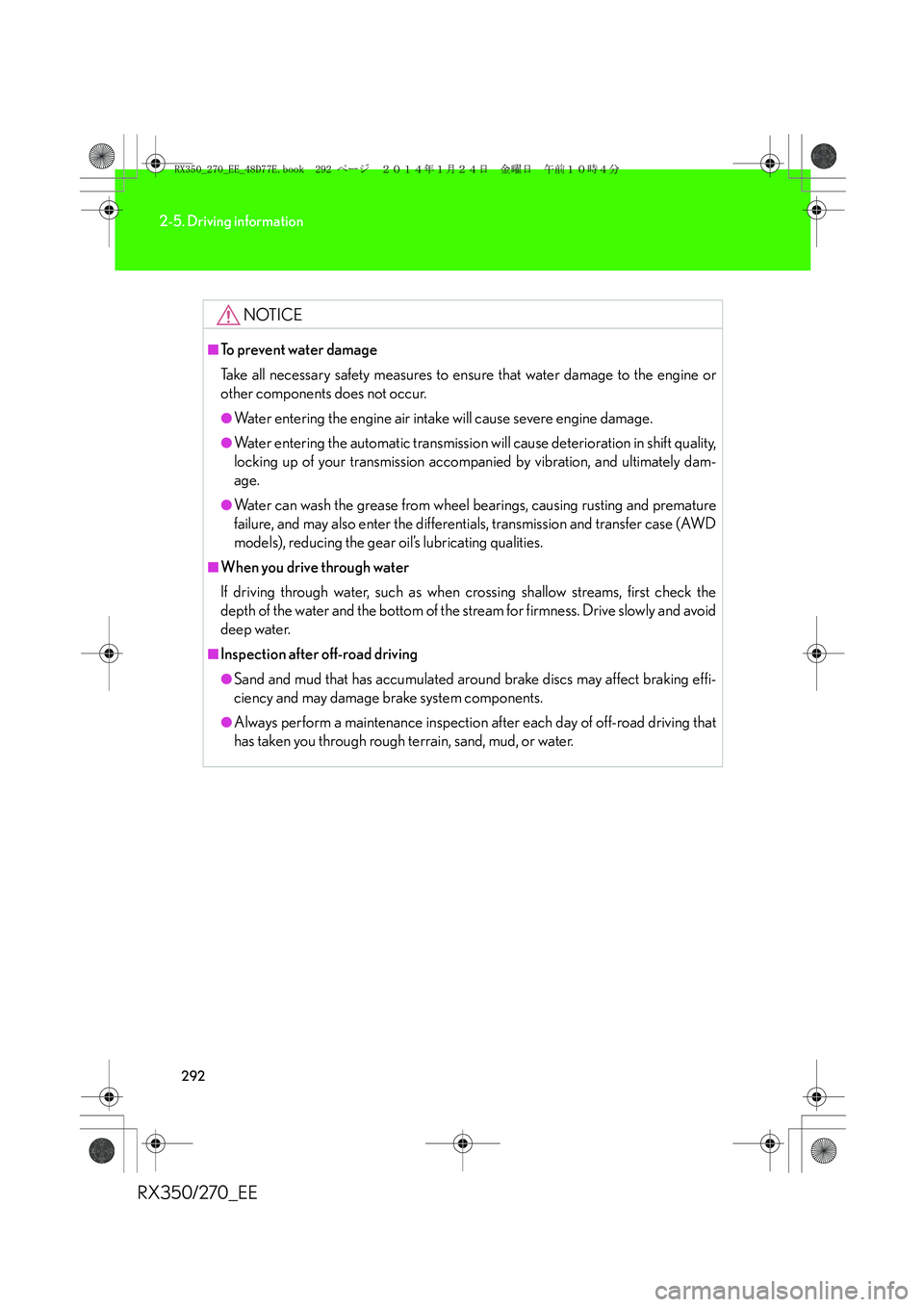

292
2-5. Driving information
RX350/270_EE
NOTICE
■To prevent water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately dam-
age.
●Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case (AWD
models), reducing the gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the stream for firmness. Drive slowly and avoid
deep water.
■Inspection after off-road driving
●Sand and mud that has accumulated around brake discs may affect braking effi-
ciency and may damage brake system components.
●Always perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or water.
RX350_270_EE_48D77E.book 292 ページ ２０１４年１月２４日　金曜日　午前１０時４分

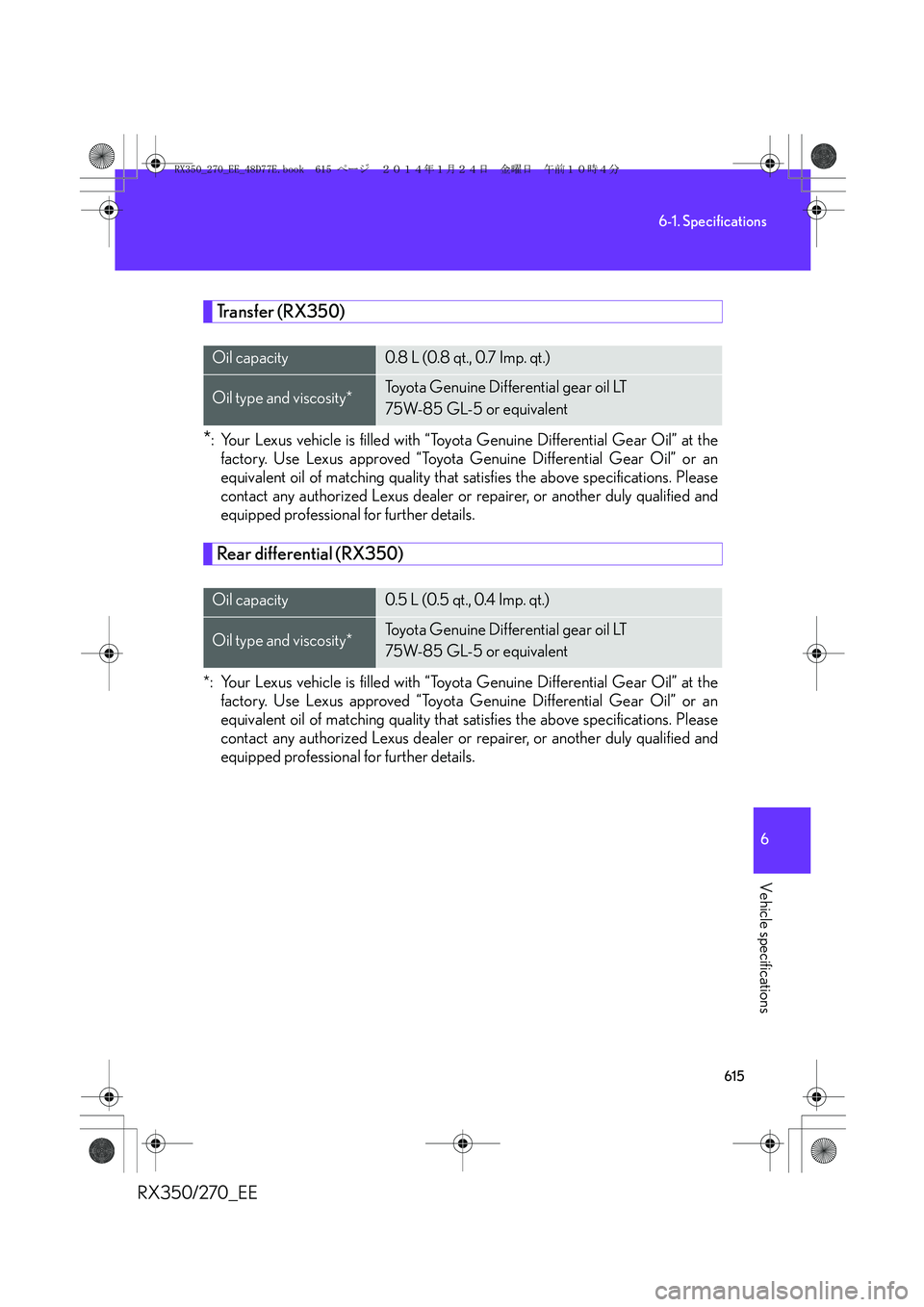

615
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Transfer (RX350)
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for further details.
Rear differential (RX350)
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for further details.
Oil capacity0.8 L (0.8 qt., 0.7 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Oil capacity0.5 L (0.5 qt., 0.4 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
RX350_270_EE_48D77E.book 615 ページ ２０１４年１月２４日　金曜日　午前１０時４分
