LEXUS RX300H 2017 Owners Manual

611
9
9-2. Customization
Vehicle specifications
RC300h_EE(OM24740E)

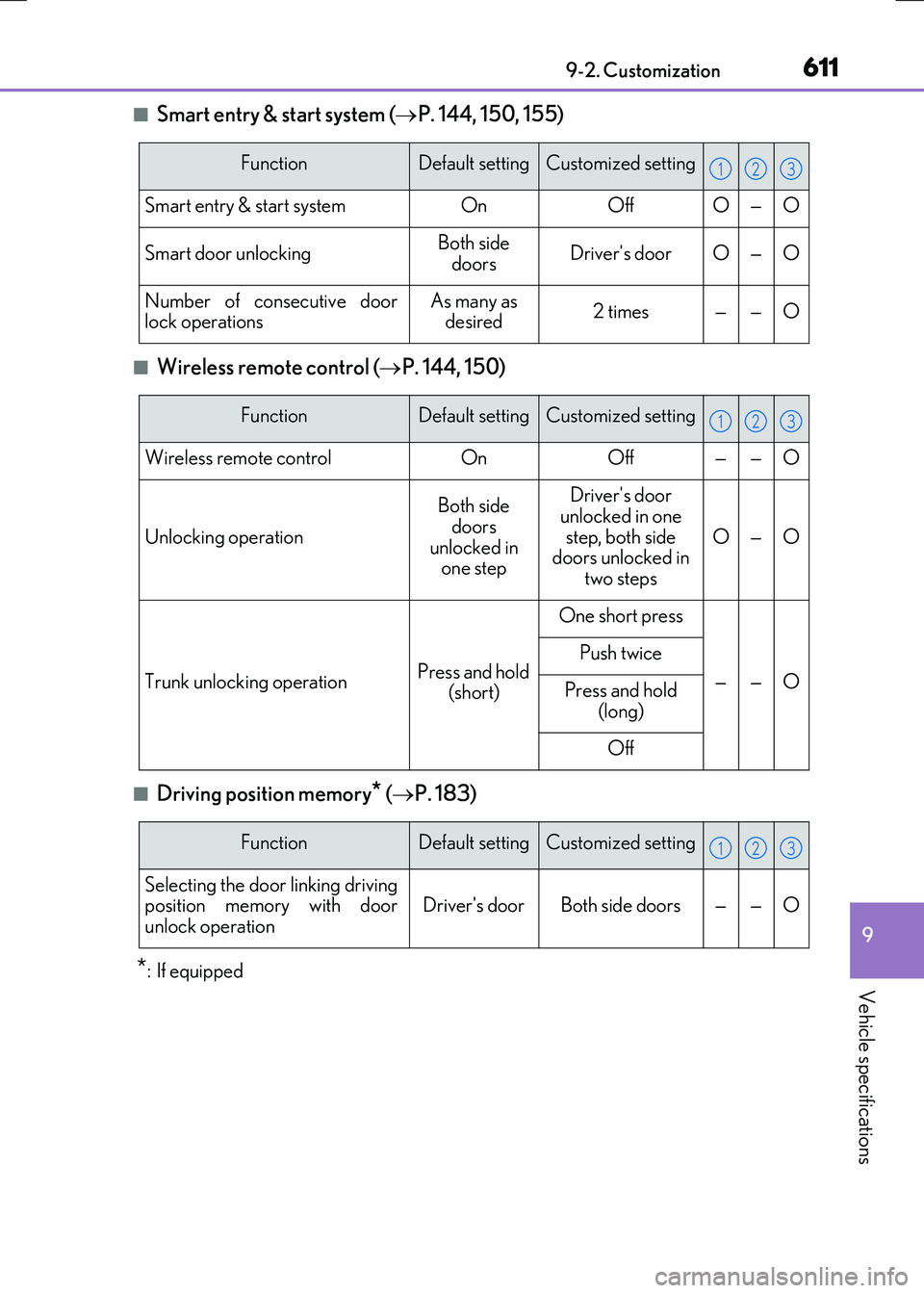

■Smart entry & start system ( P. 144, 150, 155)
■Wireless remote control (P. 144, 150)
■Driving position memory* (P. 183)
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlockingBoth side doorsDriver's doorO—O
Number of consecutive doorlock operationsAs many as desired2 times——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Both side doors
unlocked in one step
Driver's door
unlocked in one step, both side doors unlocked in
two steps
O—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
123
FunctionDefault settingCustomized setting
Selecting the door linking drivingposition memory with door
unlock operation
Driver's doorBoth side doors——O
123

6129-2. Customization
RC300h_EE(OM24740E)

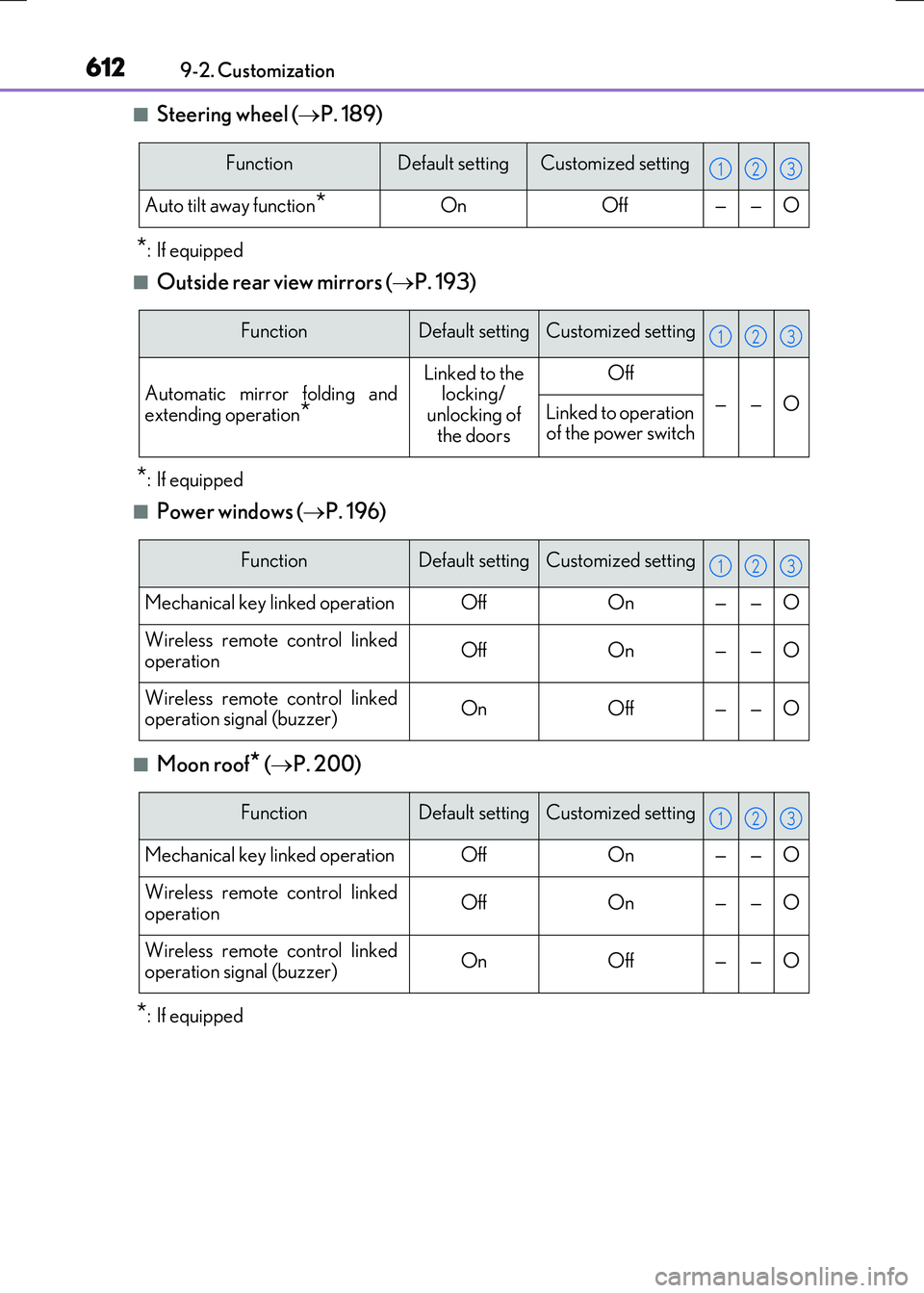

■Steering wheel ( P. 189)
*: If equipped
■Outside rear view mirrors (P. 193)
*: If equipped
■Power windows (P. 196)
■Moon roof* (P. 200)
*: If equipped
FunctionDefault settingCustomized setting
Auto tilt away function*OnOff——O
123
FunctionDefault settingCustomized setting
Automatic mirror folding and extending operation*
Linked to the locking/unlocking of
the doors
Off
——OLinked to operation of the power switch
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linkedoperationOffOn——O
Wireless remote control linkedoperation signal (buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked
operationOffOn——O
Wireless remote control linked operation signal (buzzer)OnOff——O
123

613
9
9-2. Customization
Vehicle specifications
RC300h_EE(OM24740E)
■Turn signal lever ( P. 229)
*1: After flashing the turn signal lights when turning left or right while this function is off
and the turn signal lever is moved to the fi rst position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
■Automatic light control system ( P. 232)
FunctionDefault settingCustomized setting
The number of times the turn sig- nal lights flash automatically
when the turn signal lever is moved to the first position duringa lane change*1
3
5
——O7
Off*2
Off*3
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before headlightsautomatically turn off30 seconds
60 seconds
——O90 seconds
120 seconds
123

6149-2. Customization
RC300h_EE(OM24740E)
■Lexus parking assist-sensor*1 ( P. 279)
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■Automatic air conditioning system (P. 432)
■Seat heaters (P. 445)
FunctionDefault settingCustomized setting
Detection distance of the front center sensorFarNearO—O
Detection distance of the rearcenter sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors
displayedDisplay offO—O
123
FunctionDefault settingCustomized setting
Switching between outside air and recirculated air mode linkedto “AUTO” switch operationOnOffO—O
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
123
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
123

615
9
9-2. Customization
Vehicle specifications
RC300h_EE(OM24740E)

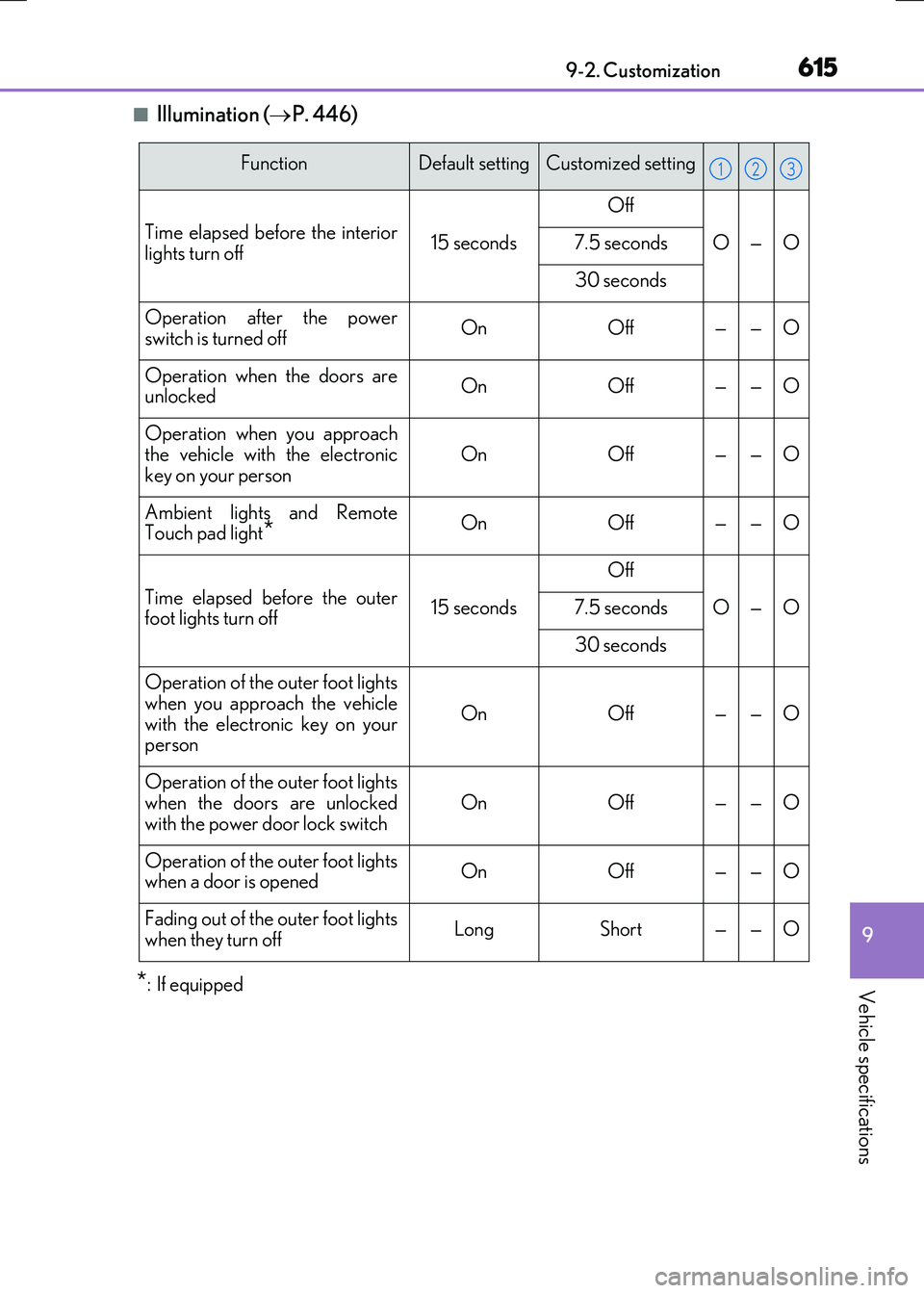

■Illumination ( P. 446)
*: If equipped
FunctionDefault settingCustomized setting
Time elapsed before the interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the powerswitch is turned offOnOff——O
Operation when the doors areunlockedOnOff——O
Operation when you approach
the vehicle with the electronic key on your personOnOff——O
Ambient lights and RemoteTouch pad light*OnOff——O
Time elapsed before the outerfoot lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle with the electronic key on yourperson
OnOff——O
Operation of the outer foot lights
when the doors are unlocked with the power door lock switchOnOff——O
Operation of the outer foot lightswhen a door is openedOnOff——O
Fading out of the outer foot lights
when they turn offLongShort——O
123

6169-2. Customization
RC300h_EE(OM24740E)

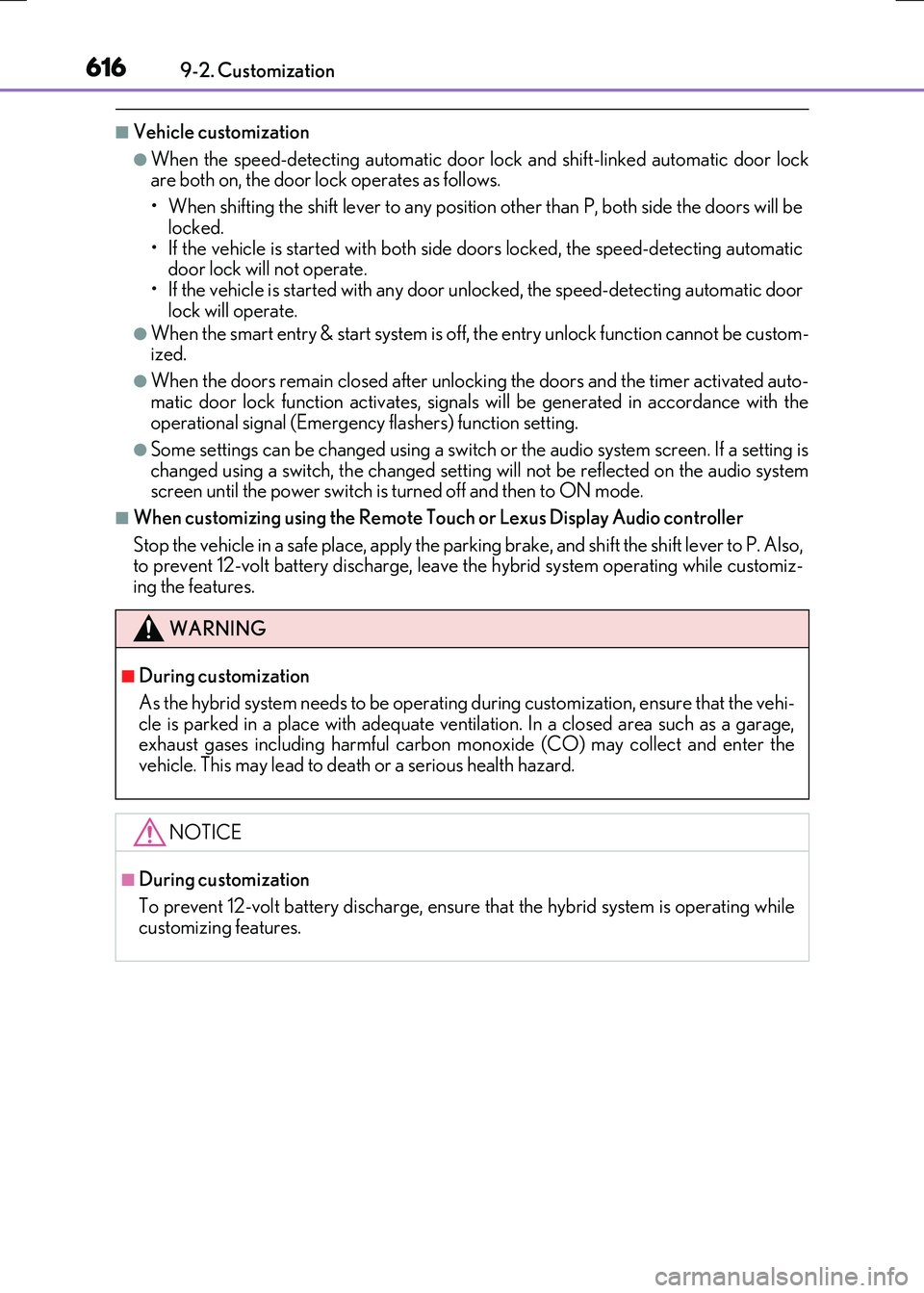

■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, both side the doors will be
locked. • If the vehicle is started with both side doors locked, the speed-detecting automaticdoor lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the operational signal (Emergency flashers) function setting.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system screen until the power switch is turned off and then to ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent 12-volt battery discharge, leave the hybrid system operating while customiz-ing the features.
WARNING
■During customization
As the hybrid system needs to be operating during customization, ensure that the vehi- cle is parked in a place with adequate ventilation. In a closed area such as a garage,exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while customizing features.

617
RC300h_EE(OM24740E)
9
Vehicle specifications

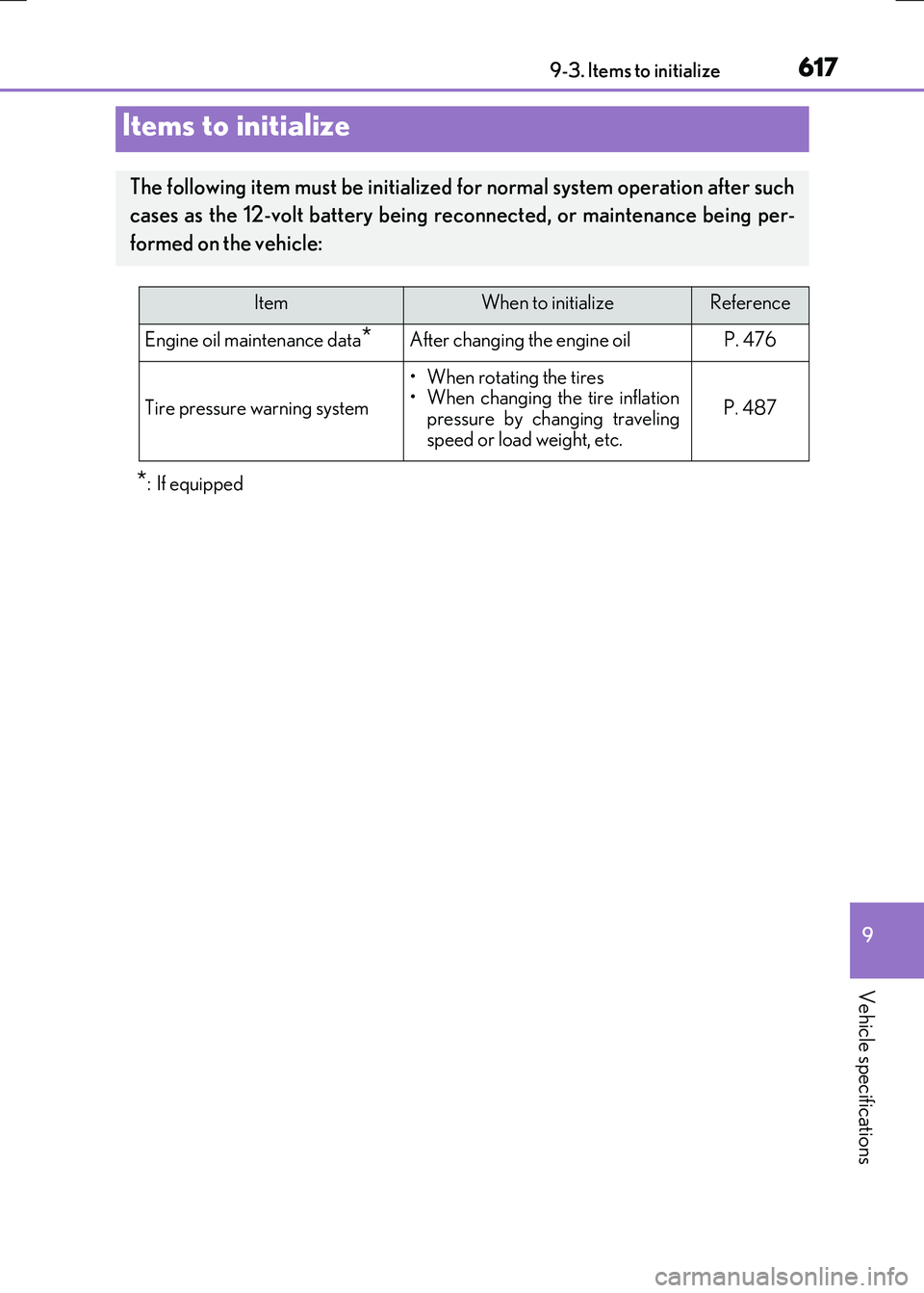

9-3. Items to initialize
*: If equipped
Items to initialize
The following item must be initialized for normal system operation after such
cases as the 12-volt battery being re connected, or maintenance being per-
formed on the vehicle:
ItemWhen to initializeReference
Engine oil maintenance data*After changing the engine oilP. 476
Tire pressure warning system
• When rotating the tires • When changing the tire inflation
pressure by changing traveling speed or load weight, etc.
P. 487

6189-3. Items to initialize
RC300h_EE(OM24740E)

619
Index
RC300h_EE(OM24740E)
What to do if...
(Troubleshooting)............................... 620
Alphabetical index................................. 624
For vehicles with a navigation or multimedia system, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL” for information regardin g the equipment listed below.
• Navigation system
• Audio/video system
• Lexus parking assist-sensor
• Lexus parking assist monitor

620
RC300h_EE(OM24740E)

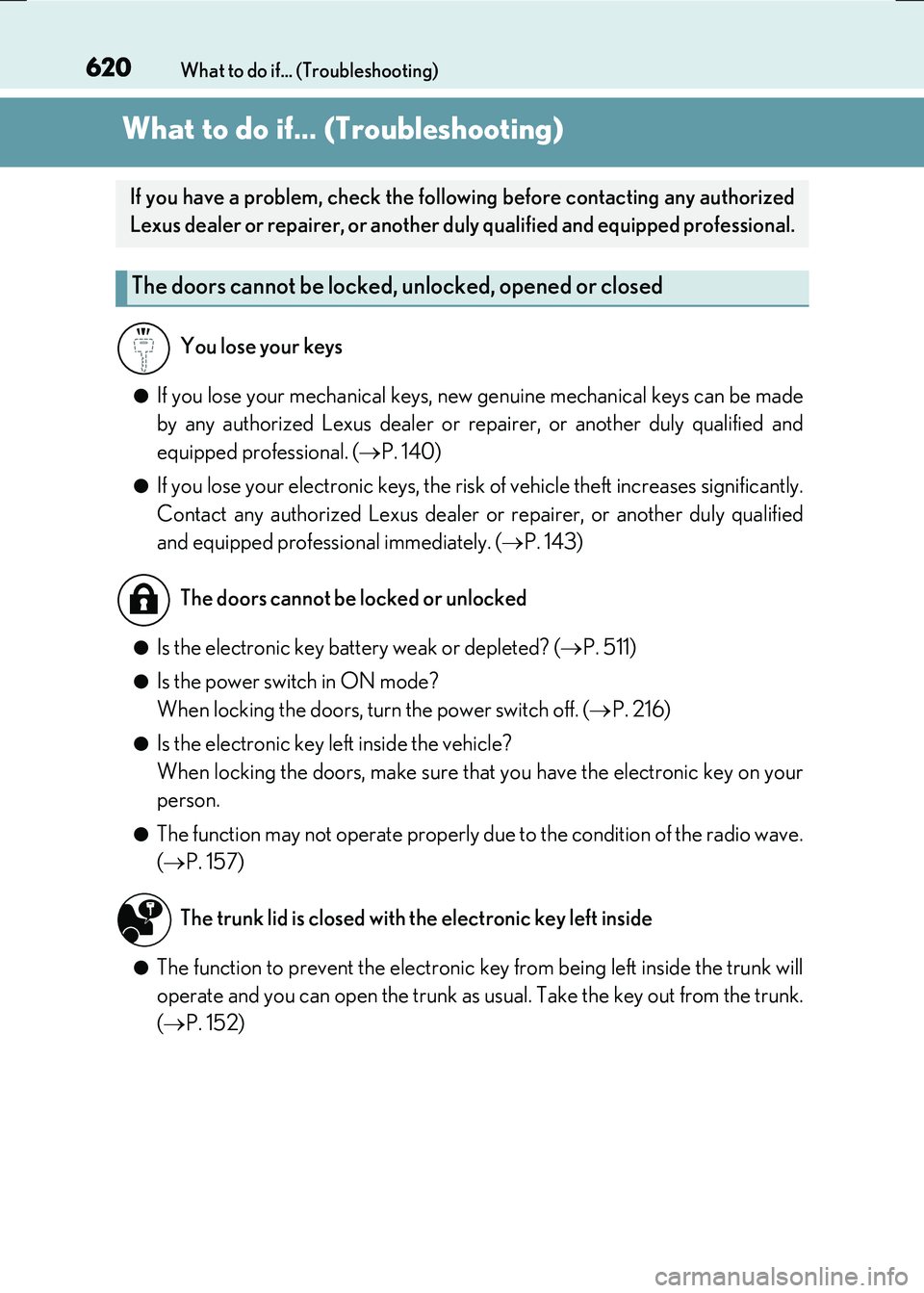

What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. ( P. 140)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( P. 143)
●Is the electronic key battery weak or depleted? (P. 511)
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( P. 216)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
( P. 157)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as us ual. Take the key out from the trunk.
( P. 152)
If you have a problem, check the following before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The trunk lid is closed with the electronic key left inside
