LEXUS RX330 2006 Owners Manual

OCCUPANT RESTRAINT SYSTEMS
150
Folding down rear seatbacks
Lower the head restraints, unlock the seatbacks by pulling
the seatback lock release lever and fold them down until
they lock.
When returning the rear seatbacks to their original
positions, unlock the seatbacks by pulling the seatback
lock release lever and lift them up until they lock. Folding down rear center seatback
You can fold down only the rear center seatback.
To fold down the center seatback, lower the center head
restraint, unlock the seatback by pulling the center
seatback lock release lever behind the seatback and fold
it down. To return the center seatback to its original
position, lift the center seatback up until it locks.

OCCUPANT RESTRAINT SYSTEMS
151
CAUTION
When folding down the rear seatback, be careful not
to get hands or feet pinched between the rear console
box and the rear seat.
 When returning the seatback to the upright position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Make sure the seat is securely locked by pushing
forward and rearward on the top of the seatback.
Failure to do so will prevent the seat belt from
operating properly.
Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.
ARMRESTS
1Front2Rear
To use the armrests, pull them down as shown above.
NOTICE
To prevent damage to the armrests, avoid putting heavy
loads on them.

OCCUPANT RESTRAINT SYSTEMS
152
HEAD RESTRAINTS
For your safety and comfort, adjust the head restraint
before driving.
Front seats
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down. To
move the head restraint forward or rearward, pull or push
the base of the head restraint.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.

OCCUPANT RESTRAINT SYSTEMS
153
Rear seats
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down.
Rear center head restraint — When an occupant sits on the
rear center seat, always pull up the rear center head restraint
to the lock position.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.

OCCUPANT RESTRAINT SYSTEMS
154
SEAT BELTS
Seat belt precautions
Lexus strongly urges that the driver and passengers in the
vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase the chance of injury
and/or the severity of injury in accidents.
The seat belts provided for your vehicle are designed for
people of adult size, large enough to properly wear them.
Child. Use a child restraint system appropriate for the child
until the child becomes large enough to properly wear the
vehicle’s seat belts. See “Child restraint” on page 198 for
details.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle’s
seat belt. According to accident statistics, the child is safer
when properly restrained in the rear seat than in the front seat.If a child must sit in the front seat, the seat belts should be worn
properly. If an accident occurs and the seat belts are not worn
properly,
the force of the rapid inflation of the airbag may cause
death or serious injury to the child.
Do not allow any children to stand up or kneel on either rear or
front seats. An unrestrained child could suffer serious injury or
death during emergency braking or a collision. Also, do not let
the child sit on your lap. Holding a child in your arms does not
provide sufficient restraint.
Pregnant woman. Lexus recommends the use of a seat belt.
Ask your doctor for specific recommendations. The lap belt
should be worn securely and as low as possible over the hips
and not on the waist.
Injured person. Lexus recommends the use of a seat belt.
Depending on the injury, first check with your doctor for specific
recommendations.

OCCUPANT RESTRAINT SYSTEMS
155

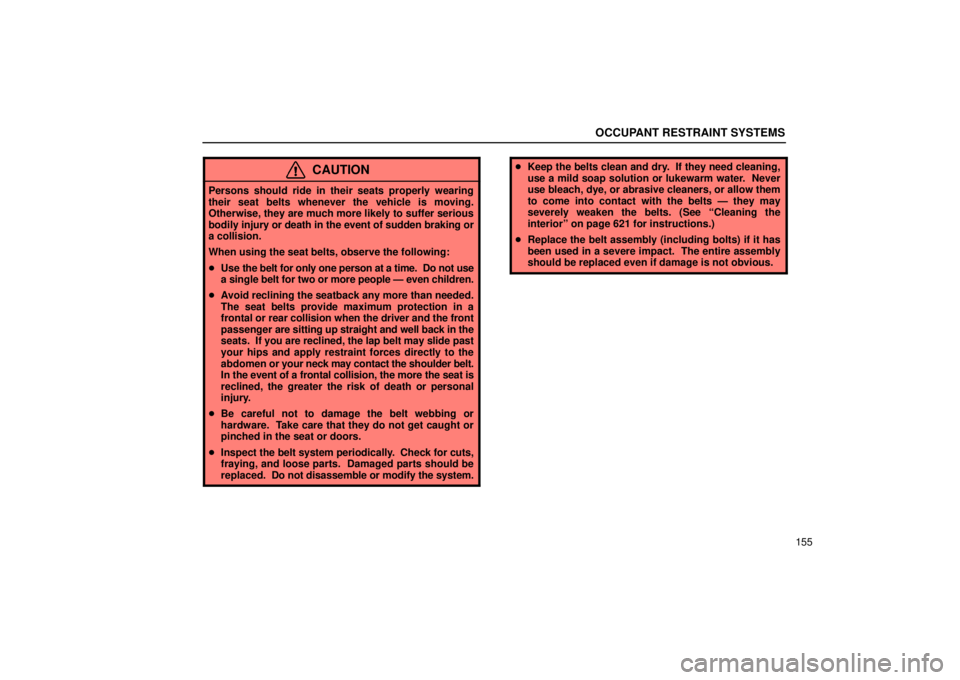

CAUTION
Persons should ride in their seats properly wearing
their seat belts whenever the vehicle is moving.
Otherwise, they are much more likely to suffer serious
bodily injury or death in the event of sudden braking or
a collision.
When using the seat belts, observe the following:
Use the belt for only one person at a time. Do not use
a single belt for two or more people — even children.
 Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection in a
frontal or rear collision when the driver and the front
passenger are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt.
In the event of a frontal collision, the more the seat is
reclined, the greater the risk of death or personal
injury.
 Be careful not to damage the belt webbing or
hardware. Take care that they do not get caught or
pinched in the seat or doors.
 Inspect the belt system periodically. Check for cuts,
fraying, and loose parts. Damaged parts should be
replaced. Do not disassemble or modify the system.
 Keep the belts clean and dry. If they need cleaning,
use a mild soap solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners, or allow them
to come into contact with the belts — they may
severely weaken the belts. (See “Cleaning the
interior” on page 621 for instructions.)
 Replace the belt assembly (including bolts) if it has
been used in a severe impact. The entire assembly
should be replaced even if damage is not obvious.

OCCUPANT RESTRAINT SYSTEMS
156

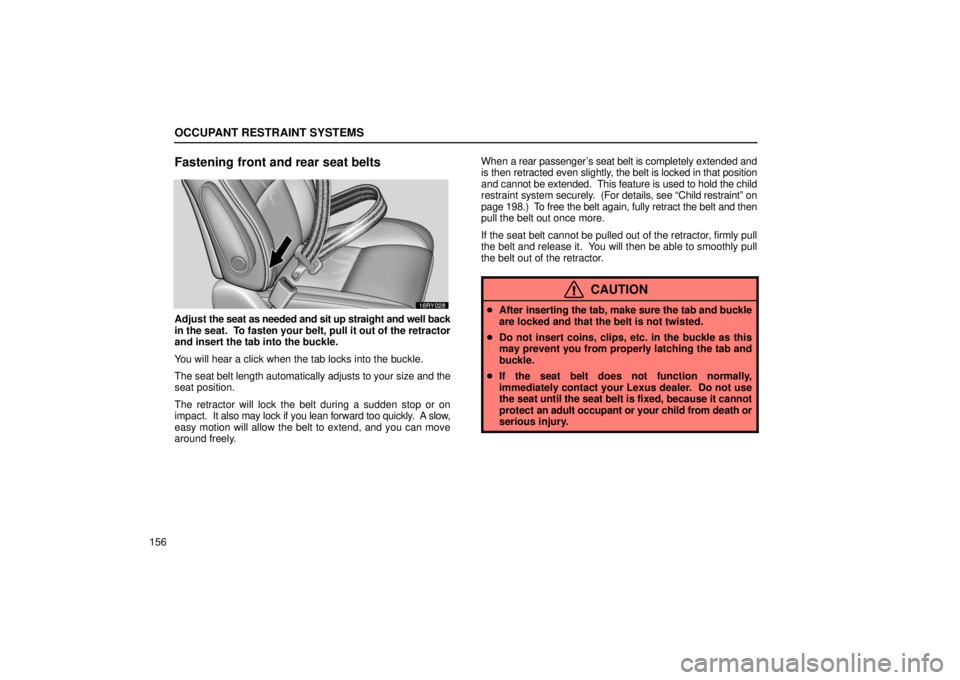

Fastening front and rear seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely. When a rear passenger’s seat belt is
completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely. (For details, see “Child restraint” on
page 198.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
157

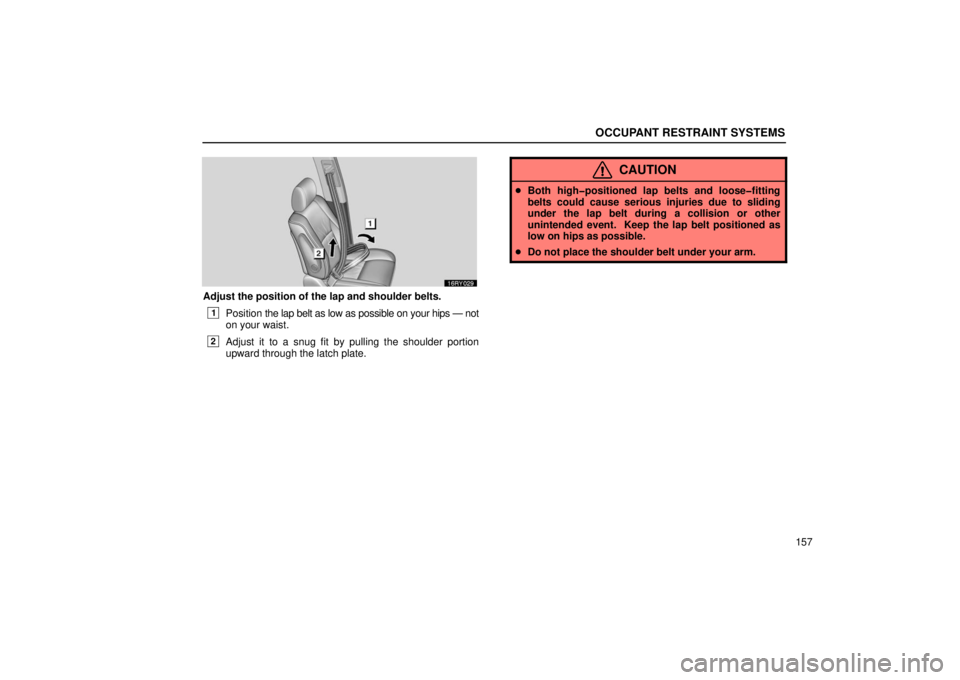

Adjust the position of the lap and shoulder belts.
1Position the lap belt as low as possible on your hips — not
on your waist.
2Adjust it to a snug fit by pulling the shoulder portion
upward through the latch plate.
CAUTION
 Both highpositioned lap belts and loosefitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on hips as possible.
 Do not place the shoulder belt under your arm.

OCCUPANT RESTRAINT SYSTEMS
158

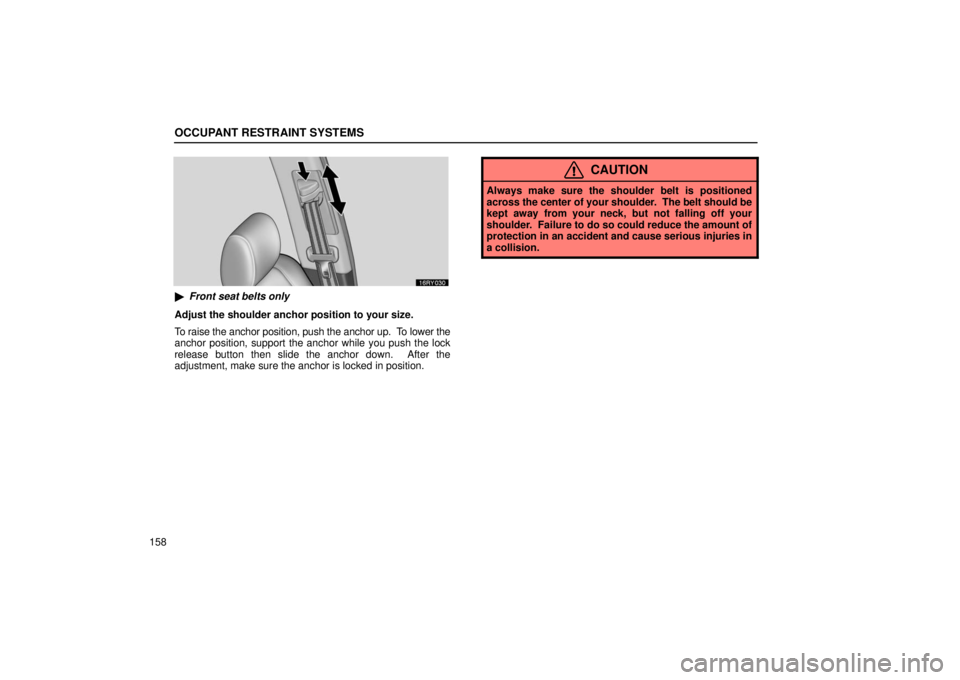

Front seat belts only
Adjust the shoulder anchor position to your size.
To raise the anchor position, push the anchor up. To lower the
anchor position, support the anchor while you push the lock
release button then slide the anchor down. After the
adjustment, make sure the anchor is locked in position.
CAUTION
Always make sure the shoulder belt is positioned
across the center of your shoulder . The belt should be
kept away from your neck, but not falling off your
shoulder. Failure to do so could reduce the amount of
protection in an accident and cause serious injuries in
a collision.

OCCUPANT RESTRAINT SYSTEMS
159

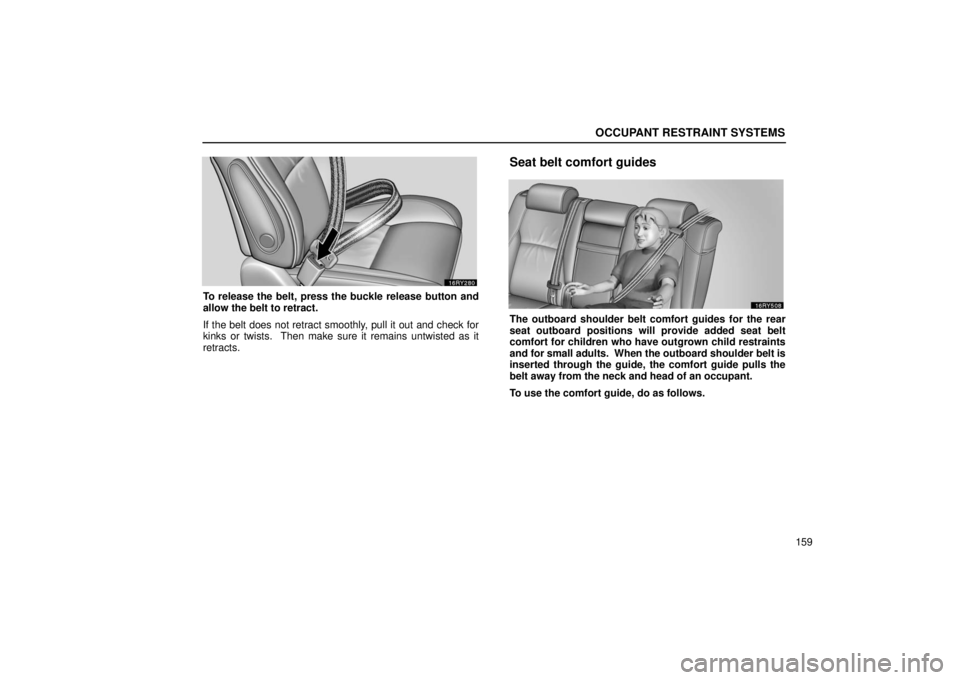

To release the belt, press the buckle release button and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check for
kinks or twists. Then make sure it remains untwisted as it
retracts.
Seat belt comfort guides
The outboard shoulder belt comfort guides for the rear
seat outboard positions will provide added seat belt
comfort for children who have outgrown child restraints
and for small adults. When the outboard shoulder belt is
inserted through the guide, the comfort guide pulls the
belt away from the neck and head of an occupant.
To use the comfort guide, do as follows.
