LEXUS RX330 2006 Owners Manual

EXTERIOR EQUIPMENT
130

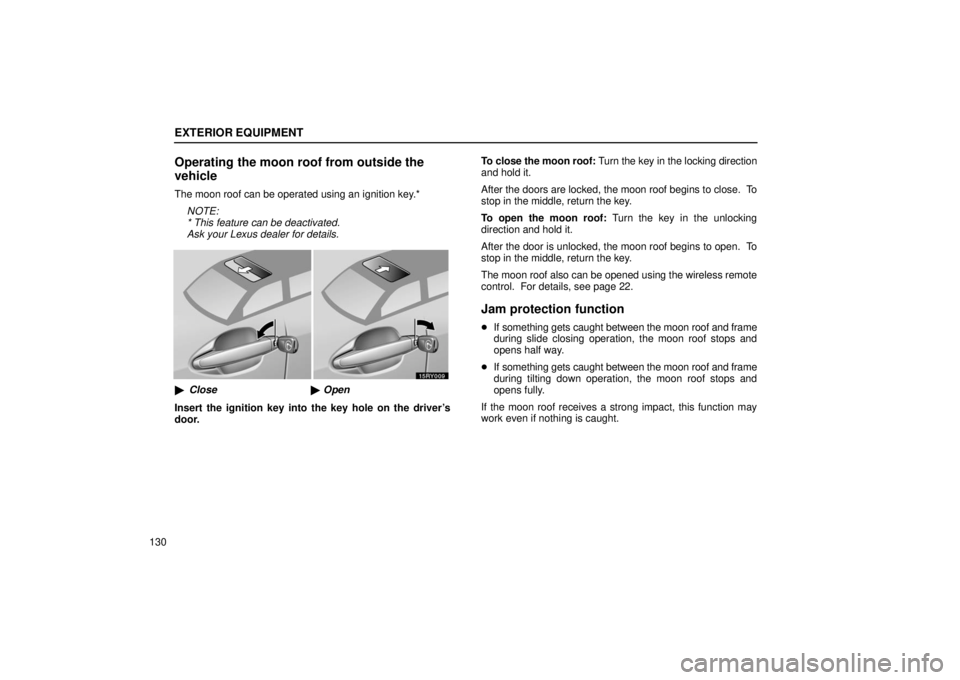

Operating the moon roof from outside the
vehicle
The moon roof can be operated using an ignition key.*NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
 Close Open
Insert the ignition key into the key hole on the driver’s
door. To close the moon roof: Turn the key in the locking direction
and hold it.
After the doors are locked, the moon roof begins to close. To
stop in the middle, return the key.
To open the moon roof: Turn the key in the unlocking
direction and hold it.
After the door is unlocked, the moon roof begins to open. To
stop in the middle, return the key.
The moon roof also can be opened using the wireless remote
control. For details, see page 22.
Jam protection function

If something gets caught between the moon roof and frame
during slide closing operation, the moon roof stops and
opens half way.
 If something gets caught between the moon roof and frame
during tilting down operation, the moon roof stops and
opens fully.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.

EXTERIOR EQUIPMENT
131
If the moon roof does not operate
automatically
If the moon roof does not operate automatically or jam
protection function does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and hold the slide control
switch toward the front or “TILT” switch on the rear side. The
moon roof will tilt up and down, then slide open and close. After
the slide close operation, release the switch.
Make sure that the moon roof opens and closes automatically.
If the moon roof cannot be operated properly, have it checked
by your Lexus dealer.

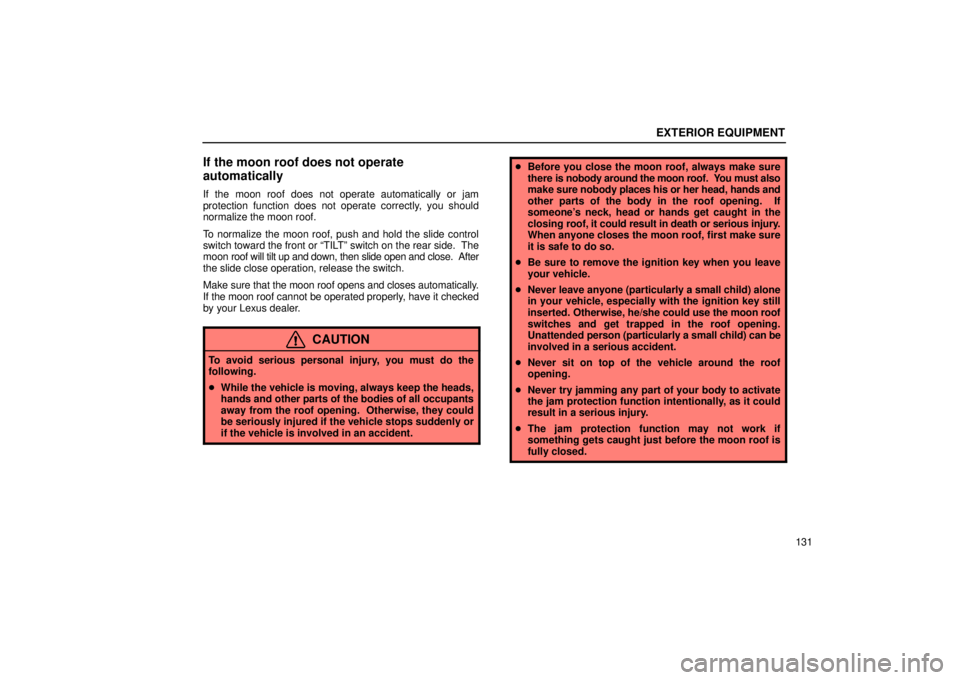

CAUTION
To avoid serious personal injury, you must do the
following.
 While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone’s neck, head or hands get caught in the
closing roof, it could result in death or serious injury.
When anyone closes the moon roof, first make sure
it is safe to do so.
 Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switches and get trapped in the roof opening.
Unattended person (particularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.
 Never try jamming any part of your body to activate
the jam protection function intentionally, as it could
result in a serious injury.
 The jam protection function may not work if
something gets caught just before the moon roof is
fully closed.

EXTERIOR EQUIPMENT
132
MOON ROOF (multipanel type)

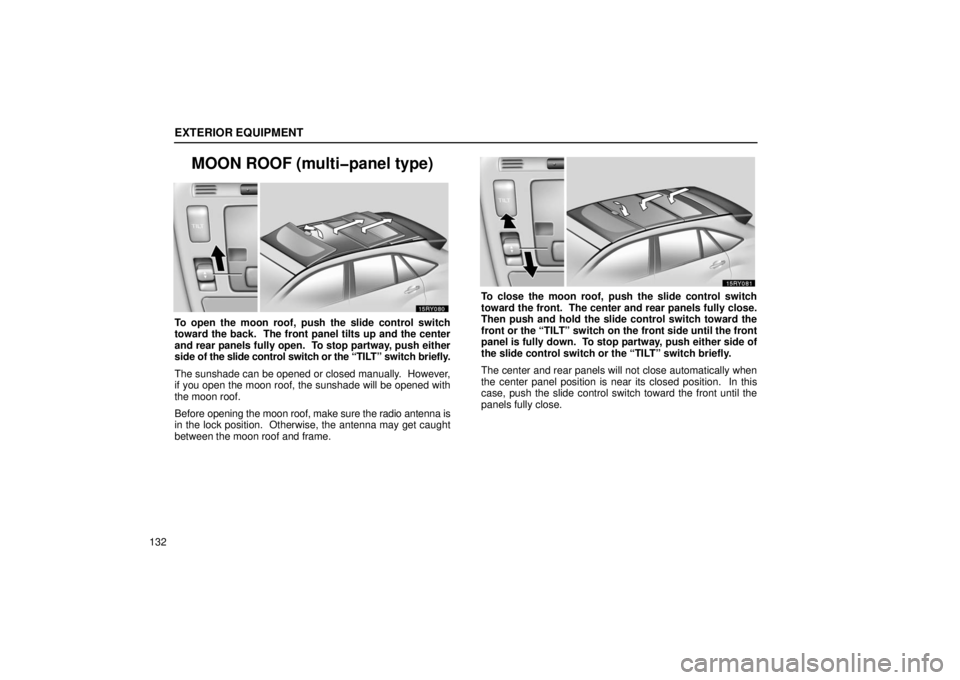

To open the moon roof, push the slide control switch
toward the back. The front panel tilts up and the center
and rear panels fully open. To stop partway, push either
side of the slide control switch or the “TILT” switch briefly.
The sunshade can be opened or closed manually. However,
if you open the moon roof, the sunshade will be opened with
the moon roof.
Before opening the moon roof, make sure the radio antenna is
in the lock position. Otherwise, the antenna may get caught
between the moon roof and frame.
To close the moon roof, push the slide control switch
toward the front. The center and rear panels fully close.
Then push and hold the slide control switch toward the
front or the “TILT” switch on the front side until the front
panel is fully down. To stop partway, push either side of
the slide control switch or the “TILT” switch briefly.
The center and rear panels will not close automatically when
the center panel position is near its closed position. In this
case, push the slide control switch toward the front until the
panels fully close.

EXTERIOR EQUIPMENT
133

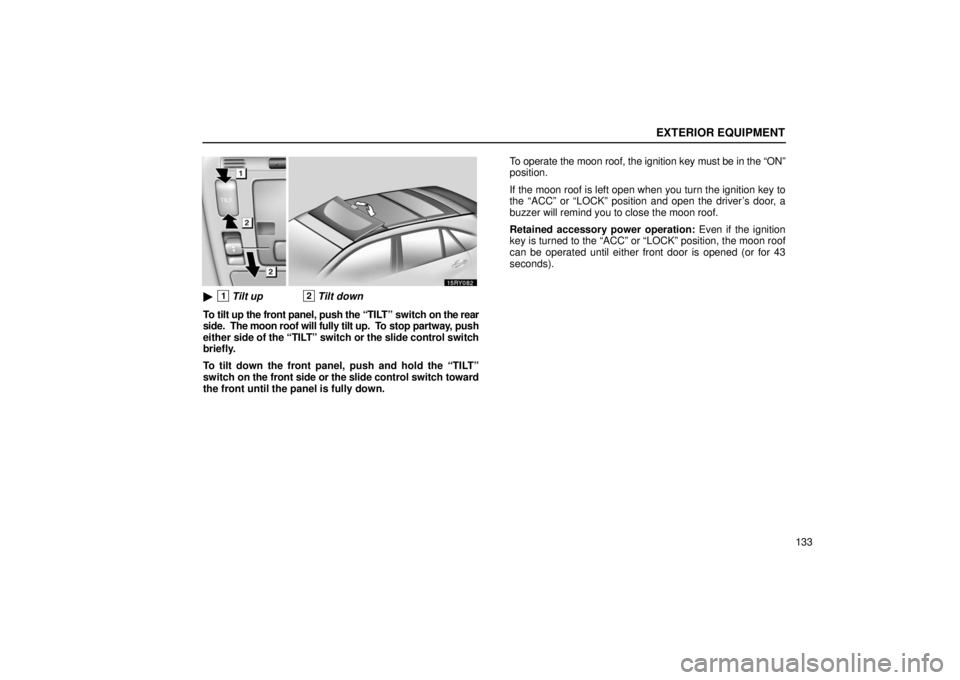

1Tilt up2Tilt down
To tilt up the front panel, push the “TILT” switch on the rear
side. The moon roof will fully tilt up. To stop partway, push
either side of the “TILT” switch or the slide control switch
briefly.
To tilt down the front panel, push and hold the “TILT”
switch on the front side or the slide control switch toward
the front until the panel is fully down. To operate the moon roof, the
ignition key must be in the “ON”
position.
If the moon roof is left open when you turn the ignition key to
the “ACC” or “LOCK” position and open the driver’s door, a
buzzer will remind you to close the moon roof.
Retained accessory power operation: Even if the ignition
key is turned to the “ACC” or “LOCK” position, the moon roof
can be operated until either front door is opened (or for 43
seconds).

EXTERIOR EQUIPMENT
134
Jam protection function
If something gets caught between the moon roof and frame
during slide closing operation, the moon roof stops and
opens half way.
 If something gets caught between the moon roof and frame
during tilting down operation, the moon roof stops and
opens fully.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.
If the moon roof does not operate
automatically
If the moon roof does not operate automatically or jam
protection function does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push the slide control switch
toward the front or the “TILT” switch on the front side until the
front panel fully closes, and hold the switch for about 1 second.
Make sure that the moon roof opens and closes automatically.
If the moon roof cannot be operated properly, have it checked
by your Lexus dealer.

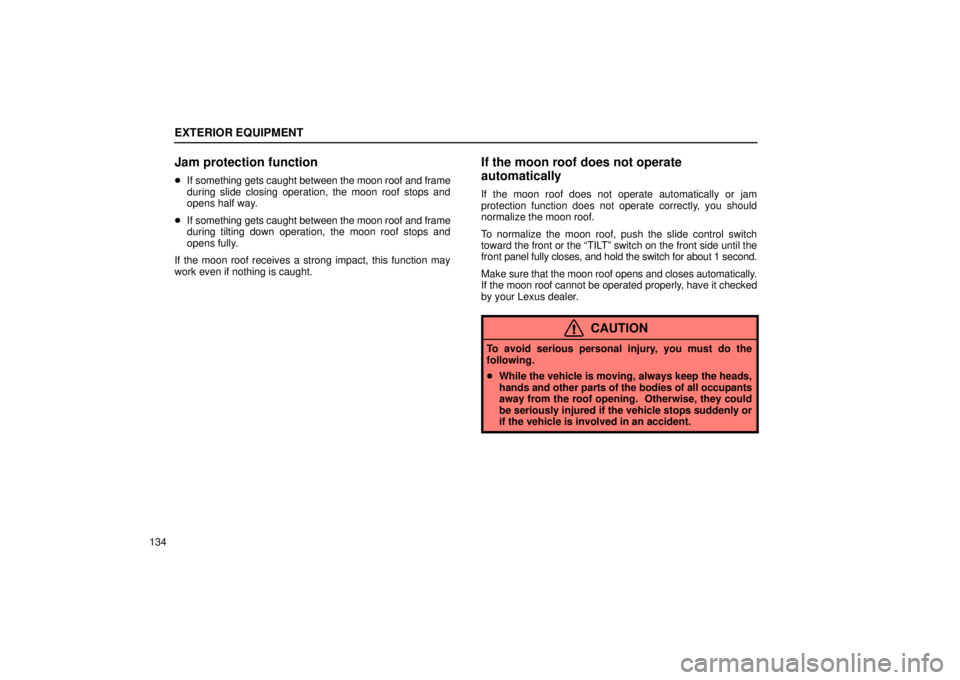

CAUTION
To avoid serious personal injury, you must do the
following.
 While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.

EXTERIOR EQUIPMENT
135
Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone’s neck, head or hands get caught in the
closing roof, it could result in death or serious injury.
When anyone closes the moon roof, first make sure
it is safe to do so.
 Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switches and get trapped in the roof opening.
Unattended person (particularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.
 Never try jamming any part of your body to activate
the jam protection function intentionally, as it could
result in a serious injury.
 The jam protection function may not work if
something gets caught just before the moon roof is
fully closed.NOTICE
There is the possibility that water or rain will get into the
vehicle if you operate the moon roof after a rainfall,
snowfall or car wash. Wipe the moon roof dry with a
cloth before operating it.

EXTERIOR EQUIPMENT
136
ROOF LUGGAGE CARRIER

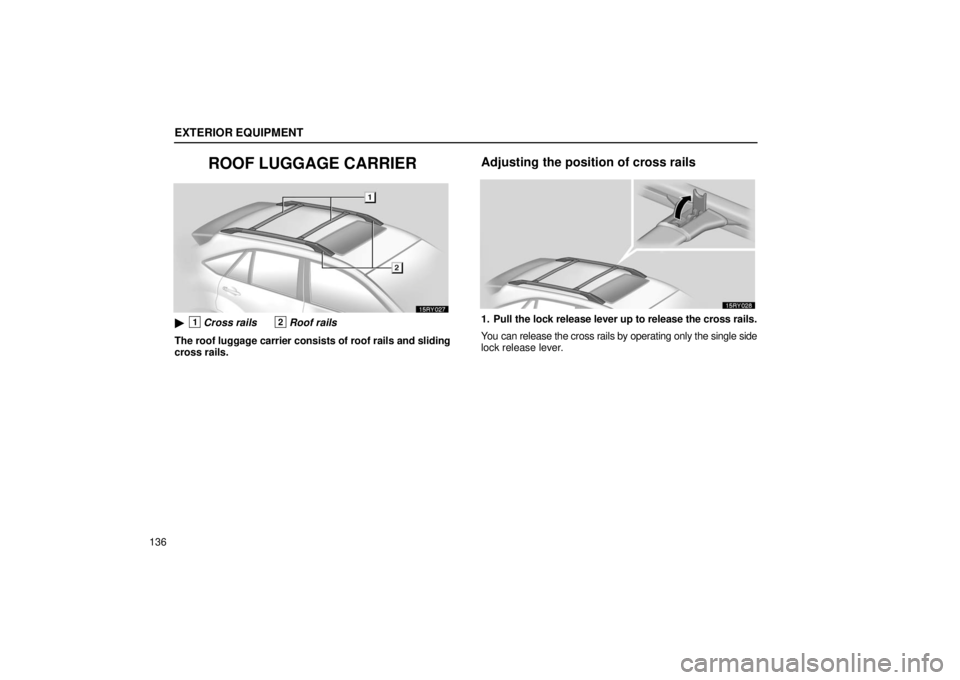

1Cross rails2Roof rails
The roof luggage carrier consists of roof rails and sliding
cross rails.
Adjusting the position of cross rails
1. Pull the lock rele ase lever up to release the cross rails.
You can release the cross rails by operating only the single side
lock release lever.

EXTERIOR EQUIPMENT
137
2. Slide the cross rails to the appropriate position for
loading luggage and release the lever.
CAUTION
Make sure the cross rails are locked securely by
pushing forward and rearward them. Failure to do so
may cause an unexpected accident or severe injury in
the event of emergency braking or a collision.
Follow the manufacturer’s instructions and precautions when
installing the attachments or their equivalent.
CAUTION
When you load cargo on the roof luggage carrier,
observe the following:
Place the cargo so that its weight is distributed
evenly between the front and rear axles.
 If loading long or wide cargo, never exceed the
vehicle overall length or width. (See “Specifications”
on page 616 for information on your vehicle overall
length and width.)
 Before driving, make sure the cargo is securely
fastened on the roof luggage carrier.
 Loading cargo on the roof luggage carrier will make
the center of the vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns, sudden braking
or abrupt maneuvers, otherwise it may result in loss
of control or vehicle rollover due to failure to operate
this vehicle correctly.

EXTERIOR EQUIPMENT
138
If driving for a long distance, on rough roads, or at
high speeds, stop the vehicle now and then during
the trip to make sure the cargo remains in its place.
 Do not exceed 75 kg (165 lb.) cargo weight on the roof
luggage carrier.
NOTICE
When loading the luggages, be careful not to scratch
the surface of the moon roof.
