LEXUS RX330 2006 Owners Manual

OCCUPANT RESTRAINT SYSTEMS
210

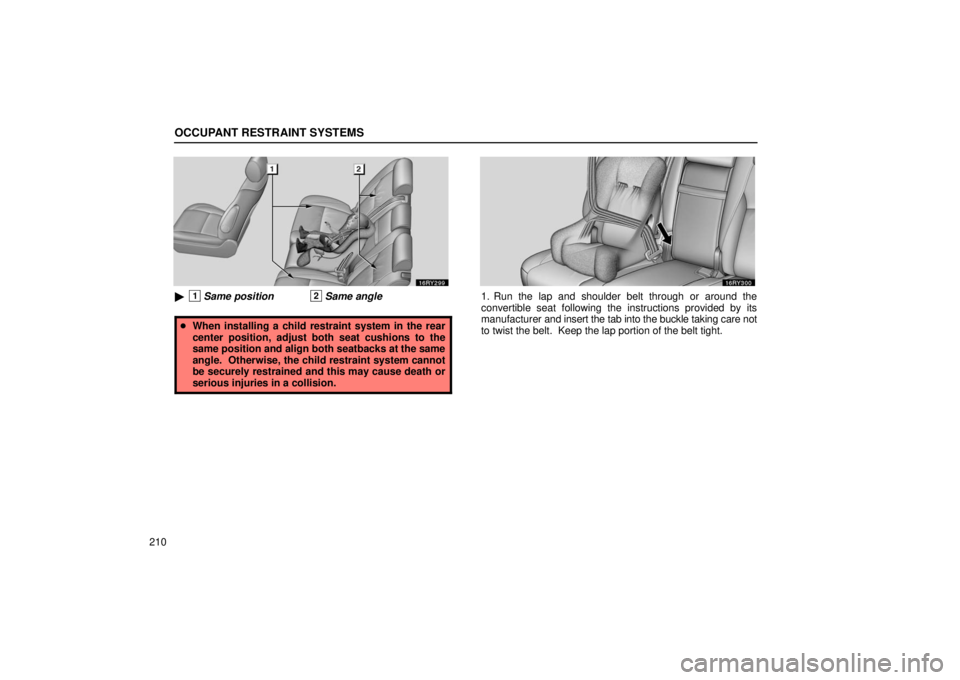

1Same position2Same angle
When installing a child restraint system in the rear
center position, adjust both seat cushions to the
same position and align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.

OCCUPANT RESTRAINT SYSTEMS
211

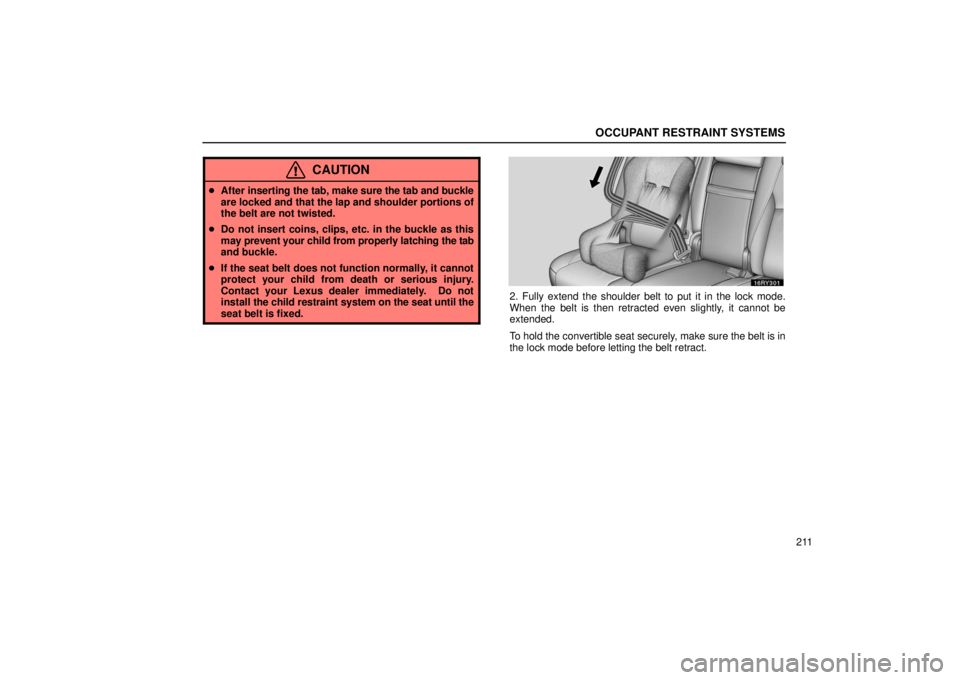

CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
212

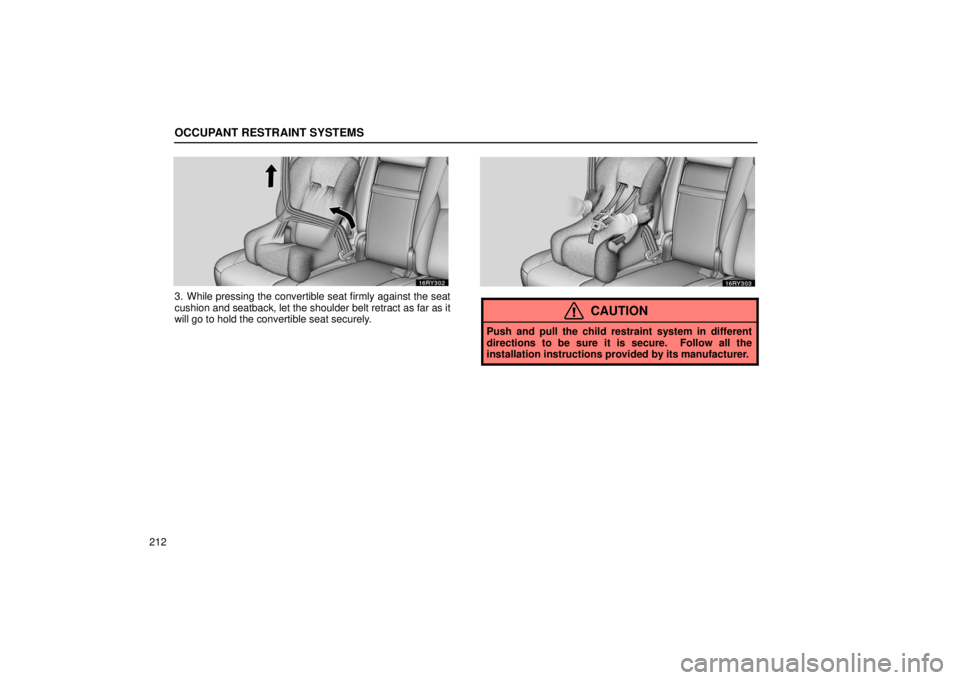

3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

OCCUPANT RESTRAINT SYSTEMS
213
4. To remove the convertible seat, press the buckle release
button and allow the belt to retract completely. The belt will
move freely again and be ready to work for an adult or older
child passenger.(C) Booster seat installation
A booster seat must be used in forwardfacing position
only.

OCCUPANT RESTRAINT SYSTEMS
214

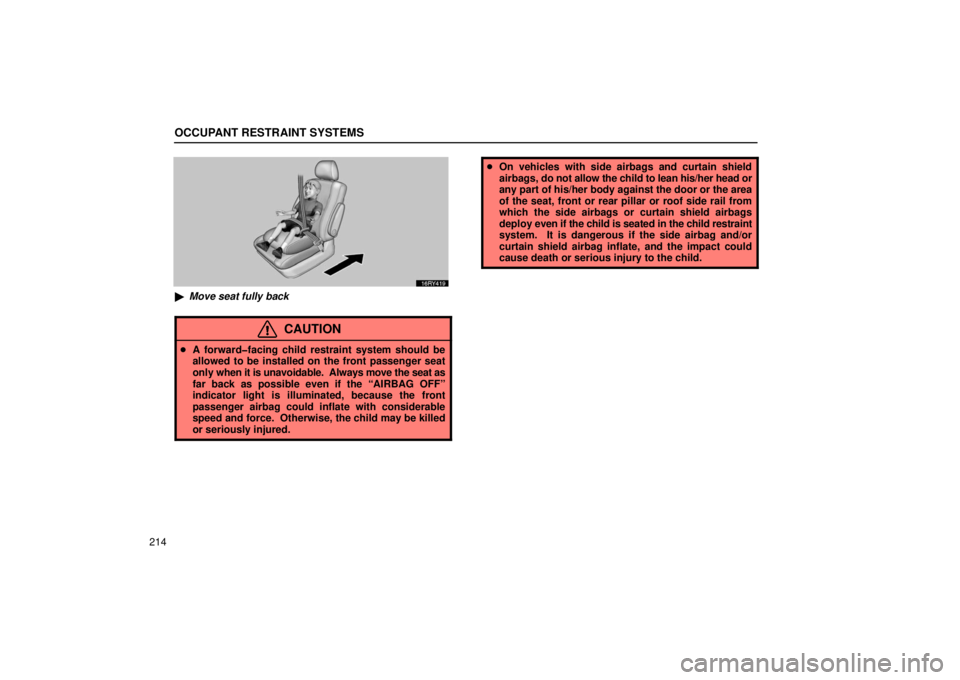

Move seat fully back
CAUTION
A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible even if the “AIRBAG OFF”
indicator light is illuminated, because the front
passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed
or seriously injured.
 On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean his/her head or
any part of his/her body against the door or the area
of the seat, front or rear pillar or roof side rail from
which the side airbags or curtain shield airbags
deploy even if the child is seated in the child restraint
system. It is dangerous if the side airbag and/or
curtain shield airbag inflate, and the impact could
cause death or serious injury to the child.

OCCUPANT RESTRAINT SYSTEMS
215

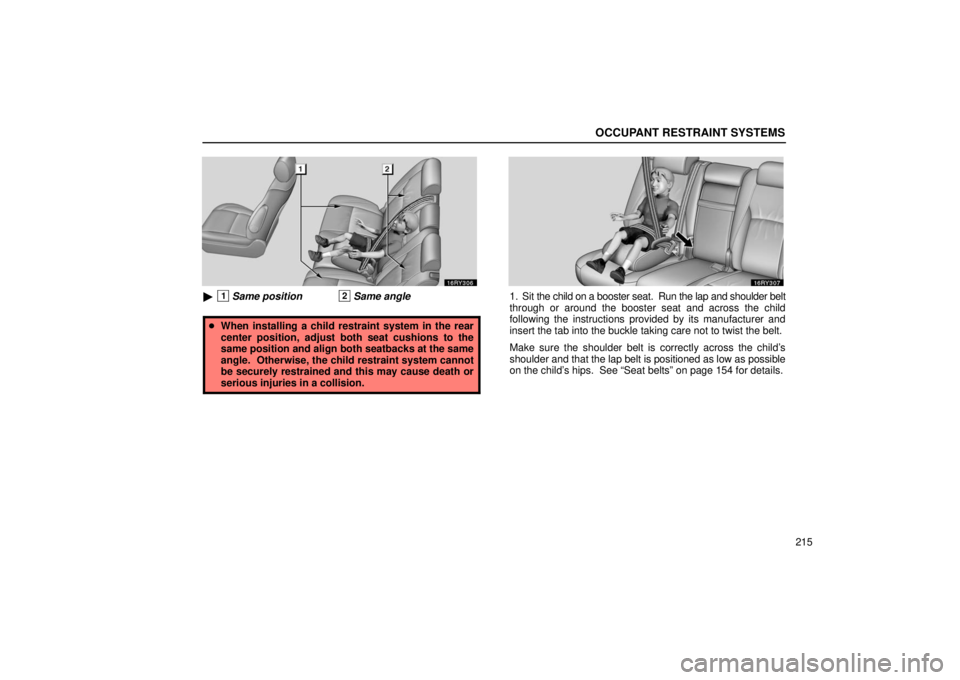

1Same position2Same angle
When installing a child restraint system in the rear
center position, adjust both seat cushions to the
same position and align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and across the child
following the instructions provided by its manufacturer and
insert the tab into the buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly across the child’s
shoulder and that the lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on page 154 for details.

OCCUPANT RESTRAINT SYSTEMS
216

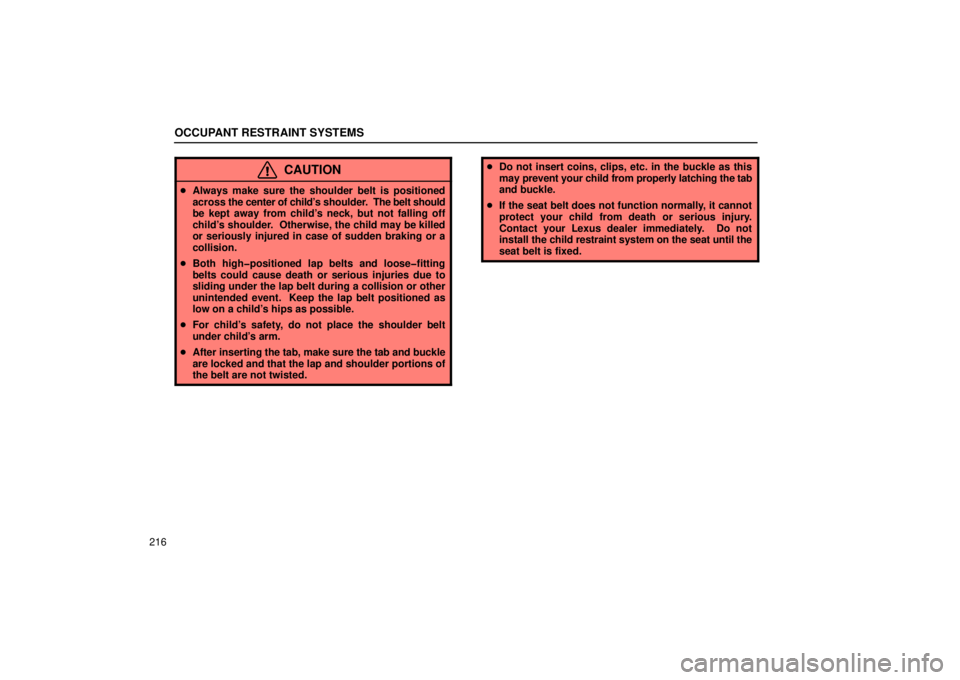

CAUTION
Always make sure the shoulder belt is positioned
across the center of child’ s shoulder. The belt should
be kept away from child’s neck, but not falling off
child’s shoulder. Otherwise, the child may be killed
or seriously injured in case of sudden braking or a
collision.
 Both highpositioned lap belts and loosefitting
belts could cause death or serious injuries due to
sliding under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on a child’s hips as possible.
 For child’s safety, do not place the shoulder belt
under child’s arm.
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.

OCCUPANT RESTRAINT SYSTEMS
217

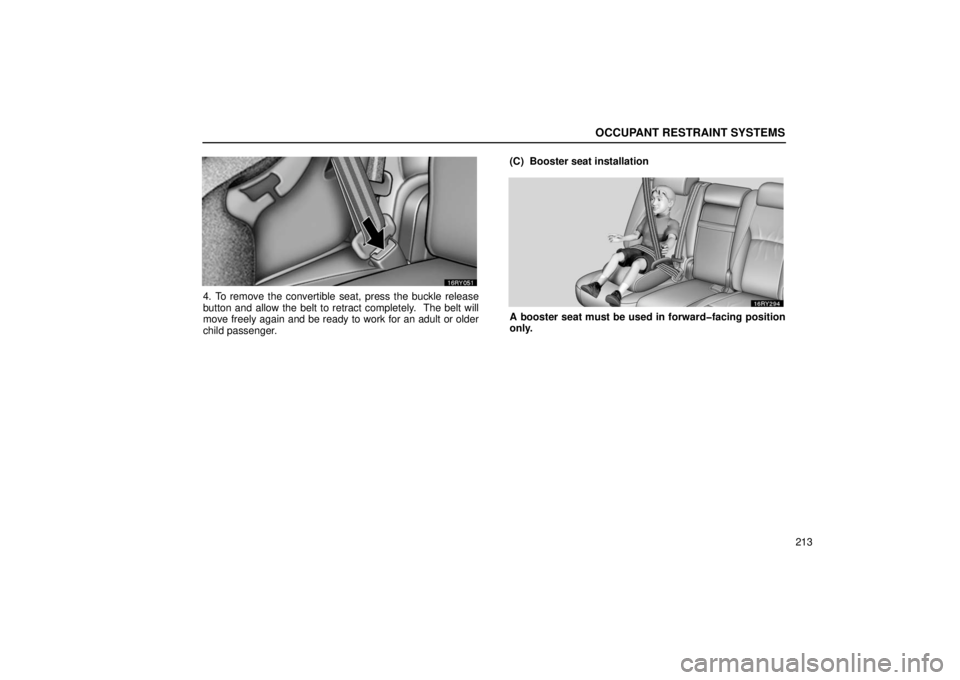

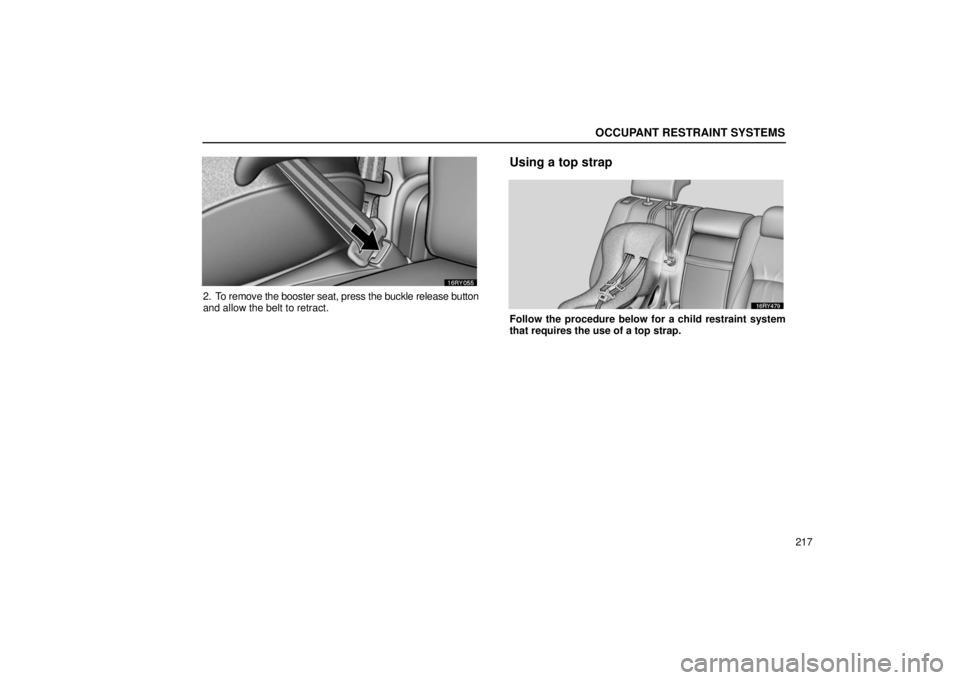

2. To remove the booster seat, press the buckle release button
and allow the belt to retract.
Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.

OCCUPANT RESTRAINT SYSTEMS
218
1Anchor brackets2Symbol mark
Use the anchor brackets on the back of the rear seatback to
attach the top strap.
Anchor brackets are installed for each rear seating position.
This symbol mark indicates the locations of the anchor
brackets.1. Remove the head restraint.
2. Open the cover of the anchor bracket.

OCCUPANT RESTRAINT SYSTEMS
219
3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see “Child
restraint system” on page 199.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is securely by pushing
and pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
