SWITCHES
52
HEADLIGHT DIMMER AND TURNSIGNAL SWITCH

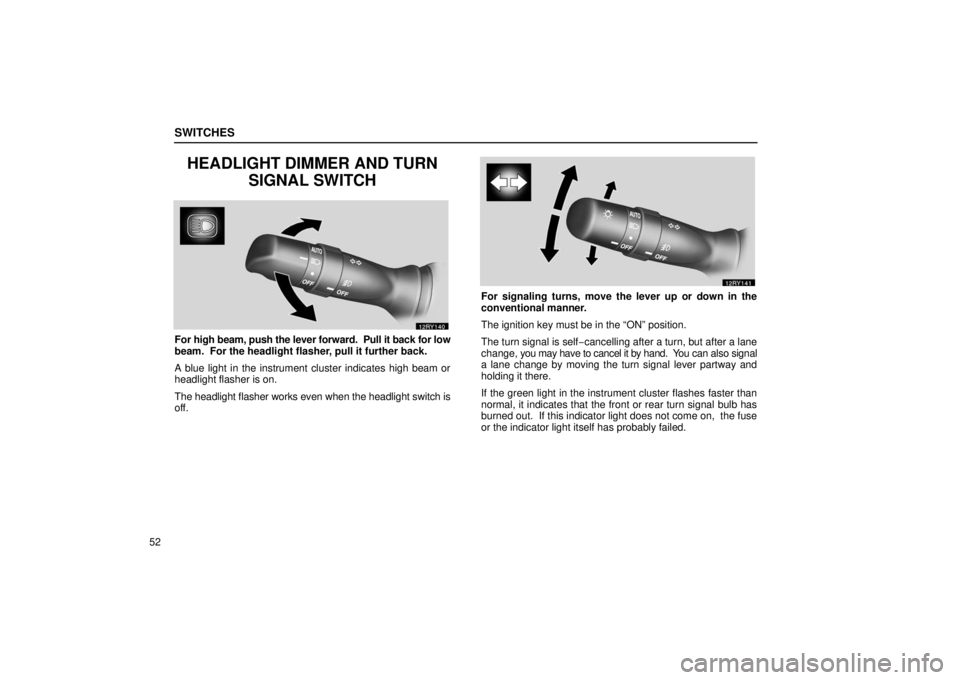

For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the “ON” position.
The turn signal is self −cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
82If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light system. Contact your Lexus dealer as
soon as possible to service the vehicle.

The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.

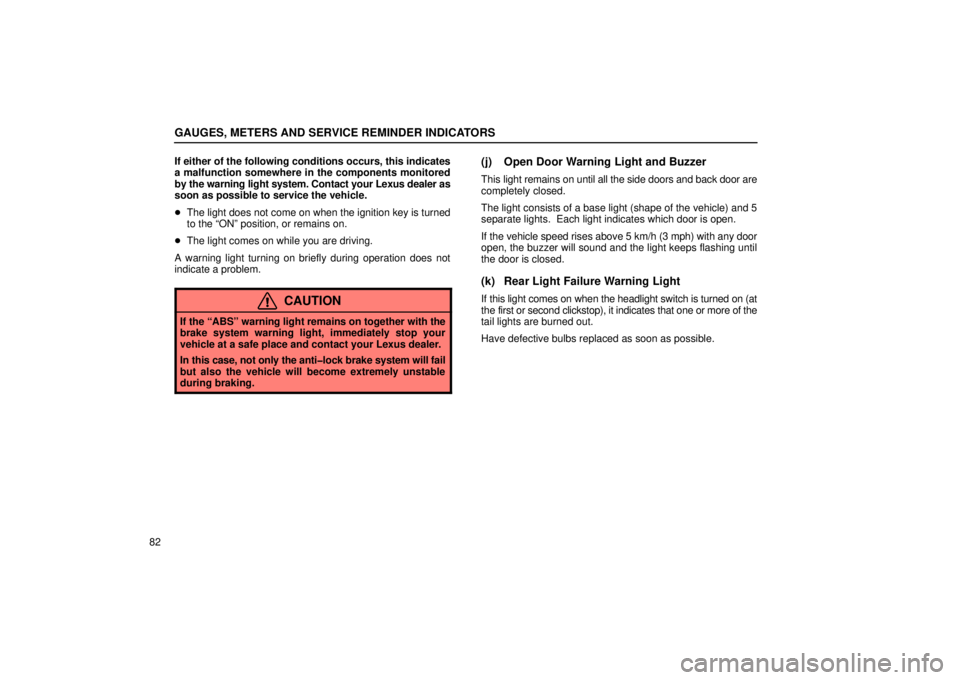

CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the antilock brake system will fail
but also the vehicle will become extremely unstable
during braking.
(j) Open Door Warning Light and Buzzer
This light remains on until all the side doors and back door are
completely closed.
The light consists of a base light (shape of the vehicle) and 5
separate lights. Each light indicates which door is open.
If the vehicle speed rises above 5 km/h (3 mph) with any door
open, the buzzer will sound and the light keeps flashing until
the door is closed.
(k) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
Have defective bulbs replaced as soon as possible.

SECTION 6 – 4
593
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications594
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 601
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 604
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 605
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 607
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 611
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
611
REPLACING LIGHT BULBS

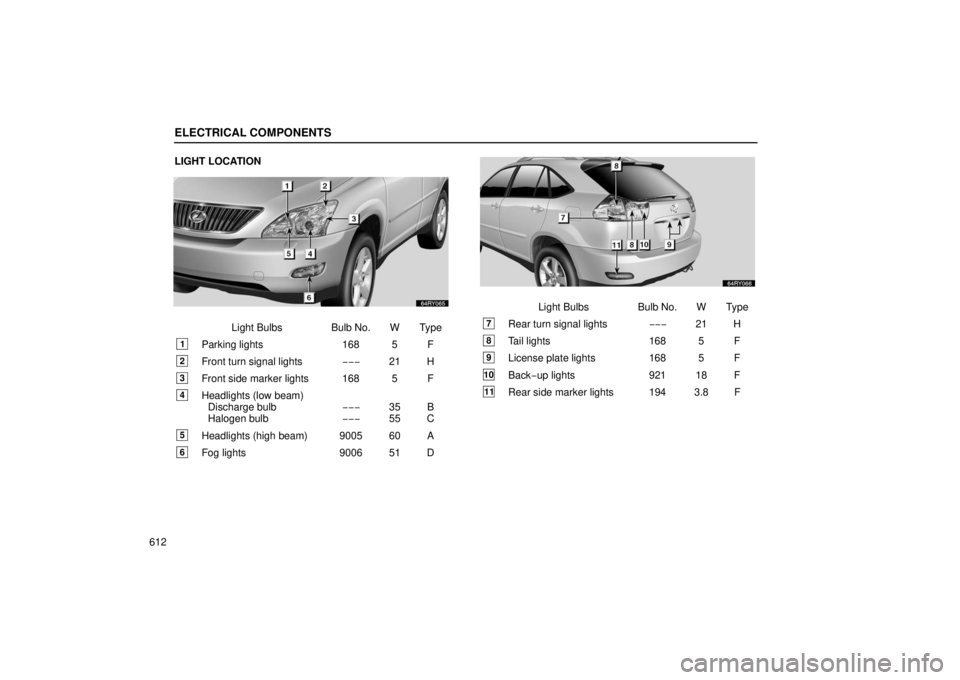

The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your vehicle
to your Lexus dealer as soon as possible. Use bulbs with the
bulb numbers and wattage ratings given in the table.
The stop lights consist of a number of LEDs. If two or more
LEDs burn out, your vehicle may not conform to local laws
(SAE). If this occurs, take your vehicle to your Lexus dealer to
have the light replaced.

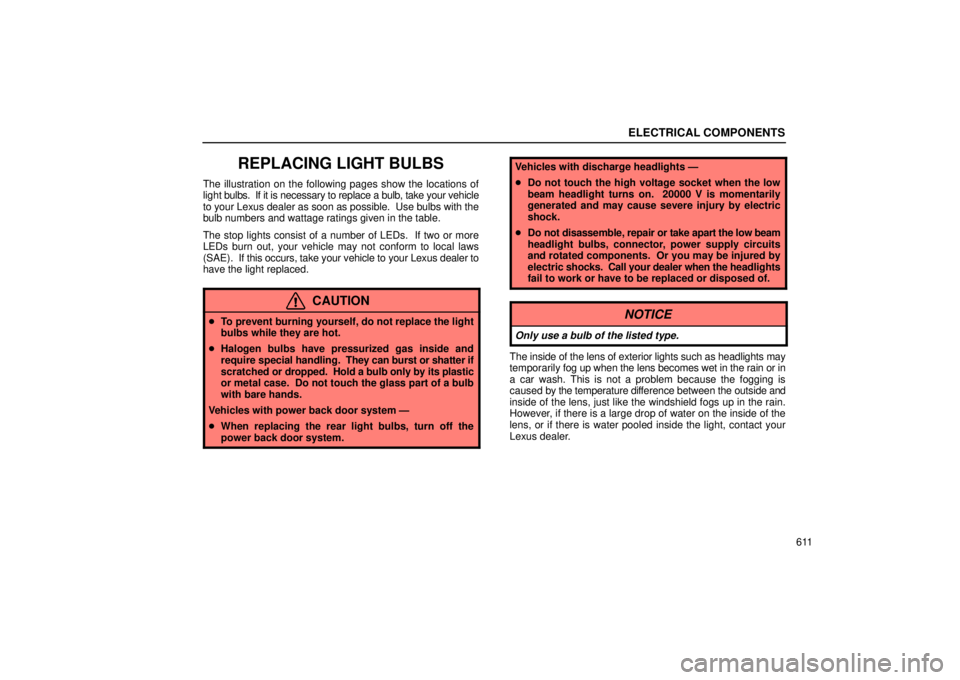

CAUTION
 To prevent burning yourself, do not replace the light
bulbs while they are hot.
 Halogen bulbs have pressurized gas inside and
require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb
with bare hands.
Vehicles with power back door system —
 When replacing the rear light bulbs, turn off the
power back door system.
Vehicles with discharge headlights —
Do not touch the high voltage socket when the low
beam headlight turns on. 20000 V is momentarily
generated and may cause severe injury by electric
shock.
 Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits
and rotated components. Or you may be injured by
electric shocks. Call your dealer when the headlights
fail to work or have to be replaced or disposed of.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights such as headlights may
temporarily fog up when the lens becomes wet in the rain or in
a car wash. This is not a problem because the fogging is
caused by the temperature difference between the outside and
inside of the lens, just like the windshield fogs up in the rain.
However, if there is a large drop of water on the inside of the
lens, or if there is water pooled inside the light, contact your
Lexus dealer.

ELECTRICAL COMPONENTS
612LIGHT LOCATION
Light Bulbs Bulb No. W Type
1Parking lights
168 5 F
2Front turn signal lights−−−21 H
3Front side marker lights 168 5 F
4Headlights (low beam)
Discharge bulb
Halogen bulb −−−
−−−35
55B
C
5Headlights (high beam) 9005 60 A
6Fog lights 9006 51 D
Light Bulbs Bulb No. W Type
7Rear turn signal lights −−−21 H
8Tail lights 168 5 F
9License plate lights168 5 F
10Back−up lights 921 18 F
11Rear side marker lights 194 3.8 F
