LEXUS RX330 2006 Owners Manual

STARTING AND DRIVING
450
Normal driving mode
Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the traction control system is in the self− check mode, but does
not indicate a malfunction. When the traction control system is operating, the following
conditions occur:

The system controls the spinning of the front wheels. At this
time, the slip indicator light blinks.
 You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few seconds when the
ignition key is turned to “ON”. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.

STARTING AND DRIVING
451
Traction control off mode
If your wheels get stuck in a ditch when you are driving on
a severe off road and sand, turn off the traction control
system. This system that controls engine performance
interferes with the process of freeing your wheels.
To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come on.
The vehicle stability control system is always activated, even
if the traction control system is turned off.
To turn on: Push “TRAC OFF” switch once again.
The “TRAC OFF” indicator light will go off.“TRAC OFF”
indicator light comes on for a few seconds when
the ignition key is turned to “ON”. It will come on again when
you push the “TRAC OFF” switch to turn off the system.
In the following cases, contact your Lexus dealer:
 The indicator light does not come on when the ignition key
is turned to “ON”.
 The indicator light remains on after the ignition is turned on.
 The indicator light comes on with the normal driving mode
while driving.

STARTING AND DRIVING
452
“VSC” warning light
This light warns that there is a problem somewhere in the
vehicle stability control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the vehicle stability control
system and traction control system do not work. However, as
conventional braking operates when applied, there is no
problem to continue your driving. In the following cases, contact your Lexus dealer:

The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.

STARTING AND DRIVING
453
TRACTION CONTROL SYSTEM
(fourwheel drive modes)
The traction control system automatically helps prevent
the spinning of 4 wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”, the system
automatically turns on.
CAUTION
Under certain slippery road conditions, full traction of
the vehicle and power against 4 wheels cannot be
maintained, even though the traction control system is
in operation. Do not drive the vehicle under any speed
or maneuvering conditions which may cause the
vehicle to lose traction control. In situations where the
road surface is covered with ice or snow, your vehicle
should be fitted with snow tires or tire chains. Always
drive at an appropriate and cautious speed for the
present road conditions.
Normal driving mode

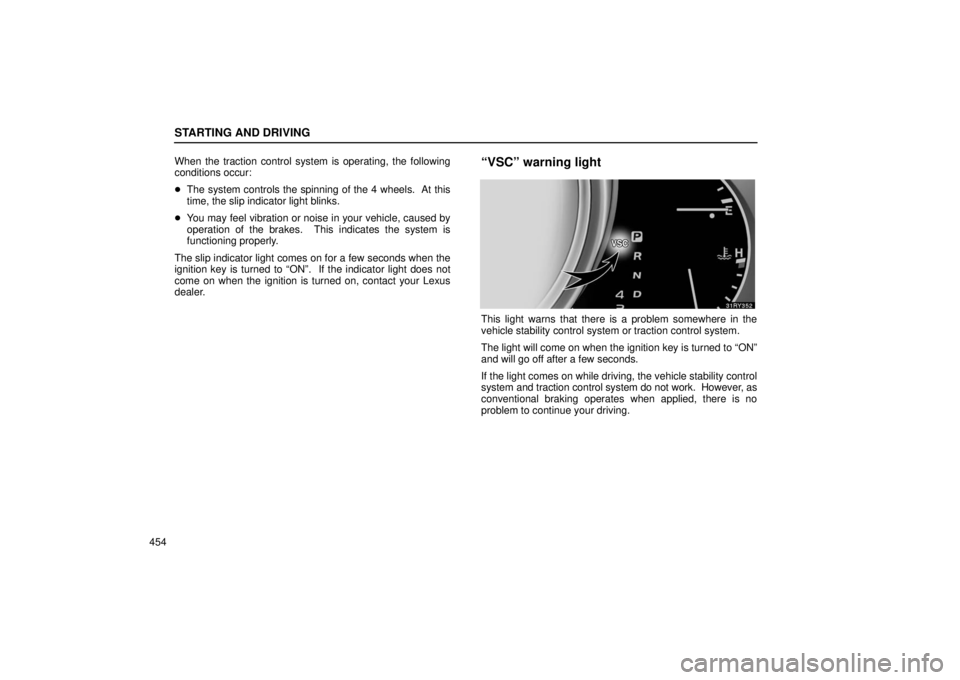

 Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the traction control system is in the self− check mode, but does
not indicate a malfunction.

STARTING AND DRIVING
454When the traction control system is operating, the following
conditions occur:

The system controls the spinning of the 4 wheels. At this
time, the slip indicator light blinks.
 You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few seconds when the
ignition key is turned to “ON”. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
“VSC” warning light
This light warns that there is a problem somewhere in the
vehicle stability control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the vehicle stability control
system and traction control system do not work. However, as
conventional braking operates when applied, there is no
problem to continue your driving.

STARTING AND DRIVING
455
In the following cases, contact your Lexus dealer:

The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
VEHICLE STABILITY CONTROL
SYSTEM
The vehicle stability control system helps provide
comprehensive control of the systems such as antilock
brake system, traction control, engine control, etc. This
system automatically controls the brakes and engine to
help prevent the vehicle from skidding when cornering on
a slippery road surface or operating steering wheel
abruptly.
This system activates when the vehicle speed is about more
than 15 km/h (9 mph).
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the system is in the self −check mode, but does not indicate a
malfunction.

STARTING AND DRIVING
456
CAUTION
Do not rely excessively on the vehicle stability
control system. Even if the vehicle stability control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an unexpected accident. If the
slip indicator light blinks, sounding an alarm, special
care should be taken while driving.
 Only use tires of specified size. The size,
manufacturer, brand and tread pattern for all 4 tires
should be the same. If you use the tires other than
specified, or different type or size, the vehicle
stability control system may not function correctly.
When replacing the tires or wheels, contact your
Lexus dealer.
 In situations where the road surface is covered with
ice or snow, your vehicle should be fitted with snow
tires or tire chains.

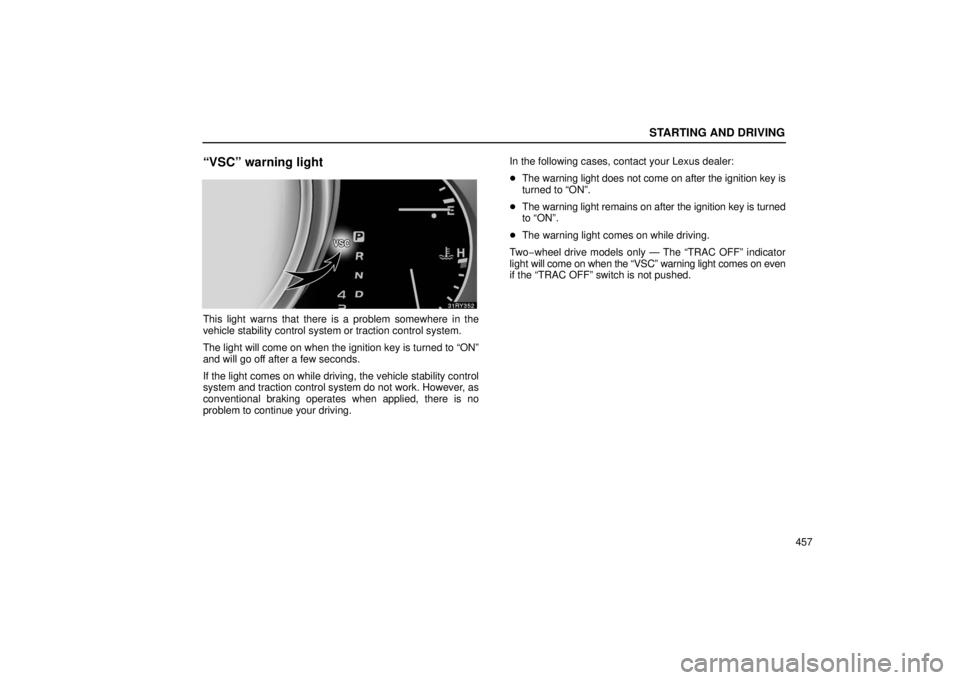

 Slip indicator light
If the vehicle is going to skid during driving, the slip indicator
light blinks and an alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few seconds when the
ignition key is turned to “ON”. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.

STARTING AND DRIVING
457
“VSC” warning light
This light warns that there is a problem somewhere in the
vehicle stability control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the vehicle stability control
system and traction control system do not work. However, as
conventional braking operates when applied, there is no
problem to continue your driving.In the following cases, contact your Lexus dealer:

The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
Tw o −wheel drive models only — The “TRAC OFF” indicator
light will come on when the “VSC” warning light comes on even
if the “TRAC OFF” switch is not pushed.

STARTING AND DRIVING
458
BRAKE SYSTEM
The tandem master cylinder brake system is a hydraulic
system with two separate sub− systems. If either sub− system
should fail, the other will still work. However, the pedal will be
harder to press, and your stopping distance will increase. Also,
the brake system warning light may come on.

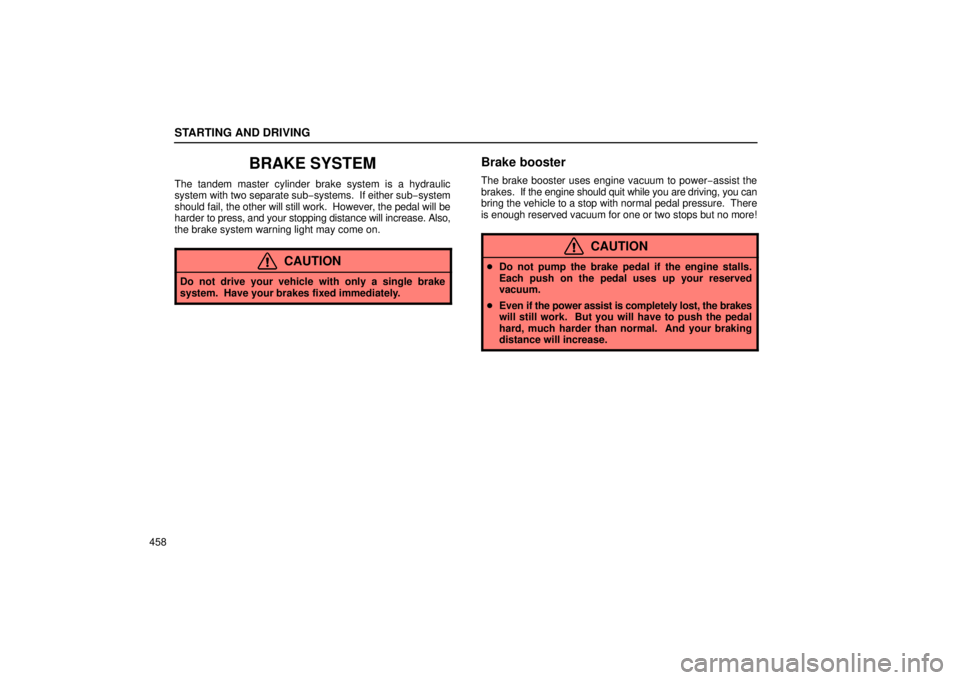

CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses engine vacuum to power −assist the
brakes. If the engine should quit while you are driving, you can
bring the vehicle to a stop with normal pedal pressure. There
is enough reserved vacuum for one or two stops but no more!
CAUTION
 Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved
vacuum.
 Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will increase.

STARTING AND DRIVING
459
Antilock brake system
The antilock brake system is designed to help prevent
lockup of the wheels during a sudden braking or braking
on slippery road surfaces. This assists in providing
directional stability and steering performance of the
vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti−lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti−lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti−lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on a manhole cover, a steel plate at a construction site, joints
in a bridge, etc. on a rainy day tends to activate the anti −lock
brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds just after the vehicle begins to
move. This means that the anti −lock brake system is in the
self−check mode, and does not indicate a malfunction. When the antilock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:

You may hear the anti −lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti−lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the antilock brake system:
Although the antilock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the antilock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the antilock brake system does not provide
vehicle control.
