LEXUS RX330 2006 Owners Manual

DRIVING TIPS
480
Trailer ball
Follow these easy steps to properly determine the correct
trailer ball for your application:
1. Determine the correct trailer ball size for the trailer coupler.
Most couplers are stamped with the required trailer ball size.
The sizes you will most likely find stamped on the coupler are:
Trailer class
Typical Trailer Ball SizeIII 2 in.
II 2 in.
I 1 7/8 in.
2. Select the appropriate trailer ball to match or exceed the
gross trailer weight rating of the trailer. The trailer ball load
rating should be printed on the top of the ball.
1Trailer ball load rating
2Ball diameter
3Shank length
4Shank diameter
3. When mounted in the ball mount, the threaded ball shank
must protrude beyond the bottom of the lock washer and nut
at least 2 threads. The trailer ball shank must be matched to
the ball mount hole diameter size.
NOTICE
Only use a ball mount attachment specified for Lexus
RX330.

DRIVING TIPS
481

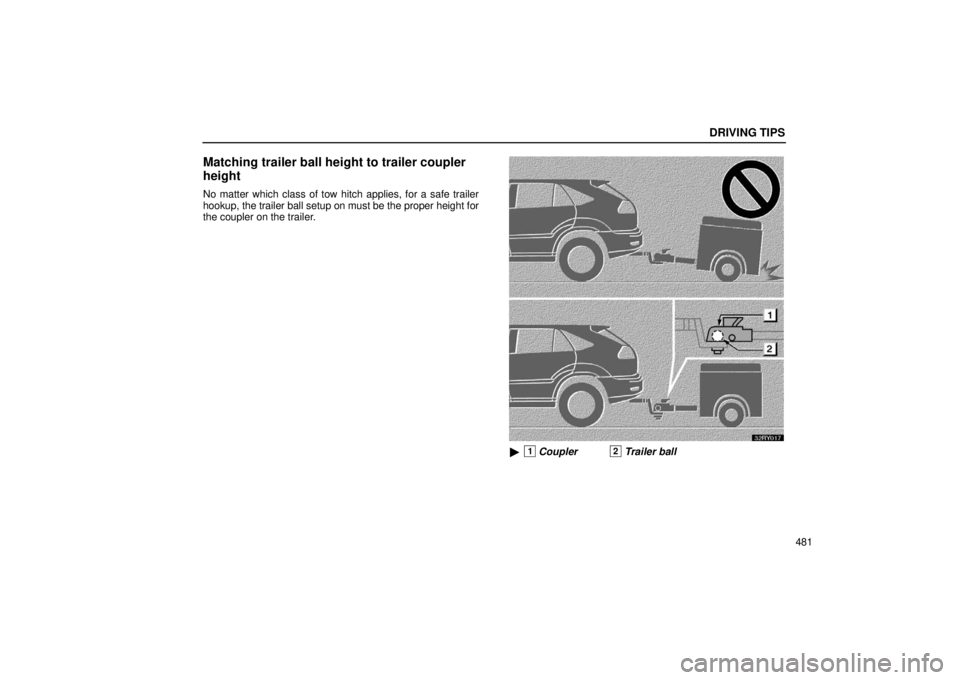

Matching trailer ball height to trailer coupler
height
No matter which class of tow hitch applies, for a safe trailer
hookup, the trailer ball setup on must be the proper height for
the coupler on the trailer.
1Coupler2Trailer ball

DRIVING TIPS
482
Brakes and safety chains
Lexus recommends trailers with brakes that conform to
any applicable federal and state/provincial regulations.
 A safety chain must always be used between the towing
vehicle and the trailer. Leave sufficient slack in the
chain for turns. The chain should cross under the
trailer tongue to prevent the tongue from dropping to
the ground in case it becomes damaged or separated.
For correct safety chain procedures, follow the hitch or
trailer manufacturer’s recommendations.

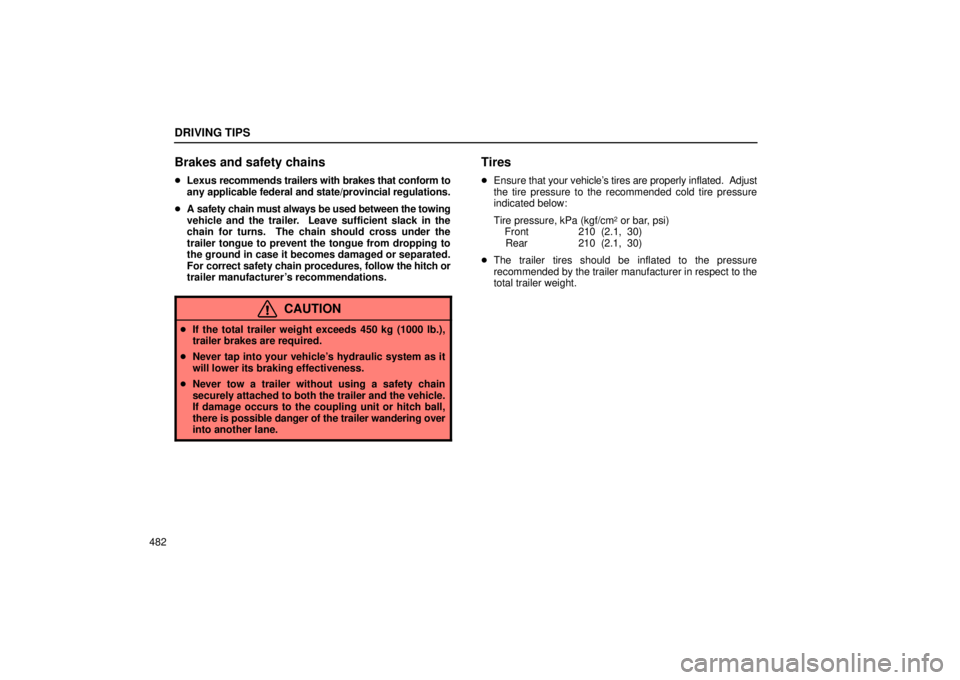

CAUTION
 If the total trailer weight exceeds 450 kg (1000 lb.),
trailer brakes are required.
 Never tap into your vehicle’s hydraulic system as it
will lower its braking effectiveness.
 Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If damage occurs to the coupling unit or hitch ball,
there is possible danger of the trailer wandering over
into another lane.
Tires
Ensure that your vehicle’s tires are properly inflated. Adjust
the tire pressure to the recommended cold tire pressure
indicated below:
Tire pressure, kPa (kgf/cm
2 or bar, psi)
Front 210 (2.1, 30) Rear 210 (2.1, 30)
 The trailer tires should be inflated to the pressure
recommended by the trailer manufacturer in respect to the
total trailer weight.

DRIVING TIPS
483
Trailer lights
 Socket for trailer lights
Your vehicle is equipped with a wire harness stored in the rear
end underbody. Models with tow hitch receiver are fitted with
a socket for trailer lights under the rear bumper. Use either of
them to connect and operate the trailer lights. However, the
trailer lights must comply with federal, state/provincial and
local regulations. See your local recreational vehicle dealer or
rental agency for the correct type of wiring and relays for your
trailer. Check for correct operation of the turn signals and stop
lights each time you hitch up. Direct splicing may damage your
vehicle’s electrical system and cause a malfunction of your
lights.
Breakin schedule
 Lexus recommends that you do not tow a trailer with a new
vehicle or a vehicle with any new power train component
(engine, transmission, differential, wheel bearing, etc.) for
the first 800 km (500 miles) of driving.
Maintenance
 If you tow a trailer, your vehicle will require more frequent
maintenance due to the additional load. For this
information, please refer to the scheduled maintenance
information in the “Owner’s Manual Supplement /
Scheduled Maintenance”.
 Retighten all fixing bolts of the towing ball and bracket after
approximately 1000 km (600 miles) of trailer driving.
Connecting a trailer (models with
electronically modulated air suspension)
Stop your vehicle and a trailer in line and perform the following:
1. Put the electronically modulated air suspension in the “LO”
mode. Turn the ignition switch off or push the height control
switch to turn off the electronically modulated air suspension.
2. Connect a trailer.
3. Turn the ignition switch on or push the height control switch
to turn on the electronically modulated air suspension. Select
the “N” (normal) mode with the height select switch.

DRIVING TIPS
484
Disconnecting a trailer (models with
electronically modulated air suspension)
Stop your vehicle and trailer so they are in line and perform the
following:
1. Place the electronically modulated air suspension in “LO”
mode. (Make sure the vehicle height is in “LO” mode by
pushing the height select switch on the “
” [lower] side.)
2. Push the height control switch to turn off the electronically
modulated air suspension. The height control “OFF” indicator
light will come on.
3. Turn the ignition switch off.
4. Set the supporting leg of the trailer on the ground and raise
the hitch by 100 mm (4 in.).
5. Turn the ignition switch on.
6. Push the height control switch to turn on the electronically
modulated air suspension. The height control “OFF” indicator
will go out.
7. Wait for about one minute until vehicle height is stabilized by
the automatic leveling function.
8. Make sure the hitch is disconnected. If not, raise the hitch
higher and repeat steps 2 through 7.
Pretowing safety check
 Check that your vehicle remains level when a loaded or
unloaded trailer is hitched. Do not drive if the vehicle has an
abnormal nose −up or nose− down condition, and check for
improper tongue load, overload, worn suspension or other
possible causes.
 Make sure the trailer cargo is securely loaded so that it
cannot shift.
 Check that your rear view mirrors conform to any federal,
state/provincial or local regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.

DRIVING TIPS
485
Trailer towing tips
When towing a trailer, your vehicle will handle differently
than when not towing. The three main causes of
vehicletrailer accidents are driver error, excessive speed
and improper trailer loading. Keep these in mind when
towing:
 Before starting out, check the operation of the lights and all
vehicle −trailer connections. After driving a short distance,
stop and recheck the lights and connections. Practice
turning, stopping and backing with a trailer in an area away
from traffic until you learn the feel.
 Backing with a trailer is difficult and requires practice. Grip
the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right
to move the trailer to the right. (This procedure is generally
opposite to that when backing without a trailer.) Also, just
turn the steering wheel a little at a time, avoiding sharp or
prolonged turning. Have someone guide you when backing
to reduce the risk of an accident.
 Because stopping distance may be increased,
vehicle −to−vehicle distance should be increased when
towing a trailer. For each 16 km/h (10 mph) of speed, allow
at least one vehicle and trailer length between you and the
vehicle ahead. Avoid sudden braking as you may skid,
resulting in jackknifing and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration.
 Avoid jerky steering and sharp turns. The trailer could hit
your vehicle in a tight turn. Slow down before making a turn
to avoid the need of sudden braking.
 Remember that when making a turn, the trailer wheels will
be closer than the vehicle wheels to the inside of the turn.
Therefore, compensate for this by making a larger than
normal turning radius with your vehicle.
 Crosswinds and rough roads will adversely affect handling
of your vehicle and trailer, causing sway. Pay attention to
the rear from time to time to prepare yourself for being
passed by large trucks or buses, which may cause your
vehicle and trailer to sway. If swaying happens, firmly grip
the steering wheel and reduce speed immediately but
gradually. Never increase speed. If it is necessary to
reduce speed, brake slowly. Steer straight ahead. If you
make no extreme correction with the steering or brakes,
your vehicle and trailer will stabilize.
 Be careful when passing other vehicles. Passing requires
considerable distance. After passing a vehicle, do not forget
the length of your trailer and be sure you have plenty of room
before changing lanes.
 In order to maintain efficient engine braking and electrical
charging performance, do not use overdrive. Transmission
must be “4” position (with standard type) or the shift range
position must be “4” (fourth range) in “S” mode (with
multi−mode type).

DRIVING TIPS
486
Because of the added load of the trailer, your vehicle’s
engine may overheat on hot days (at temperatures over
30C [85 F]) when going up a long or steep grade with a
trailer. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in
use), pull your vehicle off the road and stop in a safe spot.
See “If your vehicle overheats” on page 499 of this manual.
 Always place wheel blocks under both the vehicle and trailer
wheels when parking. Apply the parking brake firmly. Put
the transmission in “P”. Avoid parking on a slope with a
trailer, but if it cannot be avoided, do so only after performing
the following:
1. Apply the brakes and keep them applied.
2. Have someone place wheel blocks under both the vehicle
and trailer wheels.
3. When the wheel blocks are in place, release your brakes
slowly until the blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine. When restarting out after parking on a slope:
1. With the transmission in “P” position, start the engine. Be
sure to keep the brake pedal depressed.
2. Shift into the following position.
With automatic transmission (standard type) —
Shift into the “3”, “2”, “L” or “R” position.
With automatic transmission (multi
−mode type) —
Shift into the “3” (third range), “2” (second range), “\
1” (first
range) or “R” position.
3. Release the parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.

DRIVING TIPS
487
CAUTION
Do not exceed 72 km/h (45 mph) or the posted towing
speed limit, whichever is lower. Because instability
(swaying) of a towing vehicletrailer combination
usually increases as the speed increases, exceeding
72 km/h (45 mph) may cause loss of control.
 Slow down and downshift before descending steep
or long downhill grades. Do not make sudden
downshifts.
 Avoid holding the brake pedal down too long or too
frequently. This could cause the brakes to overheat
and result in reduced braking efficiency.
HOW TO SAVE FUEL AND MAKE
YOUR VEHICLE LAST LONGER
Improving fuel economy is easy — just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:
 Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
 Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
 Avoid lengthy warmup idling. Once the engine is
running smoothly, begin driving — but gently. Remember,
however, that on cold winter days this may take a little
longer.
 Always keep the automatic transmission selector lever
in the “D” position when engine braking is not required.
Driving with the overdrive off will reduce the fuel economy.
(For details, see “Automatic transmission (standard type)”
or “Automatic transmission (multi− mode type)” on page 389
or 398.)
 Accelerate slowly and smoothly. Avoid jackrabbit starts.
 Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.

DRIVING TIPS
488
Avoid engine overrevving. Use a gear position suitable
for the road on which you are traveling.
 Avoid continuous speeding up and slowing down.
Stop−and−go driving wastes fuel.
 Avoid unnecessary stopping and braking. Maintain a
steady pace. Try to time the traf fic signals so you only need
to stop as little as possible or take advantage of through
streets to avoid traffic lights. Keep a proper distance from
other vehicles to avoid sudden braking. This will also
reduce wear on your brakes.
 Avoid heavy traffic or traffic jams whenever possible.
 Do not rest your foot on the brake pedal. This causes
premature wear, overheating and poor fuel economy.
 Maintain a moderate speed on highways. The faster you
drive, the greater the fuel consumption. By reducing your
speed, you will cut down on fuel consumption.
 Keep the front wheels in proper alignment. Avoid hitting
the curb and slow down on rough roads. Improper
alignment not only causes faster tire wear but also puts an
extra load on the engine, which, in turn, wastes fuel.
 Keep the bottom of your vehicle free from mud, etc. This
not only lessens weight but also helps prevent corrosion.
Keep your vehicle tunedup and in top shape. A dirty air
cleaner, improper valve clearance, dirty plugs, dirty oil and
grease, brakes not adjusted, etc. all lower engine
performance and contribute to poor fuel economy. For
longer life of all parts and lower operating costs, keep all
maintenance work on schedule, and if you often drive under
severe conditions, see that your vehicle receives more
frequent maintenance. (For scheduled maintenance
information, please refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.)
CAUTION
Never turn off the engine to coast down hills. Your
power steering and brake booster will not function
without the engine running. Also, the emission control
system operates properly only when the engine is
running.

DRIVING TIPS
489
VEHICLE LOAD LIMITS
Vehicle load limits include total load capacity, seating
capacity, towing capacity and cargo capacity. Follow
the load limits shown below. Total load capacity and
seating capacity are also described on the tire and
loading information label. For location of the tire and
loading information label, see “Checking tire inflation
pressure” on page 570.
Total load capacity: 420 kg (925 lb.)
Total load capacity means combined weight of
occupants, cargo and luggage. Tongue load is
included when trailer towing.
Seating capacity: Total 5 (Front 2, Rear 3)
Seating capacity means the maximum number of
occupants whose estimated average weight is 68 kg
(150 lb.) per person. Depending on the weight of
each person, the seating capacity given may exceed
the total load capacity.
NOTICE
Even if the number of occupants are within the
seating capacity, do not exceed the total load
capacity.
Towing capacity:
Without towing package 907 kg (2000 lb.)
With towing package 1588 kg (3500 lb.)
Towing capacity means the maximum gross trailer
weight (trailer weight plus its cargo weight) that your
vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or decrease depending
on the size (weight) and the number of occupants.
For details, see “Capacity and distribution” that
follows.
CAUTION
Do not apply the load more than each load limit.
That may cause not only damage to the tires,
but also deterioration to the steering ability and
braking ability, which may cause an accident.
