REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bending, cracks or
heavy corrosion, the wheel should be replaced.
If you fail to replace a damaged wheel, the tire may slip off the
wheel or cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
 Do not use wheels other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
 Fourwheel drive models:
Do not use wheels of different brands, sizes and
types, as this may cause dangerous handling
characteristics resulting in loss of control.
Initial adjustment of the tire pressure warning system is
necessary after you have replaced your wheels. See “Tire
pressure warning system” on page 462.

CHASSIS
591
ALUMINUM WHEEL PRECAUTIONS
When installing aluminum wheels, check that the wheel nuts
are tight after driving your vehicle the first 1600 km (1000
miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only Lexus wheel nuts and wrench designed for your
aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
SUSPENSION AND CHASSIS
CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

CHASSIS
592

SECTION 6 – 4
593
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications594
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 601
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 604
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 605
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 607
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 611
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
594
SPECIFICATIONS

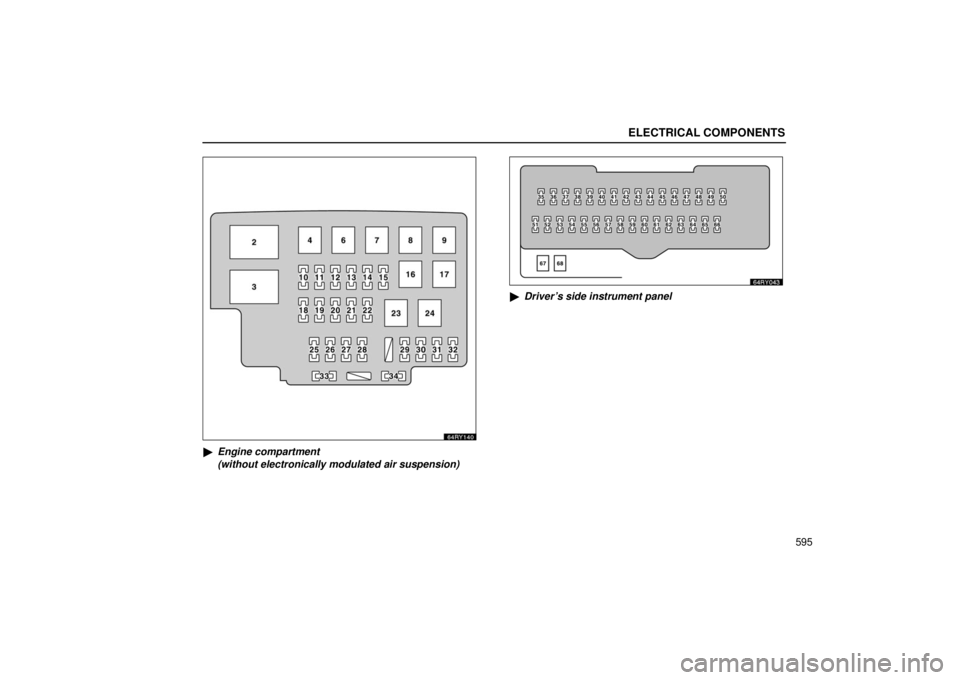

— FUSE LOCATIONS
1Engine compartment
2 3 Driver’s side instrument panel— FUSES

Engine compartment
(with electronically modulated air suspension)

ELECTRICAL COMPONENTS
595
Engine compartment
(without electronically modulated air suspension)
64RY043
Driver’s side instrument panel

ELECTRICAL COMPONENTS
596
No.FUSEAMPERECIRCUIT
1 AIRSUS60Electronically modulated air
suspension
2 INPJ/B100
All components in “HEATER”,
“H−LP CLN”, “TAIL”, “PANEL”,
“FR FOG”, “CIG”, “RADIO NO.
2”, “ECU− ACC”, “PWR OUTLET
NO. 1”, “GAUGE NO. 1”,
“ECU− IG NO. 1”,“ FR WIP”, “RR
WIP”, “WASHER”, “SEAT HTR”,
“ECU− IG NO. 2”, “P/SEAT”,
“PWR”, “TI&TE”, “RR DOOR
LH”, “RR DOOR RH”, “MPX− B”,
“AM1”, “DOOR NO. 2”, “STOP”,
“OBD”, “FUEL OPN”, “AIRSUS”
(7.5 A), “S/ROOF”, “FR DEF”
and “RR FOG” fuses
No.FUSEAMPERECIRCUIT
3 ALT140
All components in “INP −J/B”,
“AIRSUS” (60 A), “ABS NO. 1”,
“ABS NO. 2”, “RDI FAN”, “RR
DEF”, “HEATER”, “PBD”, “H −LP
CLN/MSB”, “H− LP CLN”, “PWR
OUTLET NO. 2”, “TOWING”,
“TAIL”, “PANEL”, “FR FOG”,
“CIG”, “RADIO NO. 2”,
“ECU− ACC”, “PWR OUTLET
NO. 1”, “GAUGE NO. 1”,
“ECU− IG NO. 1”, “FR WIP”, “RR
WIP”, “WASHER”, “HEATER”,
“SEAT HTR”, “ECU −IG NO. 2”,
“P/SEAT”, “PWR”, “TI&TE”, “RR
DOOR LH”, “RR DOOR RH”,
“MPX− B”, “AM1”, “DOOR NO.
2”, “STOP”, “OBD”, “FUEL
OPN”, “AIRSUS” (7.5 A),
“S/ROOF”, “FR DEF” and “RR
FOG” fuses
4 PBD30Power back door
5 HLP
CLN/MSB30Headlight cleaner
6 HLP CLN30Headlight cleaner

ELECTRICAL COMPONENTS
597
No.FUSEAMPERECIRCUIT
7 ABS NO. 130
Anti−lock brake system, vehicle
stability control system, traction
control system, brake assist
system
8 RR DEF40Rear window defogger
9 HEATER50Air conditioning system, rear
window defogger
10 DRL7.5Daytime running light system
11 HLP L
LW R15Left− hand headlight (low beam)
12 HLP L
UPR15Left− hand headlight (high beam)
13 HLP R
UPR15Right− hand headlight (high
beam)
14 PWR
OUTLET
NO. 220Power outlet
15 TOWING30Trailer lights
16 ABS NO. 250
Anti− lock brake system, vehicle
stability control system, traction
control system, brake assist
system
No.FUSEAMPERECIRCUIT
17 RDI FAN50Electric cooling fan
18 HAZ15Turn signal lights
19 CRT7.5Audio system
20 ALTS7.5Charging system
21 ETCS10Multiport fuel injection
system/sequential multiport fuel
injection system
22 HORN10Horns
23 MAIN40
Daytime running light system,
left− hand headlight, right− hand
headlight, all components in
“H− LP R LWR”, “H −LP R UPR”,
“H− LP L UPR”, “H− LP L LWR”
and “DRL” fuses
24 AM230Starting system, all components
in “GAUGE NO. 2”, “IGN” and
“INJ” fuses
25 RADIO
NO. 115Audio system, navigation system

ELECTRICAL COMPONENTS
598
No.FUSEAMPERECIRCUIT
26 ECUB7.5
Power window, multiplex
communication system, gauge
and meters, instrument cluster
lights, instrument panel lights, air
conditioning system, garage
door opener, illuminated entry
system, wireless remote control
system, power back door, driving
position memory system,
navigation system display, moon
roof, tilt and telescopic steering,
power seats, outside rear view
mirror, windshield wipers
27 DOME7.5
Gauge and meters, personal
lights, vanity lights, door
courtesy lights, inside door
handle lights, ignition switch
light, foot lights, scuff plate lights,
luggage compartment light,
interior light
28 TEL7.5No circuit
29 AMP30Audio system
30 DOORNO. 125Multiplex communication system
No.FUSEAMPERECIRCUIT
31 A/F25Multiport fuel injection
system/sequential multiport fuel
injection system
32 EFI NO. 125
Multiport fuel injection
system/sequential multiport fuel
injection system and all
components in “EFI NO. 2” fuse
33 HLP R LW R15Right− hand headlight (low beam)
34 EFI NO. 210Multiport fuel injection
system/sequential multiport fuel
injection system
35 RR DOOR
RH20Rear right side power window
36 RR DOOR LH20Rear left side power window
37 FUELOPN7.5Fuel filler door opener
38 FR FOG15Front fog lights
39 OBD7.5On− board diagnosis system
40 FR DEF25Windshield wiper de −icer and all
components in “MIR HTR” fuse

ELECTRICAL COMPONENTS
599
No.FUSEAMPERECIRCUIT
41 STOP10
Tail lights, high mounted
stoplight, rear light failure
warning light, anti−lock brake
system, vehicle stability control
system, traction control system,
brake assist system,
electronically modulated air
suspension, shift lock control
system, multiport fuel injection
system/sequential multiport fuel
injection system
42 TI&TE30Tilt and telescopic steering
43 MPXB7.5No circuit
44 AM17.5Starter system
45 RR FOG7.5No circuit
46 AIR SUS7.5Electronically modulated air
suspension
47 DOOR
NO. 225Multiplex communication system
48 S/ROOF30Moon roof
No.FUSEAMPERECIRCUIT
49 TAIL10
Front fog lights, instrument
cluster lights, instrument panel
lights, front side marker lights,
tail lights, license plate lights,
towing converter
50 PANEL7.5
Glove box light, instrument
cluster lights, instrument panel
lights, console box light, audio
system, power outlet, garage
door opener switch,
electronically controlled
automatic transmission system,
headlight cleaner, electronically
modulated air suspension, seat
heaters, steering switches,
power back door
