IMPORTANT INFORMATION ABOUT THIS MANUAL
vi
Important health and safety information about
your Lexus
CAUTION
WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
 Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.
Accessories, spare parts and modification of
your Lexus
A wide variety of non −genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair or replacement,
or for any damage they may cause to, or adverse effect they
may have on, your Lexus vehicle.
This vehicle should not be modified with non −genuine Lexus
products. Modification with non −genuine Lexus products
could af fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference− Causing
Equipment Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti −lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.

HOW TO USE THIS MANUAL
ix
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner ’s Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.

SWITCHES
50Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (“AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, the headlight beam level is always
maintained automatically by the system at the proper level so
that your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension, contact your Lexus dealer
to check the automatic headlight leveling system and headlight
beam level.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
74
SERVICE REMINDER INDICATORSAND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON...DO THIS.
(a)or
(indicator and buzzer)If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(indicator and buzzer)
Fasten driver’s seat
belt.
(c)Fasten front
passenger’s seat belt.
(d)Take vehicle to Lexus
dealer immediately.
(e)Stop immediately and
contact Lexus dealer.
IF THIS INDICATOR OR BUZZER COMES ON...DO THIS.
(f)Stop and check.
(g)Replace engine oil.
(h)orTake vehicle to Lexus
dealer.
(i)or
Take vehicle to Lexus
dealer.
If brake system
warning light is also
on, stop immediately
and contact Lexus
dealer.
(j)
13RY028
(indicator and buzzer)
Close all side doors
and back door.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
76
(a) Brake System Warning Light and Buzzer
This light comes on in the following cases when the ignition key
is in the “ON” position.
 When the parking brake is applied...
This light comes on for a few seconds when the ignition key is
turned to the “ON” position even after the parking brake is
released.
If the vehicle speed rises above 5 km/h (3 mph) with the parking
brake applied, a buzzer sounds.
 When the brake fluid level is low...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
Have your vehicle checked at your Lexus dealer in the
following case:
The light does not come on even if the parking brake is
applied when the ignition key is in the “ON” position.
 The light does not come on even if the ignition key is turned
on with the parking brake released. A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If either of the following conditions occurs, immediately
stop your
vehicle at a safe place and contact your Lexus
dealer.
 The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
 The brake system warning light remains on together
with the “ABS” warning light.
In this case, not only the antilock brake system will
fail but also the vehicle will become extremely
unstable during braking.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
78
(e) Charging System Warning Light
This warning light comes on when the ignition switch is turned
to the “ON” position, and goes off when the engine is started.
When there are problems in the charging system while the
engine is running, the warning light comes on.
NOTICE
When the charging system warning light comes on
while the engine is running, malfunctions such as the
engine drive belt being broken may have occurred. If
the warning light comes on, immediately stop the
vehicle in a safe place and contact your Lexus dealer.
(f) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.
The light may occasionally flicker when the engine is idling or
it may come on briefly after a hard stop. There is no cause for
concern if it then goes out when the engine is accelerated
slightly.
The light may come on when the oil level is extremely low. It
is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on —
even for one block. It may ruin the engine.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
80
(h) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
“ON” position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
 Empty fuel tank
If the fuel tank is empty, refuel immediately.
 Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your
Lexus dealer as soon as possible. If the fuel tank is not empty or the fuel tank cap is not
loose...

There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in the
electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to the “ACC” or “LOCK” position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.

AIR CONDITIONING
251

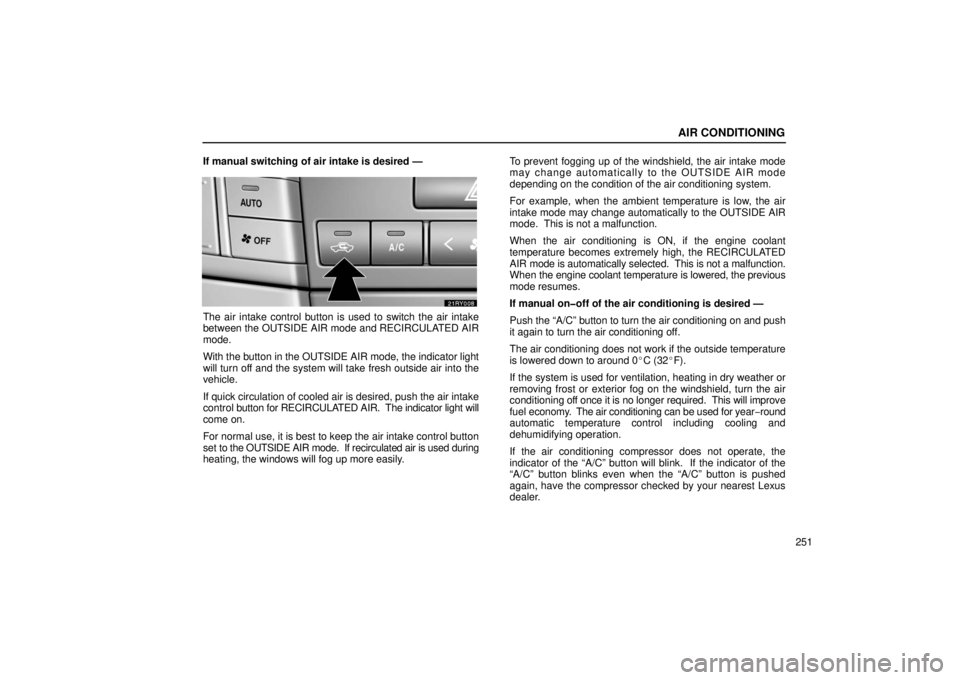

If manual switching of air intake is desired —
The air intake control button is used to switch the air intake
between the OUTSIDE AIR mode and RECIRCULATED AIR
mode.
With the button in the OUTSIDE AIR mode, the indicator light
will turn off and the system will take fresh outside air into the
vehicle.
If quick circulation of cooled air is desired, push the air intake
control
button for RECIRCULATED AIR. The indicator light will
come on.
For normal use, it is best to keep the air intake control button
set to the OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily. To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.
When the air conditioning is ON, if the engine coolant
temperature becomes extremely high, the RECIRCULATED
AIR mode is automatically selected. This is not a malfunction.
When
the engine coolant temperature is lowered, the previous
mode resumes.
If manual onoff of the air conditioning is desired —
Push the “A/C” button to turn the air conditioning on and push
it again to turn the air conditioning off.
The air conditioning does not work if the outside temperature
is lowered down to around 0 C (32F).
If the system is used for ventilation, heating in dry weather or
removing frost or exterior fog on the windshield, turn the air
conditioning off once it is no longer required. This will improve
fuel economy. The air conditioning can be used for year− round
automatic temperature control including cooling and
dehumidifying operation.
If the air conditioning compressor does not operate, the
indicator of the “A/C” button will blink. If the indicator of the
“A/C” button blinks even when the “A/C” button is pushed
again, have the compressor checked by your nearest Lexus
dealer.

AIR CONDITIONING
257
(d) Side vents and rear vents
Side vents
Rear vents If air flow control is not satisfactory, check the side vents
and rear vents. The side vents and rear vents may be
opened or closed as shown.
When
outside temperature is cold like a winter season, air flow
temperature from the side vents and rear vents may not be
warmed up enough for a while until that the engine coolant
temperature becomes high enough.
If air flow from the side vents and rear vents is not satisfactory,
air flow direction can be changed manually by adjusting the
vents fin direction or the vents may be closed.

STARTING AND DRIVING
383
NOTICE
A large amount of unburned gases flowing into the
threeway catalytic converter may cause it to overheat
and create a fire hazard. To prevent this and other
damage, observe the following precautions:
 Use only unleaded gasoline.
 Do not drive with an extremely low fuel level; running
out of fuel could cause the engine to misfire, creating
an excessive load on the threeway catalytic
converter.
 Do not allow the engine to run at idle speed for more
than 20 minutes.
 Avoid racing the engine.
 Do not pushstart or pullstart your vehicle.
 Do not turn off the ignition while the vehicle is
moving.
 Keep your engine in good running order.
Malfunctions in the engine electrical system,
electronic ignition system or fuel system could cause
an extremely high threeway catalytic converter
temperature.
 If the engine becomes difficult to start or stalls
frequently, take your vehicle in for a checkup as
soon as possible. Remember, your Lexus dealer
knows your vehicle and its threeway catalytic
converter system best.
 To ensure that the threeway catalytic converter and
the entire emission control system operate properly,
your vehicle must receive the periodic inspections
required by the Lexus Maintenance Schedule. For
scheduled maintenance information, refer to the
“Owner’s Manual Supplement / Scheduled
Maintenance”.
