5
When trouble arises
8015-2. Steps to take in an emergency
NOTICE■
When adding engine coolant
Wait until the engine has cooled do wn before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).●
Do not use any coolant additives.

8025-2. Steps to take in an emergency

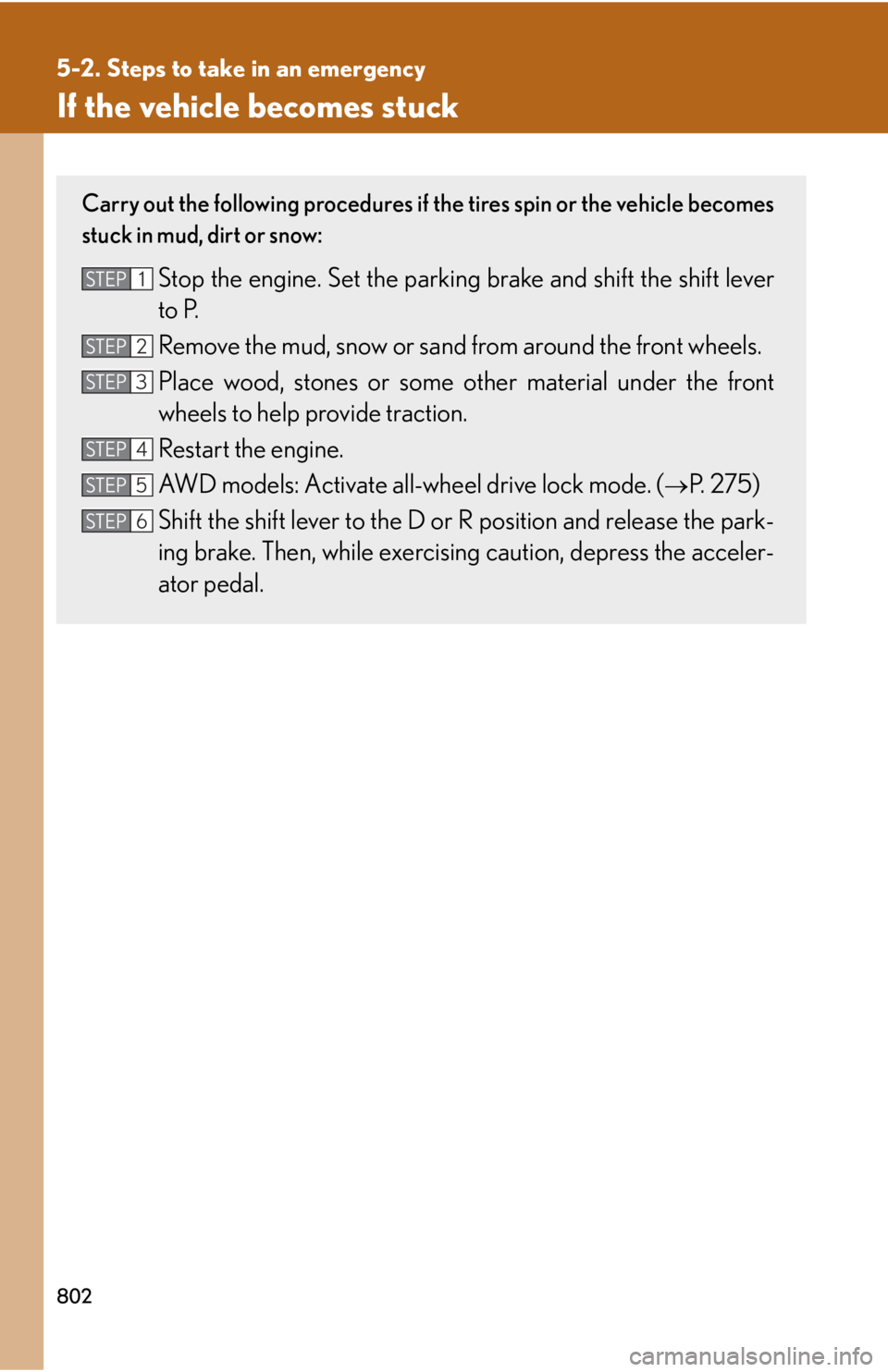

If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Stop the engine. Set the parking brake and shift the shift lever
to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some ot her material under the front
wheels to help provide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. ( 
P. 275)
Shift the shift lever to the D or R position and release the park-
ing brake. Then, while exercising caution, depress the acceler-
ator pedal.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

5
When trouble arises
8035-2. Steps to take in an emergency
■
When it is difficult to free the vehicle
CAUTION■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid st riking other vehicl es, objects or people. The vehicle may
also lunge forward or lunge back sudden ly as it becomes free. Use extreme cau-
tion.■
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE■
To avoid damage to the tran smission and other components●
Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.
●
If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed. Press the VSC off switch to turn off TRAC.

8045-2. Steps to take in an emergency

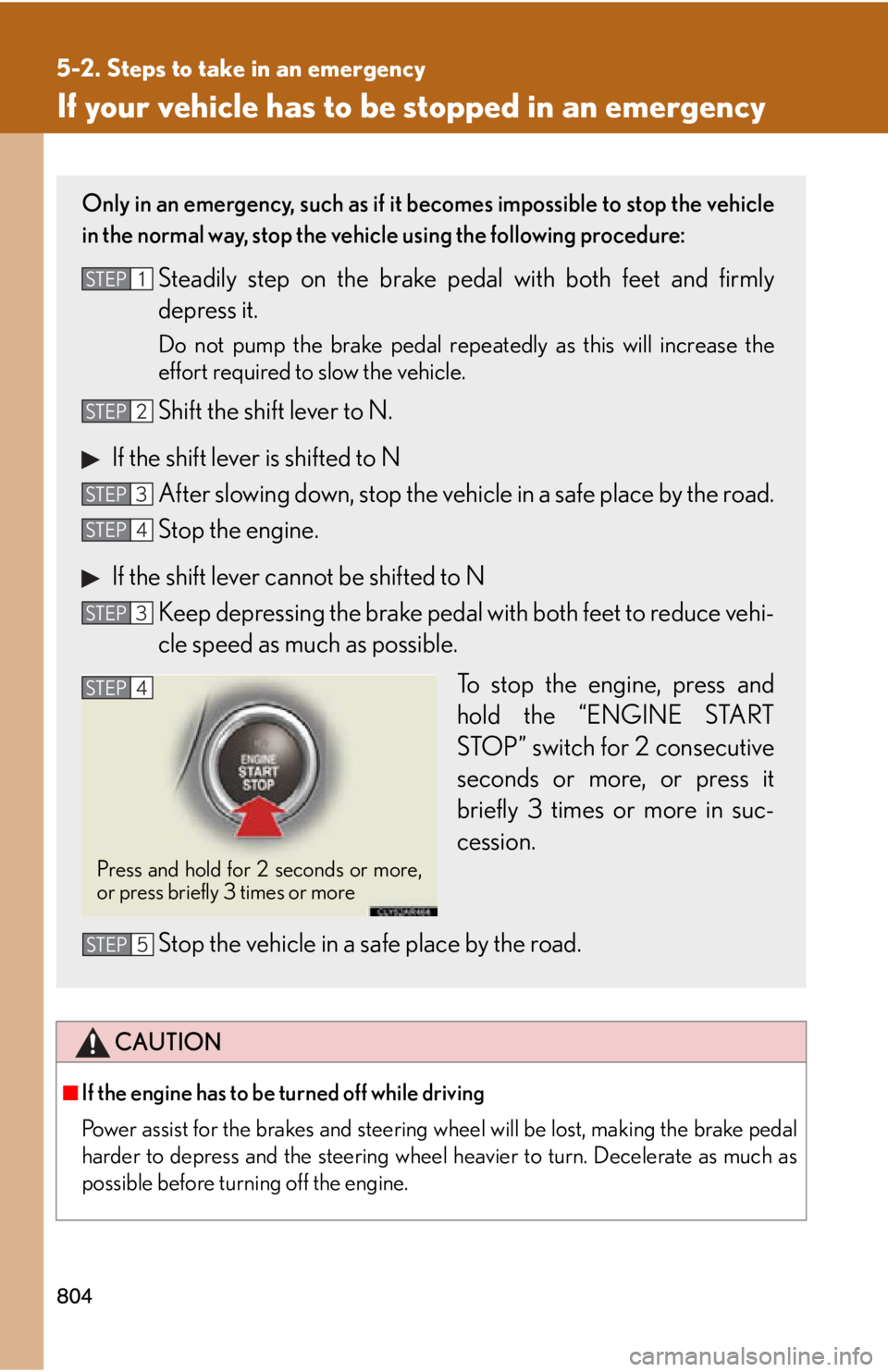

If your vehicle has to be stopped in an emergency
CAUTION
■
If the engine has to be turned off while driving
Power assist for the brakes and steering wh eel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pe dal with both feet and firmly
depress it. Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicl e in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
To stop the engine, press and
hold the “ENGINE START
STOP” switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP 5

5
When trouble arises
8055-2. Steps to take in an emergency

8065-2. Steps to take in an emergency

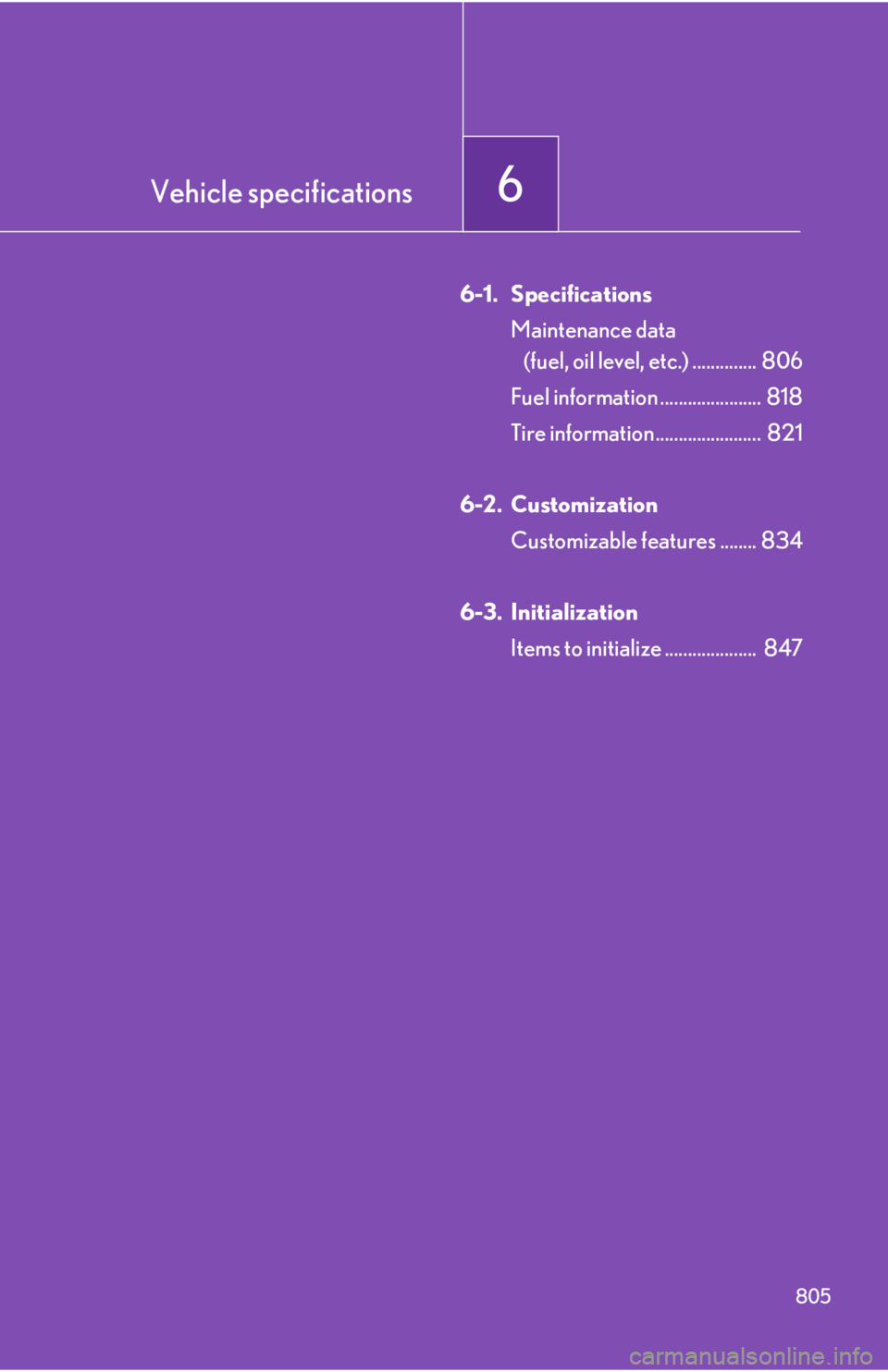

Vehicle specifications
6
8056-1. Specifications
Maintenance data
(fuel, oil level, etc.) .............. 806
Fuel information ...................... 818
Tire information....................... 821
6-2. Customization
Customizable features ........ 834
6-3. Initialization
Items to initialize .................... 847

8066-1. Specifications

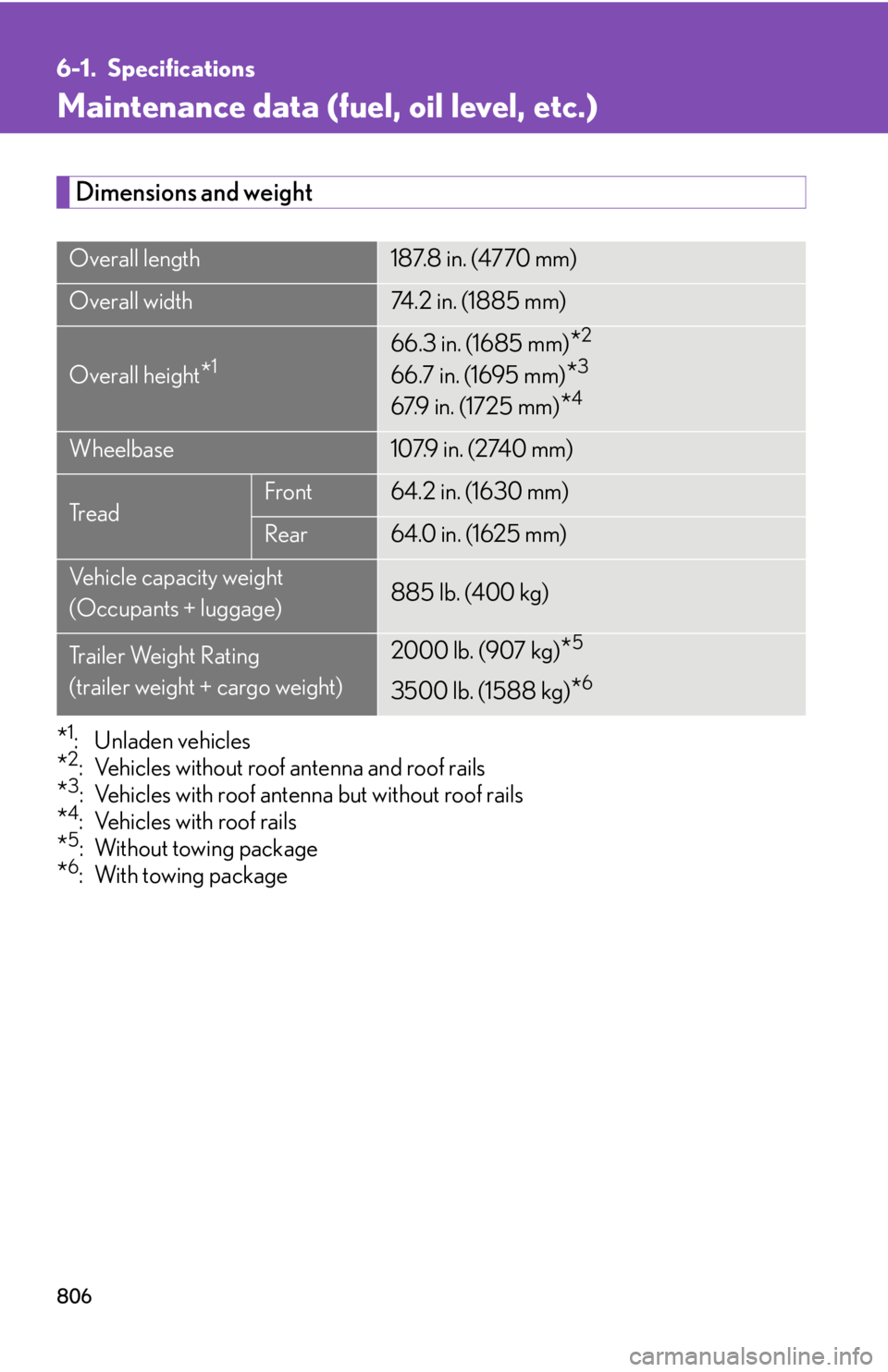

Maintenance data (fue l, oil level, etc.)Dimensions and weight
* 1
: Unladen vehicles
* 2
: Vehicles without roof antenna and roof rails
* 3
: Vehicles with roof antenna but without roof rails
* 4
: Vehicles with roof rails
* 5
: Without towing package
* 6
: With towing packageOverall length 187.8 in. (4770 mm)
Overall width 74.2 in. (1885 mm)
Overall height
* 1
66.3 in. (1685 mm)
* 2
66.7 in. (1695 mm)
* 3
67.9 in. (1725 mm)
* 4
Wheelbase 107.9 in. (2740 mm)
Tr e a d Front 64.2 in. (1630 mm)
Rear 64.0 in. (1625 mm)
Vehicle capacity weight
(Occupants + luggage) 885 lb. (400 kg)
Trailer Weight Rating
(trailer weight + cargo weight) 2000 lb. (907 kg)
* 5
3500 lb. (1588 kg)
* 6

8076-1. Specifications
6
Vehicle specifications Vehicle identification
■ Vehicle identification number
The vehicle identification number (V IN) is the legal id entifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel. On some mod-
els, this number is also stampe d under the front passenger seat.
This number is also on the Certifi-
cation Label.
■ Engine number
The engine number is stamped on
the engine block as shown.

8086-1. Specifications

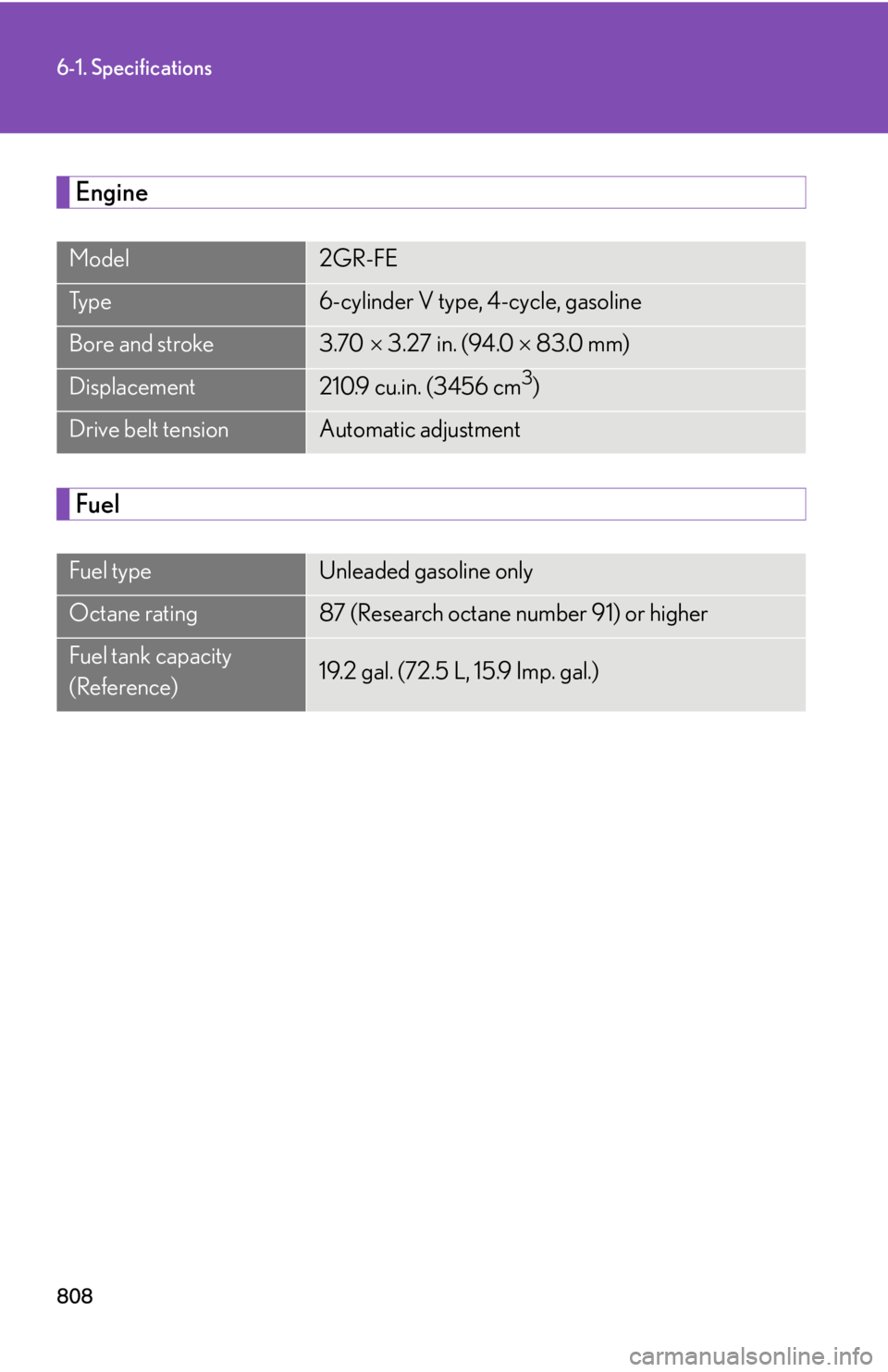

Engine
FuelModel 2GR-FE
Ty p e 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm 3
)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 19.2 gal. (72.5 L, 15.9 Imp. gal.)
