Page 15 of 516

15Pictorial index
Parking brake switch .............................................................................................P.185
Applying/releasing ........................................................................................................... P.185
Precautions for winter season .. ................................................................................... P.284
Warning buzzer/messages.......................................................................................... P.422
Turn signal lever ......................................................................................................P.184
Headlight switch......................................................................................................P.190
Headlights/side marker lights/parking lights/tail lights/license plate lights/daytime
running lights ................................................................................................................. ...... P.190
Fog lights
*1............................................................................................................................ P.1 95
Windshield wiper and washer switch ..................................................... P.196, 200
Usage.......................................................................................................................... .P.196, 200
Adding washer fluid ......................................................................................................... P.3 70
Warning messages .......................................................................................................... P.422
Emergency flasher switch ...................................................................................P.404
Hood lock release lever .......................................................................................P.363
Tilt and telescopic steering contro l switch................................ ......................P.140
Adjustment ..................................................................................................................... ...... P.140
Driving position memory
*1............................................................................................. P.134
Air conditioning system ....................................................................................... P.296
Usage..................................................................................................................................... P.296
Rear window defogger................................................................................................... P.296
Audio system
*2
*1
: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
Page 16 of 516

16Pictorial index
■Switches
Automatic High Beam switch.............................................................................. P.193
Power back door switch........................................................................................P.103
HUD (Head-up display) switch
*1..........................................................................P.87
Instrument panel light control switches .............................................................P.78
“ODO TRIP” switch .................................................................................................P.78
Camera switch
*1, 2
Heated steering wheel switch*1........................................................................... P.311
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
Page 17 of 516

17Pictorial index
Driving position memory switches*................................................................... P.134
Outside rear view mirror switches .................................................................... P.142
Door lock switches ...................................................................................................P.99
Power window switches ........................................................................................ P.145
Window lock switch ............................................................................................... P.147
*:If equipped
Audio remote control switches
*
Paddle shift switches ..............................................................................................P.182
Meter control switches .......................................................................................... P.80
Vehicle-to-vehicle distance switch ..................................................................P.234
Cruise control switch........................................................................................... P.230
LTA (Lane Tracing Assist) switch ..................................................................... P.223
Talk switch
*
Phone switch*
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
A
B
C
D
E
F
G
H
Page 18 of 516

18Pictorial index
Remote Touch*1..................................................................................................... P.290
Driving mode select switch ................................................................................. P.274
VSC OFF switch..................................................................................................... P.279
All-wheel drive lock switch
*2............................................................................. P.276
Wireless charger switch
*2................................................................................. P.328
Front seat heater switches
*2................................................................................ P.311
Seat ventilator switches
*2....................................................................................P.312
Brake hold switch ................................................................................................... P.188
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
A
B
C
D
E
F
G
H
Page 79 of 516

792-1. Instrument cluster
2
Vehicle status information and indicators
■Display
Except F SPORT models
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
F SPORT models
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
■Menu icons
Select a menu icon to display its con-
tent.
■Liquid crystal display
P.77
Multi-information display
Display and menu icons
Driving information ( P.80)
Navigation system-linked dis-
play (if equipped) ( P.83)
Audio system-linked display
( P.83)
Driving assist system informa-
tion ( P.83)
Warning message display
( P.422)
Settings display ( P.83)
WARNING
■Caution for use while driving
●When operating the multi-information
display while driving, pay extra atten-
tion to the safety of the area around the
vehicle.
●Do not look continuously at the
multi-information display while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.
Page 80 of 516

802-1. Instrument cluster
The multi-information display is oper-
ated using the meter control switches.: Select menu icons
: Change displayed content,
scroll up/down the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of the selected menu icon.
Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display
Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-fr ee system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
■Registering a top screen
The displayed top screen can be
changed to a registered screen of your
choice. To register a screen as the top
screen, display the desired screen and
press and hold .
A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.
When no screen has been regis-
tered, the drive information screen
will be displayed.
■Content displayed as drive infor-
mation
Displays drive information such as the
following:
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be
changed on . ( P.83)
Current fuel consumption
Displays instantaneous current fuel con-
sumption
WARNING
■The information display at low tem-
peratures
P.77

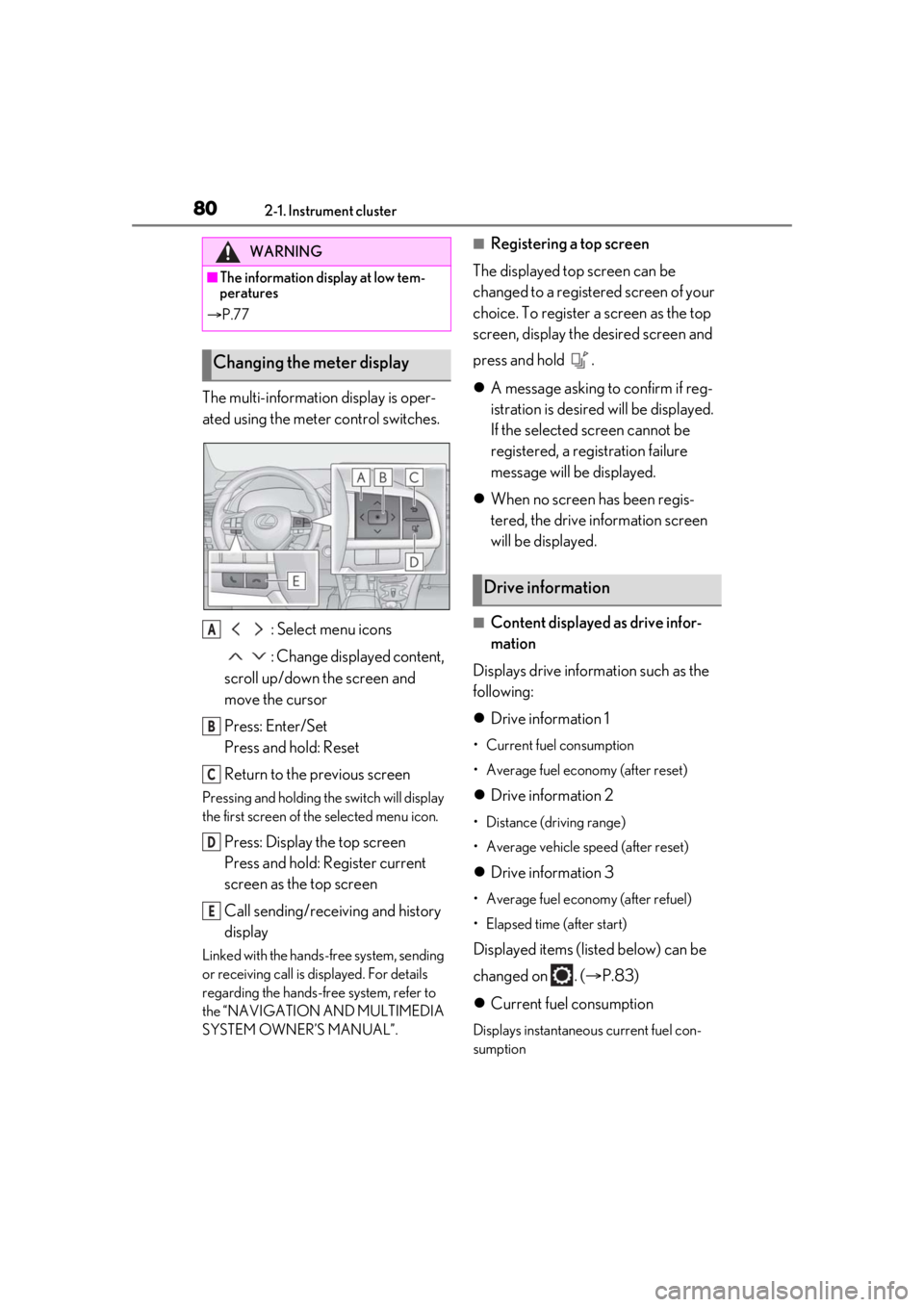

Changing the meter display
A
B
C
D
E
Drive information
Page 83 of 516

832-1. Instrument cluster
2
Vehicle status information and indicators
tire inflation pressure after the engine
switch is turned to IGNITION ON mode.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
• “---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
• Tire inflation pressure changes with tem- perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
Select to display the following naviga-
tion system-linked information.
Route guidance
Compass display (heading-up dis-
play)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the operational status
of the following systems:
LTA (Lane Tracing Assist) ( P.218)
RSA (Road Sign Assist) (if
equipped) ( P.227)
Dynamic radar cruise control with
full-speed range ( P.230)
■Meter display settings that can be
changed
Clock
Select to switch between 12-hour display
and 24-hour display.
Language
Select to change the language displayed.
Units
Select to change the units of measure dis-
played.
Eco Driving Indicator Light
( P.81)
Select to enable/disable the Eco Driving
Indicator Light.
Switch settings
Select to display how to change the top
screen.
Drive information 1/Drive informa-
tion 2/Drive information 3
Select to select up to 2 items ( P.80) that
will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.
Pop-up display
Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls
• Brightness adjustment
Color (except F SPORT models)
Select to set the color of the cursor on the
multi-information display.
Needle (F SPORT models)
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system information
Settings display
Page 86 of 516

862-1. Instrument cluster
*:If equipped
Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.
Navigation system-linked display area (if equipped) ( P.89)
Message display area ( P.89)
Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Displays the following item, which ar e linked to the navigation system:
•Street name
/ icon ( P.88)
Driving assist system status display area (if equipped)
Displays the operational stat us of the following systems:
• Dynamic radar cruise control with full-speed range ( P.230)
• LTA (Lane Tracing Assist) ( P.218)
• Intuitive parking assist ( P.247)
• Parking Support Brake function (for static objects) (P.264)
Displayed content is the same as that displaye d on the multi-information display. For details,
Head-up display*
The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guidance to a set destination.

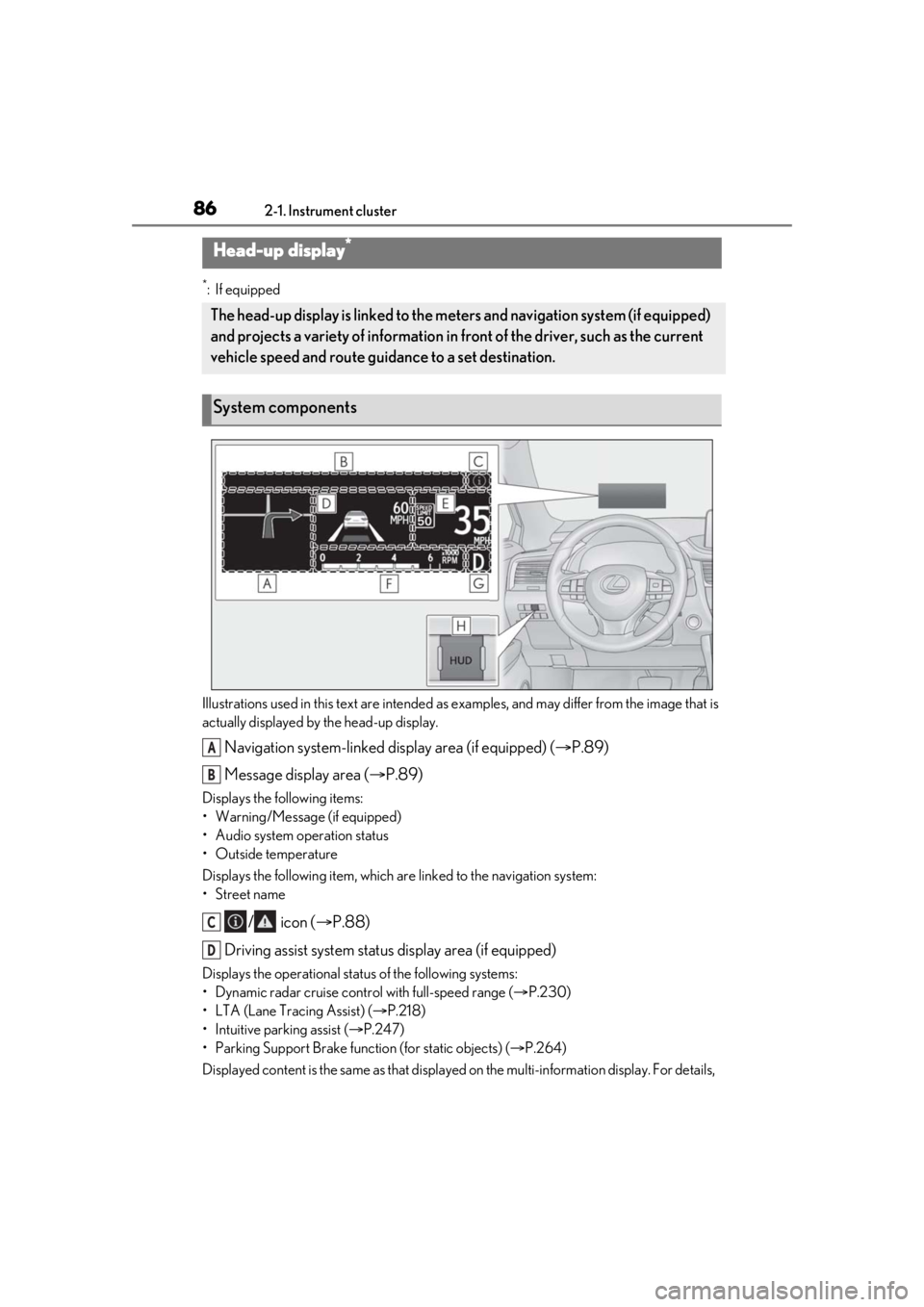

System components
A
B
C
D
Page 87 of 516

872-1. Instrument cluster
2
Vehicle status information and indicators
refer to the explanations of each system.

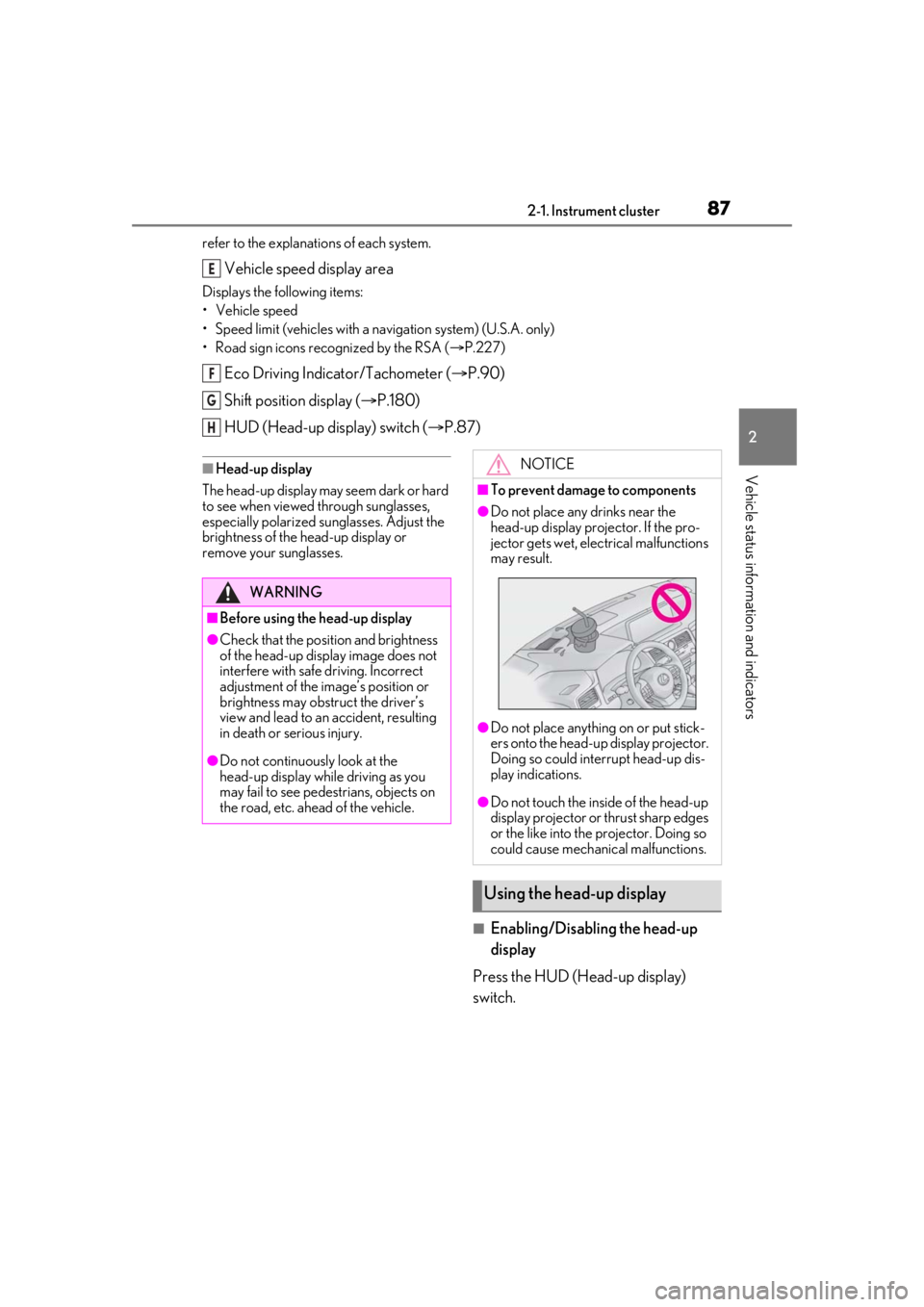

Vehicle speed display area
Displays the following items:
• Vehicle speed
• Speed limit (vehicles with a navigation system) (U.S.A. only)
• Road sign icons recognized by the RSA ( P.227)
Eco Driving Indicator/Tachometer ( P.90)
Shift position display ( P.180)
HUD (Head-up display) switch ( P.87)
■Head-up display
The head-up display may seem dark or hard
to see when viewed through sunglasses,
especially polarized su nglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.
■Enabling/Disabling the head-up
display
Press the HUD (Head-up display)
switch.
E
F
G
H
WARNING
■Before using the head-up display
●Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury.
●Do not continuously look at the
head-up display while driving as you
may fail to see pedestrians, objects on
the road, etc. ahead of the vehicle.
NOTICE
■To prevent damage to components
●Do not place any drinks near the
head-up display projector. If the pro-
jector gets wet, electrical malfunctions
may result.
●Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
●Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector. Doing so
could cause mechanical malfunctions.
Using the head-up display
Page 89 of 516

892-1. Instrument cluster
2
Vehicle status information and indicators
( P.422)
: Information icon
Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. ( P.84)
Displays the following items in the
appropriate situation:
■Warning/Message (if equipped)
Displays the following system warn-
ing/messages:
PCS (Pre-Collision System)
( P.211)
Parking Support Brake function (for
static objects) ( P.264)
Dynamic radar cruise control with
full-speed range ( P.230)
Brake Override System ( P.157)
Drive-Start Control ( P.157)
Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.
■Audio system operation status
Displayed when the audio system is
operated.
■Outside temperature
Displayed in the following situations:
When the engine switch is turned to
IGNITION ON mode
When the low outside temperature
indicator is flashing
Displayed content is the same as that displayed on the multi-information dis-
play. For details, refer to the explana-
tion of the outside temperature display
on the multi-information display.
(
P.77)
Displays the following items which are
linked to the navigation system:
■Street name
The name of the street that the vehicle
is currently driving on is displayed on
the bottom of the display area.
When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.
■Street name display (vehicles with a nav-
igation system)
Only street names which are included in the
map data will be displayed.
Displays the following items which are
linked to the navigation system:
■Route guidance to destination
Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
gested direction of travel.
■Compass
Displays the direction of travel.
Message display area
Navigation system-linked dis-
play area (if equipped)
